Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

191 part groups · 35 illustrations

Illustrations

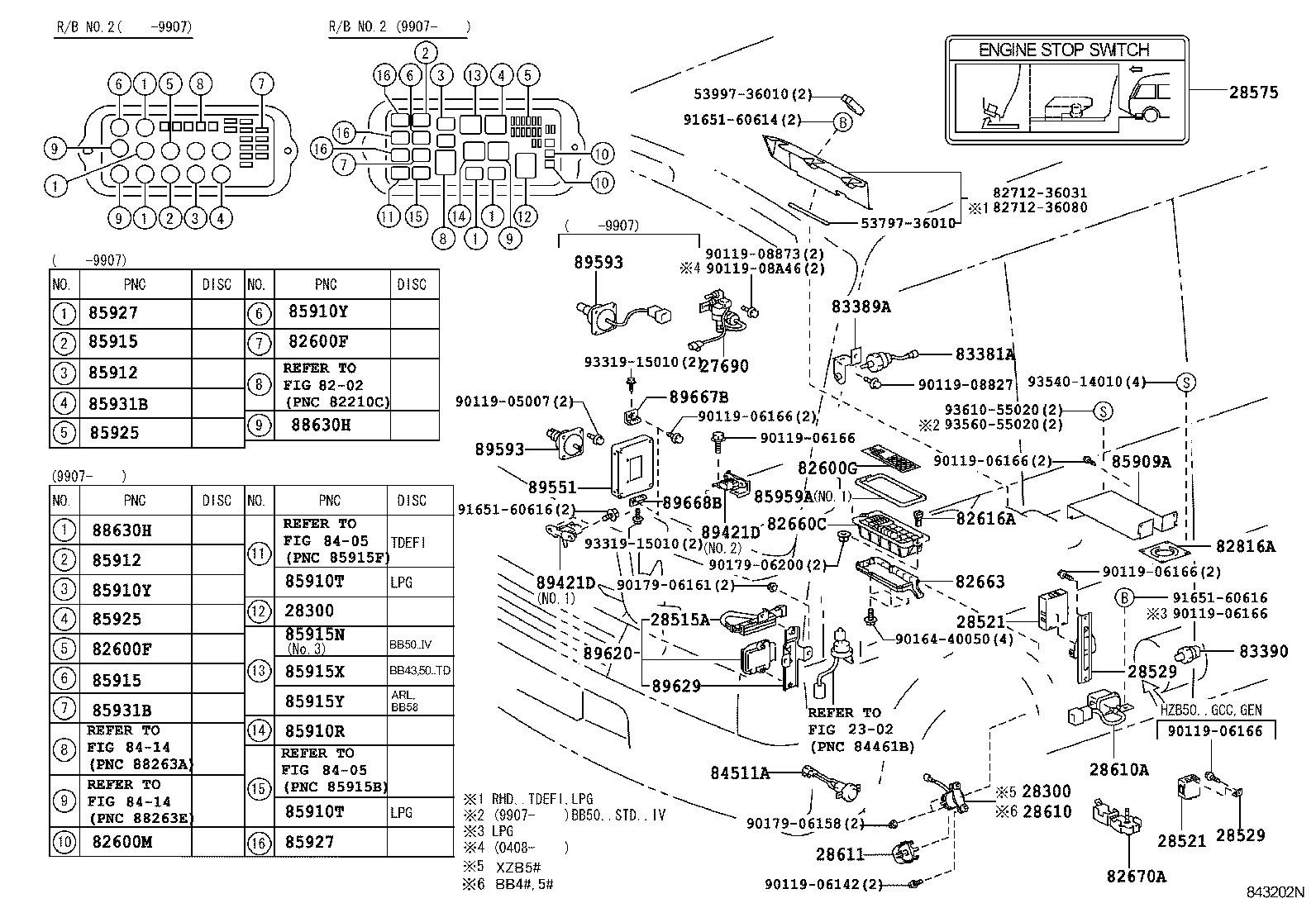

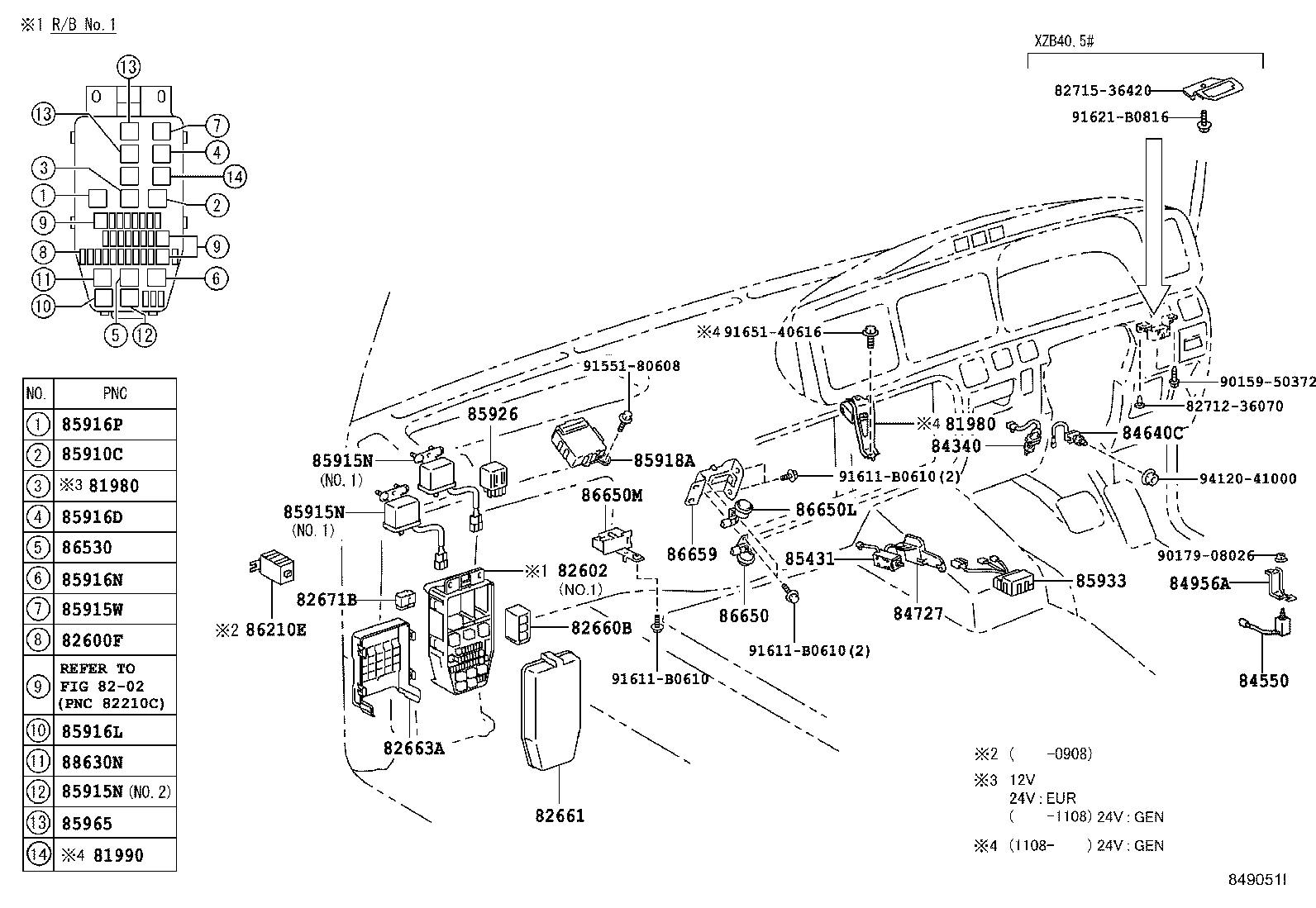

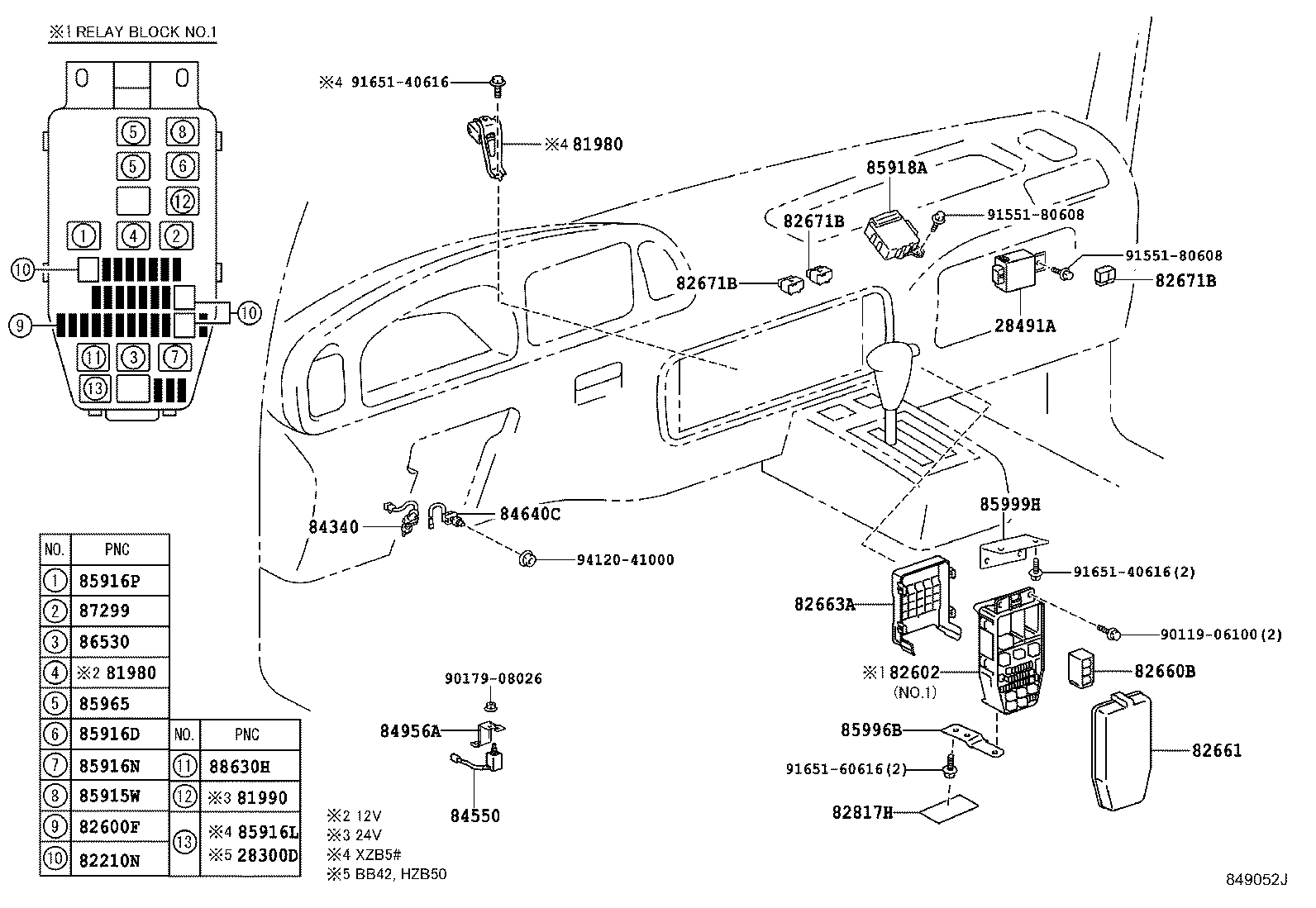

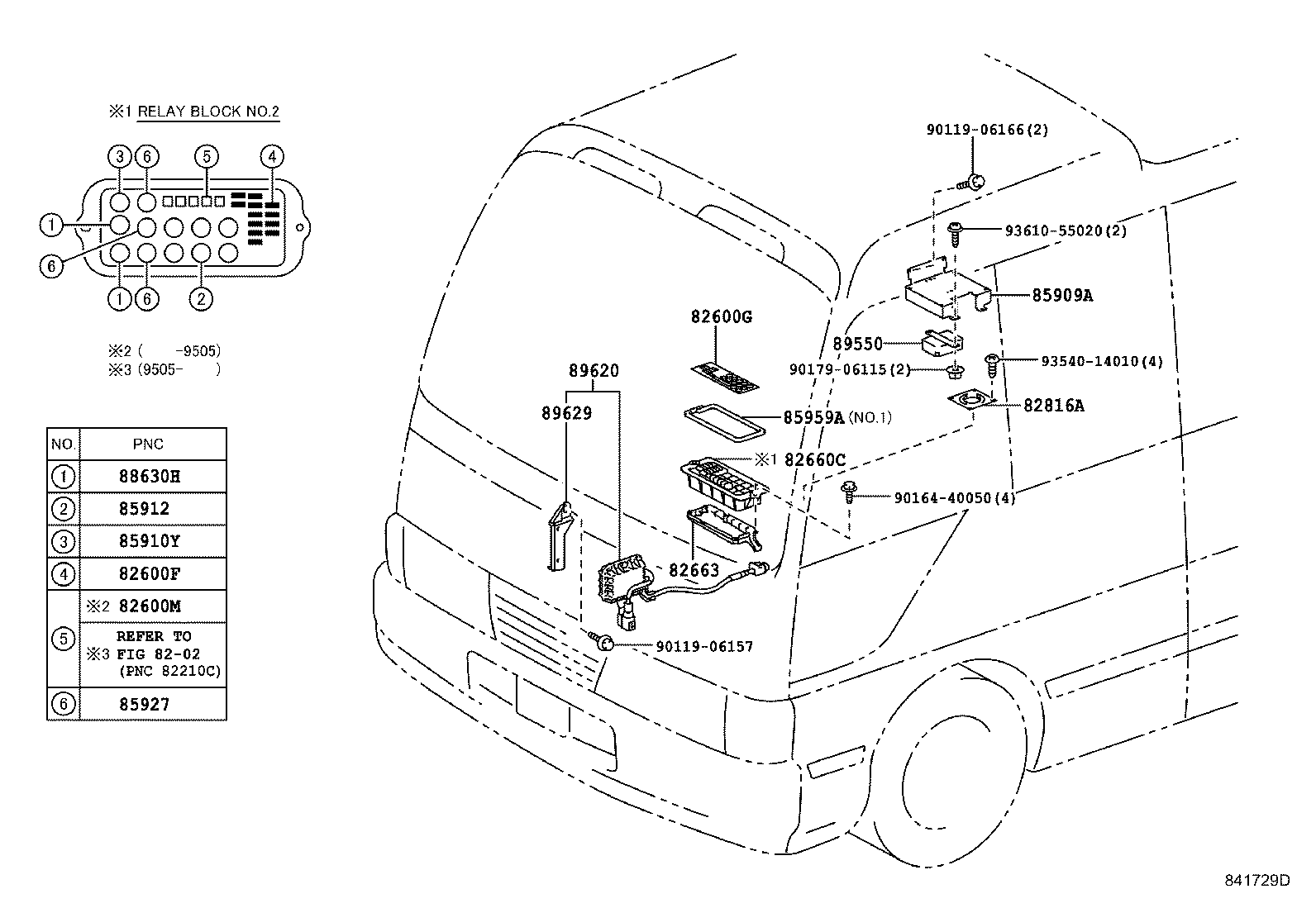

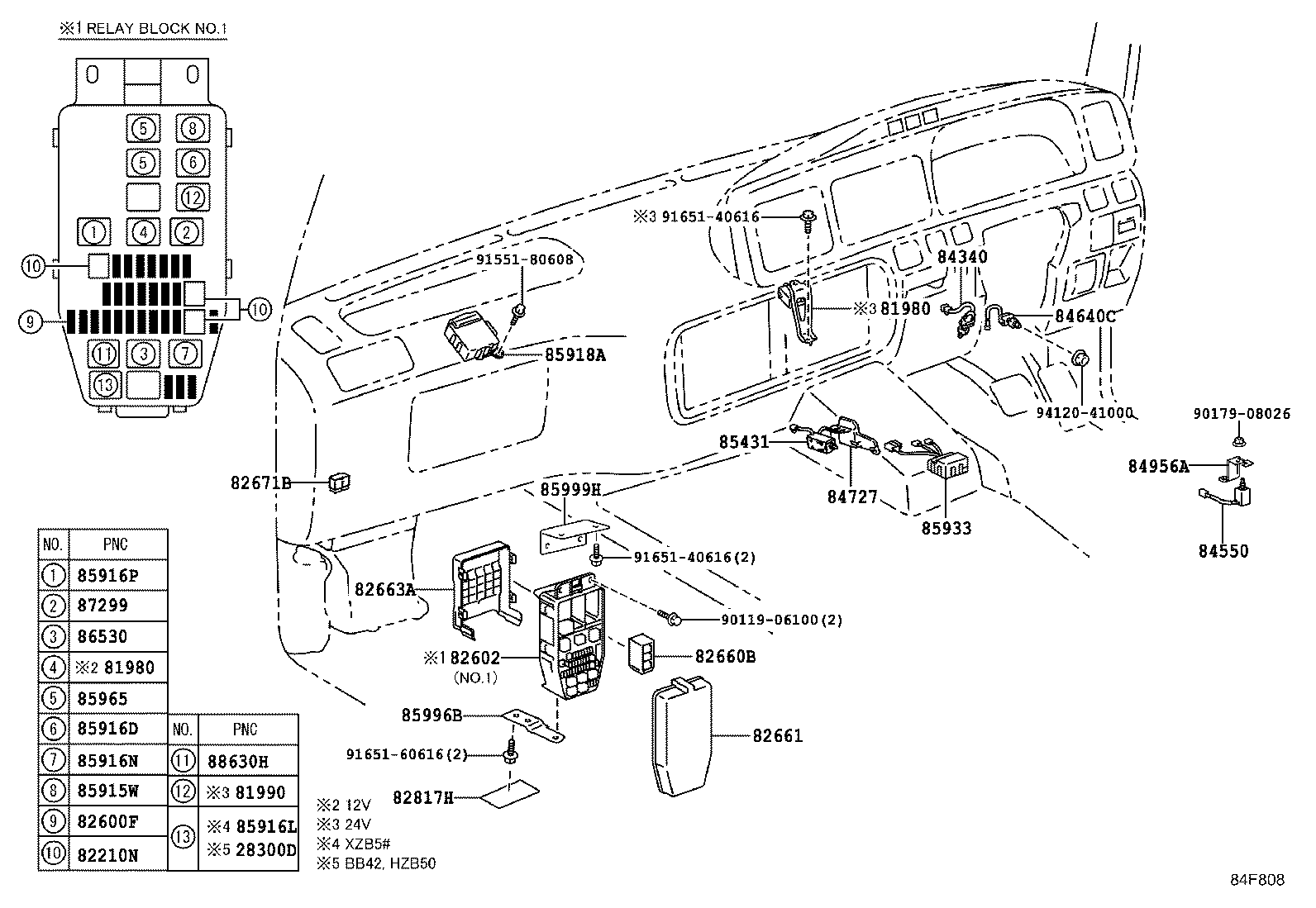

Figure 841731D 841731D 1993-01 → — Figure 841720F 841720F 1996-05 → 2015-01 Figure 842809E 842809E 1999-07 → 2006-08 Figure 841721F 841721F 1993-01 → — Figure 841722B 841722B 1993-09 → 2007-08 Figure 844701A 844701A 2001-08 → 2007-08 Figure 849042A 849042A 2007-08 → — Figure 848217E 848217E 2006-08 → 2015-01 Figure 84F758E 84F758E 2015-01 → — Figure 849043A 849043A 2007-08 → — Figure 841723L 841723L 1993-01 → 2007-08 Figure 849054H 849054H 2007-08 → — Figure 841724P 841724P 1993-01 → 2007-08 Figure 849040E 849040E 2007-08 → — Figure 841725K 841725K 1993-01 → 1999-07 Figure 842810U 842810U 1999-07 → 2007-08 Figure 849051I 849051I 2007-08 → 2015-01 Figure 84F808 84F808 2015-01 → — Figure 841726L 841726L 1993-01 → 1999-07 Figure 842811T 842811T 1999-07 → 2007-08 Figure 849052J 849052J 2007-08 → 2015-01 Figure 84F809 84F809 2015-01 → — Figure 841727H 841727H 1993-01 → 2004-08 Figure 849036E 849036E 2004-08 → — Figure 84F739A 84F739A 2004-08 → — Figure 841728I 841728I 1993-01 → 1997-05 Figure 841729D 841729D 1993-09 → 1997-05 Figure 843203D 843203D 1997-05 → 2007-08 Figure 843202N 843202N 1997-05 → 2007-08 Figure 849053E 849053E 2007-08 → — Figure 842636G 842636G 1993-01 → 1999-07 Figure 842636G 842636G 1999-07 → 2006-08 Figure 842812S 842812S 1999-07 → 2015-01 Figure 84F799B 84F799B 2015-01 → — Figure 84F798 84F798 1993-01 → —

Part groups

PNCDescription

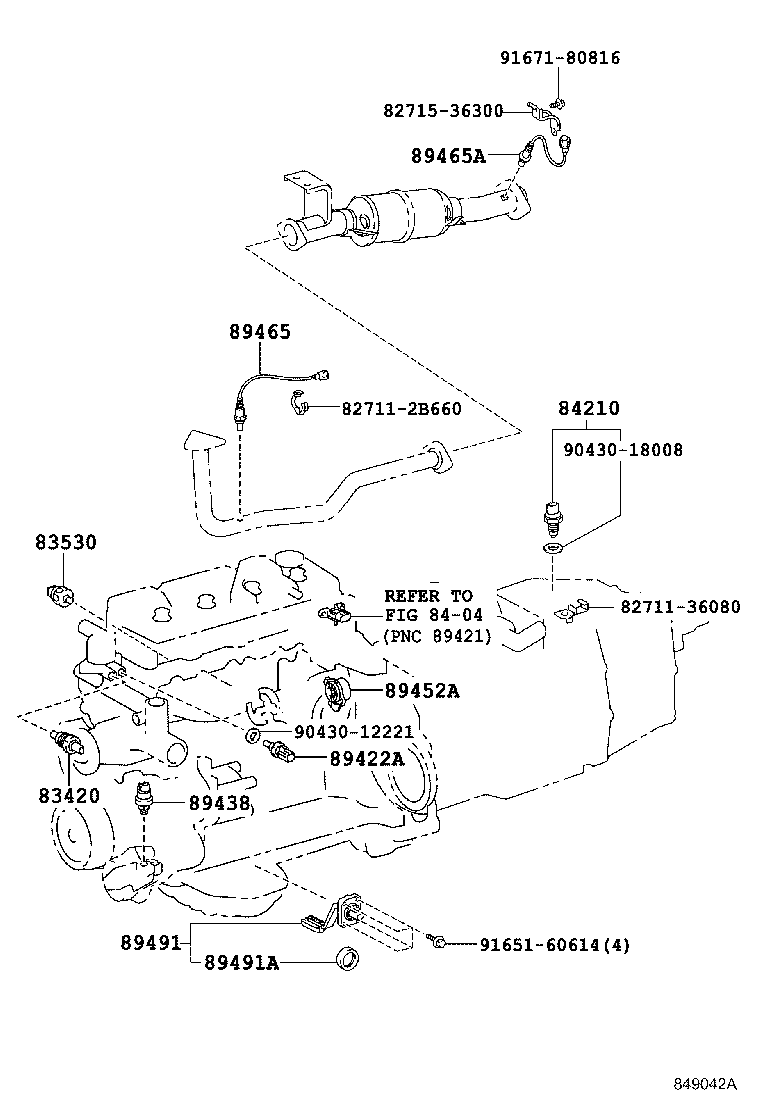

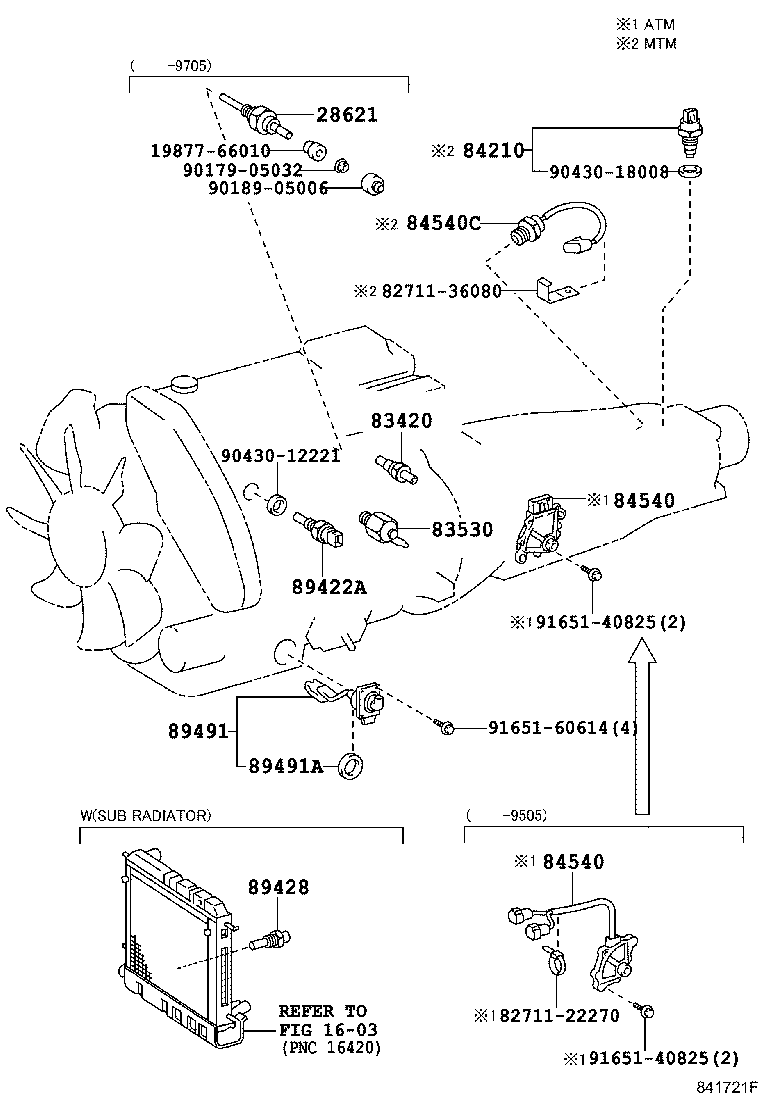

27690 Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE)

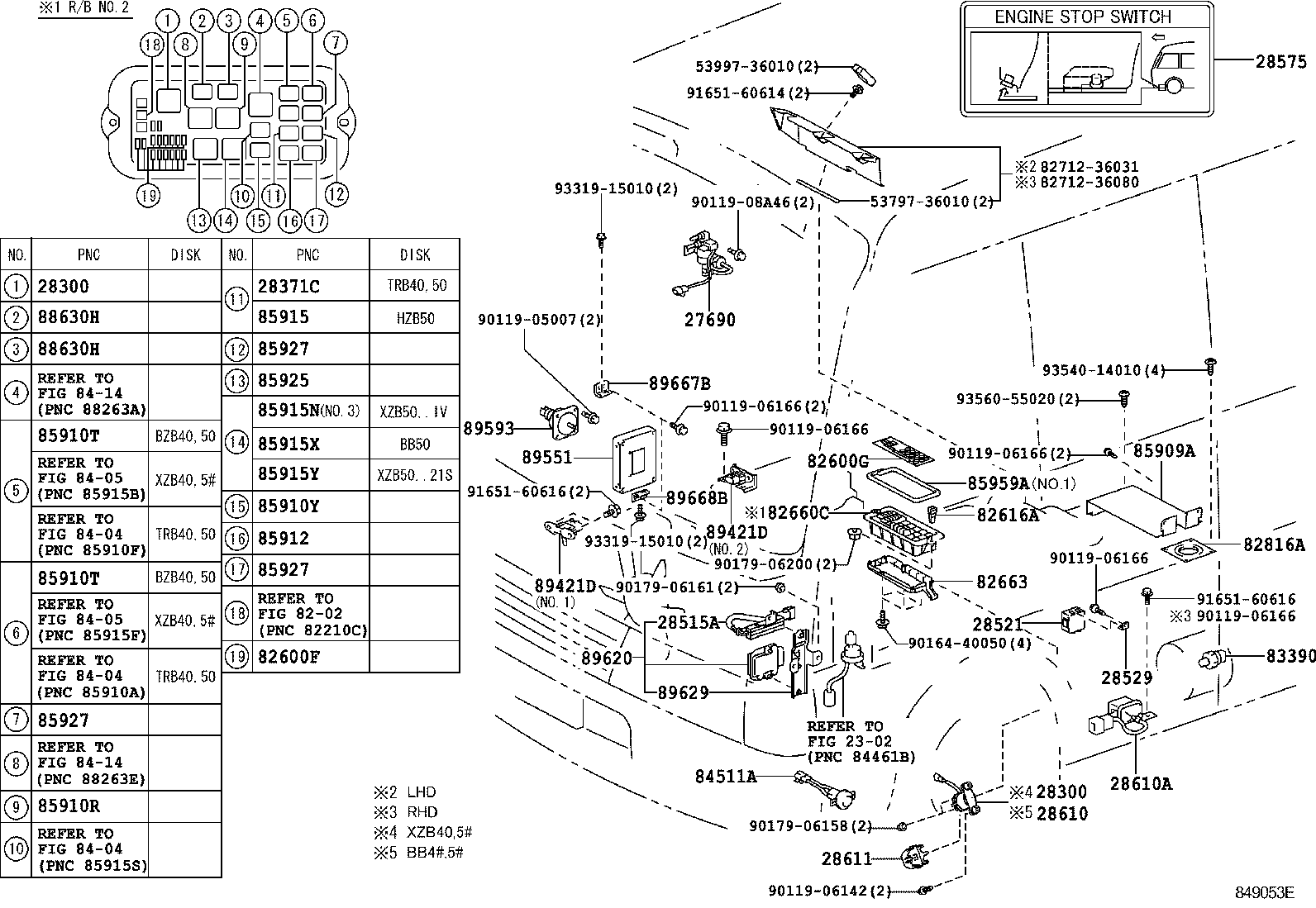

28300 Relay Assy, Starter
28300D Relay, Starter Cut
28317 Bracket, Starter Relay
28371C Relay, Ignition, NO.2
28491A Computer, Exhaust Retarder
28515A Resistor, Solenoid
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1

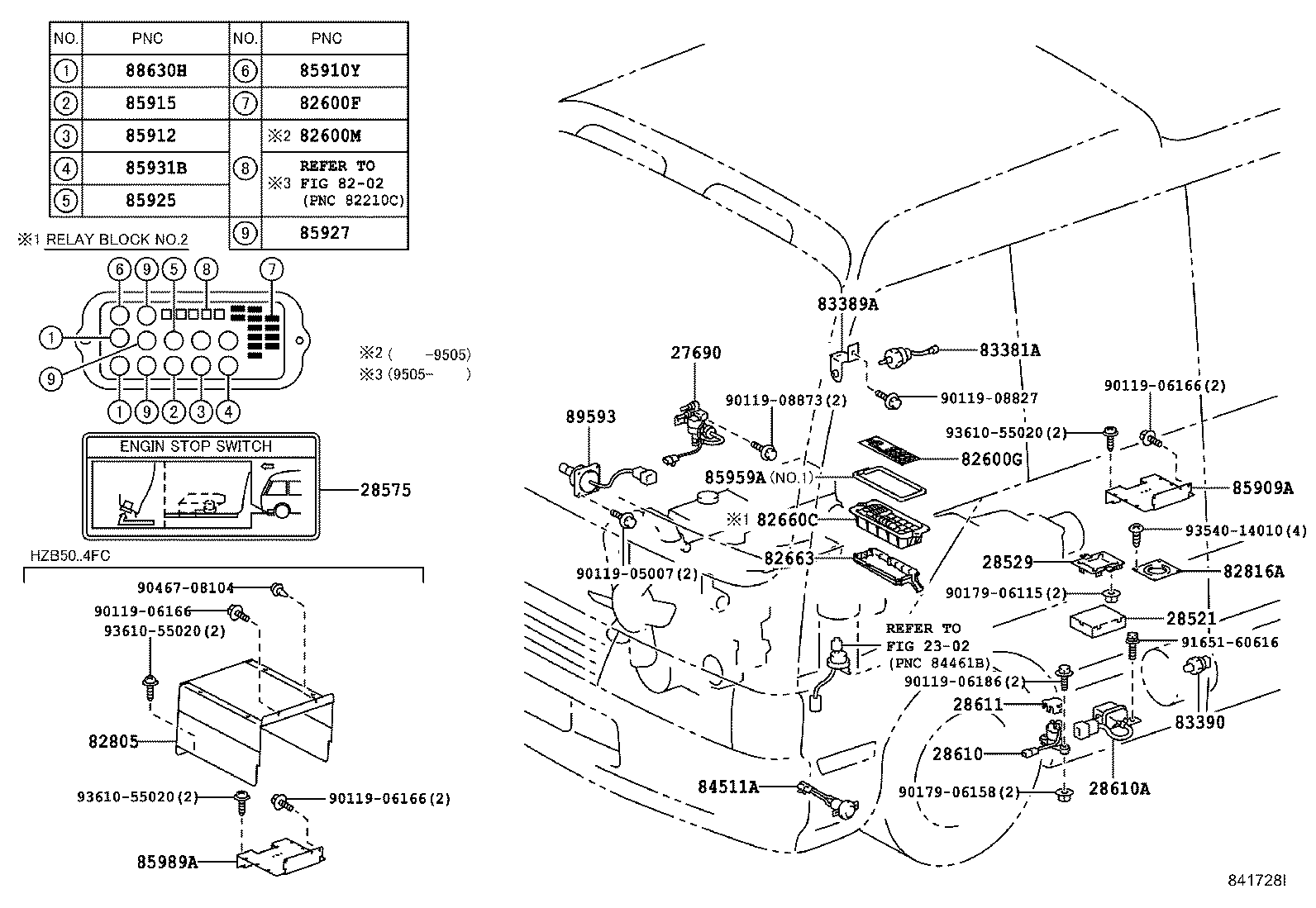

28575 Label, Engine Stop Information
28610 Relay Assy, Intake Heater OR Glow Plug
28610A Relay Assy, Glow Plug(SUB)
28611 Cover, Glow Plug Relay
28621 Resistor, Glow Plug
74534B Plate, Voltage Caution
81980 Flasher Assy, Turn Signal
81990 Relay Assy, Turn Signal
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82412B Wire, Fuel Gage
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82600M Fuse, Medium Current

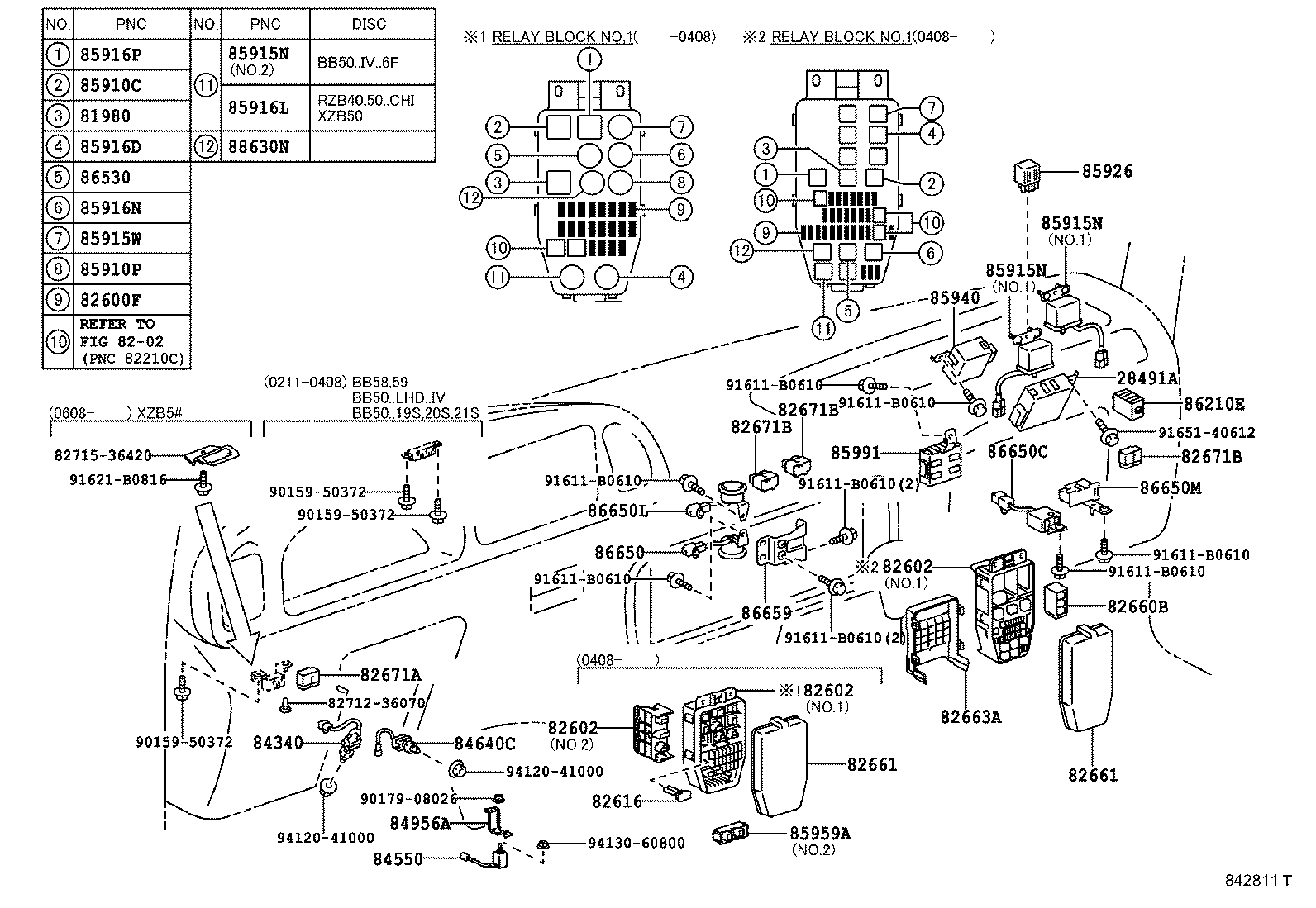

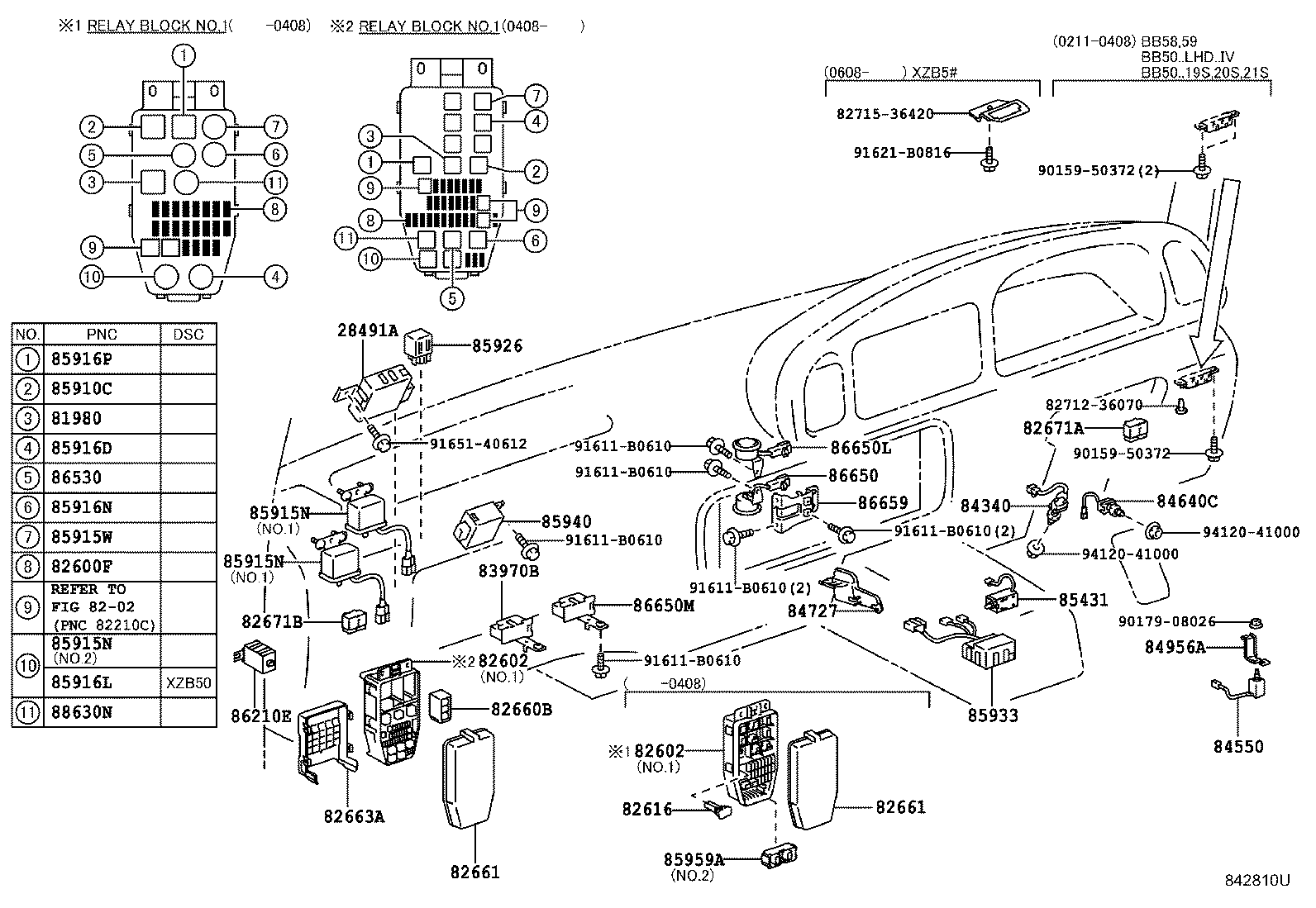

82602 Block Sub-assy, Relay
82611 Cover, Fuse Block
82615 Bracket, Fuse
82616 Puller, Fuse
82616A Puller, Fuse, NO.2
82620A Block Assy, Fusible Link
82622 Cover, Fusible Link, Upper
82623 Cover, Fusible Link, Lower
82643 Relay, Dim-dip Lamp
82643A Relay, Dim-dip Lamp

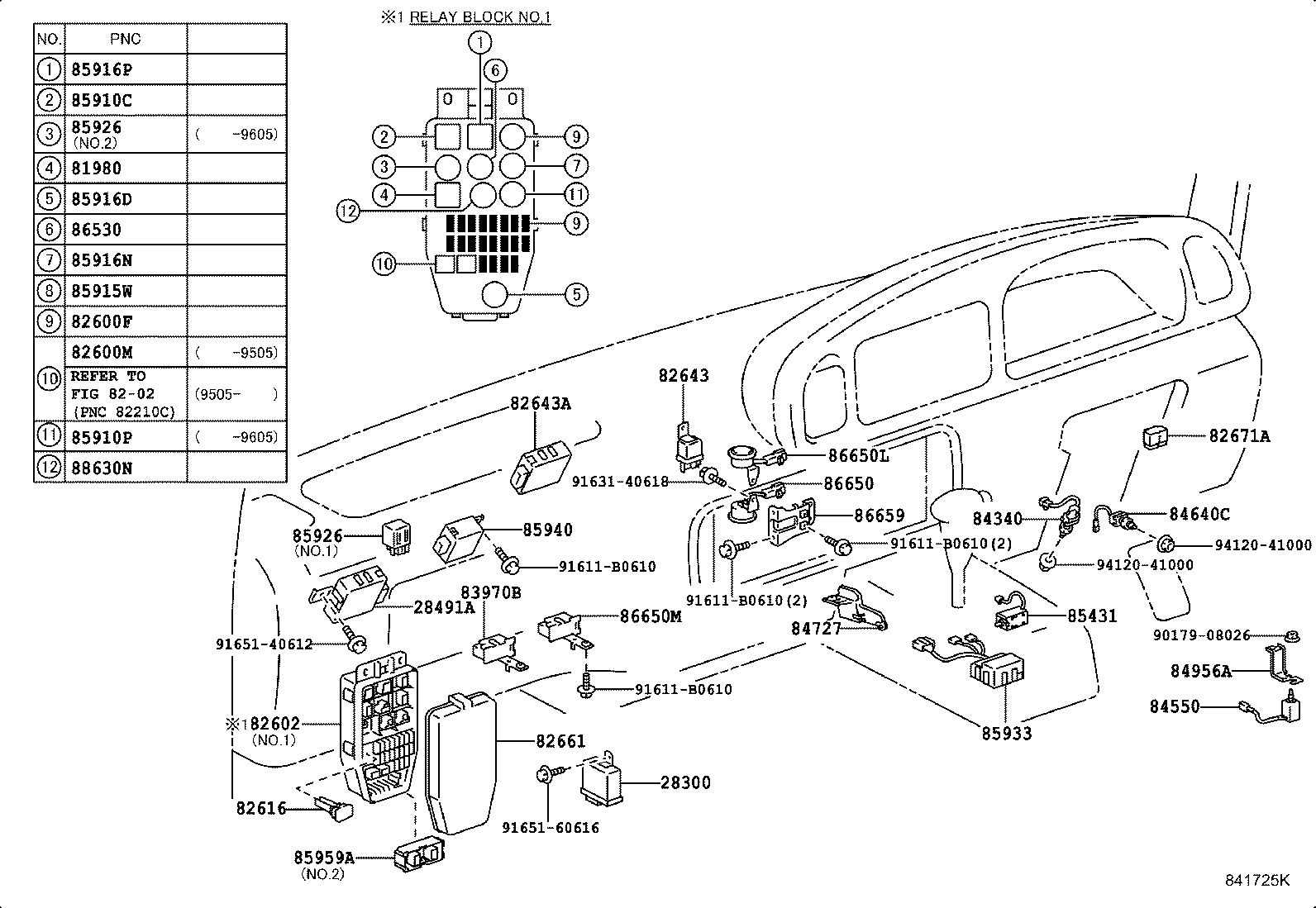

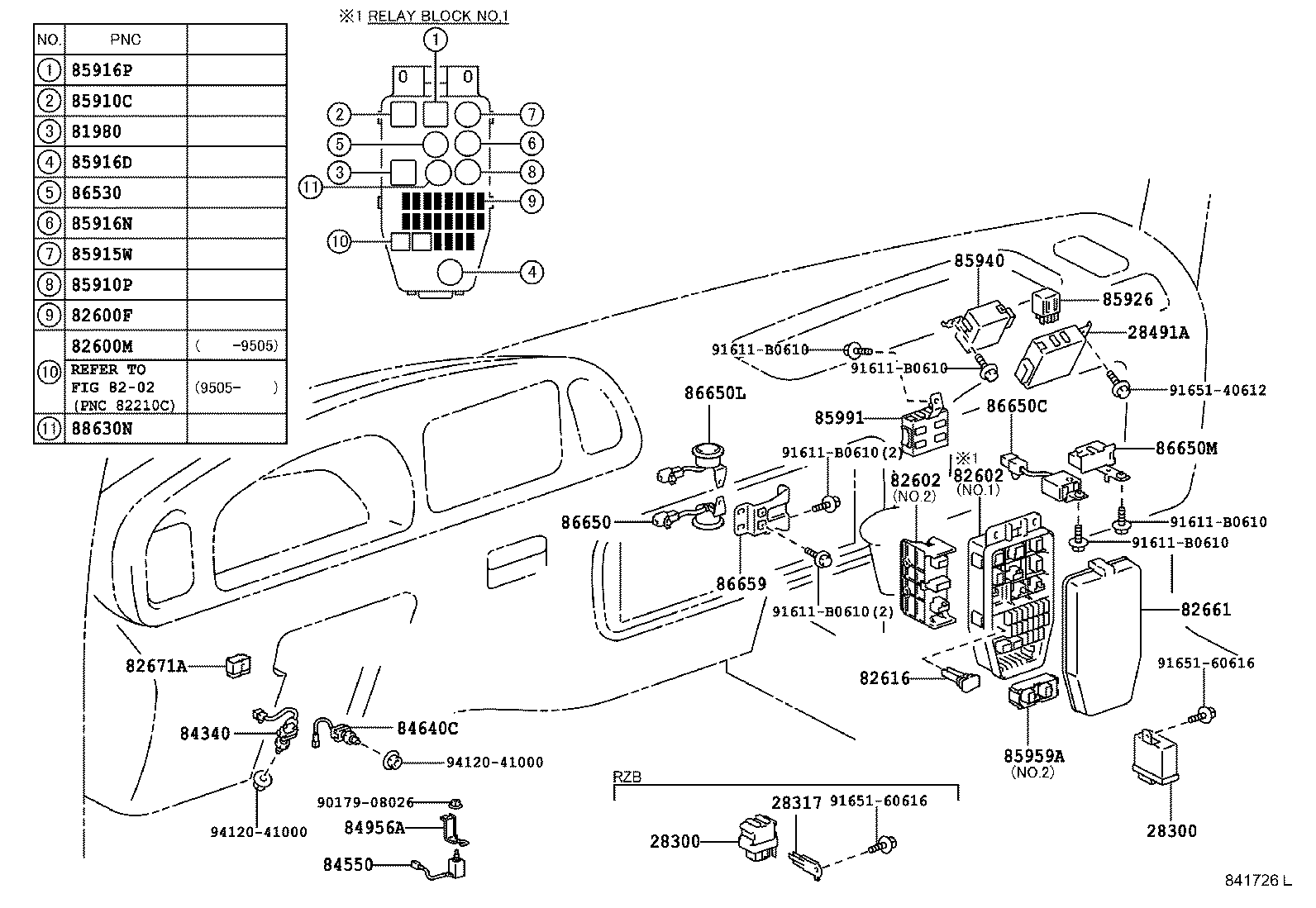

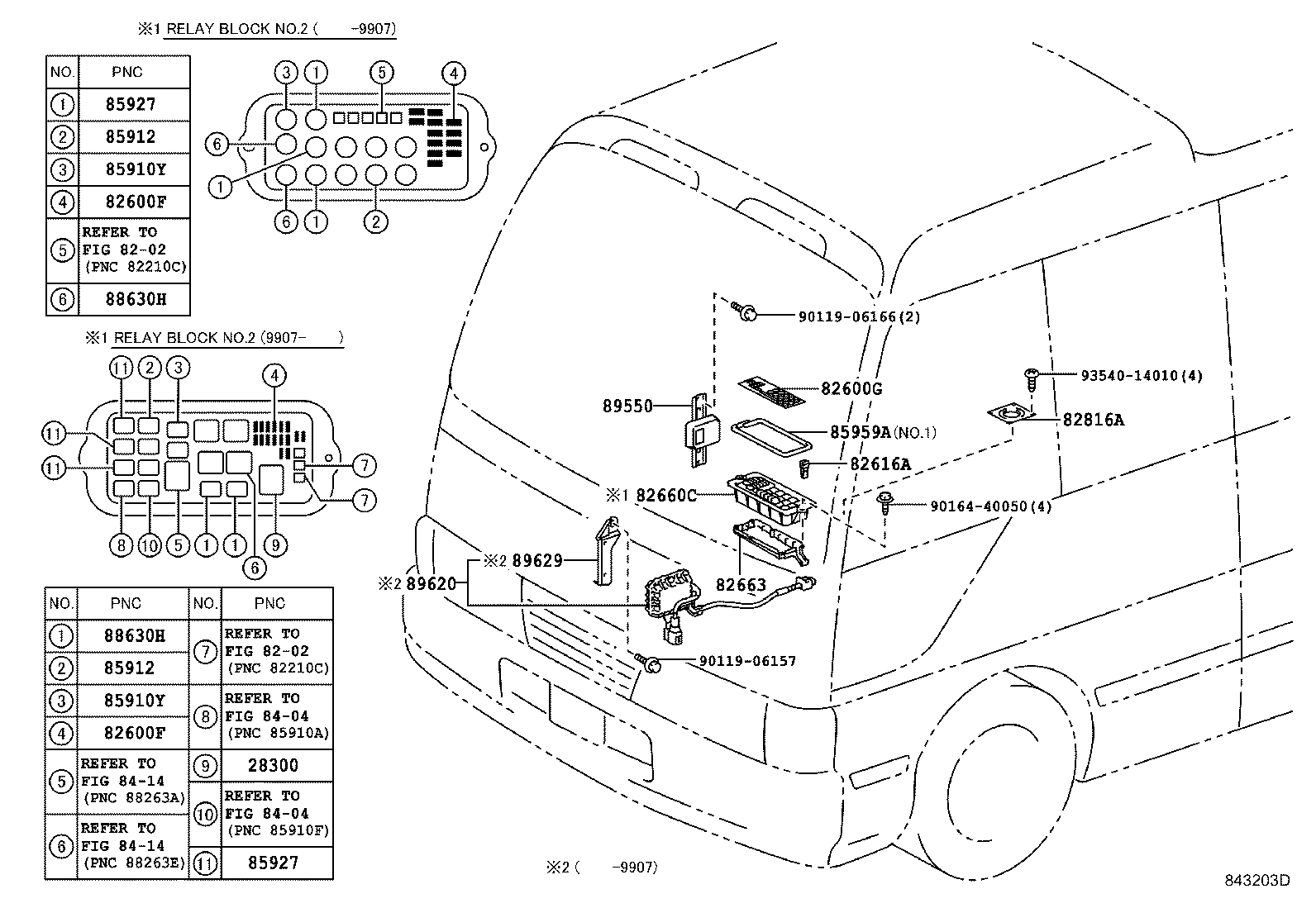

82660B Block Assy, Relay
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82670A Block Assy, Junction, NO.1
82671A Block, Junction
82671B Block, Junction
82805 Cover Sub-assy, Relay
82816A Bracket, Wiring Harness Grommet
82817H Protector, Wiring Harness

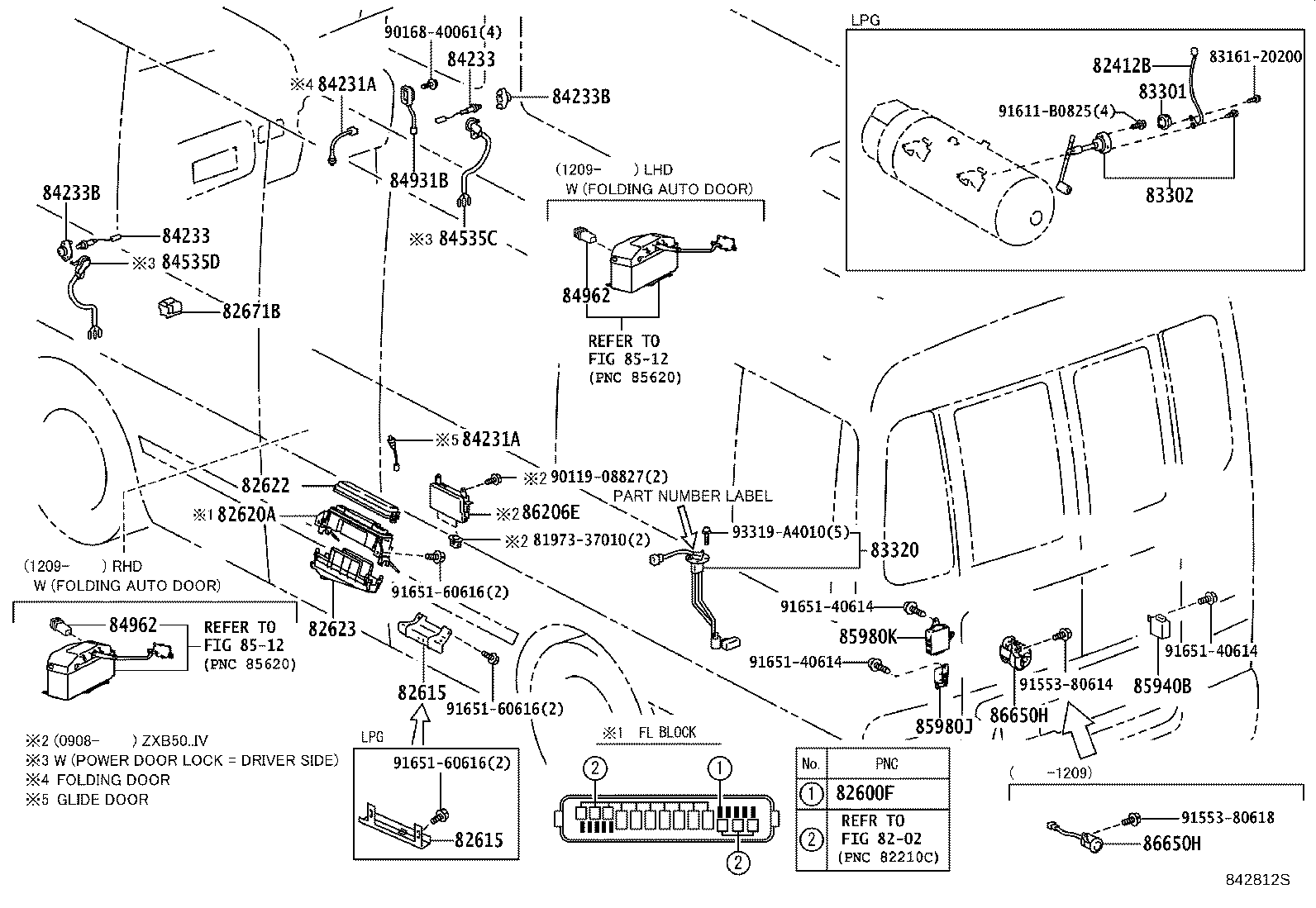

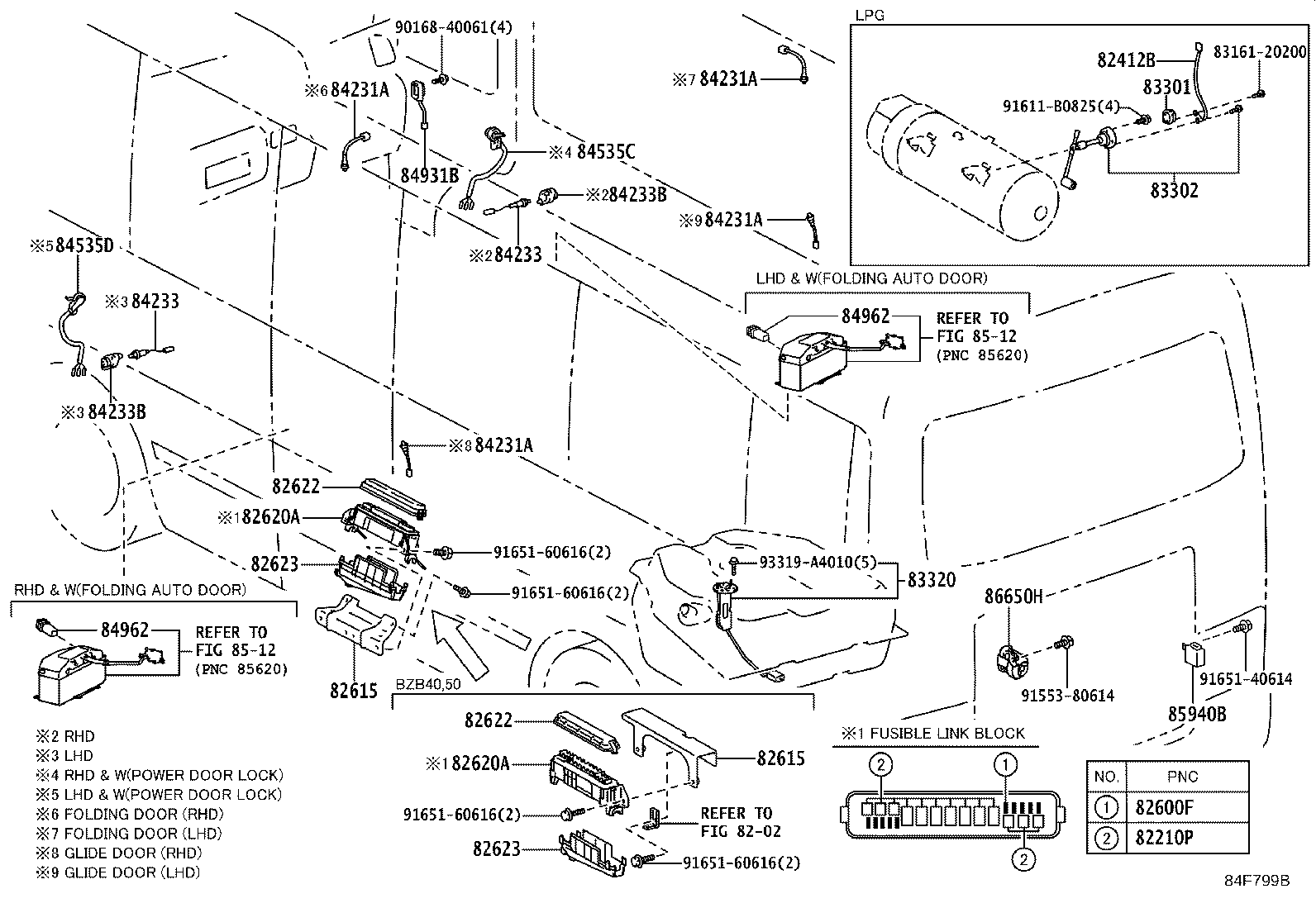

83301 Gage Sub-assy, Fuel Sender (FOR LPG TANK)
83302 Body Sub-assy, Fuel Sender Gage
83320 Gage Assy, Fuel Sender
83381A Switch, Pressure
83389A Bracket, Pressure Switch
83390 Switch Assy, Vacuum Warning
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83970B Buzzer Assy, Reverse Warning
84110 Switch Assy, Light Control, NO.1
84110C Switch Assy, Light Control, NO.2
84119 Rheostat, Light Control
84119G Blub
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84160 Switch Assy, Room Lamp
84162 Switch, Front Fog Lamp
84162A Switch, Rear Fog Lamp
84162B Bulb, Fog Lamp Switch
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84162F Switch, Front Fog Bulb Check
84170A Switch Assy, Room Lamp NO.1
84170B Switch Assy, Room Lamp NO.2
84170C Bulb,Room Lamp Switch
84170D Cap Bulb,Room Lamp Switch
84210 Switch Assy, Back-up Lamp
84225A Switch, Shift Position
84231A Switch, Courtesy Lamp

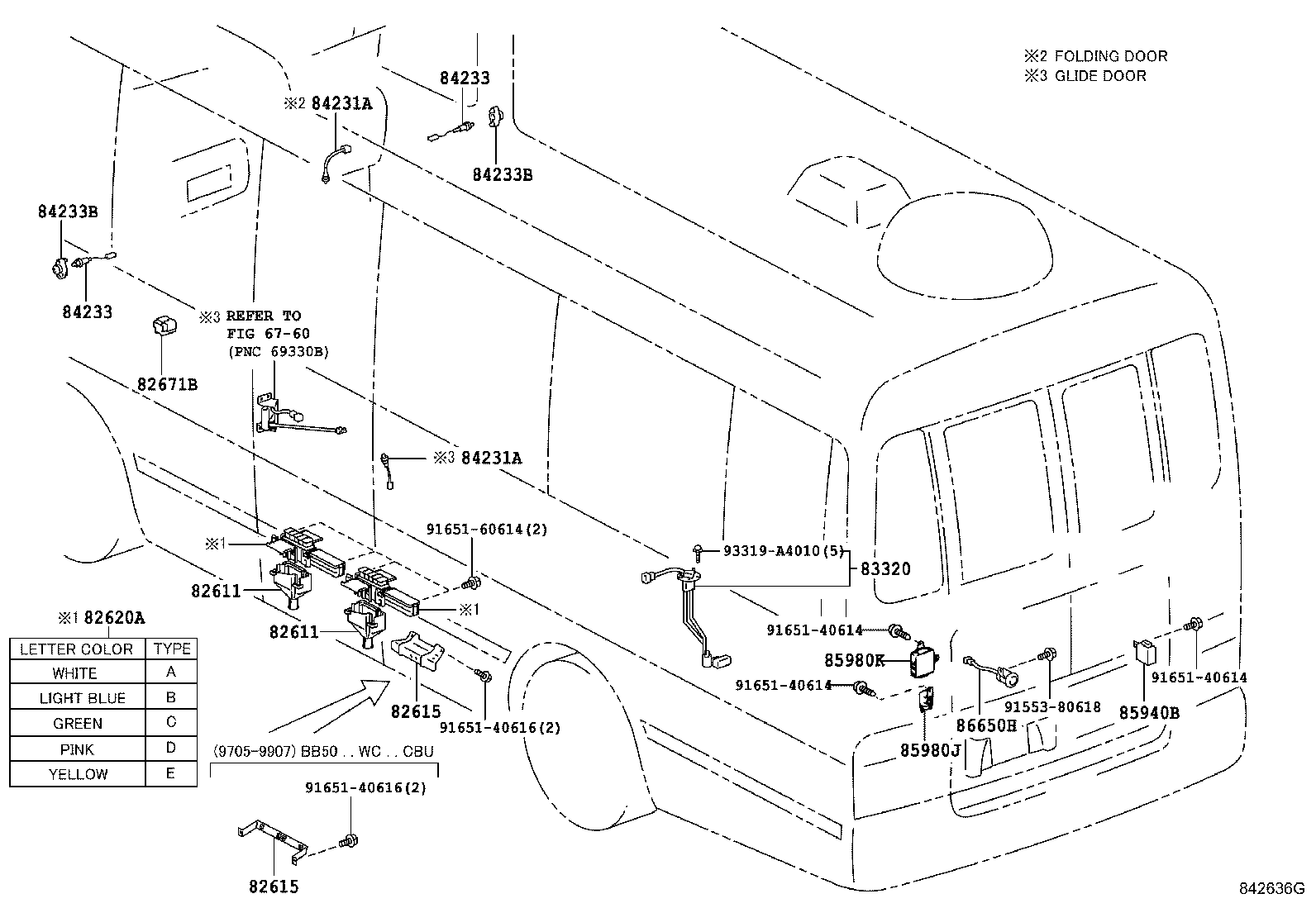

84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233B Cushion, Courtesy Switch (FOR FRONT DOOR)

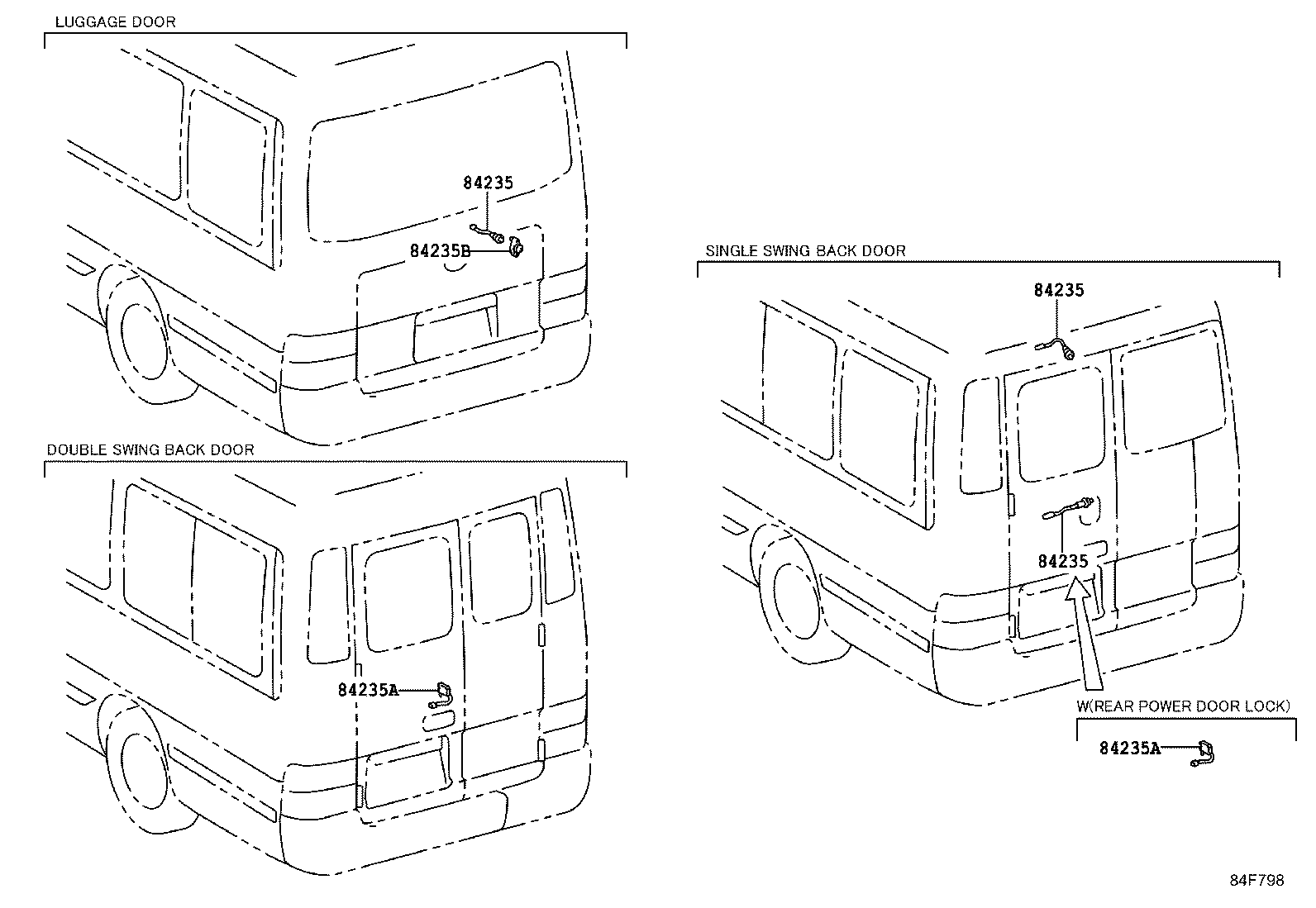

84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84235A Switch, Courtesy Lamp
84235B Cushion, Courtesy Switch(FOR BACK DOOR)
84270K Switch Assy, Dpr
84270N Bulb, Dpr Swich Assy
84270R Cap, Dpr Switch Bulb

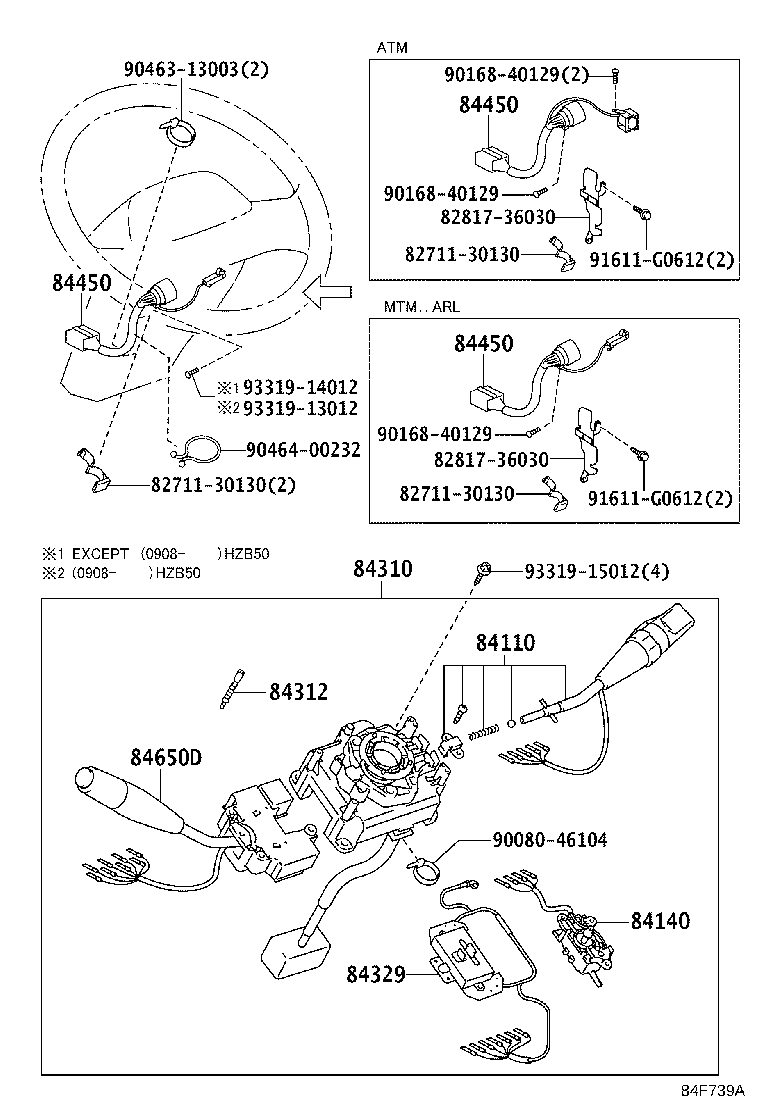

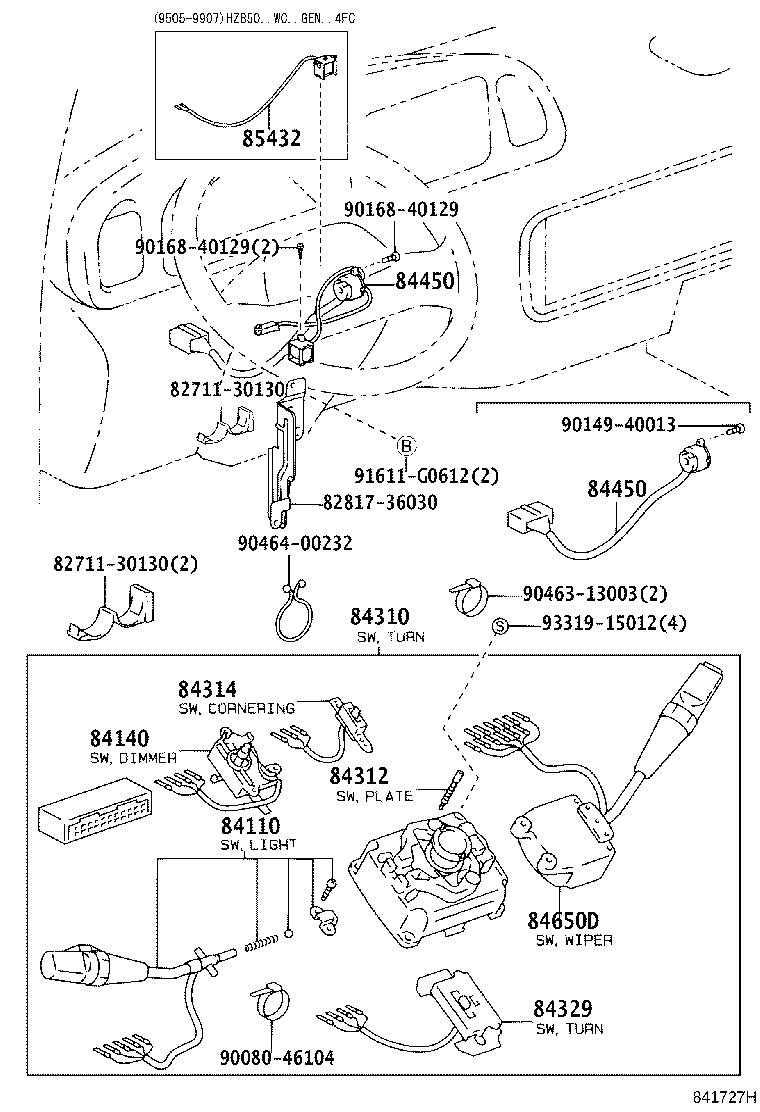

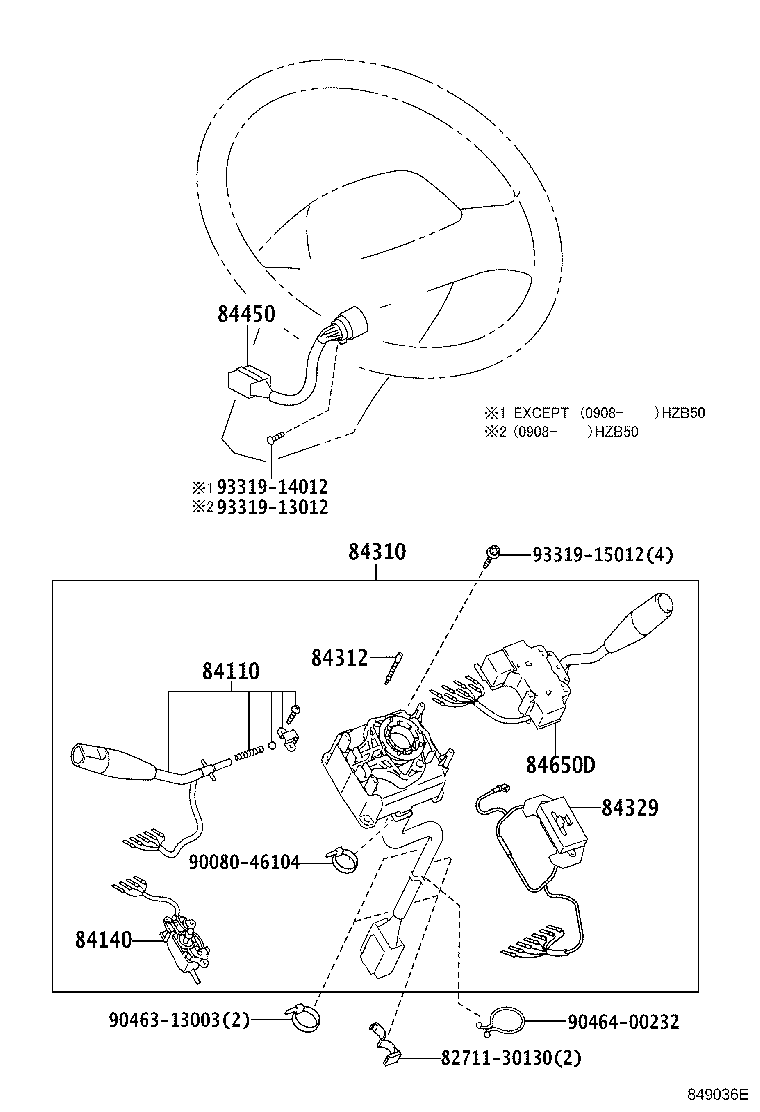

84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84314 Switch, Cornering Lamp
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84455 Switch, Warm UP
84455B Bulb (FOR WARM UP SWITCH)
84511A Switch, Engine Stop
84523 Wire, Switch NO.1
84535C Switch, Door Lock, RH
84535D Switch, Door Lock, LH
84540 Switch Assy, Neutral Start
84540C Switch Assy, Neutral (FOR EXHAUST BRAKE)
84550 Switch Assy, Parking Brake
84640C Switch Assy, Exhaust Retarder
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84660D Bulb(FOR COOLER SWITCH)
84727 Switch, Shift Lock Control

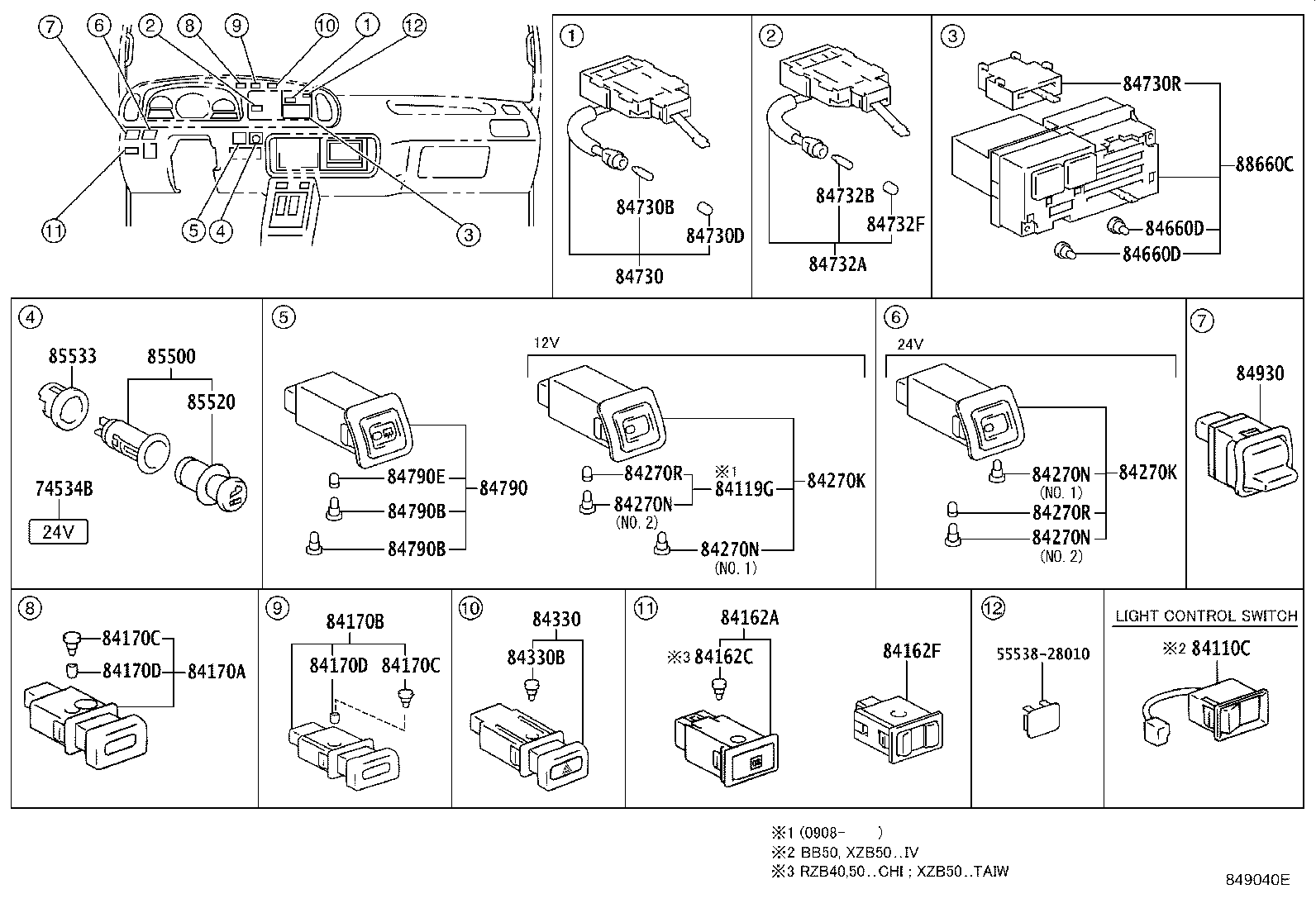

84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84730D Cap, Heater Blower Switch Bulb
84730R Switch Assy, Heater Blower
84732A Switch, Rear Heater Blower
84732B Bulb, Rear Heater Blower Switch
84732F Cap, Rear Heater Blower Switch
84732G Switch, Ventilator
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84790E Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH)

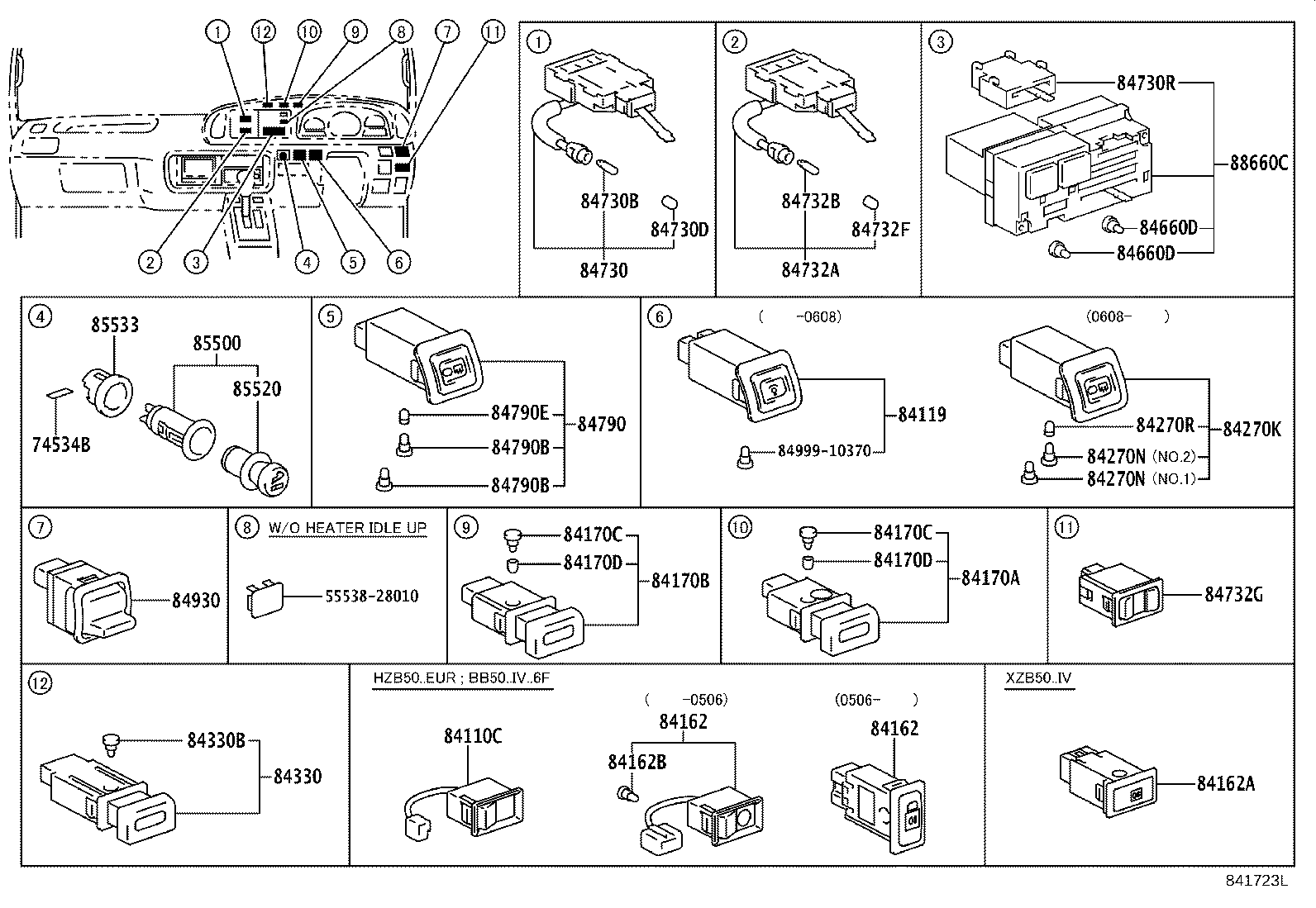

84930 Switch Assy, Door Control
84931B Switch, Door Control
84956A Bracket, Hand Brake Signal Switch
84962 Switch, Power Slide Door Main

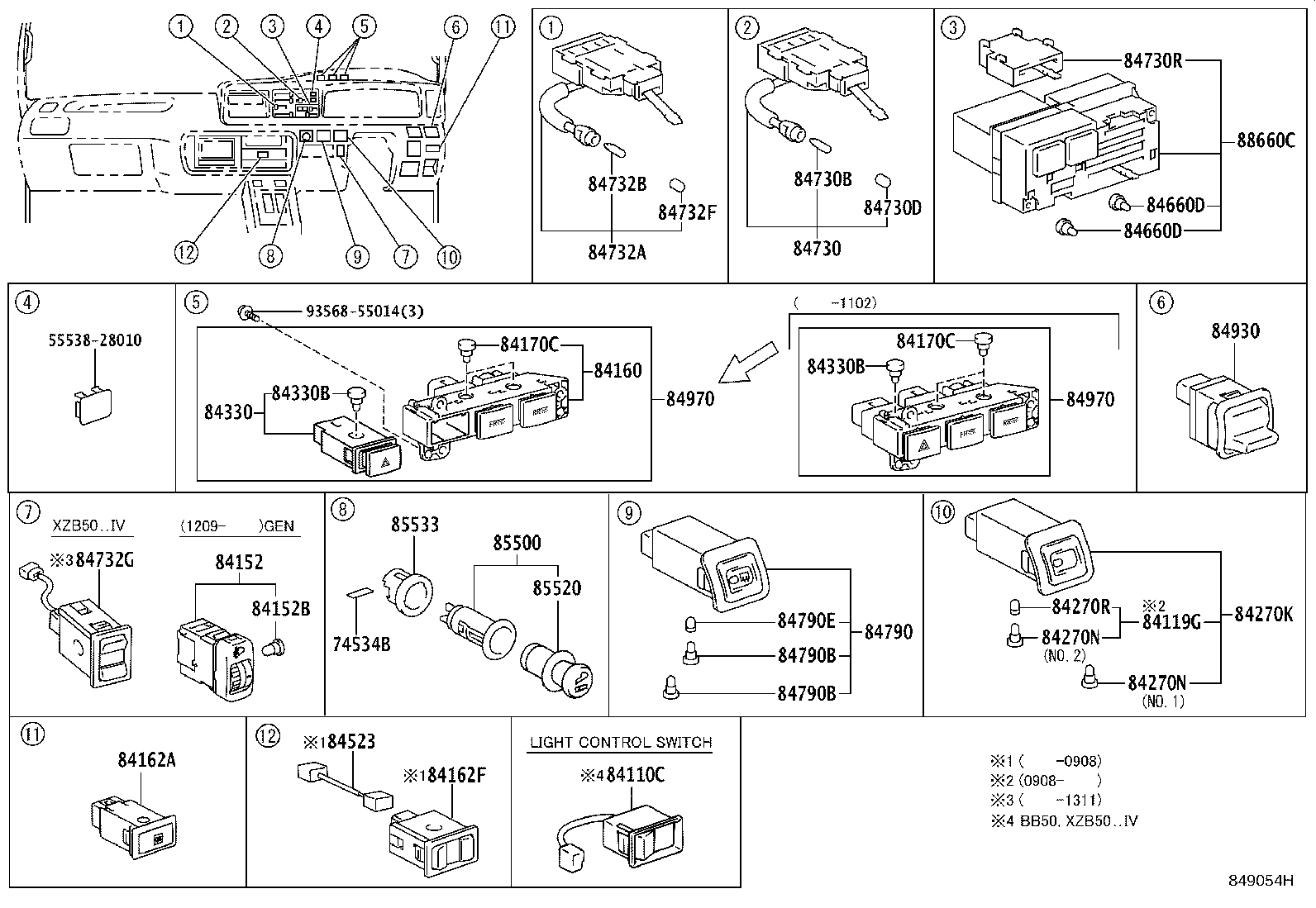

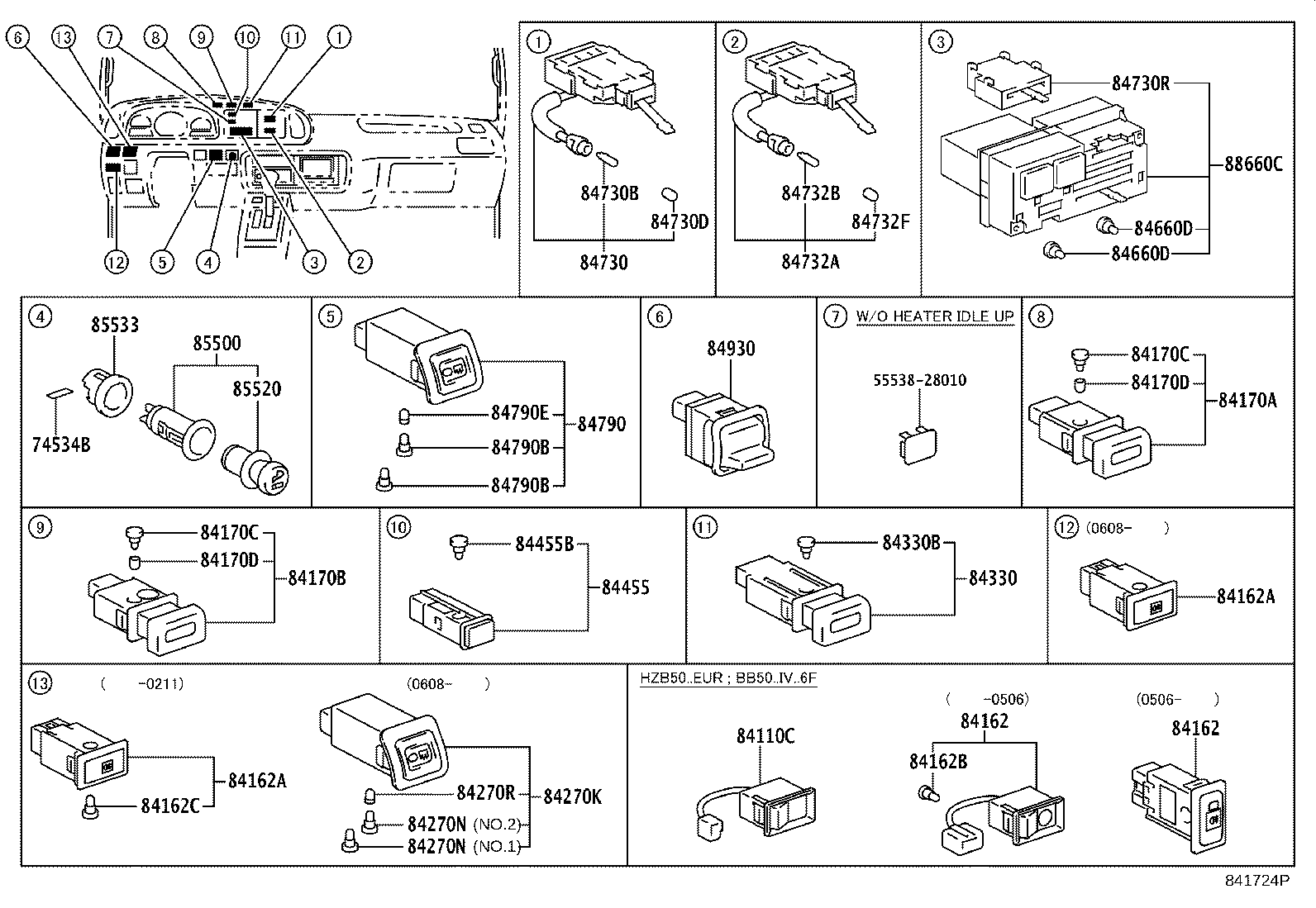

84970 Switch Assy, Combination
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85520 Knob And Element Assy, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85909A Bracket Sub-assy, Relay Block
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910P Relay, Turbo Indicator
85910R Relay, Engine Stop
85910T Relay, Lpg
85910Y Relay, Rear Heater
85912 Relay, Defogger

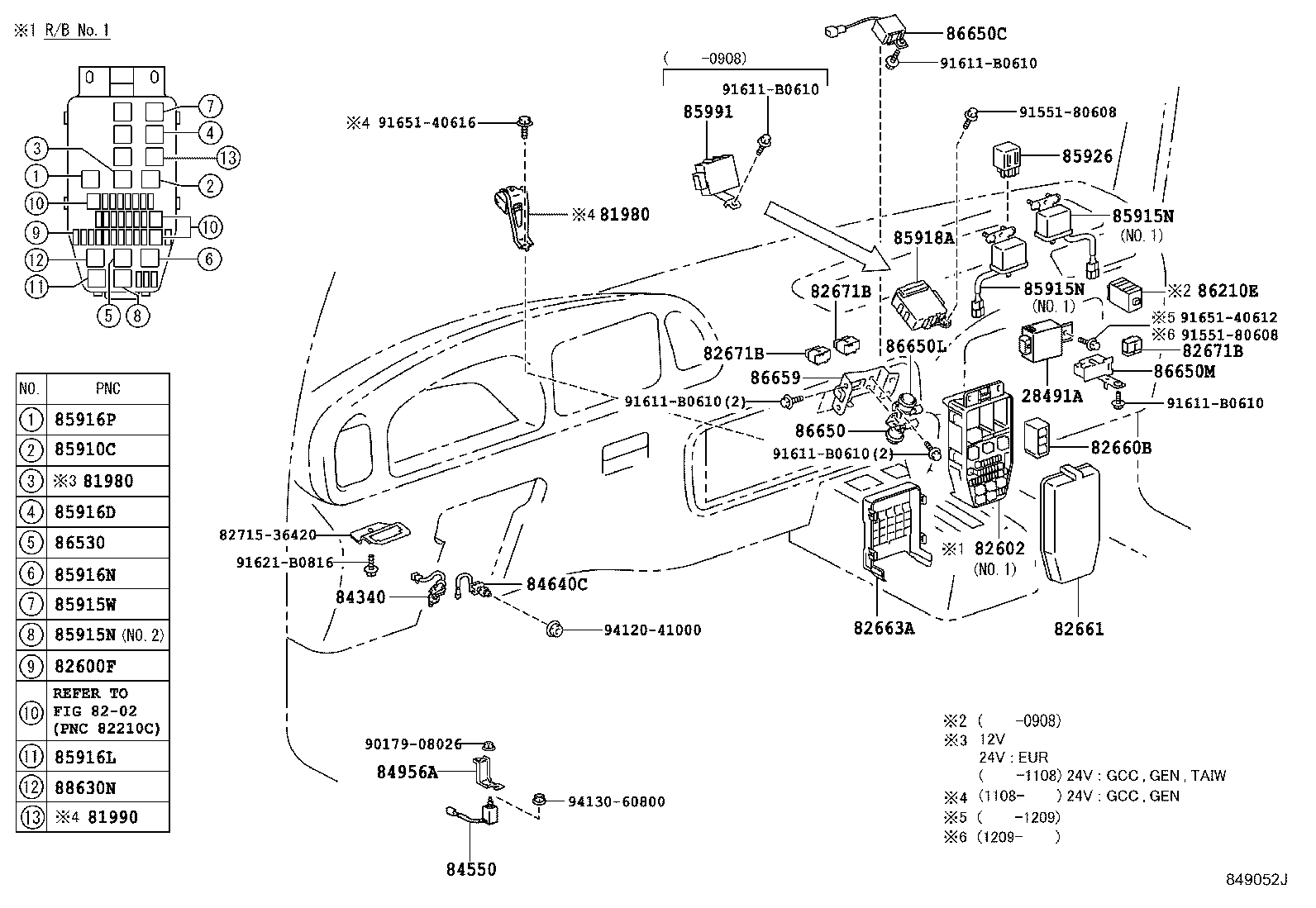

85915 Relay, Main
85915N Relay, Emergency Stop (FOR IGNITION)
85915W Relay, Automatic Door
85915X Relay, Power Control
85915Y Relay, Door Lock
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85918A Relay, Door Control
85925 Relay, Radiator Fan
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85931B Relay, Fuel Heater
85933 Computer, Shift Lock Control
85940 Relay Assy, Windshield Wiper
85940B Relay Assy, Rear Wiper
85959A Holder, Relay
85965 Relay, Room Lamp Control
85980J Relay Assy, Door Lock, NO.1
85980K Relay Assy, Door Lock, NO.2
85989A Bracket, Relay, NO.5
85991 Relay, Seat Belt Warning
85996B Bracket, Relay, NO.2
85999H Bracket, Relay
86206E Converter Sub-assy, Voltage
86210E Converter Assy, Voltage
86530 Relay Assy, Horn
86650 Buzzer Assy, Vacuum Indicator
86650C Buzzer Assy, Sedimenter Warning
86650H Buzzer Assy, Back
86650L Buzzer Assy, Vacuum Warning
86650M Buzzer Assy, Emergency
86659 Bracket, Buzzer
87299 Relay, Heater
88630H Relay Assy, Cooler
88630N Relay Assy, Cooler
88660C Switch Assy, Cooler Control

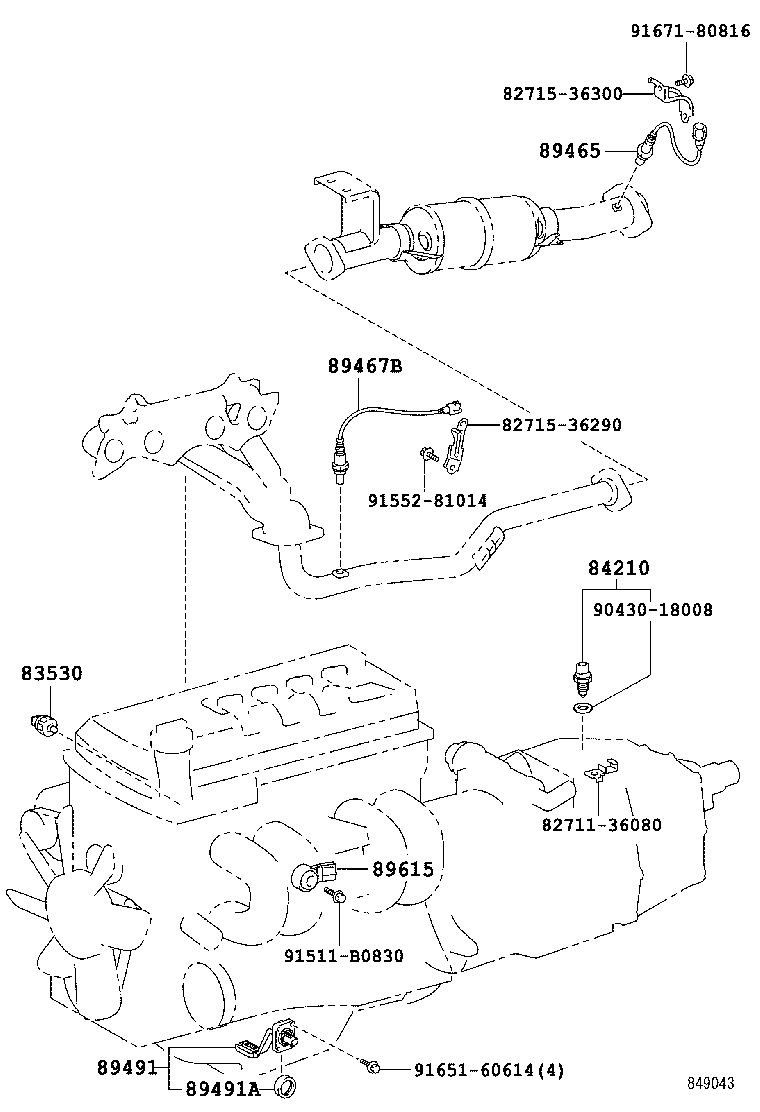

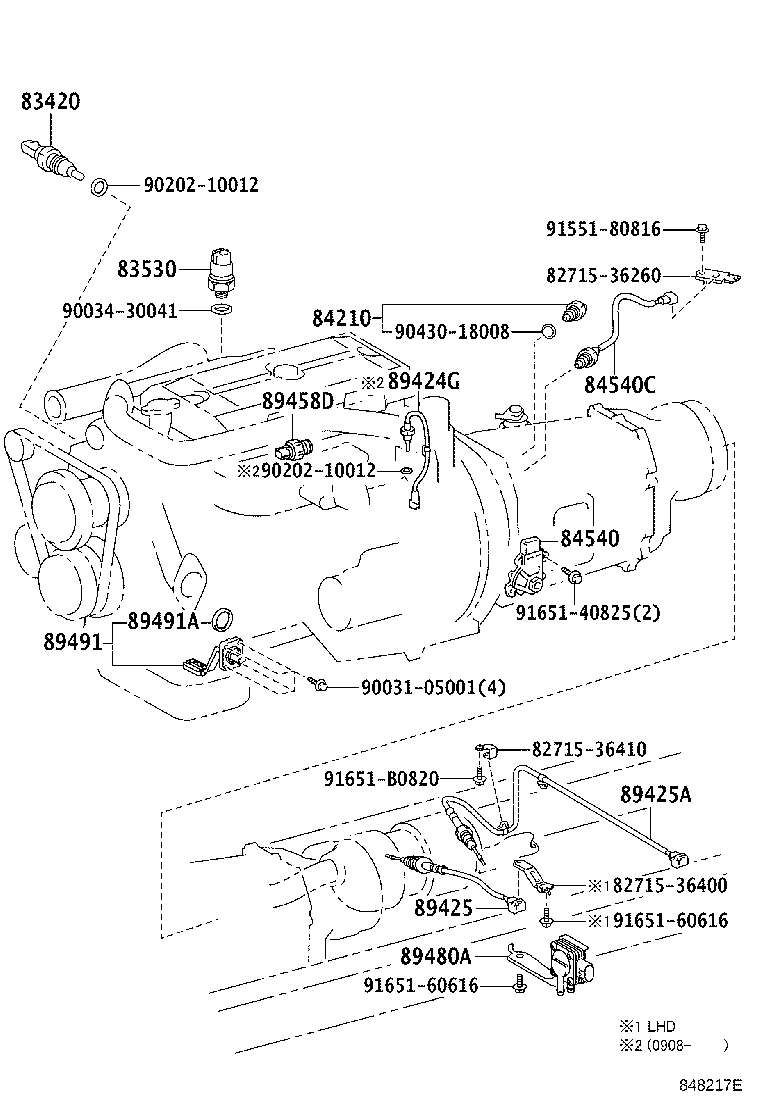

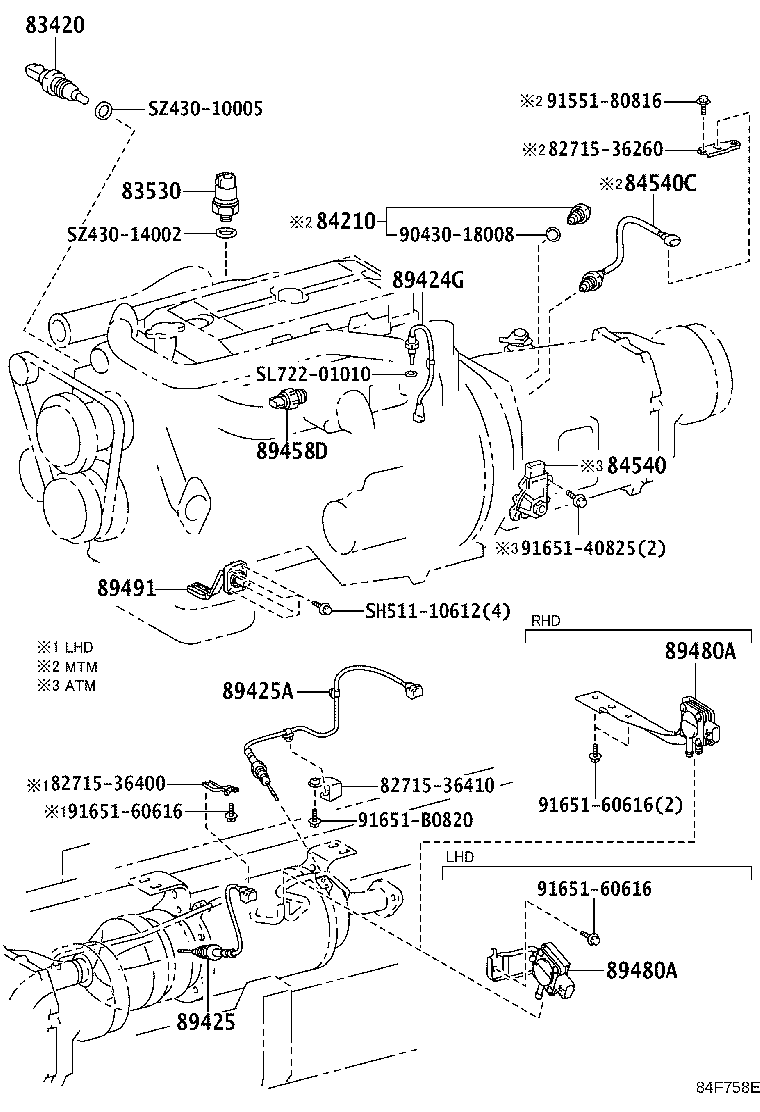

89421D Sensor, Turbo Pressure
89422A Sensor, Water Temperature
89424G Sensor, Inlet Air Temperature
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89428 Switch, Temperature Detect, NO.2
89438 Switch, Power Steering Oil Pressure
89452A Sensor, Throttle Position
89458D Sensor, Fuel Pressure
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89480A Sensor Assy, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89550 Computer Assy, Emission Control
89551 Computer, Emission Control
89593 Sensor, Air Cleaner Warning
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89667B Bracket, Engine Control Computer, NO.1
89668B Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
