Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

13 part groups · 5 illustrations

Illustrations

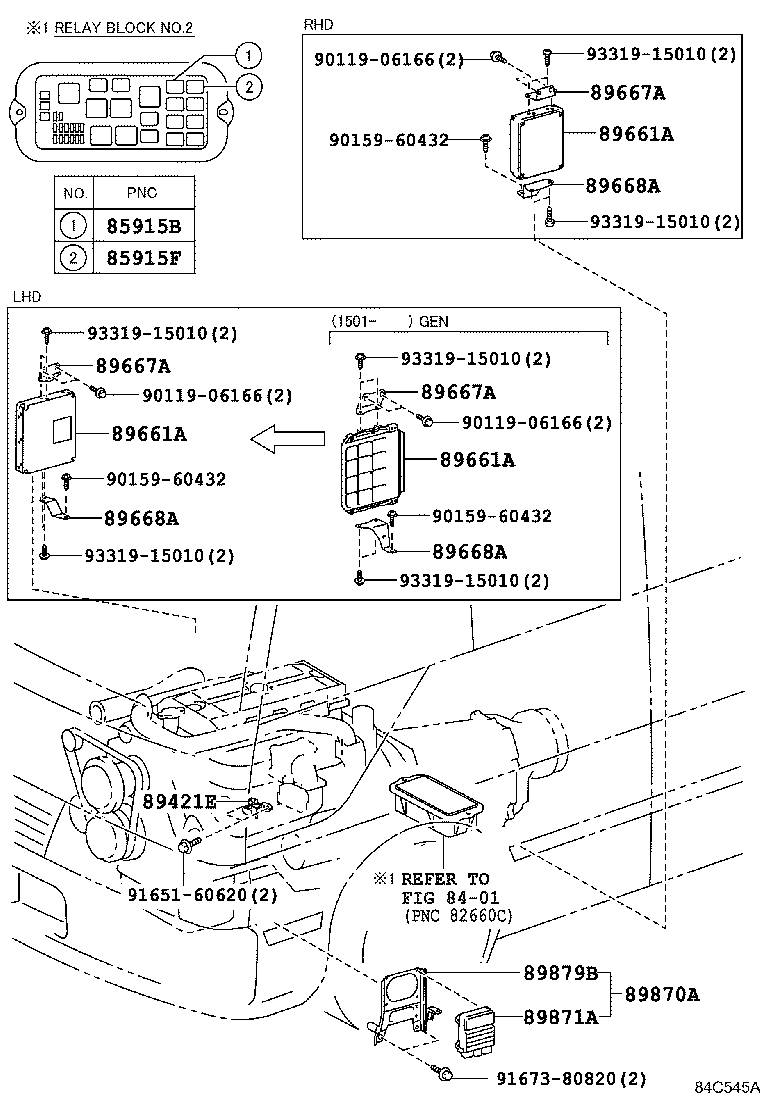

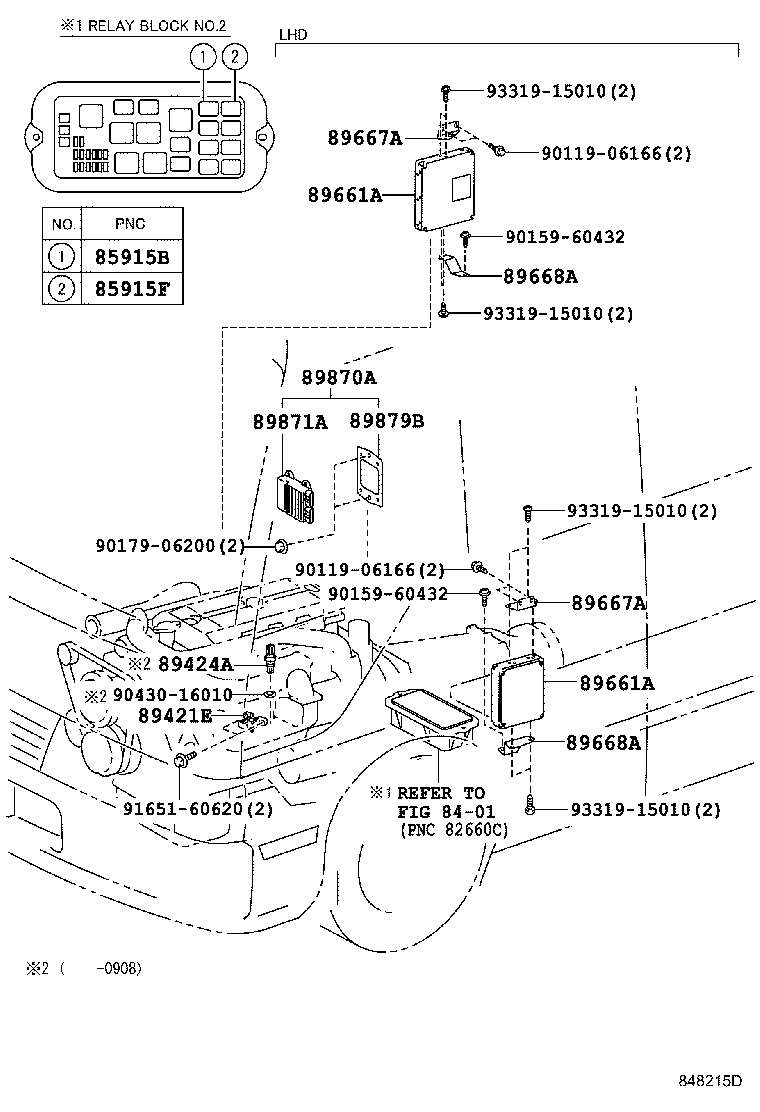

Figure 842837E 842837E 1999-07 → 2006-08 Figure 848215D 848215D 2006-08 → 2011-08 Figure 848215D 848215D 2006-08 → 2013-11 Figure 84C545A 84C545A 2011-08 → 2015-01 Figure 84C545A 84C545A 2015-01 → —

Part groups

PNCDescription
85915B Relay, Main (FOR DIESEL TURBO)
85915F Relay, Spill Valve
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89421E Sensor, Vacuum
89422C Sensor, Diesel Engine Water Temperature
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89454 Sensor, Fuel Temperature
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89870A Driver Assy, Injector
89871A Driver, Injector
89879B Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
