Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

13 part groups · 2 illustrations

Illustrations

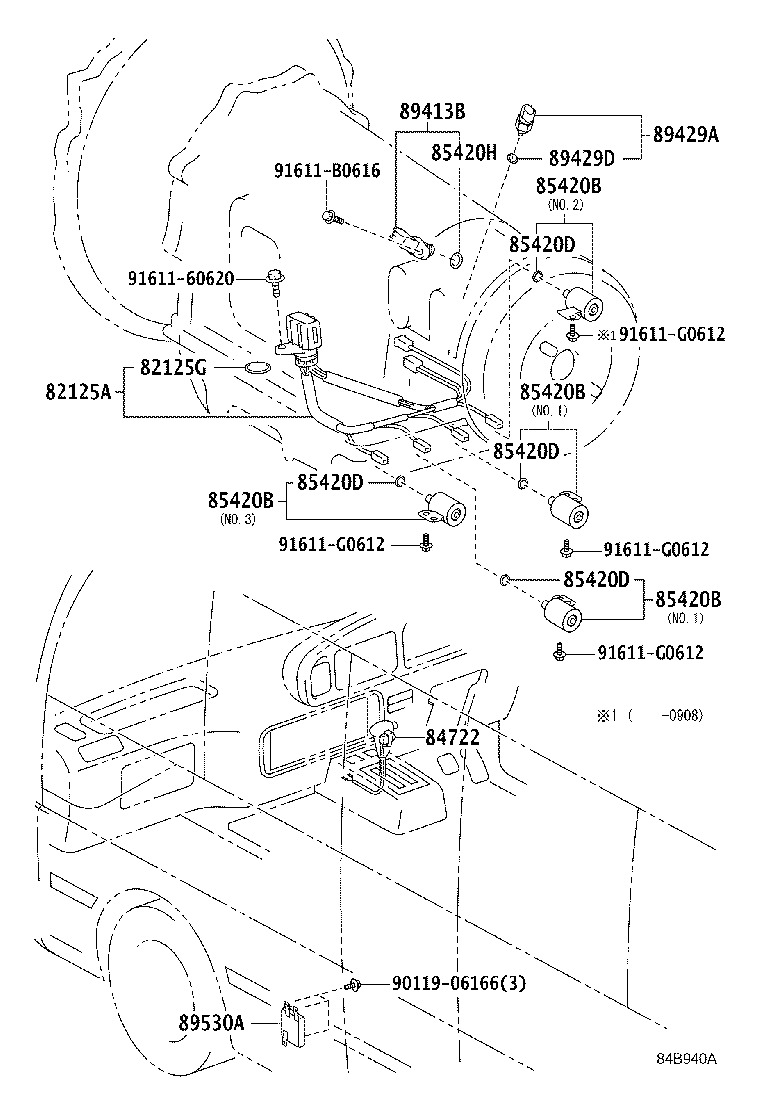

Figure 841652C 841652C 1993-01 → 2001-08 Figure 84B940A 84B940A 2007-08 → —

Part groups

PNCDescription
35517 Plate, Transmission Wire Lock
82125A Wire, Transmission
82125G Ring, O(FOR TRANSMISSION WIRE)
84720 Switch Assy, Pattern Select
84722 Switch, Transmission Control
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
85420H Ring, O(FOR SPEED SENSOR)
89413B Sensor, Transmission Revolution
89428D Switch, Temperature, NO.2
89429A Sensor, Temperature
89429D Ring, O(FOR TEMPERATURE SENSOR)
89530A Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
