Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

14 part groups · 4 illustrations

Illustrations

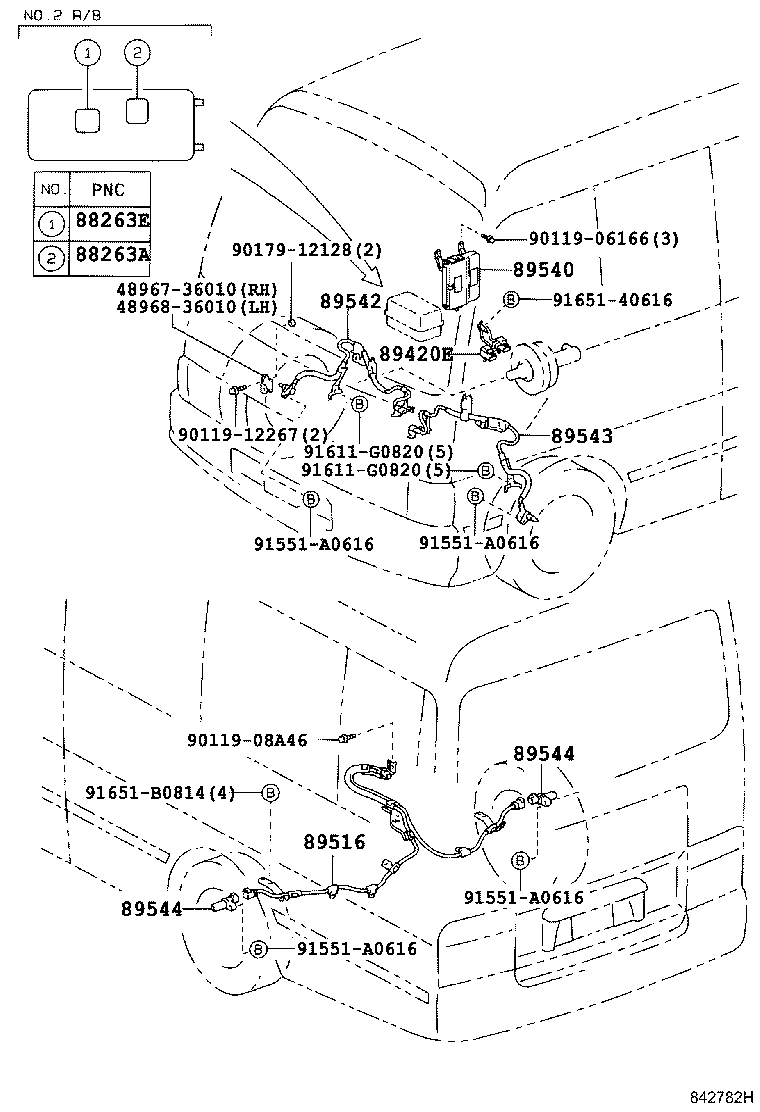

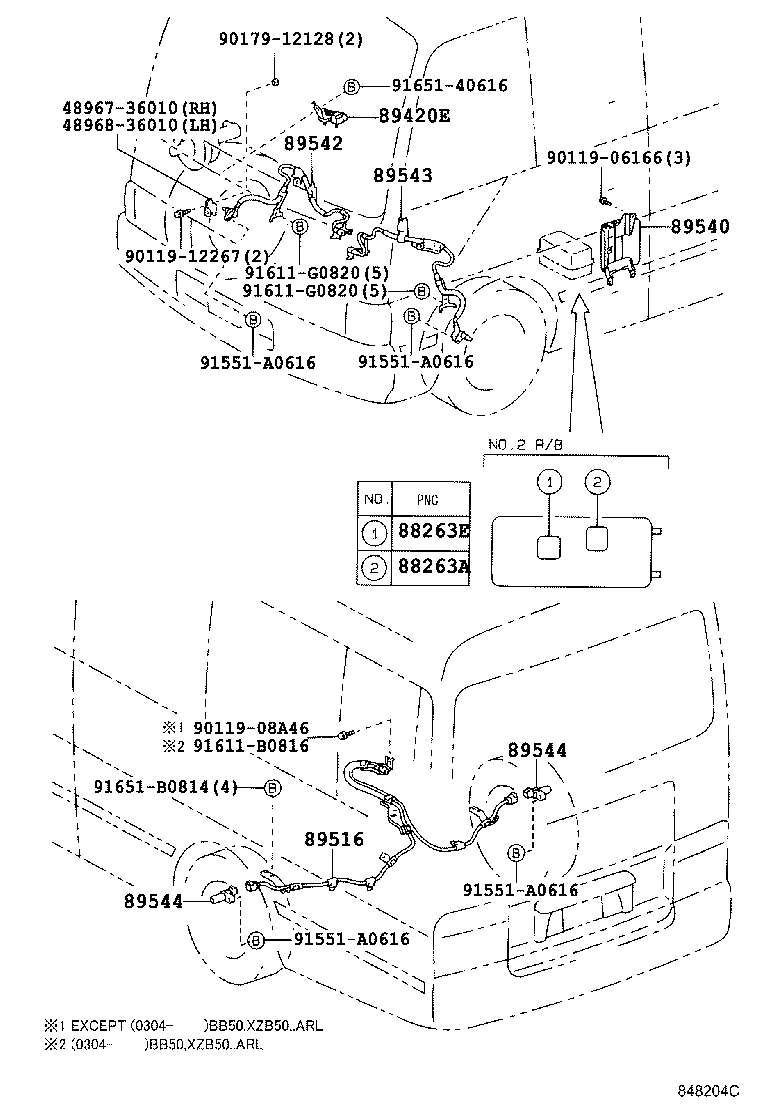

Figure 841640 841640 1997-05 → 1999-07 Figure 841641 841641 1997-05 → 1999-07 Figure 842782H 842782H 1999-07 → — Figure 848204C 848204C 1999-07 → —

Part groups

PNCDescription
04895 Speed Sensor Kit, Abs
88263A Relay, Skid Control
88263E Relay, Skid Control NO.2
88266B Clamp, Skid Control Sensor, NO.1
88266C Clamp, Skid Control Sensor, NO.2
88267 Bracket, Skid Control Computer, NO.1
88268 Bracket, Skid Control Computer, NO.2
89278C Relay, Skid Control
89420E Sensor Assy, Vacuum
89516 Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544 Sensor, Skid Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
