Toyota Coaster
1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe
Discontinued model
Data version 2016-12

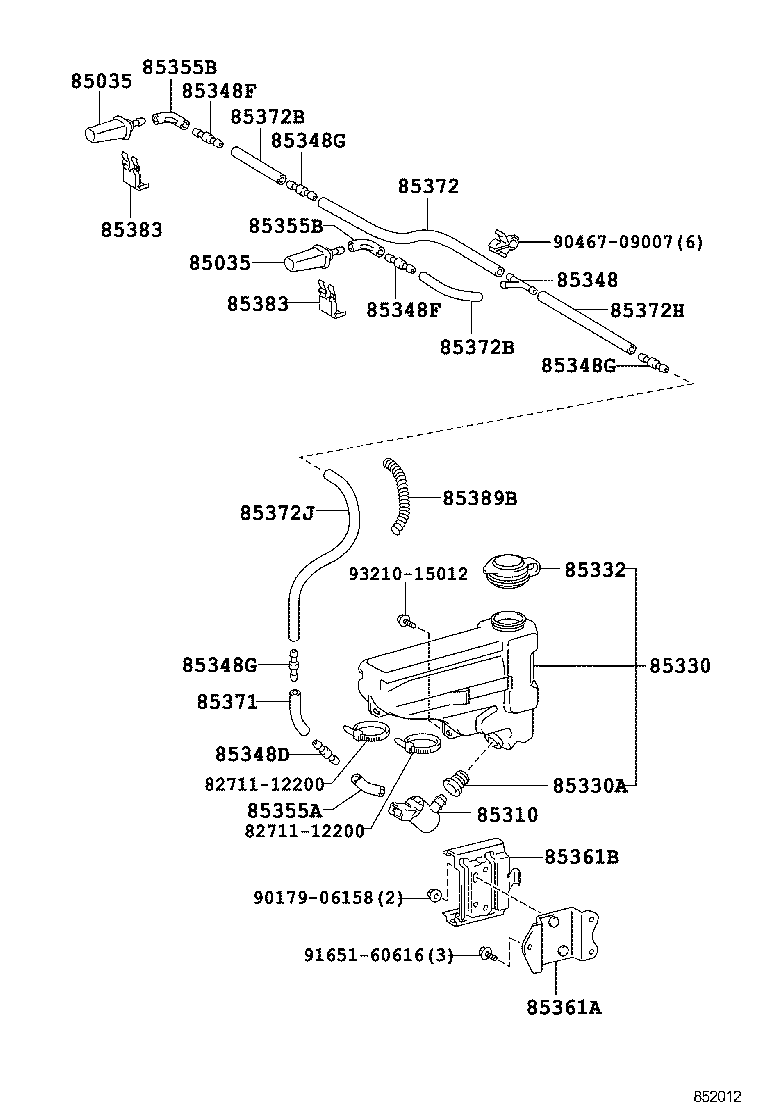

Windshield Washer
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85035 | Nozzle Sub-assy, Washer |
| 85310 | Motor And Pump Assy, Windshield Washer |
| 85330 | Jar Assy, Windshield Washer |
| 85330A | Bush, Windshield Washer Jar |
| 85332 | Cap, Windshield Washer Jar |
| 85348 | Joint, Windshield Washer Hose, NO.1 |
| 85348D | Joint, Windshield Washer Elbow, NO.1 |
| 85348E | Joint, Windshield Washer Elbow, NO.2 |
| 85348F | Joint, Windshield Washer Elbow, NO.3 |
| 85348G | Joint, Windshield Washer Hose, NO.2 |
| 85355A | Joint, Windshield Washer Elbow |
| 85355B | Joint, Elbow NO.2 |
| 85361A | Bracket, Windshield Washer, NO.1 |
| 85361B | Bracket, Windshield Washer, NO.2 |
| 85371 | Hose, Windshield Washer (FROM MOTOR TO JOINT) |
| 85372 | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 |
| 85372B | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2 |
| 85372H | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3 |
| 85372J | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4 |
| 85383 | Holder, Front Washer Nozzle |
| 85389B | Protector, Windshield Washer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
