Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Automatic Door

53 part groups · 11 illustrations

Illustrations

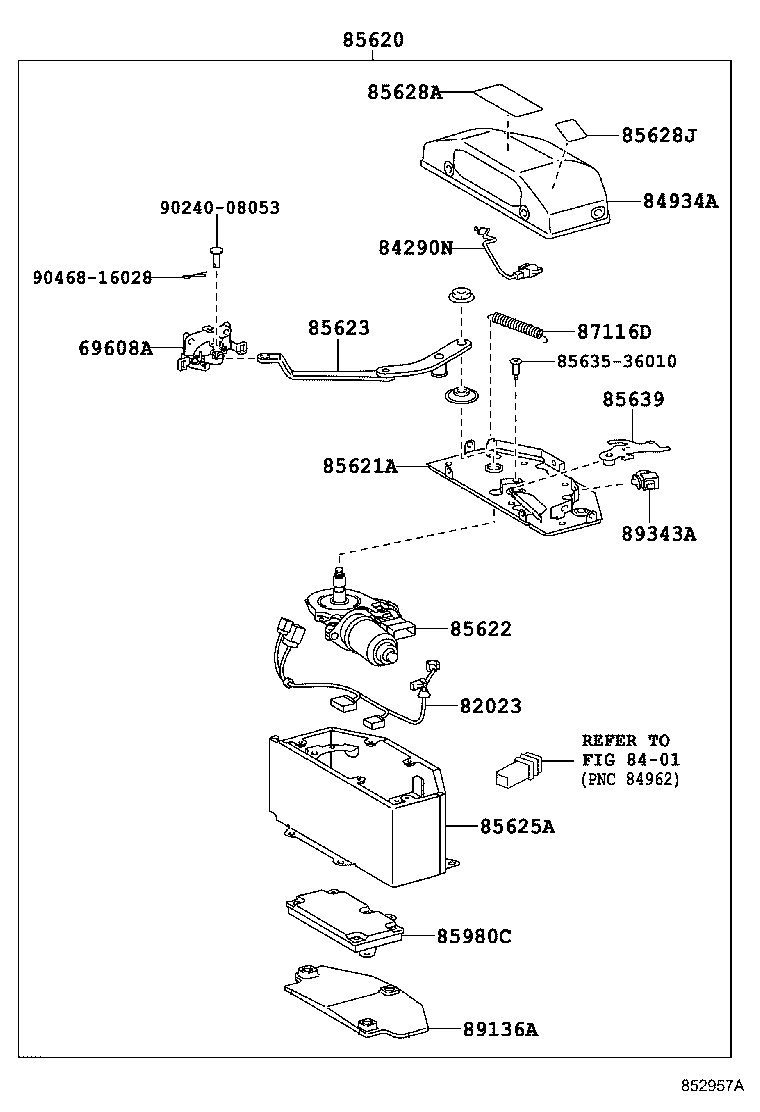

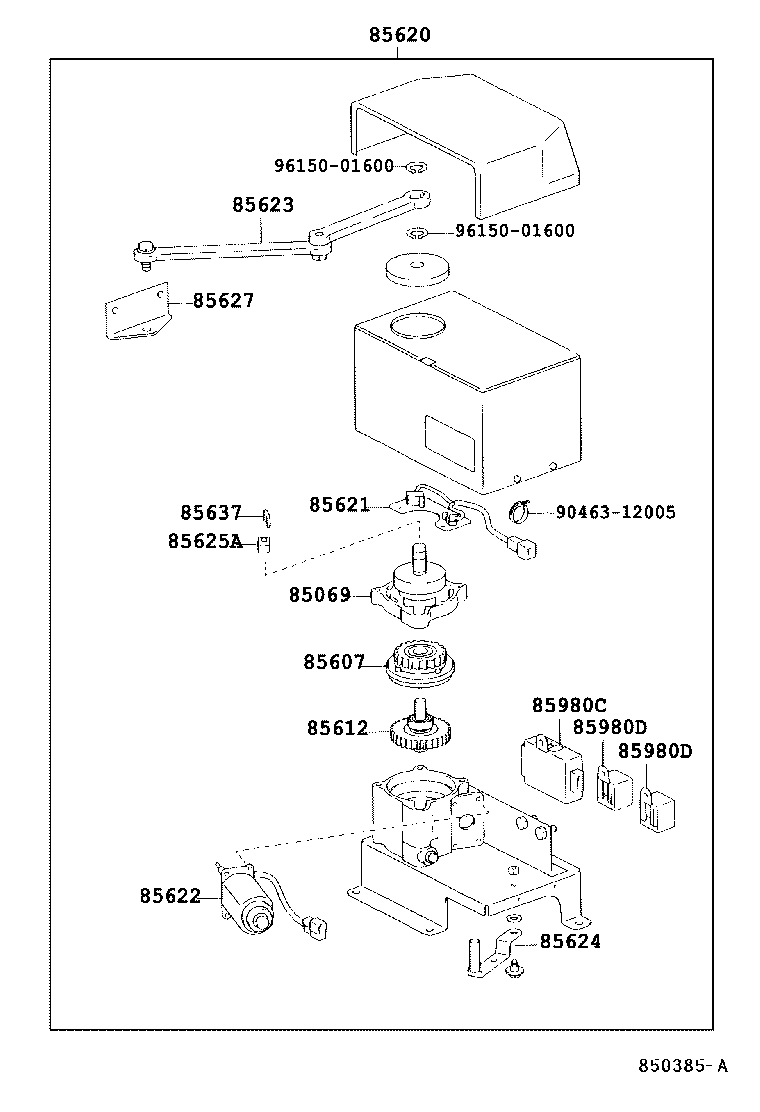

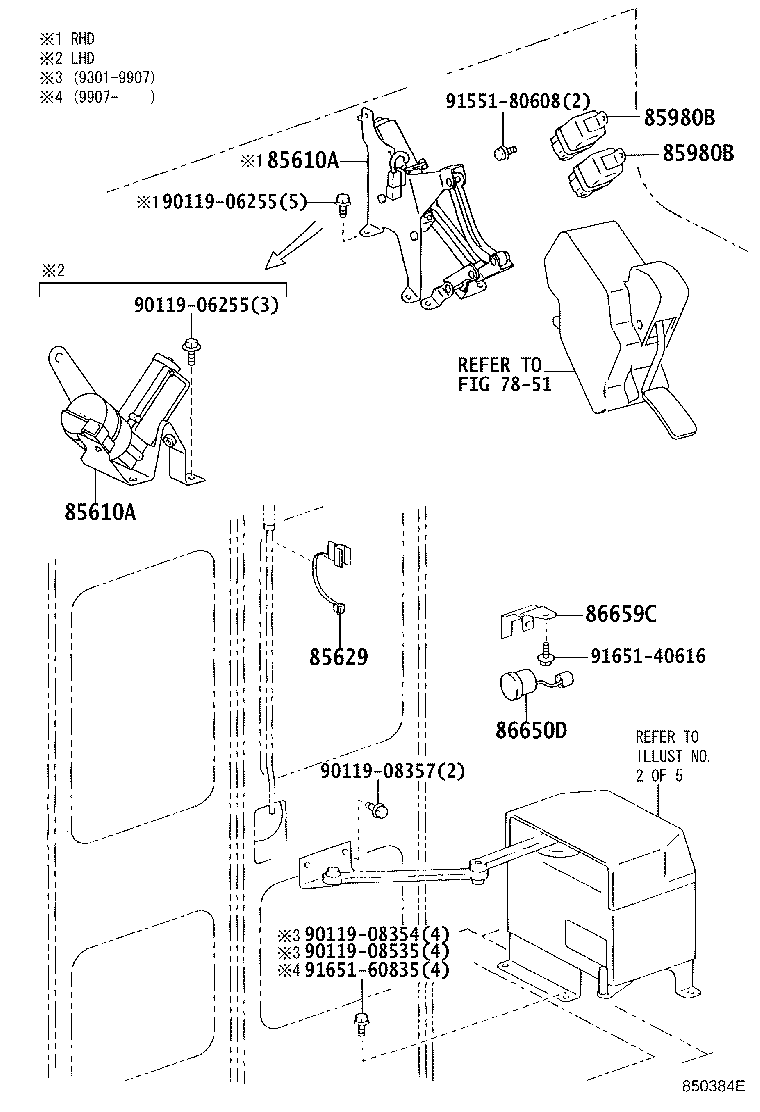

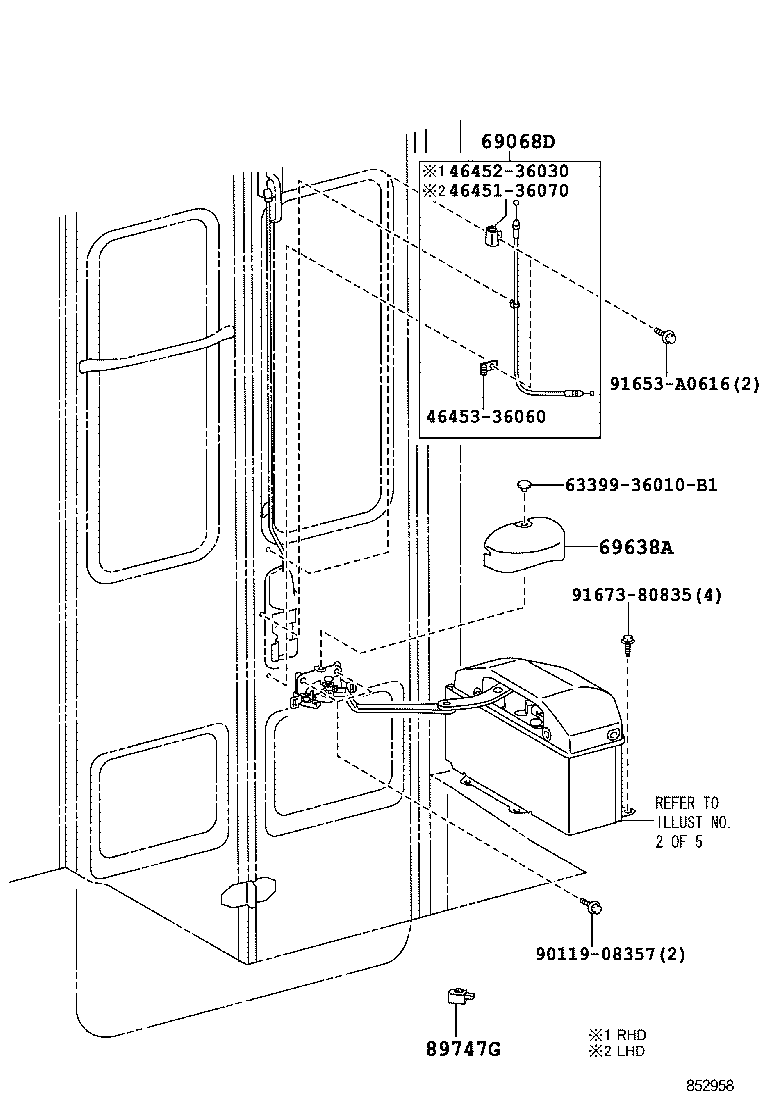

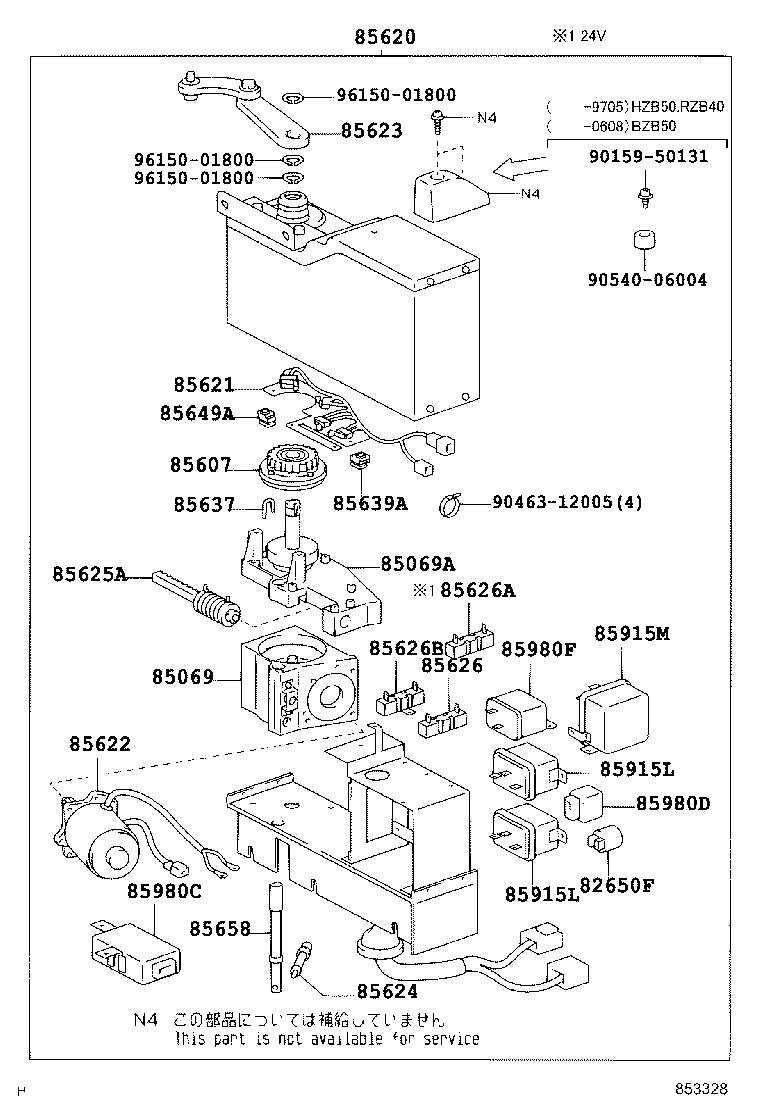

Figure 852967A 852967A 1993-01 → 2012-09 Figure 850384E 850384E 1993-01 → 2012-09 Figure 850382C 850382C 2012-09 → — Figure 852958 852958 2012-09 → — Figure 853328 853328 1993-01 → — Figure 850385A 850385A 1993-01 → 2012-09 Figure 852957A 852957A 2012-09 → — Figure 850386B 850386B 1993-01 → — Figure 850387C 850387C 1993-01 → 2015-01 Figure 853325 853325 2015-01 → — Figure 852959A 852959A 2012-09 → —

Part groups

PNCDescription
69068D Cable Sub-assy, Center Door Remote Control, NO.2
69608A Link Sub-assy, Center Door Remote Control
69638A Cover, Center Door Remote Control, NO.1
82023 Wiring Sub-assy, Auto Door
82650F Breaker Assy, Wiring Circuit
84290N Switch Assy, Limit
84931A Switch, Automatic Door Control
84932 Bracket, Door Control Switch
84934A Cover, Door Control Switch
85069 Housing Sub-assy, Auto Door
85069A Housing Sub-assy, Auto Door NO.2
85450F Motor Assy, Door Control
85607 Gear Sub-assy, Idle
85610A Actuator Assy, Accel Interlock
85612 Gear, Automatic Door Worm Wheel
85620 Motor Assy, Automatic Door Regulator
85621 Motor & Link, Automatic Door Regulator
85621A Switch & Base, Auto Door
85622 Motor & Gear, Automatic Door Regulator
85623 Link, Automatic Door Regulator
85624 Lever, Automatic Door Regulator, NO.1
85625A Rack, Automatic Door
85626 Resister, Automatic Door
85626A Resister, Automatic Door NO.2
85626B Resister, Automatic Door NO.3
85627 Stay, Automatic Door Regulator

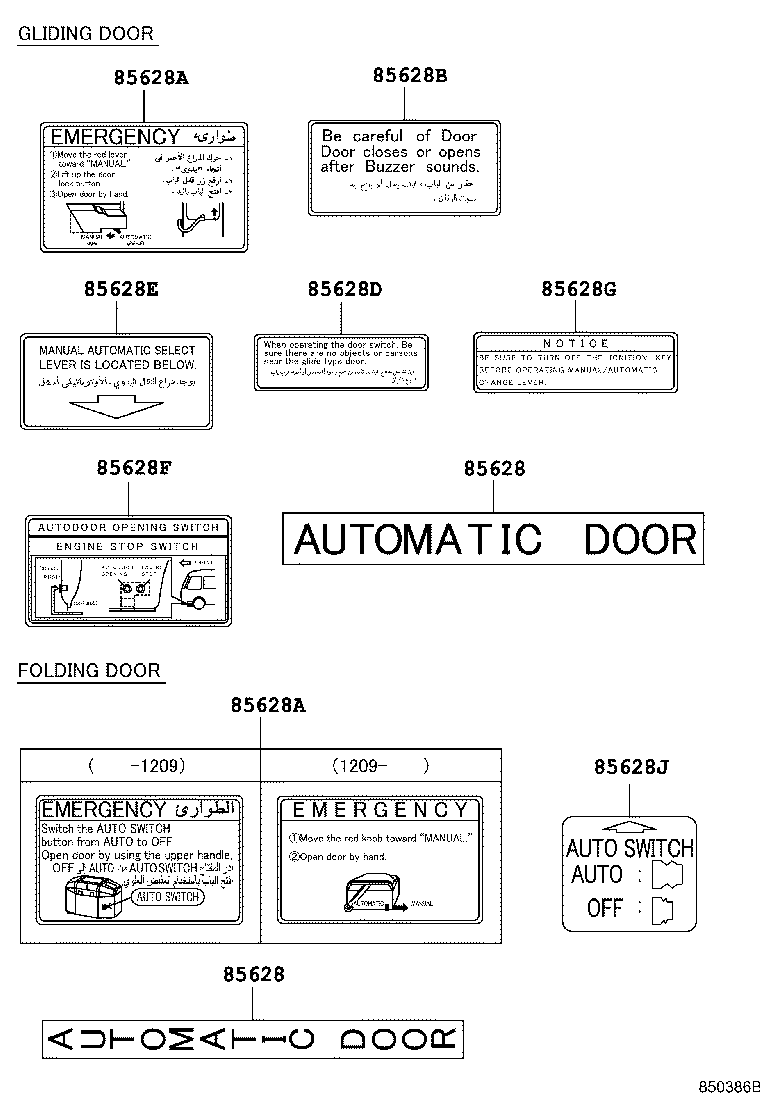

85628 Label, Automatic Door, NO.1
85628A Label, Automatic Door, NO.2
85628B Label, Automatic Door, NO.3
85628D Lavel, Automatic Door, NO.4
85628E Lavel, Automatic Door, NO.5
85628F Label, Automatic Door
85628G Label, Automatic Door NO.7
85628J Label, Automatic Door NO.6
85629 Holder, Automatic Door
85637 Remover, Automatic Door
85638A Spacer, Automatic Door
85639 Plate, Automatic Door
85639A Cam, Auto Door Stopper, NO.1
85649A Cam, Auto Door Stopper, NO.2
85658 Shaft, Guide Roller
85915L Relay, Main Automatic Door, NO.1
85915M Relay, Main Automatic Door, NO.2
85980B Relay Assy, Door Control (FOR AUTOMATIC DOOR)
85980C Relay Assy, Door Control, NO.2 (FOR AUTOMATIC DOOR)
85980D Relay Assy, Door Control, NO.3 (FOR AUTOMATIC DOOR)
85980F Relay Assy Door Control, NO.4(FOR AUTOMATIC DOOR)
86650D Buzzer Assy
86659C Bracket, Buzzer, Automatic Door
87116D Spring, Holding
89136A Cover, Ecu Aggregation, NO.1
89343A Buzzer, Clearance Warning
89747G Buzzer, Wireless Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
