Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

17 part groups · 9 illustrations

Illustrations

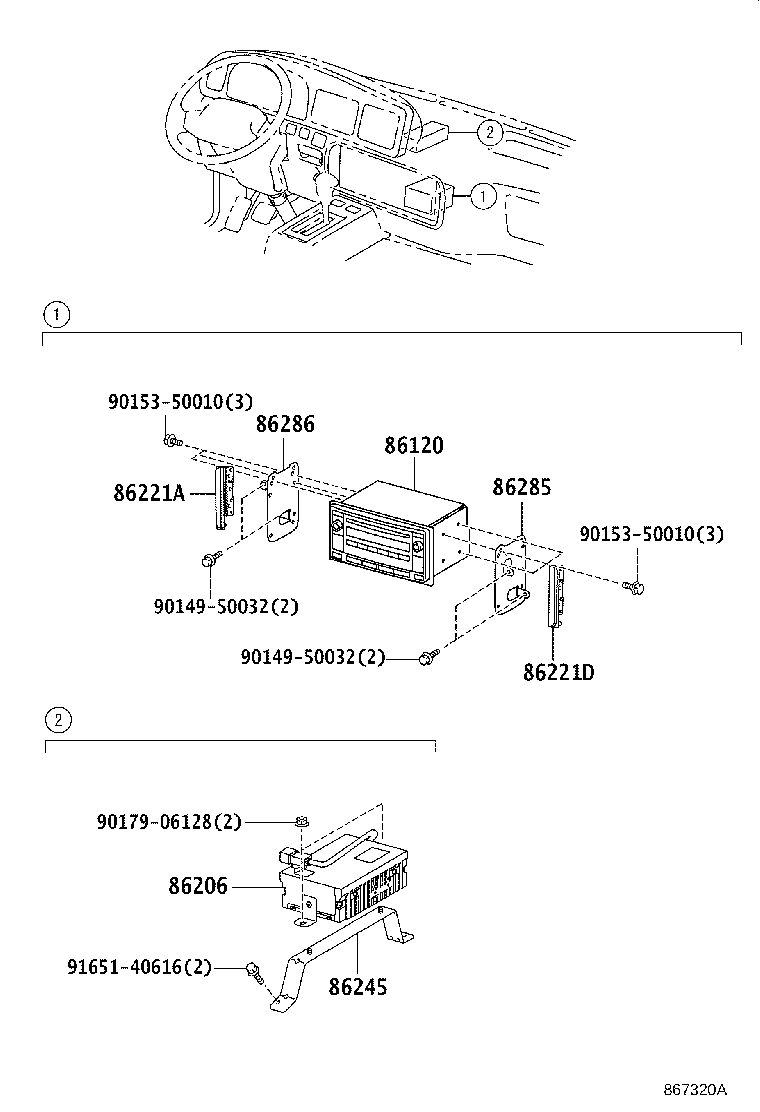

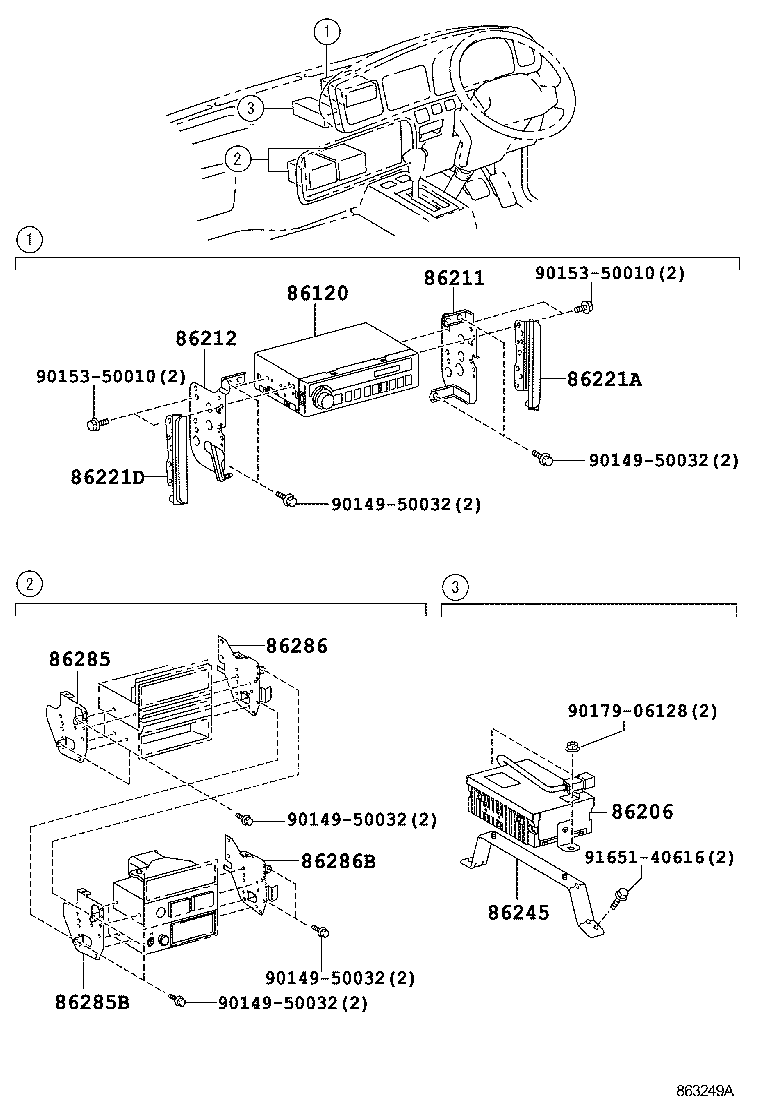

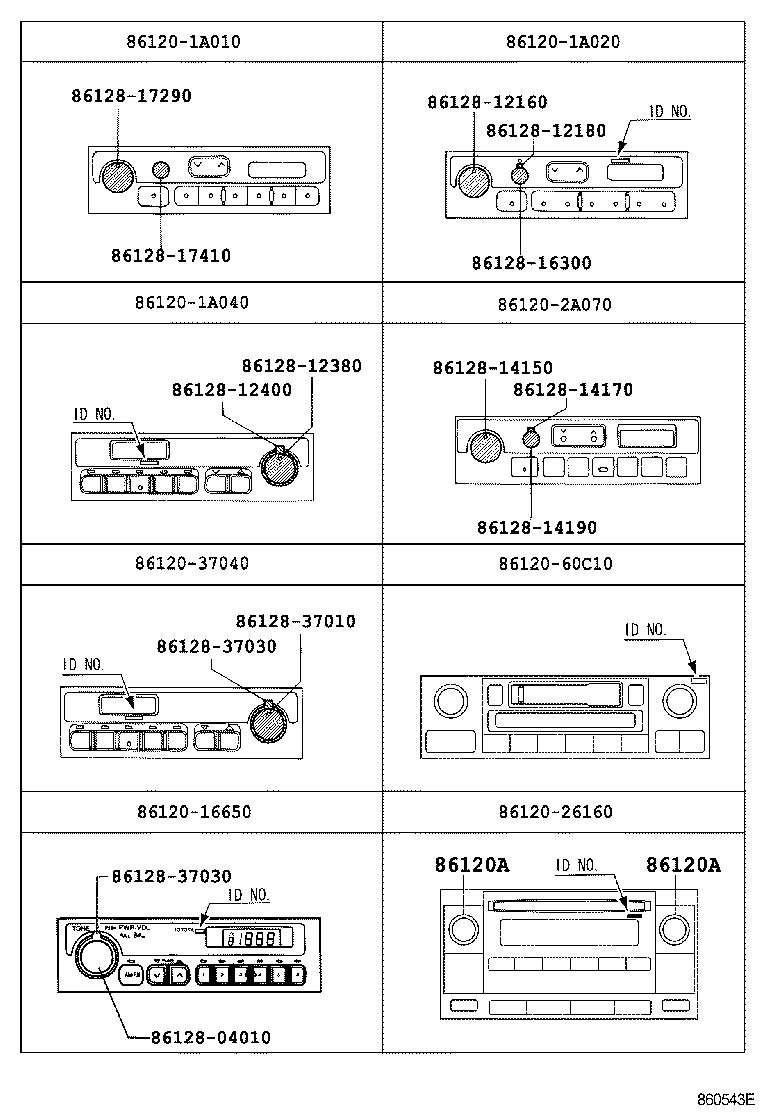

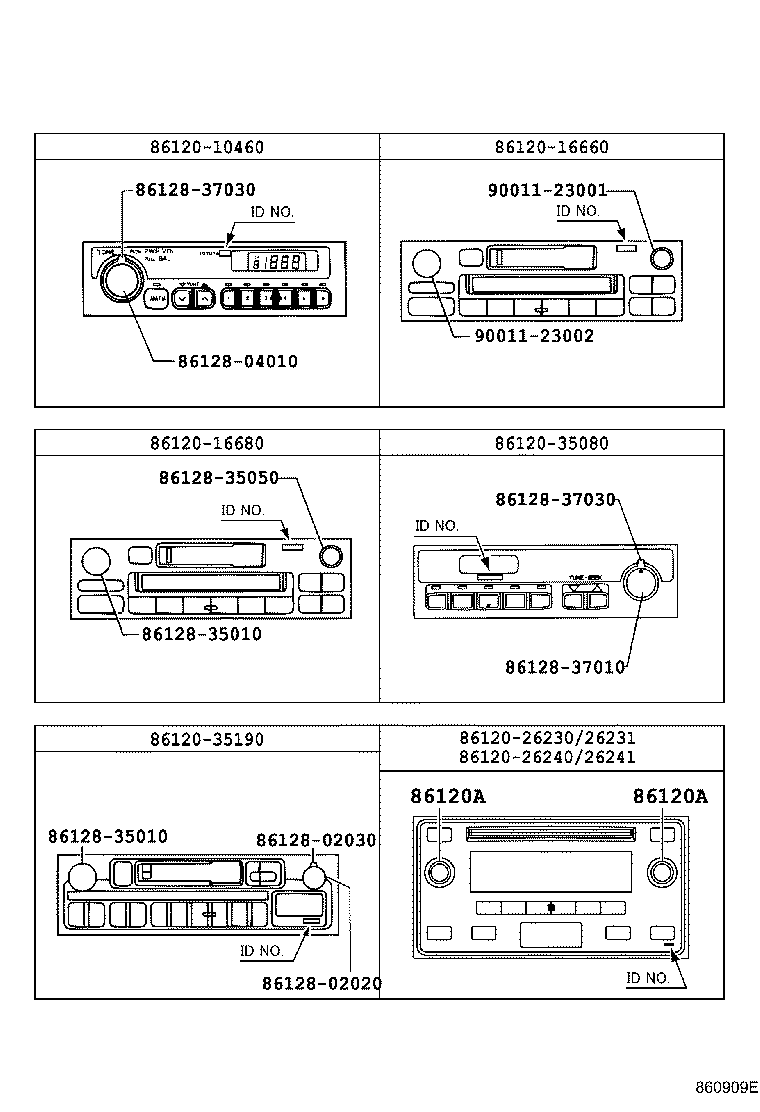

Figure 860551D 860551D 1993-01 → 2007-08 Figure 860551D 860551D 1993-01 → 2012-09 Figure 860551D 860551D 2006-08 → 2013-11 Figure 863249A 863249A 2007-08 → — Figure 867320A 867320A 2012-09 → — Figure 860543E 860543E 1993-01 → — Figure 860909E 860909E 1993-01 → — Figure 861005B 861005B 1993-01 → — Figure 860552C 860552C 1993-01 → —

Part groups

PNCDescription
86011C Filter, Noise
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86206 Converter Sub-assy, Voltage
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86221D Panel, Radio Receiver
86245 Bracket, Voltage Converter
86250 Microphone Assy, Amplifier
86259A Hanger, Microphone
86260 Tape Player Assy
86285 Bracket, Amplifier, NO.1
86285B Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86286B Bracket, Amplifier, NO.2
86290A Amplifier Assy, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
