Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

19 part groups · 5 illustrations

Illustrations

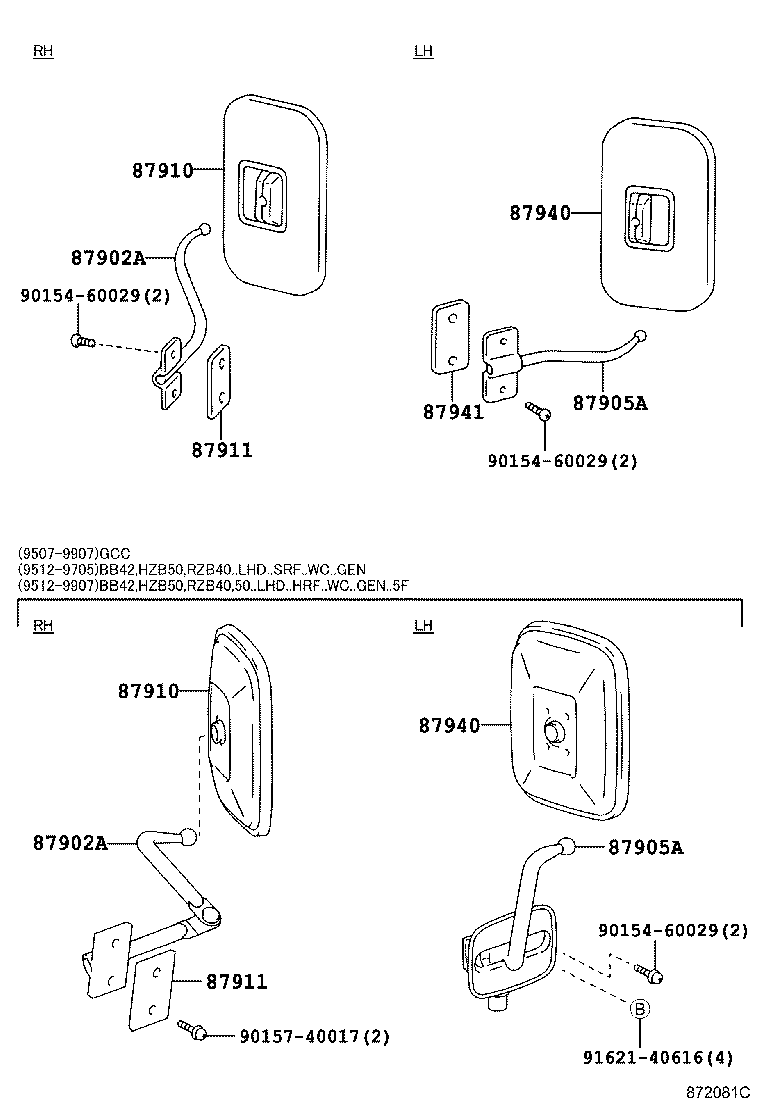

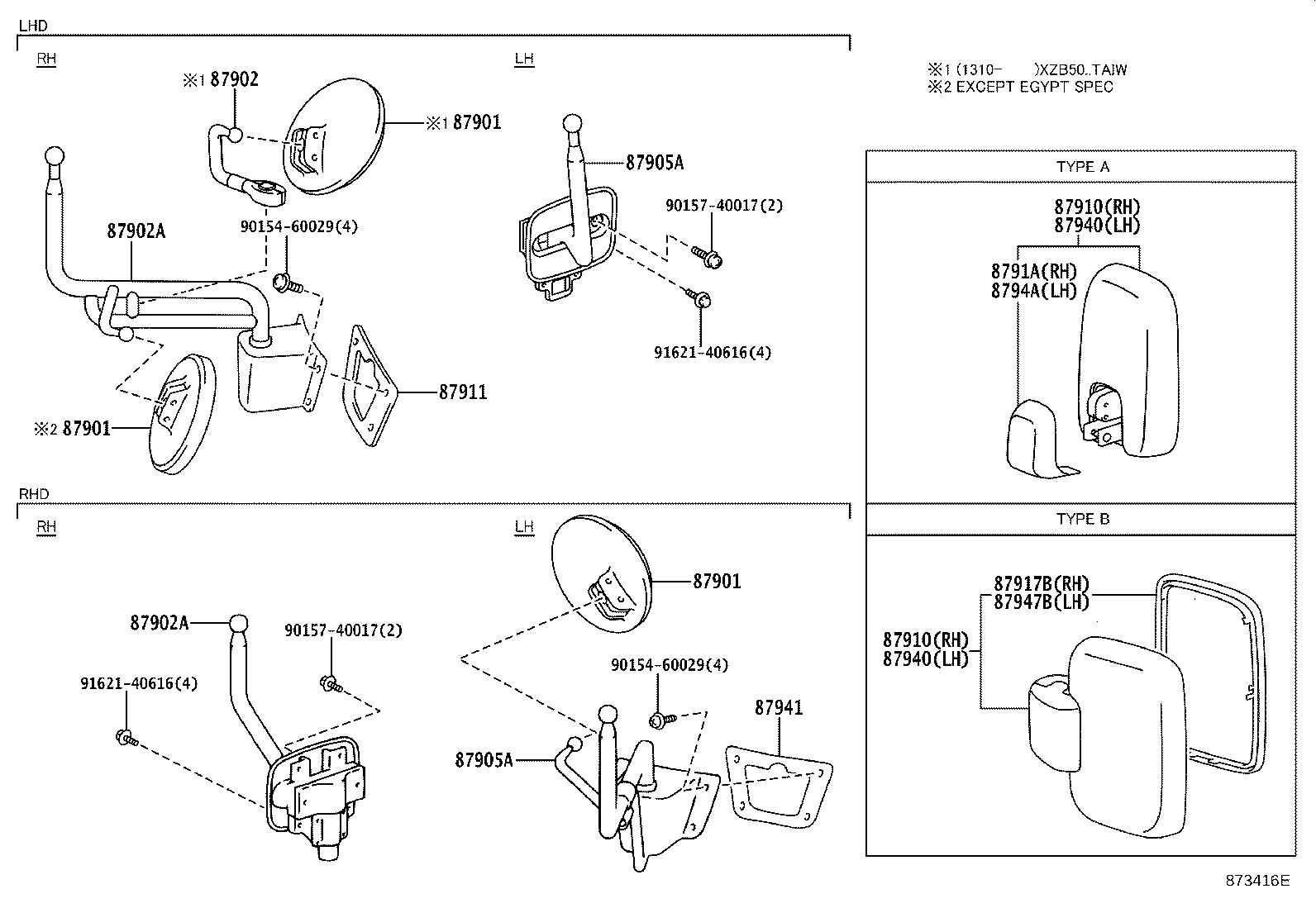

Figure 872079C 872079C 1993-01 → — Figure 873416E 873416E 1993-01 → — Figure 872081C 872081C 1993-01 → — Figure 87E667 87E667 1997-05 → 1999-07 Figure 873423B 873423B 1993-01 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87901 Mirror Sub-assy, Outer Under View
87902 Support, Rear View Outside Mirror, RH
87902A Arm Sub-assy, Outer Rear View Mirror, RH
87905A Arm Sub-assy, Outer Rear View Mirror, LH
87907 Mirror Sub-assy, Outer Under View
87910 Mirror Assy, Outer Rear View, RH
87911 Gasket, Outer Rear View Mirror, RH
87917B Mirror, Outer Rear View, RH
8791A Cover, Outer Mirror, RH NO.2
87930A Mirror Assy, Outer Under View
87940 Mirror Assy, Outer Rear View, LH
87941 Gasket, Outer Rear View Mirror, LH
87947B Mirror, Outer Rear View, LH
8794A Cover, Outer Mirror, LH NO.2
87950 Mirror Assy, Outer Under Rear View
87951 Gasket, Outer Under Rear View Mirror
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
