Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

17 part groups · 7 illustrations

Illustrations

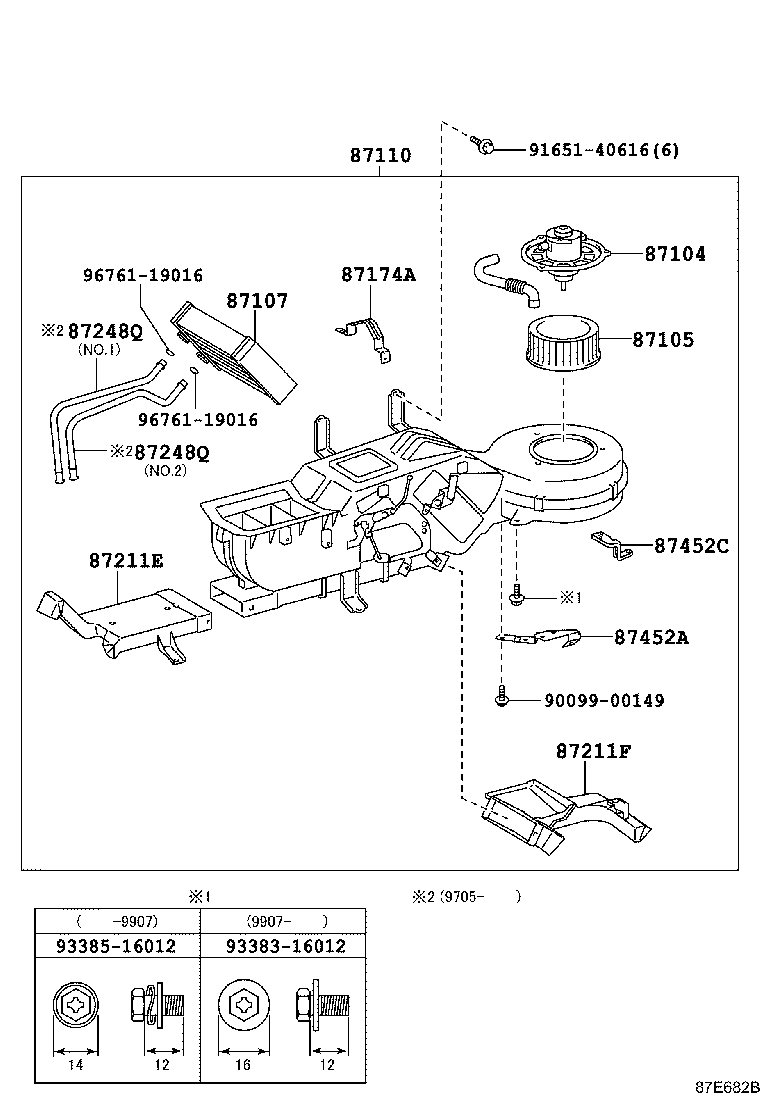

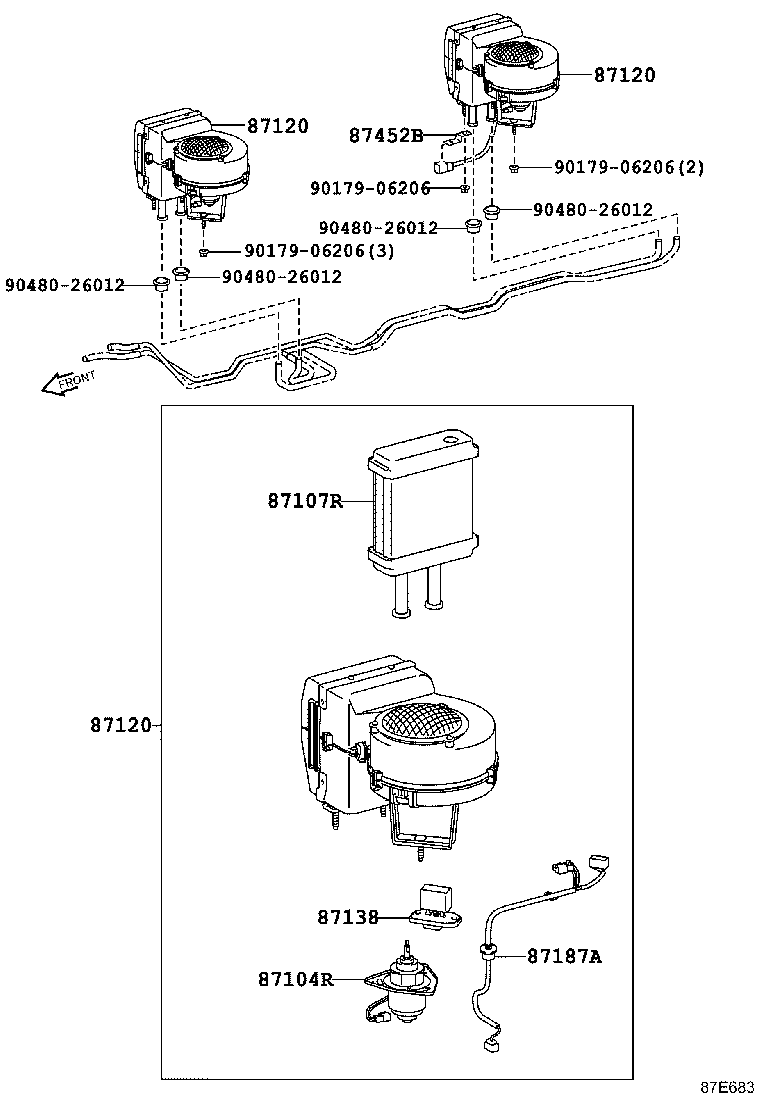

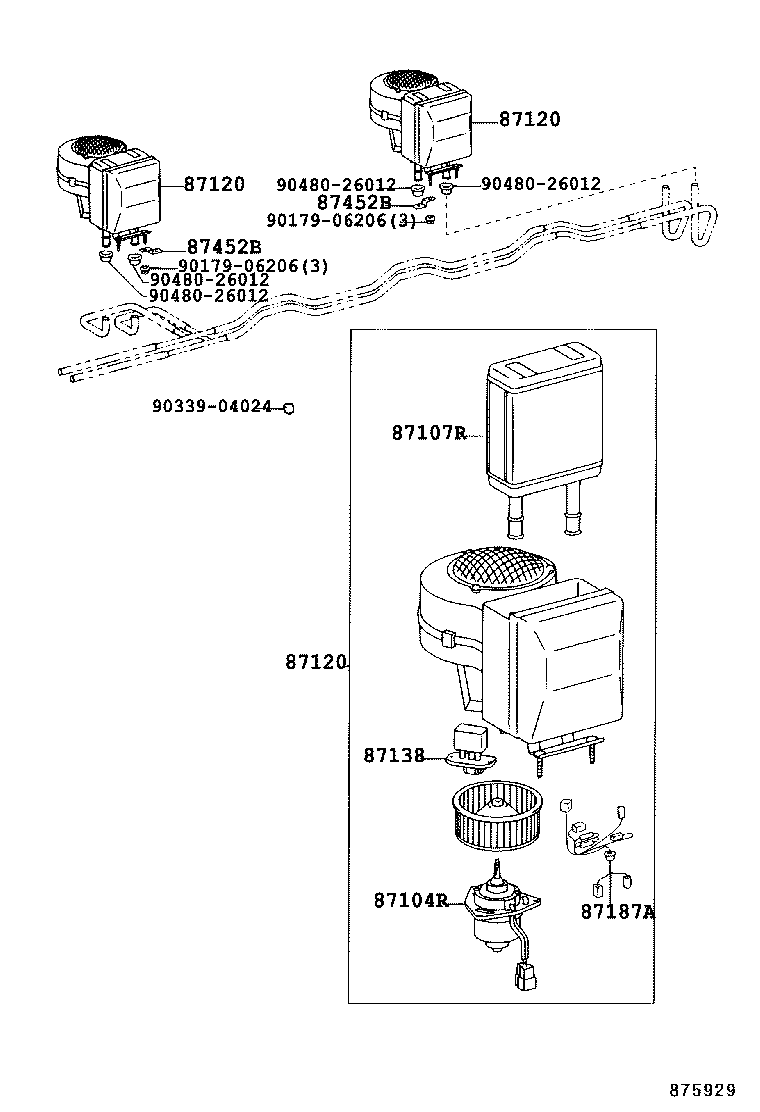

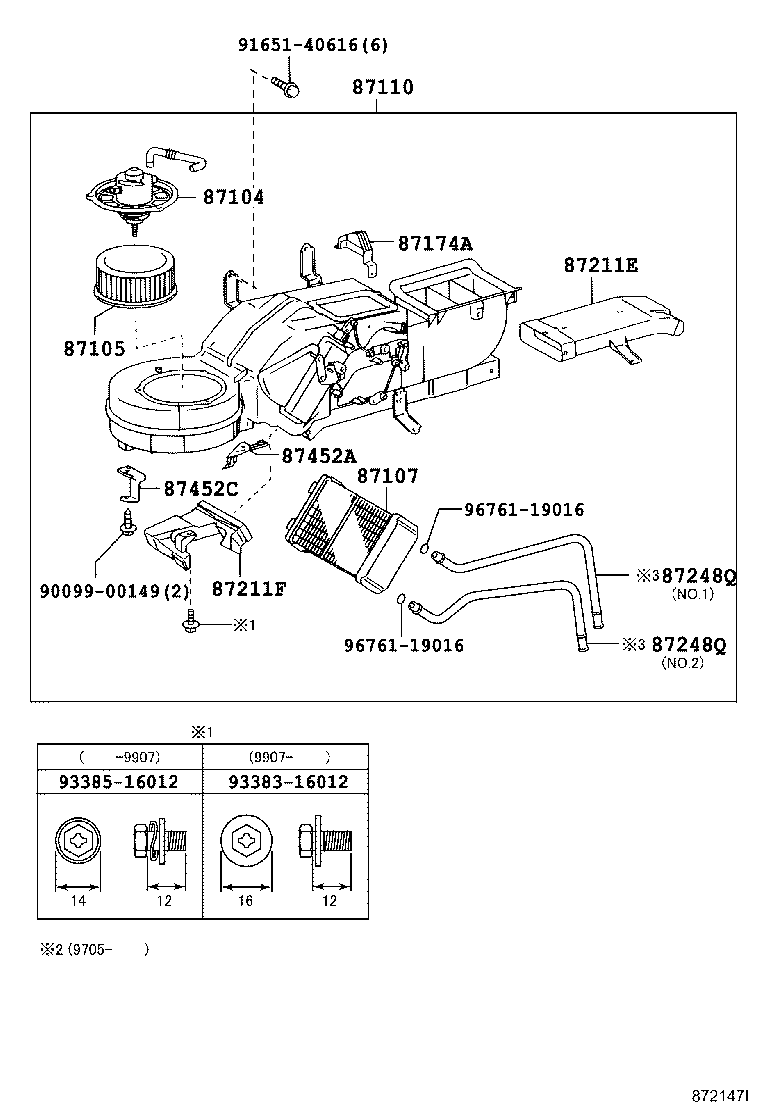

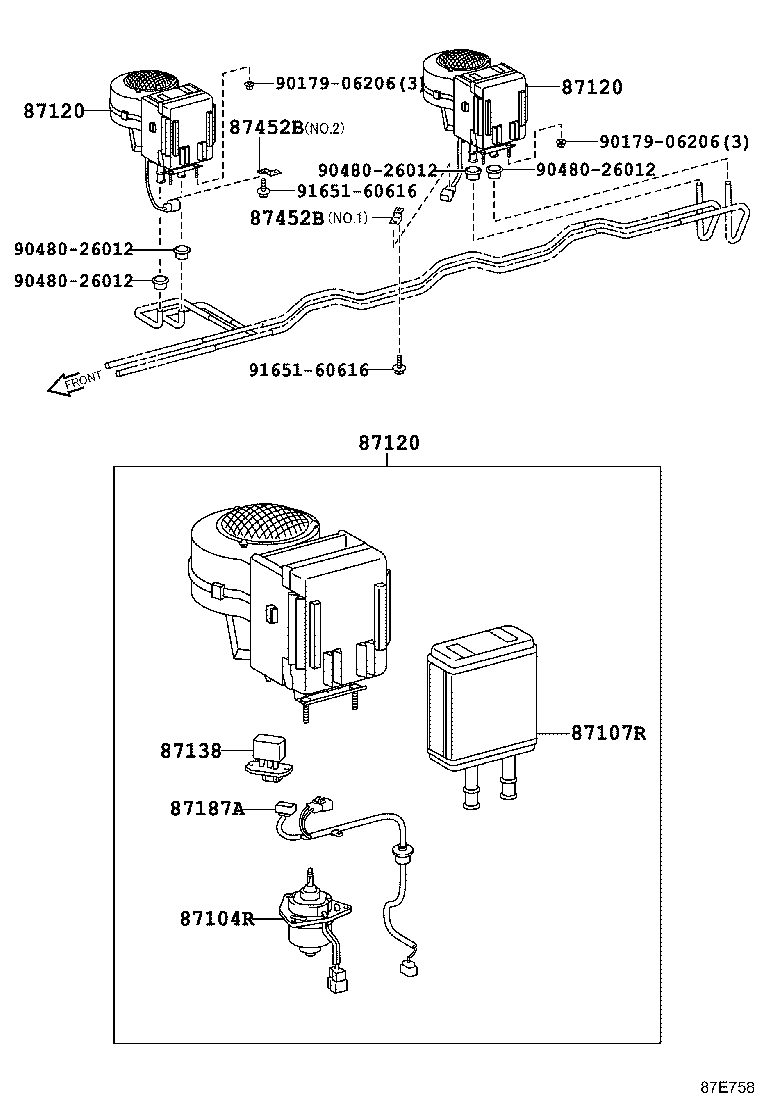

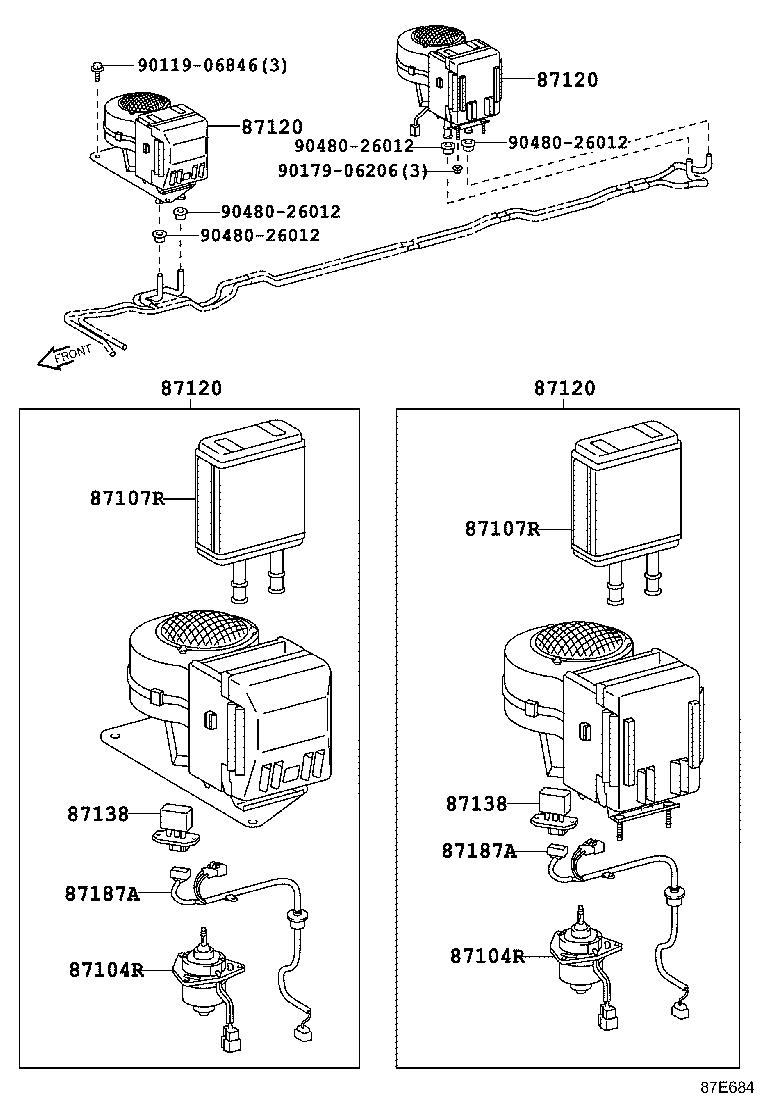

Figure 872091D 872091D 1994-07 → — Figure 87E682B 87E682B 1993-01 → — Figure 872147I 872147I 1993-01 → — Figure 875929 875929 1993-01 → 2015-01 Figure 87E684 87E684 2015-01 → — Figure 87E758 87E758 2015-01 → — Figure 87E683 87E683 2015-01 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87104R Motor Sub-assy, Rear Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87110 Heater Assy
87120 Heater Assy, Rear
87138 Resistor, Heater Blower
87174A Guide, Air Heater
87187A Wire, Blower Motor Lead
87211E Duct, Air
87211F Duct, Air
87248Q Pipe, Front Heater Radiator Water
87452A Bracket, Heater, Front
87452B Bracket, Heater, Rear
87452C Bracket, Front Heater, NO.2
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
