Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

54 part groups · 75 illustrations

Illustrations

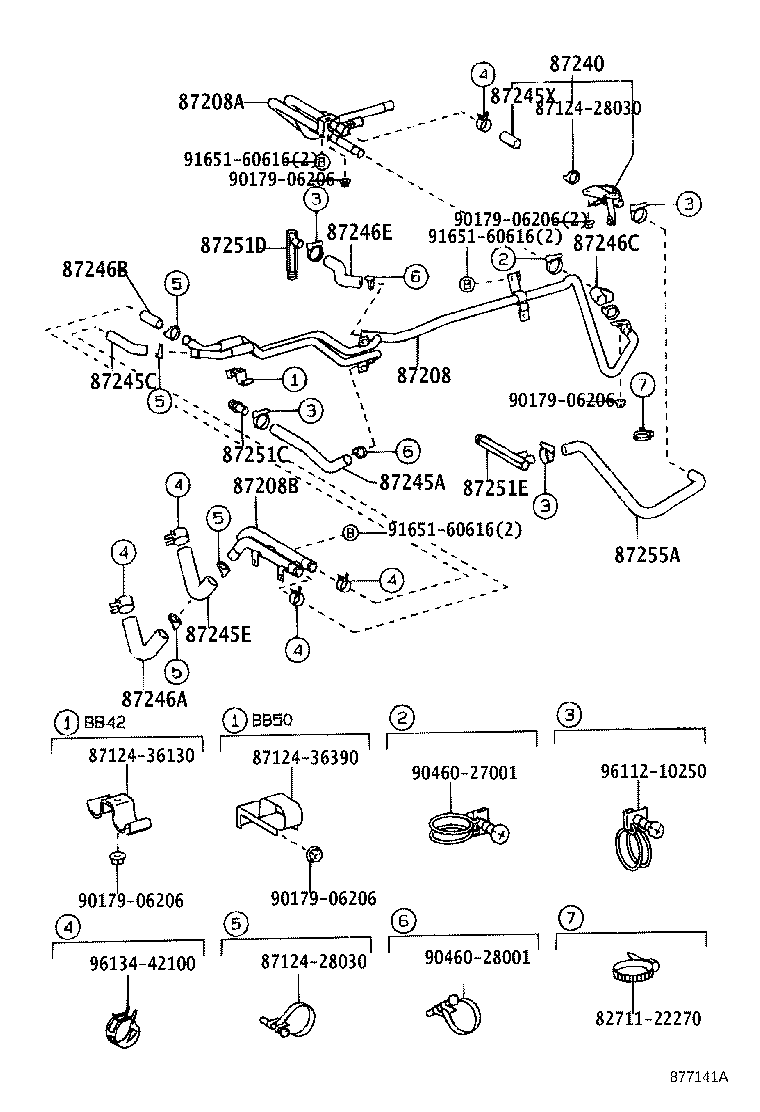

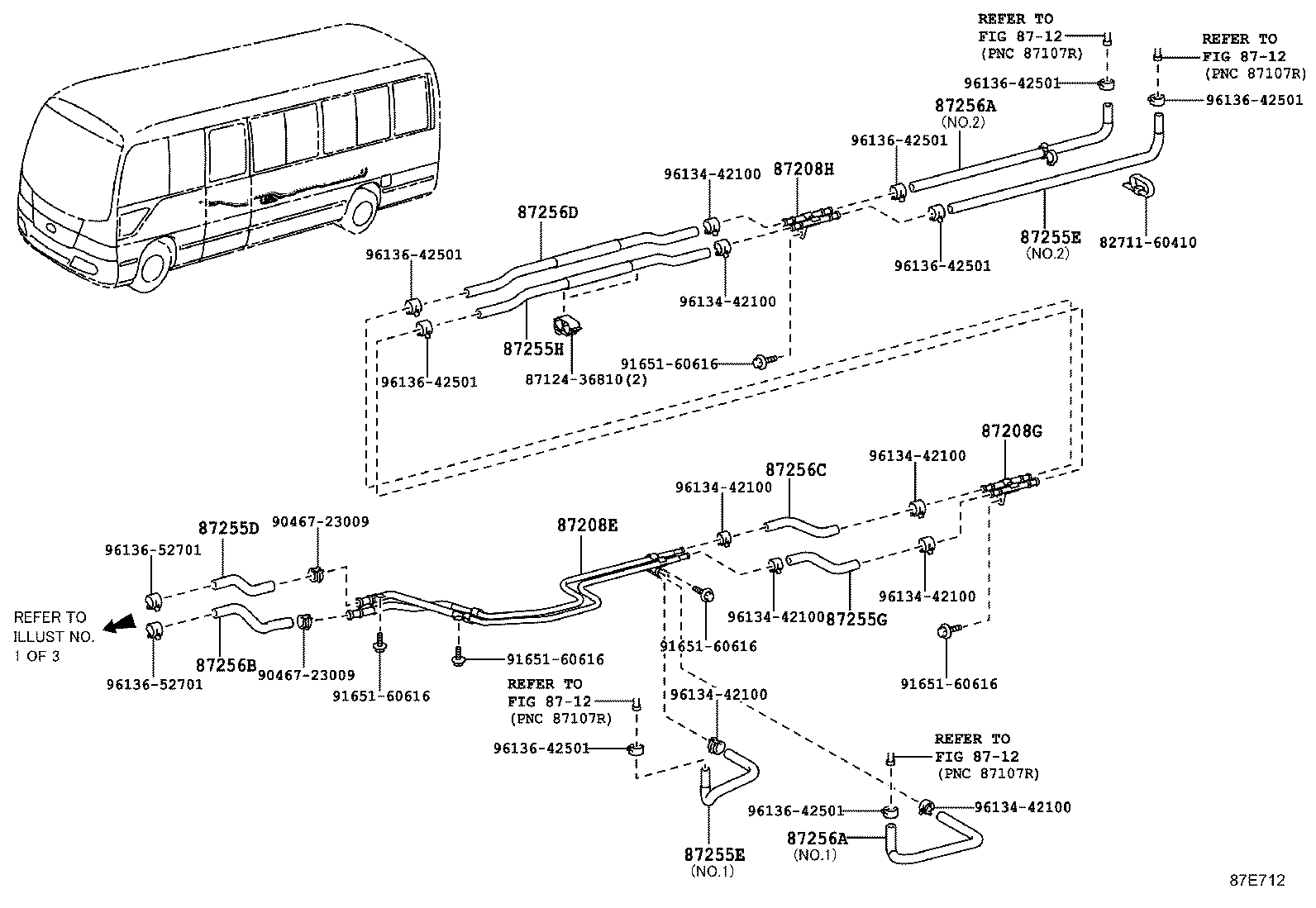

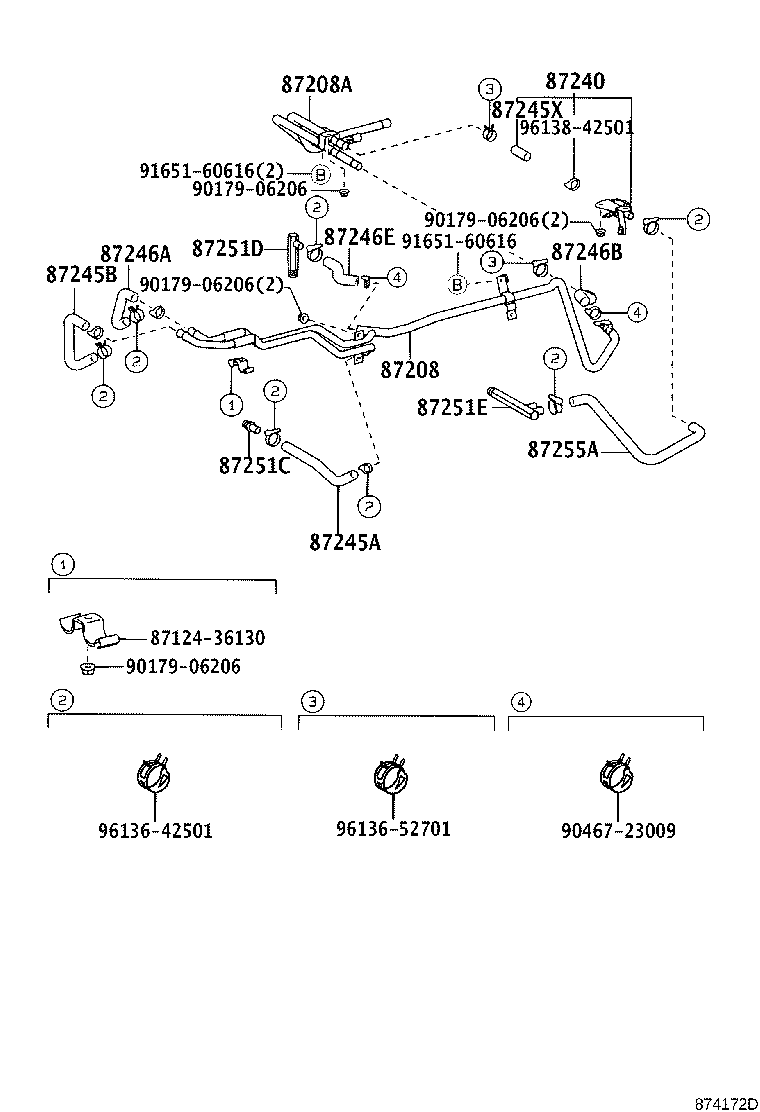

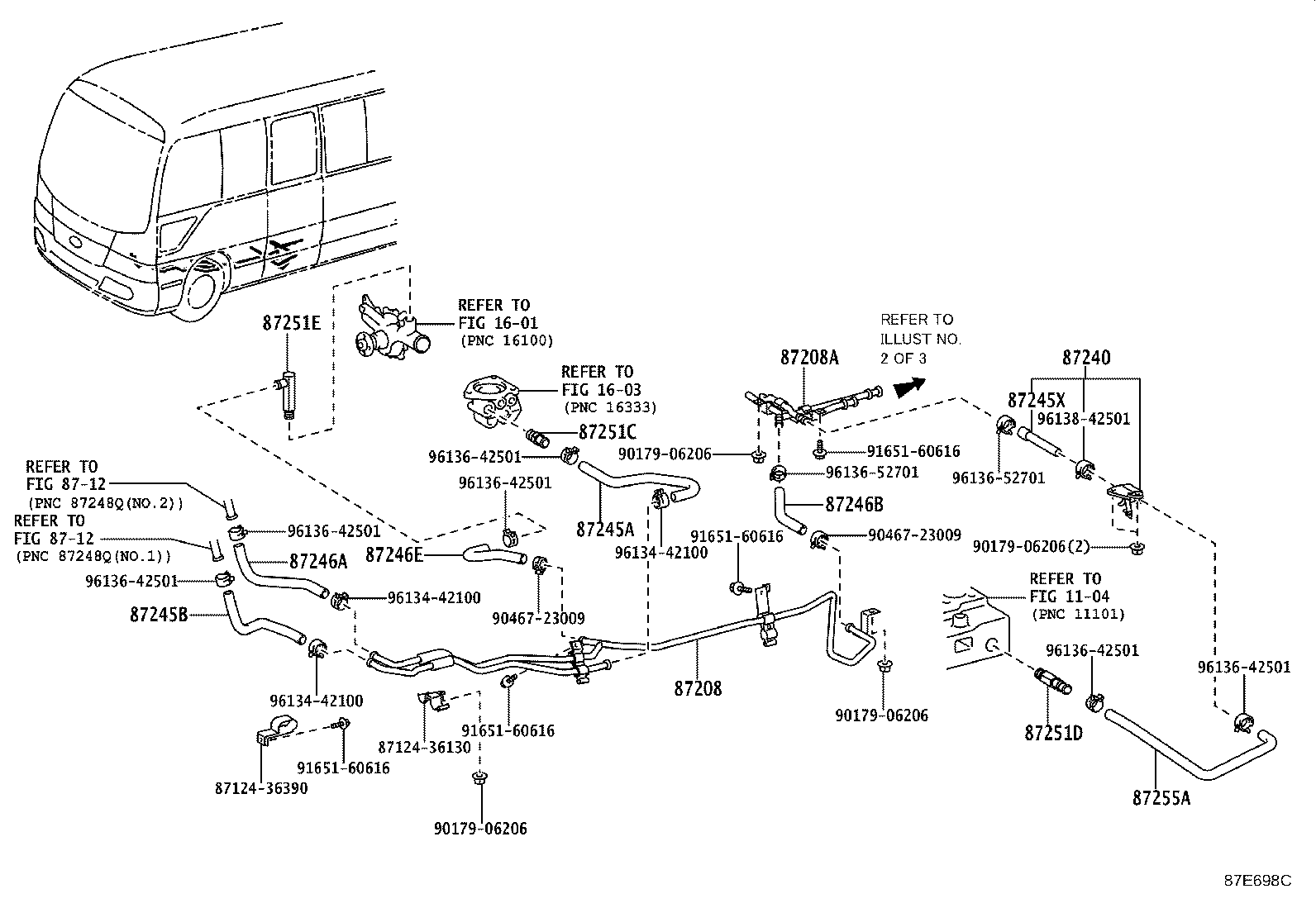

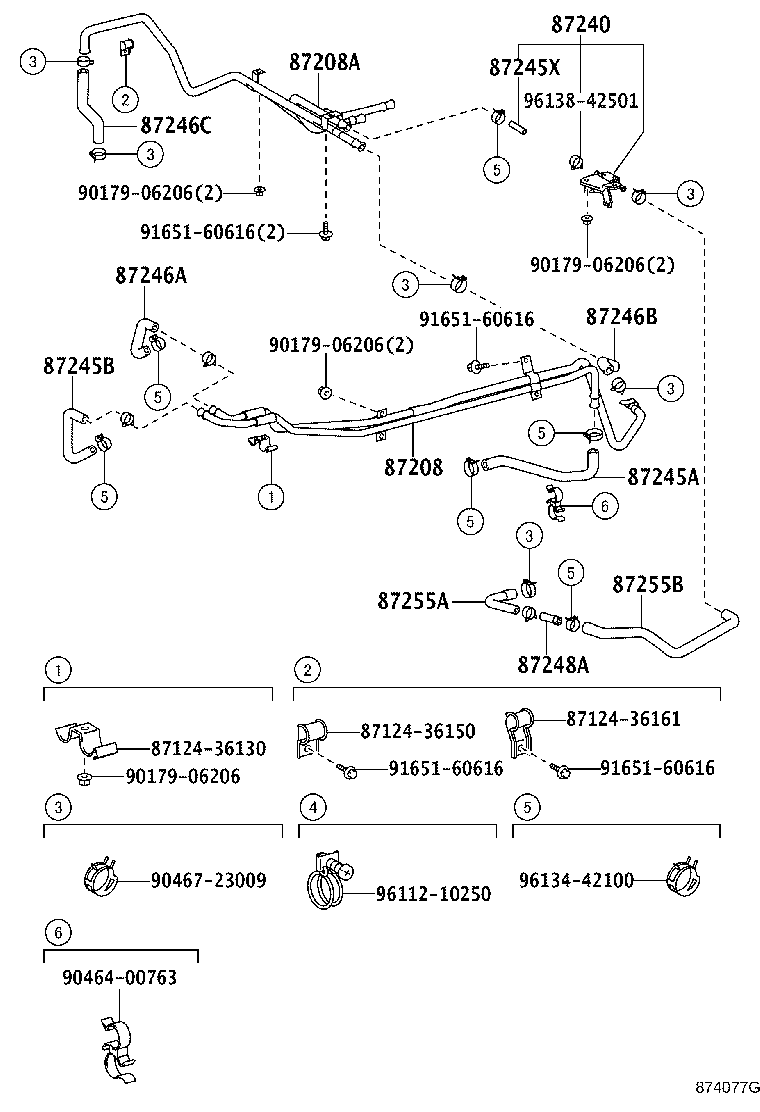

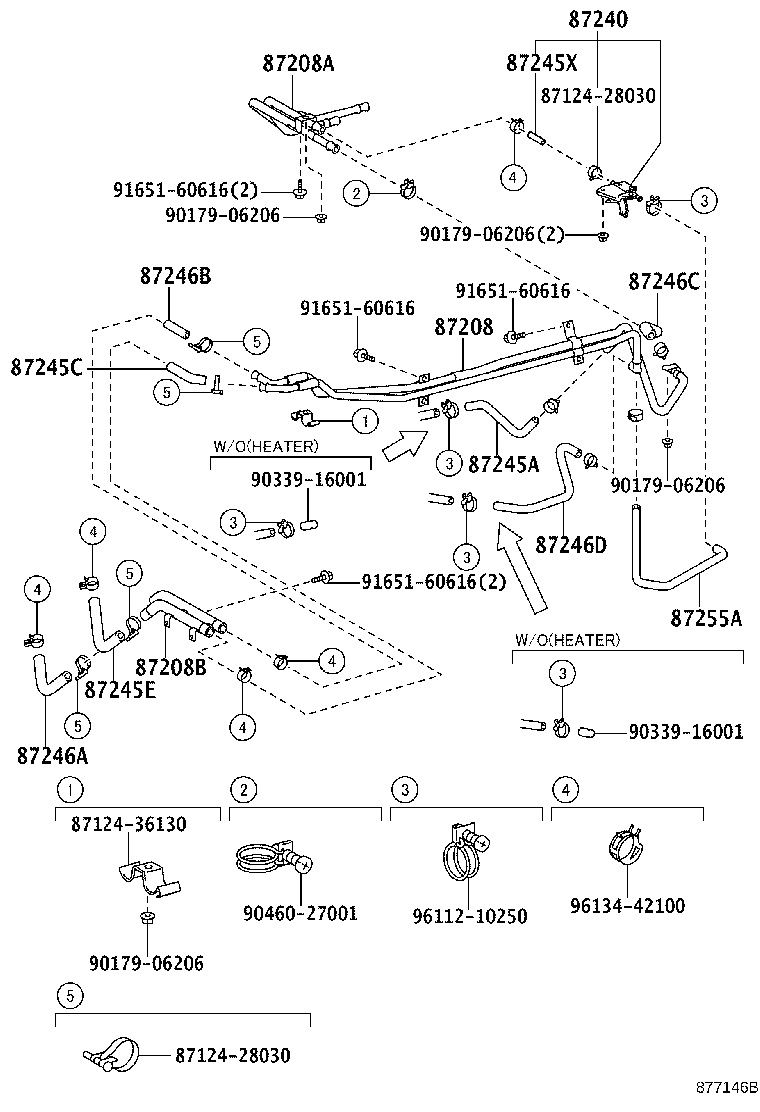

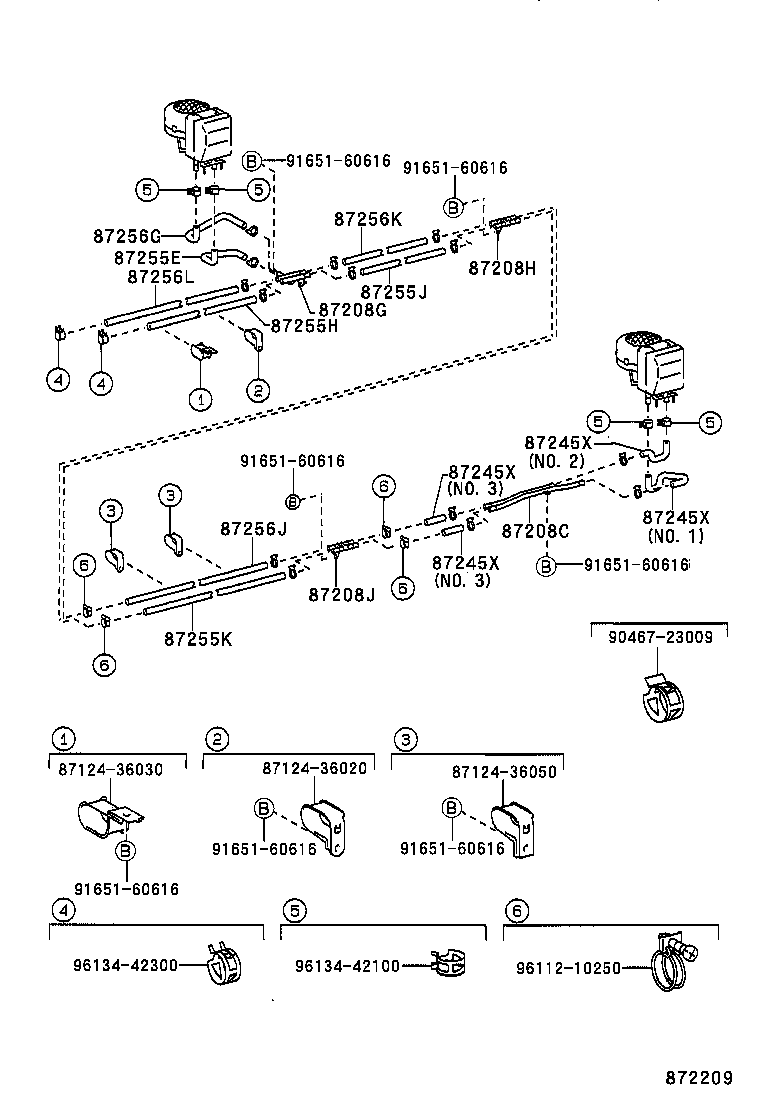

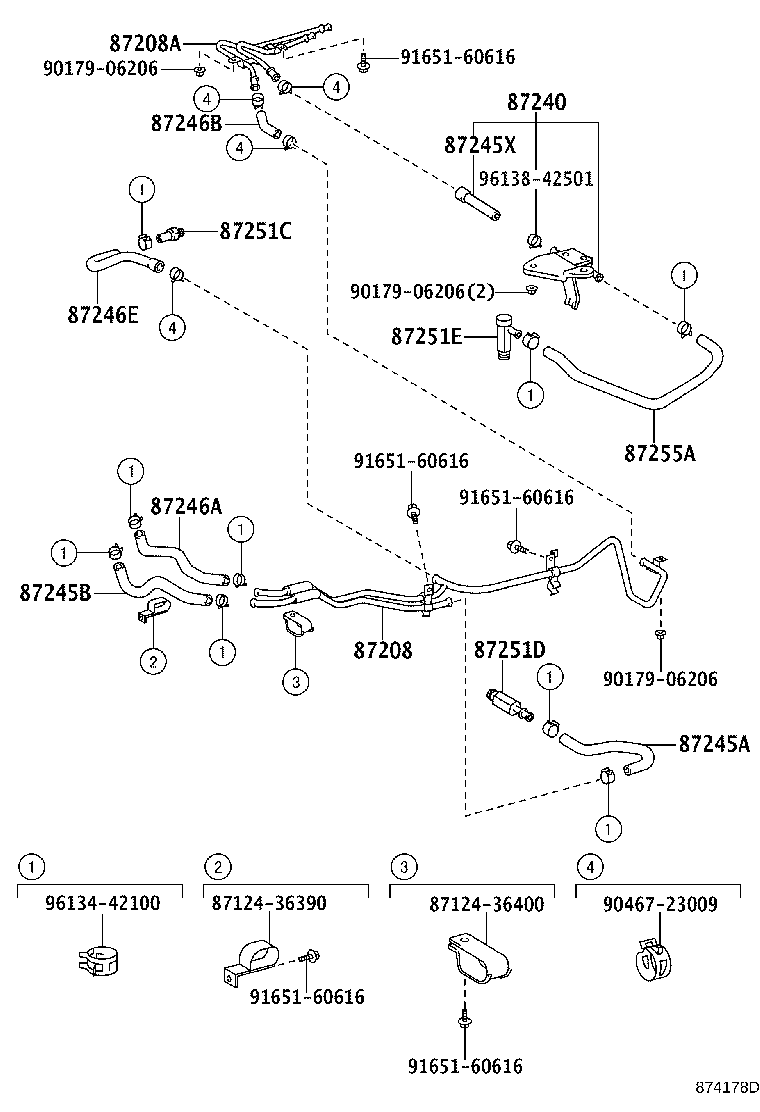

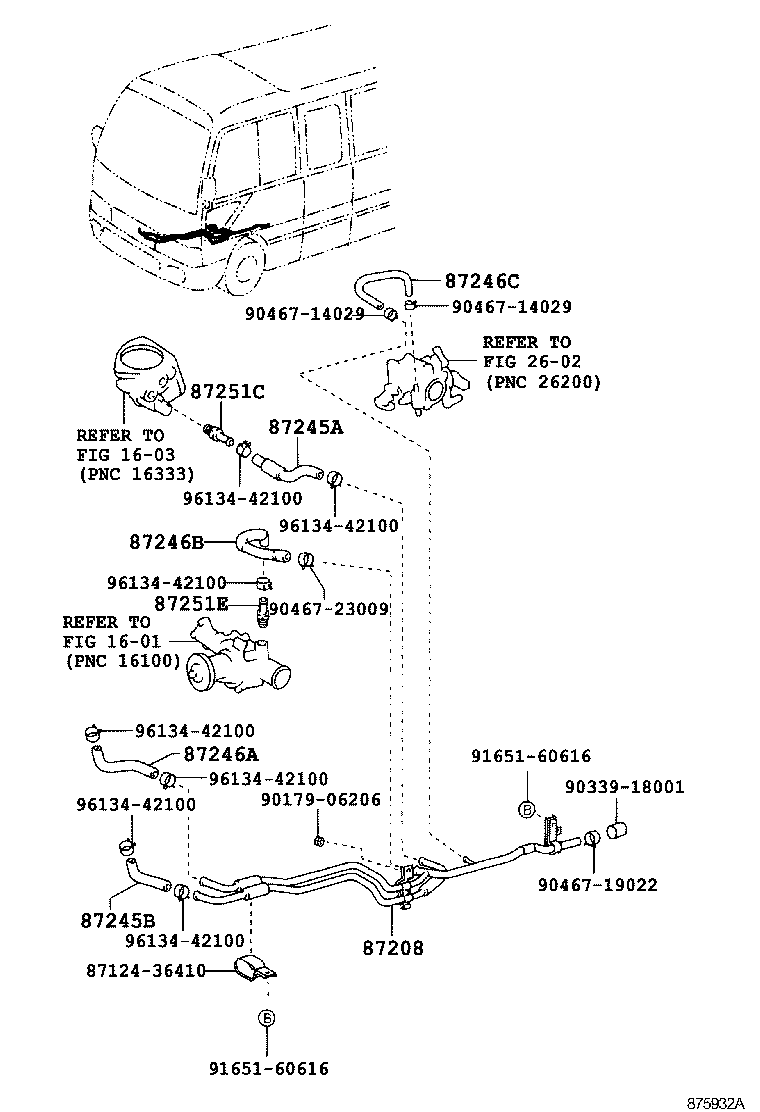

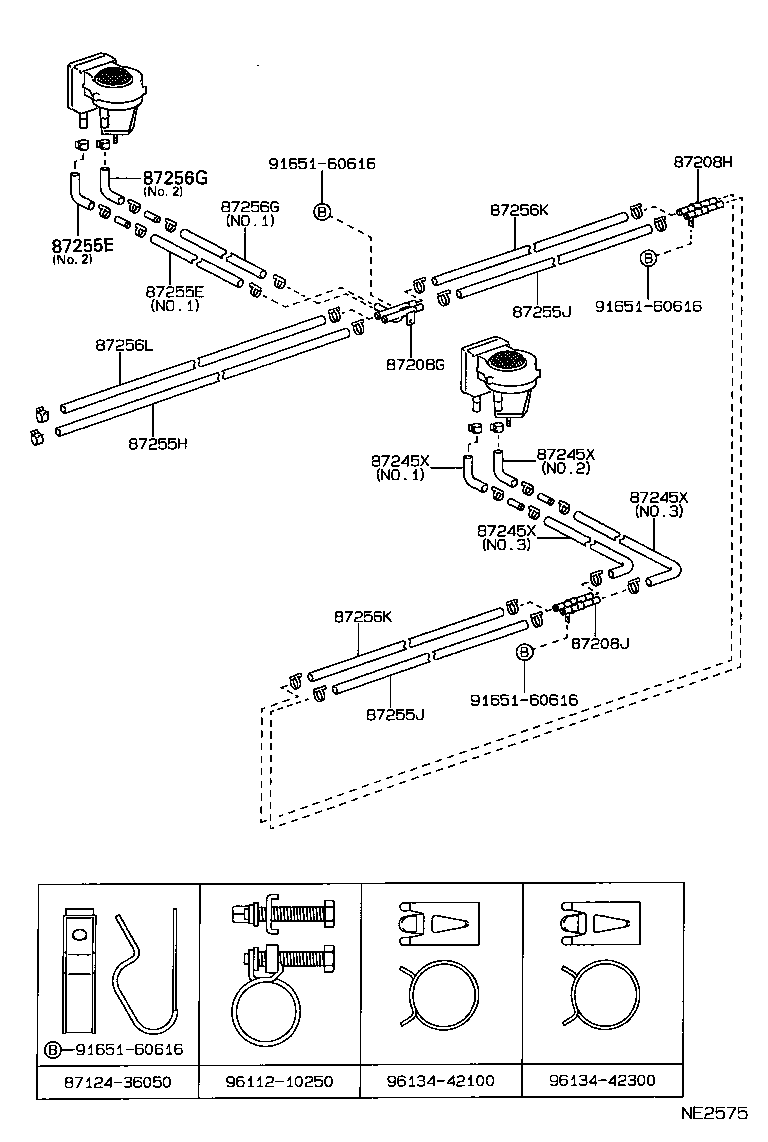

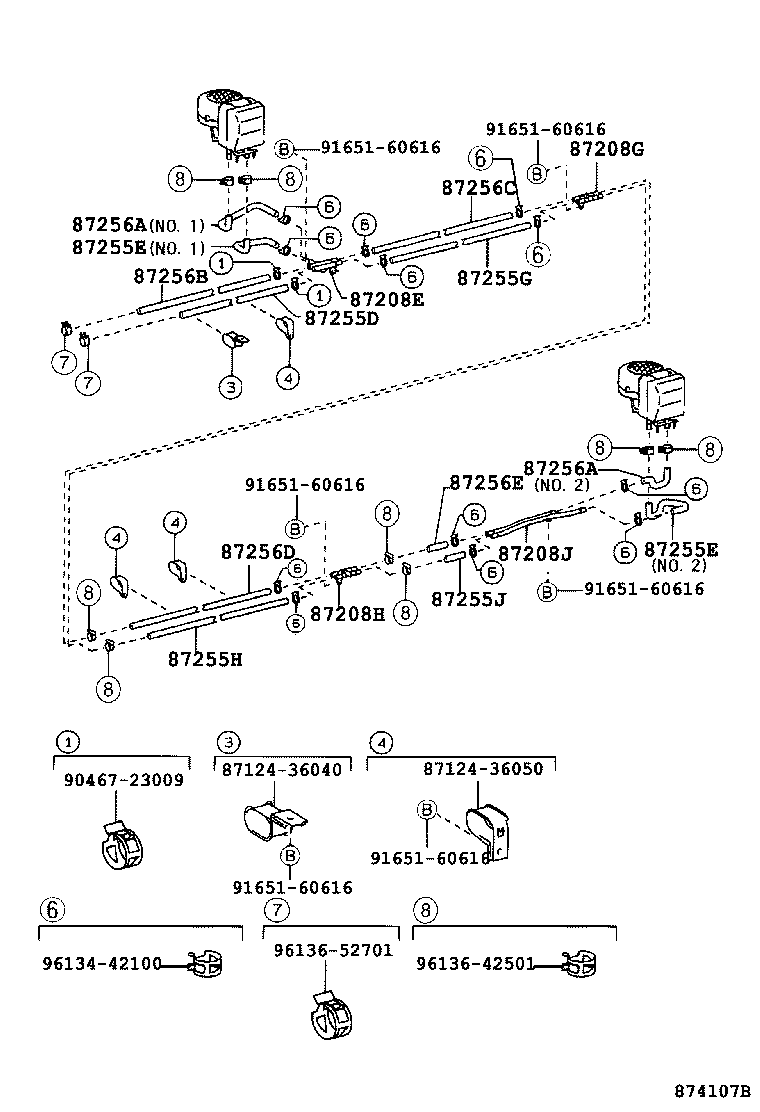

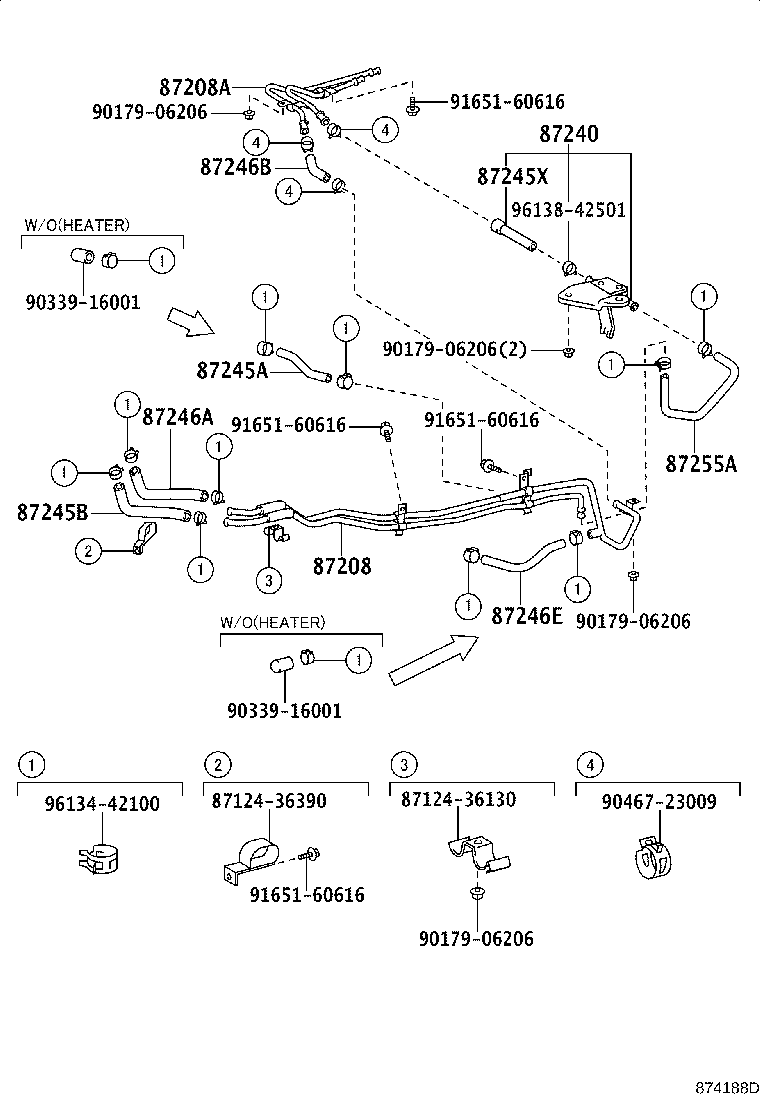

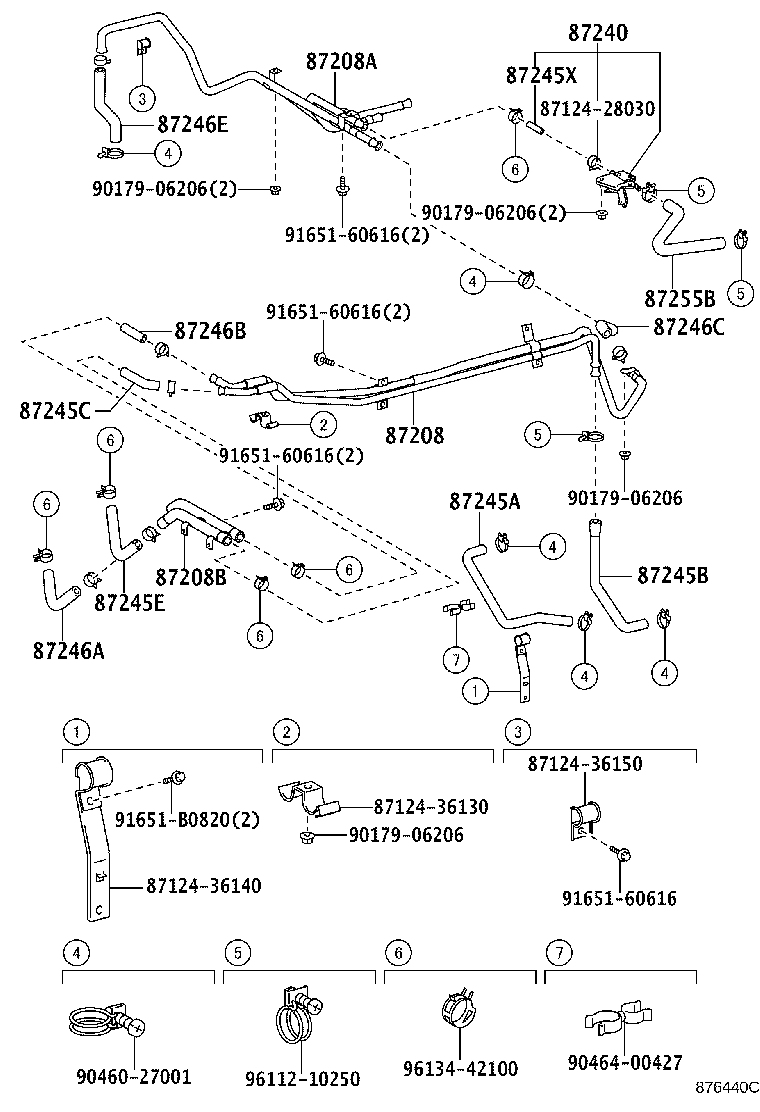

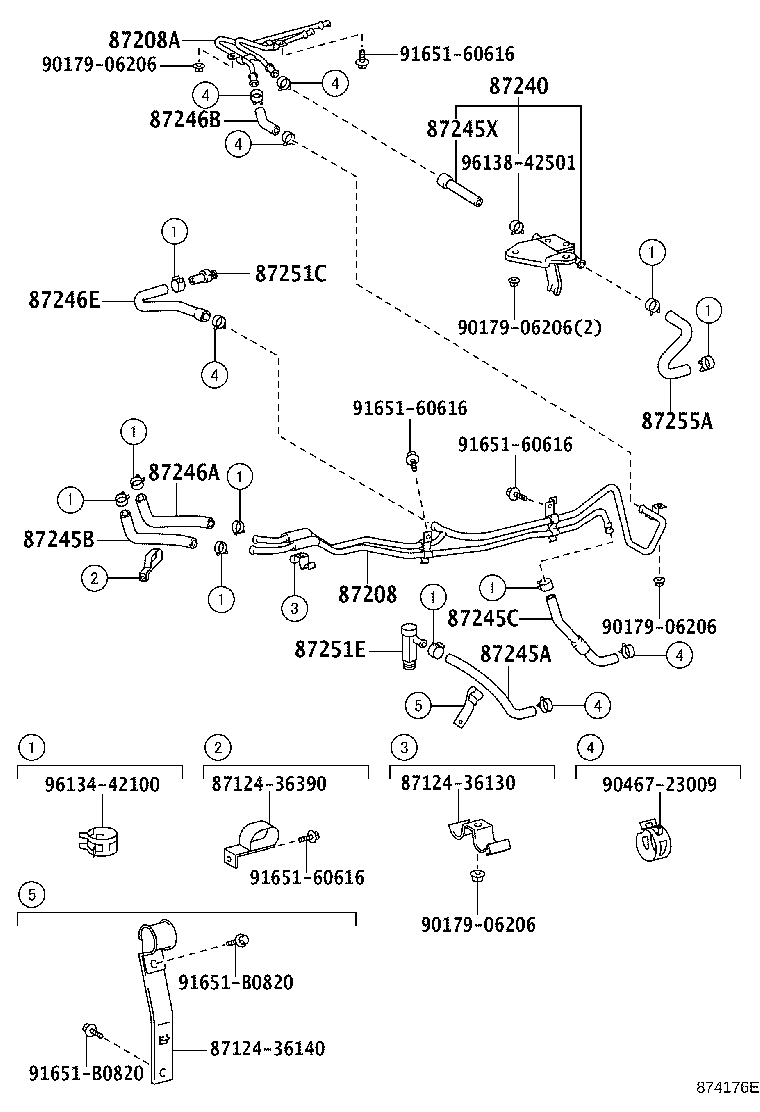

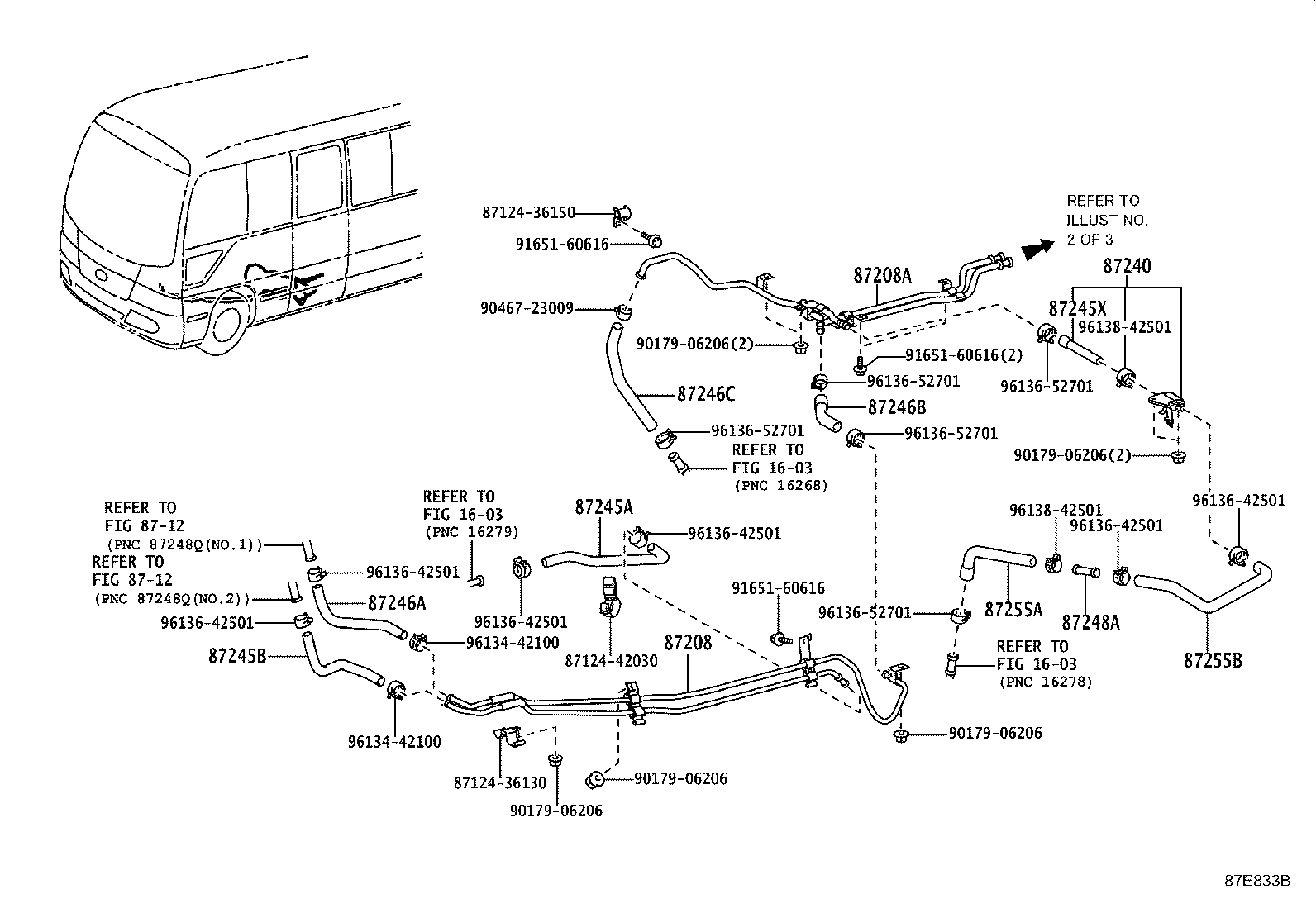

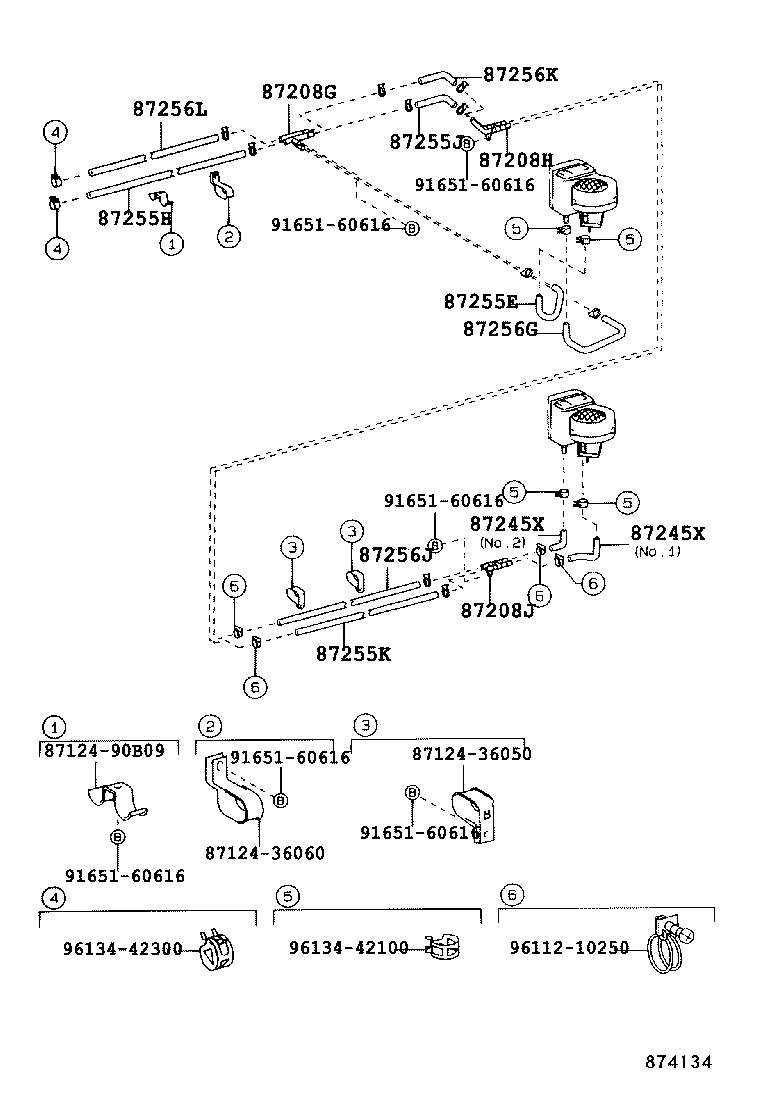

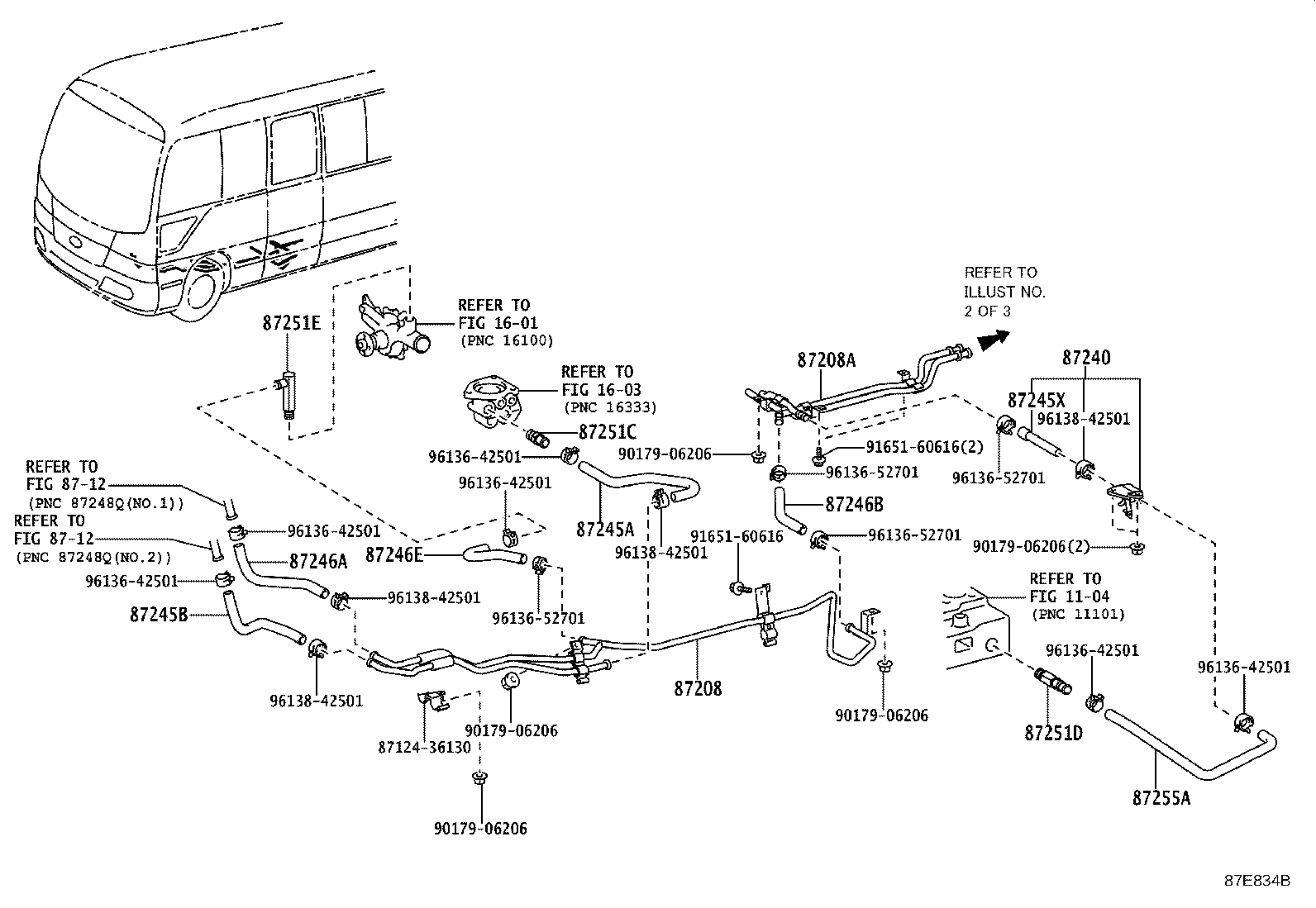

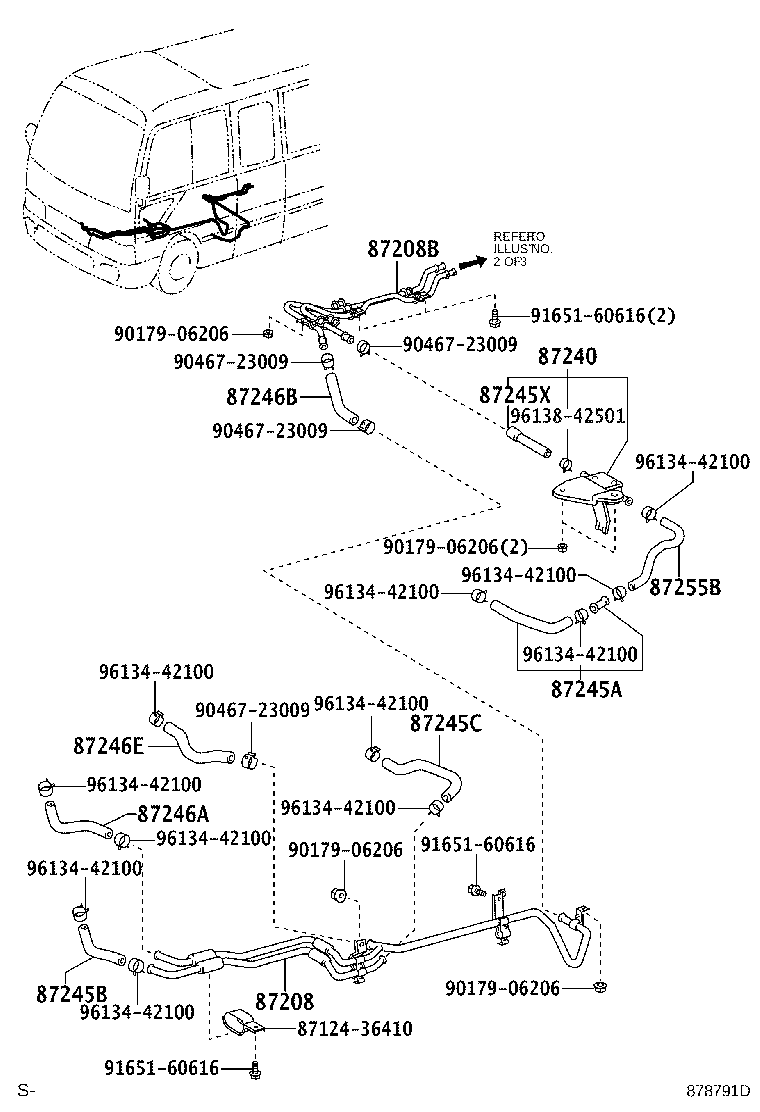

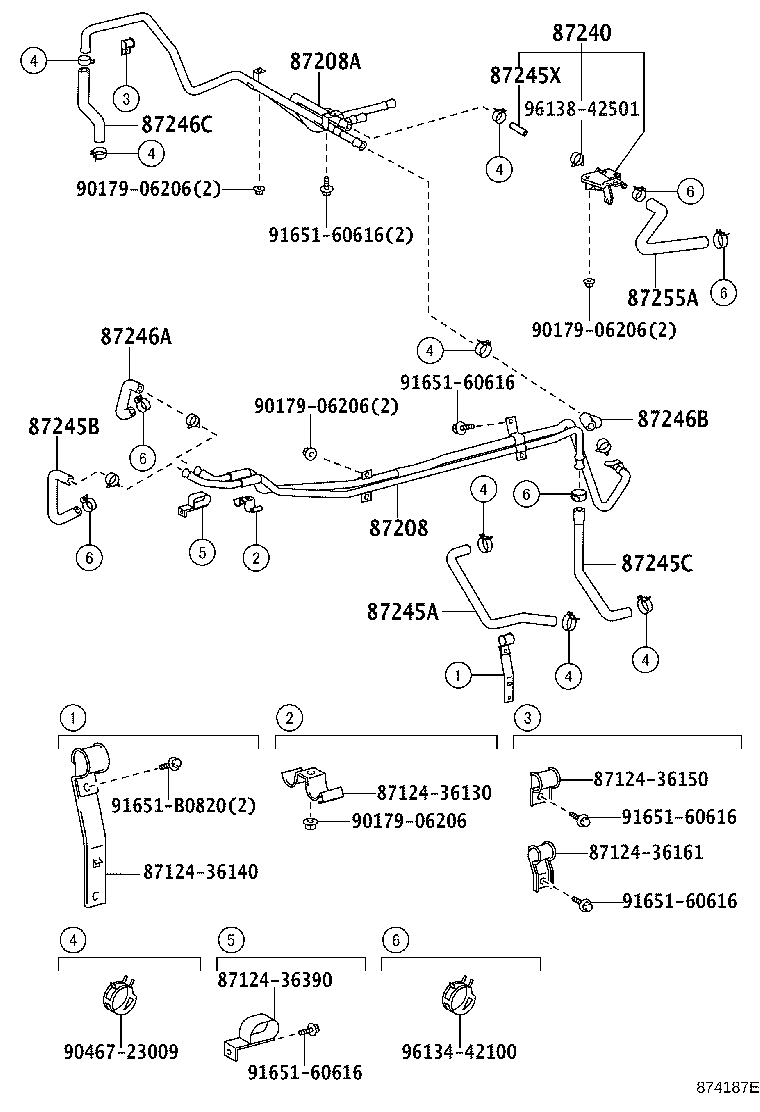

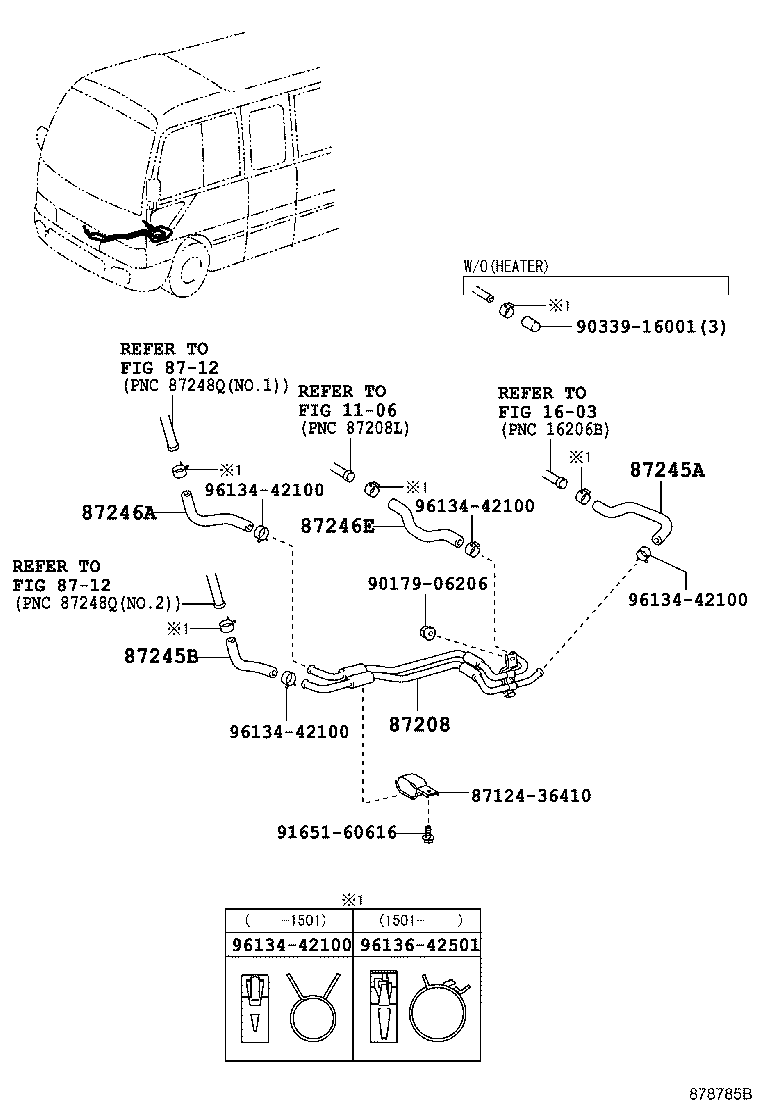

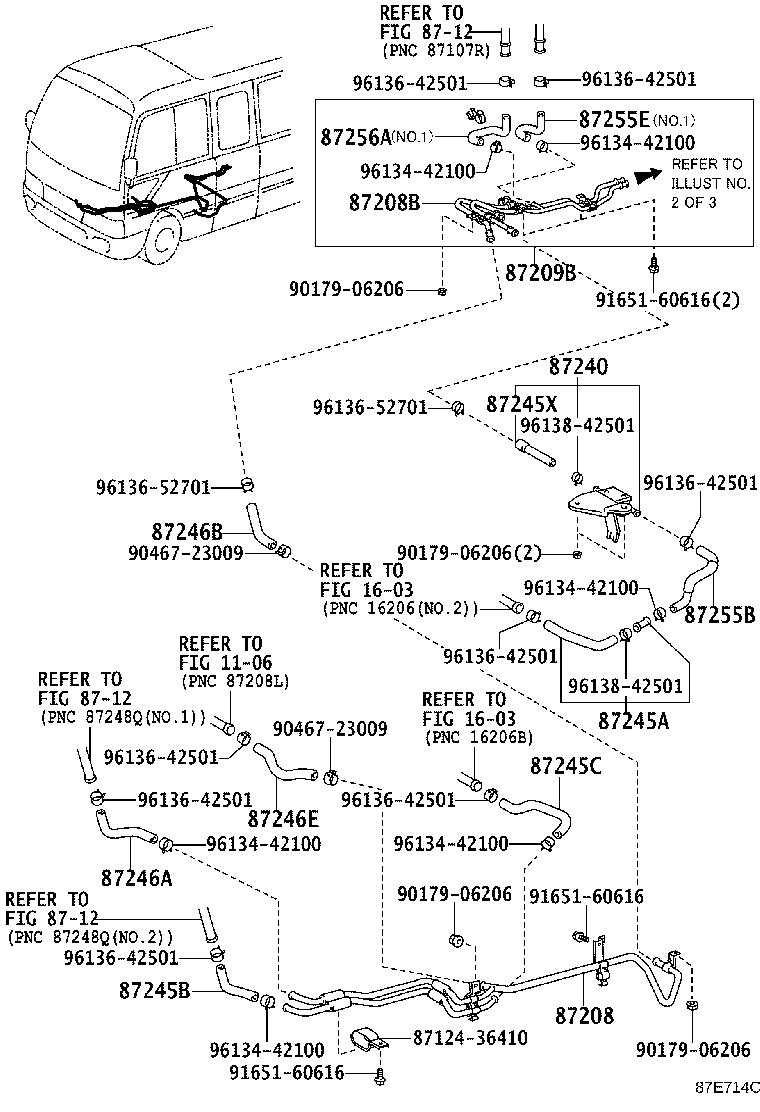

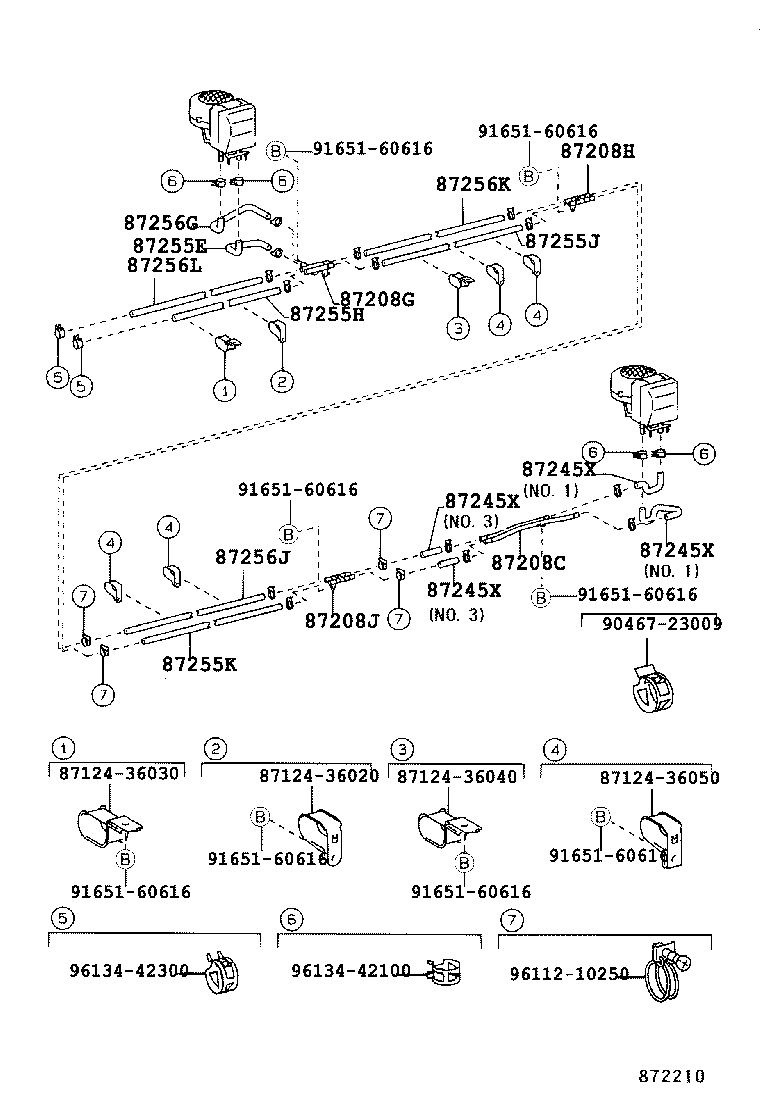

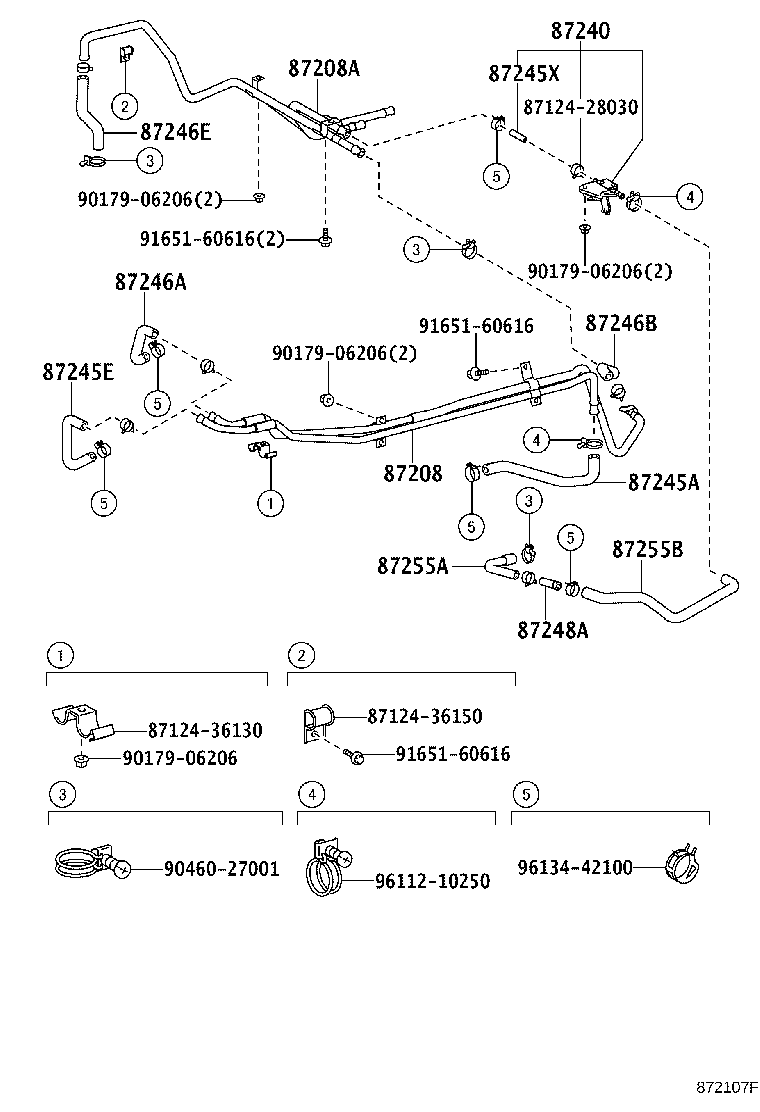

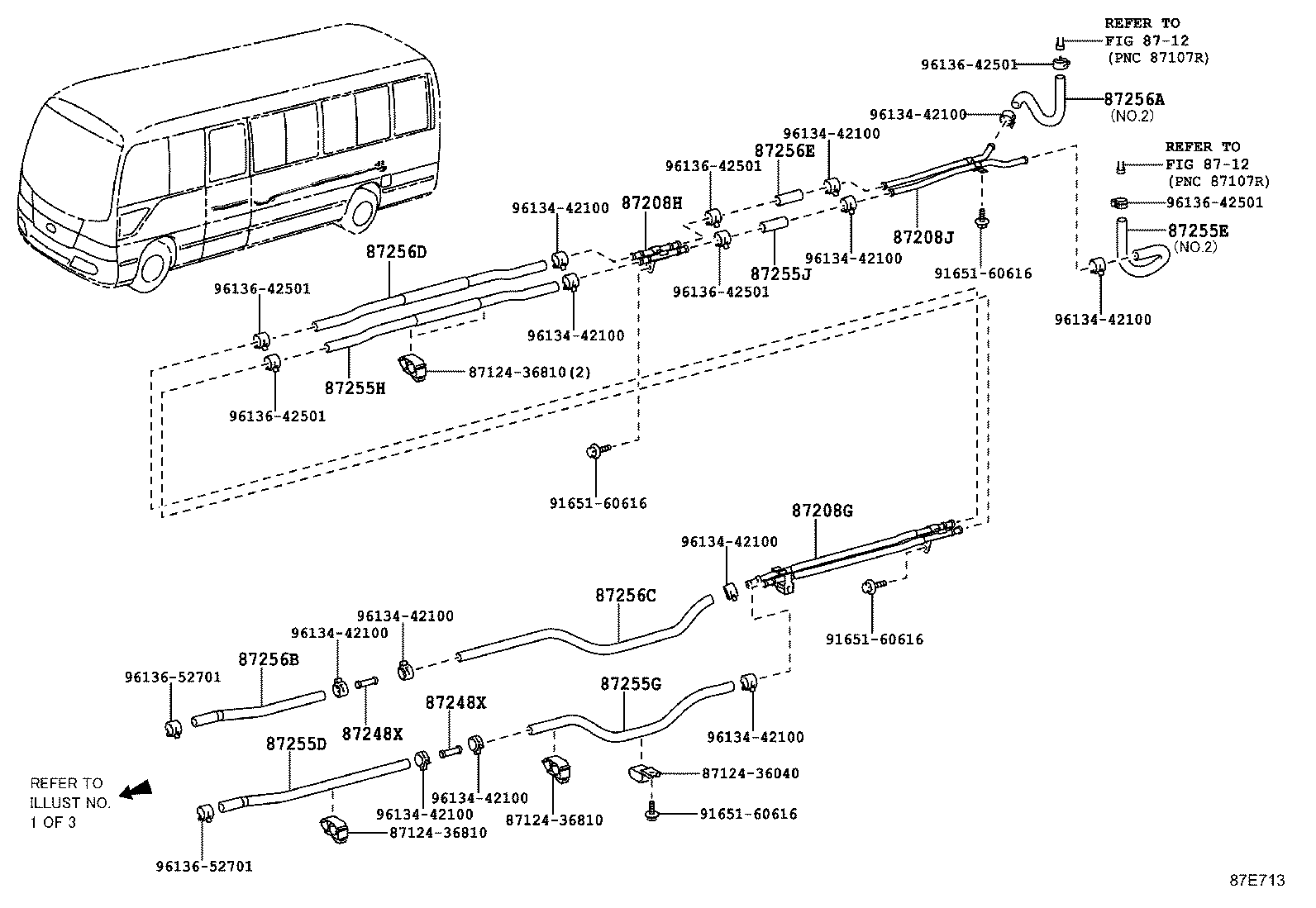

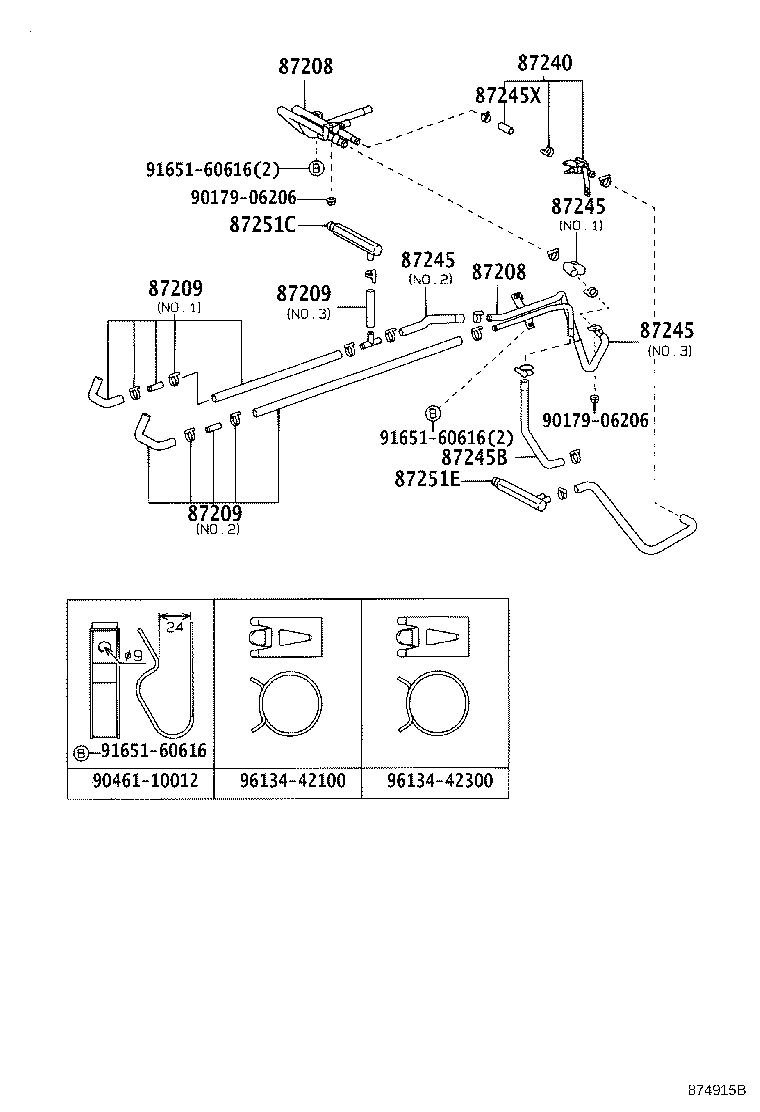

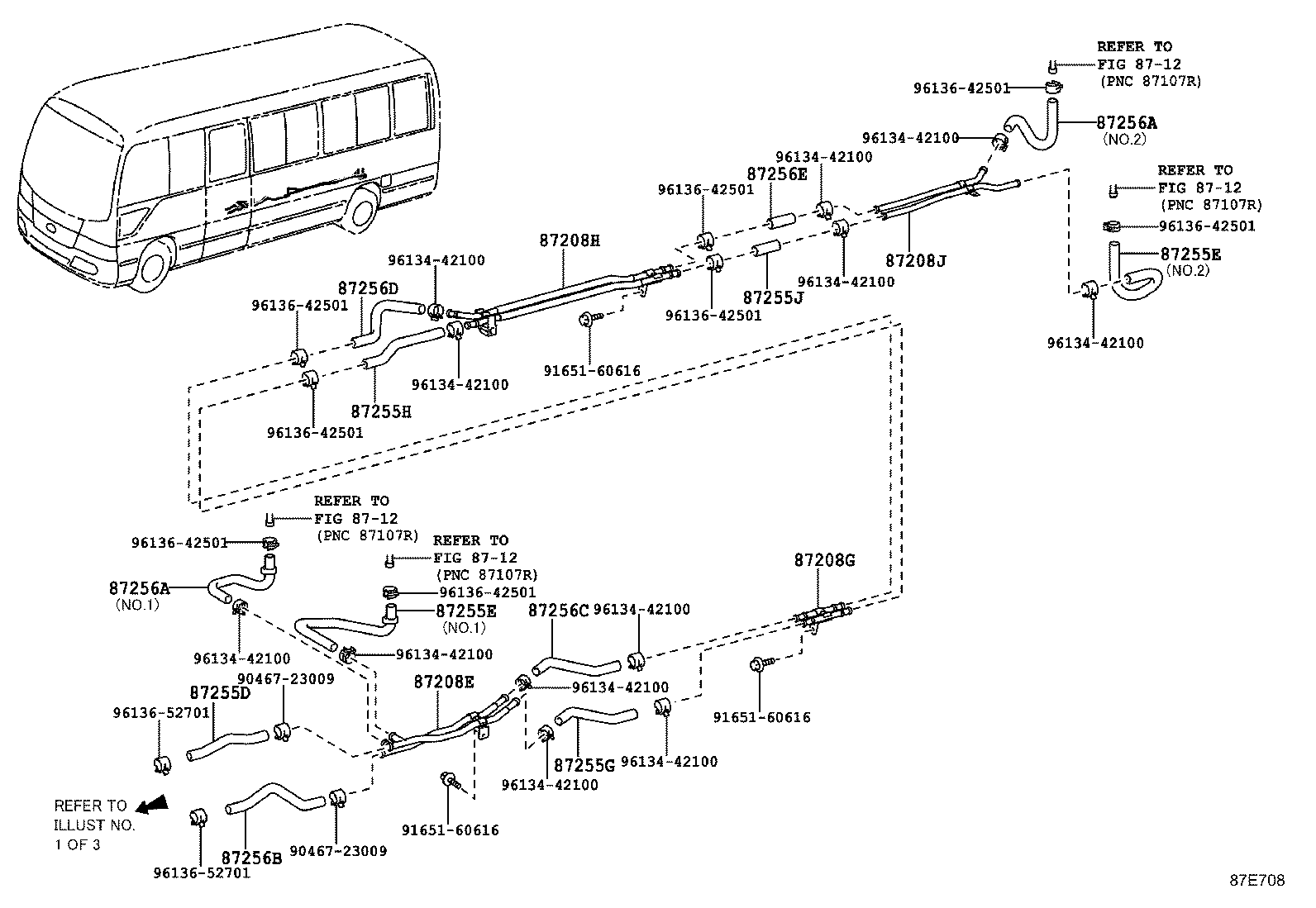

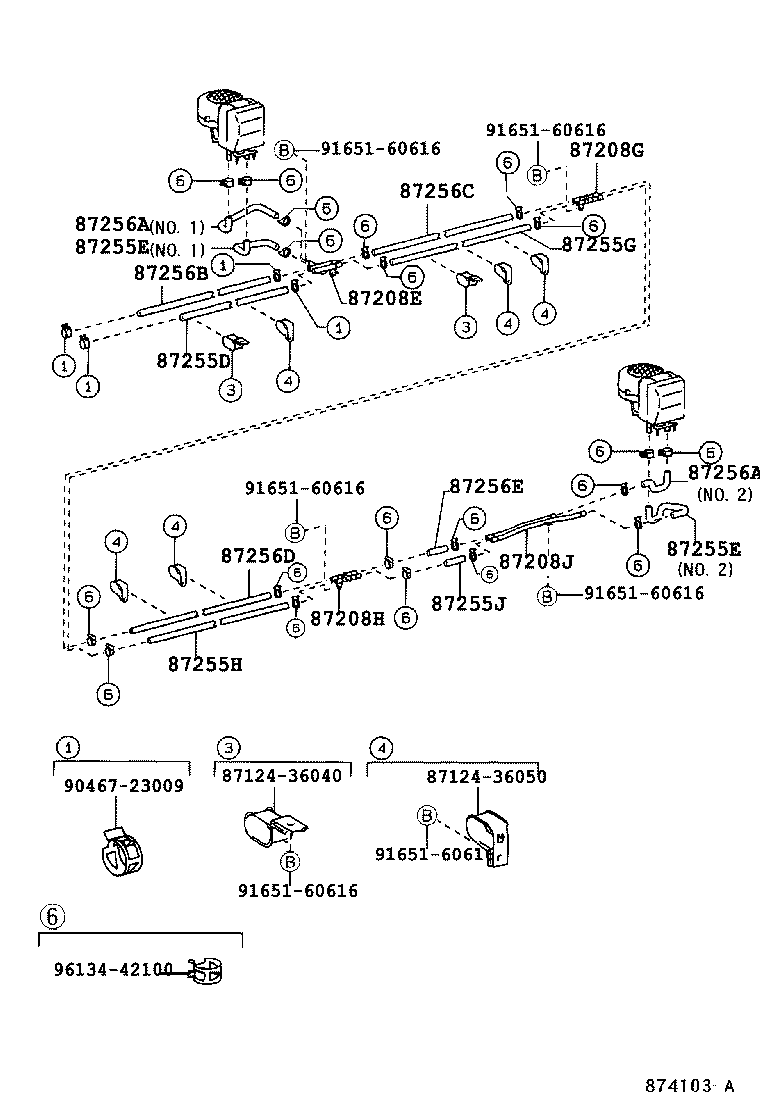

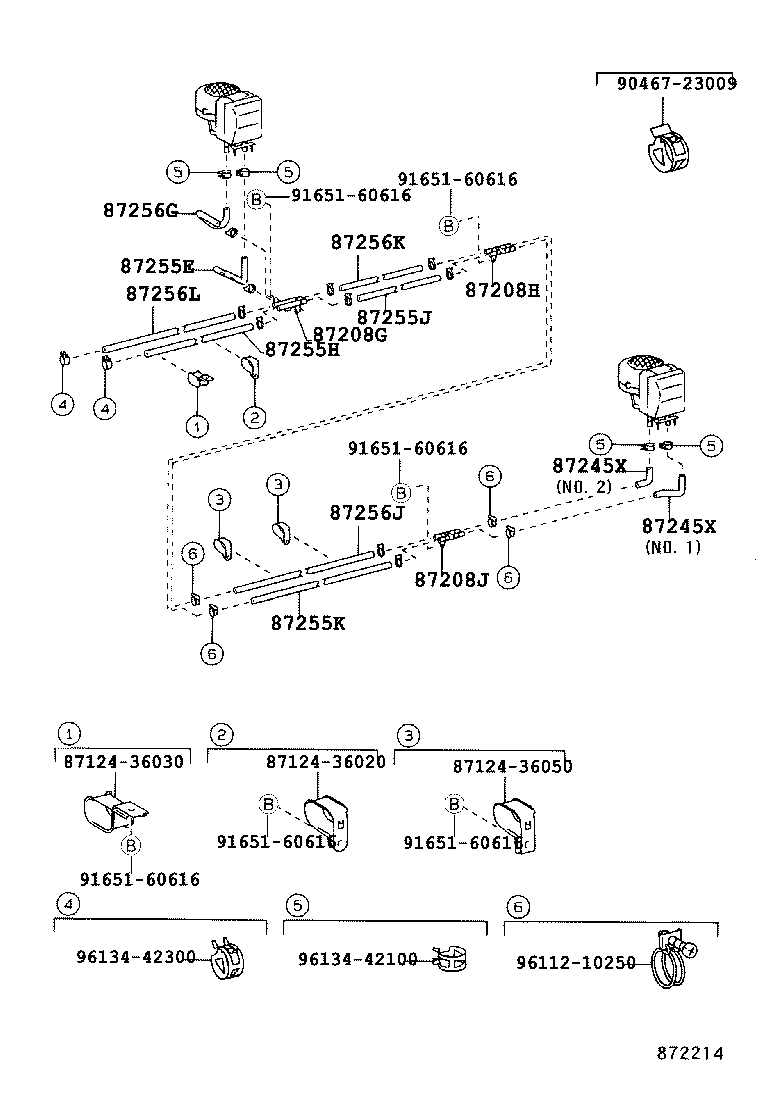

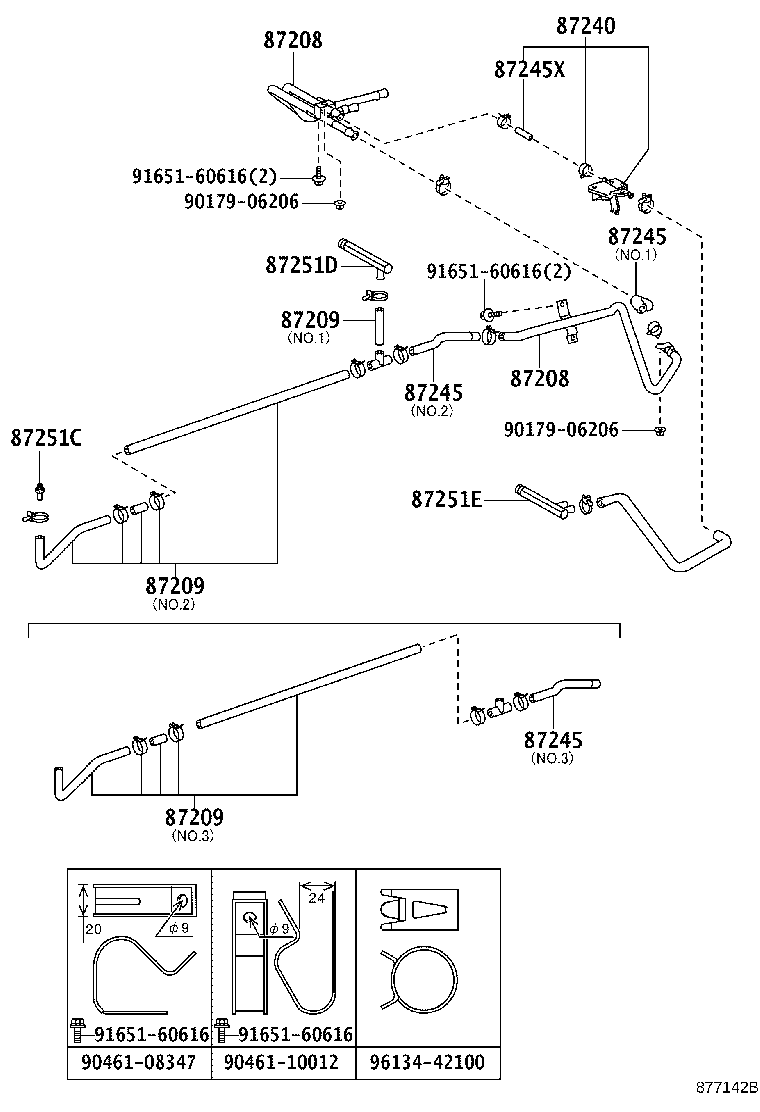

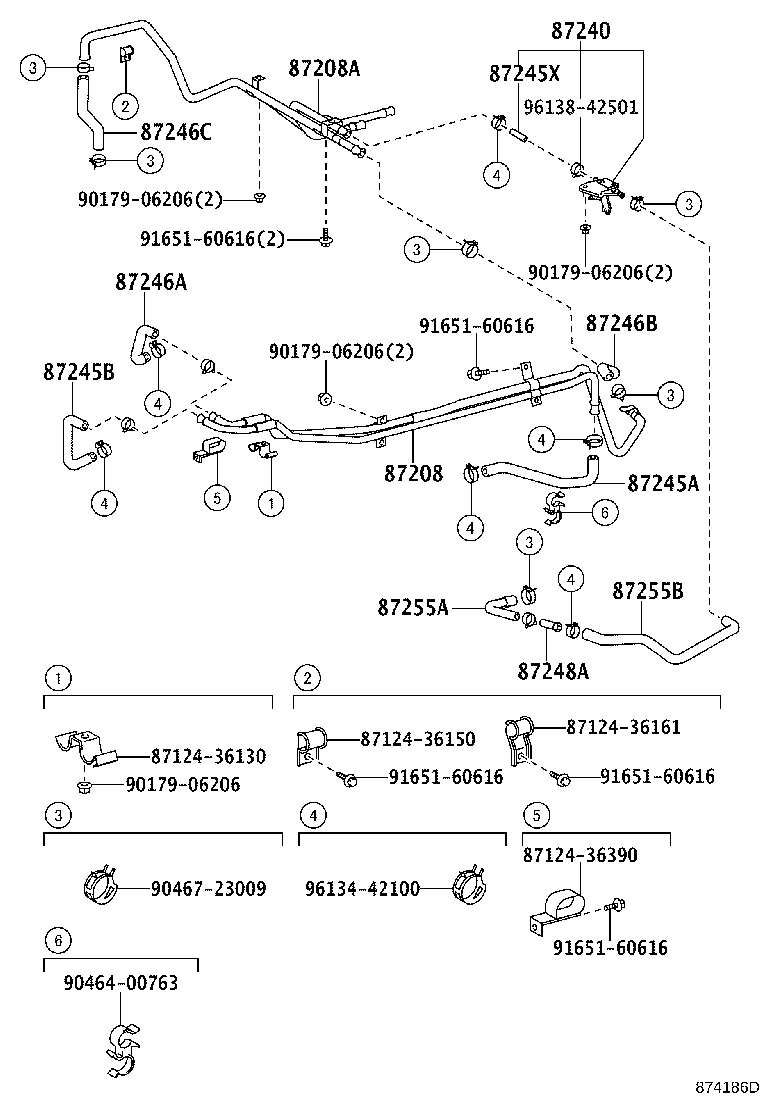

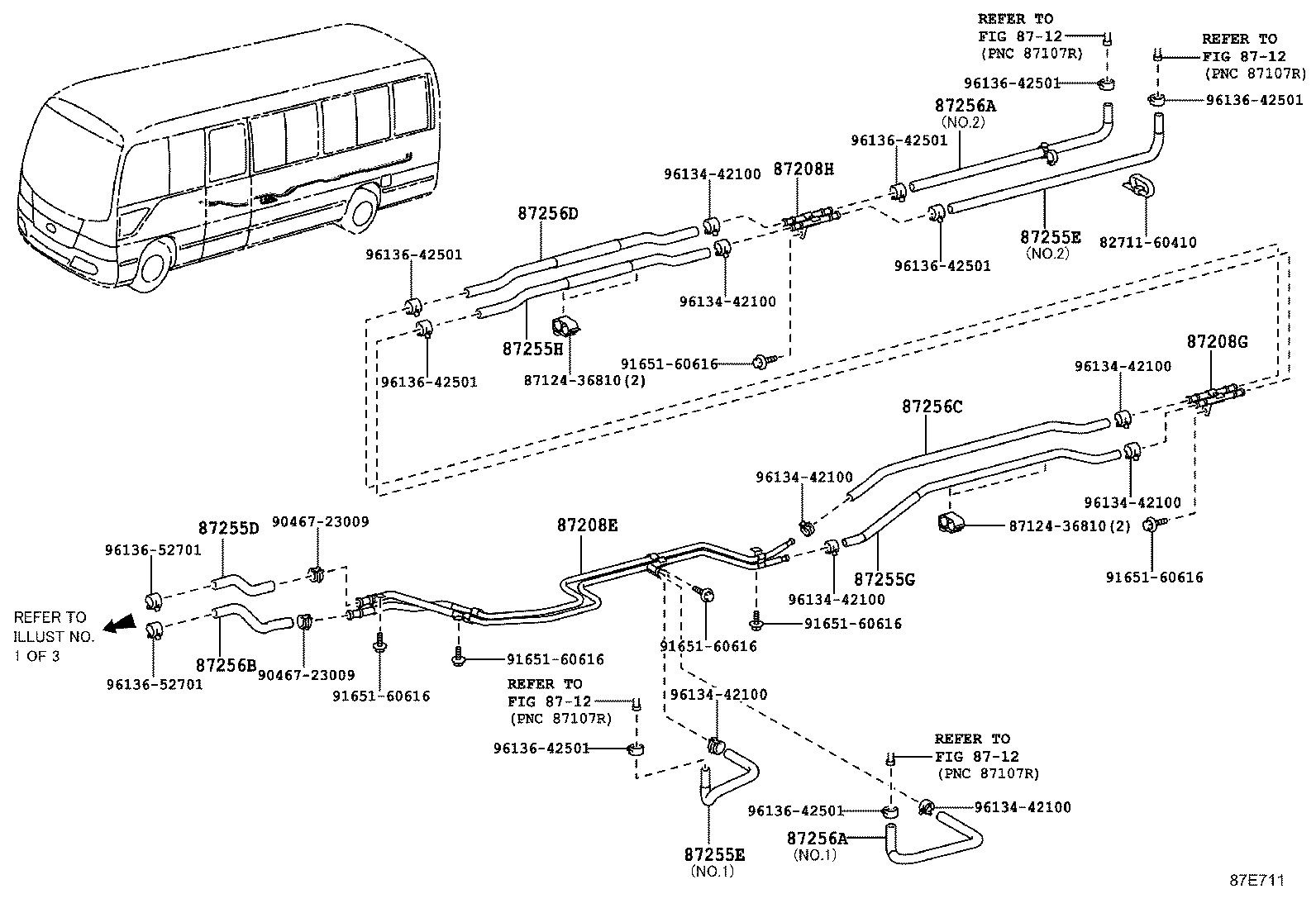

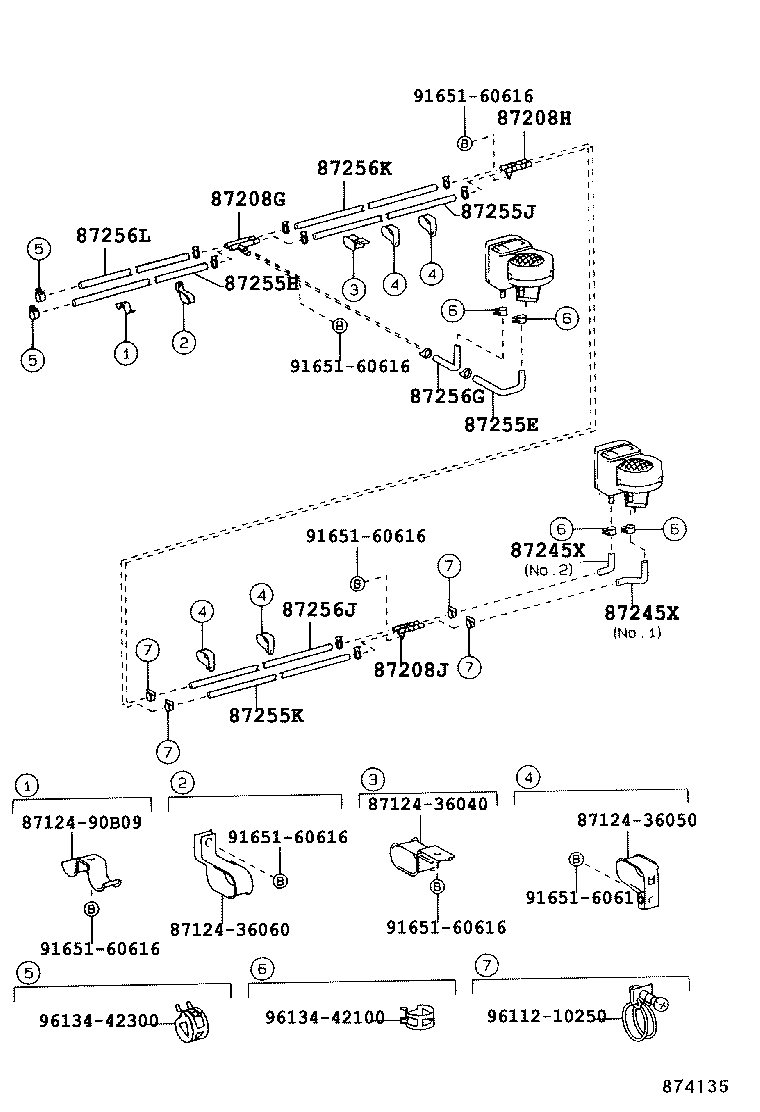

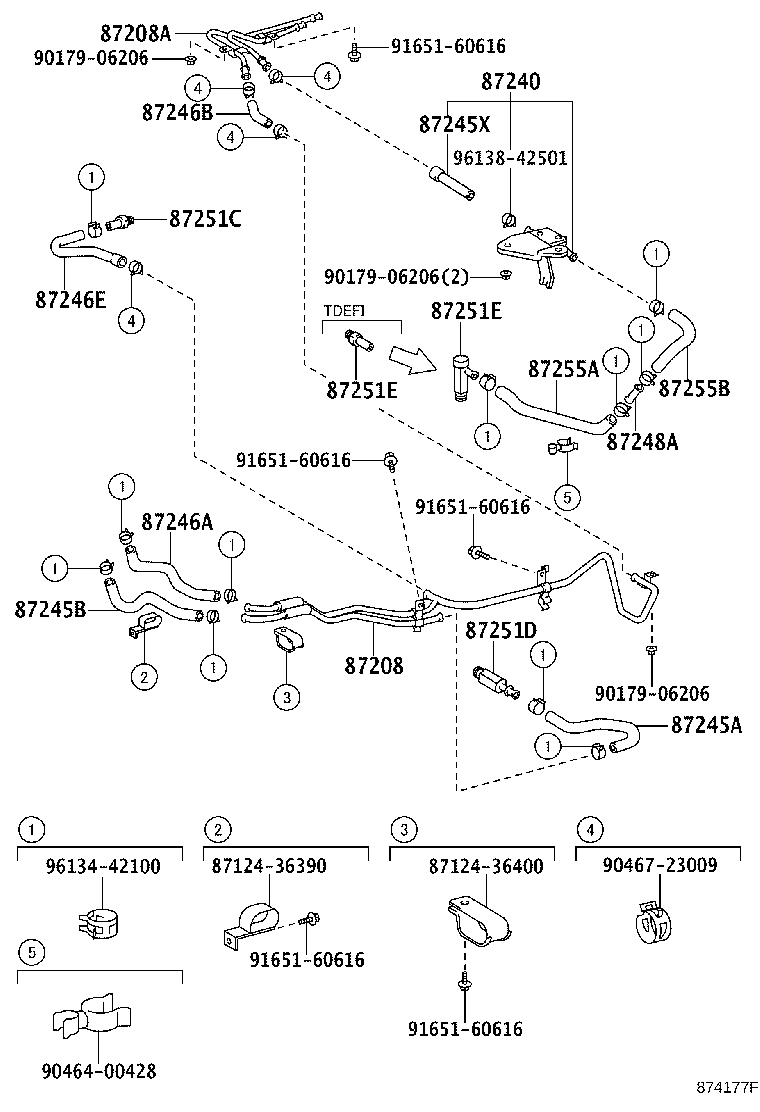

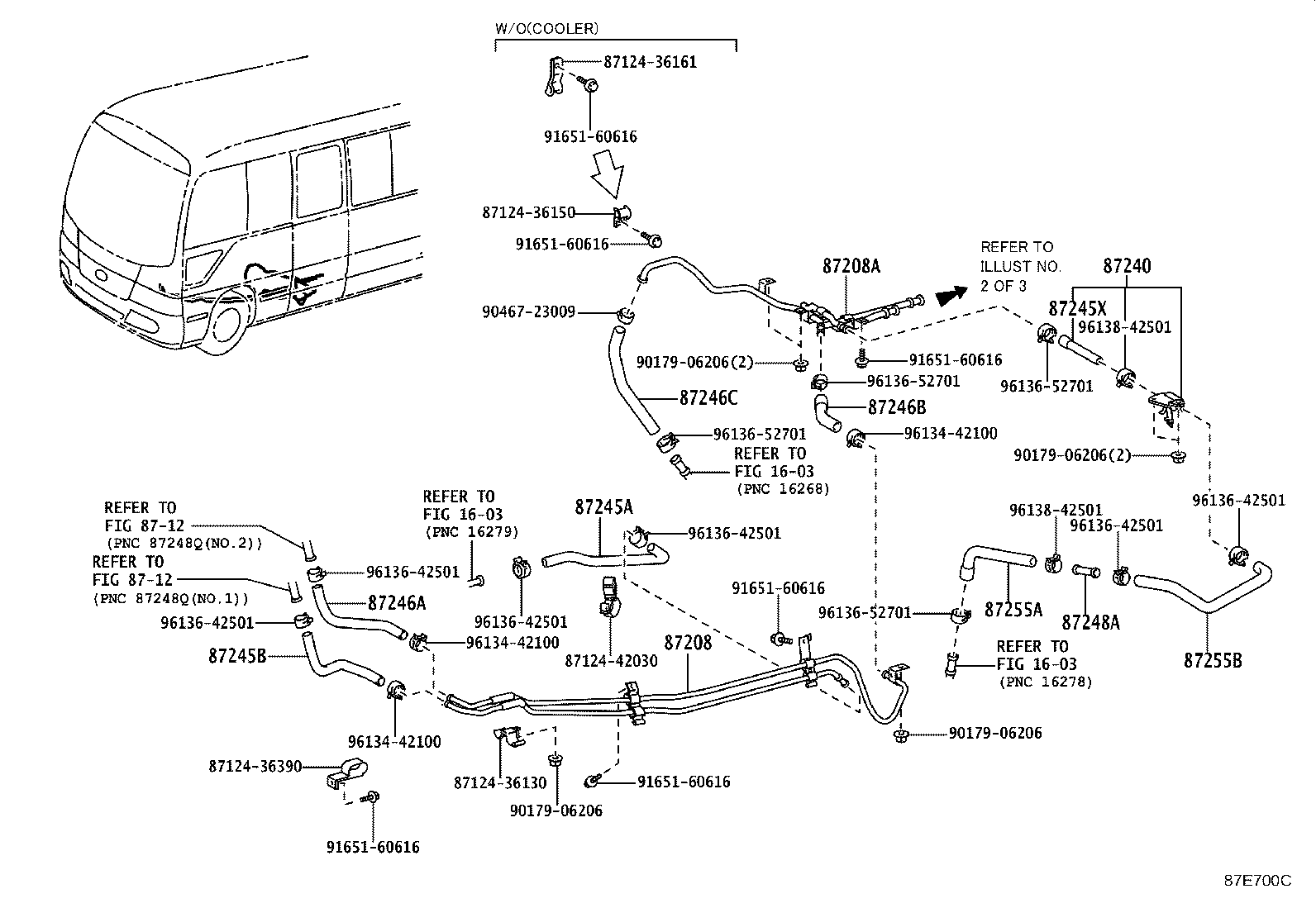

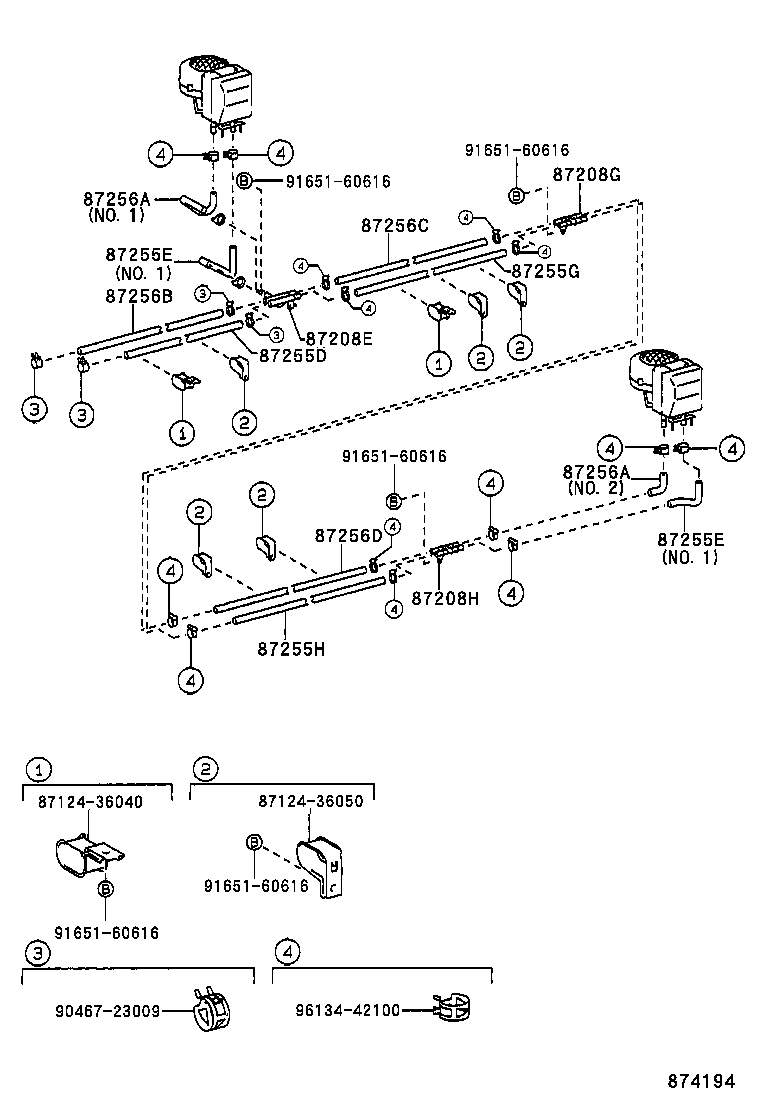

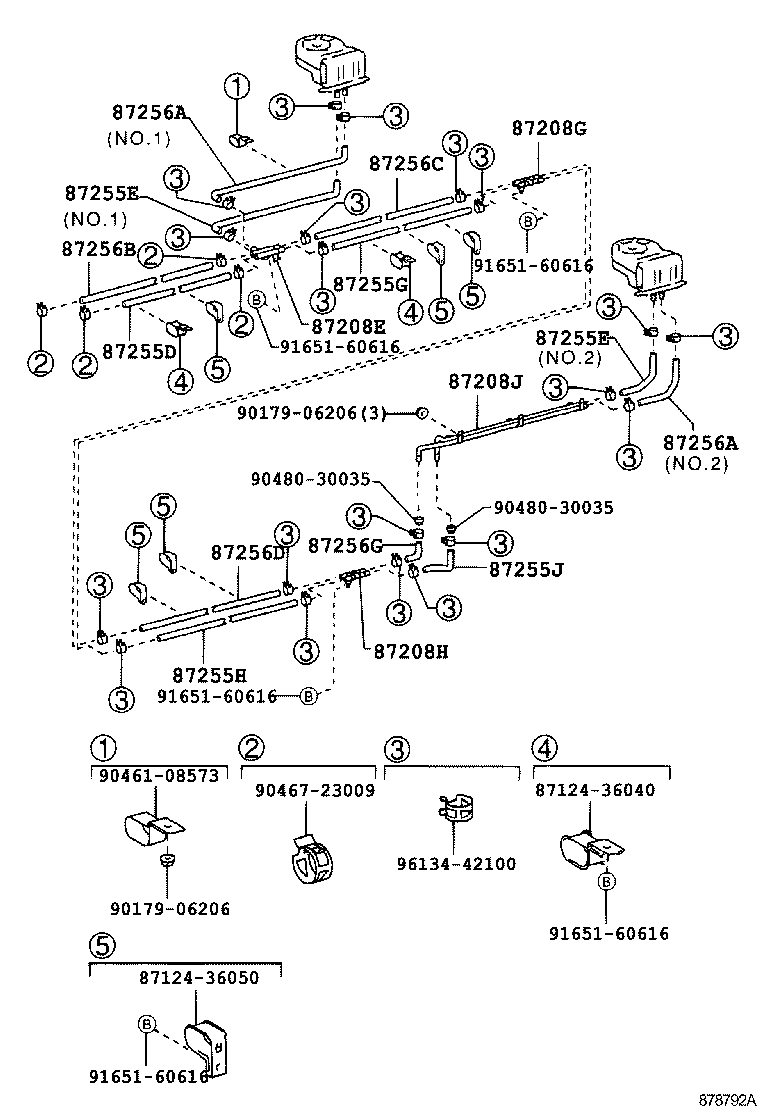

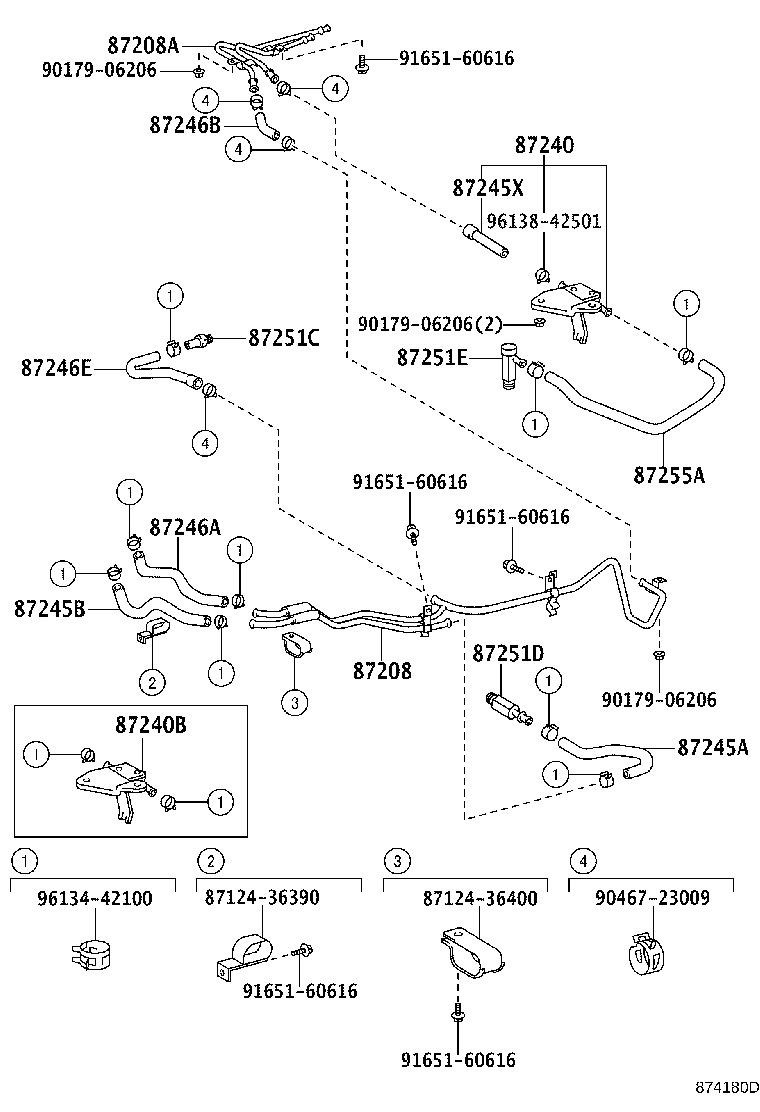

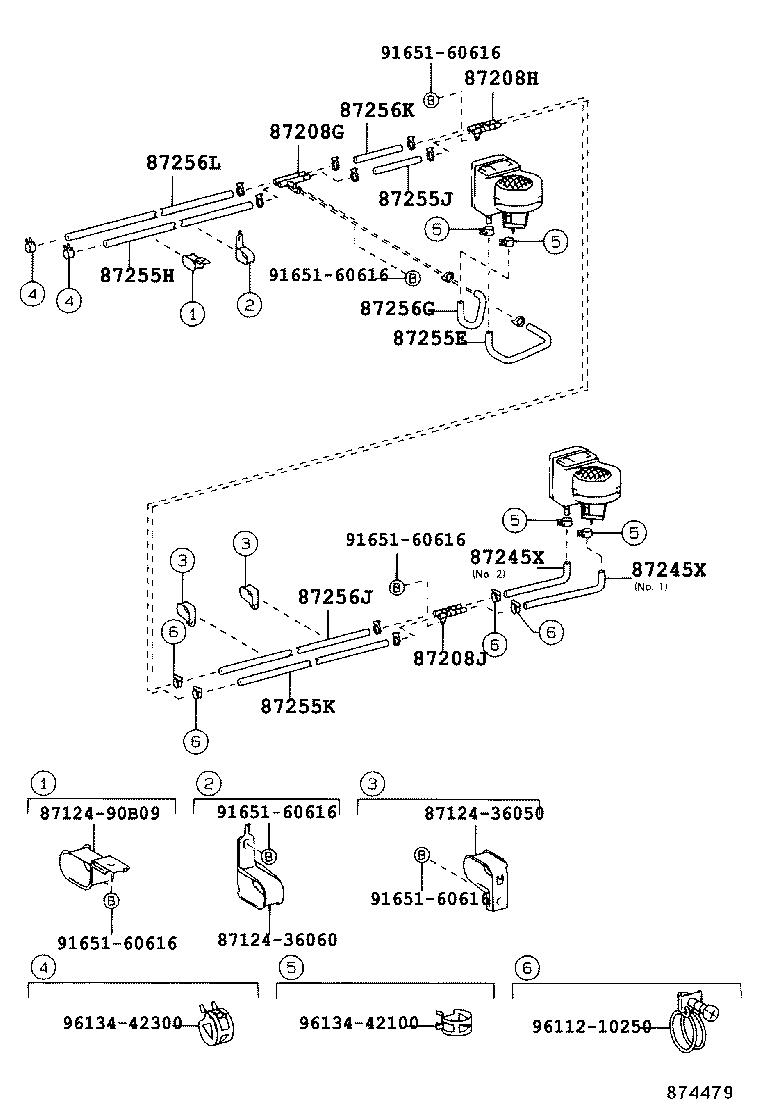

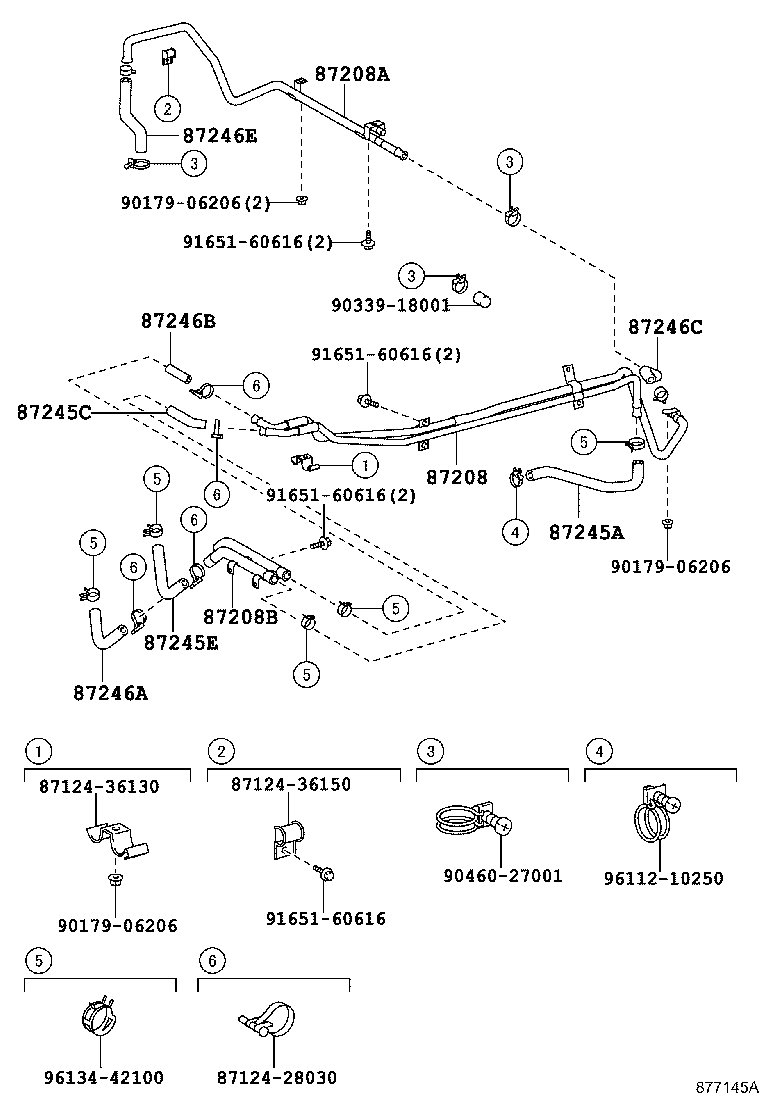

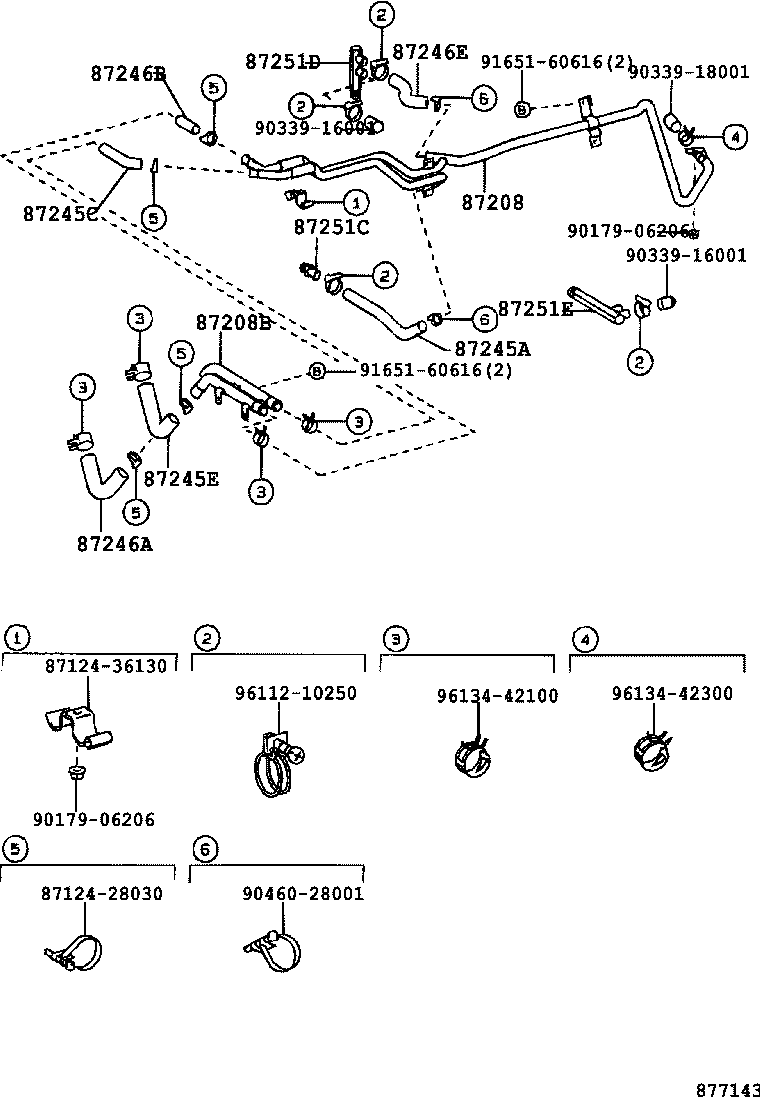

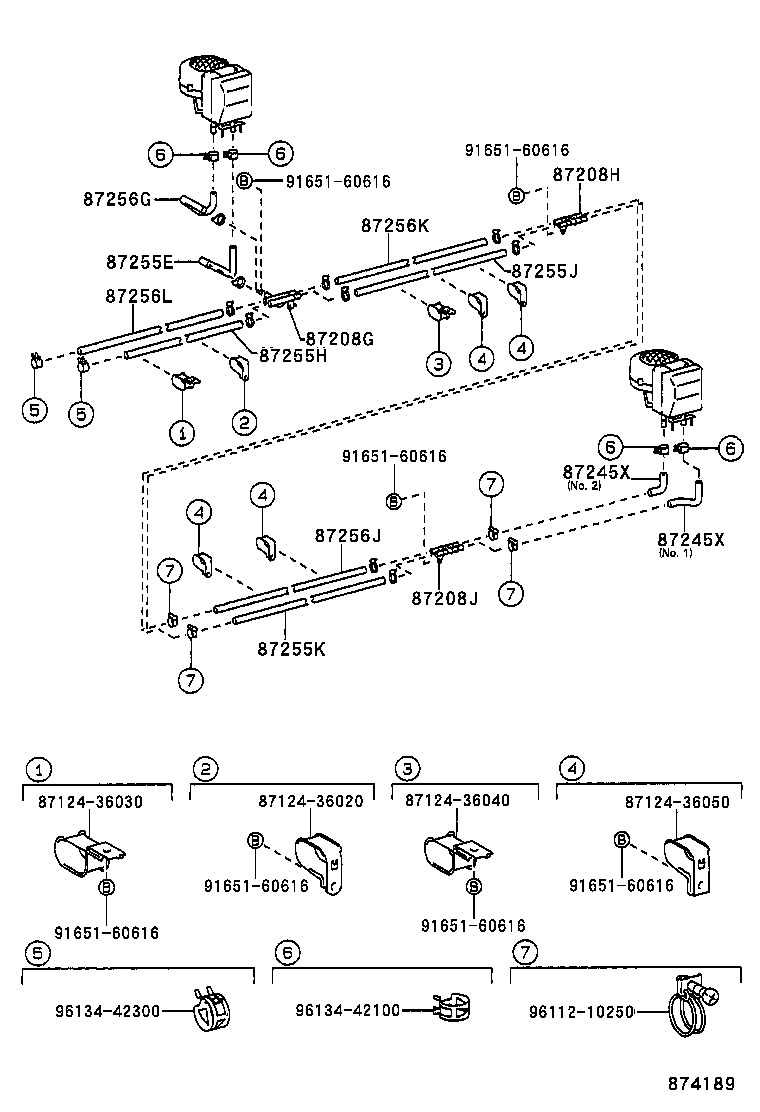

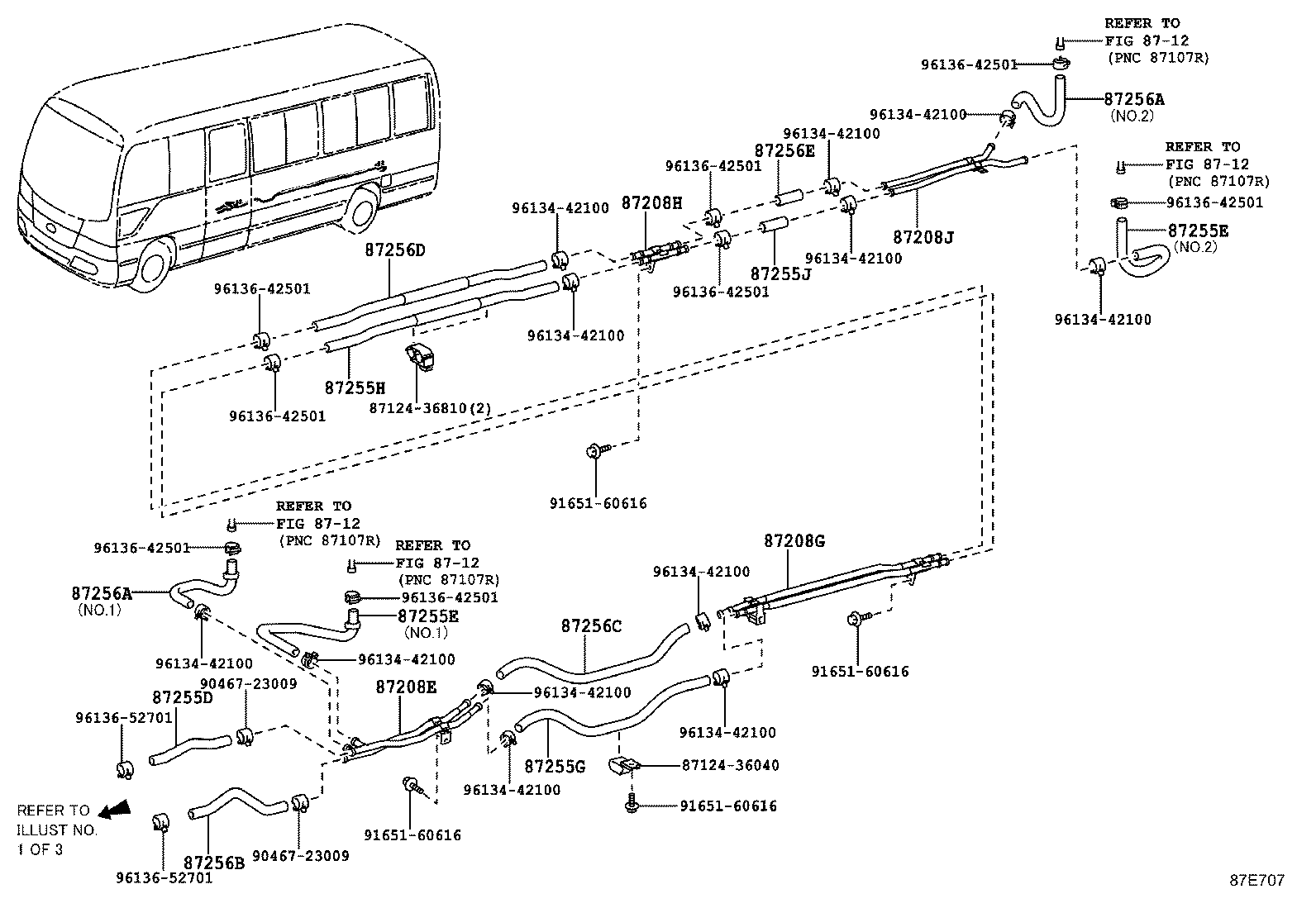

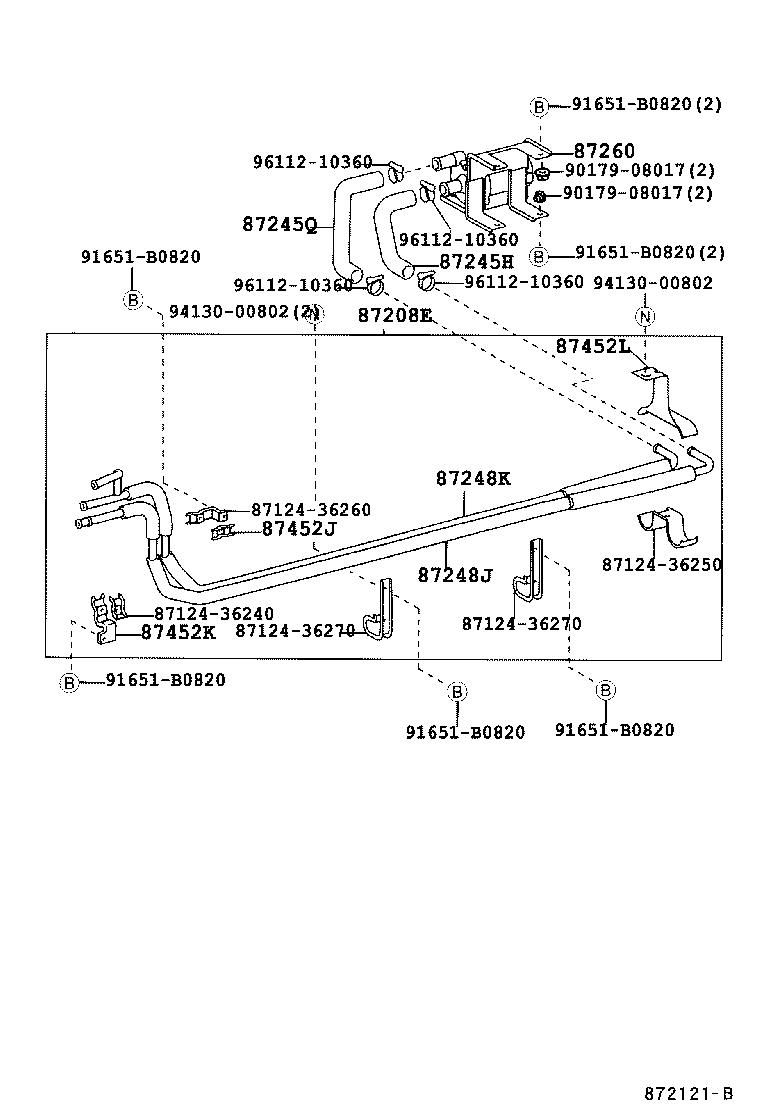

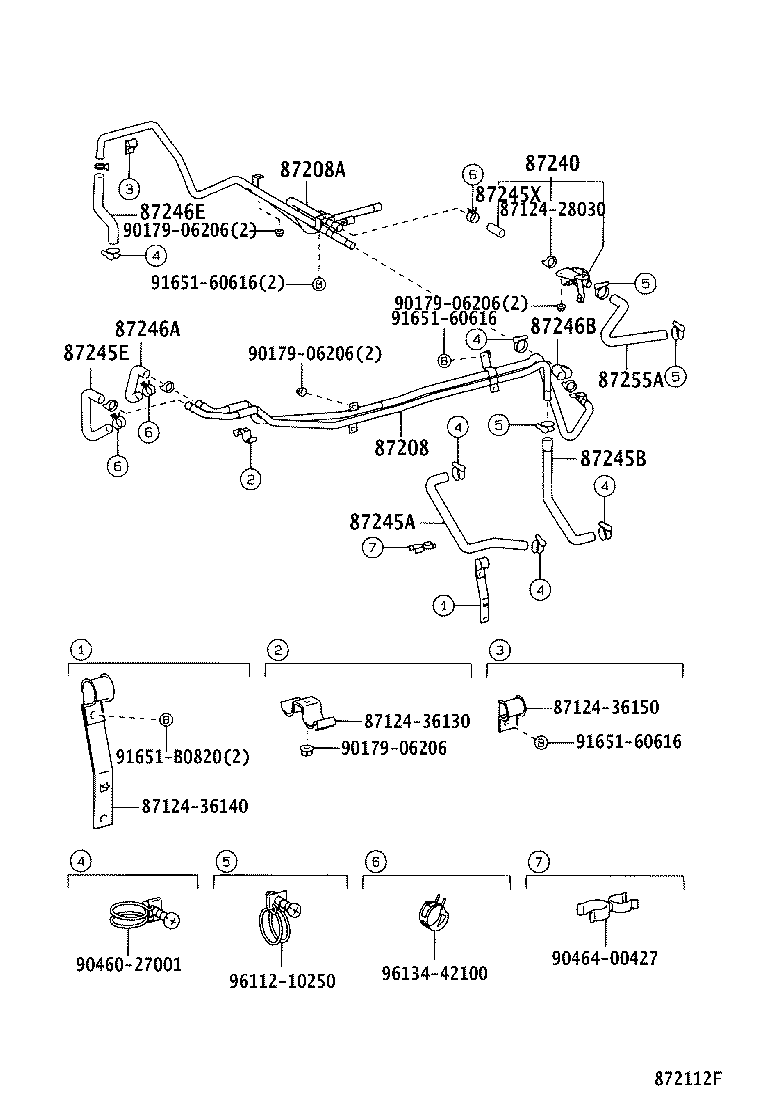

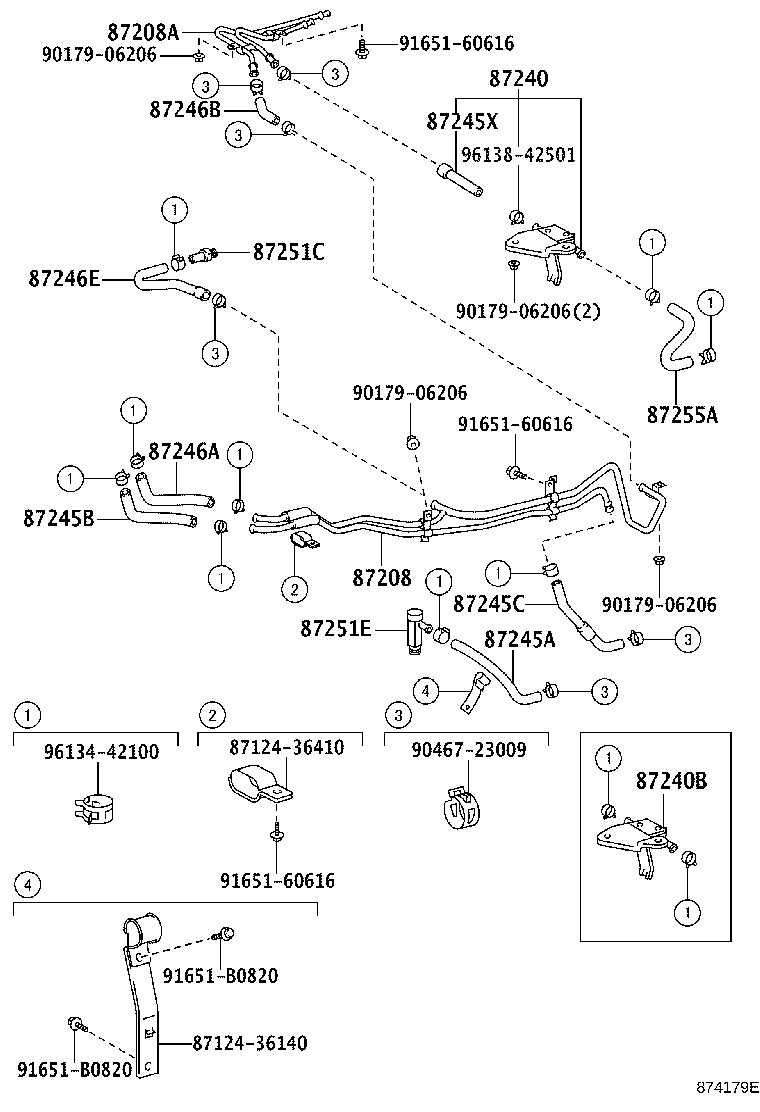

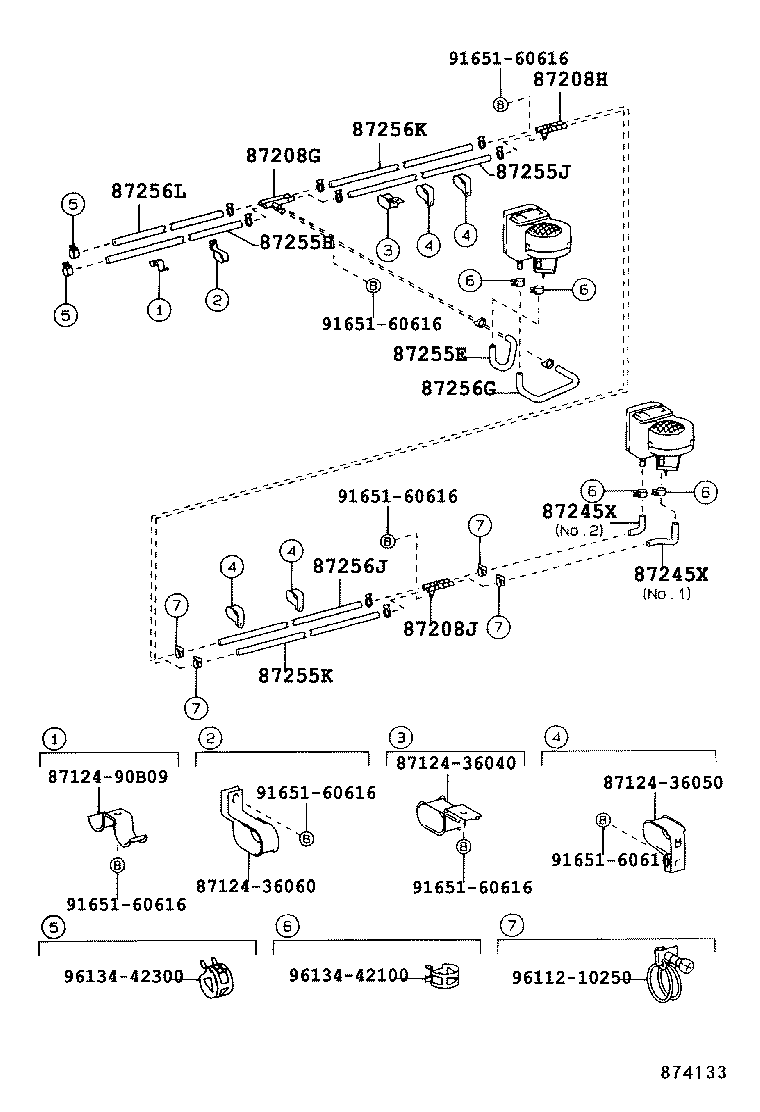

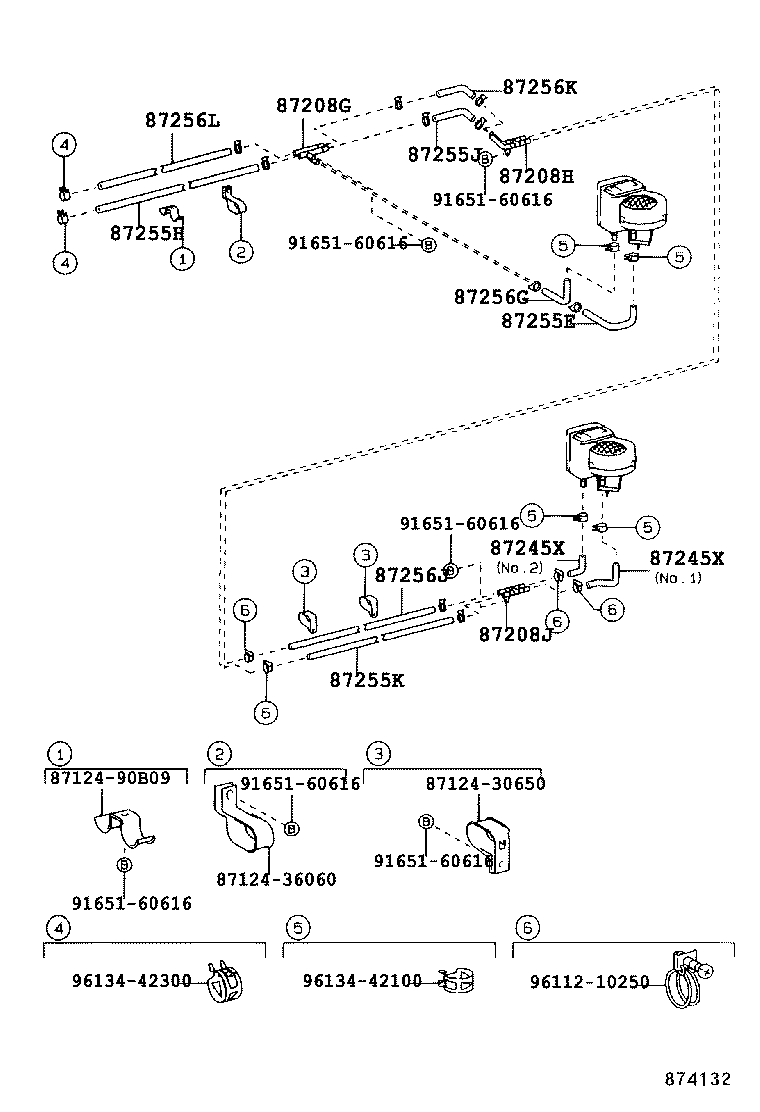

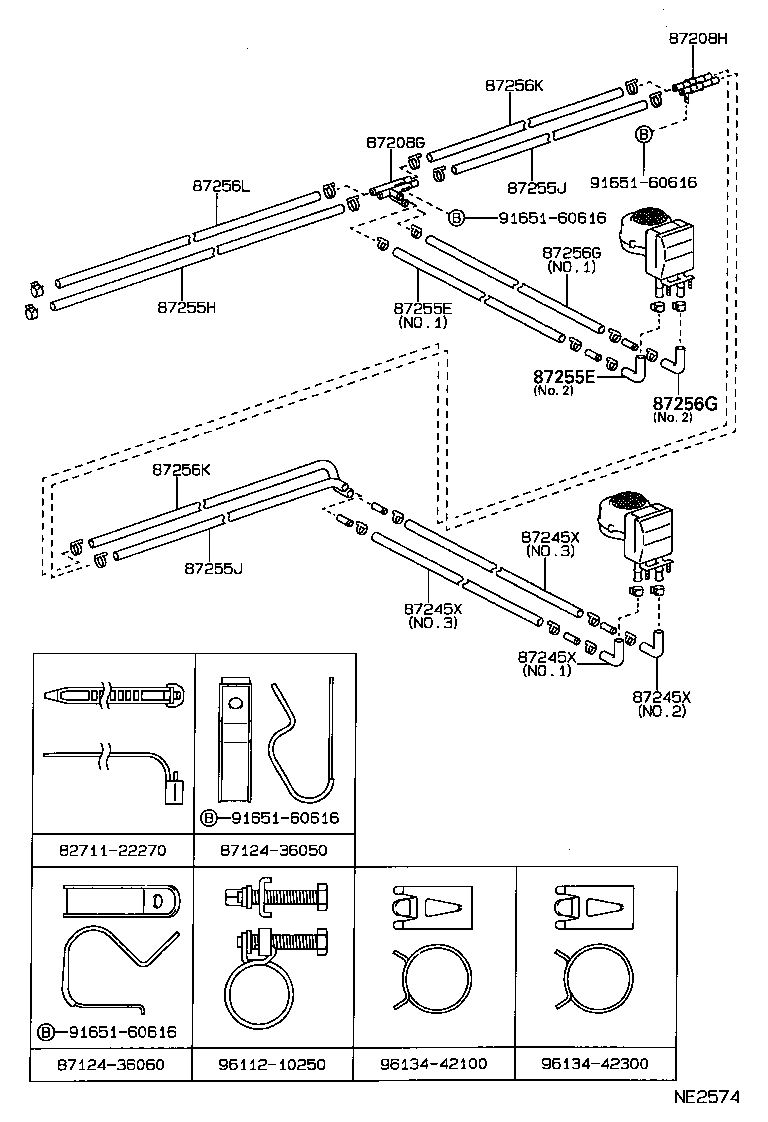

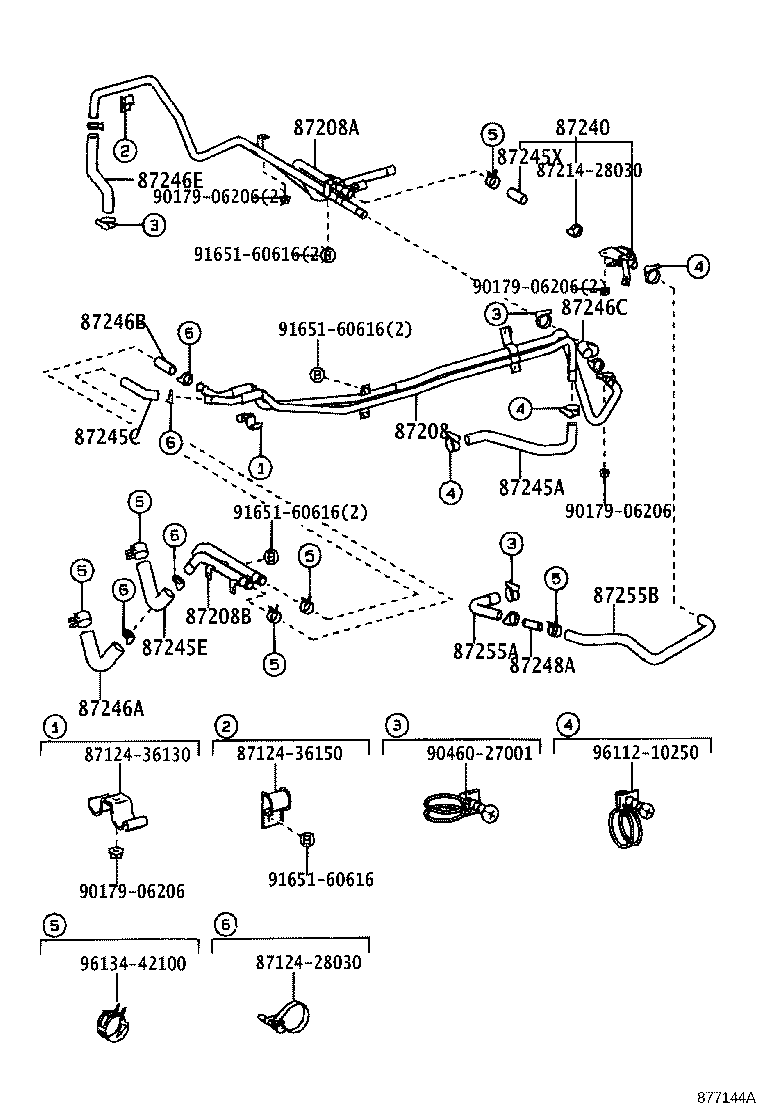

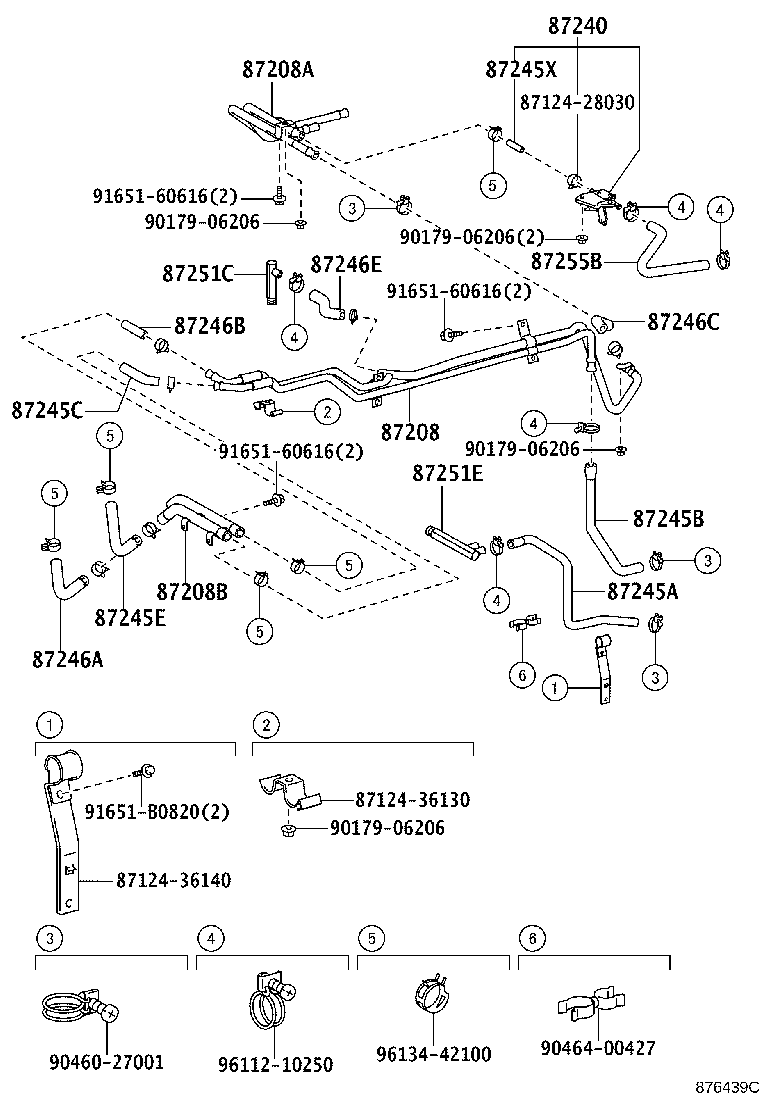

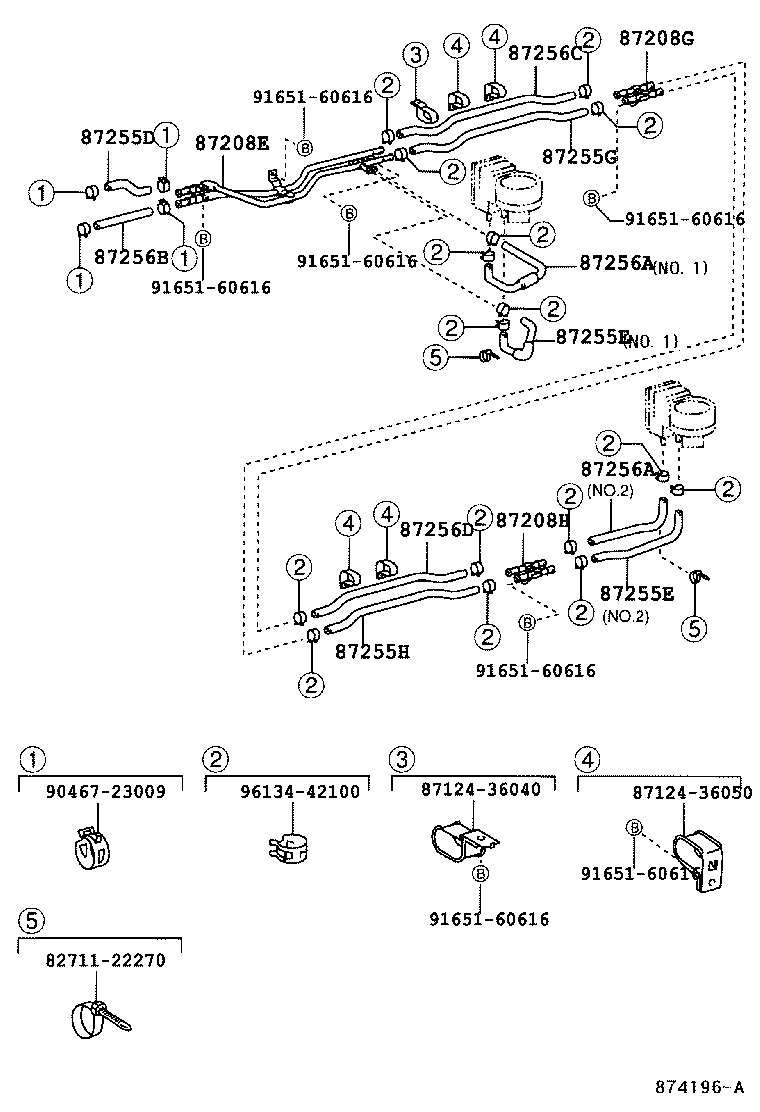

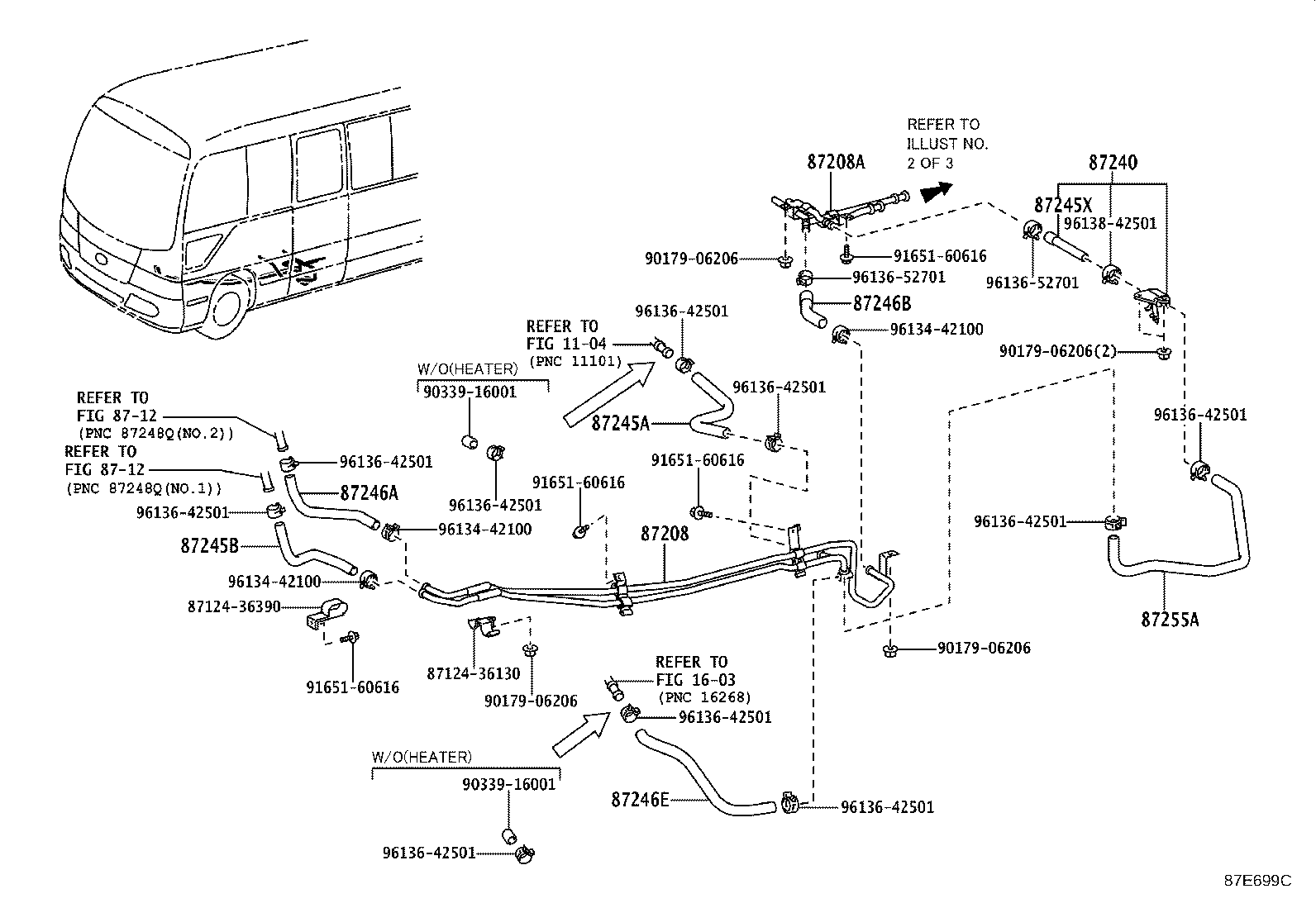

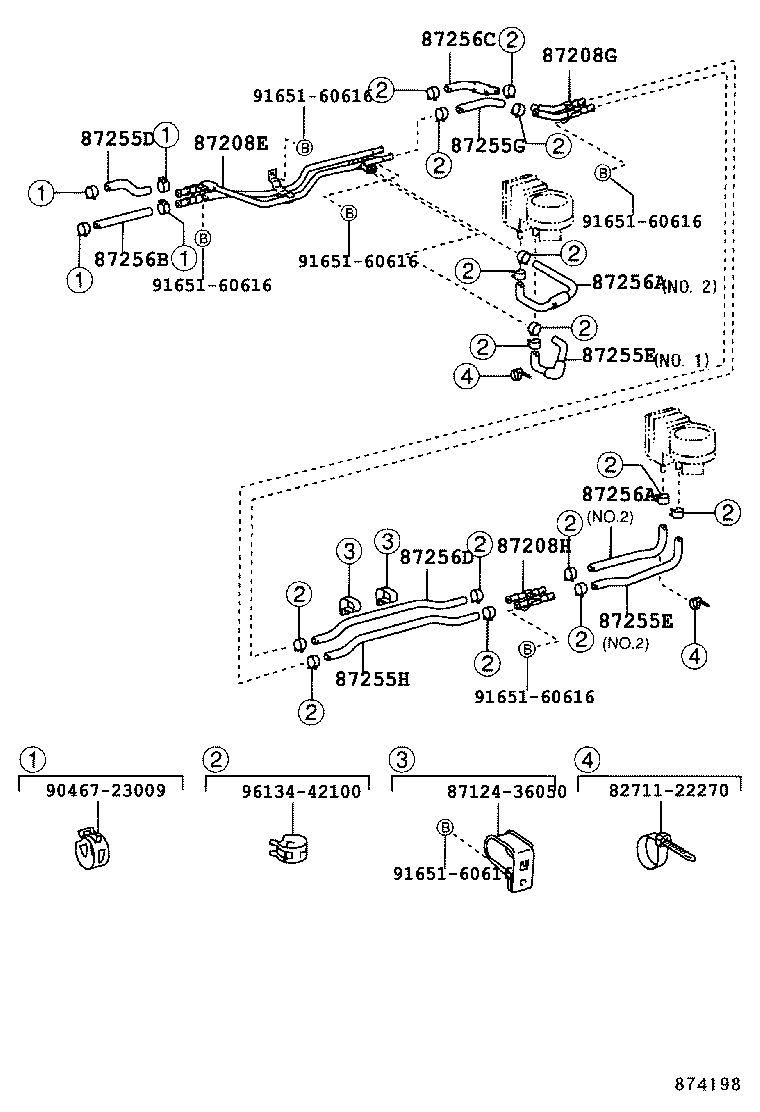

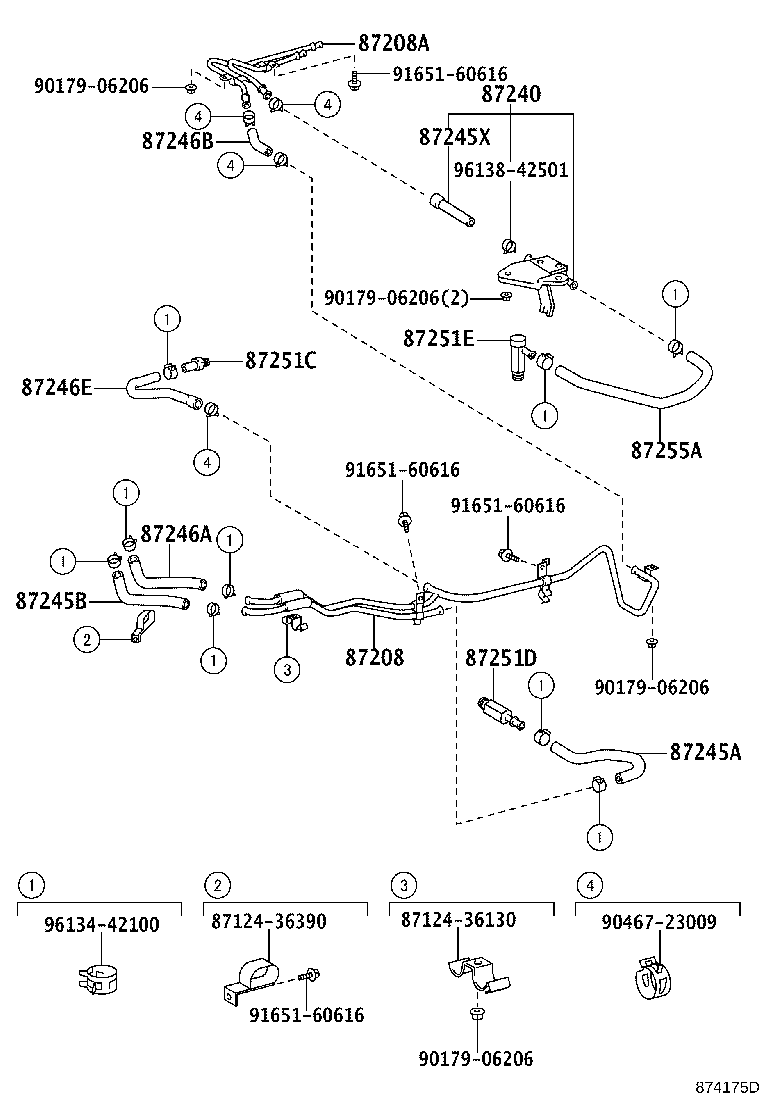

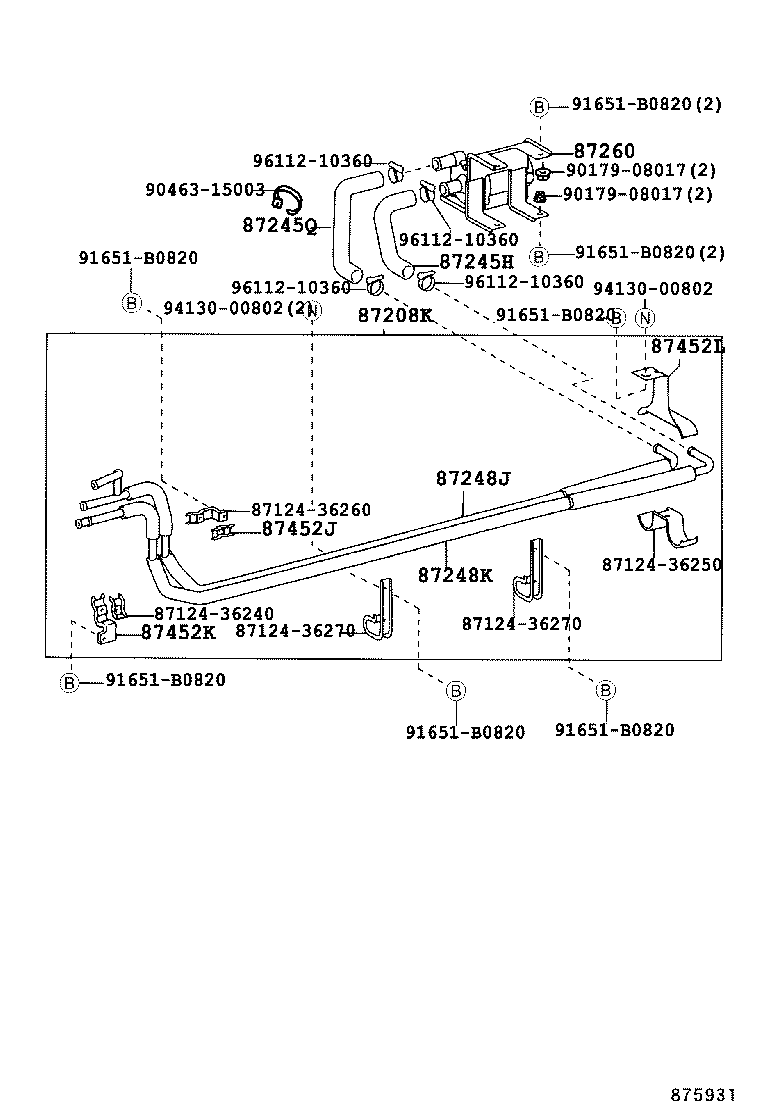

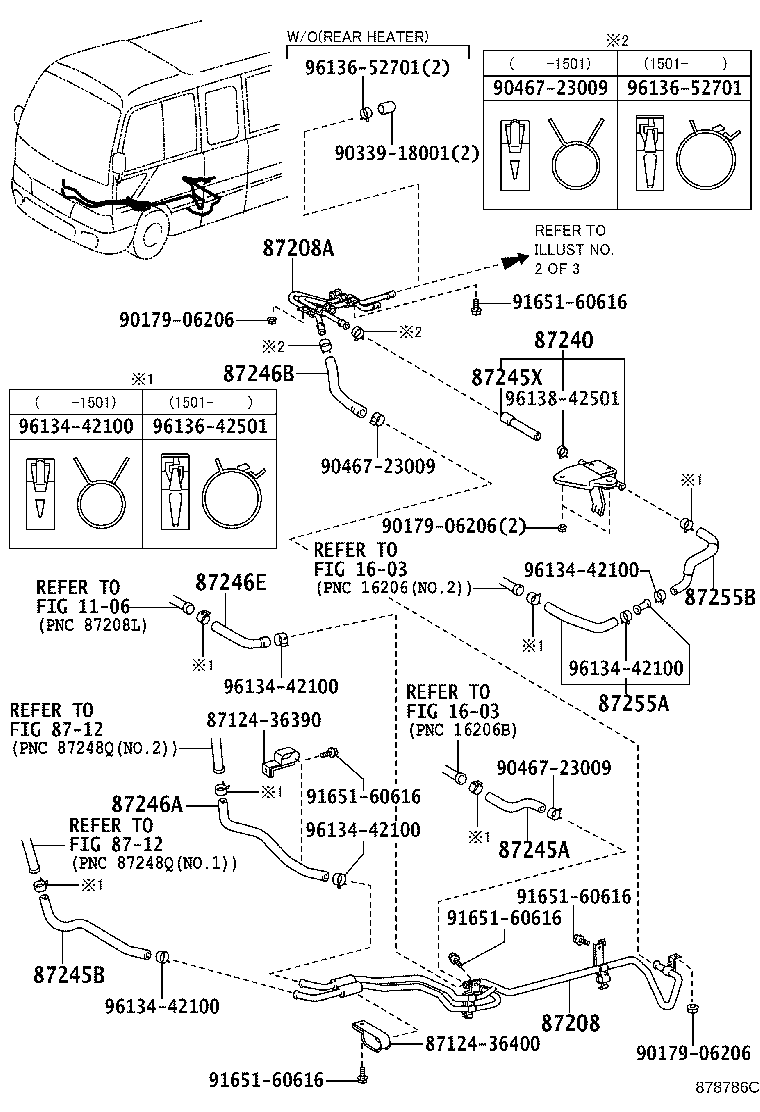

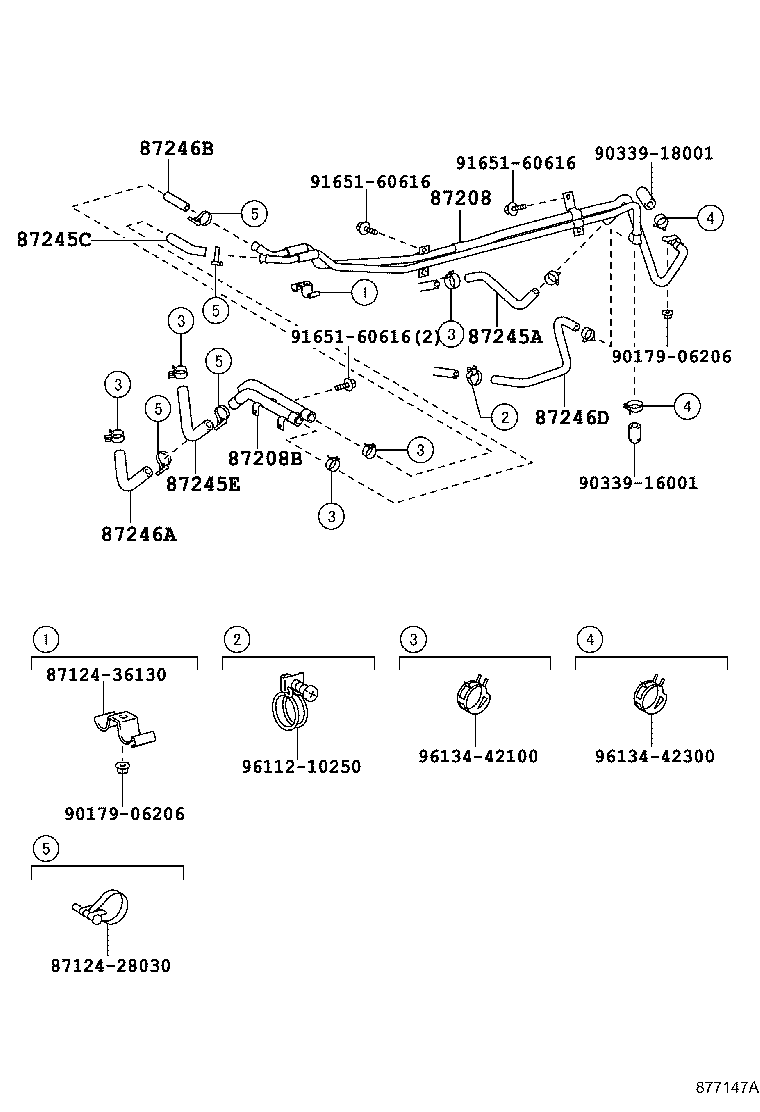

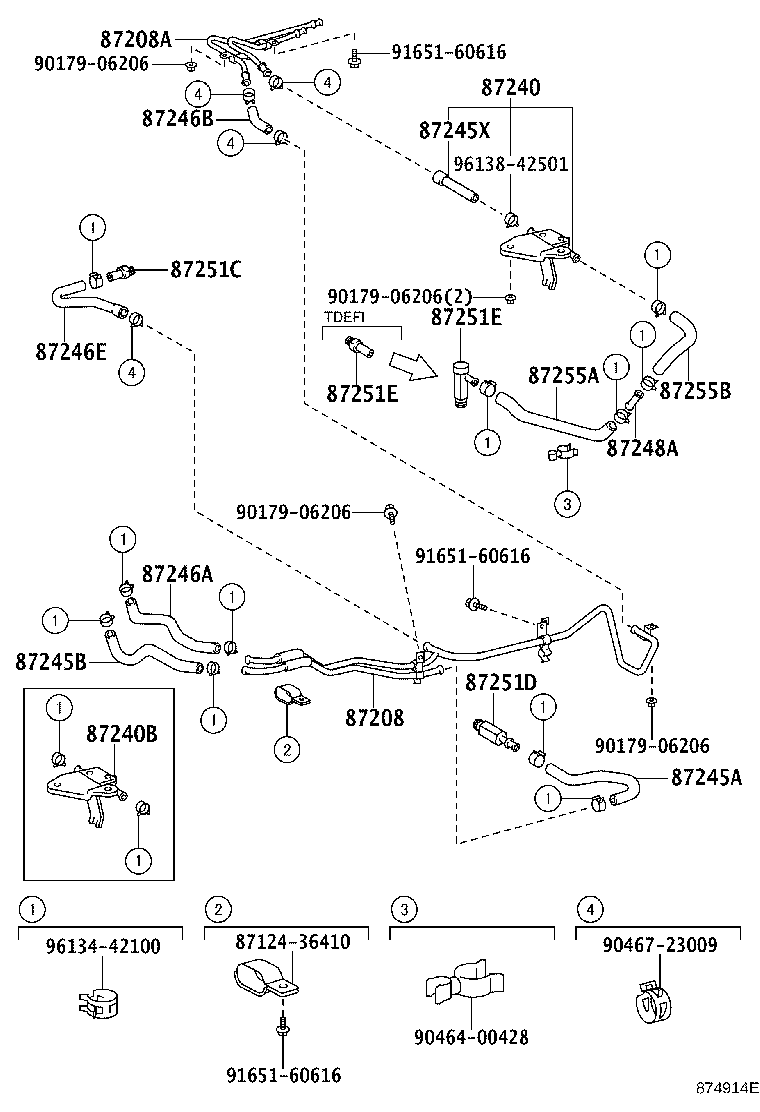

Figure 872103D 872103D 1993-01 → 1999-07 Figure 874915B 874915B 1996-05 → 1999-07 Figure 877140 877140 1993-01 → 1999-07 Figure 877140 877140 1997-05 → 1999-07 Figure 876439C 876439C 1993-01 → 1999-07 Figure 877141A 877141A 1993-01 → 1999-07 Figure 877141A 877141A 1997-05 → 1999-07 Figure 877142B 877142B 1996-05 → 1999-07 Figure 877143 877143 1994-01 → 1999-07 Figure 874172D 874172D 1999-07 → 2015-01 Figure 874175D 874175D 1999-07 → 2015-01 Figure 874176E 874176E 1999-07 → 2015-01 Figure 874177F 874177F 1999-07 → 2015-01 Figure 874177F 874177F 2000-08 → 2015-01 Figure 874177F 874177F 2001-05 → 2015-01 Figure 874177F 874177F 2001-08 → 2015-01 Figure 874173E 874173E 1999-07 → 2015-01 Figure 874173E 874173E 2001-04 → 2015-01 Figure 874173E 874173E 2001-08 → 2015-01 Figure 874178D 874178D 1999-07 → 2015-01 Figure 874179E 874179E 1999-07 → 2015-01 Figure 874180D 874180D 1999-07 → 2015-01 Figure 872107F 872107F 1993-01 → 1999-07 Figure 872110B 872110B 1993-01 → 1999-07 Figure 872112F 872112F 1993-01 → 1999-07 Figure 877144A 877144A 1993-01 → 1999-07 Figure 877145A 877145A 1994-01 → 1999-07 Figure 876440C 876440C 1993-01 → 1999-07 Figure 877146B 877146B 1993-01 → 1999-07 Figure 877147A 877147A 1994-01 → 1999-07 Figure 874185B 874185B 1999-07 → 2015-01 Figure 874077G 874077G 1999-07 → 2015-01 Figure 874186D 874186D 1999-07 → 2015-01 Figure 874187E 874187E 1999-07 → 2015-01 Figure 874188D 874188D 1999-07 → 2015-01 Figure 874188D 874188D 2007-08 → 2015-01 Figure 874914E 874914E 2001-05 → 2015-01 Figure 875932A 875932A 2002-11 → 2015-01 Figure 878791D 878791D 2006-08 → 2015-01 Figure 878785B 878785B 2006-08 → — Figure 878786C 878786C 2006-08 → — Figure 87E714C 87E714C 2015-01 → — Figure 87E698C 87E698C 2015-01 → — Figure 87E834B 87E834B 2015-01 → — Figure 87E700C 87E700C 2015-01 → — Figure 87E833B 87E833B 2015-01 → — Figure 87E699C 87E699C 2015-01 → — Figure 874135 874135 1993-01 → 1999-07 Figure 872214 872214 1993-01 → 1999-07 Figure NE2574 NE2574 1993-01 → 1999-07 Figure 872209 872209 1993-01 → 1999-07 Figure 874479 874479 1993-01 → 1999-07 Figure 874132 874132 1993-01 → 1999-07 Figure NE2575 NE2575 1996-05 → 1999-07 Figure 872210 872210 1993-01 → 1999-07 Figure 874189 874189 1993-01 → 1999-07 Figure 874133 874133 1993-01 → 1999-07 Figure 874134 874134 1993-01 → 1999-07 Figure 874107B 874107B 1999-07 → 2015-01 Figure 874194 874194 1999-07 → 2015-01 Figure 874103A 874103A 1999-07 → 2015-01 Figure 874103A 874103A 2001-05 → 2015-01 Figure 874196A 874196A 1999-07 → 2015-01 Figure 874196A 874196A 2001-05 → 2015-01 Figure 874196A 874196A 2006-08 → 2015-01 Figure 874198 874198 1999-07 → 2015-01 Figure 874198 874198 2007-08 → 2015-01 Figure 878792A 878792A 2006-08 → 2015-01 Figure 87E713 87E713 2015-01 → — Figure 87E708 87E708 2015-01 → — Figure 87E707 87E707 2015-01 → — Figure 87E712 87E712 2015-01 → — Figure 87E711 87E711 2015-01 → — Figure 872121B 872121B 1993-01 → 1999-07 Figure 875931 875931 1999-07 → 2015-01

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208C Pipe Sub-assy, Heater Water, C
87208E Pipe Sub-assy, Heater Water, E
87208G Pipe Sub-assy, Heater Water, G
87208H Pipe Sub-assy, Heater Water, H
87208J Pipe Sub-assy, Heater Water, J
87208K Pipe Sub-assy, Heater Water, K
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87240 Valve Assy, Heater Water
87240B Valve Assy, Heater Water, NO.2
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87245Q Hose, Heater Water, Inlet Q
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248J Pipe, Heater Water Inlet, J
87248K Pipe, Heater Water Inlet, K
87248X Pipe, Heater Water
87251C Joint, Water Hose Through
87251D Joint, Water, NO.1
87251E Joint, Water, NO.2
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255D Hose, Rear Heater Water Inlet, D
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87255G Hose, Rear Heater Water Inlet, G
87255H Hose, Heater Water Inlet, H
87255J Hose, Heater Water Inlet, J
87255K Hose, Rear Heater Water Inlet, K
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256D Hose, Rear Heater Water Outlet, D
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87256G Hose, Rear Heater Water Outlet, G
87256J Hose, Rear Heater Water Outlrt, J
87256K Hose, Rear Heater Water Outlet, K
87256L Hose, Rear Heater Water Outlet, L
87260 Pump Assy, Heater
87452J Bracket, Rear Heater Pipe, NO.1
87452K Bracket, Rear Heater Pipe, NO.2
87452L Bracket, Rear Heater Pipe, NO.3
