Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

78 part groups · 40 illustrations

Illustrations

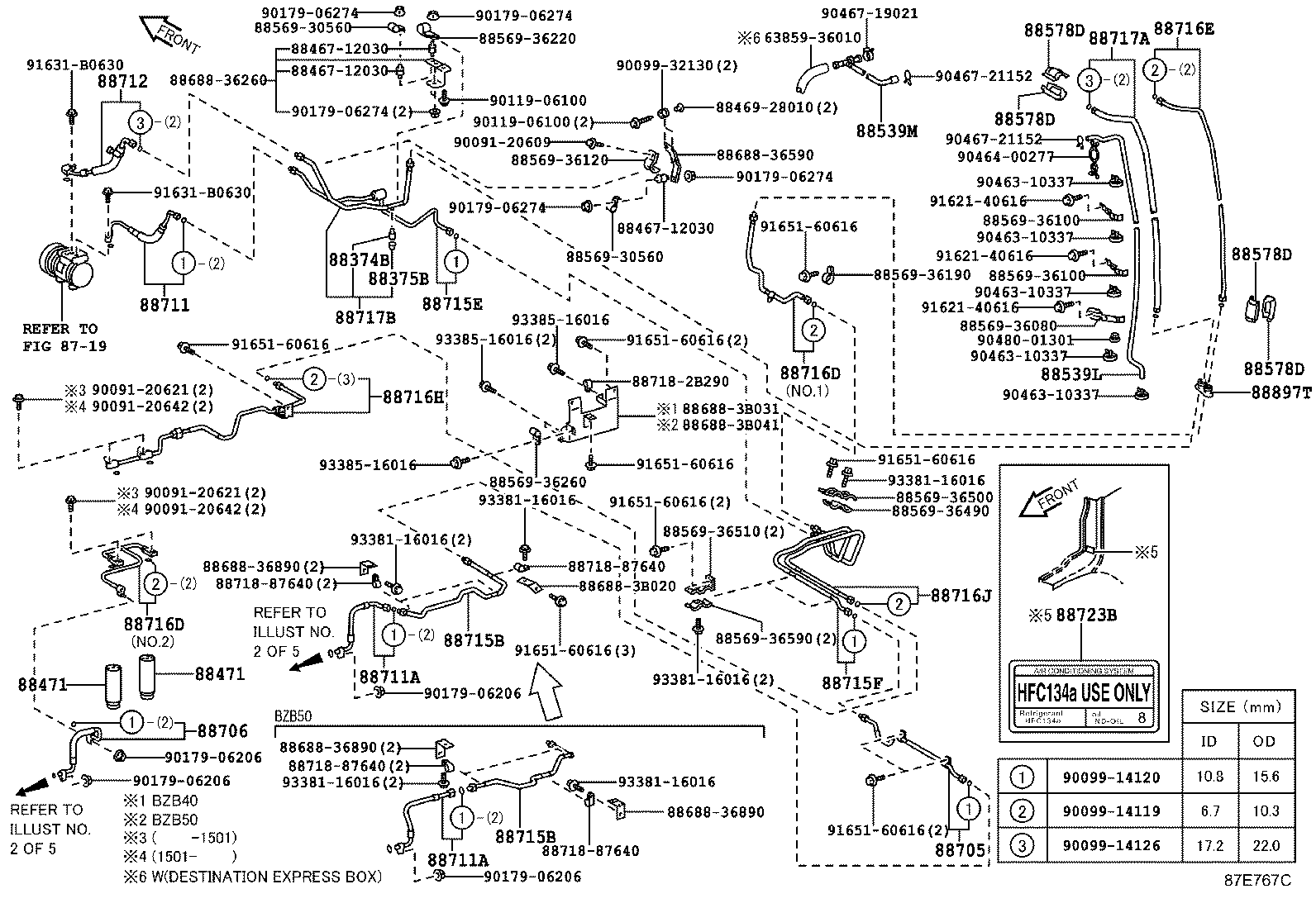

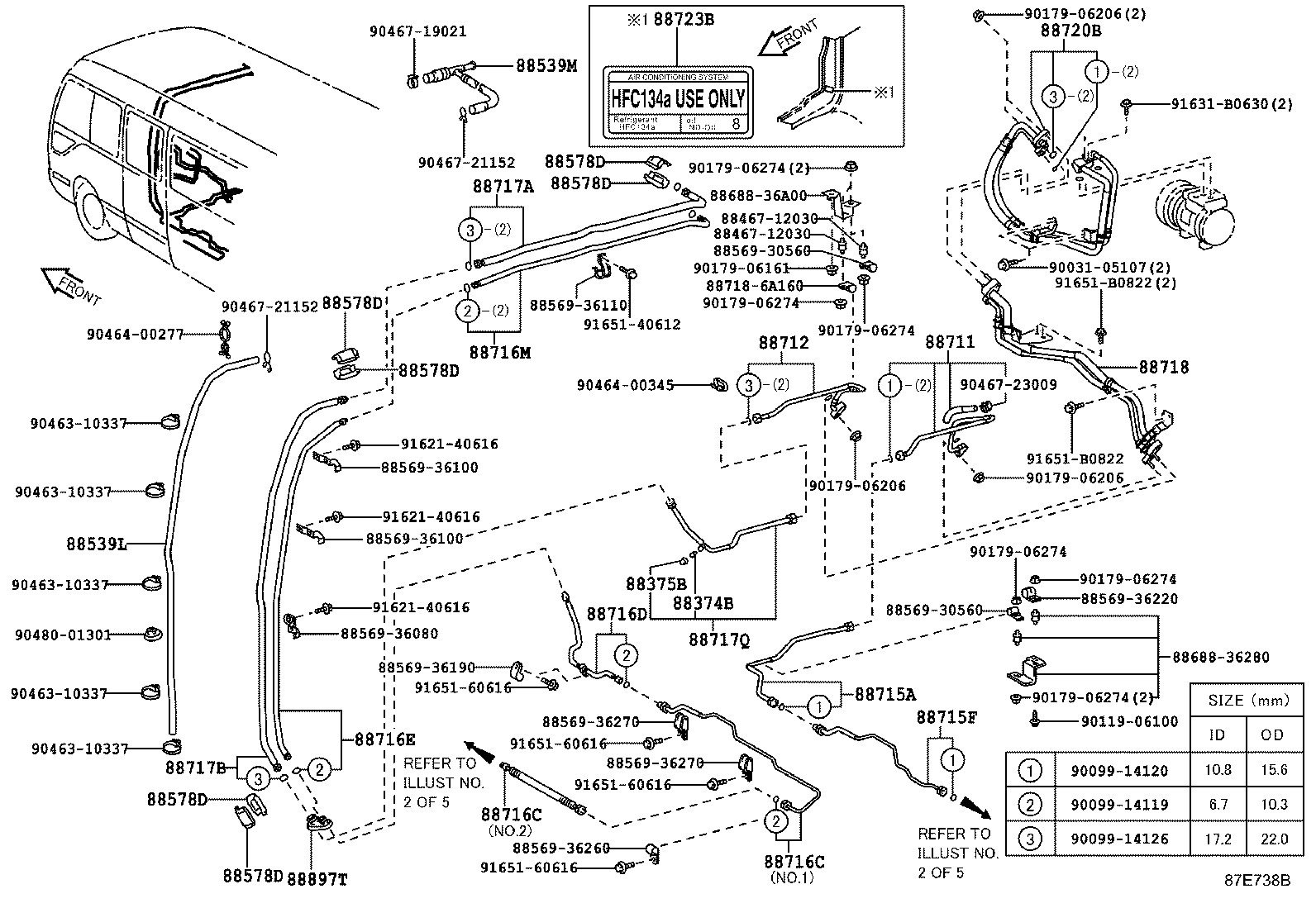

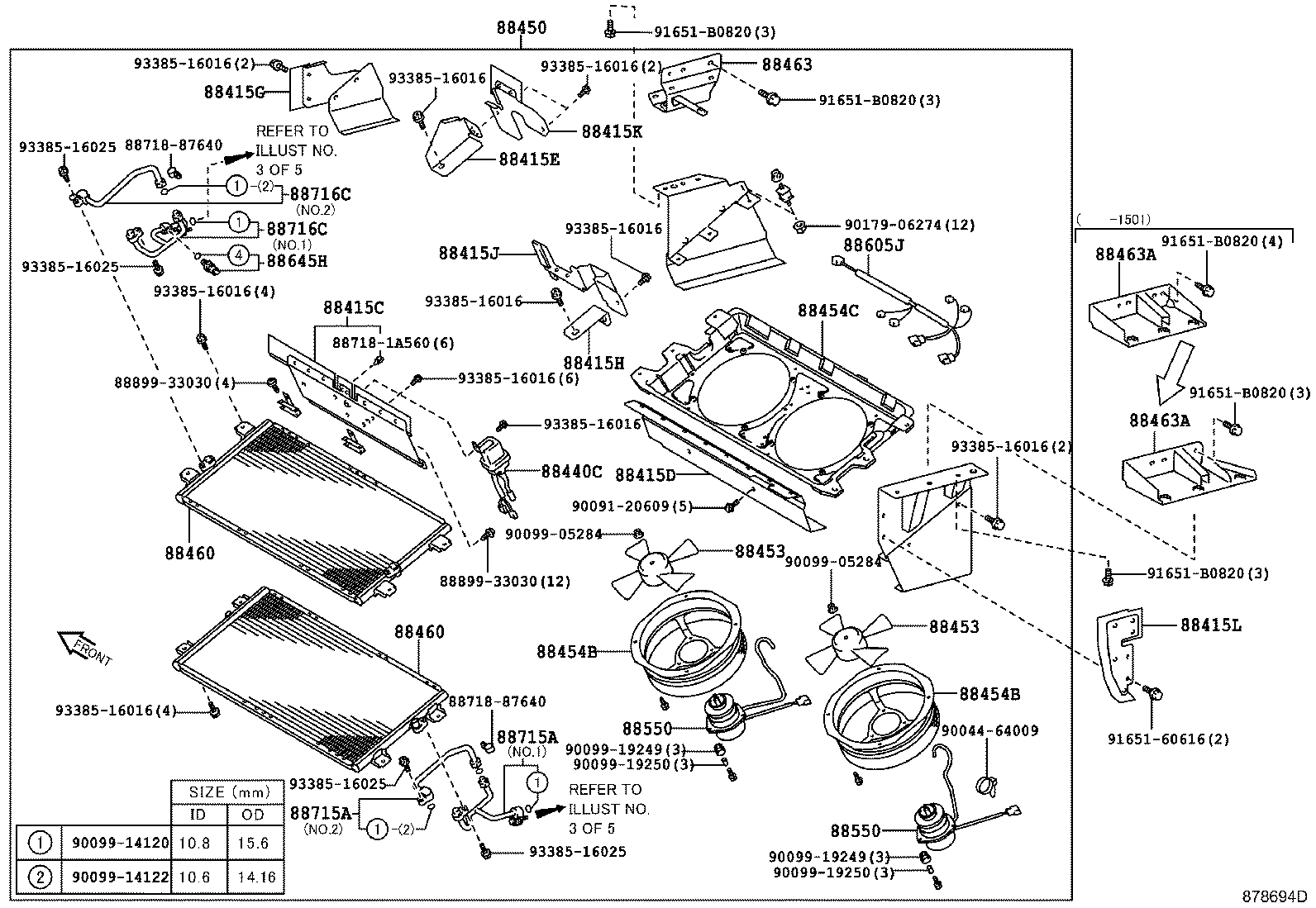

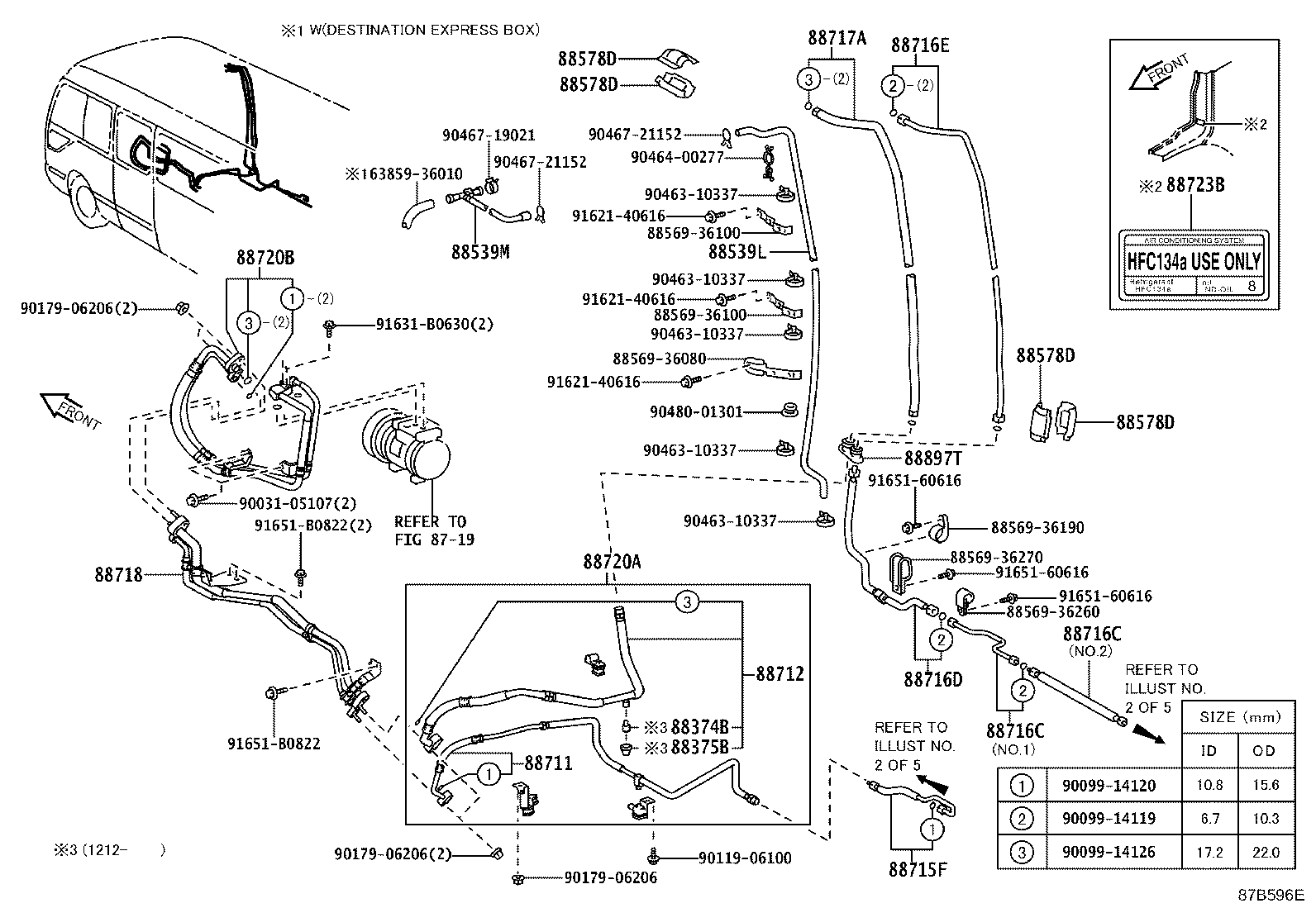

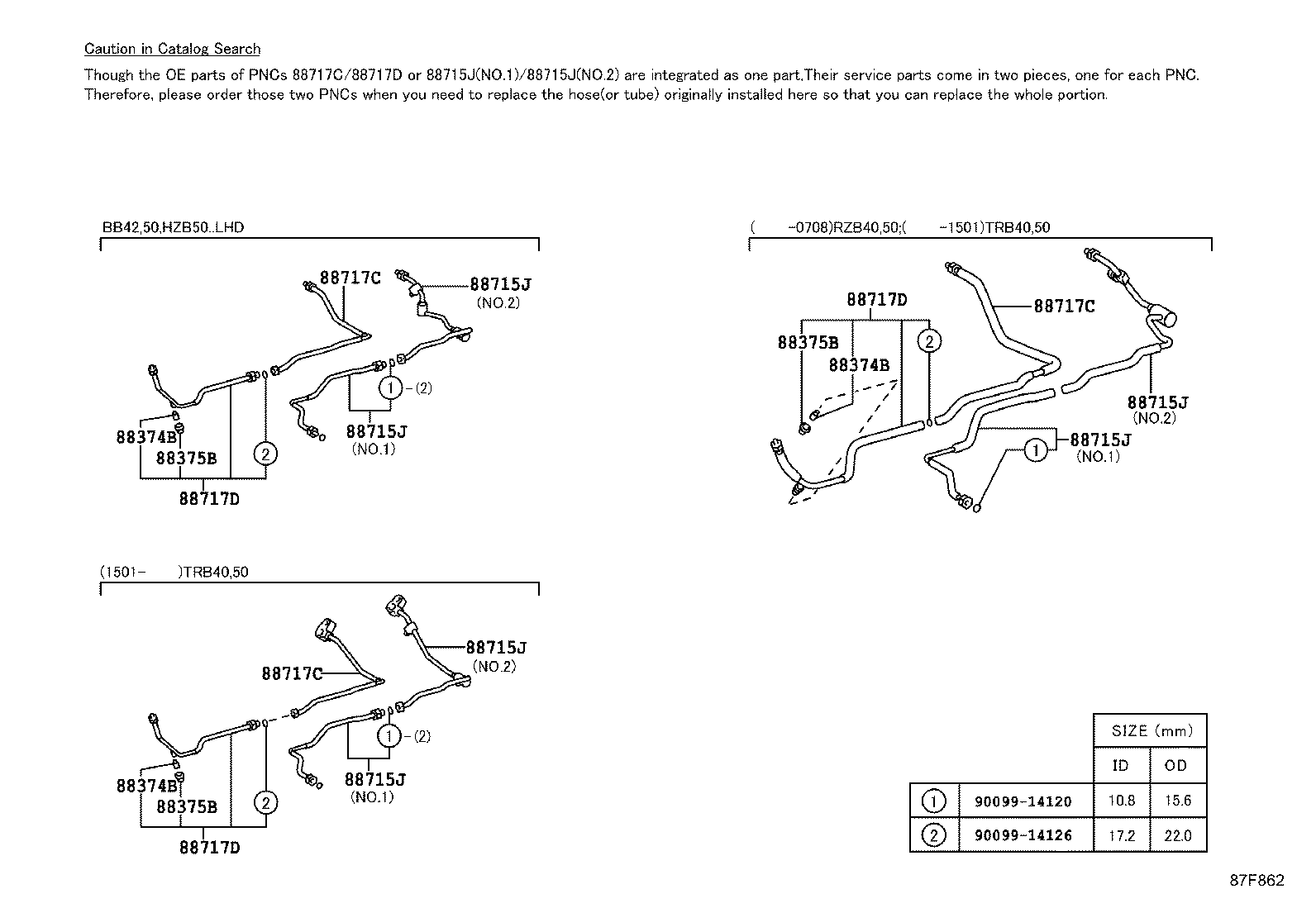

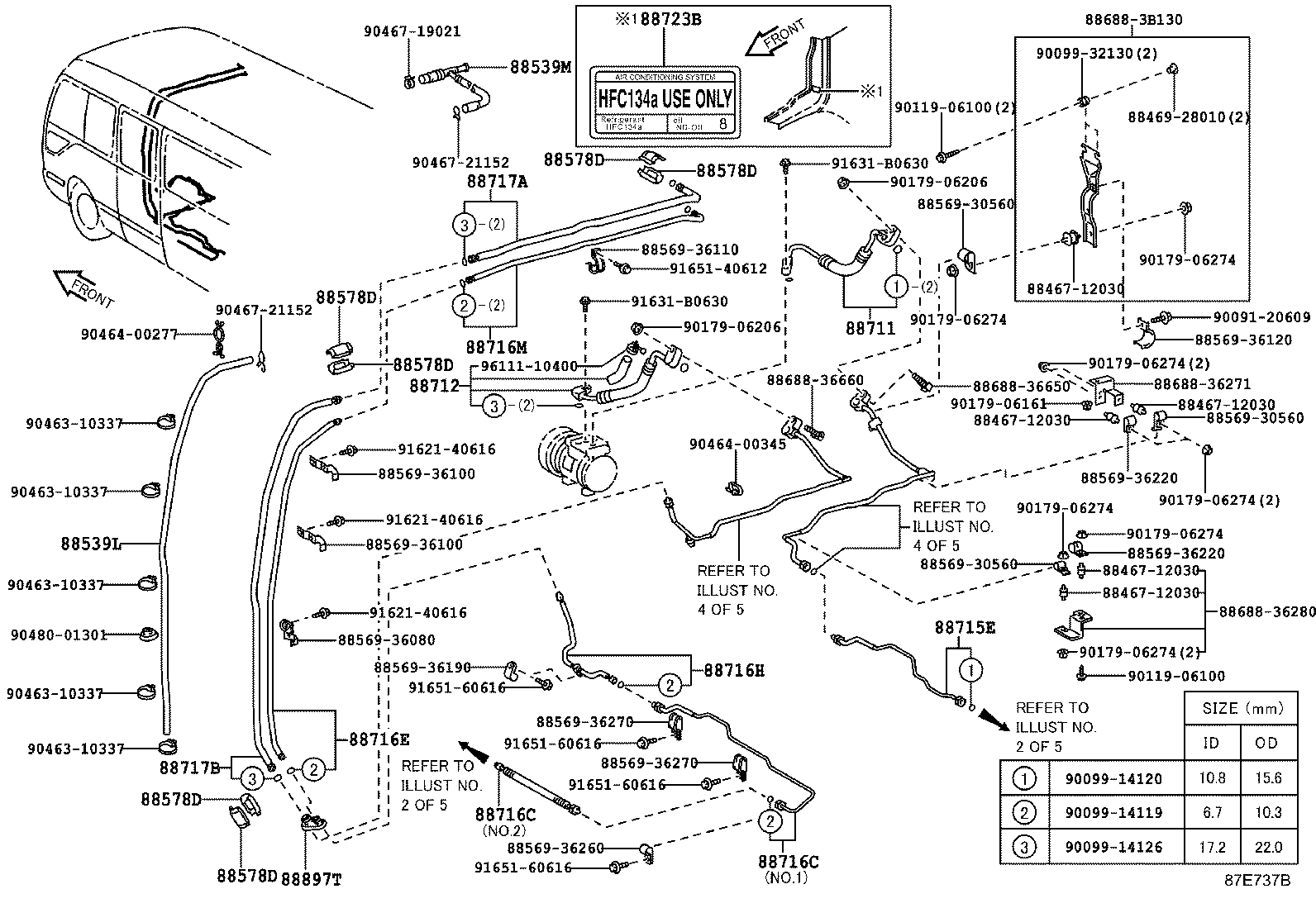

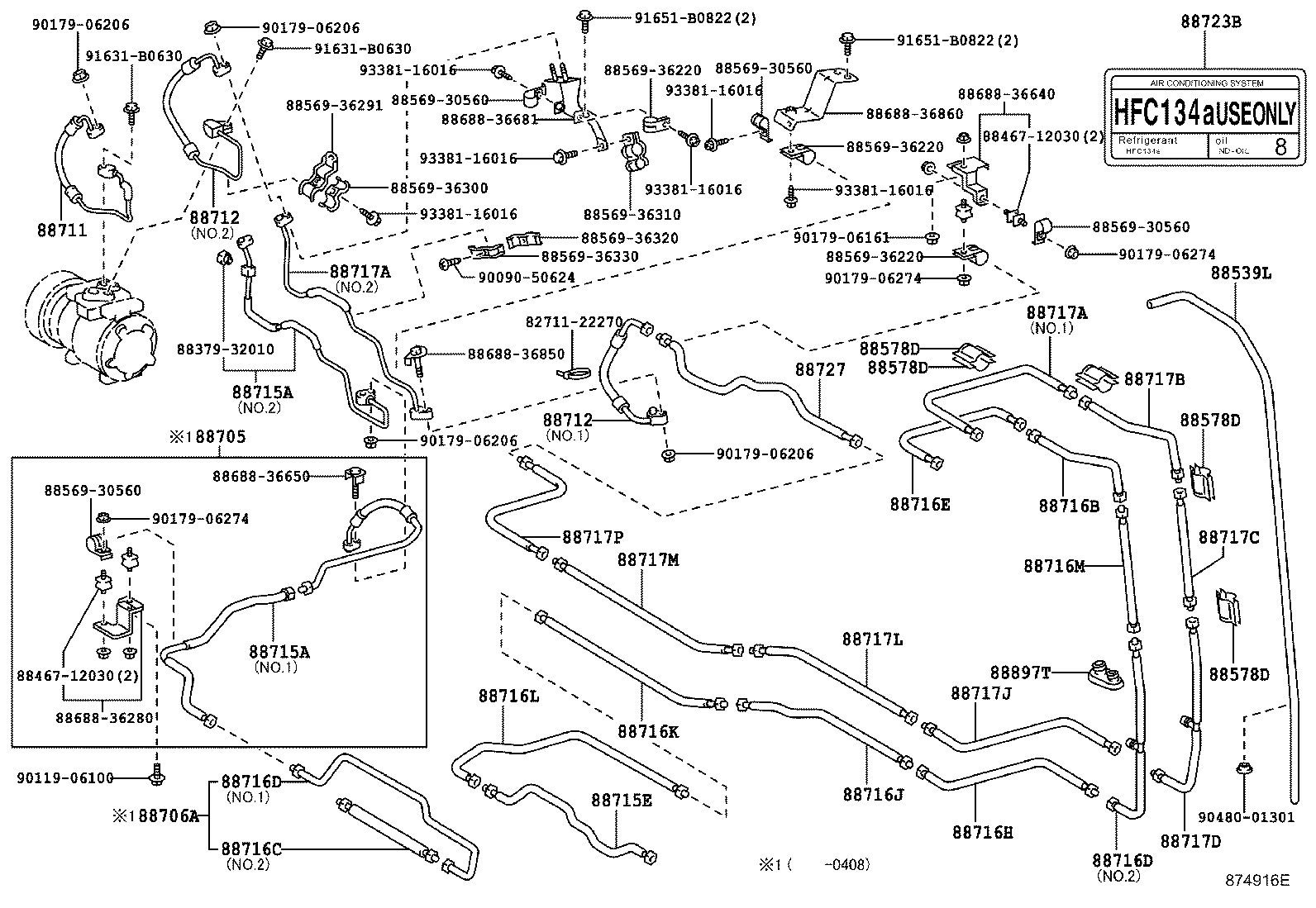

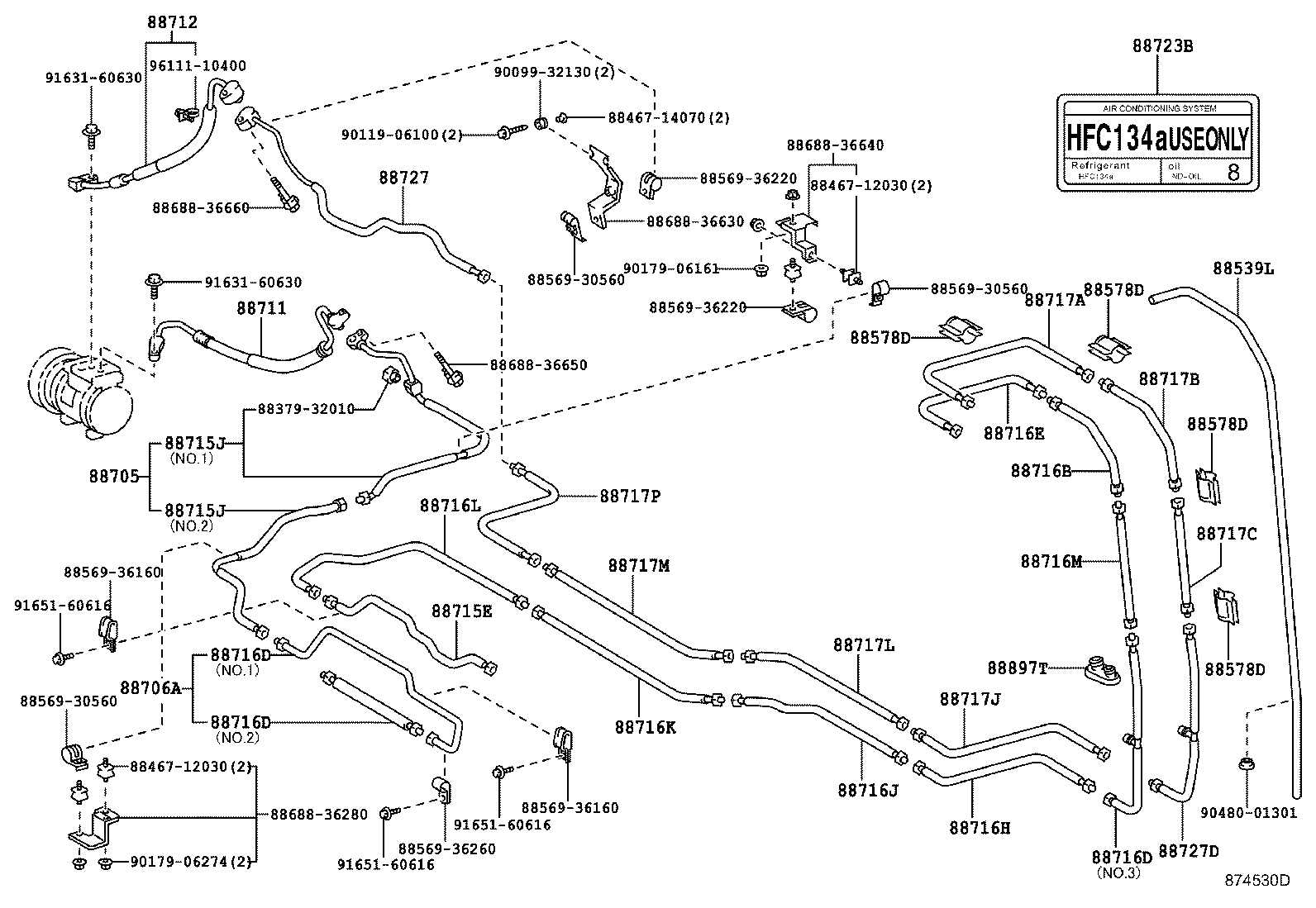

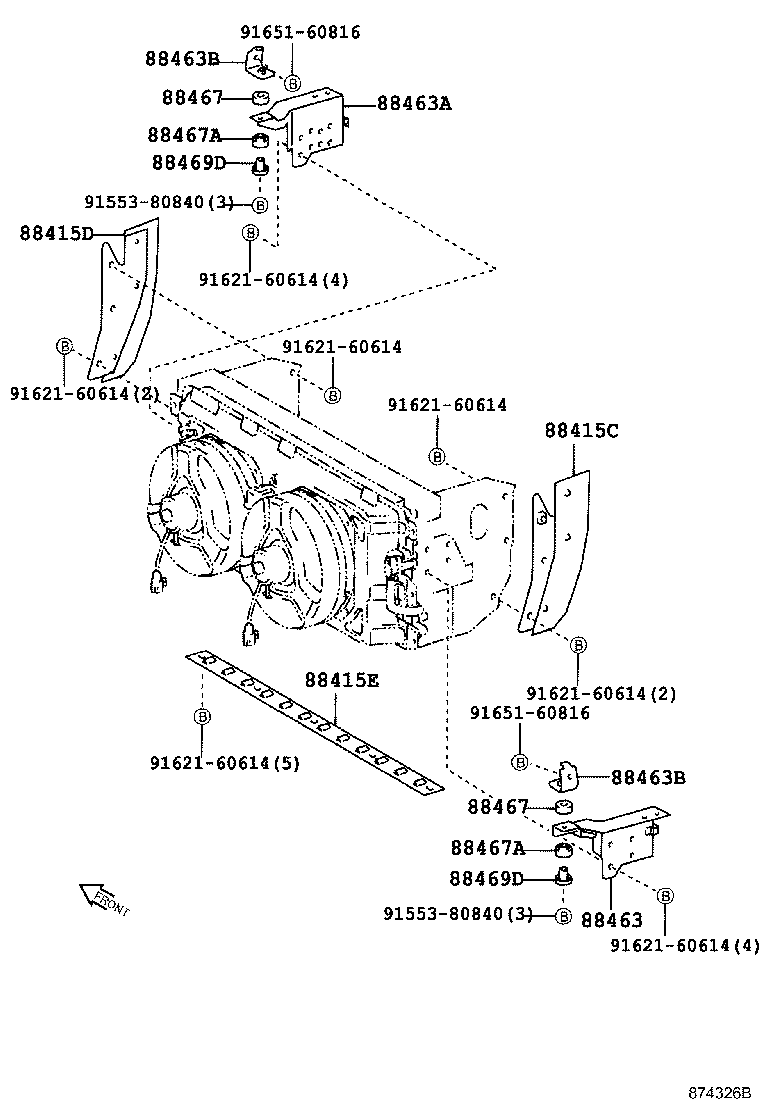

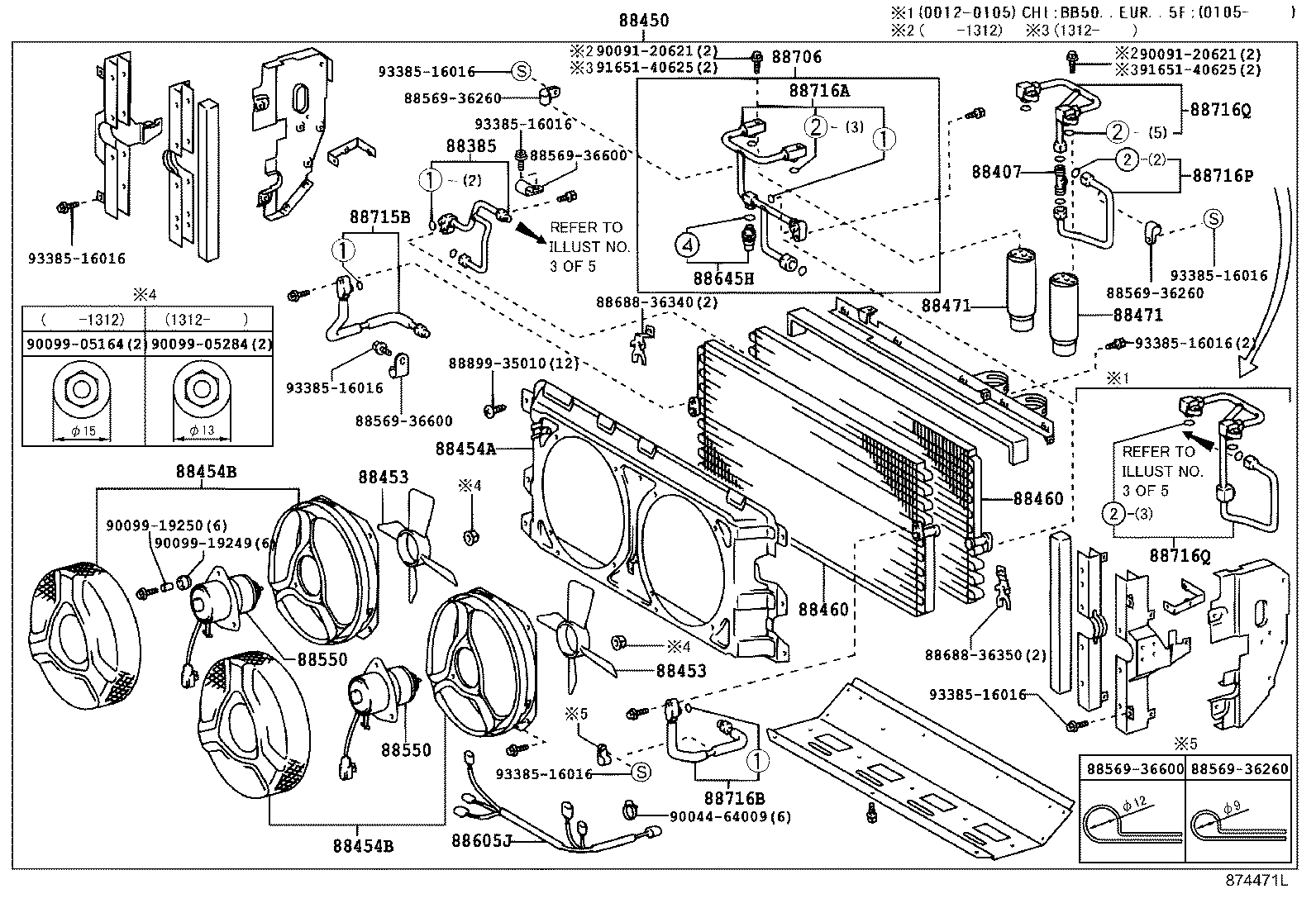

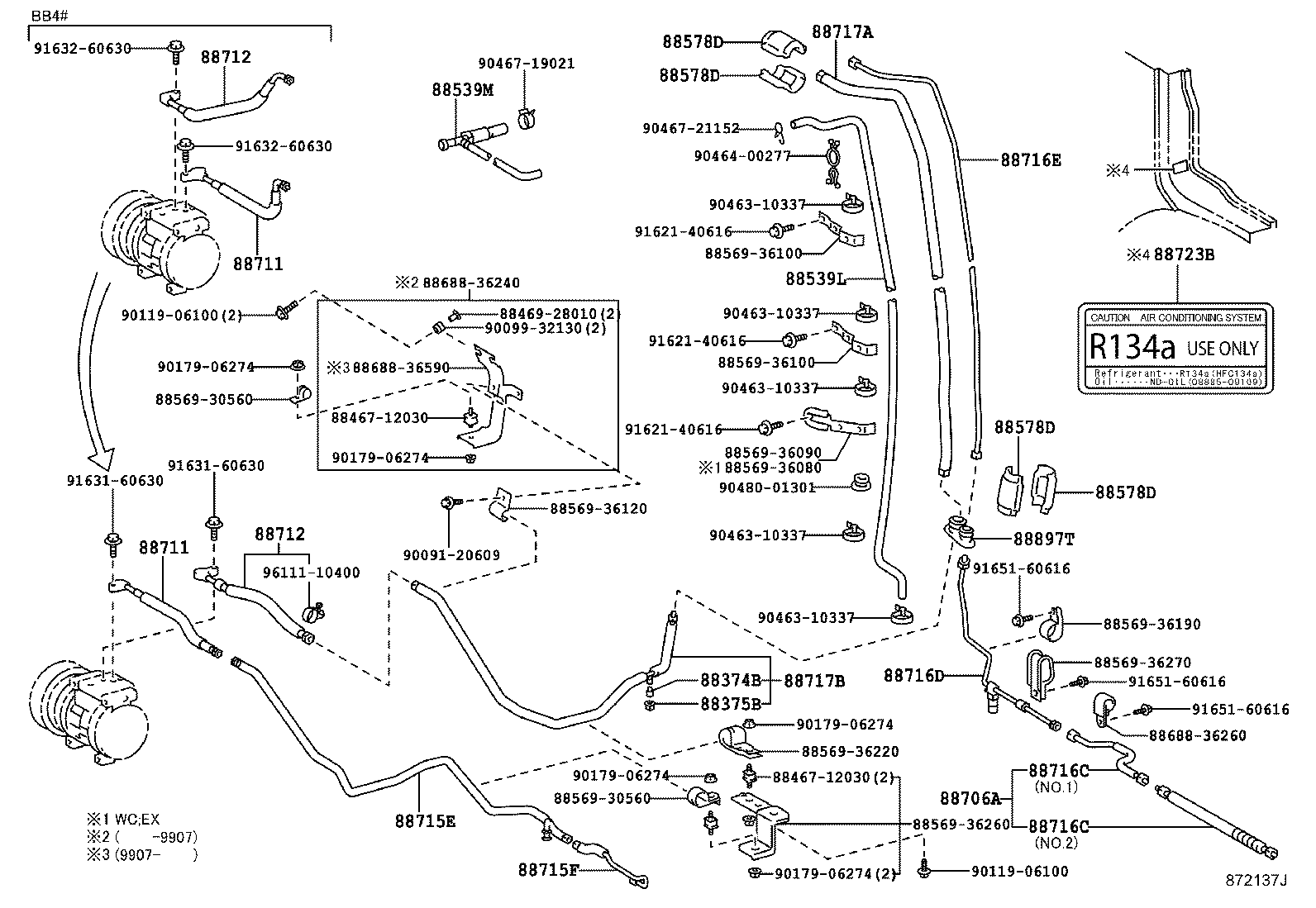

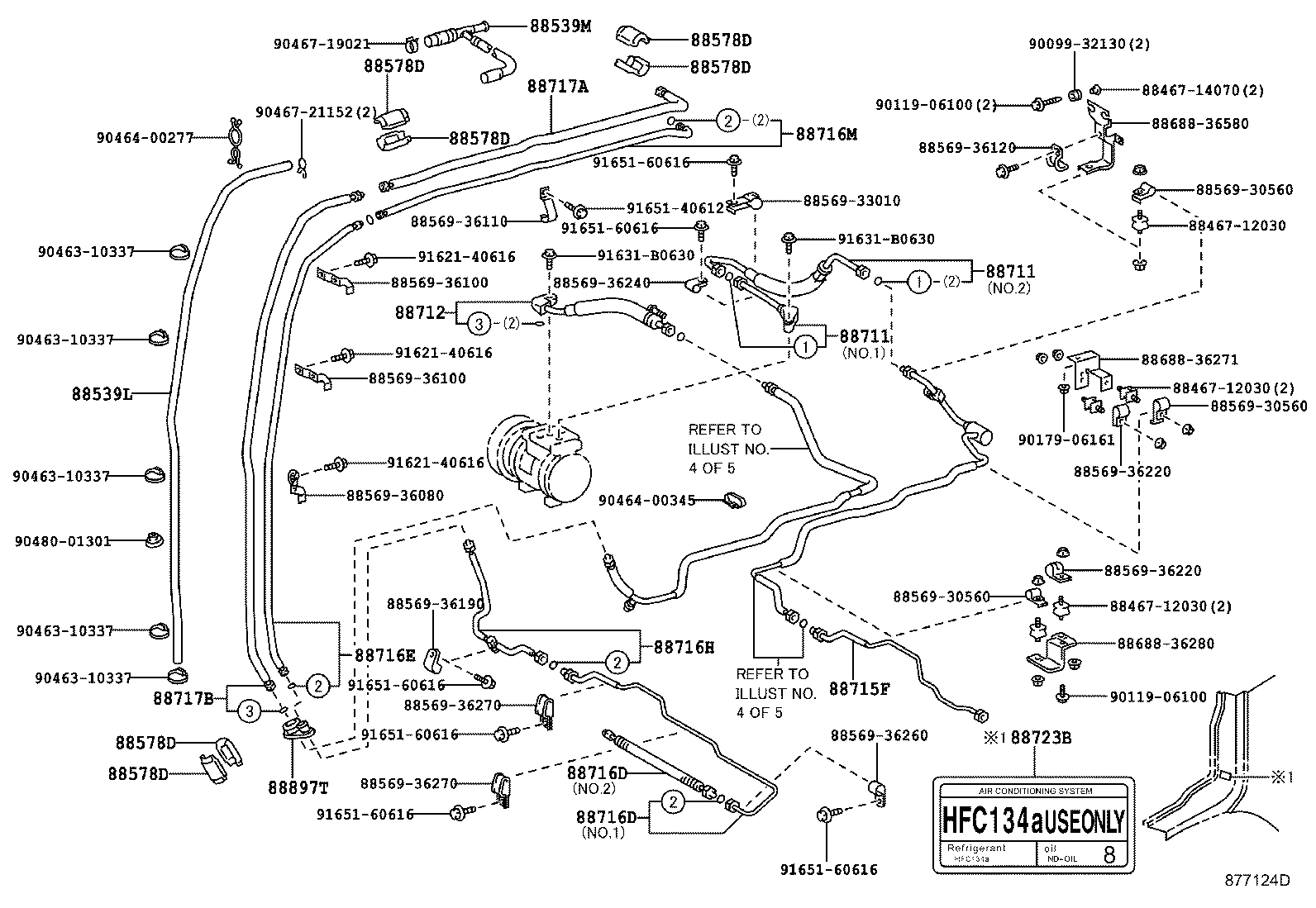

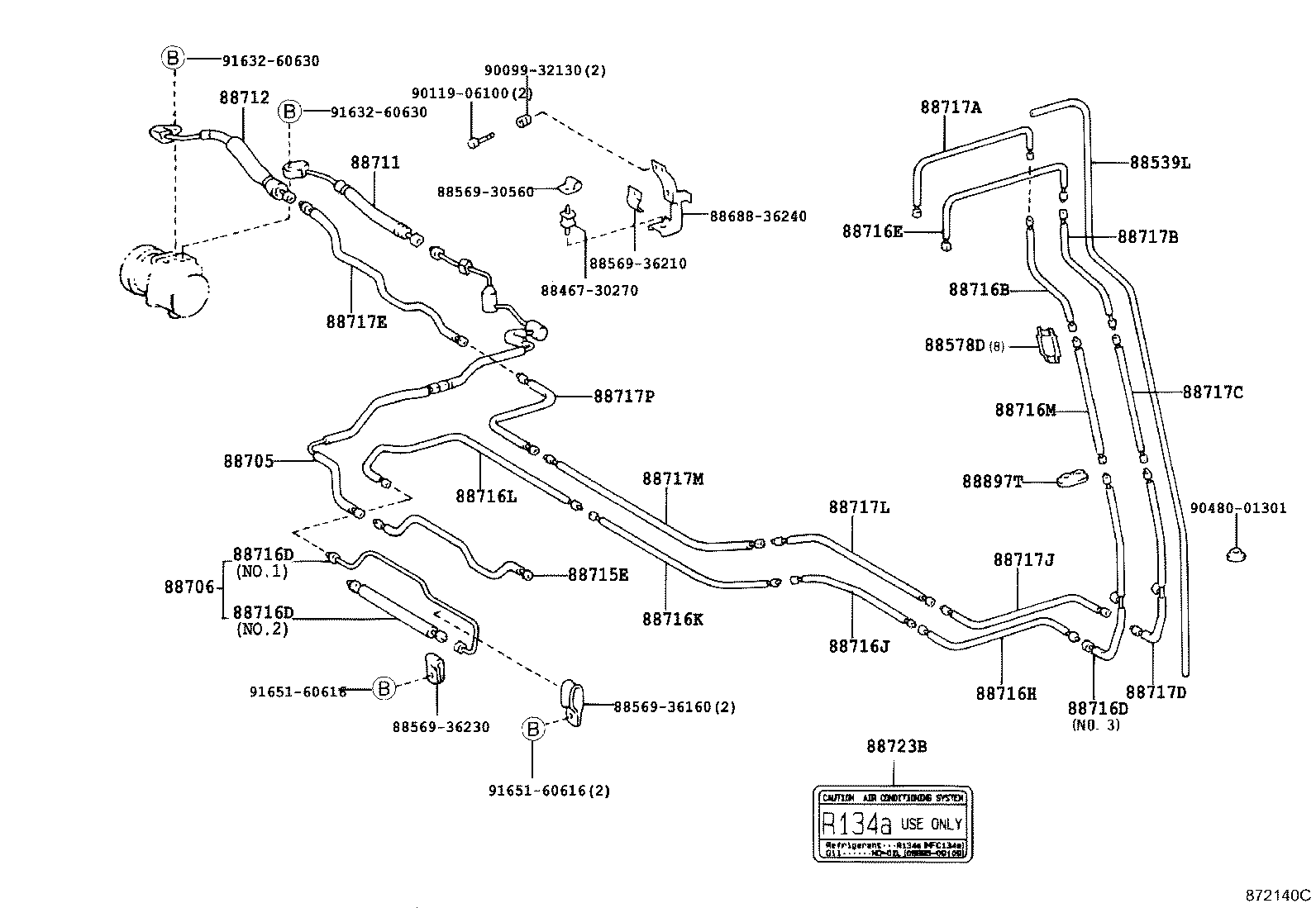

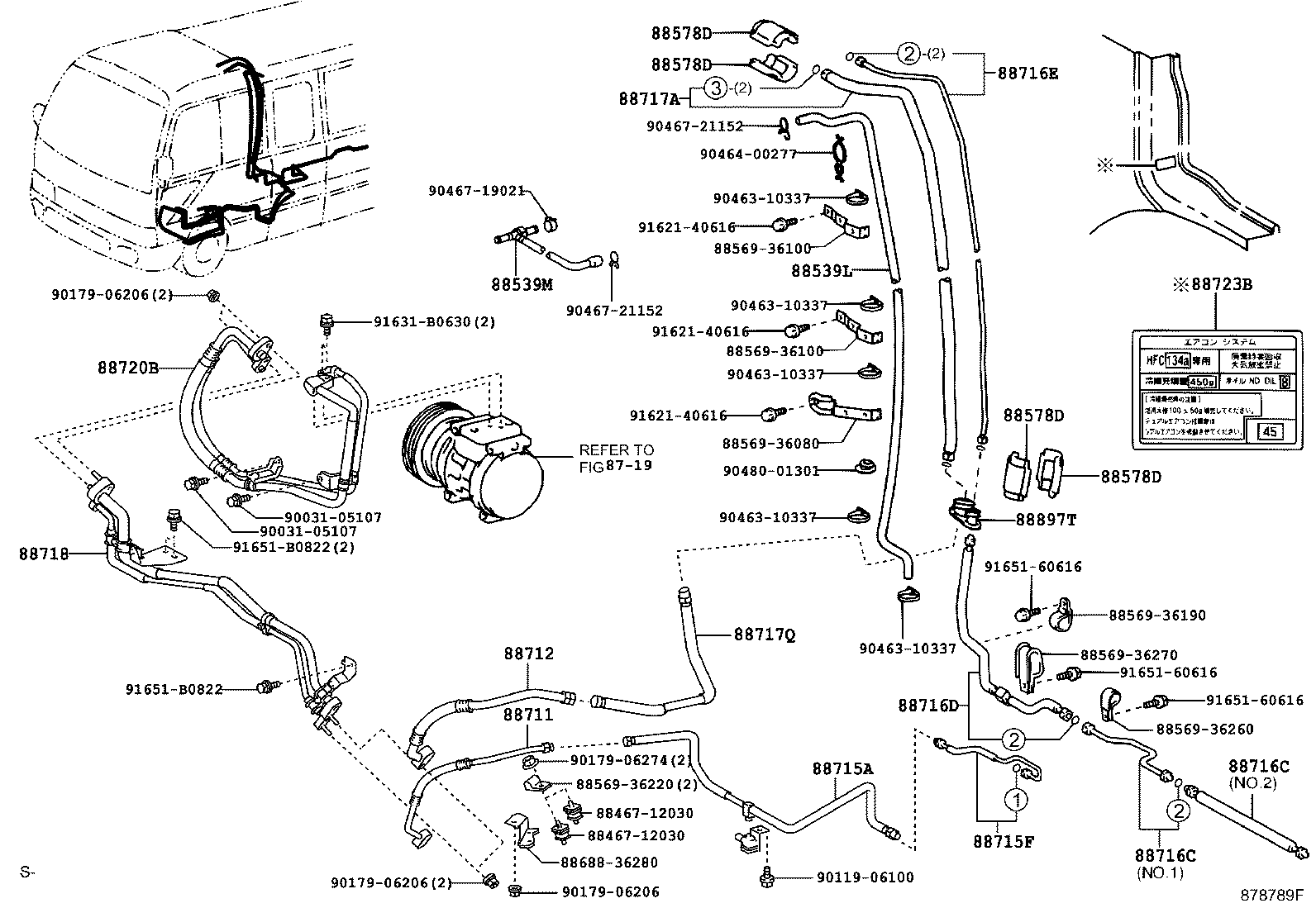

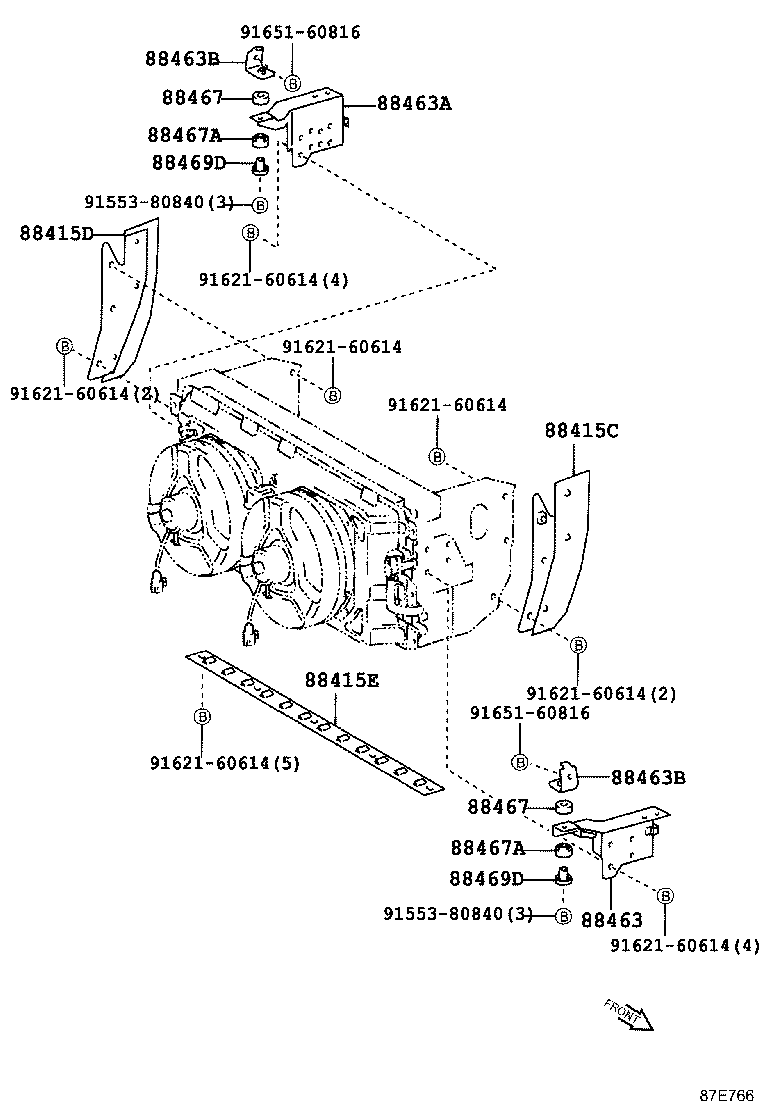

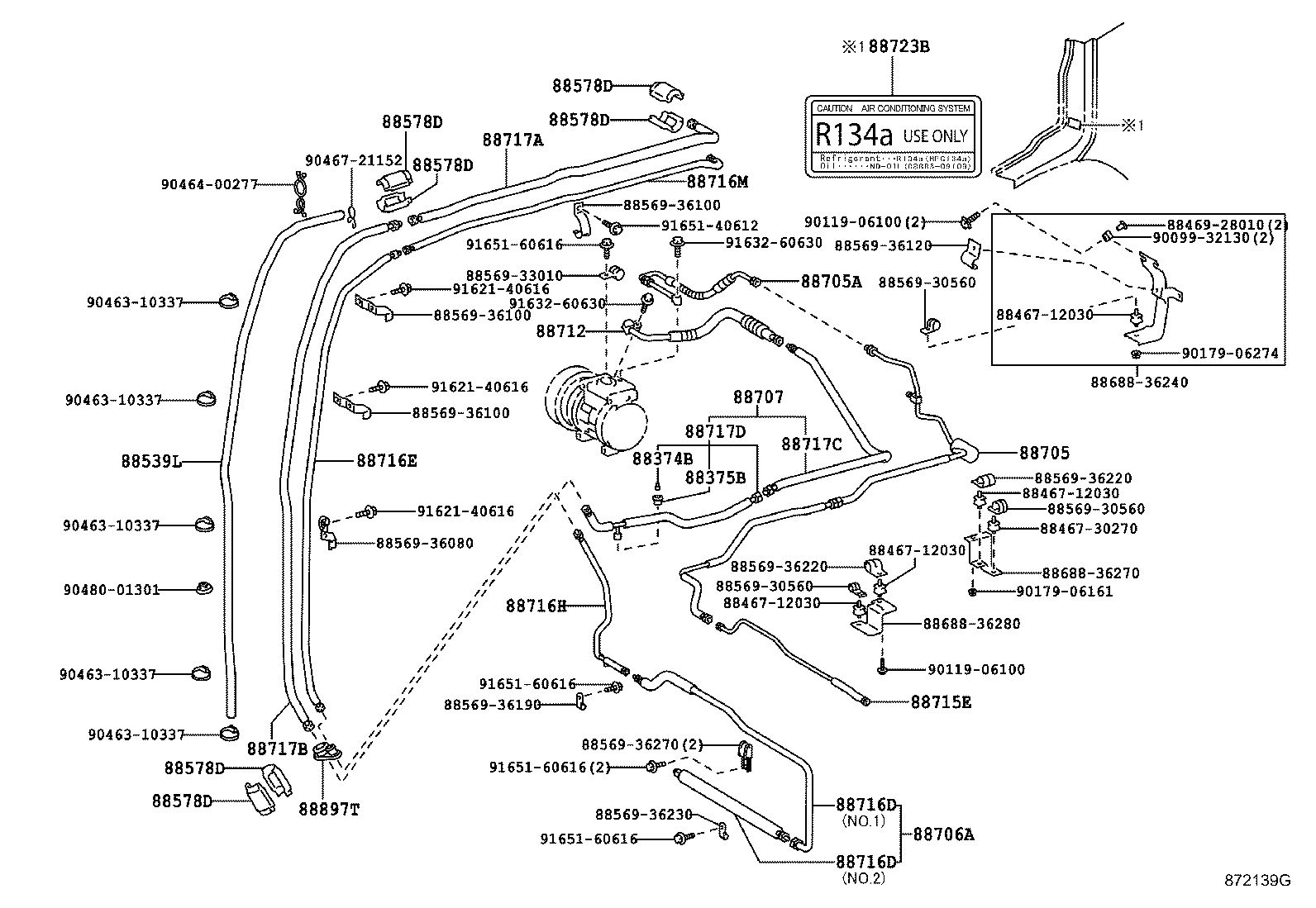

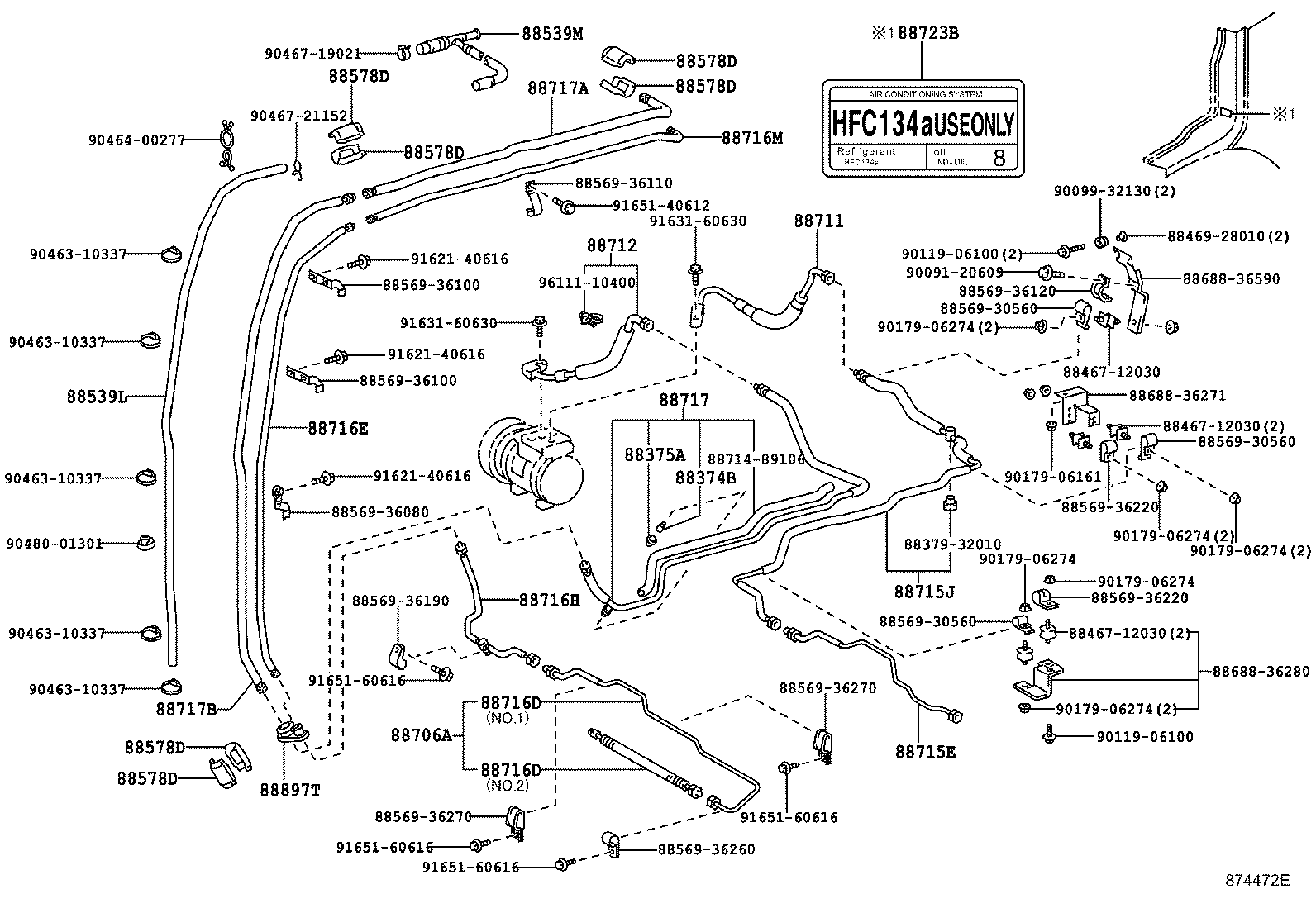

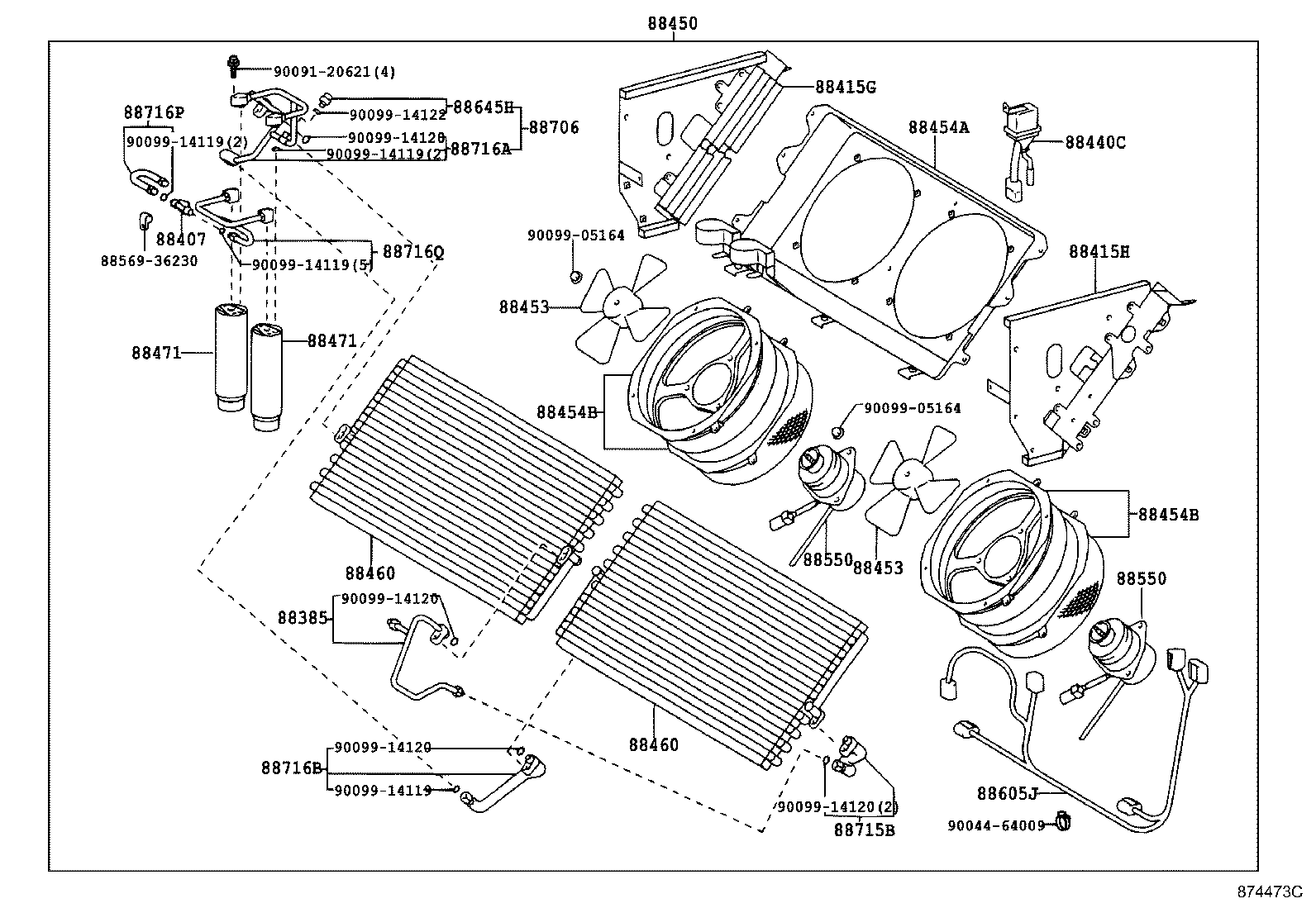

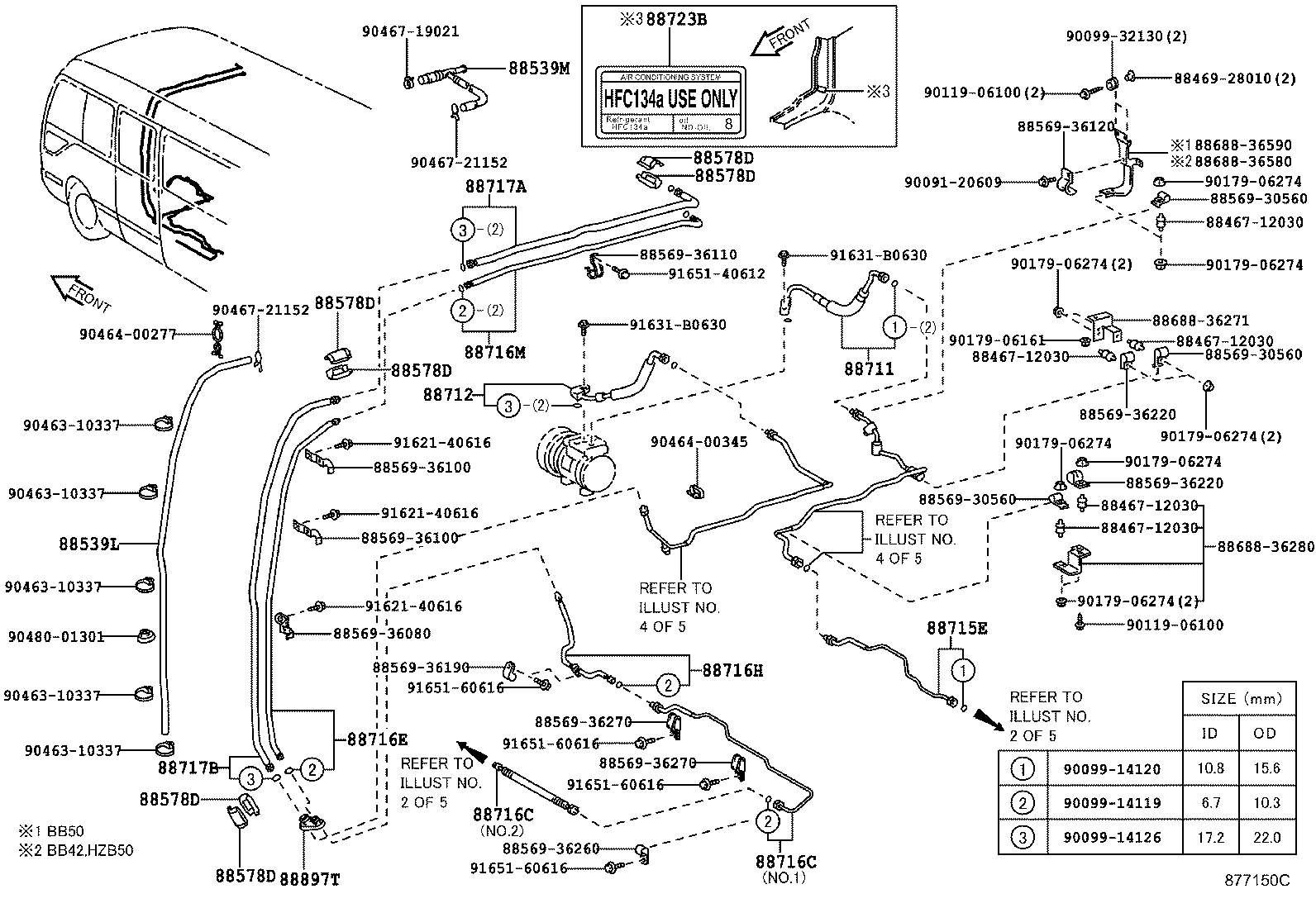

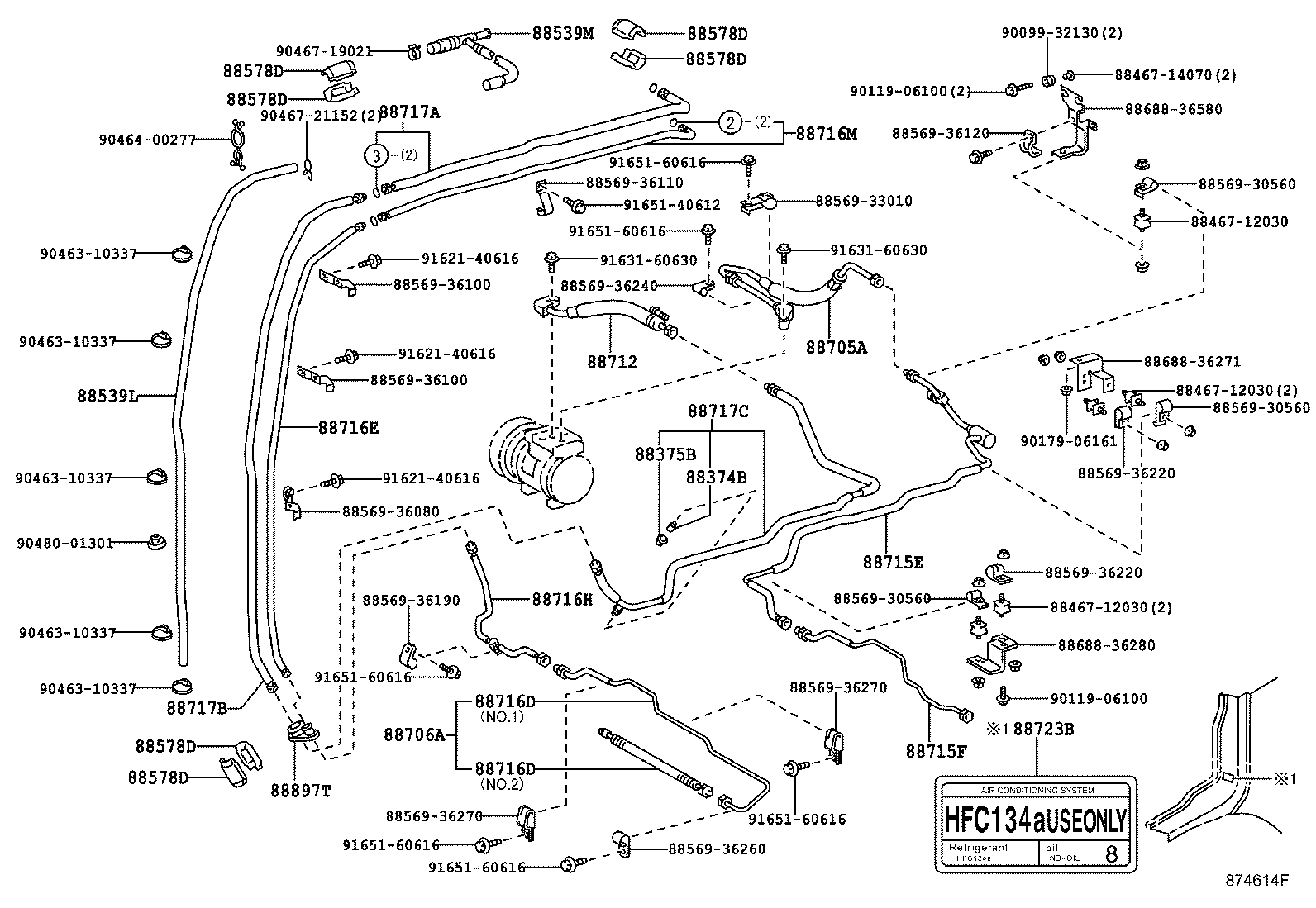

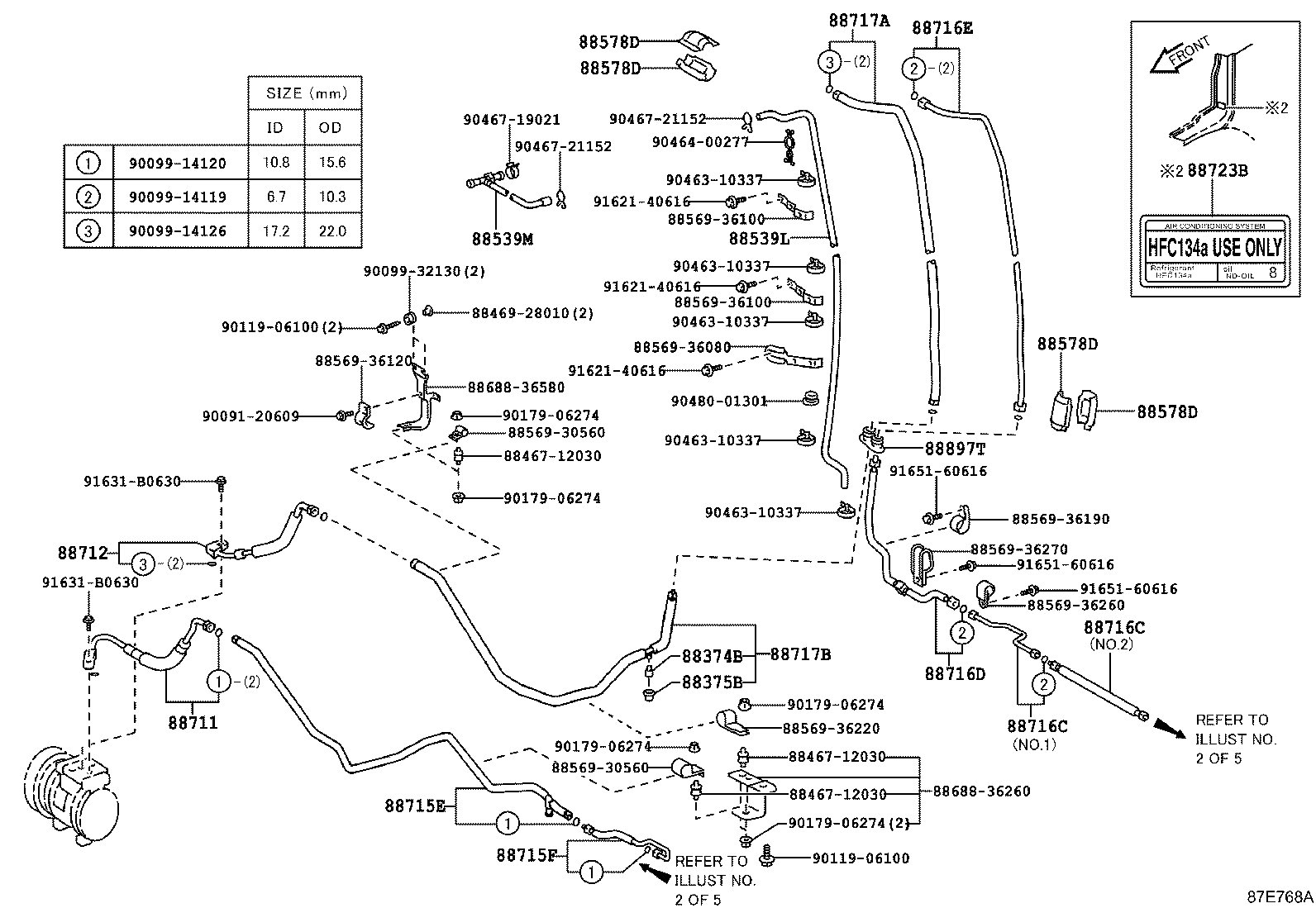

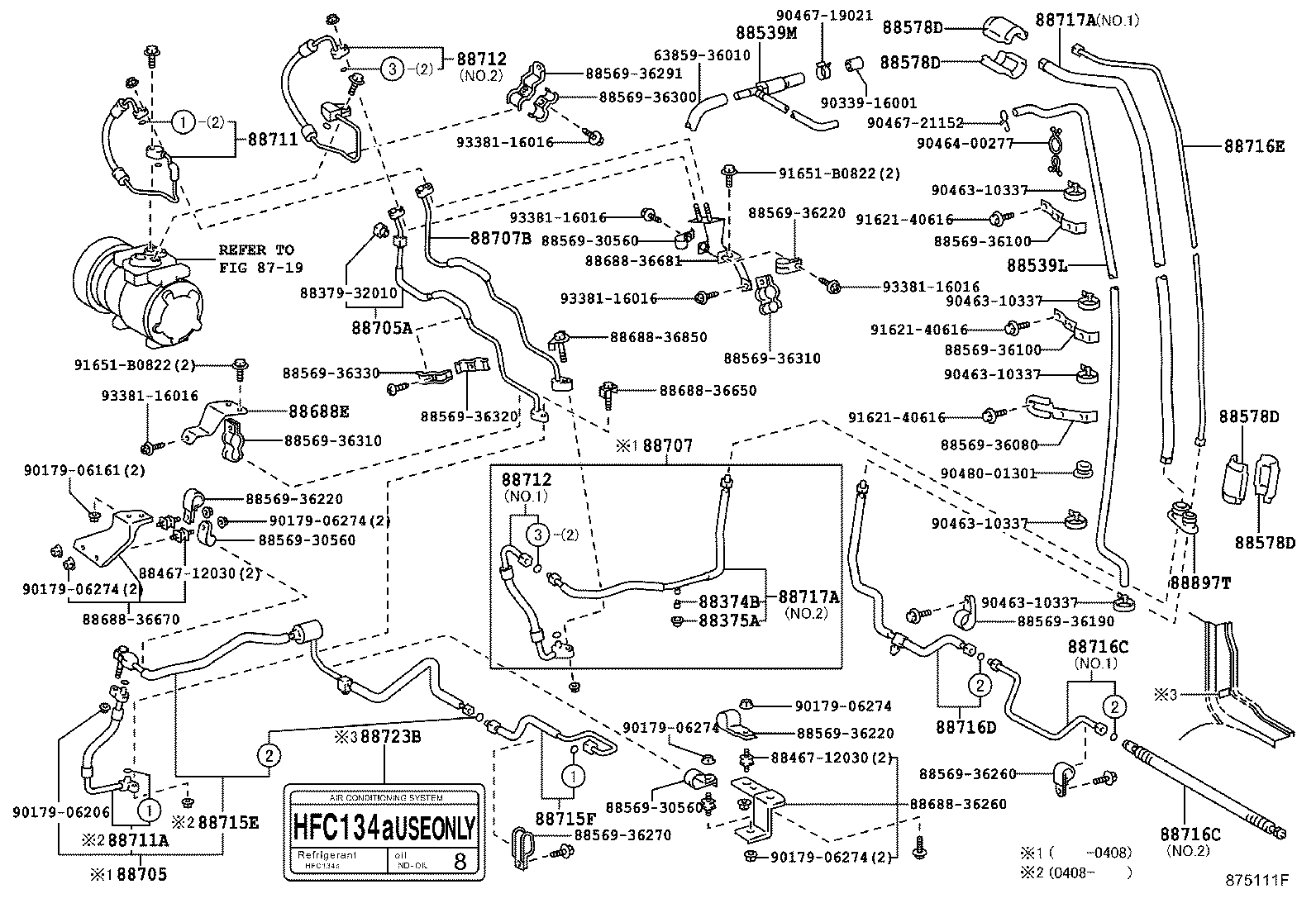

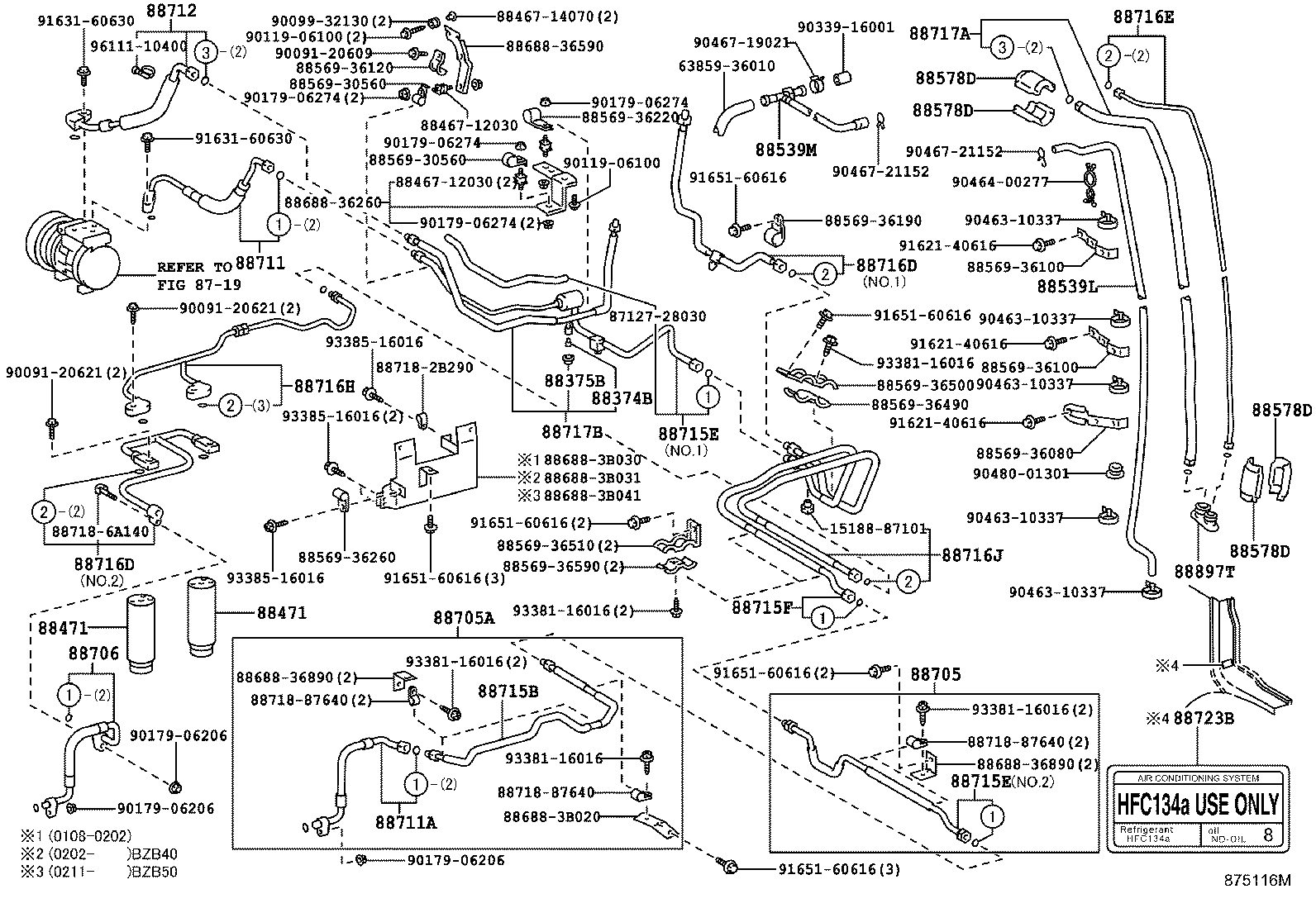

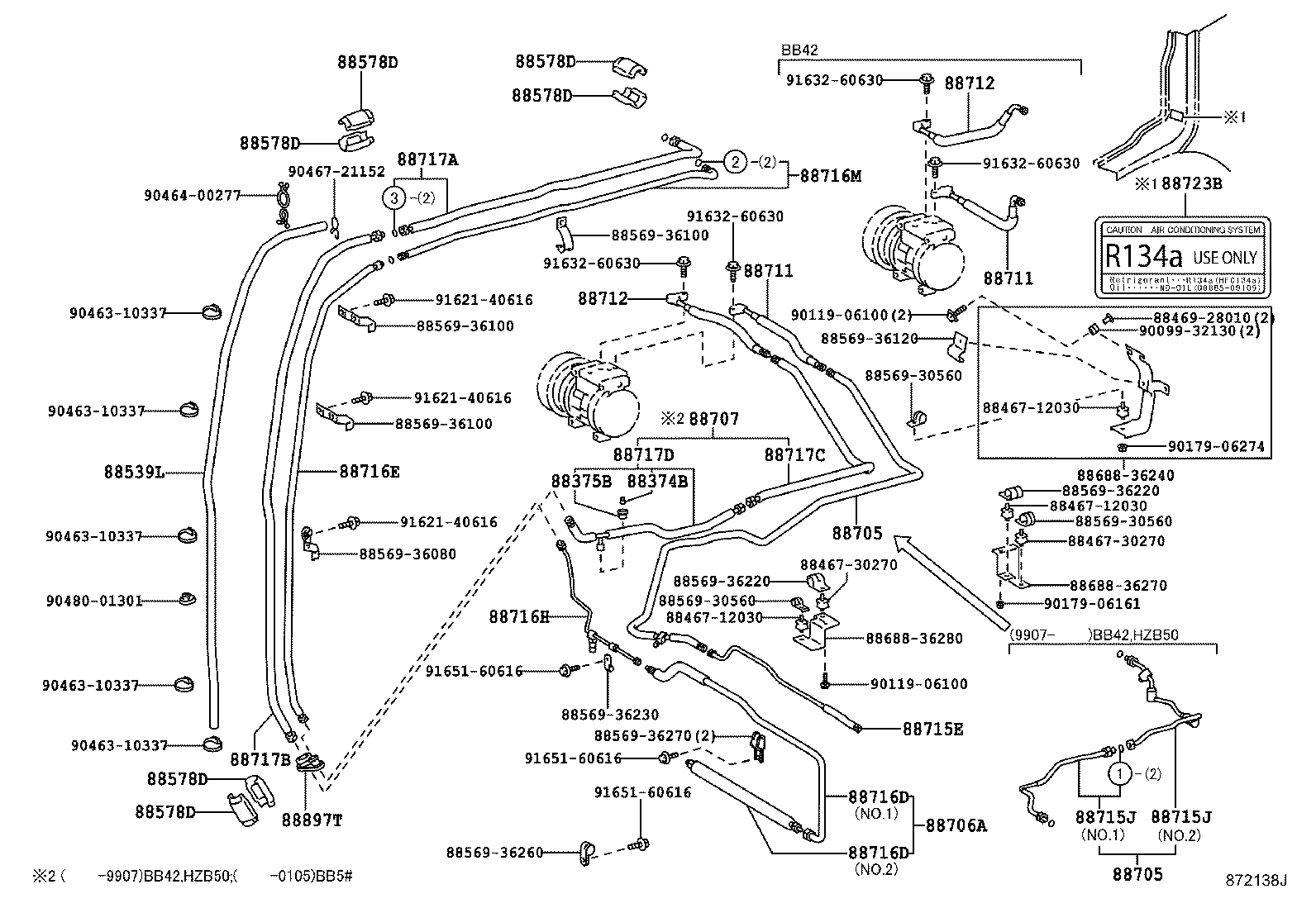

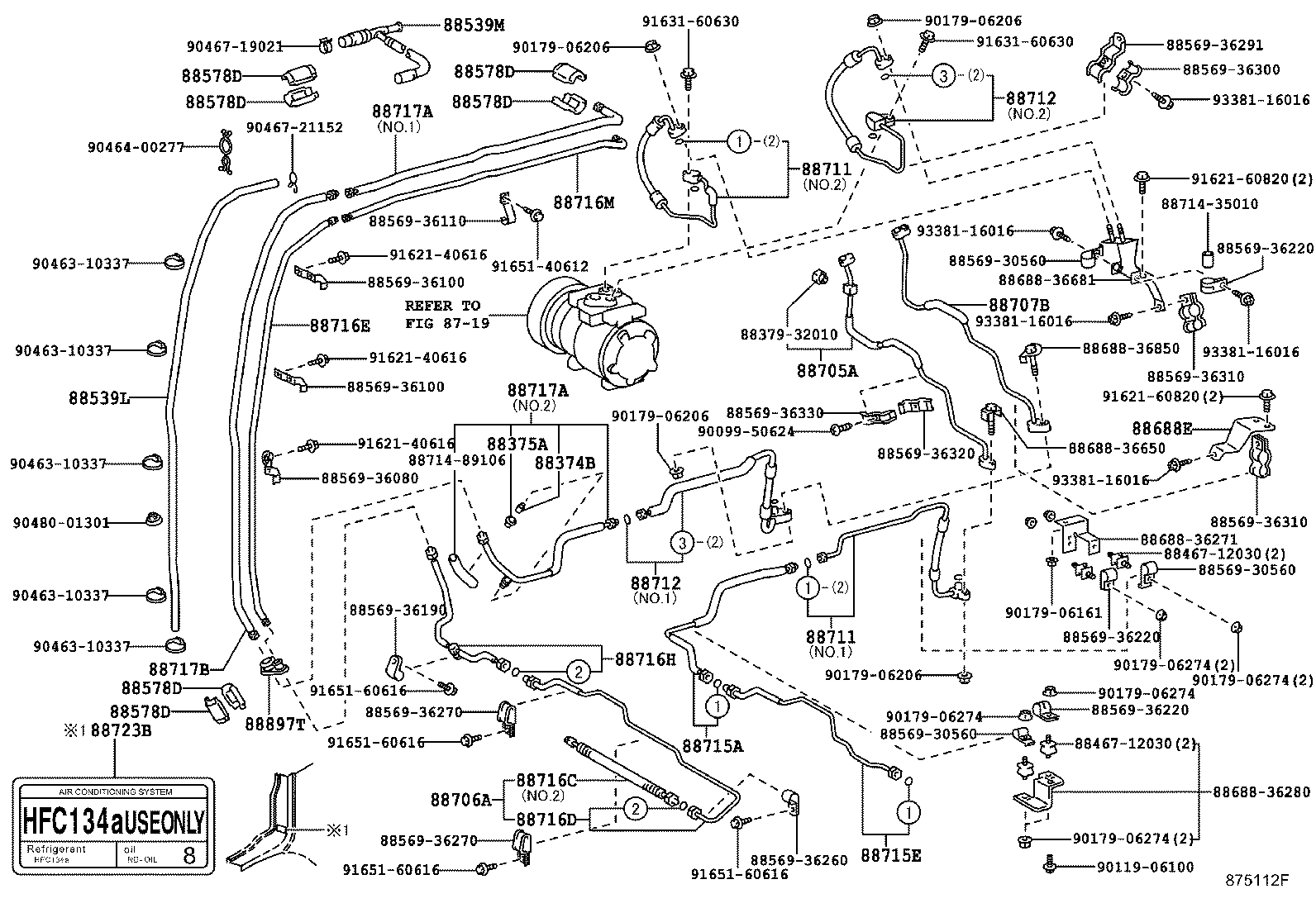

Figure 872133A 872133A 1993-01 → — Figure 872133A 872133A 1993-01 → — Figure 874326B 874326B 1995-06 → — Figure 87E766 87E766 1995-06 → — Figure 874473C 874473C 1993-01 → — Figure 874473C 874473C 1993-01 → — Figure 874471L 874471L 1995-06 → — Figure 878694D 878694D 2001-08 → — Figure 872137J 872137J 1993-01 → 2015-01 Figure 872138J 872138J 1993-01 → 2004-08 Figure 872138J 872138J 1993-01 → 2015-01 Figure 872138J 872138J 1993-01 → 2015-01 Figure 872139G 872139G 1993-09 → 2007-08 Figure 872140C 872140C 1993-02 → 2015-01 Figure 874530D 874530D 1999-07 → 2015-01 Figure 874614F 874614F 1999-07 → 2004-08 Figure 875112F 875112F 1999-07 → 2004-08 Figure 875112F 875112F 2001-08 → 2004-08 Figure 875112F 875112F 2004-08 → 2015-01 Figure 874472E 874472E 2000-08 → 2004-08 Figure 874916E 874916E 2001-05 → 2015-01 Figure 874916E 874916E 2001-05 → 2015-01 Figure 875111F 875111F 2001-08 → 2015-01 Figure 875111F 875111F 2002-11 → 2015-01 Figure 875116M 875116M 2001-08 → 2015-01 Figure 877150C 877150C 2004-08 → 2015-01 Figure 877150C 877150C 2015-01 → — Figure 877124D 877124D 2004-08 → 2007-08 Figure 877124D 877124D 2007-08 → 2015-01 Figure 87B596E 87B596E 2006-08 → — Figure 878789F 878789F 2006-08 → 2015-01 Figure 87E768A 87E768A 2015-01 → — Figure 87E767C 87E767C 2015-01 → — Figure 87E737B 87E737B 2015-01 → — Figure 87E738B 87E738B 2015-01 → — Figure 87F862 87F862 2004-08 → 2007-08 Figure 87F862 87F862 2004-08 → 2015-01 Figure 87F862 87F862 2007-08 → — Figure 87F862 87F862 2015-01 → — Figure 875384 875384 1993-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88385 Pipe, Cooler Refrigerant Discharge, NO.1
88407 Glass Sub-assy, Sight
88415C Cover, Dust, NO.1
88415D Cover, Dust, NO.2
88415E Cover, Dust, NO.3
88415G Cover, Cooler Condenser Dust, NO.4
88415H Cover, Cooler Condenser Dust, NO.5
88415J Cover, Cooler Condenser Dust, NO.6
88415K Cover, Cooler Condenser Dust, NO.7
88415L Cover, Dust, NO.8
88440C Relay Assy, Cooler Condenser Fan
88450 Condenser Assy, W/Receiver
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88454B Shroud, Fan
88454C Shroud, Cooler Condenser Fan NO.3
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88471 Tank, Receiver Air Conditioner
88539L Hose, Drain Cooler
88539M Hose, Drain Cooler, NO.2
88550 Motor Assy, Blower (FOR CONDENSER)
88578D Packing, Cooler Pipe, NO.1
88605J Harness Sub-assy, Air Conditioner Wiring
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88705 Pipe Sub-assy, Discharge
88705A Tube Sub-assy, Discharge
88706 Pipe Sub-assy, Liquid
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88707B Tube Sub-assy, Suction, B
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715E Pipe, Cooler Refrigerant Discharge, E
88715F Pipe, Cooler Refrigerant Discharge, F
88715J Tube, Discharge, J
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716K Pipe, Cooler Refrigerant Liquid, K
88716L Pipe, Cooler Refrigerant Liquid, L
88716M Pipe, Cooler Refrigerant Liquid, M
88716P Pipe, Cooler Refrigerant Liquid, P
88716Q Pipe, Cooler Refrigerant Liquid, Q
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88717E Pipe, Cooler Refrigerant Suction, E
88717J Pipe, Cooler Refrigerant Suction, J
88717L Pipe, Cooler Refrigerant Suction, L
88717M Pipe, Cooler Refrigerant Suction, M
88717P Pipe, Cooler Refrigerant Suction, P
88717Q Pipe, Cooler Refrigerant Suction, Q
88718 Pipe, Cooler Refrigerant Suction, NO.2
88720A Hose & Accessory, Air Conditioner
88720B Hose & Accessory, Air Conditioner
88723B Label, Cooler Service Caution
88727 Tube, Suction, NO.2
88727D Pipe, Cooler Refrigerant Suction, D
88897T Grommet, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
