Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5# · catalogue 811230 · Europe

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

28 part groups · 9 illustrations

Illustrations

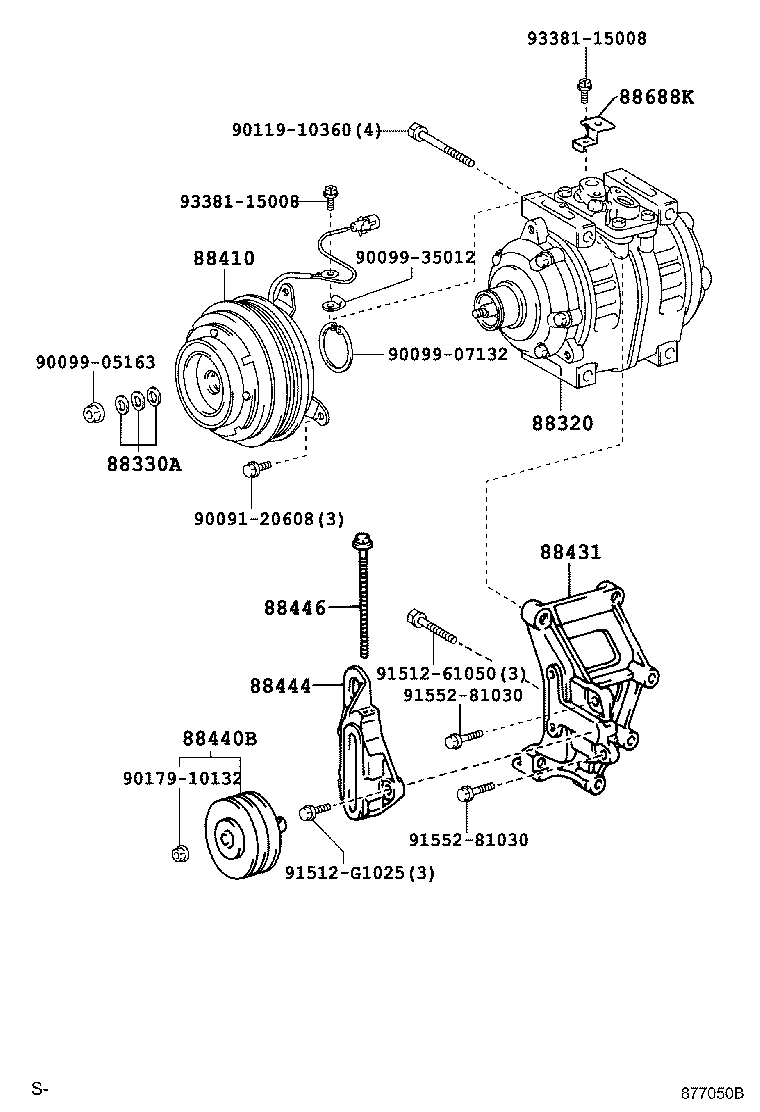

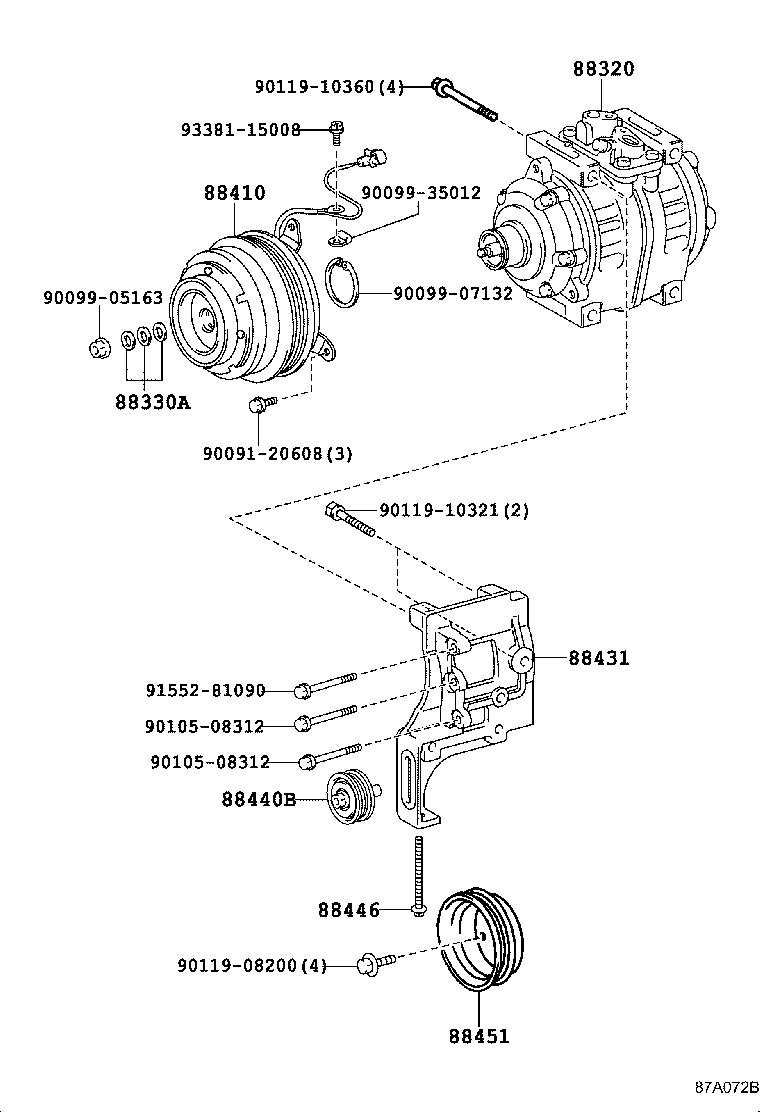

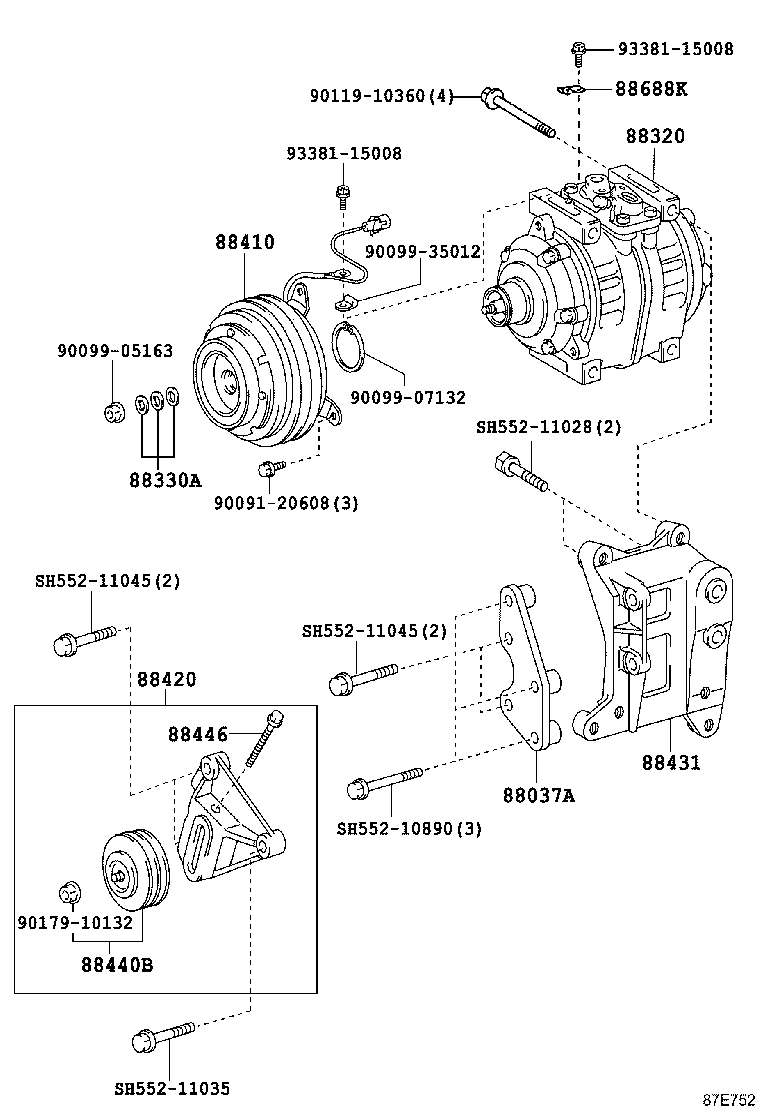

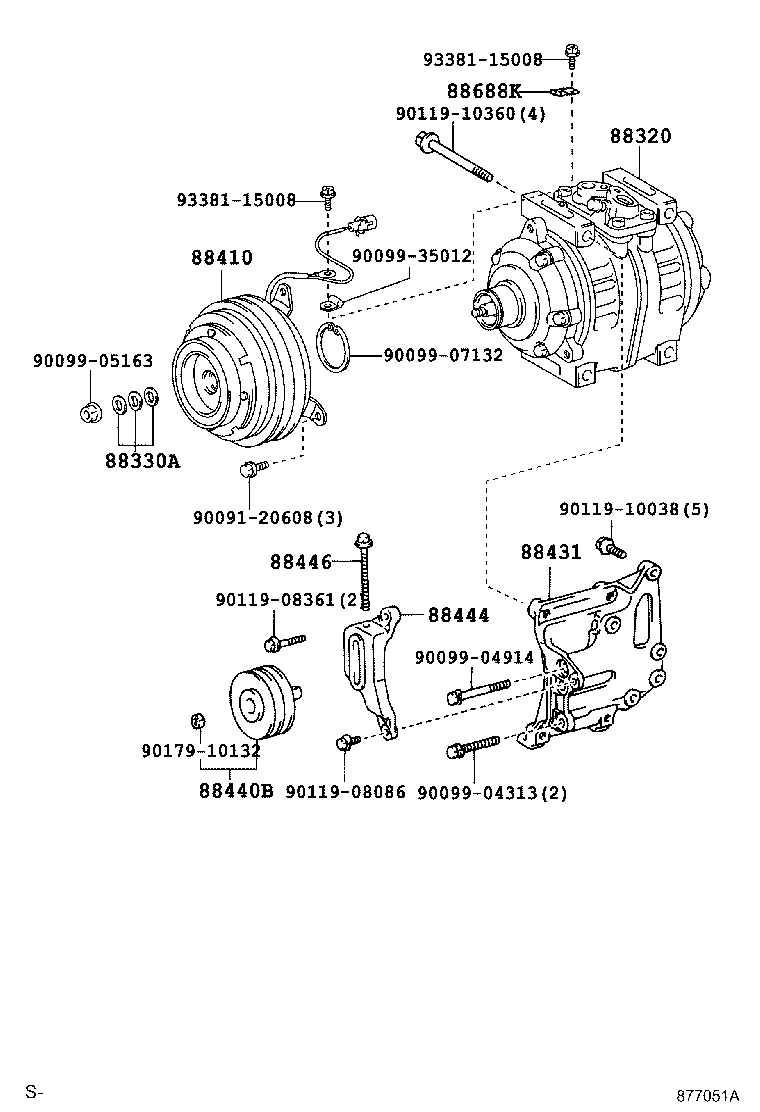

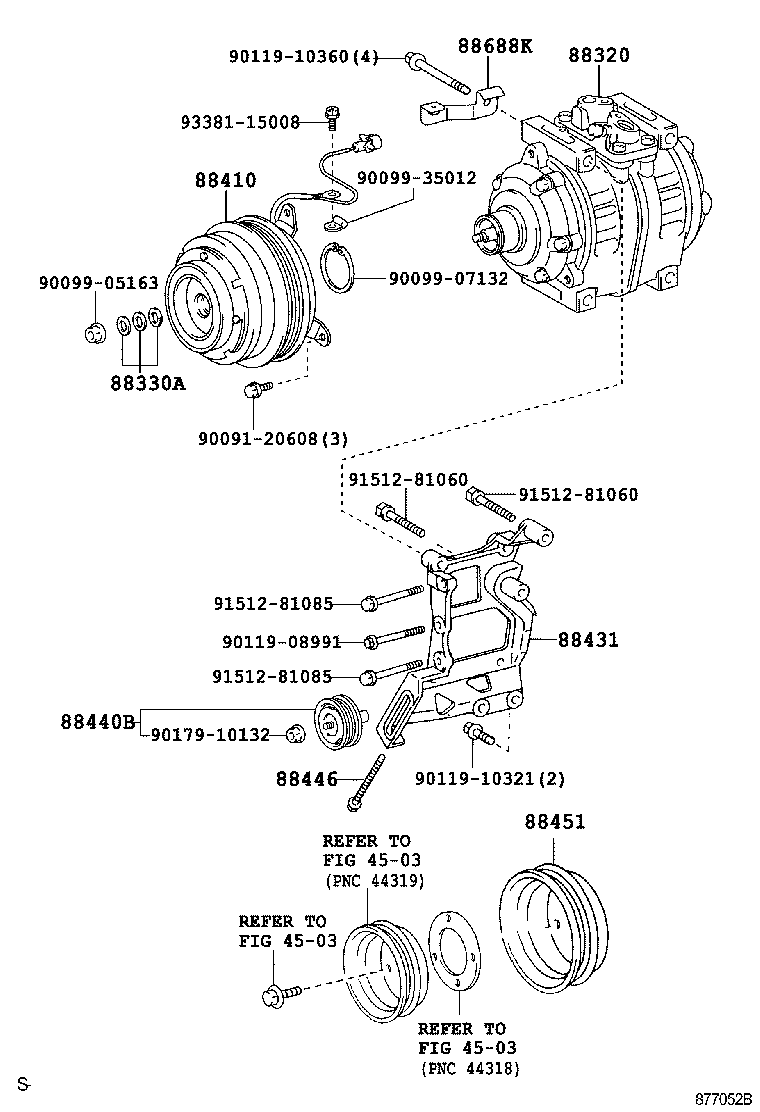

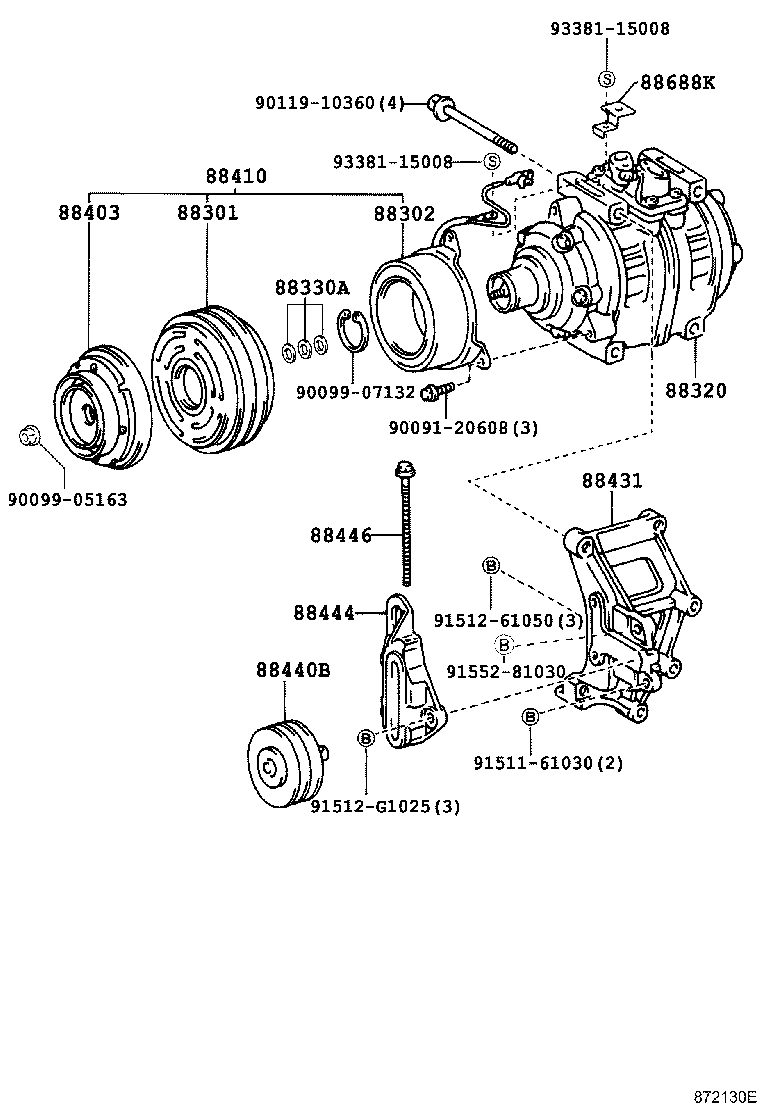

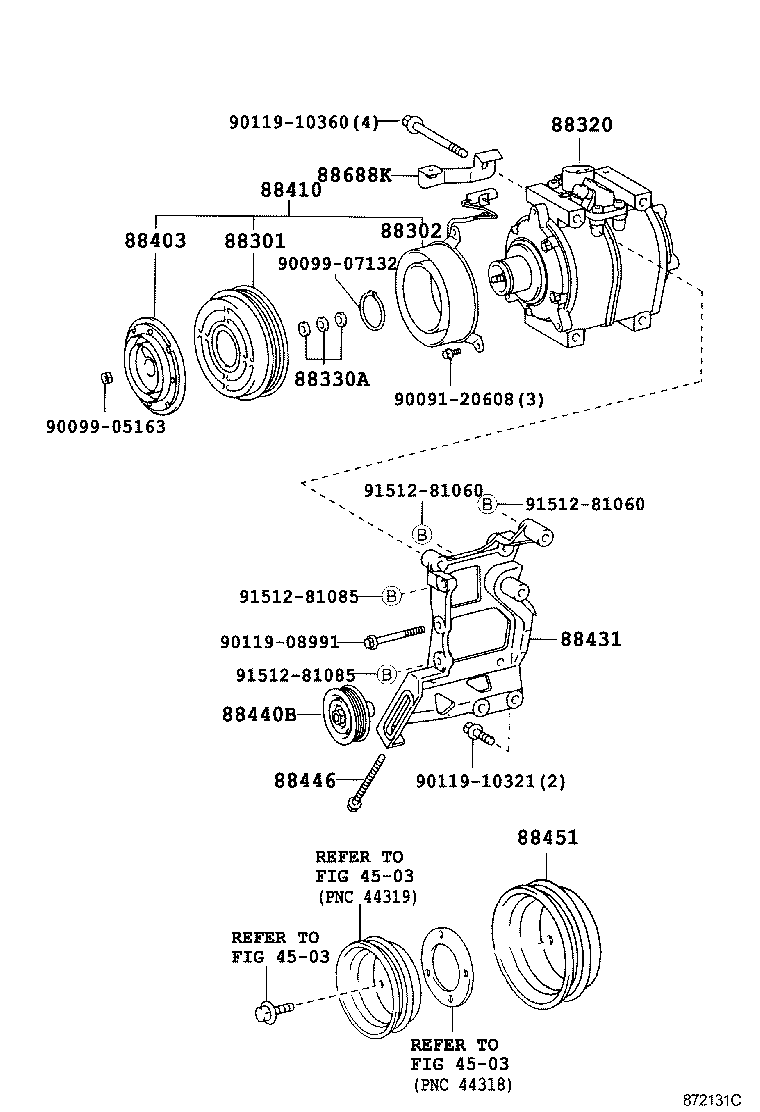

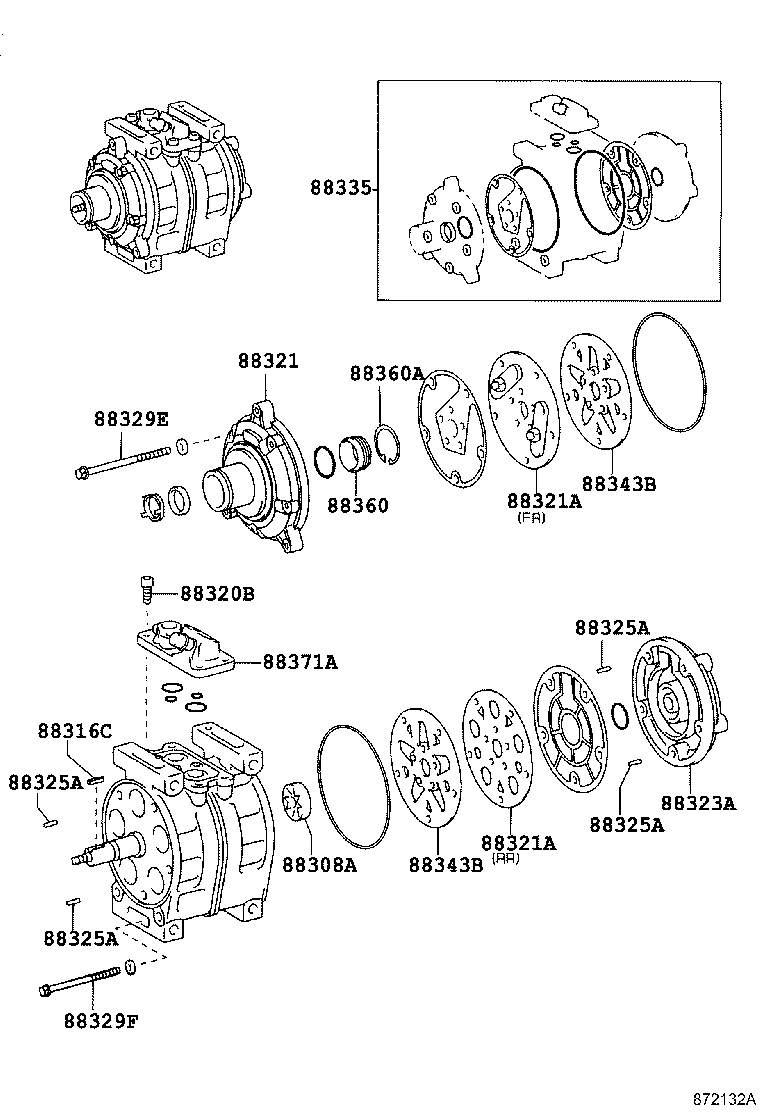

Figure 875086B 875086B 1993-01 → 2004-08 Figure 872130E 872130E 1993-01 → 2004-08 Figure 872131C 872131C 1993-09 → 2004-08 Figure 872132A 872132A 1993-01 → 2004-08 Figure 877051A 877051A 2004-08 → — Figure 877050B 877050B 2004-08 → — Figure 877052B 877052B 2004-08 → 2007-08 Figure 87A072B 87A072B 2007-08 → — Figure 87E752 87E752 2006-08 → —

Part groups

PNCDescription
88037A Bracket Set,Compressor Mounting
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88308A Pump Sub-assy,Oil
88316C Key, Compressor Crankshaft
88320 Compressor Assy, Cooler
88320B Bolt, Service Valve
88321 Head, Cooler Compressor Cylinder
88321A Plate Sub-assy, Valve
88323A Gasket, Compressor
88325A Pin, Cylinder Block
88329E Bolt, Compressor, NO.1
88329F Bolt, Compressor, NO.2
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88343B Reed, Suction Valve
88360 Seal Assy, Cooler Compressor Shaft
88360A Ring, Compressor Seal Plate Snap
88371A Valve, Suction
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88451 Pulley, Crankshaft
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
