Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · General

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Short Block Assembly

1 part groups · 2 illustrations

Illustrations

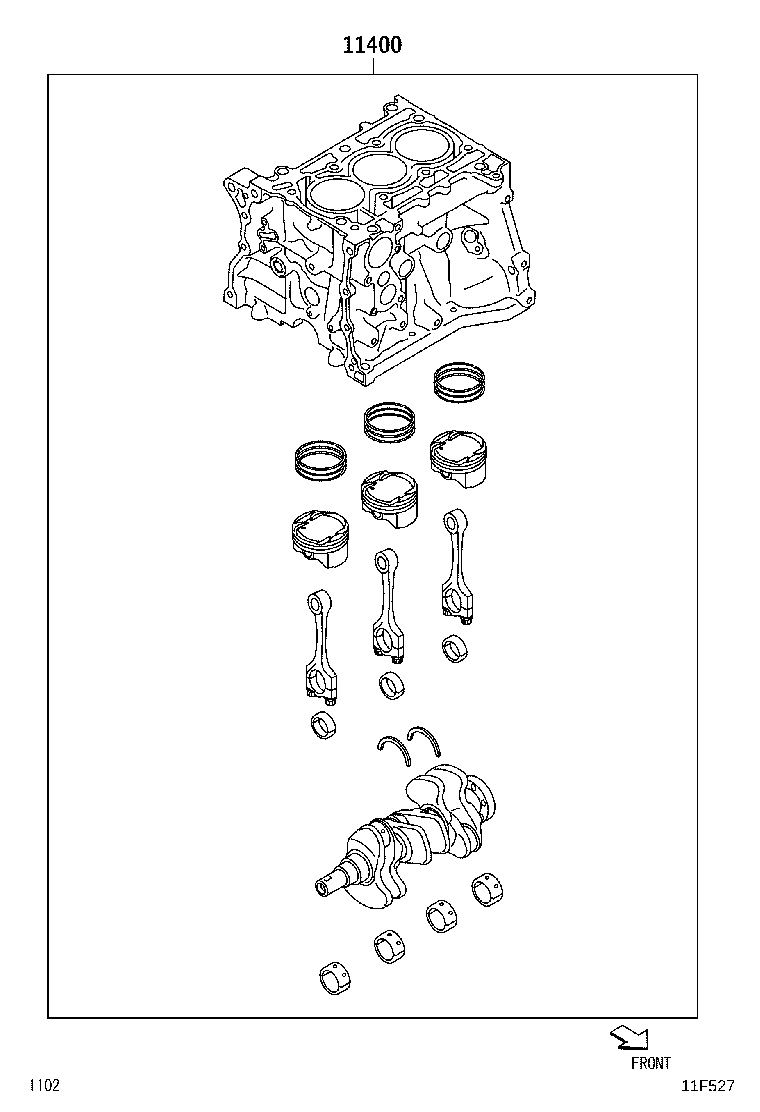

Figure 11F526 11F526 2021-04 → — Figure 11F527 11F527 2021-04 → —

Part groups

PNCDescription
11400 Block Assy, Short
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
