Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · General

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

7 part groups · 2 illustrations

Illustrations

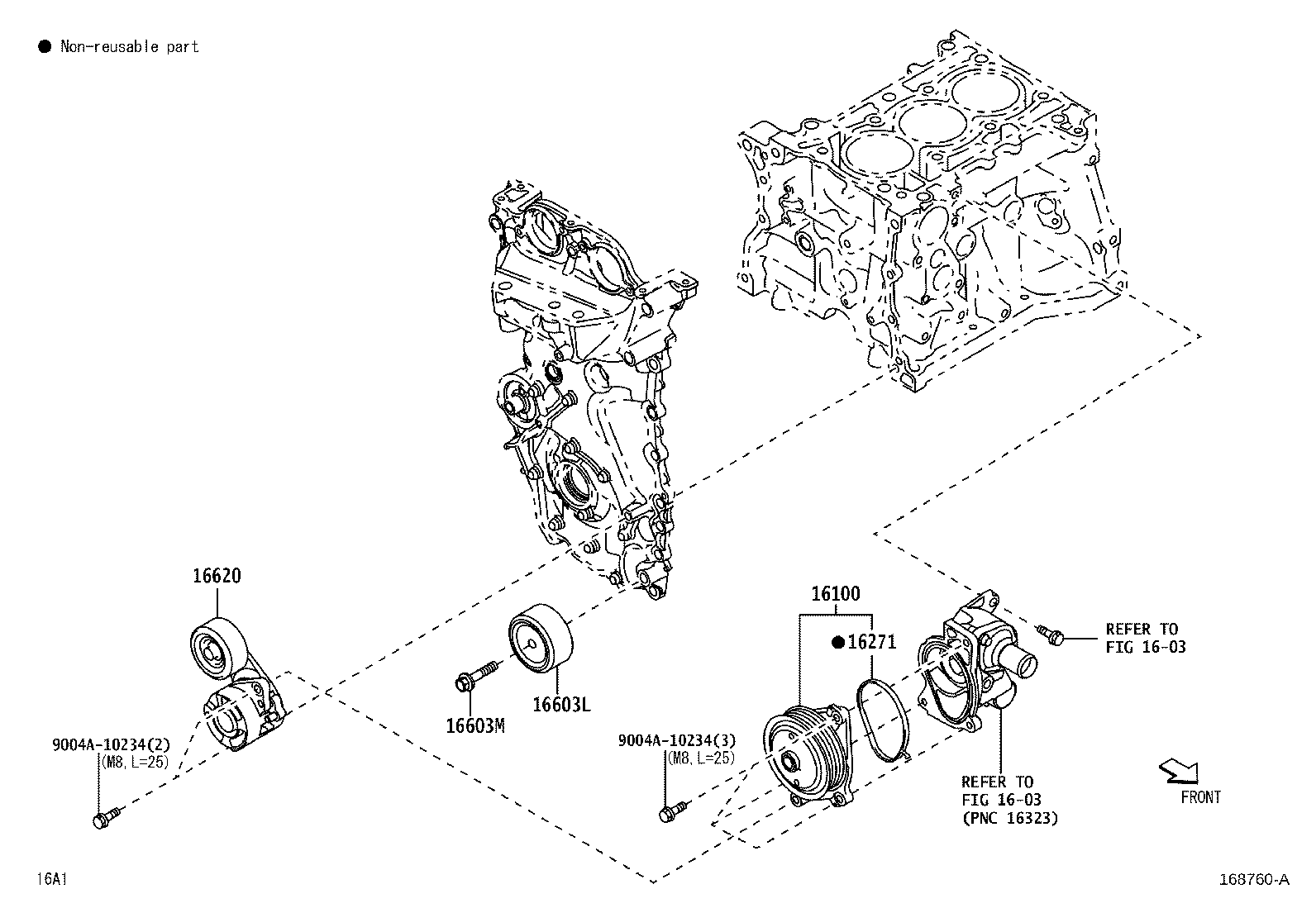

Figure 168759A 168759A 2021-04 → — Figure 168760A 168760A 2021-04 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16271 Gasket, Water Pump
16603L Pulley Sub-assy, Idler, NO.1
16603M Bolt(FOR IDLER PULLEY)
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16631 Bracket, Idler Pulley
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
