Toyota Raize
2021-04 → present · chassis A250,A251 · catalogue 106310 · General
Supported model
Data version 2021-09

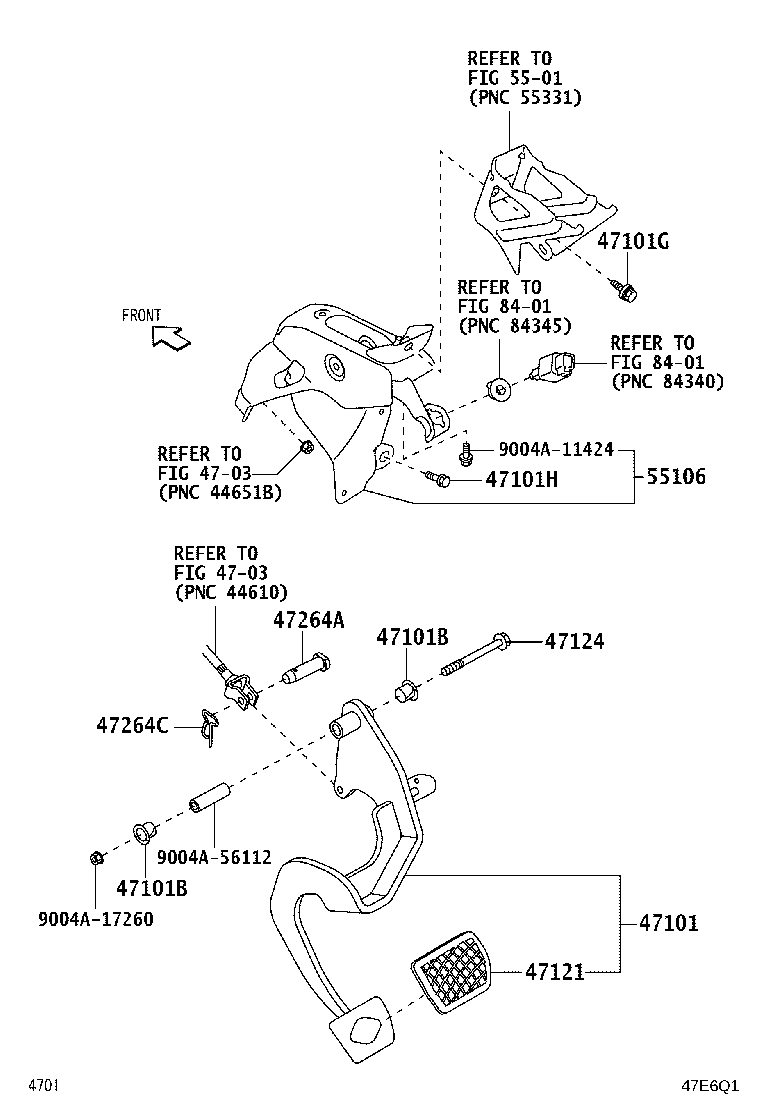

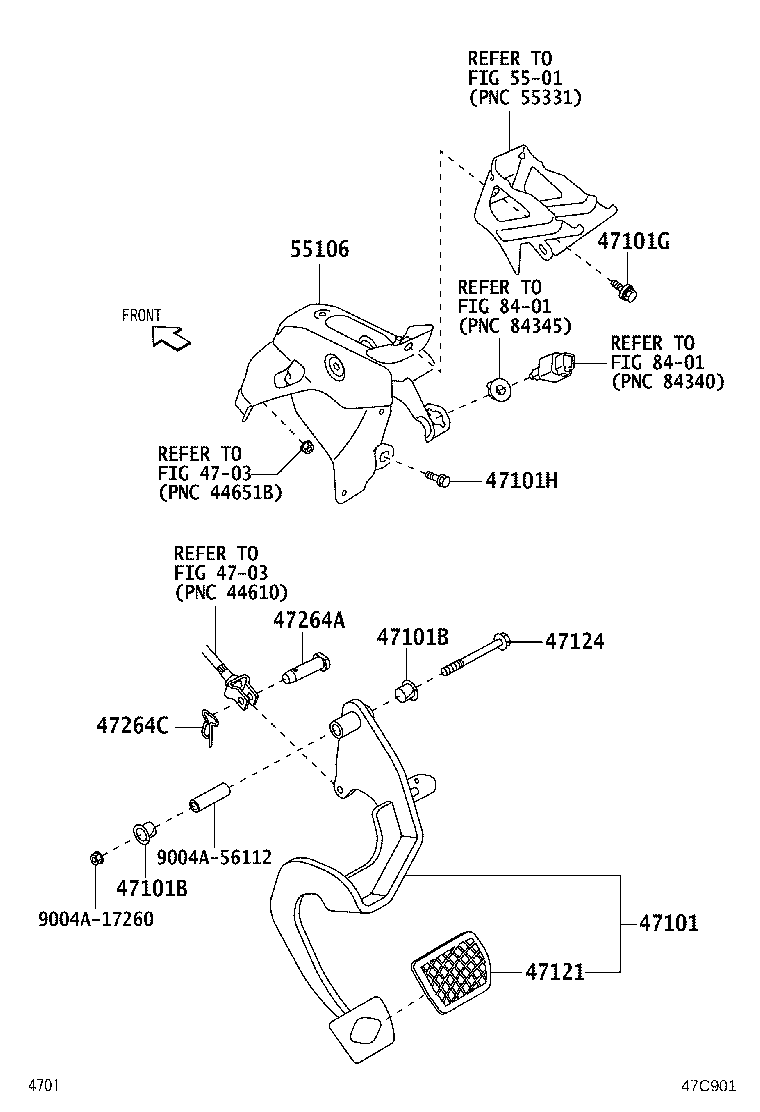

Brake Pedal & Bracket
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 47101 | Pedal Sub-assy, Brake |
| 47101B | Bush(FOR BRAKE PEDAL) |
| 47101G | Bolt, Brake Pedal Stop, NO.1 |
| 47101H | Bolt, Brake Pedal Stop, NO.2 |
| 47121 | Pad, Brake Pedal |
| 47124 | Shaft, Brake Pedal |
| 47264A | Pin(FOR PUSH ROD) |
| 47264C | Clip(FOR PUSH ROD CLEVIS PIN) |
| 55106 | Support Sub-assy, Brake Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
