Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · General

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

76 part groups · 12 illustrations

Illustrations

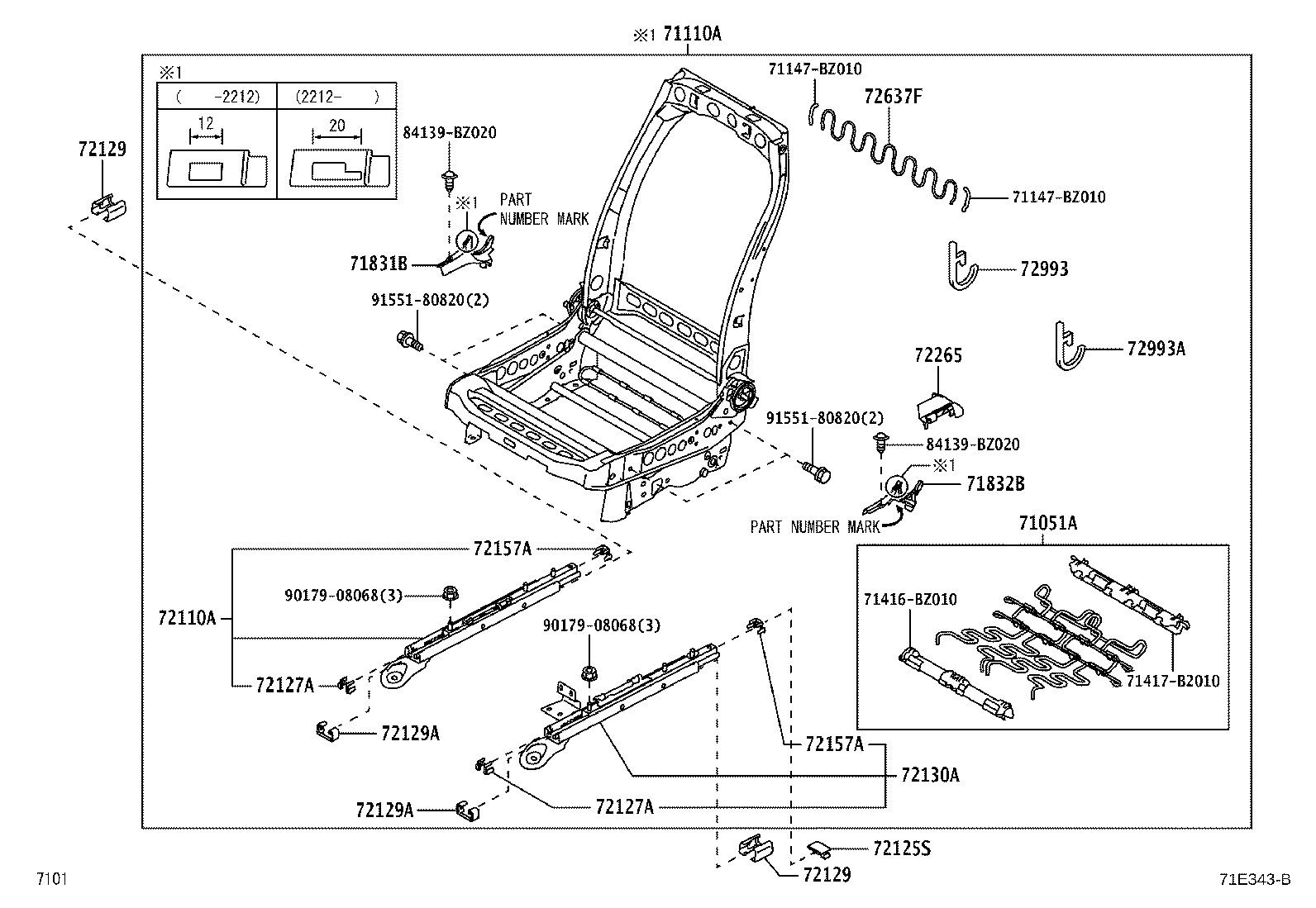

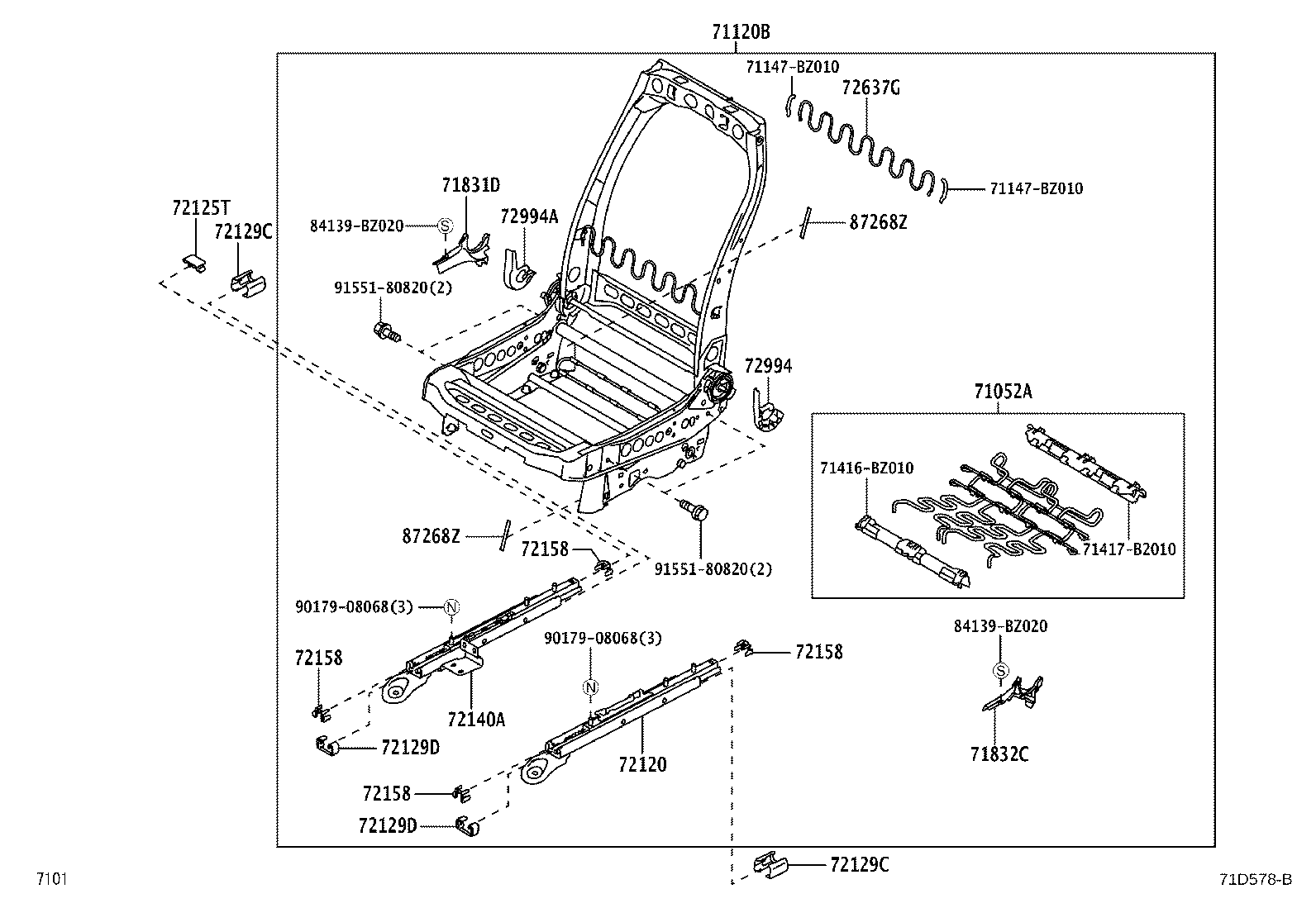

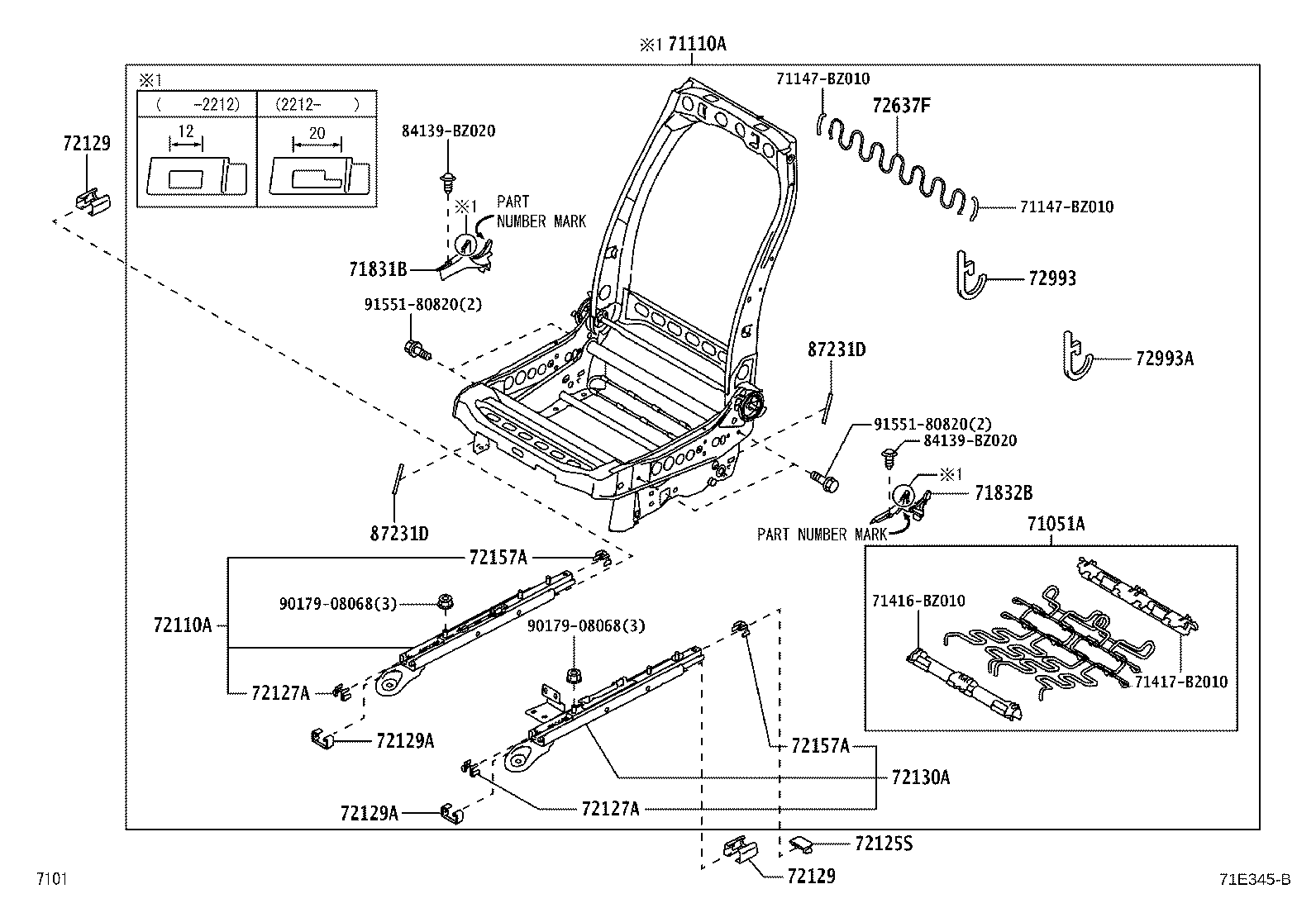

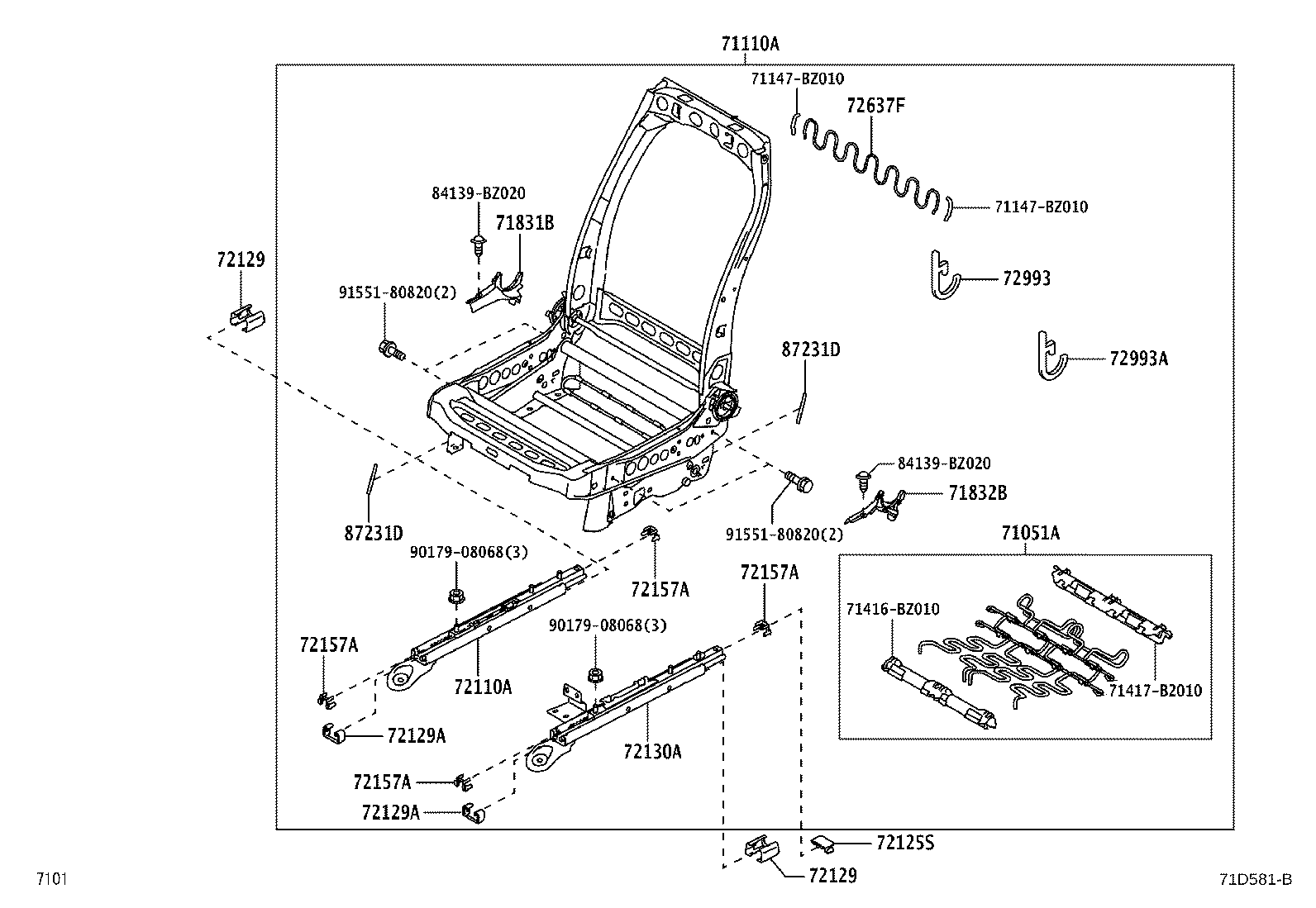

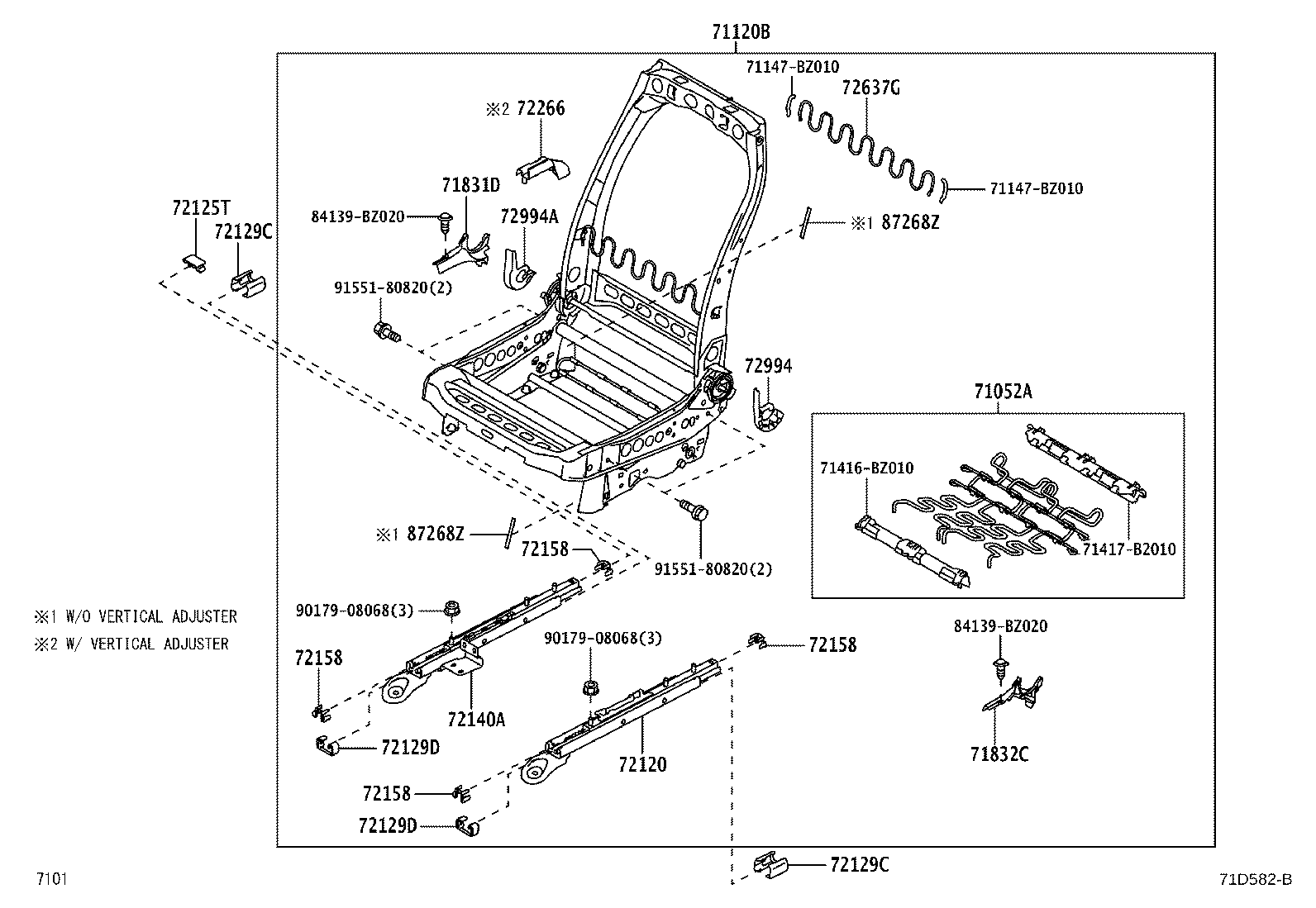

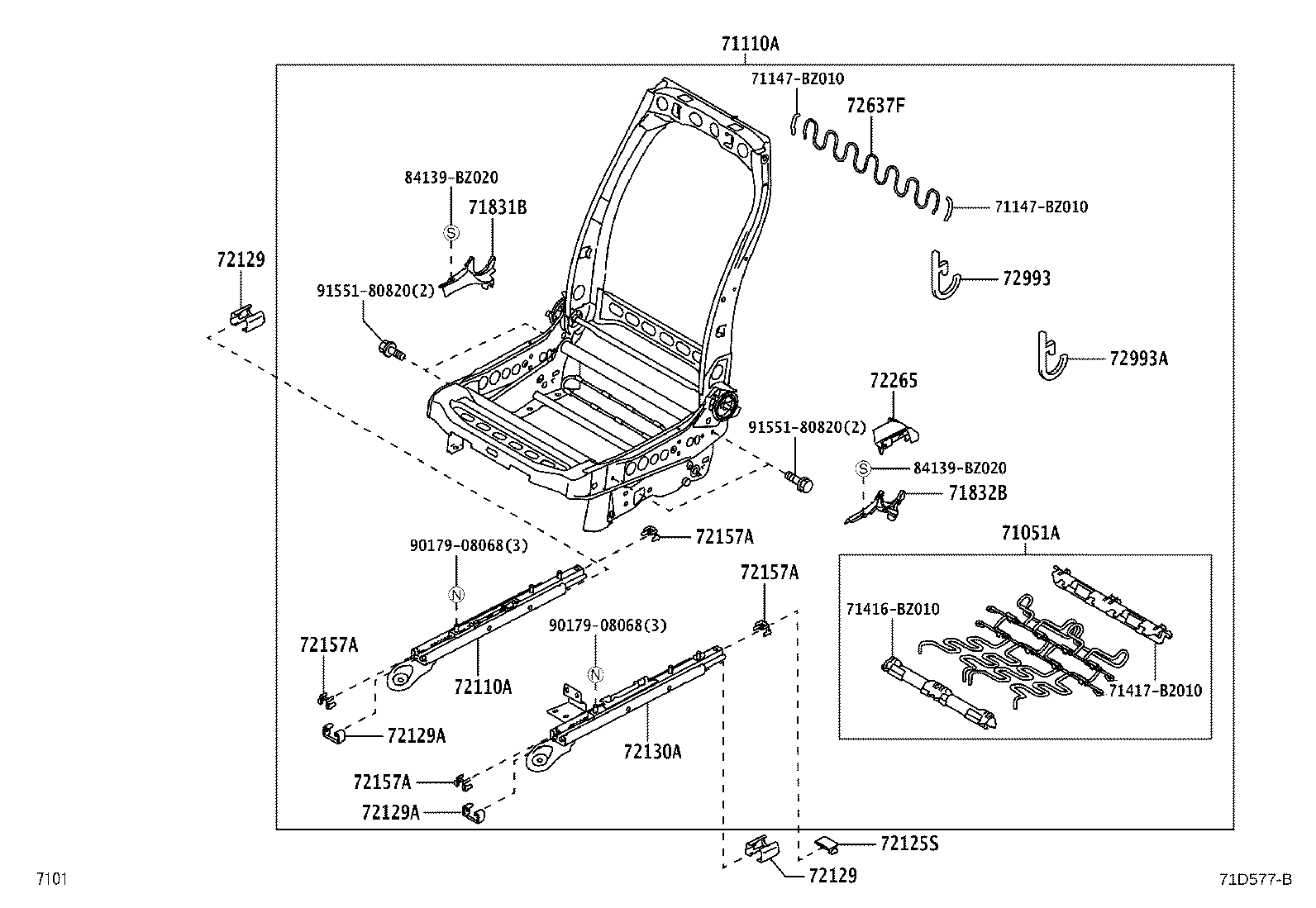

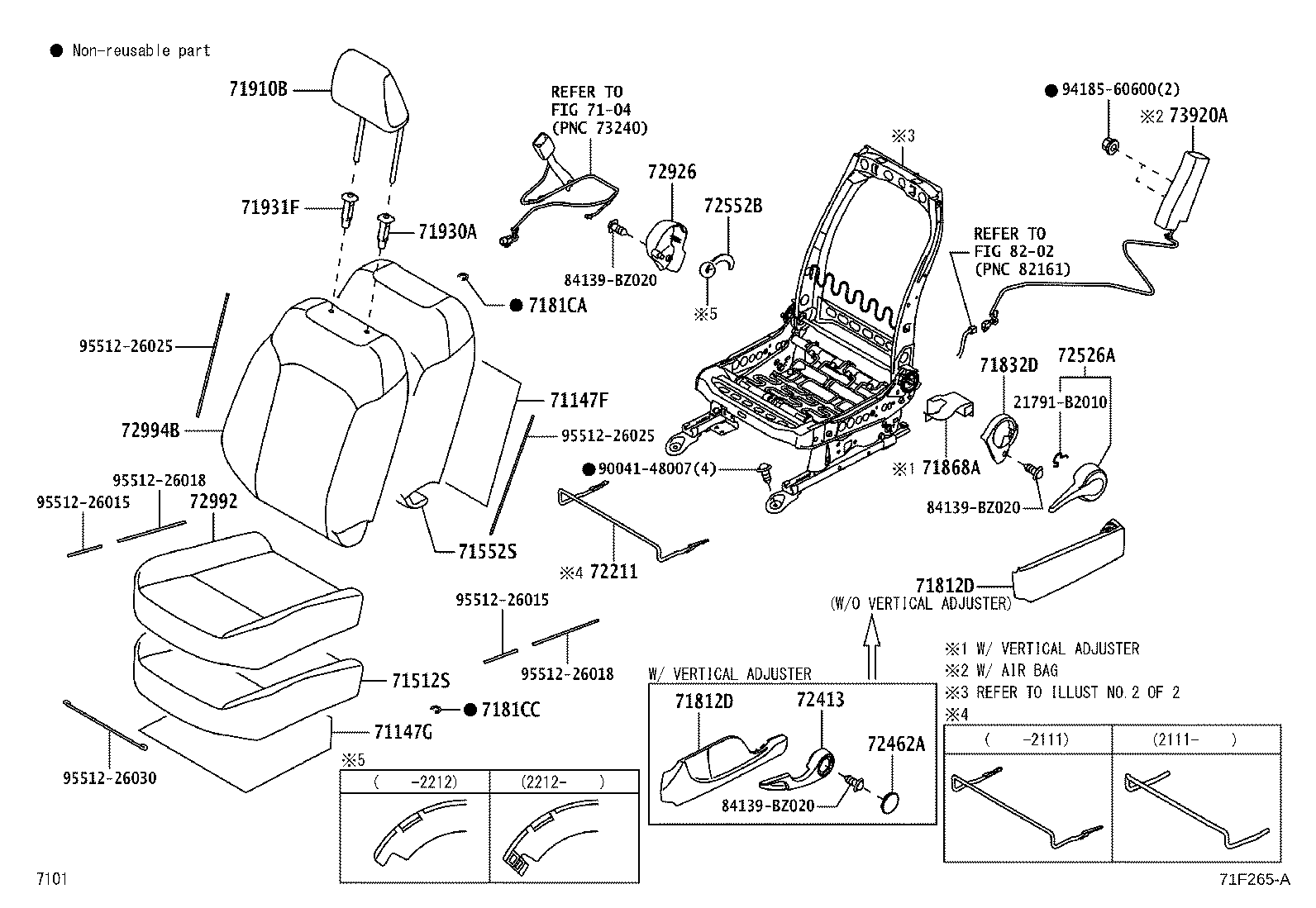

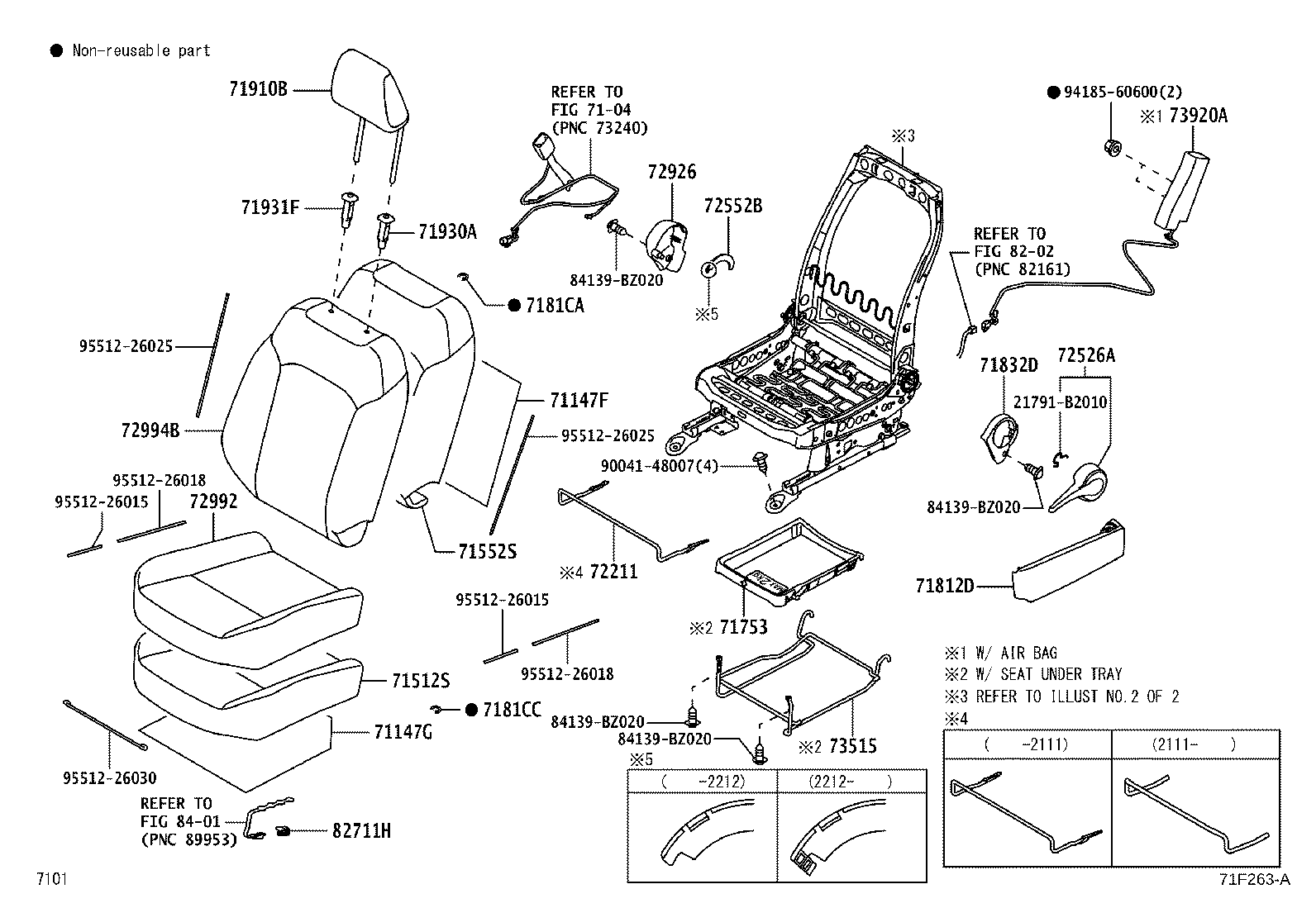

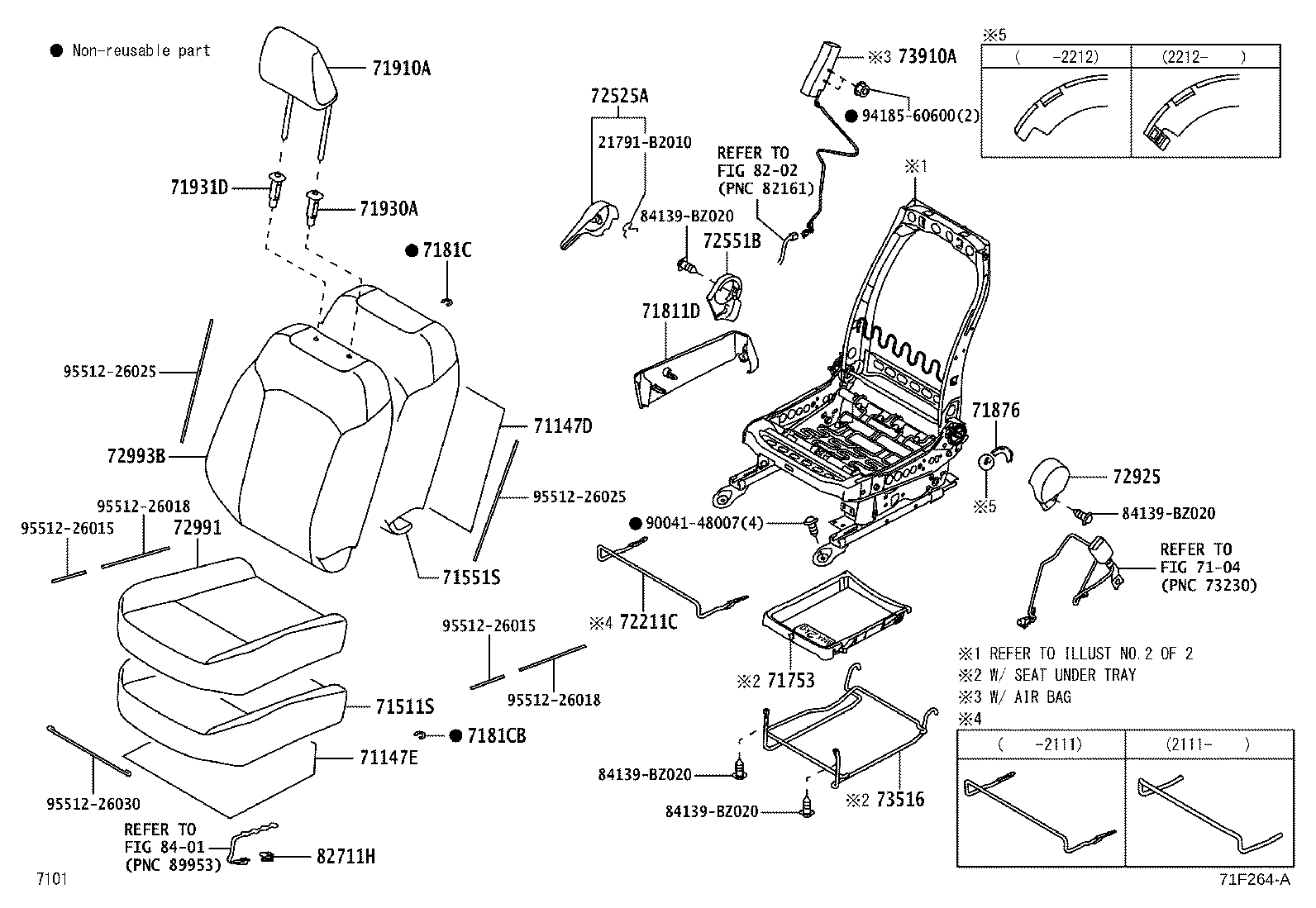

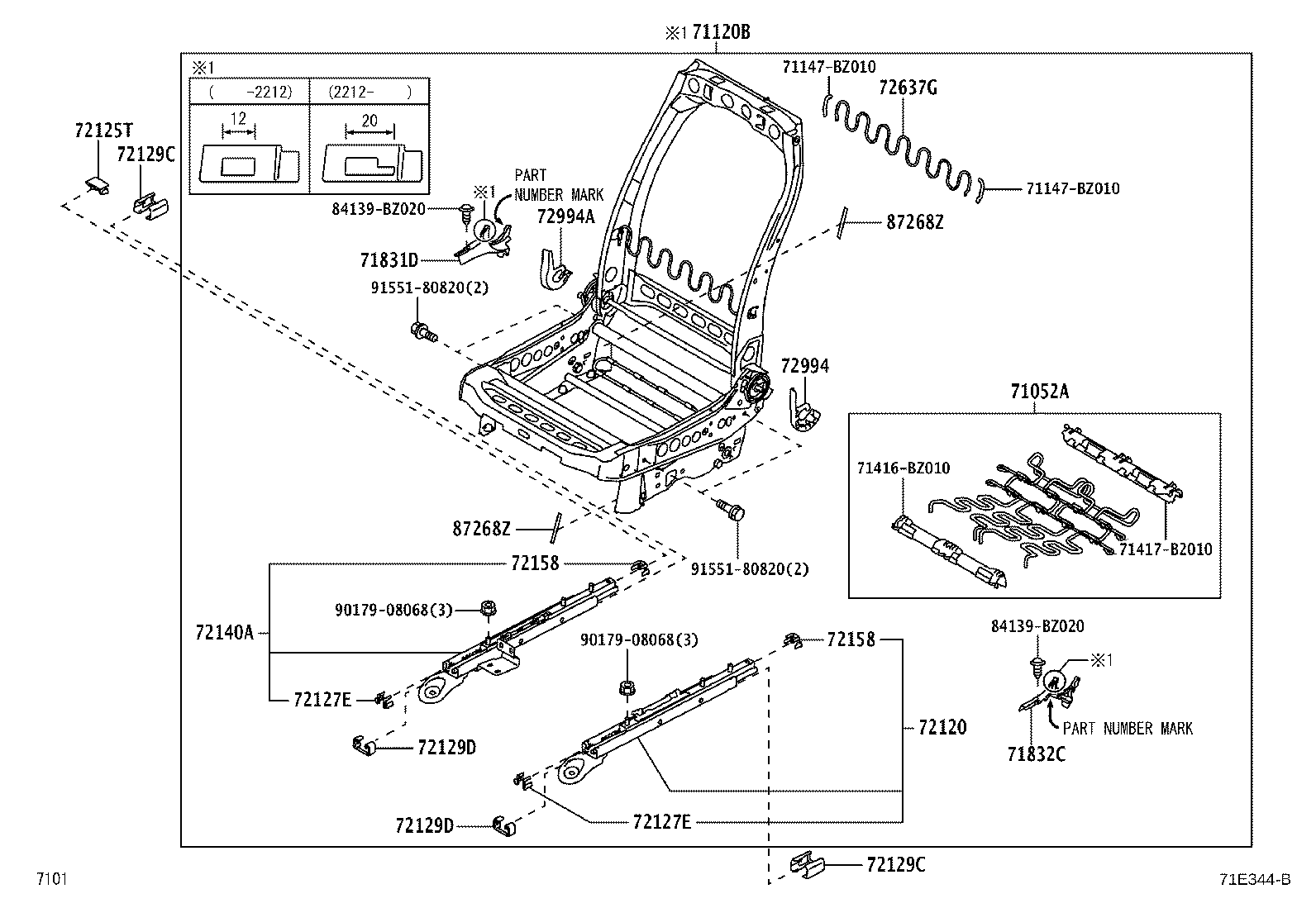

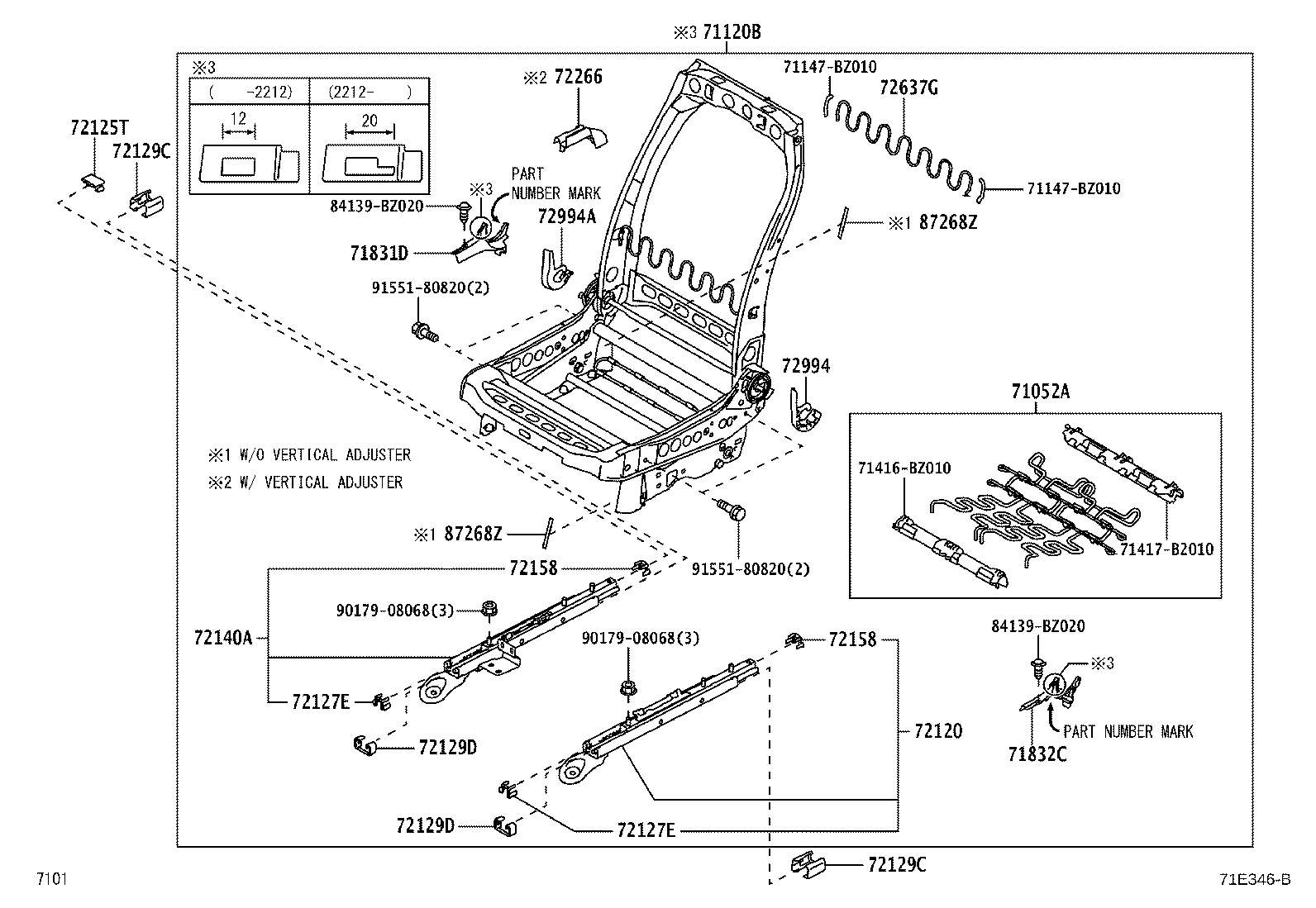

Figure 71F262A 71F262A 2021-04 → — Figure 71F263A 71F263A 2021-04 → — Figure 71D577B 71D577B 2021-04 → 2021-11 Figure 71E343B 71E343B 2021-11 → — Figure 71D578B 71D578B 2021-04 → 2021-11 Figure 71E344B 71E344B 2021-11 → — Figure 71F264A 71F264A 2021-08 → — Figure 71F265A 71F265A 2021-08 → — Figure 71D581B 71D581B 2021-08 → 2021-11 Figure 71E345B 71E345B 2021-11 → — Figure 71D582B 71D582B 2021-08 → 2021-11 Figure 71E346B 71E346B 2021-11 → —

Part groups

PNCDescription
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71147D Silencer, Seat Spring, RH(FOR SEATBACK)
71147E Silencer, Seat Spring, RH(FOR SEAT CUSHION)
71147F Silencer, Seat Spring, LH(FOR SEATBACK)
71147G Silencer, Seat Spring, LH(FOR SEAT CUSHION)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71753 Tray, Front Seat Under
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181C Ring, Hog, Small (FOR FRONT SEATBACK)
7181CA Ring, Hog, Small (FOR FRONT SEATBACK)
7181CB Ring, Hog, Small (FOR FRONT SEAT CUSHION)
7181CC Ring, Hog, Small (FOR FRONT SEAT CUSHION)
71831B Cover, Front Seat Hinge, RH
71831D Cover, Front Seat Hinge, RH
71832B Cover, Front Seat Hinge, LH
71832C Cover, Front LH Seat Hinge
71832D Cover, Front Seat Hinge, LH
71867V Shield, Front Seat Cushion, Front RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71876 Cover, Reclining Adjuster Inside, LH
71910A Headrest Assy, Front Seat
71910B Headrest Assy, Front Seat
71930A Support Assy, Front Seat Headrest
71931D Support, Front Seat Headrest, RH
71931F Support, Front Seat Headrest, LH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72125S Cover, Front Seat Track, Upper Rear RH
72125T Cover, Front Seat Track, Upper Rear LH
72127A Cover, Seat Track Bracket, Inner Front RH
72127E Cover, Seat Track Bracket, Inner Front
72129 Protector, Seat Track Lower Rail, NO.1
72129A Protector, Seat Track Lower Rail, NO.2
72129C Protector, Seat Track Lower Rail, NO.3
72129D Protector, Seat Track Lower Rail, NO.4
72130A Track Assy, Front Seat, Inner RH
72140A Track Assy, Front Seat,Inner LH
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72413 Lever, Vertical Adjuster Lock
72462 Cover, Vertical Adjuster RH
72462A Cover, Vertical Adjuster LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72551B Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72637F Spring, Seatback, RH
72637G Spring, Seatback, LH
72925 Cover, Front Seat Cushion
72926 Cover, Front Seat Cushion, NO.1
72991 Cover, Front Seat Cushion, RH
72992 Cover, Front Seat Cushion, LH
72993 Cover, Front Seatback
72993A Cover, Front Seatback
72993B Cover, Front Seatback, RH
72994 Cover, Front Seatback
72994A Cover, Front Seatback
72994B Cover, Front Seatback, LH
73515 Rail, Front Seat Under Tray, NO.1
73516 Rail, Front Seat Under Tray, NO.2
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
82711H Clamp, Wiring Harness
87231D Protector
87268Z Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
