Toyota Raize
2021-04 → present · chassis A250,A251 · catalogue 106310 · General
Supported model
Data version 2021-09

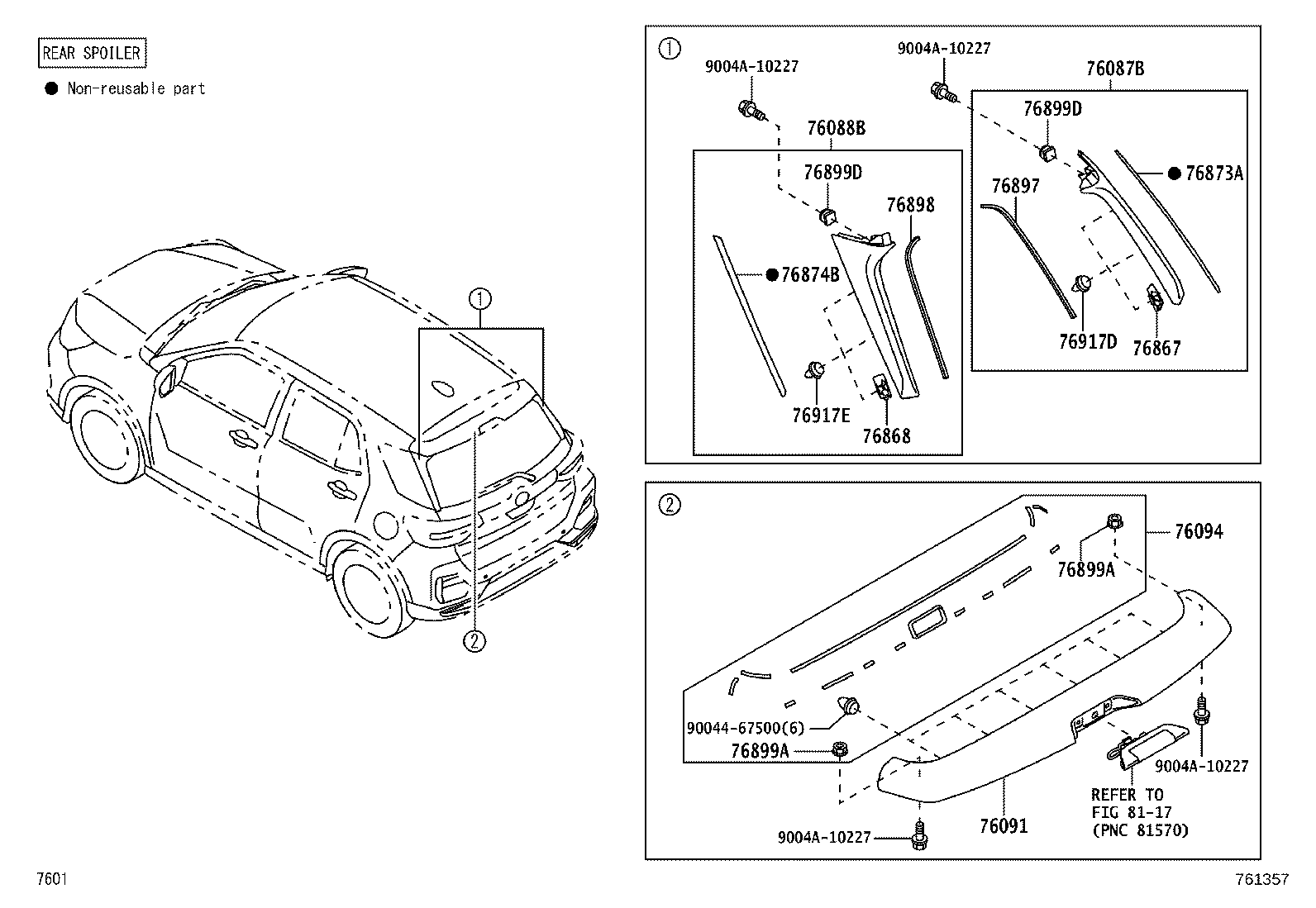

Mudguard & Spoiler
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 76087B | Spoiler Sub-assy, Rear Side, RH |
| 76088B | Spoiler Sub-assy, Rear Side, LH |
| 76091 | Spoiler Sub-assy, Rear Upper |
| 76094 | Spoiler Set, RR |
| 76851 | Cover, Front Spoiler |
| 76867 | Retainer, Rear Spoiler Side, RH |
| 76868 | Retainer, Rear Spoiler Side, LH |
| 76873A | Protector, Rear Spoiler, RH |
| 76874B | Protector, Rear Spoiler, LH |
| 76897 | Protector, Rear Spoiler, Side RH |
| 76898 | Protector, Rear Spoiler, Side LH |
| 76899A | Nut, Rear Spoiler |
| 76899D | Nut, Rear Spoiler, NO.1 |
| 76917D | Clip |
| 76917E | Clip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
