Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · General

Supported model Data version 2021-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 4 illustrations

Illustrations

Figure 868559B

868559B 2021-04 → —

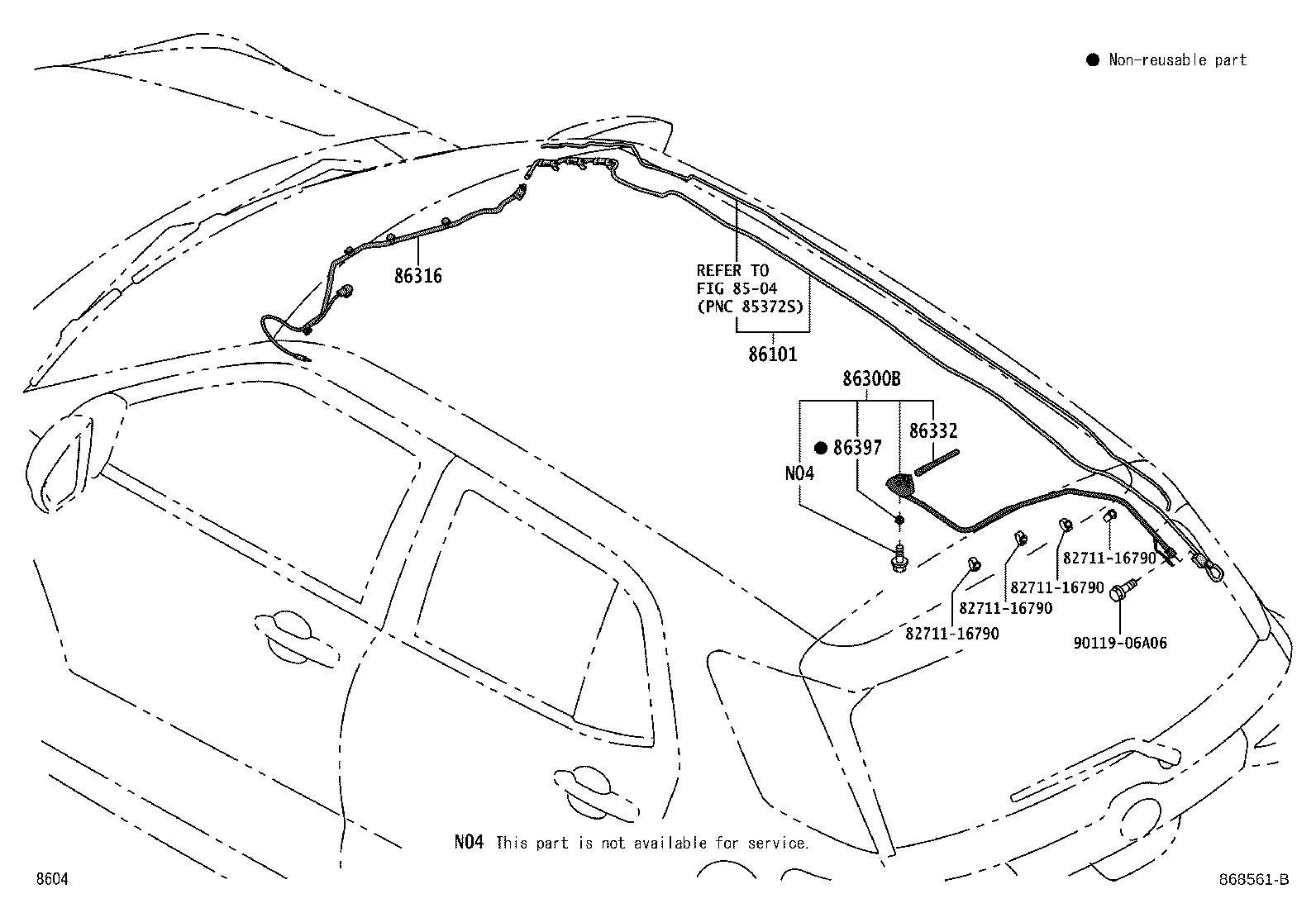

Figure 868561B

868561B 2021-08 → —

Figure 868561B

868561B 2021-10 → —

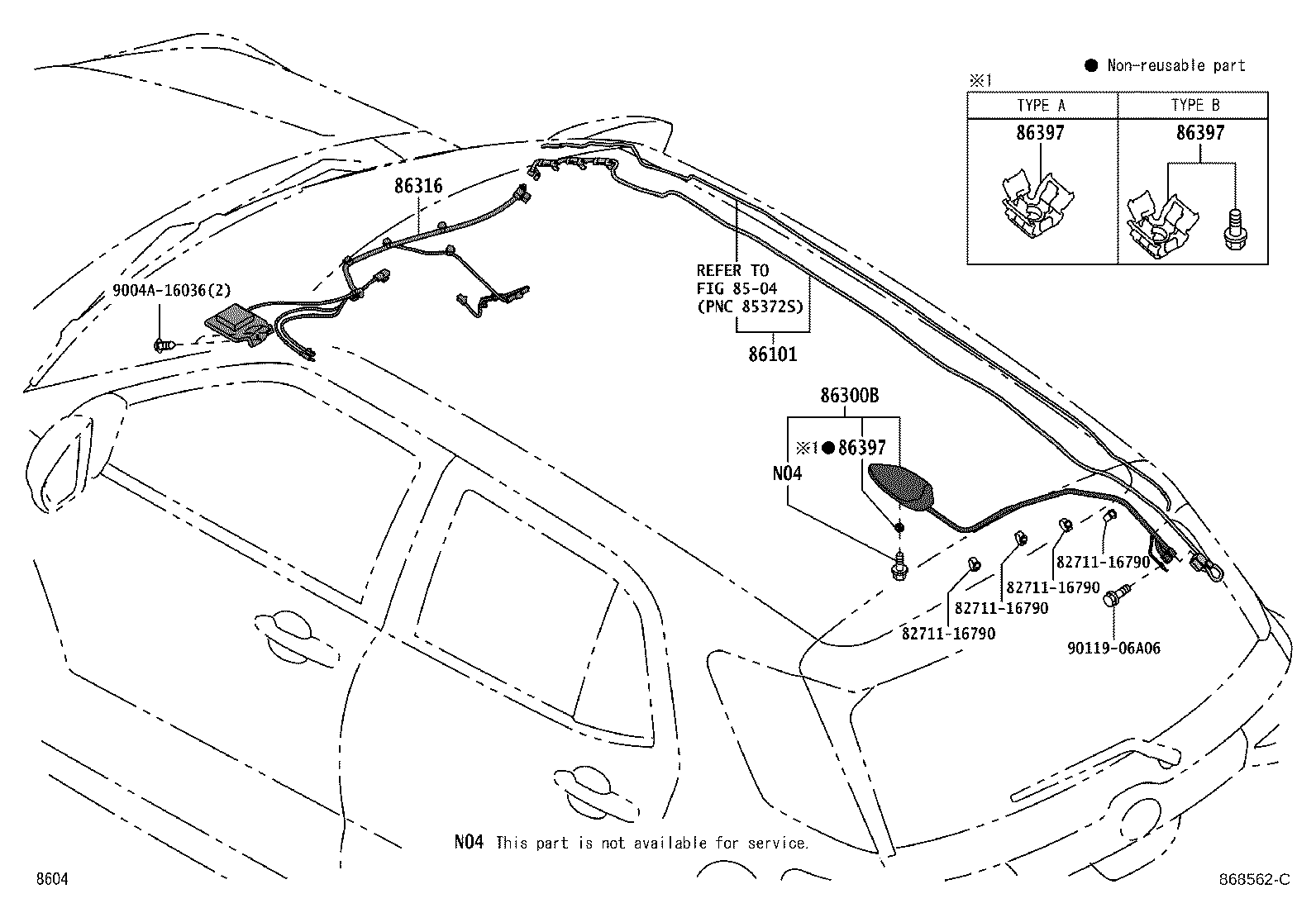

Figure 868562C

868562C 2021-10 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86300B	Antenna Assy, Amplifier, NO.1
86316	Cable, Antenna
86332	Rod, Antenna
86397	Plate, Antenna Earth

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
