Toyota Yaris (CHINA)
2008-05 → 2013-08 · chassis NCP90,ZSP91 · catalogue 110310 · General
Supported model
Data version 2014-01

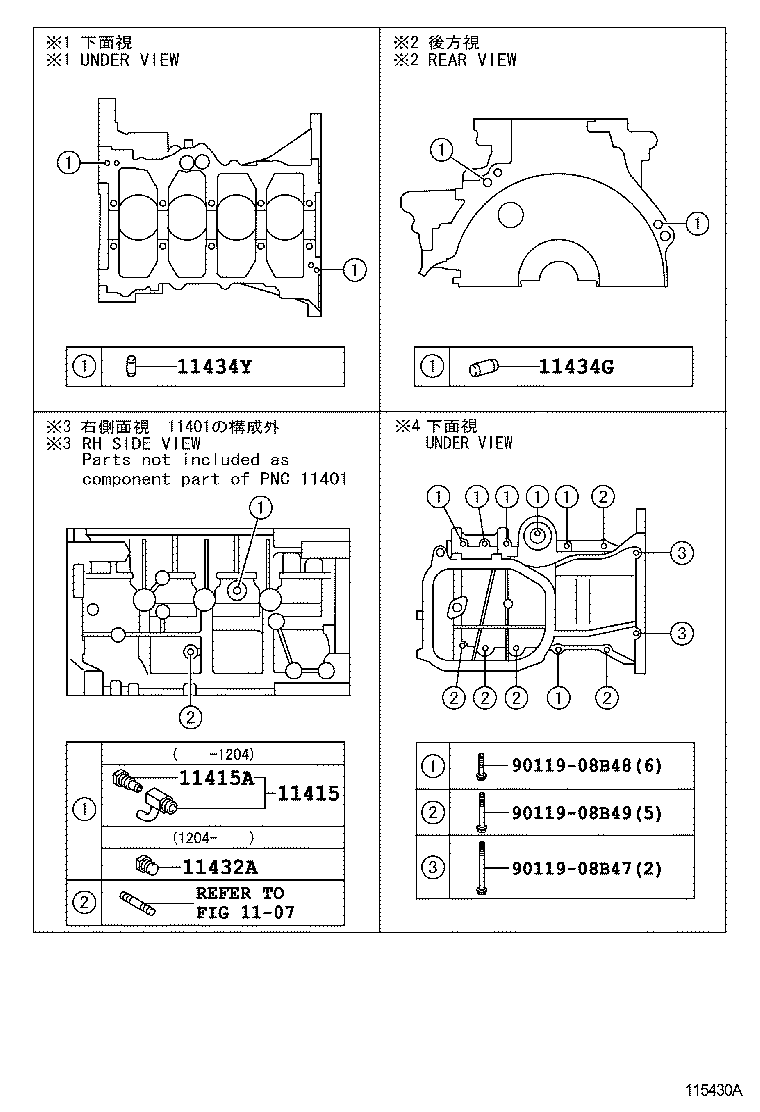

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11415 — Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) | ||||
| 90910-09107 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2008-05 → 2012-04
ended
|
2NZFE NCP90 | — | |
| 90910-09129 note |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2008-05 → 2008-12
ended
|
1ZRFE ZSP91 5F | — | |
| 90910-09129 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2008-11 → 2010-03
ended
|
1ZRFE ZSP91 4FC | — | |
| 90910-09129 note |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2008-11 → 2010-03
ended
|
1ZRFE ZSP91 4FC | — | |
| 90910-09129 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2008-12 → 2010-03
ended
|
1ZRFE ZSP91 5F | — | |
| 90910-09129 note |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2008-12 → 2010-03
ended
|
1ZRFE ZSP91 5F | — | |
| 90910-09129 note |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2010-03 → 2010-08
ended
|
1ZRFE ZSP91 | — | |
| 90910-09129 note |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2008-05 → 2008-11
ended
|
1ZRFE ZSP91 4FC | — | |
| 11415A — Plug, Water Drain Cock(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2008-12 → 2010-03
ended
|
1ZRFE ZSP91 5F | — | |
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2008-05 → 2012-04
ended
|
2NZFE NCP90 | — | |
| 90910-09087 note |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2010-03 → 2010-08
ended
|
1ZRFE ZSP91 | — | |
| 90910-09087 note |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2008-12 → 2010-03
ended
|
1ZRFE ZSP91 5F | — | |
| 90910-09087 note |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2008-11 → 2010-03
ended
|
1ZRFE ZSP91 4FC | — | |
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2008-11 → 2010-03
ended
|
1ZRFE ZSP91 4FC | — | |
| 90910-09087 note |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2008-05 → 2008-12
ended
|
1ZRFE ZSP91 5F | — | |
| 90910-09087 note |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2008-05 → 2008-11
ended
|
1ZRFE ZSP91 4FC | — | |
| 11432A — Plug, W/Head Taper Screw, NO.1 | ||||
| 90345-52001 |
Plug, W/Head Taper Screw, NO.1
2012-04 → —
|
2NZFE NCP90 | — | |
| 90345-52001 note |
Plug, W/Head Taper Screw, NO.1
2010-03 → —
|
1ZRFE ZSP91 STD | — | |
| 90345-52001 note |
Plug, W/Head Taper Screw, NO.1
2010-03 → —
|
1ZRFE ZSP91 STD | — | |
| 90345-52001 note |
Plug, W/Head Taper Screw, NO.1
2010-03 → 2010-08
ended
|
1ZRFE ZSP91 RS | — | |
| 90345-52001 note |
Plug, W/Head Taper Screw, NO.1
2010-03 → 2010-08
ended
|
1ZRFE ZSP91 RS | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2008-12 → 2010-08
ended
|
1ZRFE ZSP91 5F RS | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2008-12 → —
|
1ZRFE ZSP91 5F STD | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2008-12 → —
|
1ZRFE ZSP91 5F STD | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2008-11 → —
|
1ZRFE ZSP91 4FC STD | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2008-12 → 2010-08
ended
|
1ZRFE ZSP91 5F RS | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2008-11 → 2010-08
ended
|
1ZRFE ZSP91 4FC RS | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2008-11 → 2010-08
ended
|
1ZRFE ZSP91 4FC RS | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2008-05 → 2008-12
ended
|
1ZRFE ZSP91 5F | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2008-05 → 2008-11
ended
|
1ZRFE ZSP91 4FC | — | |
| 90345-53006 note |
Plug, W/Head Taper Screw, NO.1
2008-11 → —
|
1ZRFE ZSP91 4FC STD | — | |
| 11434G — Pin, Straight(FOR END PLATE) | ||||
| 90250-10113 |
Pin, Straight(FOR END PLATE)
2008-05 → —
|
2NZFE NCP90 | — | |
| 11434Y — Pin, Straight(FOR OIL PAN) | ||||
| 90250-08074 note |
Pin, Straight(FOR OIL PAN)
2008-05 → 2008-11
ended
|
1ZRFE ZSP91 4FC | — | |
| 90250-08074 note |
Pin, Straight(FOR OIL PAN)
2008-05 → 2008-12
ended
|
1ZRFE ZSP91 5F | — | |
| 90250-08074 note |
Pin, Straight(FOR OIL PAN)
2008-11 → 2010-09
ended
|
1ZRFE ZSP91 4FC | — | |
| 90250-08074 note |
Pin, Straight(FOR OIL PAN)
2008-11 → 2010-09
ended
|
1ZRFE ZSP91 4FC | — | |
| 90250-08074 note |
Pin, Straight(FOR OIL PAN)
2008-12 → 2010-09
ended
|
1ZRFE ZSP91 5F | — | |
| 90250-08074 note |
Pin, Straight(FOR OIL PAN)
2008-12 → 2010-09
ended
|
1ZRFE ZSP91 5F | — | |
| 90250-08120 note |
Pin, Straight(FOR OIL PAN)
2009-03 → 2010-08
ended
|
1ZRFE ZSP91 | — | |
| 90250-08120 note |
Pin, Straight(FOR OIL PAN)
2010-09 → —
|
1ZRFE ZSP91 | — | |
| 90250-08120 note |
Pin, Straight(FOR OIL PAN)
2010-09 → —
|
1ZRFE ZSP91 | — | |
| 90250-08120 |
Pin, Straight(FOR OIL PAN)
2008-05 → —
|
2NZFE NCP90 | — | |
| 90250-C0011 note |
Pin, Straight(FOR OIL PAN)
2010-09 → —
|
1ZRFE ZSP91 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
