Toyota Yaris (CHINA)
2008-05 → 2013-08 · chassis NCP90,ZSP91 · catalogue 110310 · General
Supported model
Data version 2014-01

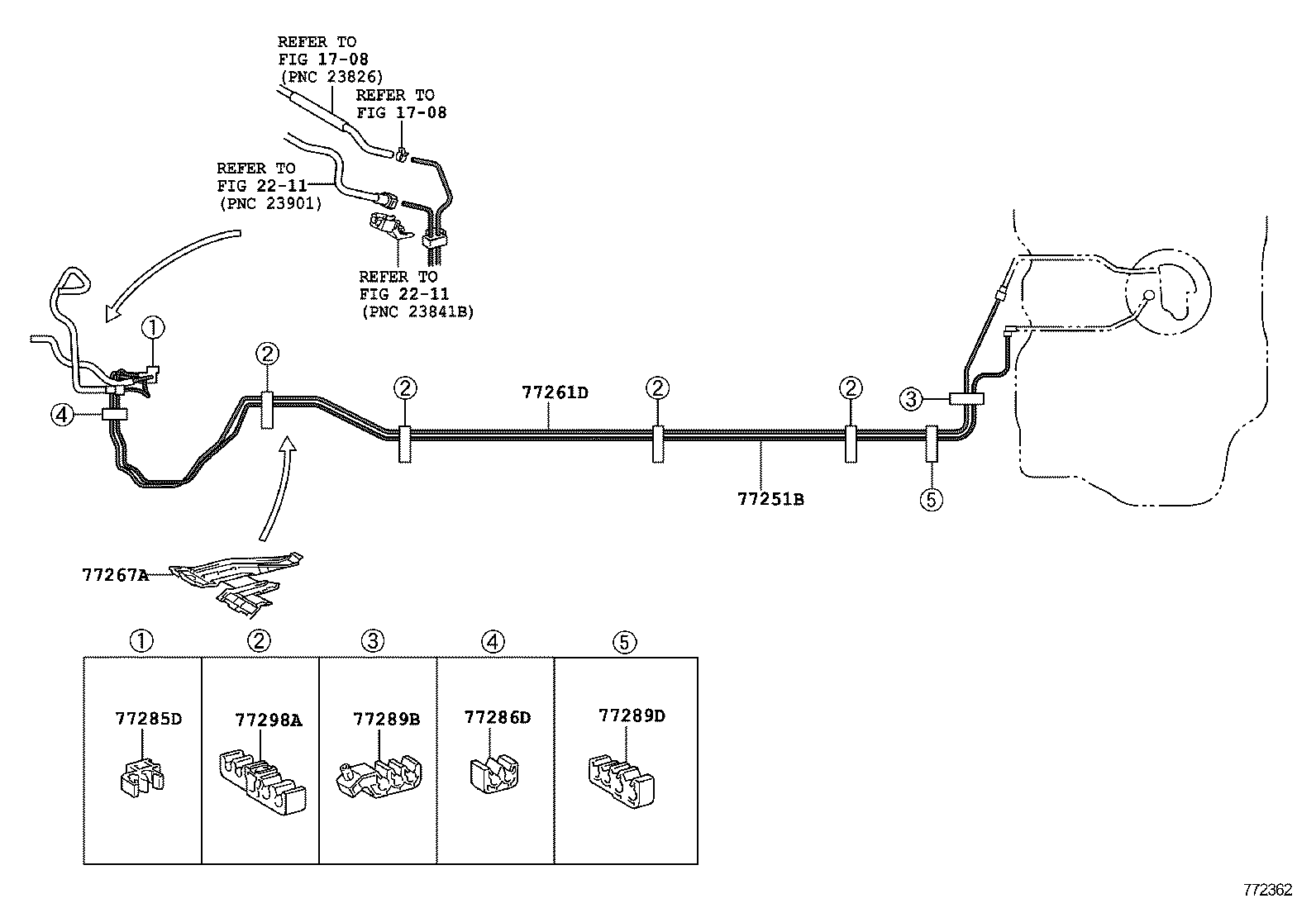

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77251B — Tube, Fuel Main | ||||
| 77251-0D180 |
Tube, Fuel Main
2008-05 → 2010-08
ended
|
ZSP91 RS | — | |
| 77251-0D180 |
Tube, Fuel Main
2008-05 → —
|
NCP90,ZSP91 STD | — | |
| 77261D — Tube, Fuel Tank TO Canister | ||||
| 77261-0D170 |
Tube, Fuel Tank TO Canister
2008-05 → 2010-08
ended
|
ZSP91 RS | — | |
| 77261-0D170 |
Tube, Fuel Tank TO Canister
2008-05 → —
|
NCP90,ZSP91 STD | — | |
| 77267A — Protector, Fuel Tube, NO.2 | ||||
| 77267-52050 |
Protector, Fuel Tube, NO.2
2008-05 → 2010-08
ended
|
ZSP91 RS | — | |
| 77267-52050 |
Protector, Fuel Tube, NO.2
2008-05 → —
|
NCP90,ZSP91 STD | — | |
| 77285D — Clamp, Fuel Tube, NO.1 | ||||
| 77285-52060 |
Clamp, Fuel Tube, NO.1
2008-05 → 2010-08
ended
|
ZSP91 RS | — | |
| 77285-52060 |
Clamp, Fuel Tube, NO.1
2008-05 → —
|
NCP90,ZSP91 STD | — | |
| 77286D — Clamp, Fuel Tube, NO.2 | ||||
| 77286-52100 |
Clamp, Fuel Tube, NO.2
2008-05 → 2010-08
ended
|
ZSP91 RS | — | |
| 77286-52100 |
Clamp, Fuel Tube, NO.2
2008-05 → —
|
NCP90,ZSP91 STD | — | |
| 77289B — Clamp, Fuel Tube, NO.3 | ||||
| 77289-52060 |
Clamp, Fuel Tube, NO.3
2008-05 → 2010-08
ended
|
ZSP91 RS | — | |
| 77289-52060 |
Clamp, Fuel Tube, NO.3
2008-05 → —
|
NCP90,ZSP91 STD | — | |
| 77289D — Clamp, Fuel Tube, NO.5 | ||||
| 77299-52070 |
Clamp, Fuel Tube, NO.5
2008-05 → 2010-08
ended
|
ZSP91 RS | — | |
| 77299-52070 |
Clamp, Fuel Tube, NO.5
2008-05 → —
|
NCP90,ZSP91 STD | — | |
| 77298A — Clamp, Fuel Tube, NO.4 | ||||
| 77298-52070 |
Clamp, Fuel Tube, NO.4
2008-05 → 2010-08
ended
|
ZSP91 RS | — | |
| 77298-52070 |
Clamp, Fuel Tube, NO.4
2008-05 → —
|
NCP90,ZSP91 STD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
