Toyota Yaris (CHINA)
2008-05 → 2013-08 · chassis NCP90,ZSP91 · catalogue 110310 · General
Supported model
Data version 2014-01

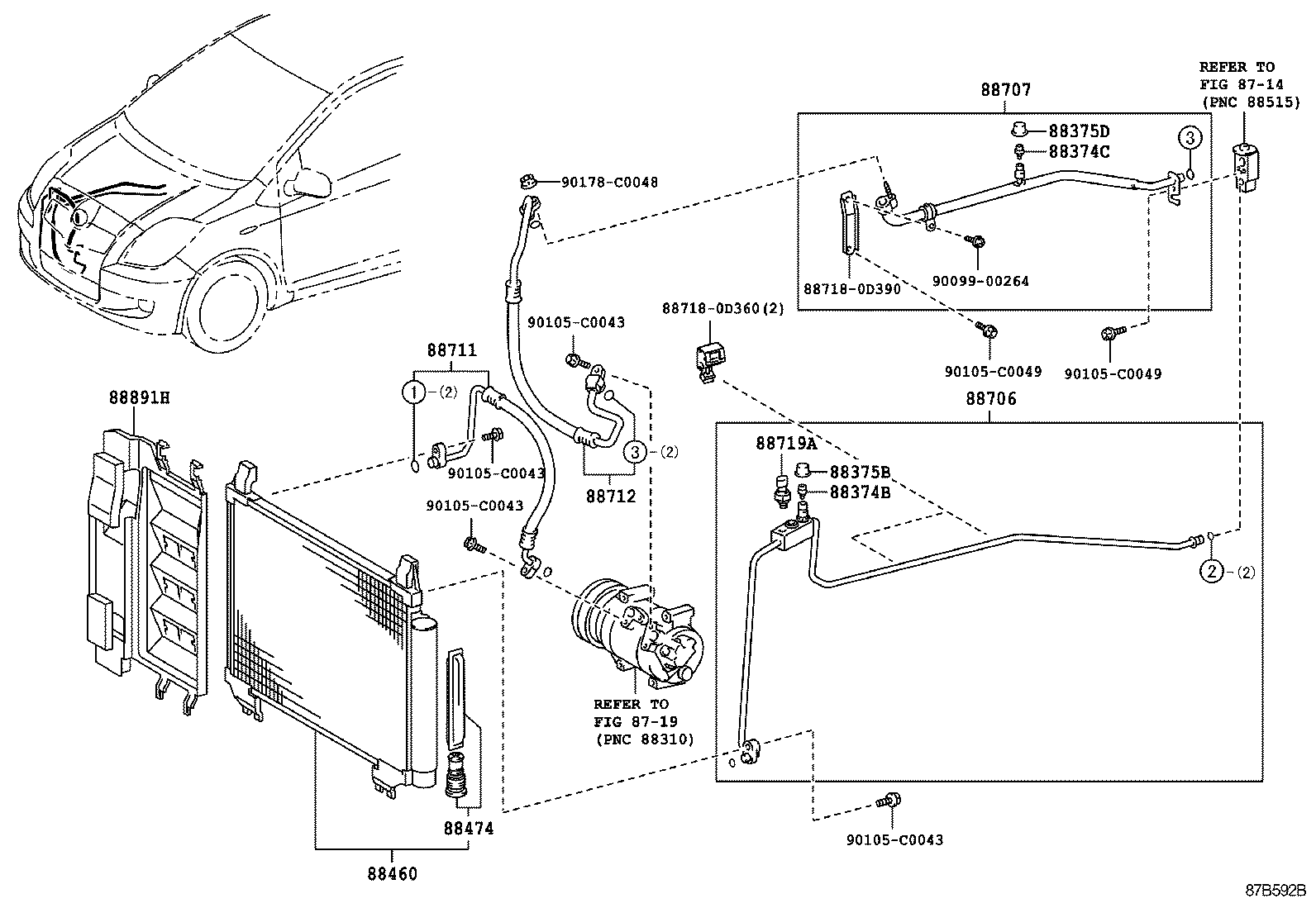

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88374B — Valve, Service, NO.1 | ||||
| 88374-30010 |
Valve, Service, NO.1
2008-05 → —
|
NCP90,ZSP91 | — | |
| 88374C — Valve, Service, NO.2 | ||||
| 88374-30010 |
Valve, Service, NO.2
2008-05 → —
|
NCP90,ZSP91 | — | |
| 88375B — Cap, Service Valve, NO.1 | ||||
| 88375-30280 |
Cap, Service Valve, NO.1
2008-05 → —
|
NCP90,ZSP91 | — | |
| 88375D — Cap, Service Valve, NO.2 | ||||
| 88375-30290 |
Cap, Service Valve, NO.2
2008-05 → 2010-08
ended
|
ZSP91 RS | — | |
| 88375-30290 |
Cap, Service Valve, NO.2
2008-05 → —
|
NCP90,ZSP91 STD | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 88460-0D140 |
Condenser Assy, Cooler
2008-05 → —
|
NCP90 | — | |
| 88460-0D140 |
Condenser Assy, Cooler
2010-08 → —
|
ZSP91 | — | |
| 88460-0D150 |
Condenser Assy, Cooler
2008-05 → 2010-08
ended
|
ZSP91 | — | |
| 88474 — Dryer, Cooler | ||||
| 88474-17010 |
Dryer, Cooler
2008-05 → 2010-08
ended
|
ZSP91 RS | — | |
| 88474-17010 |
Dryer, Cooler
2008-05 → —
|
NCP90,ZSP91 STD | — | |
| 88706 — Pipe Sub-assy, Liquid | ||||
| 88706-0D320 |
Pipe Sub-assy, Liquid
2008-05 → 2010-07
ended
|
NCP90 | — | |
| 88706-0D321 |
Pipe Sub-assy, Liquid
2010-08 → —
|
NCP90 | — | |
| 88706-0D330 |
Pipe Sub-assy, Liquid
2008-05 → 2010-08
ended
|
ZSP91 | — | |
| 88706-0D430 |
Pipe Sub-assy, Liquid
2010-08 → —
|
ZSP91 | — | |
| 88707 — Pipe Sub-assy, Suction | ||||
| 88707-0D170 |
Pipe Sub-assy, Suction
2008-05 → 2010-08
ended
|
ZSP91 RS | — | |
| 88707-0D170 |
Pipe Sub-assy, Suction
2008-05 → —
|
NCP90,ZSP91 STD | — | |
| 88711 — Hose, Cooler Refrigerant Discharge, NO.1 | ||||
| 88711-0D230 |
Hose, Cooler Refrigerant Discharge, NO.1
2008-05 → —
|
NCP90 | — | |
| 88711-0D240 |
Hose, Cooler Refrigerant Discharge, NO.1
2008-05 → 2010-08
ended
|
ZSP91 | — | |
| 88711-0D360 |
Hose, Cooler Refrigerant Discharge, NO.1
2010-08 → —
|
ZSP91 | — | |
| 88712 — Hose, Cooler Refrigerant Suction, NO.1 | ||||
| 88712-0D291 |
Hose, Cooler Refrigerant Suction, NO.1
2008-05 → —
|
NCP90 | — | |
| 88712-0D300 |
Hose, Cooler Refrigerant Suction, NO.1
2008-05 → 2010-08
ended
|
ZSP91 | — | |
| 88712-0D460 |
Hose, Cooler Refrigerant Suction, NO.1
2010-08 → —
|
ZSP91 | — | |
| 88719A — Sensor, Air Conditioner Pressure | ||||
| 88719-33020 |
Sensor, Air Conditioner Pressure
2008-05 → —
|
NCP90,ZSP91 | — | |
| 88891H — Cover, Cooler, NO.1 | ||||
| 88891-0D140 |
Cover, Cooler, NO.1
2008-05 → —
|
NCP90 | — | |
| 88891-0D140 |
Cover, Cooler, NO.1
2010-08 → —
|
ZSP91 | — | |
| 88891-0D150 |
Cover, Cooler, NO.1
2008-05 → 2010-08
ended
|
ZSP91 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
