Toyota Yaris (CHINA)

2008-05 → 2013-08 · chassis NCP90,ZSP91 · catalogue 110310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

11 part groups · 2 illustrations

Illustrations

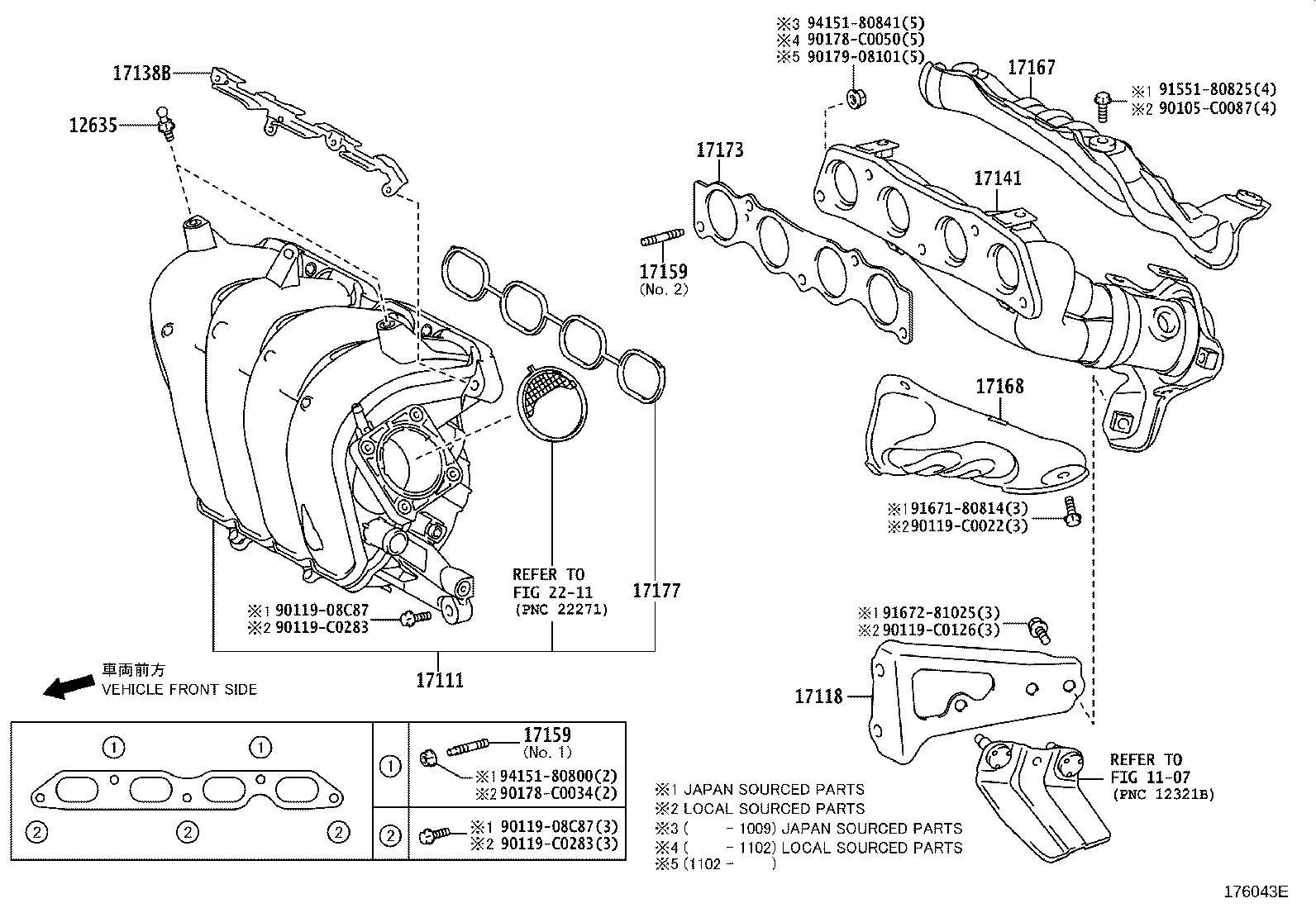

Figure 175968C 175968C 2008-05 → — Figure 176043E 176043E 2008-05 → —

Part groups

PNCDescription
12635 Joint, Engine Cover
17111 Manifold, Intake
17118 Stay, Manifold
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
