Toyota Yaris (CHINA)

2008-05 → 2013-08 · chassis NCP90,ZSP91 · catalogue 110310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

10 part groups · 3 illustrations

Illustrations

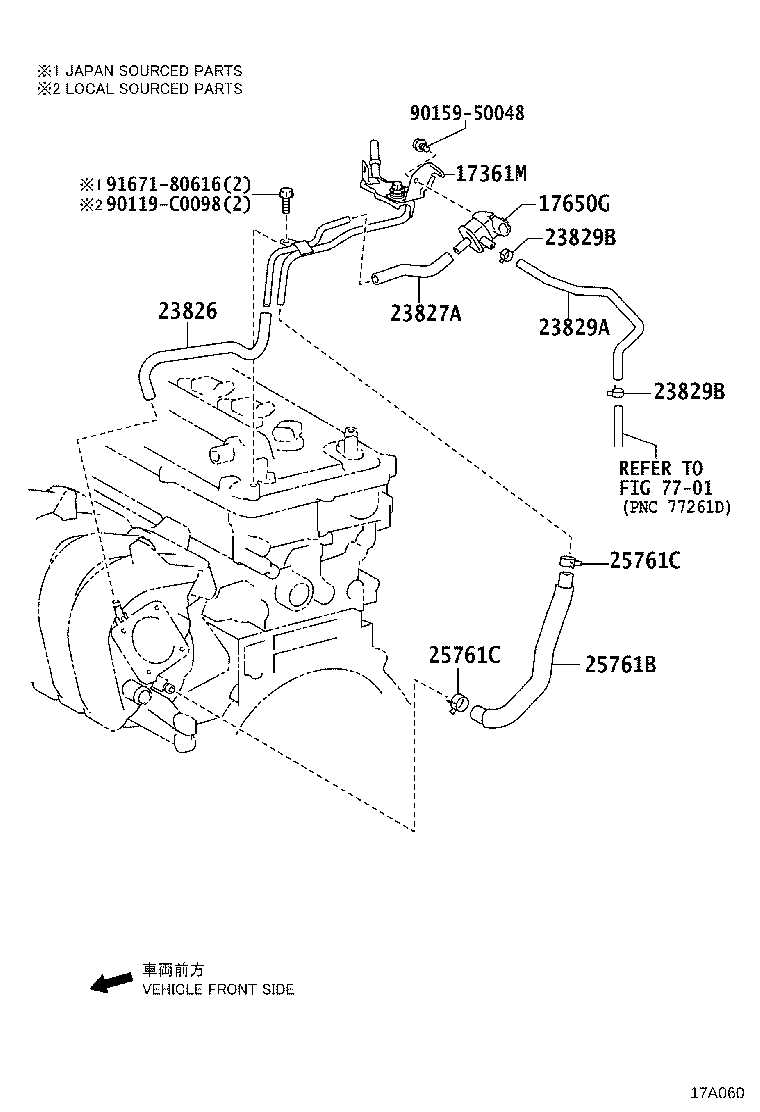

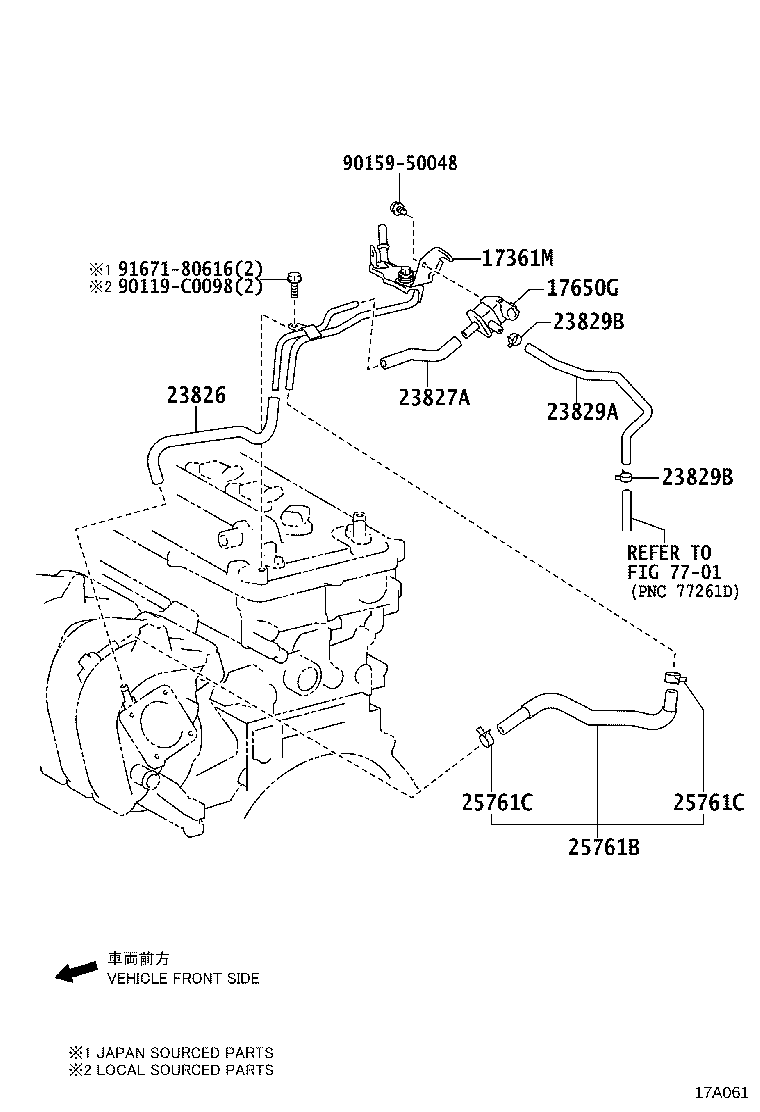

Figure 175970A 175970A 2008-05 → — Figure 17A060 17A060 2008-05 → 2009-09 Figure 17A061 17A061 2009-10 → —

Part groups

PNCDescription
17361M Tube, Air
17650 Valve Assy, Vacuum Switching
17650G Valve, Duty Vacuum Switching
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25761B Hose, Vaccum Transmitting, NO.1
25761C Clip(VACCUM TRANSMITTING HOSE NO.1)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
