Toyota Yaris (CHINA)

2008-05 → 2013-08 · chassis NCP90,ZSP91 · catalogue 110310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

17 part groups · 2 illustrations

Illustrations

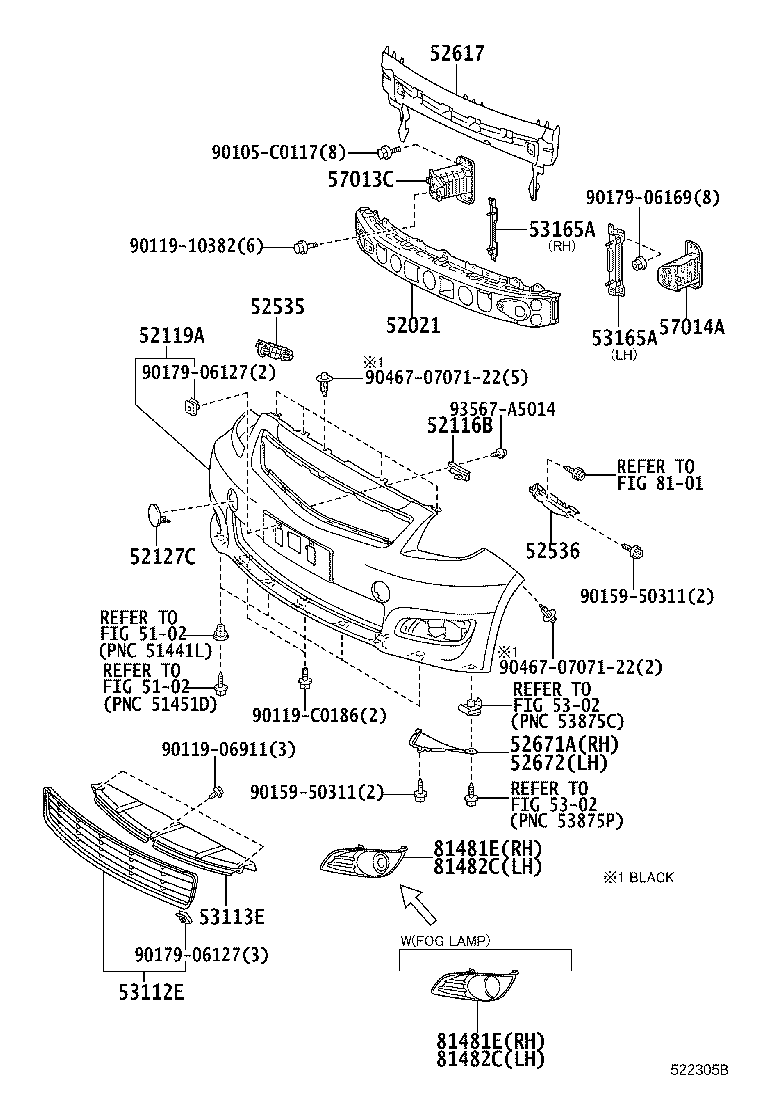

Figure 521937A 521937A 2008-05 → 2010-08 Figure 522305B 522305B 2010-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52542 Seal, Front Bumper, Center
52617 Absorber, Radiator Support, Upper
52671A Extension, Front Bumper Arm, RH
52672 Extension, Front Bumper Arm, LH
53112E Grille, Radiator, Lower NO.1
53113E Grille, Radiator, Lower NO.2
53165A Bracket, Front Bumper Stone Deflector, NO.1
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
