Toyota Yaris (CHINA)
2008-05 → 2013-08 · chassis NCP90,ZSP91 · catalogue 110310 · General
Supported model
Data version 2014-01

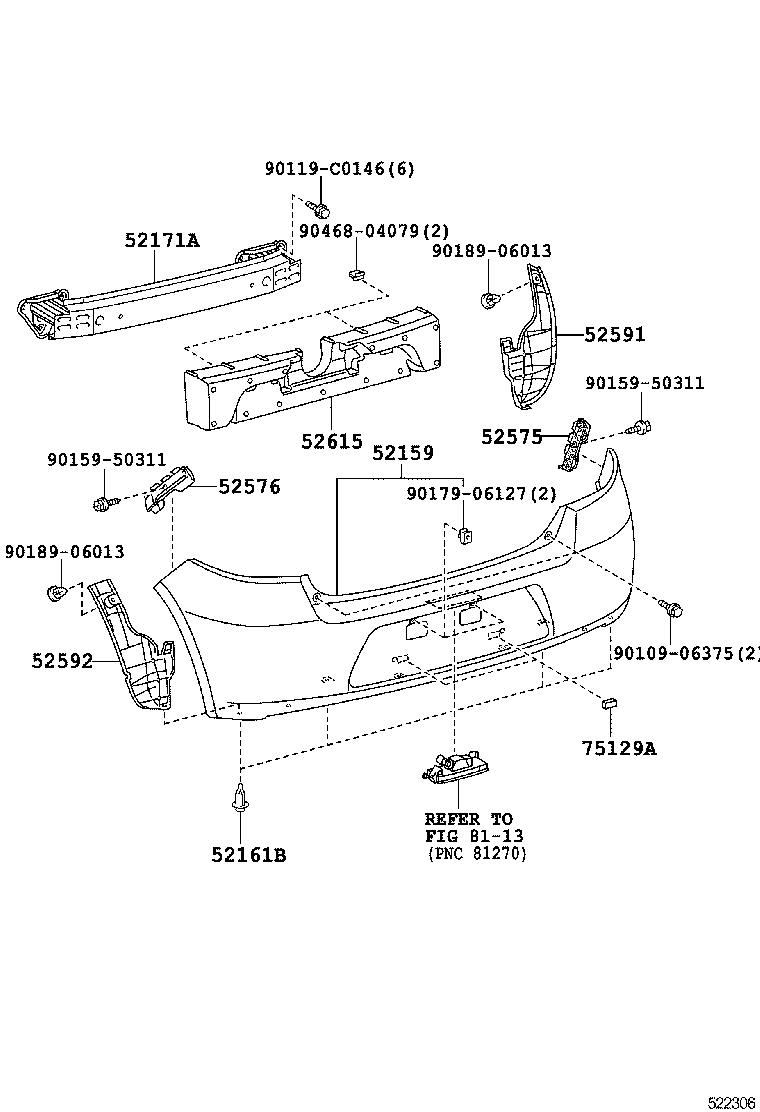

Rear Bumper & Bumper Stay
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52171A | Reinforcement, Rear Bumper, NO.1 |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52615 | Absorber, Rear Bumper Energy |
| 75129A | Cushion, Rear Licence Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
