Toyota Yaris (CHINA)

2008-05 → 2013-08 · chassis NCP90,ZSP91 · catalogue 110310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

30 part groups · 2 illustrations

Illustrations

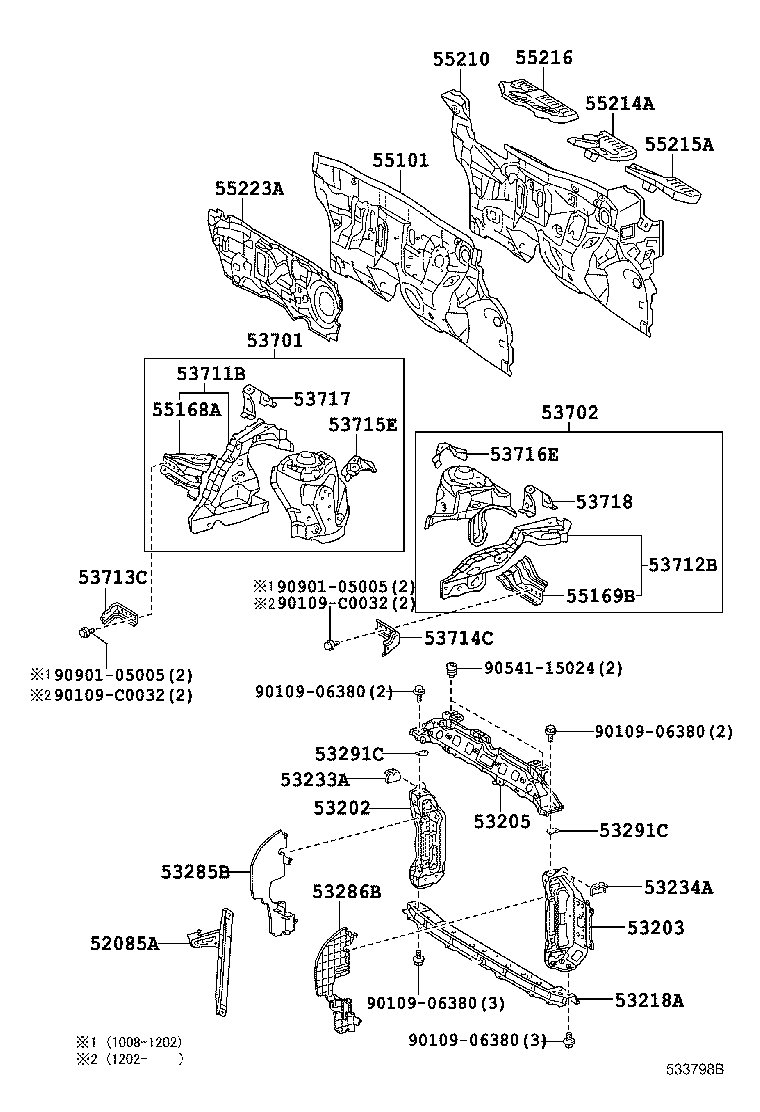

Figure 532802A 532802A 2008-05 → 2010-08 Figure 533798B 533798B 2010-08 → —

Part groups

PNCDescription
52085A Stay Sub-assy, Front Bumper, Center
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53218A Support, Radiator, Lower
53233A Bracket, Headlamp, NO.1 RH
53234A Bracket, Headlamp, NO.1 LH
53285B Seal, Radiator Side Air, NO.1
53286B Seal, Radiator Side Air, NO.2
53287B Extension, Radiator Support, RH
53288B Extension, Radiator Support, LH
53291C Seal, Radiator Support TO Frame
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53711B Apron, Front Fender, Front RH
53712B Apron, Front Fender, Front LH
53713C Extension, Front Fender Apron, Front RH
53714C Extension, Front Fender Apron, Front LH
53715E Extension, Front Fender Apron, Rear RH
53716E Extension, Front Fender Apron, Rear LH
53717 Plate, Fender Apron, RH
53718 Plate, Fender Apron, LH
55101 Panel Sub-assy, Dash
55168A Bracket, Front Fender Mounting, RH
55169B Bracket, Front Fender Mounting, LH
55210 Insulator Assy, Dash Panel
55214A Pad, Dash Panel Insulator, NO.2
55215A Pad, Dash Panel Insulator, NO.3
55216 Pad, Dash Panel Insulator, NO.4
55223A Insulator, Dash Panel, Outer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
