Toyota Yaris (CHINA)
2008-05 → 2013-08 · chassis NCP90,ZSP91 · catalogue 110310 · General
Supported model
Data version 2014-01
Instrument Panel & Glove Compartment
42 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55042B | Door Sub-assy, Instrument Panel Box, NO.2 |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55359D | Cushion, Instrument Panel, NO.5 |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |

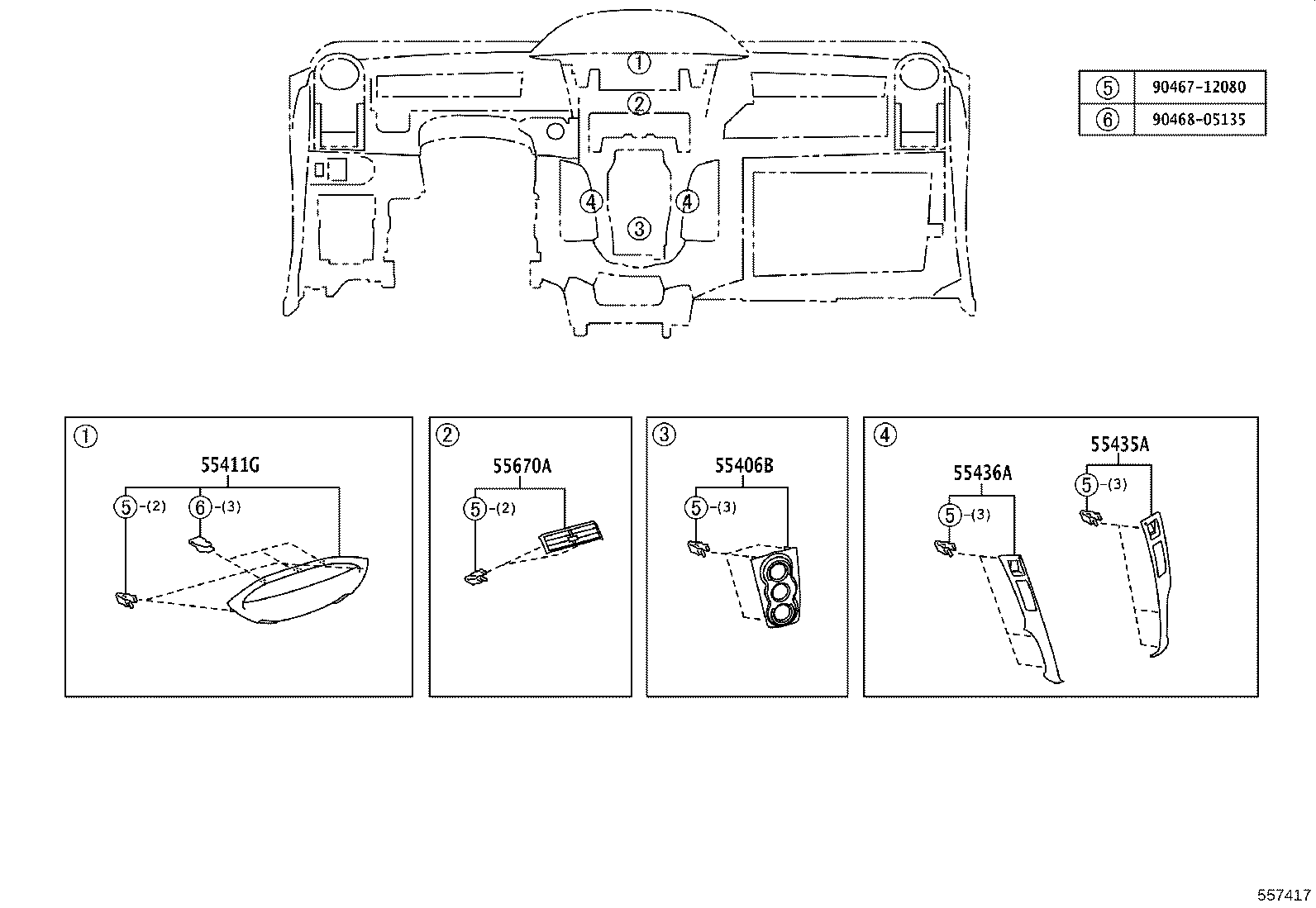

| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55416D | Bracket, Instrument Pad, NO.2 |
| 55430A | Damper Assy, Instrument Cluster Finish Panel |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55436A | Panel, Instrument Panel Finish, End LH |

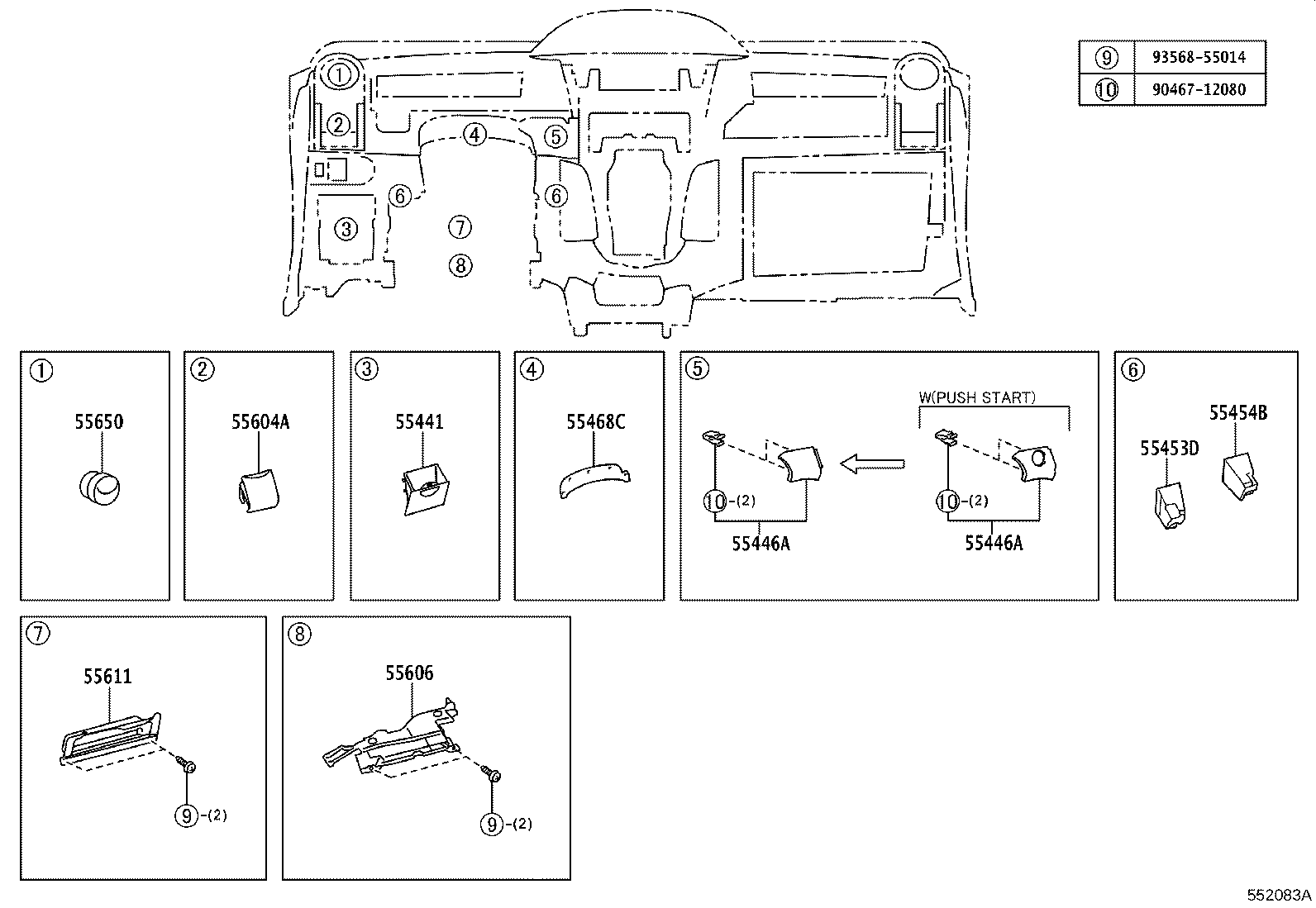

| 55441 | Box, Instrument Panel |
| 55441A | Spring, Instrument Panel Box |
| 55443D | Knob, Instrument Panel Box Door |
| 55444A | Spring, Instrument Panel Box |
| 55444C | Spring, Instrument Panel Box |
| 55445J | Spring, Instrument Panel Box |
| 55446A | Base, Switch Hole, NO.1 |
| 55449C | Cushion, Instrument Panel Finish Panel, NO.2 |
| 55451C | Box, Instrument Panel, NO.1 |
| 55452A | Box, Instrument Panel, NO.2 |
| 55453D | Pad, Instrument Panel Safety, NO.1 |
| 55454B | Pad, Instrument Panel Safety, NO.2 |
| 55468C | Seal, Instrument Cluster Finish Panel, NO.1 |

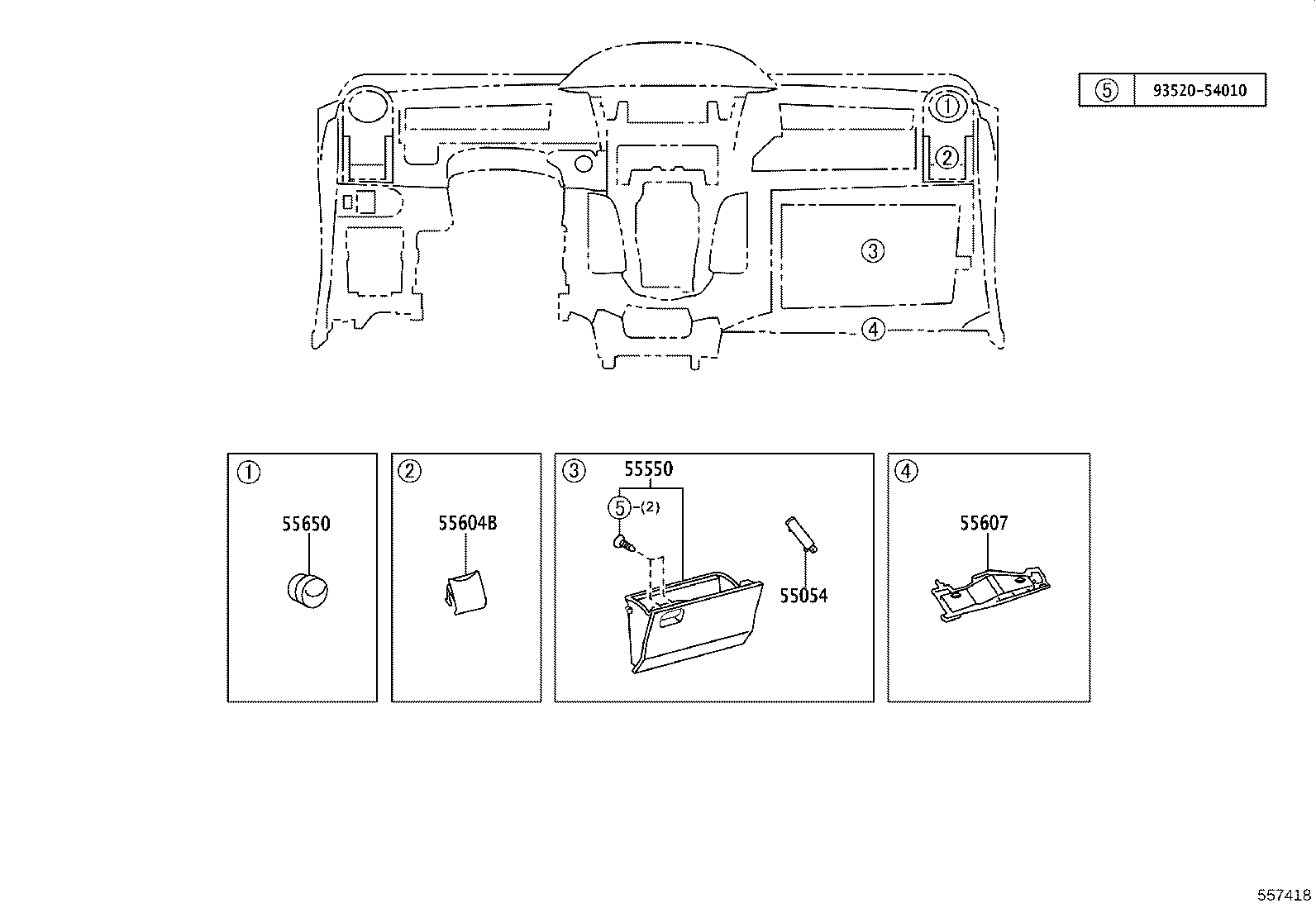

| 55550 | Door Assy, Glove Compartment |
| 55604A | Holder Sub-assy, Instrument Panel Cup |
| 55604B | Holder Sub-assy, Instrument Panel Cup |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55611 | Tray, Instrument Panel Under |
| 55623B | Spring, Instrument Panel Cup Holder |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55670A | Register Assy, Instrument Panel, Center |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 82140 | Wire Assy, Instrument Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
