Toyota Yaris (CHINA)

2008-05 → 2013-08 · chassis NCP90,ZSP91 · catalogue 110310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

34 part groups · 10 illustrations

Illustrations

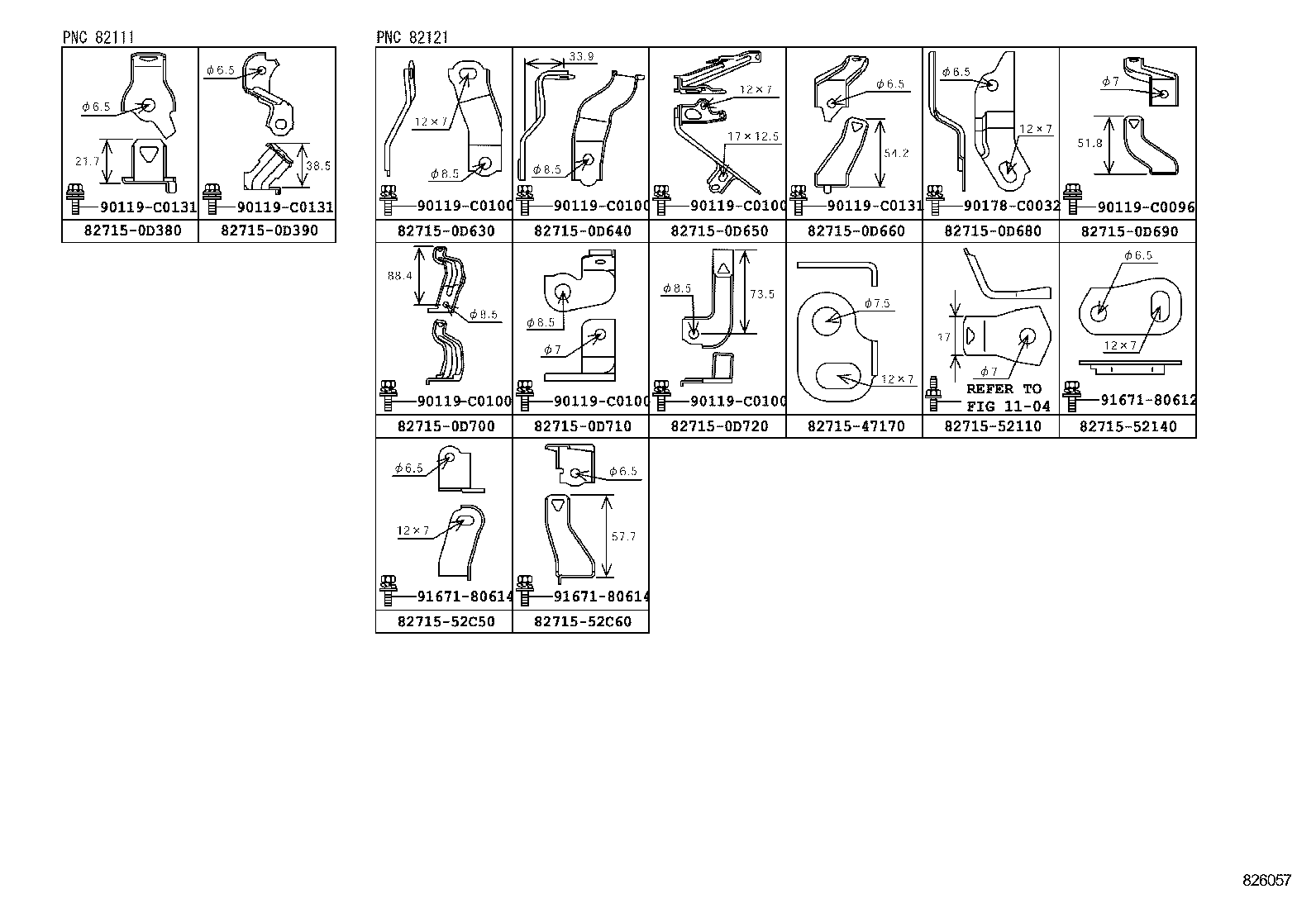

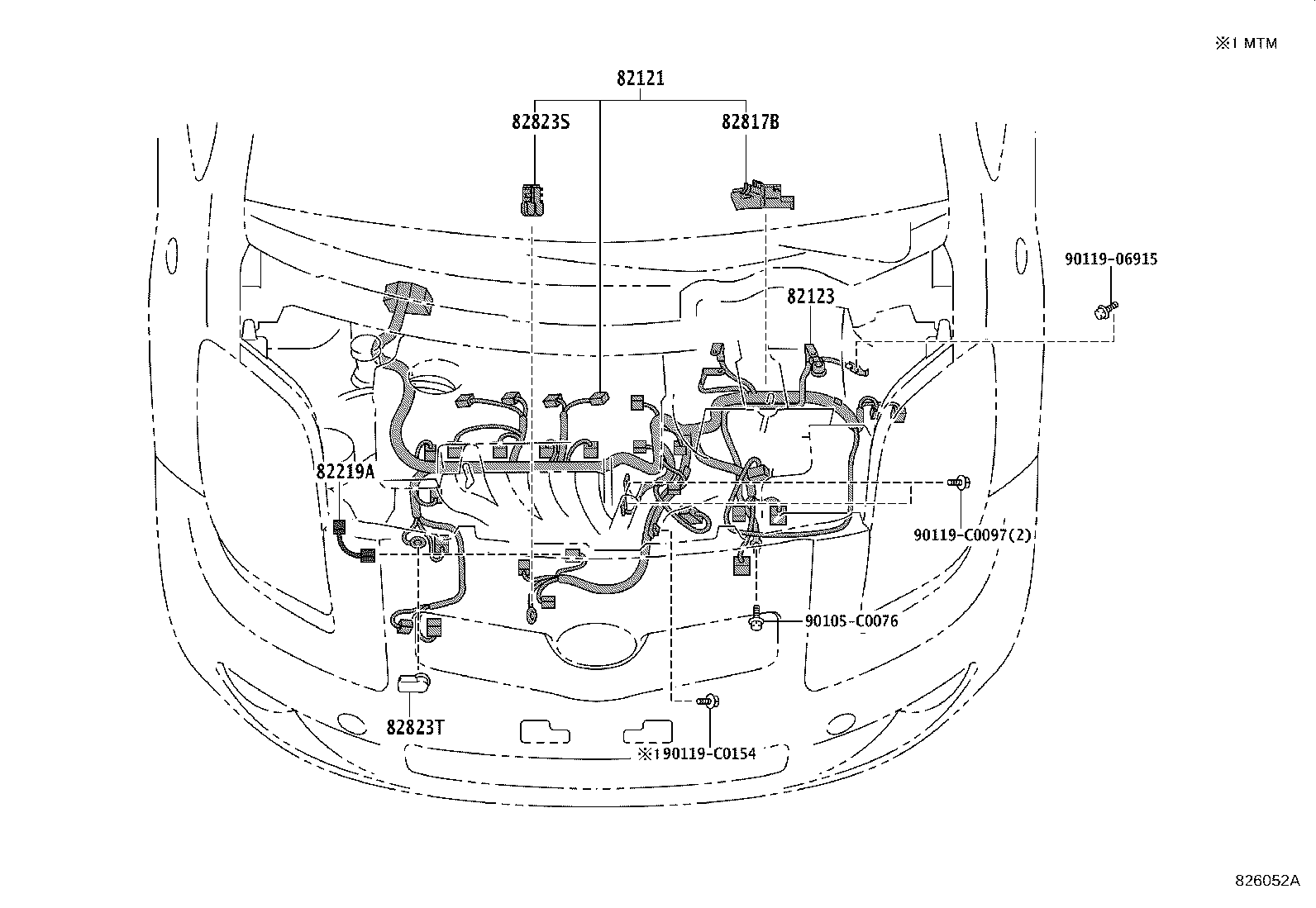

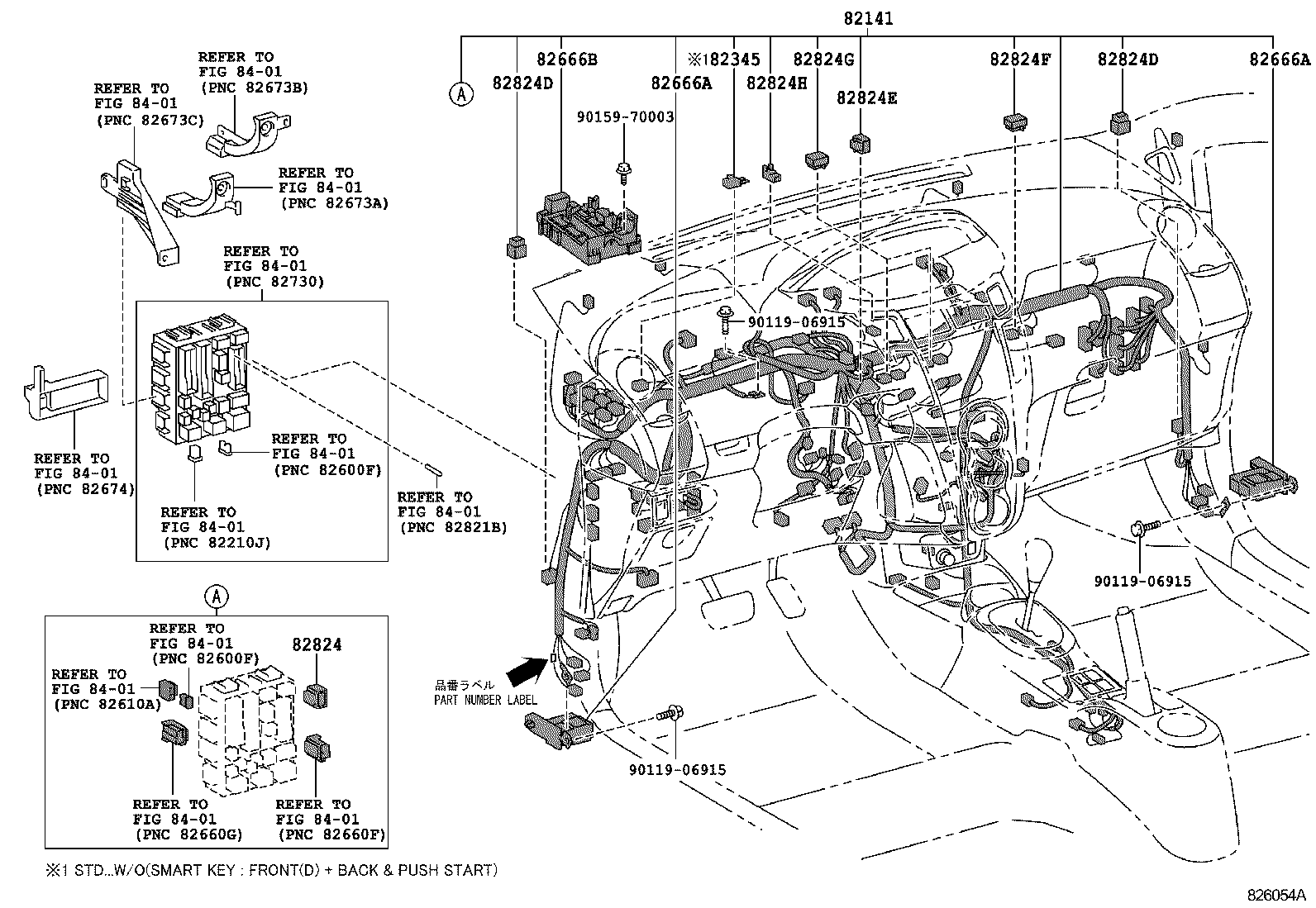

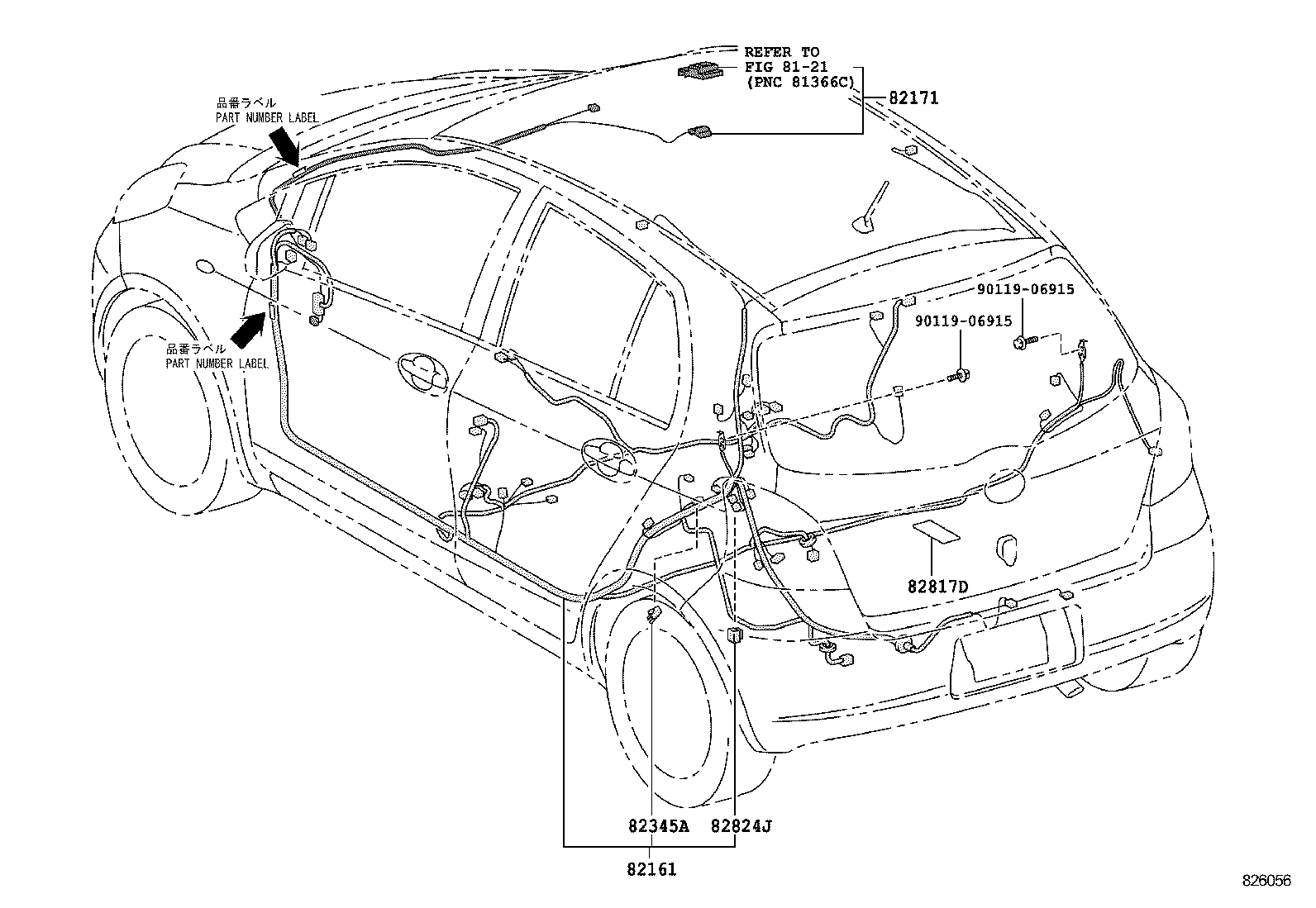

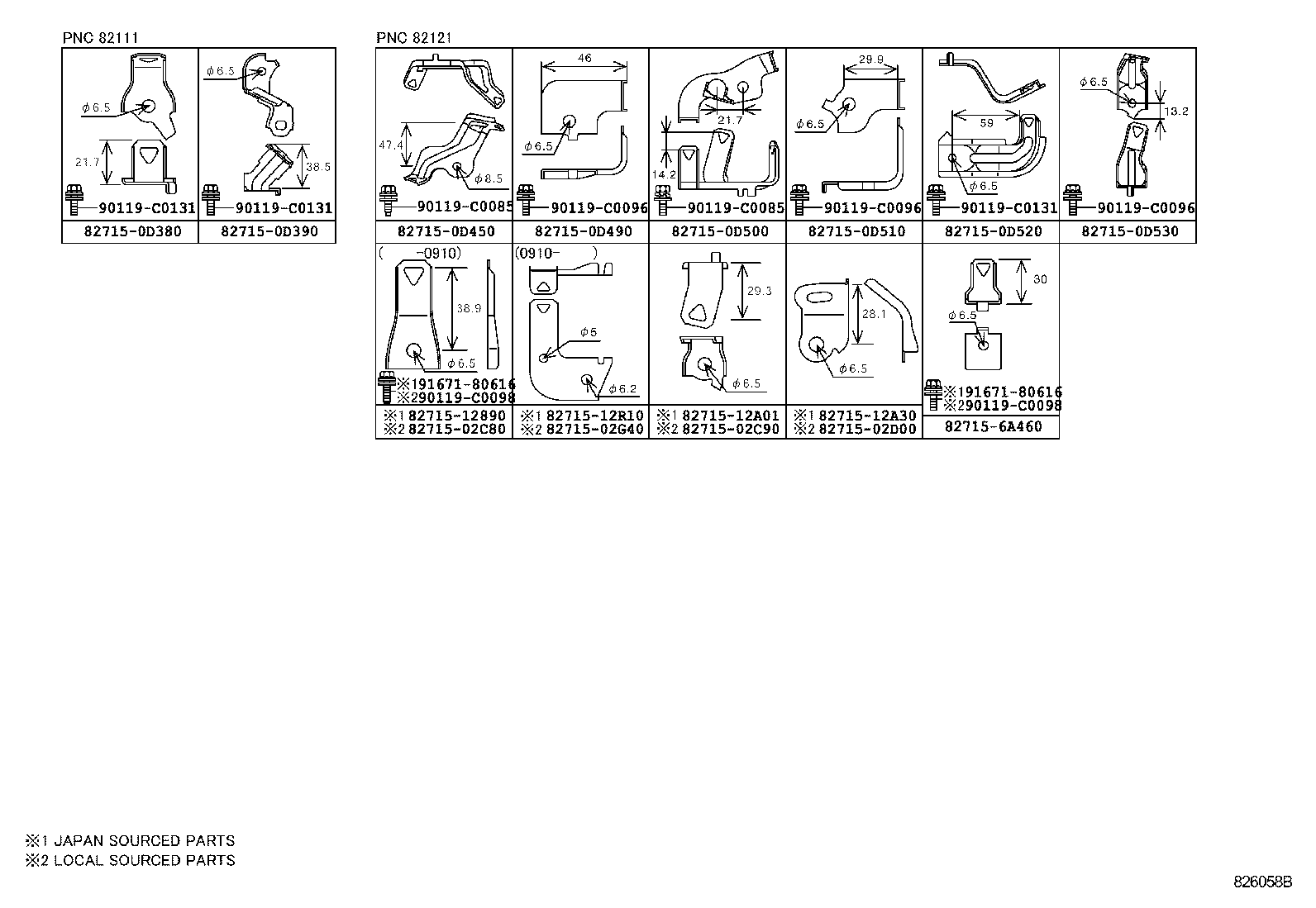

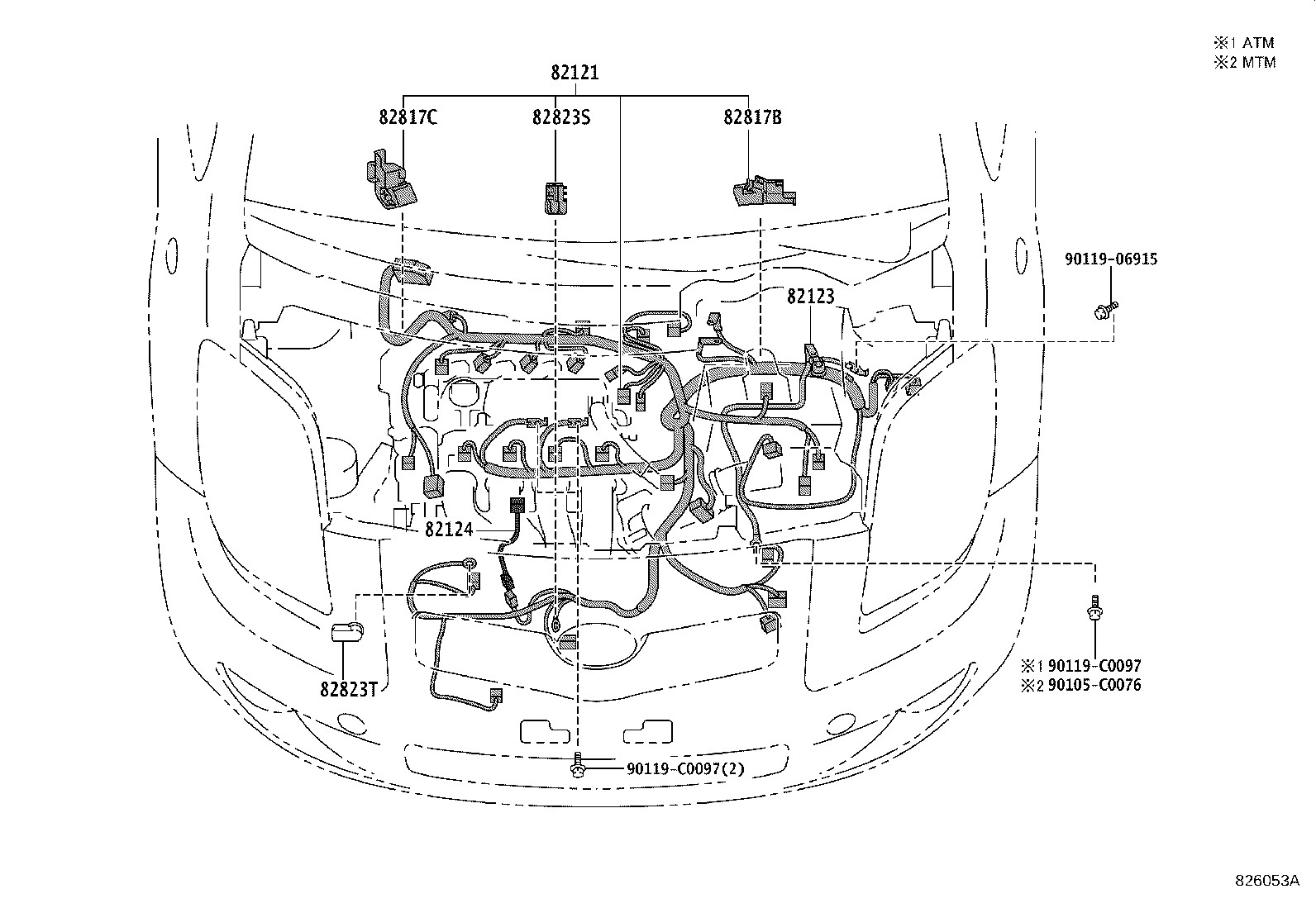

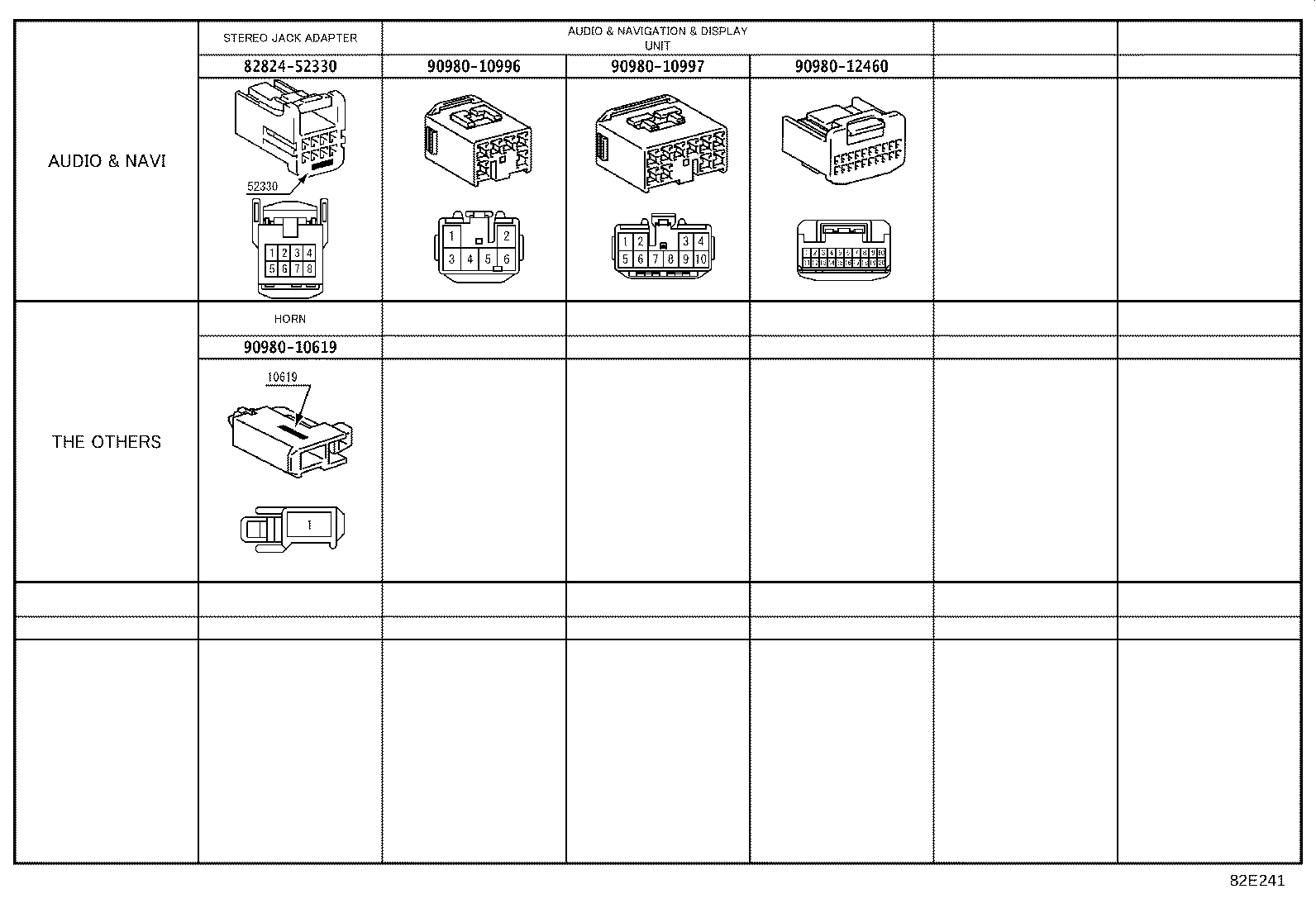

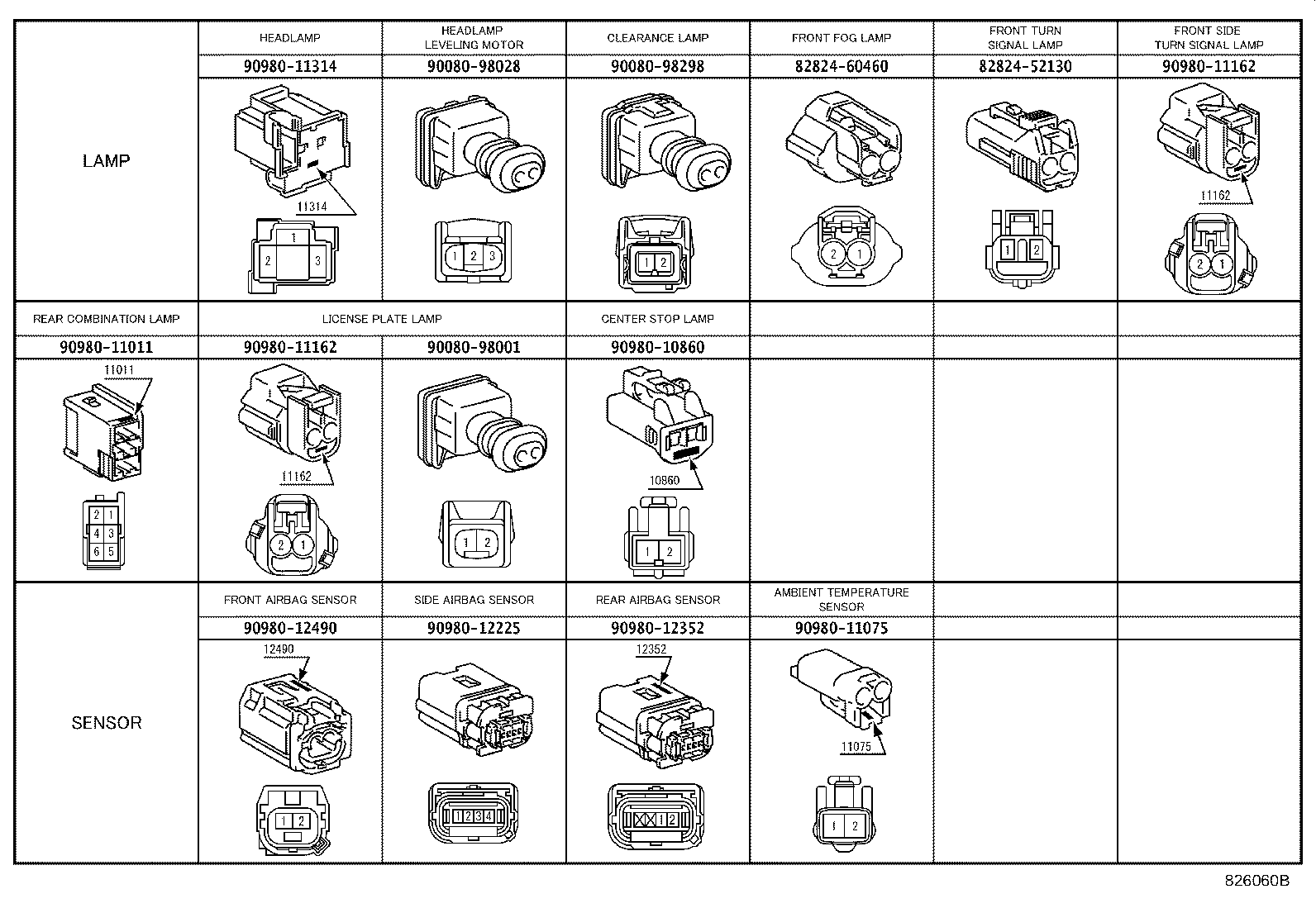

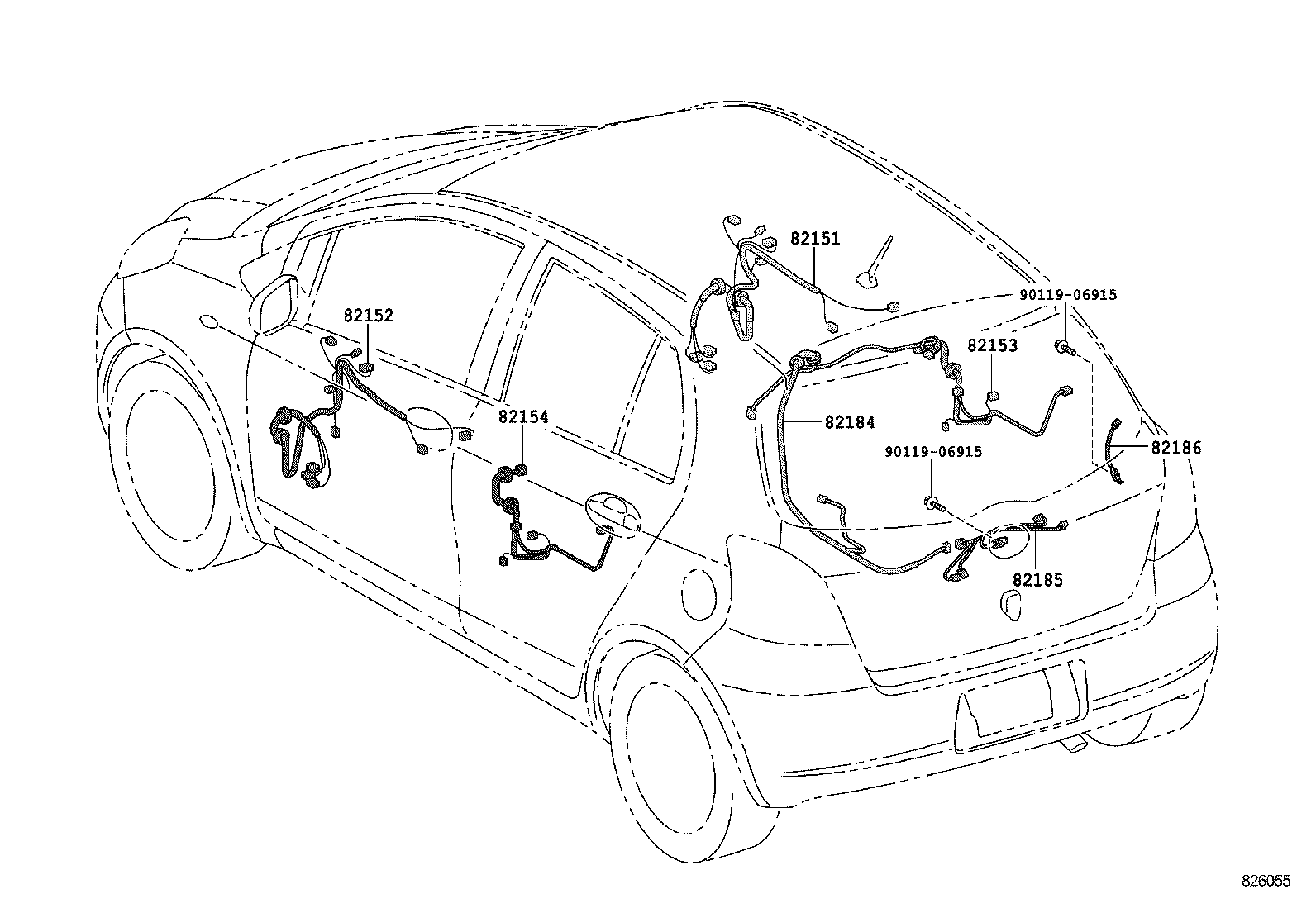

Figure 826051 826051 2008-05 → — Figure 826052A 826052A 2008-05 → — Figure 826053A 826053A 2008-05 → — Figure 826054A 826054A 2008-05 → — Figure 826055 826055 2008-05 → — Figure 826056 826056 2008-05 → — Figure 826057 826057 2008-05 → — Figure 826058B 826058B 2008-05 → — Figure 826060B 826060B 2008-05 → — Figure 82E241 82E241 2008-05 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82219A Wire, Sensor
82345 Diode
82345A Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
