Toyota Yaris (CHINA)

2008-05 → 2013-08 · chassis NCP90,ZSP91 · catalogue 110310 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

11 part groups · 3 illustrations

Illustrations

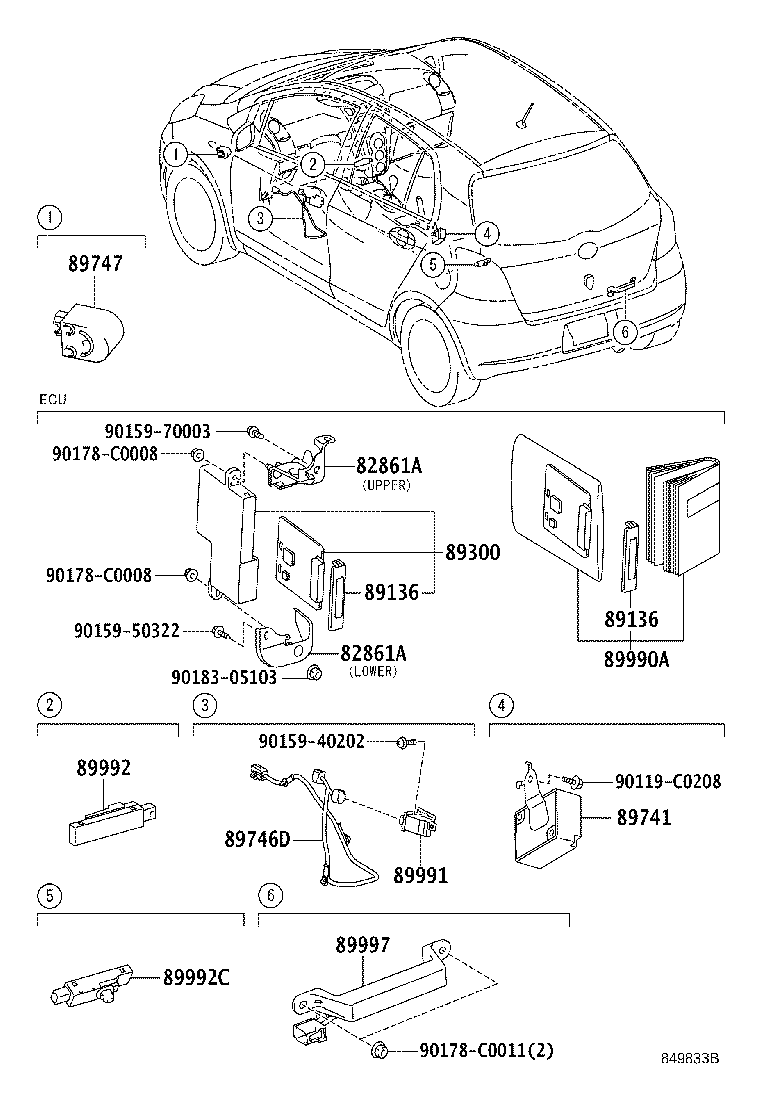

Figure 849832A 849832A 2008-05 → — Figure 849833B 849833B 2008-05 → 2010-08 Figure 849833B 849833B 2008-05 → —

Part groups

PNCDescription
82861A Bracket, Computer Integration, NO.1
89136 Cover, Ecu Aggregation, NO.1
89300 Box Assy, Ecu Aggregation
89741 Receiver, Door Control
89746D Harness, Electrical Key Wire, NO.2
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89992C Oscillator, Indoor Electrical Key, NO.2
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
