Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

47 part groups · 9 illustrations

Illustrations

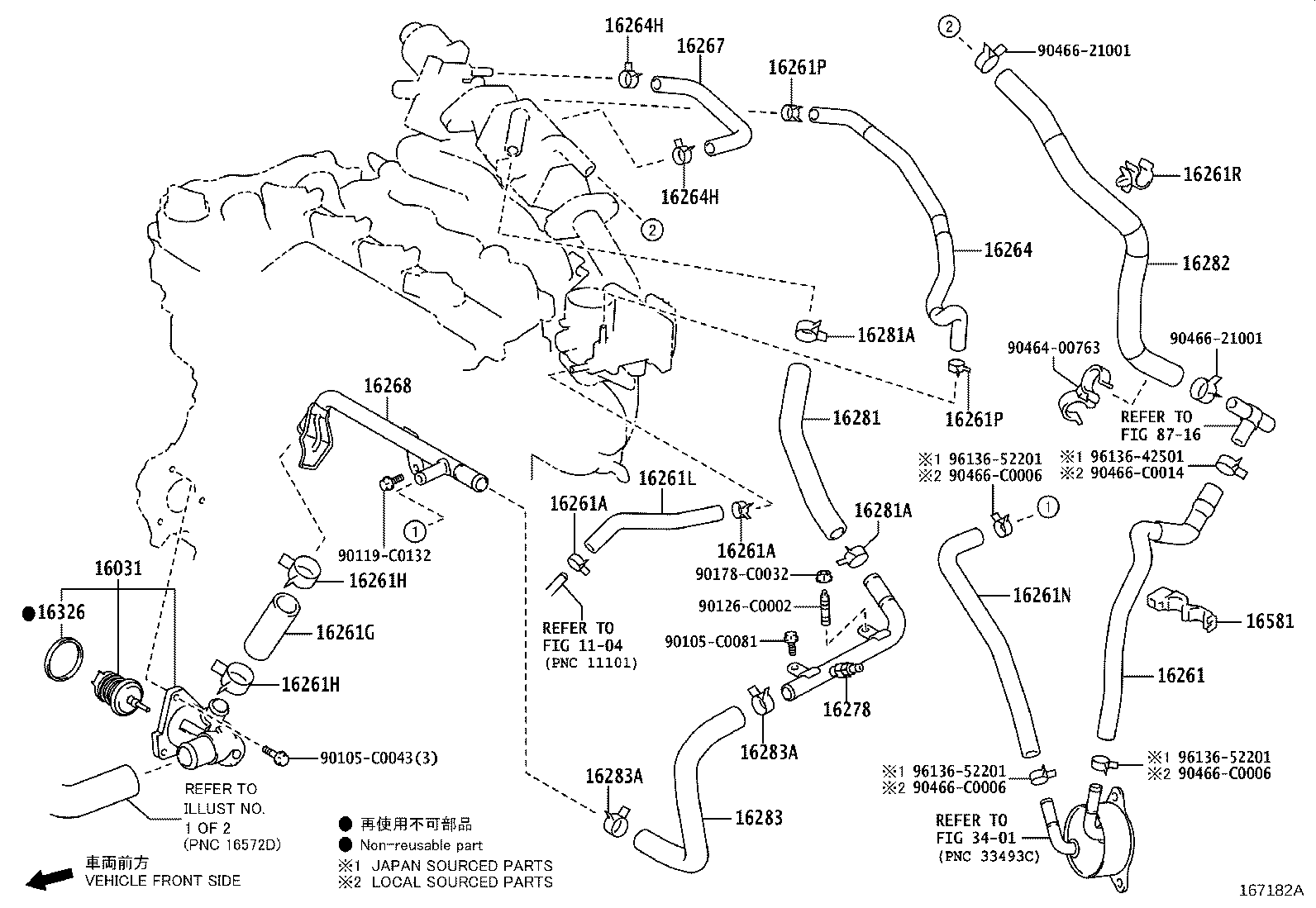

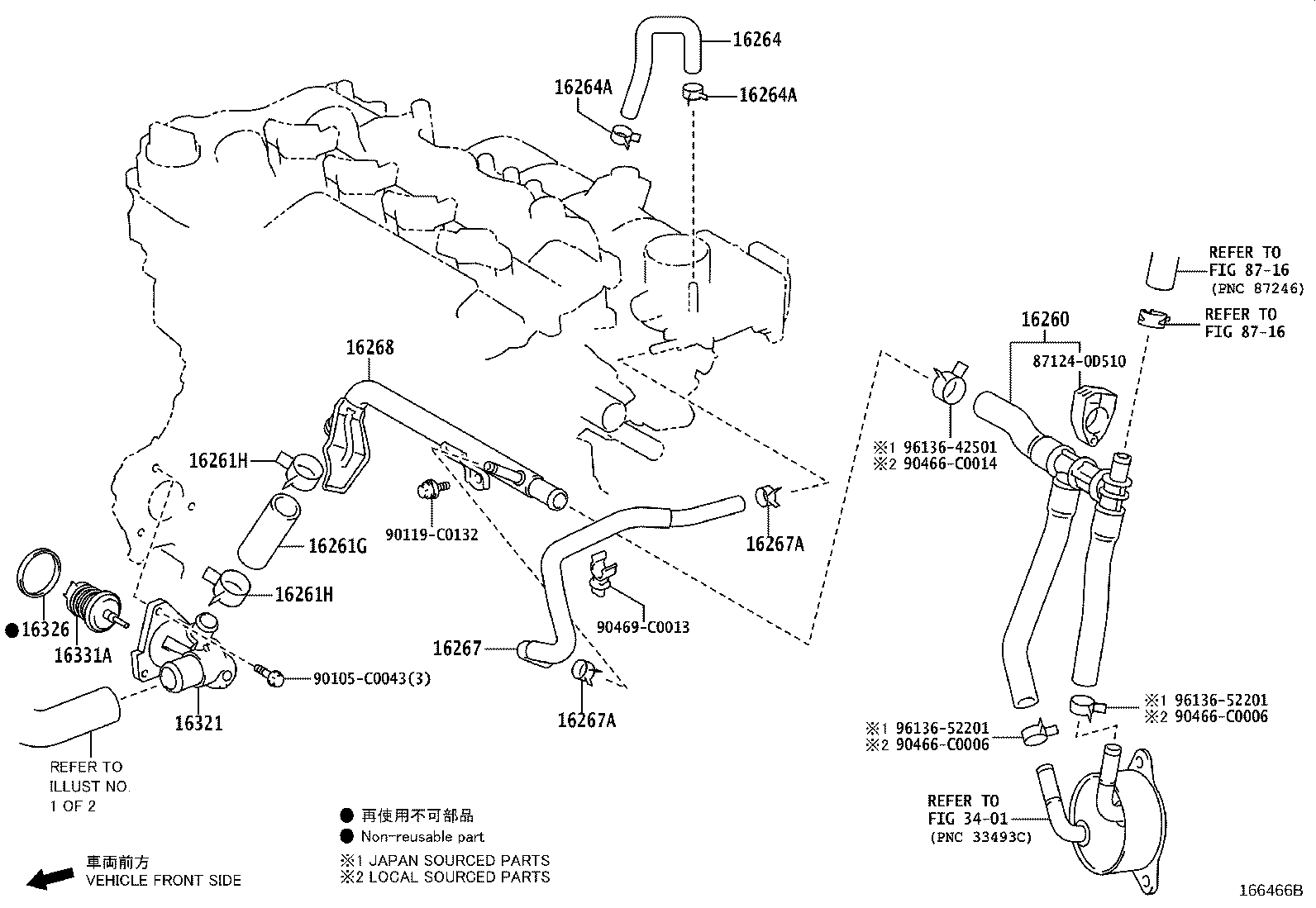

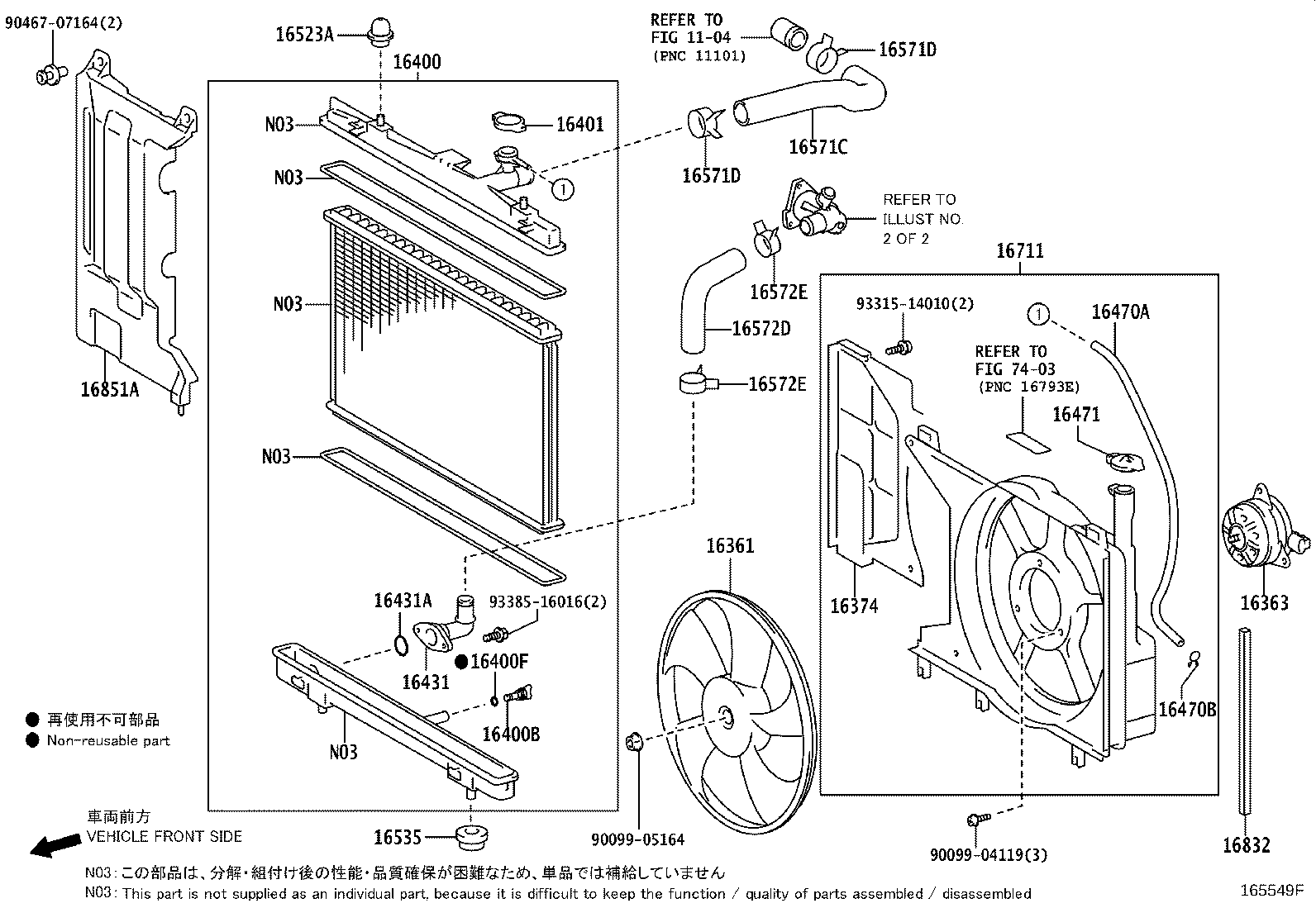

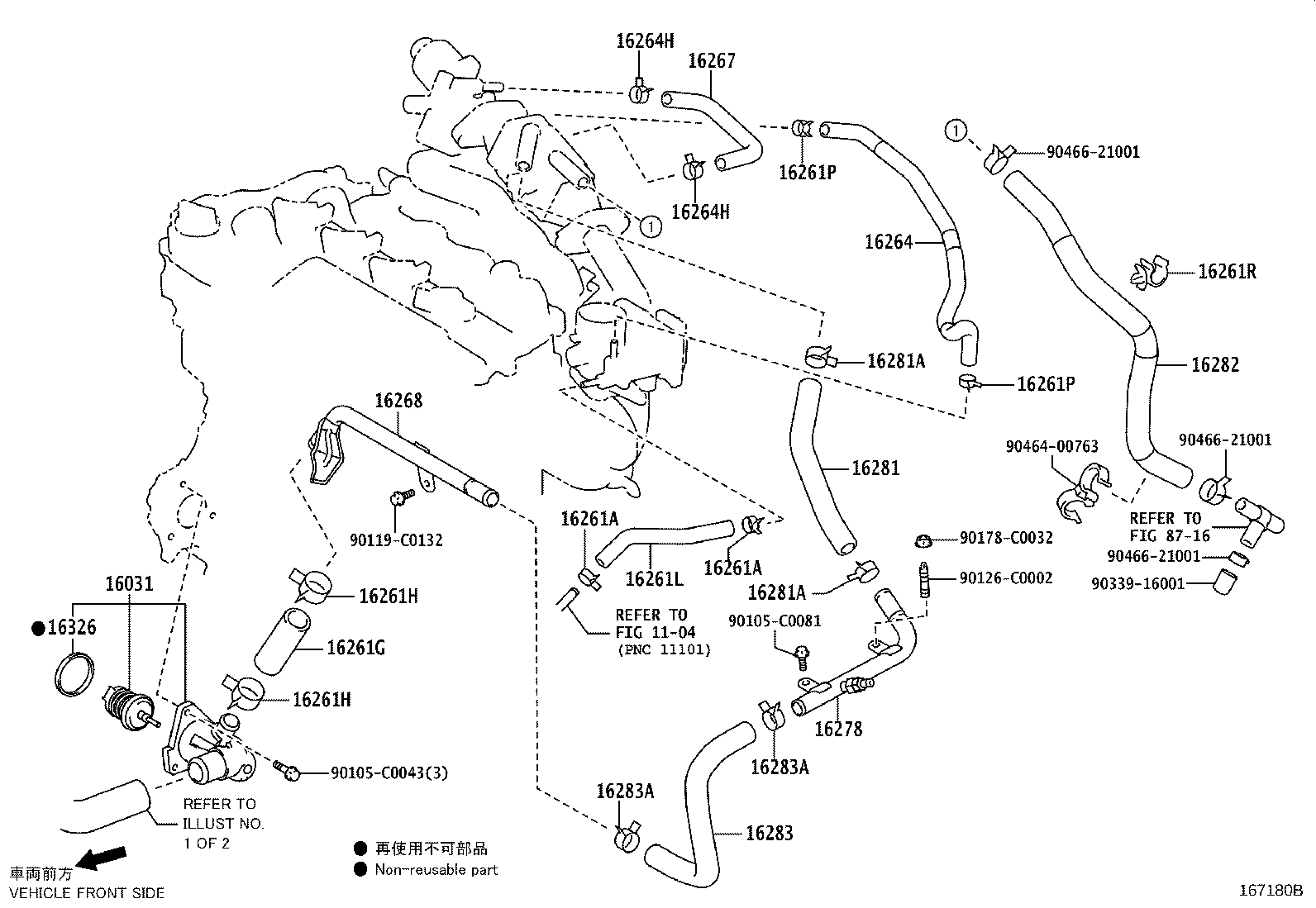

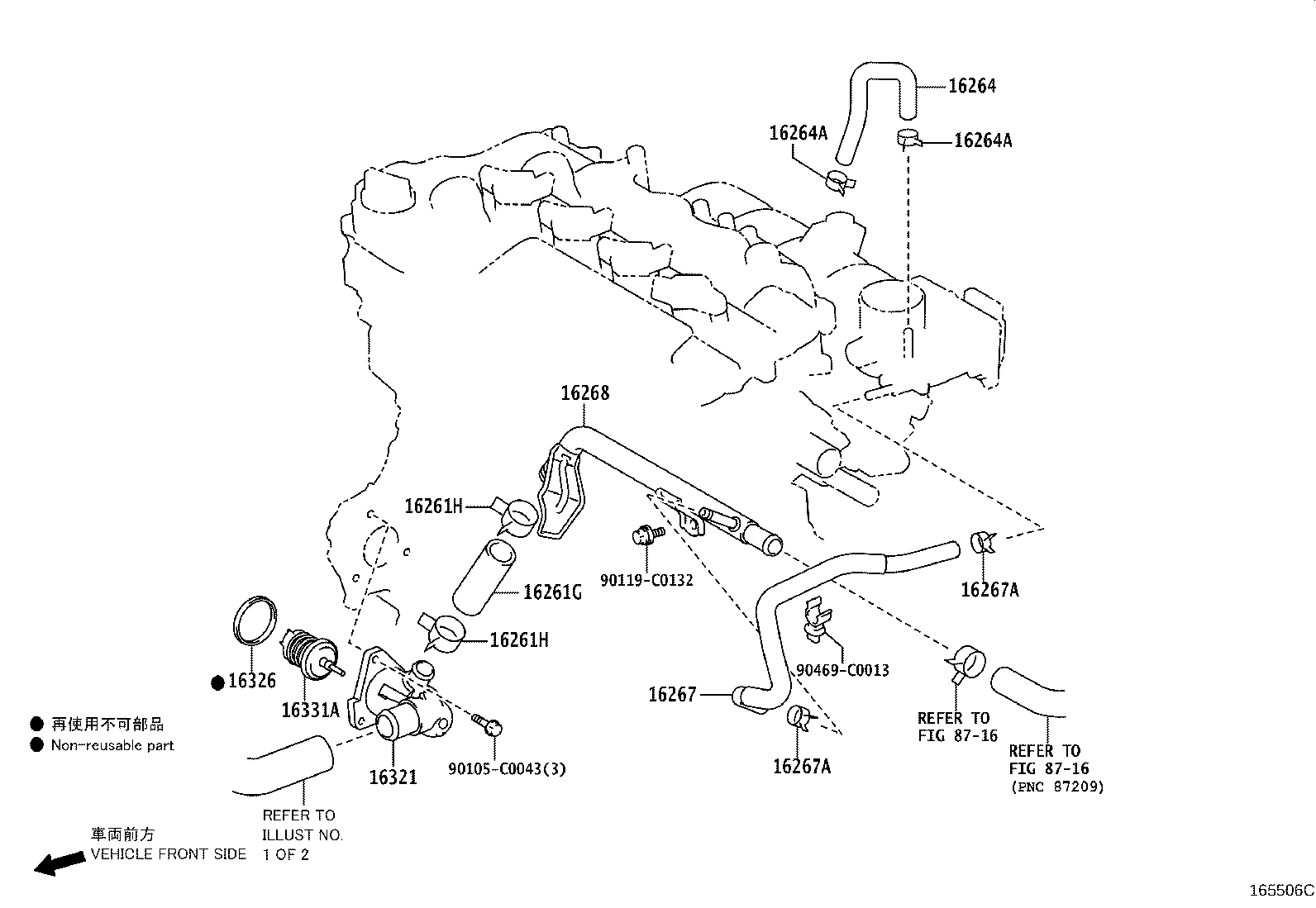

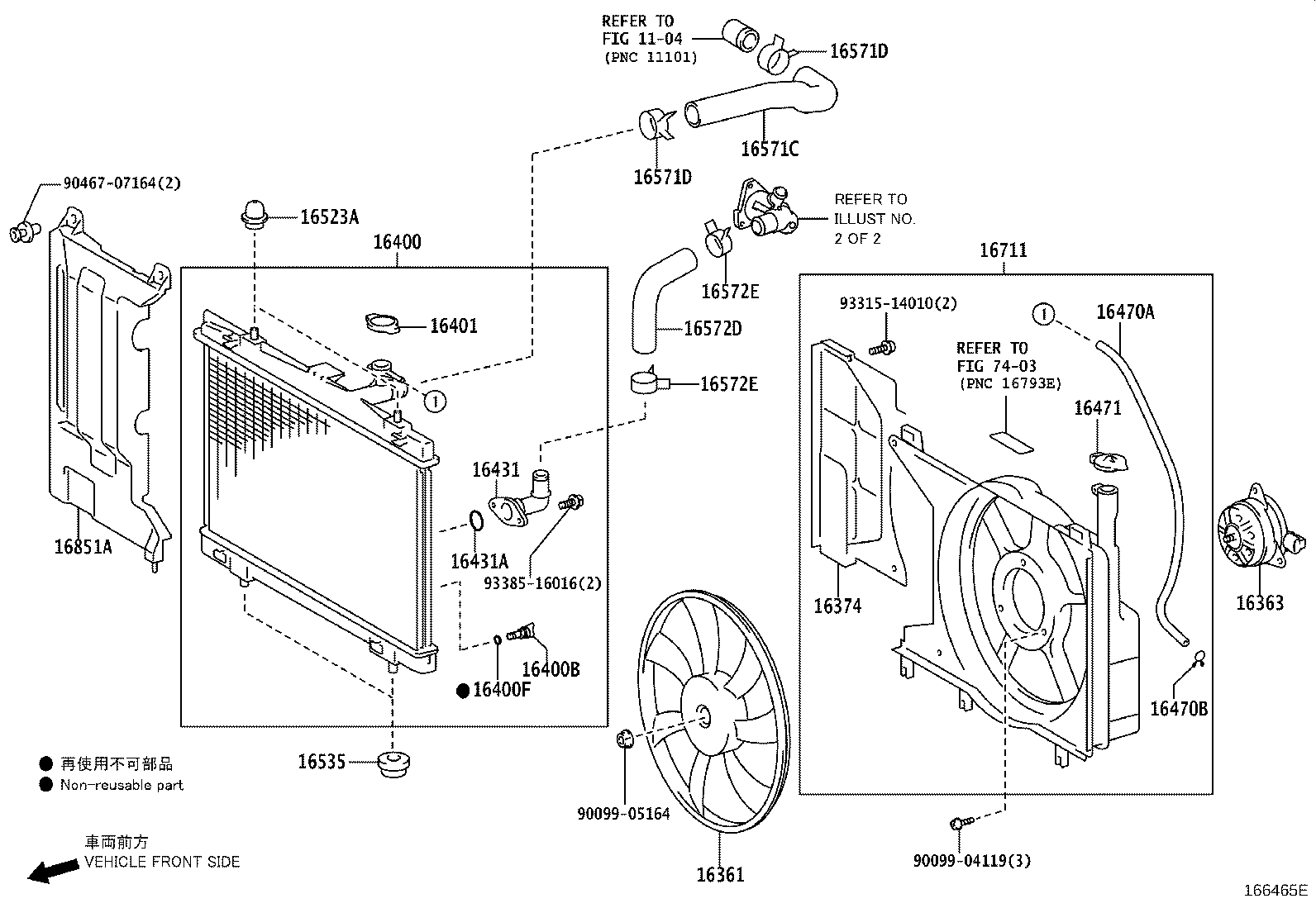

Figure 165505G 165505G 2013-12 → 2016-08 Figure 165549F 165549F 2013-12 → — Figure 166465E 166465E 2016-08 → — Figure 165506C 165506C 2013-12 → 2018-12 Figure 165506C 165506C 2018-12 → — Figure 167180B 167180B 2018-12 → — Figure 166466B 166466B 2016-08 → 2018-12 Figure 166466B 166466B 2018-12 → — Figure 167182A 167182A 2018-12 → —

Part groups

PNCDescription
16031 Water Inlet Sub-assy, W/Thermostat
16260 Hose Assy, Water By-pass
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261L Hose, Water By-pass
16261N Hose, Water By-pass, NO.2
16261P Clip(FOR WATER BY-PASS HOSE NO.2)
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264H Clip(FOR WATER BY-PASS HOSE NO.3)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16278 Pipe, Water By-pass, NO.2
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16321 Inlet, Water
16326 Gasket, Water Inlet Housing, NO.2
16331A Thermostat
16361 Fan
16363 Motor, Cooling Fan
16374 Insulator, Cooling Fan Motor
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16431 Inlet, Radiator Water
16431A Ring, O(FOR RADIATOR WATER INLET)
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16471 Cap Sub-assy, Reserve Tank
16523A Cushion, Radiator Support
16535 Support, Radiator, Lower
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16581 Clamp, Hose(FOR WATER HOSE)
16711 Shroud, Fan
16832 Seal, Fan Shroud
16851A Cover, Shroud Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
