Exhaust Pipe

5 part groups · 2 illustrations

Illustrations

Figure 178180B

178180B 2013-12 → 2016-08

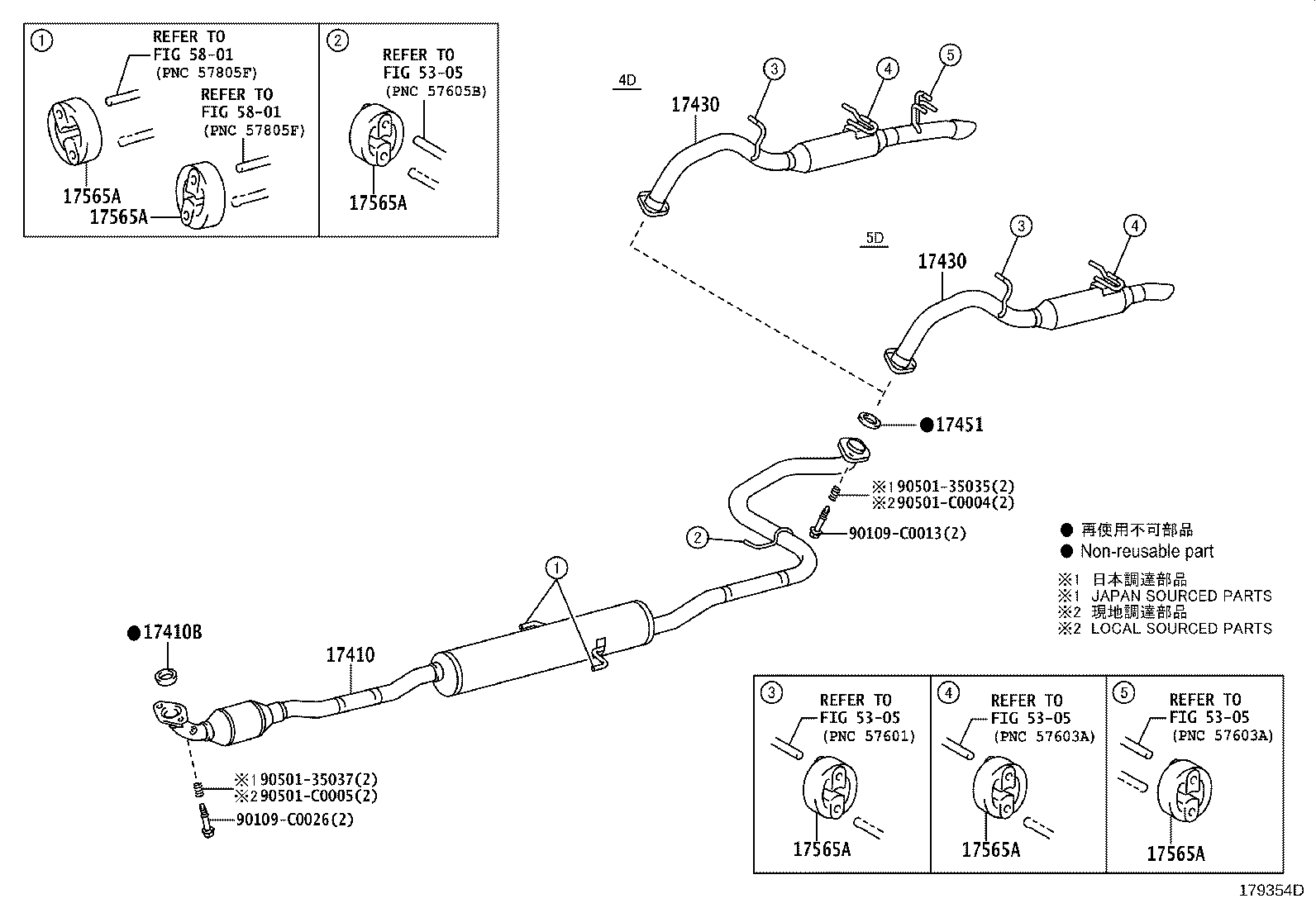

Figure 179354D

179354D 2016-08 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17410B	Gasket, Exhaust Pipe
17430	Pipe Assy, Exhaust, Tail
17451	Gasket, Exhaust Pipe
17565A	Support, Exhaust Pipe, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
