Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

11 part groups · 7 illustrations

Illustrations

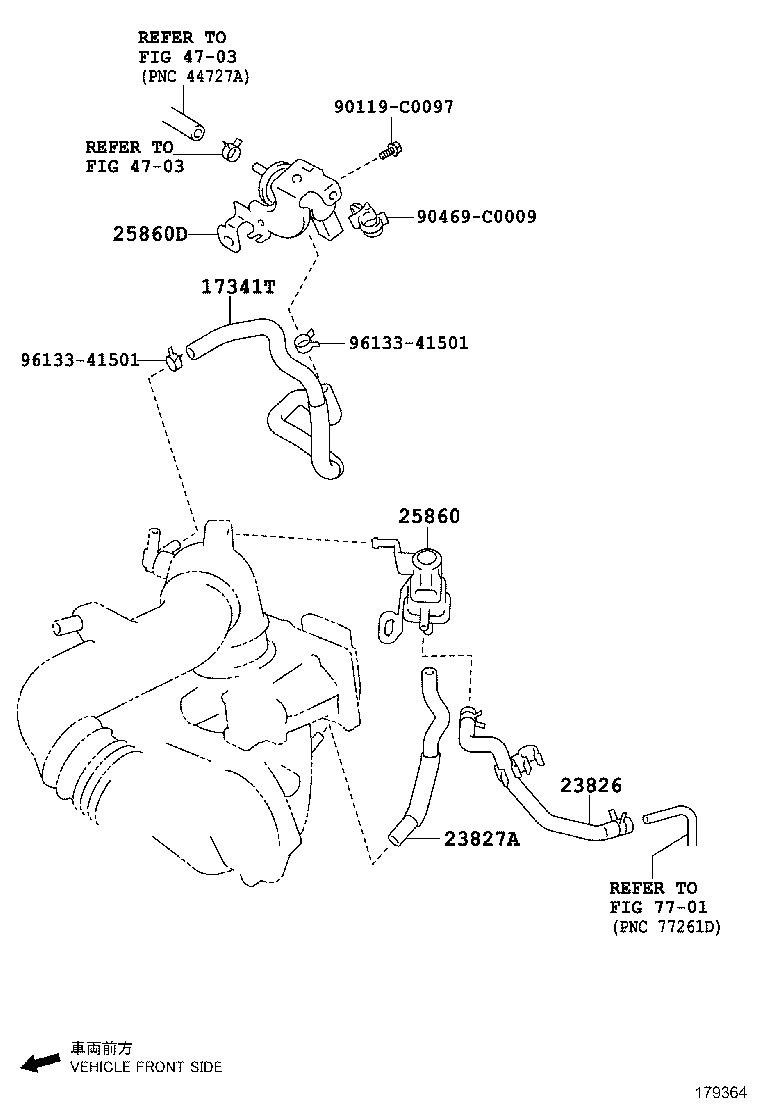

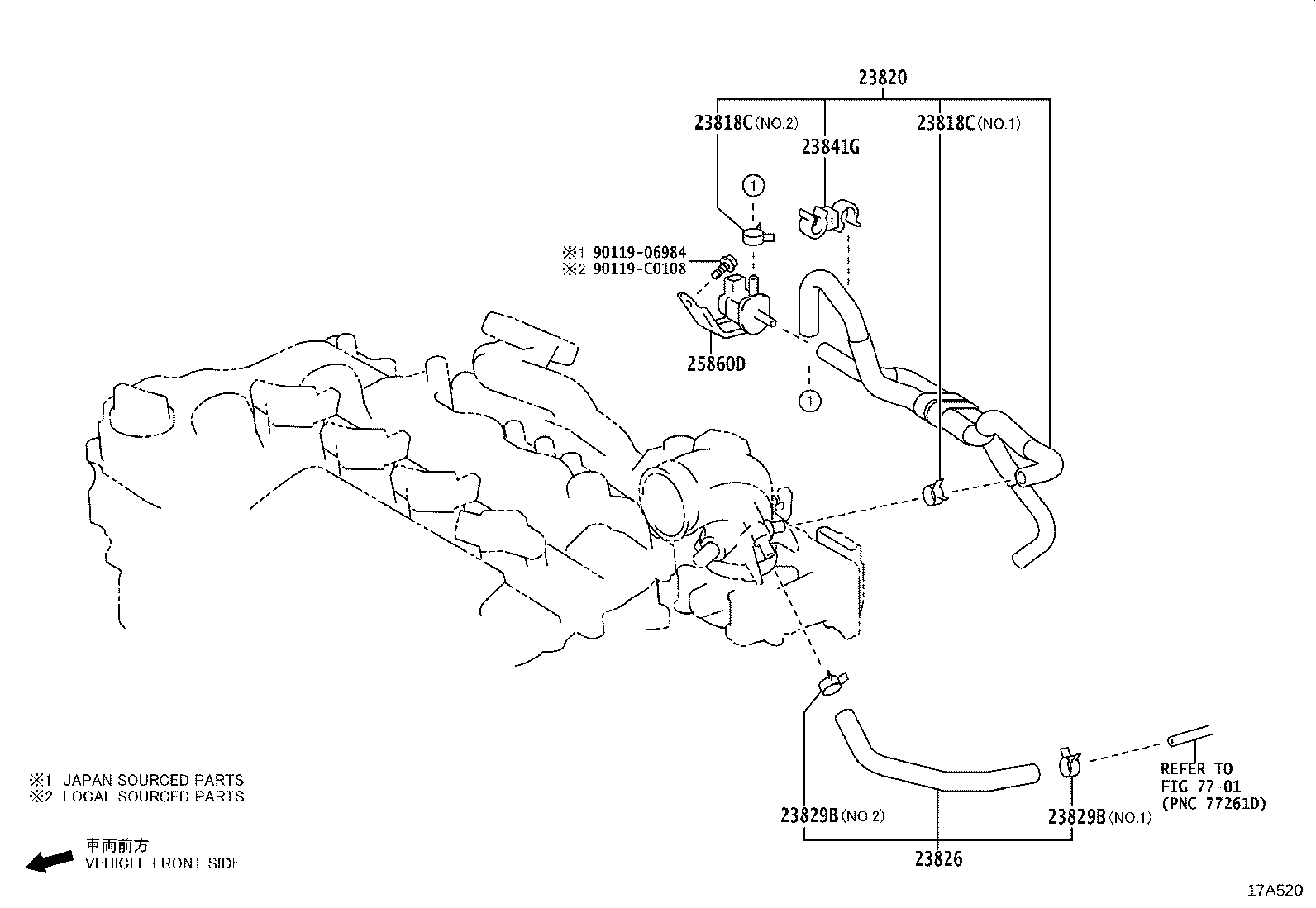

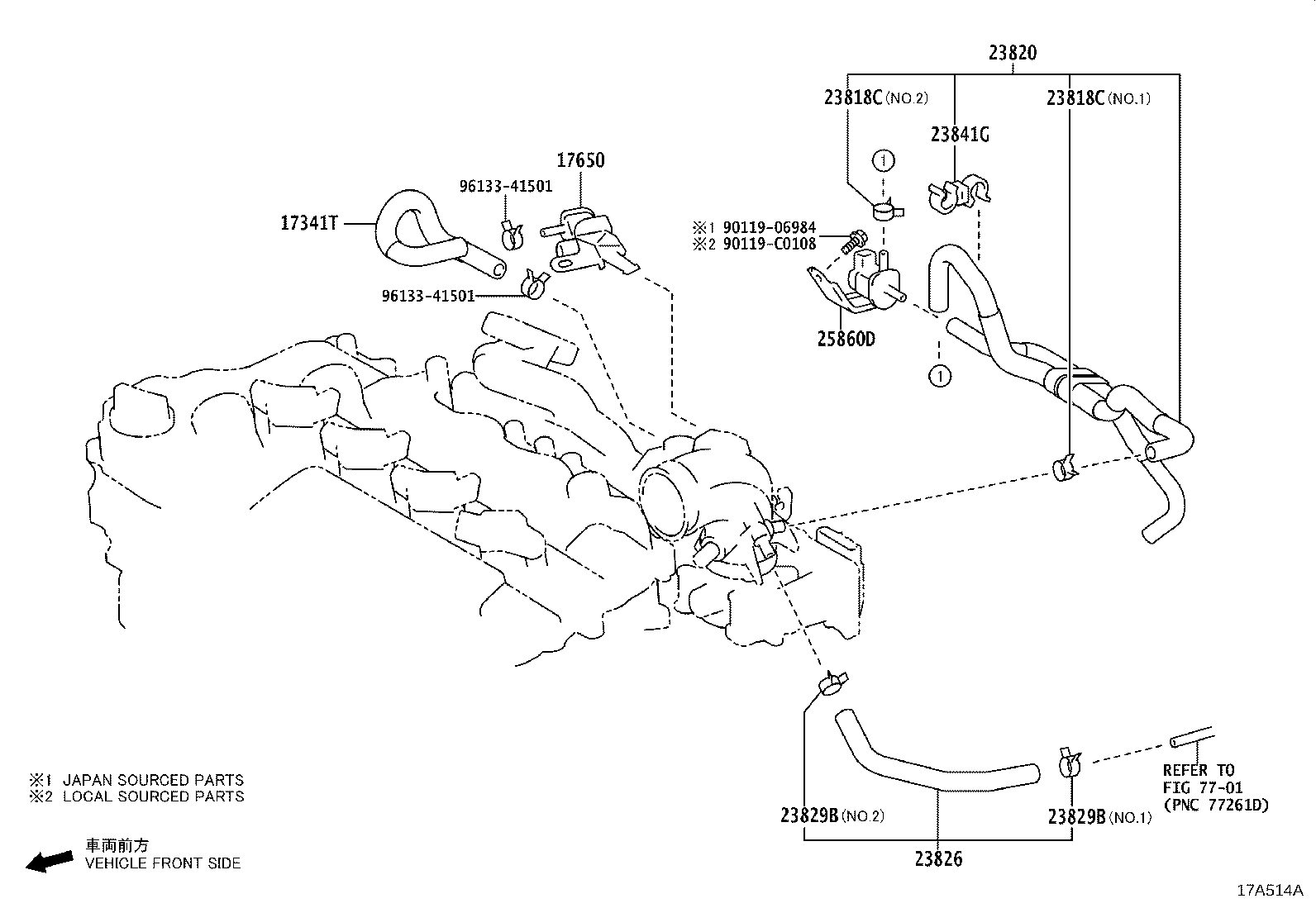

Figure 178185A 178185A 2013-12 → 2016-08 Figure 179363 179363 2016-08 → 2018-12 Figure 179363 179363 2018-12 → — Figure 17A520A 17A520A 2018-12 → — Figure 179364 179364 2016-08 → 2018-12 Figure 179364 179364 2018-12 → — Figure 17A514A 17A514A 2018-12 → —

Part groups

PNCDescription
17341T Hose, Air, NO.1
17650 Valve Assy, Vacuum Switching
23818C Clip(FOR FUEL VAPOR FEED HOSE)
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23841G Clamp, Fuel Hose
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
