Toyota Yaris (CHINA)
2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General
Supported model
Data version 2023-11

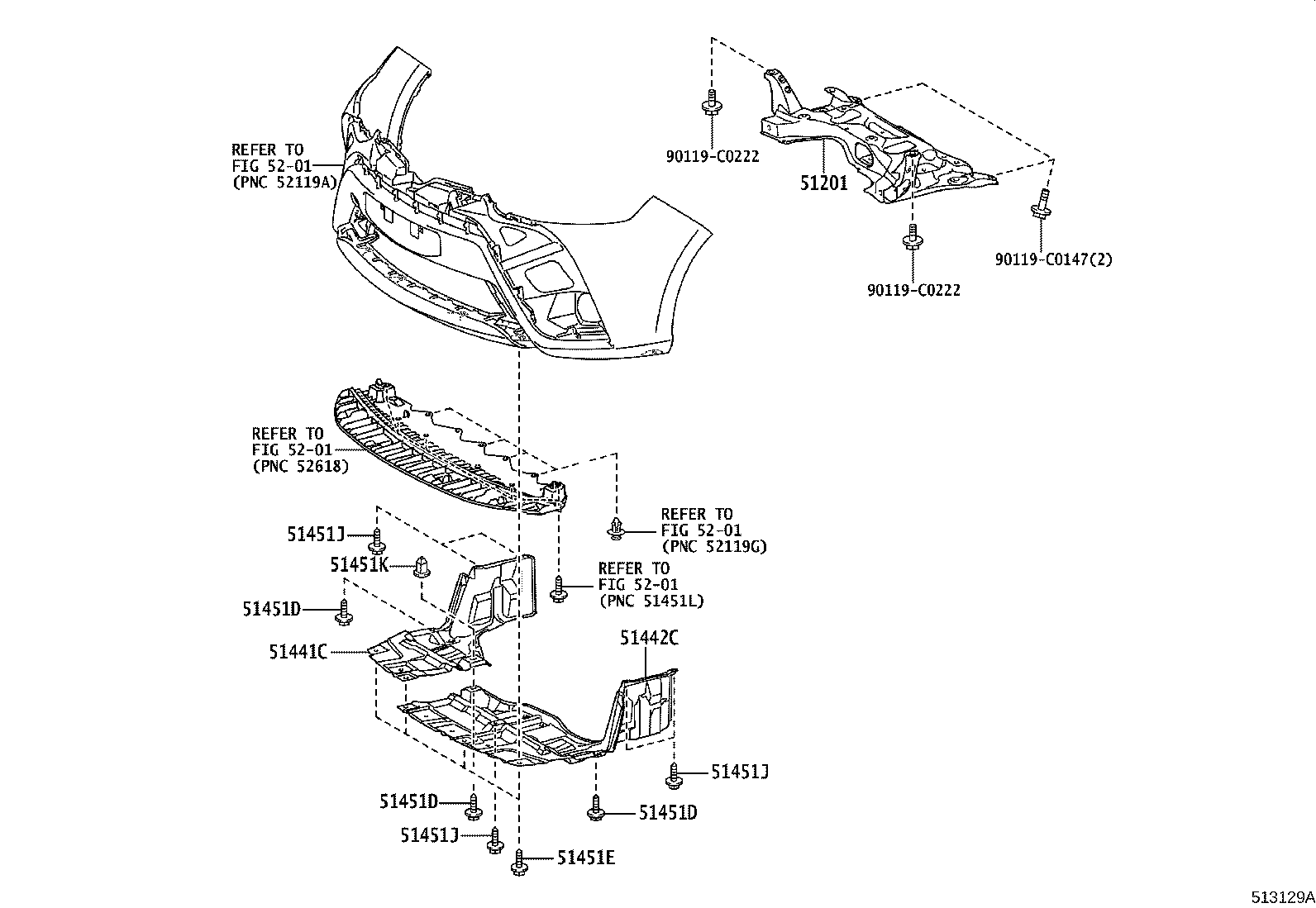

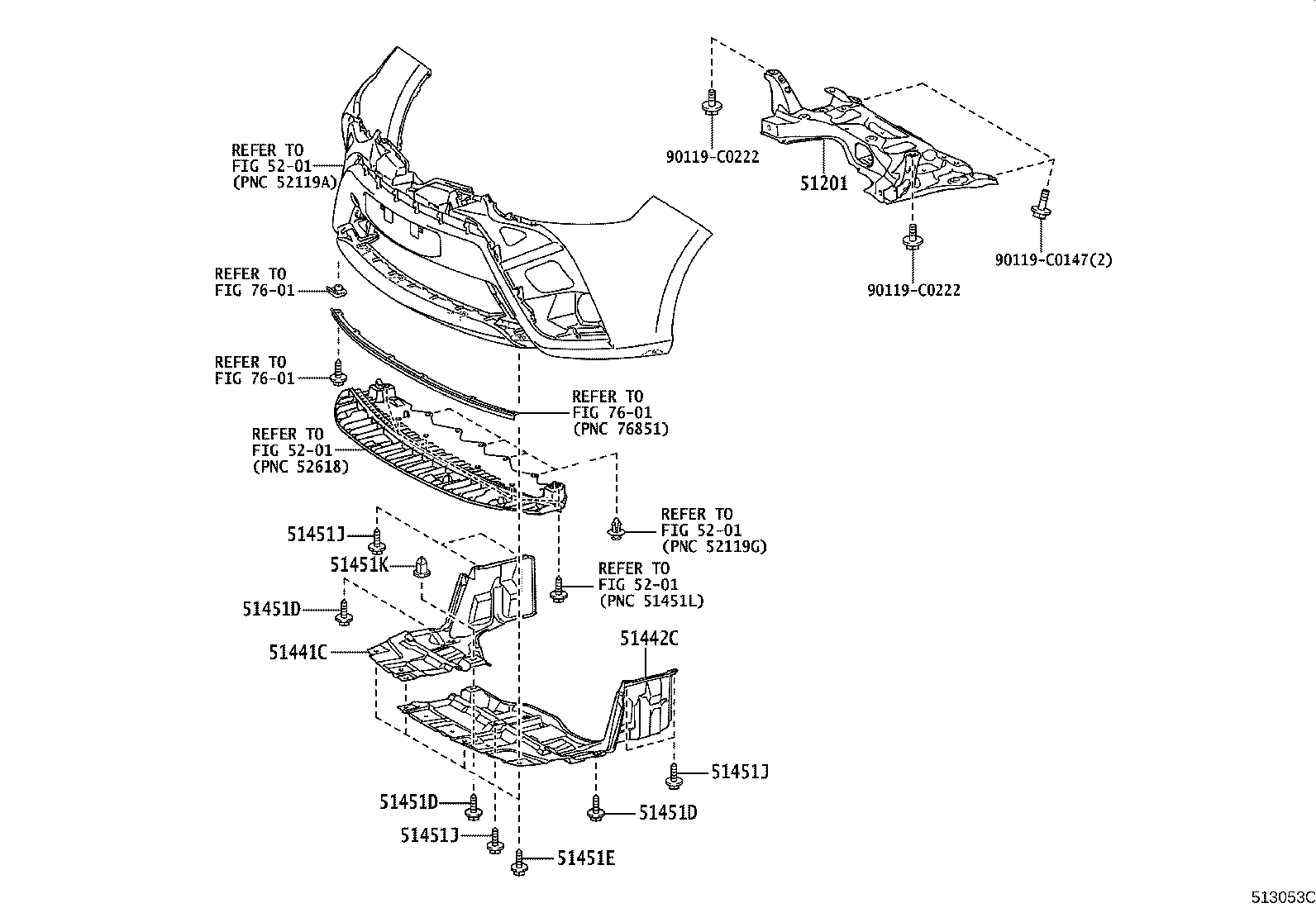

Suspension Crossmember & Under Cover
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51441C | Cover, Engine Under, RH |
| 51442C | Cover, Engine Under, LH |
| 51451D | Screw, NO.1 |
| 51451E | Screw, NO.2 |
| 51451J | Bolt, NO.1 |
| 51451K | Grommet, Screw, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
