Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

27 part groups · 10 illustrations

Illustrations

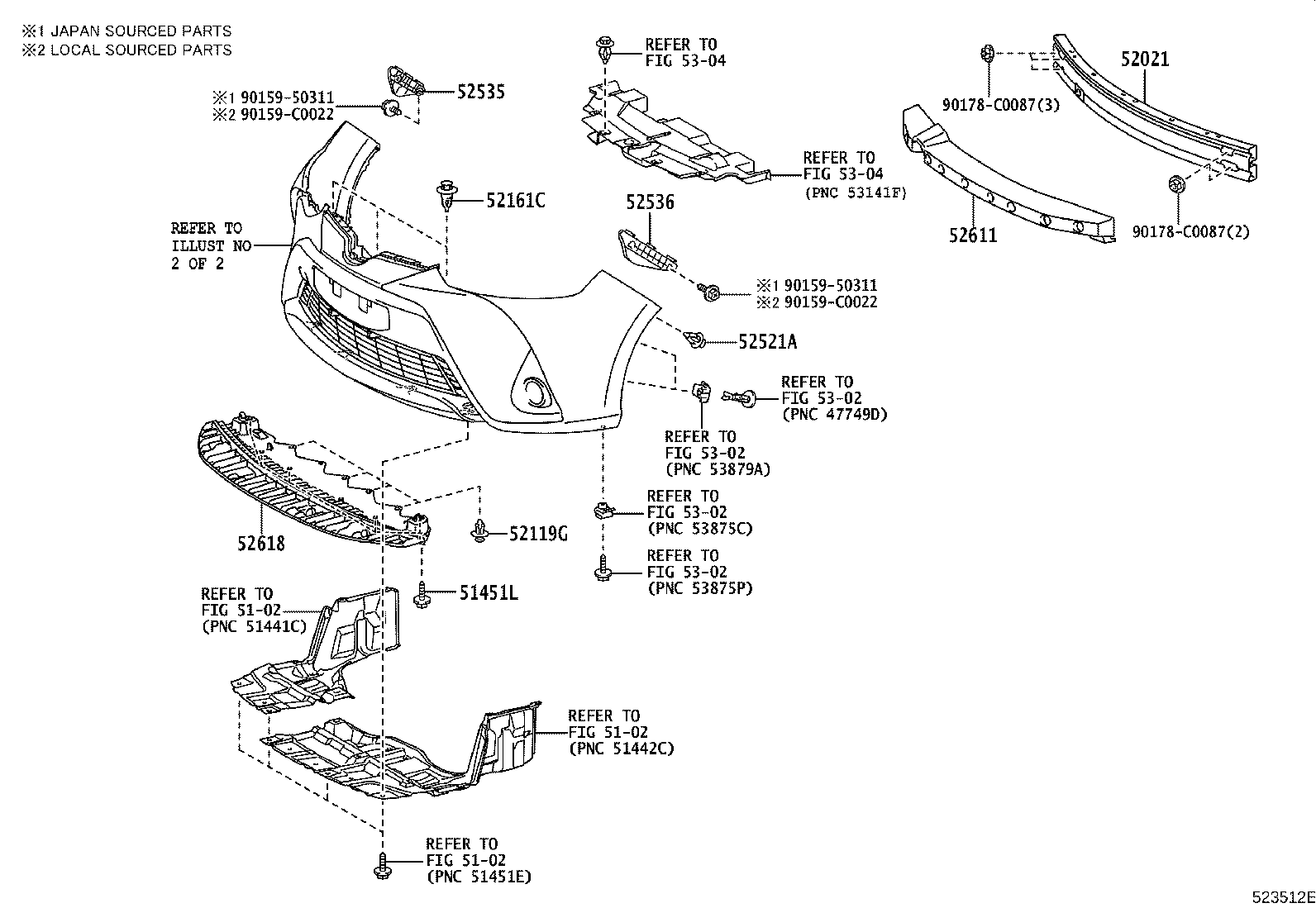

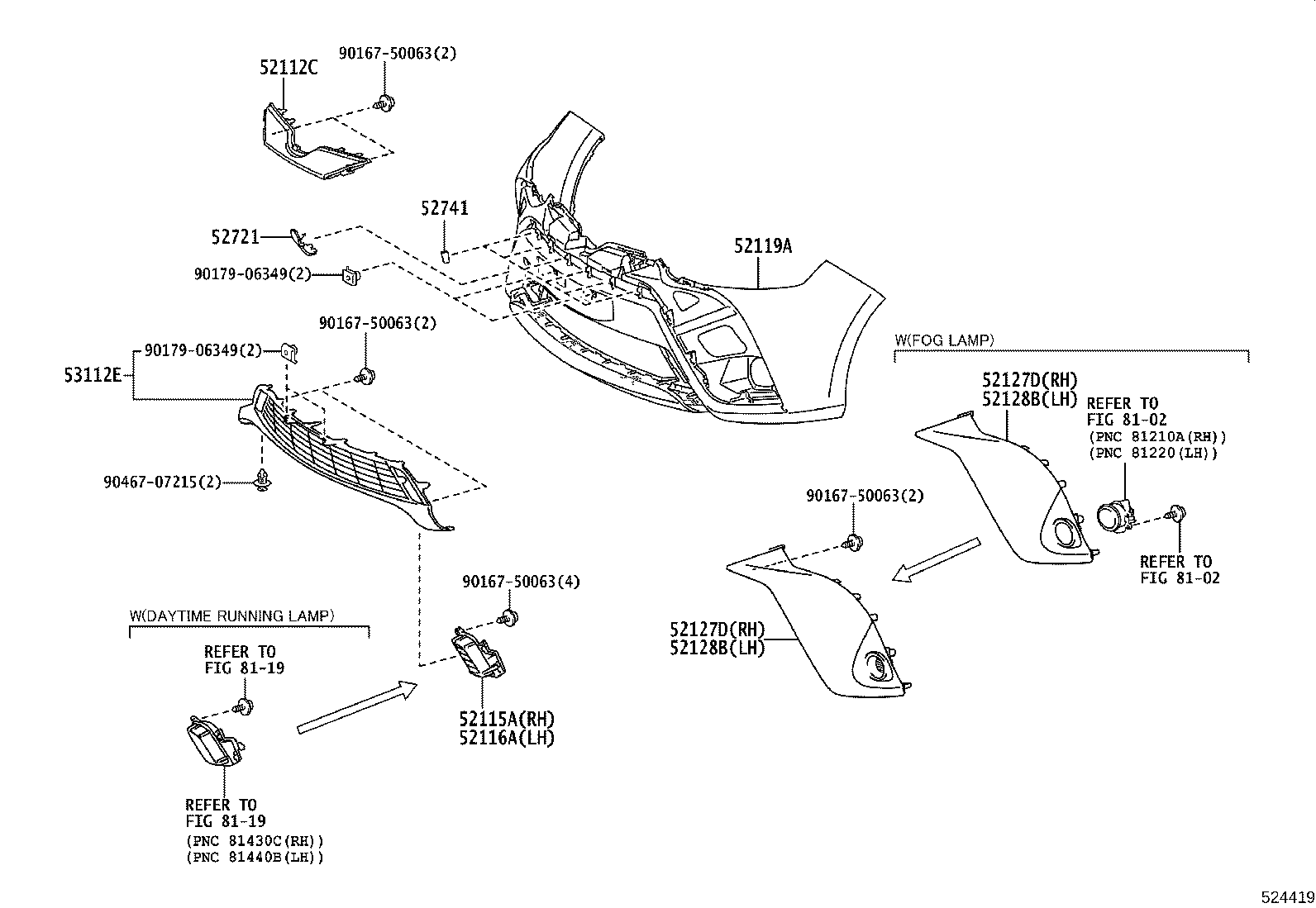

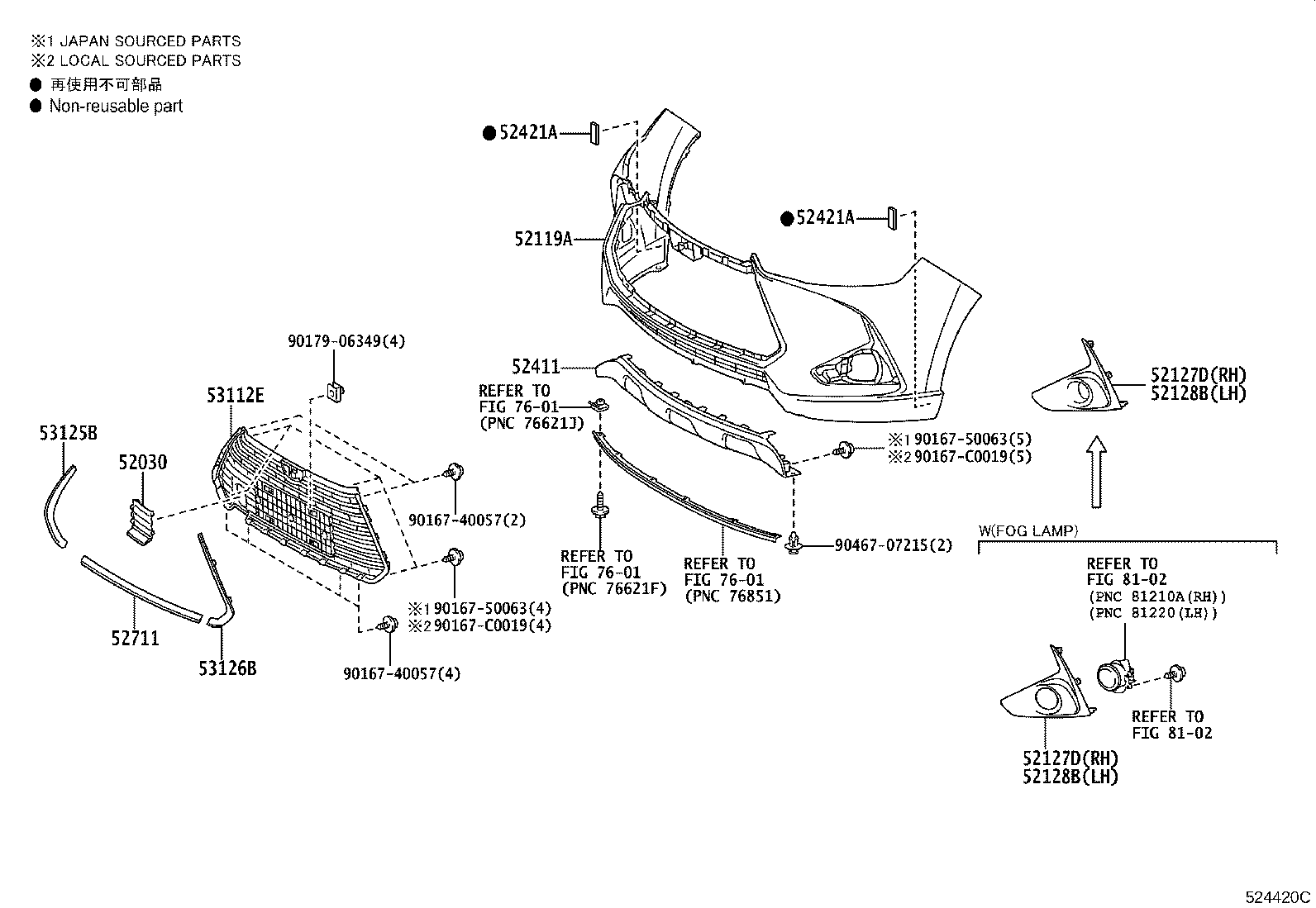

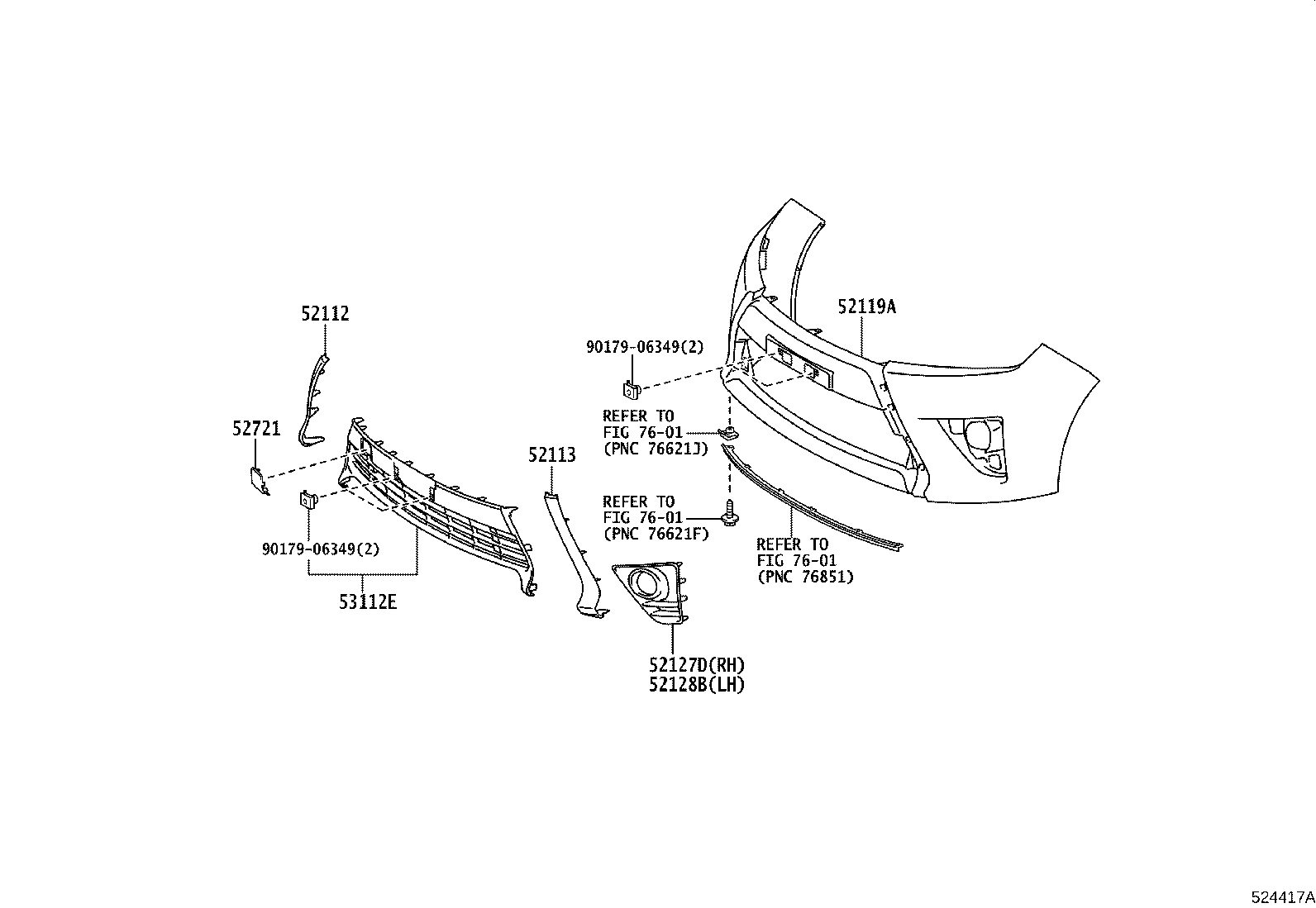

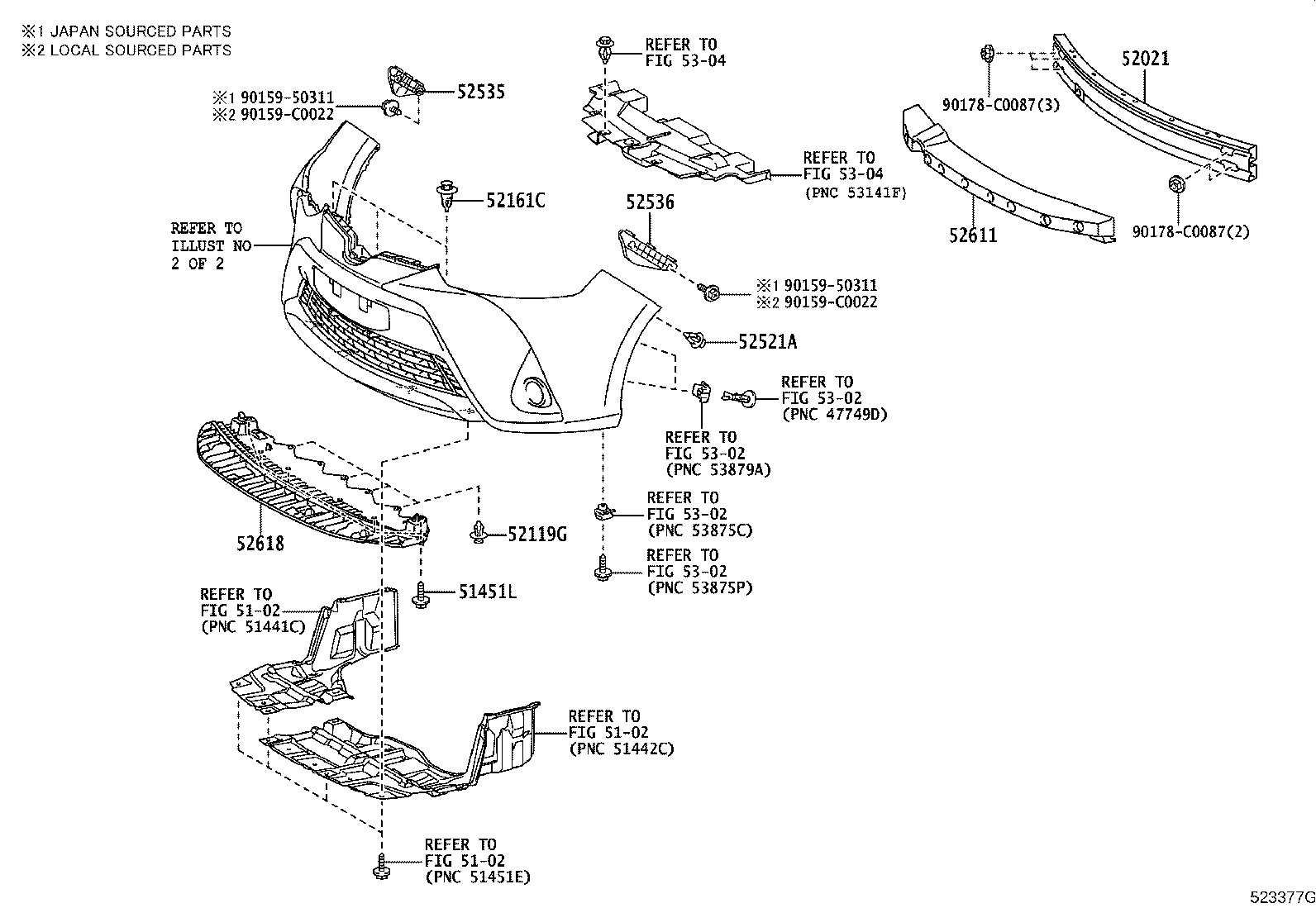

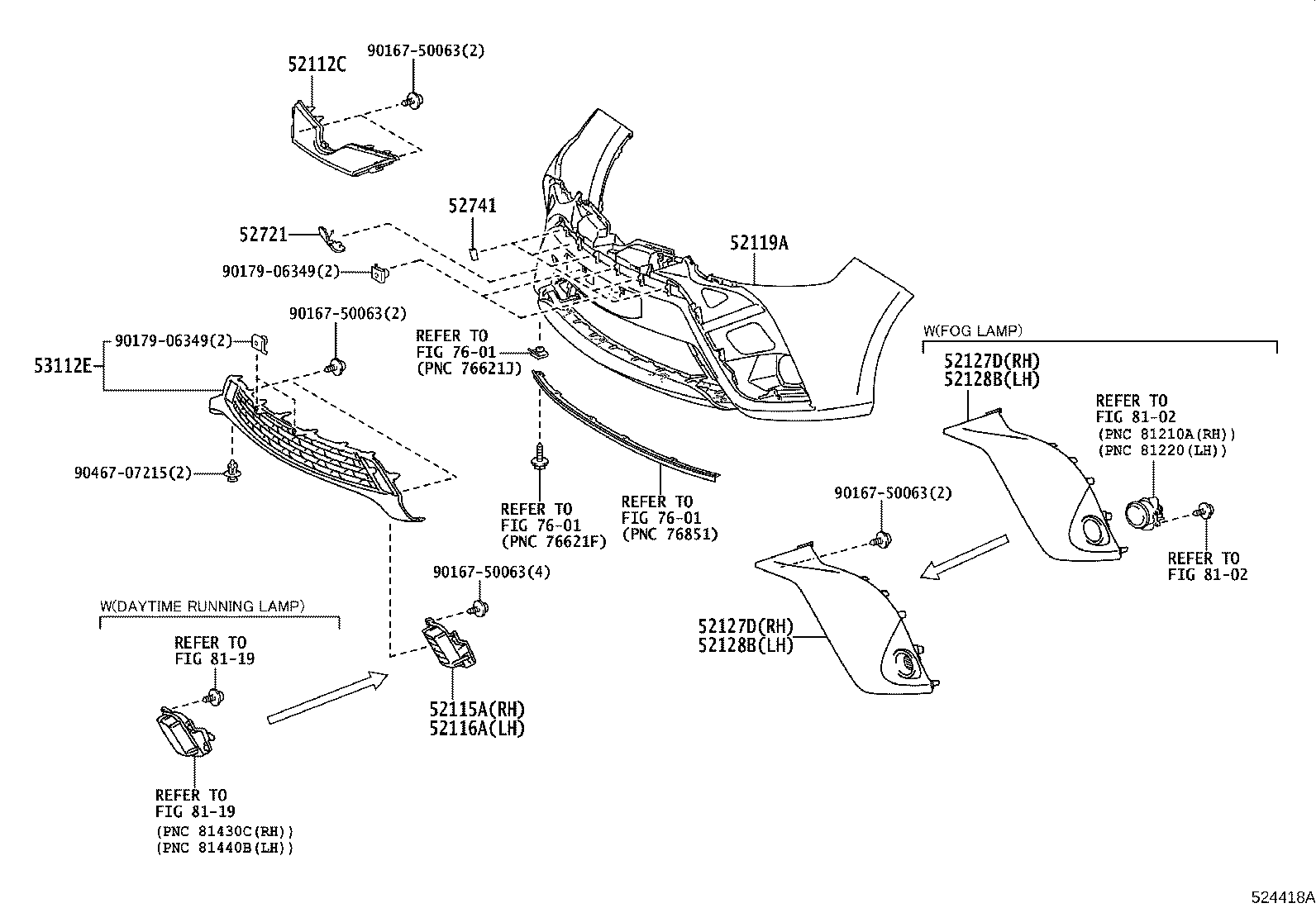

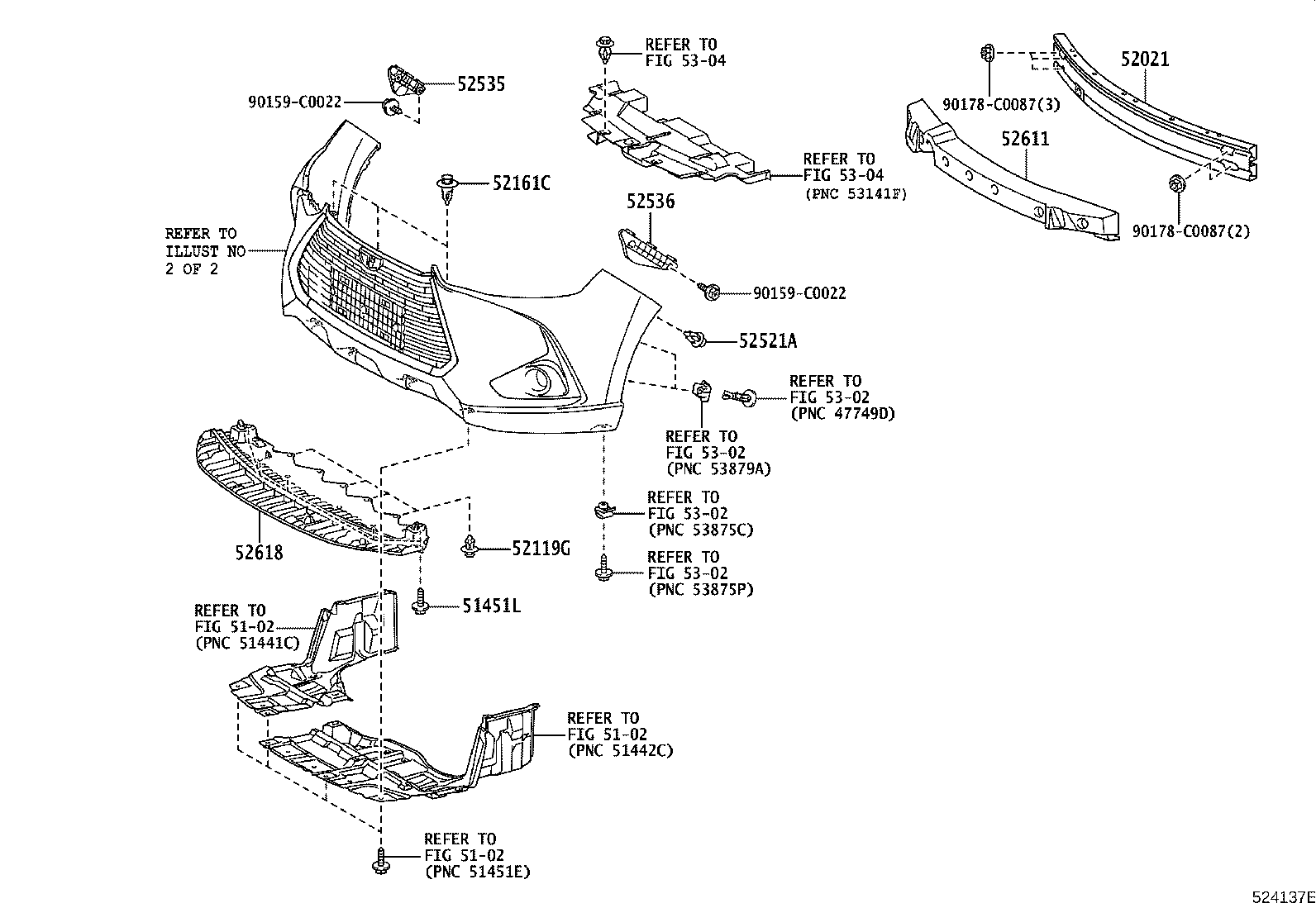

Figure 522890H 522890H 2013-12 → 2016-08 Figure 524417A 524417A 2013-12 → 2016-08 Figure 523377G 523377G 2016-08 → — Figure 524418A 524418A 2016-08 → — Figure 523512E 523512E 2017-03 → — Figure 524419 524419 2017-03 → — Figure 524137E 524137E 2019-10 → — Figure 524137E 524137E 2019-11 → — Figure 524420C 524420C 2019-10 → — Figure 524420C 524420C 2019-11 → —

Part groups

PNCDescription
51451F Grommet, NO.1
51451L Bolt, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52030 Cover Assy, Front Bumper Hole, RH
52112 Bar, Front Bumper, RH
52112C Extension, Front Bumper
52113 Bar, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119G Clip, NO.1
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52411 Guard, Front Bumper
52421A Pad, Front Bumper
52521A Clip(FOR FRONT BUMPER RETAINER)
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52711 Moulding, Front Bumper
52721 Moulding, Front Bumper Extension, RH
52741 Garnish, Front Bumper Bar, NO.1
53112E Grille, Radiator, Lower NO.1
53125B Moulding, Radiator Grille, Center RH
53126B Moulding, Radiator Grille, Center LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
