Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

24 part groups · 6 illustrations

Illustrations

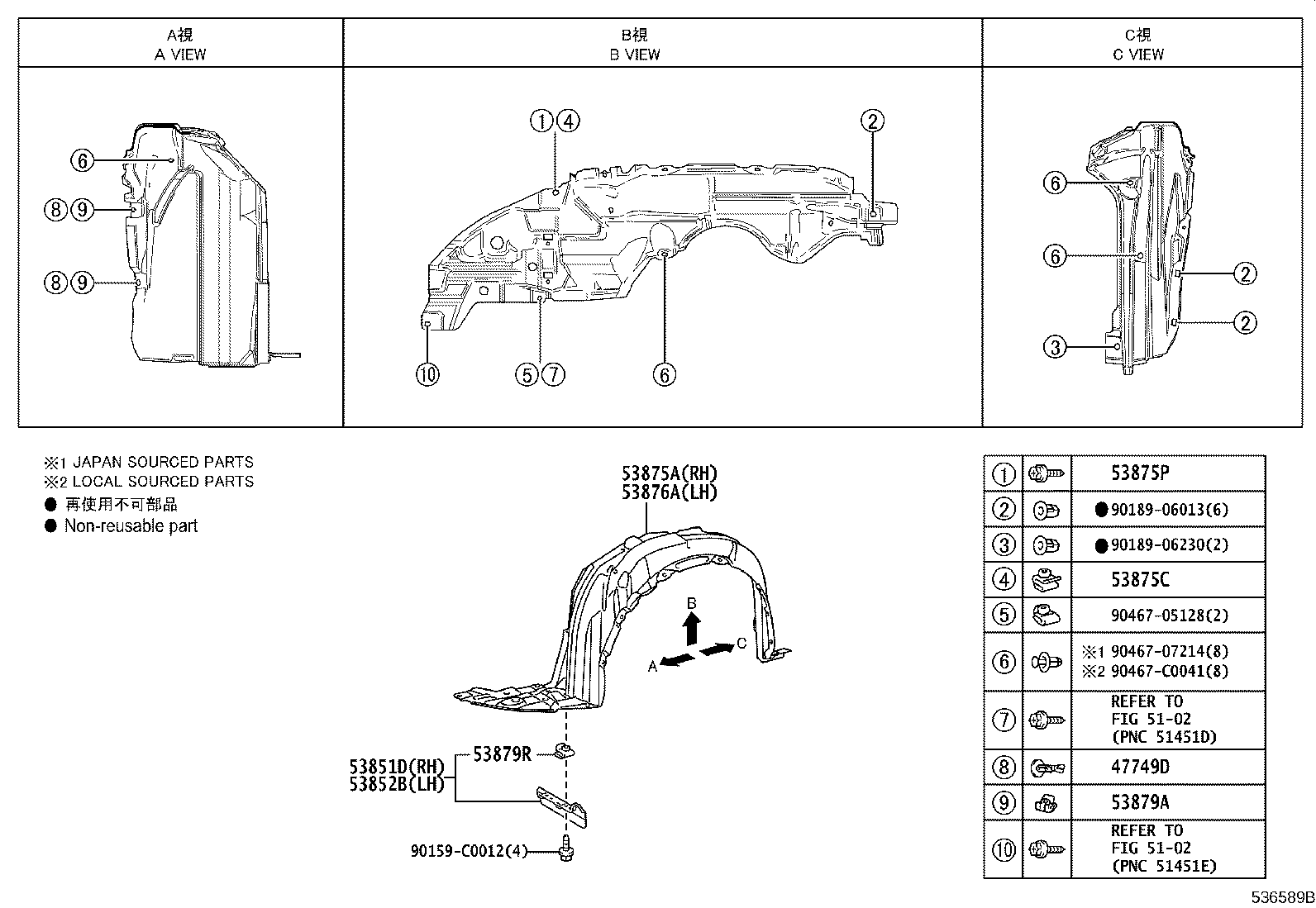

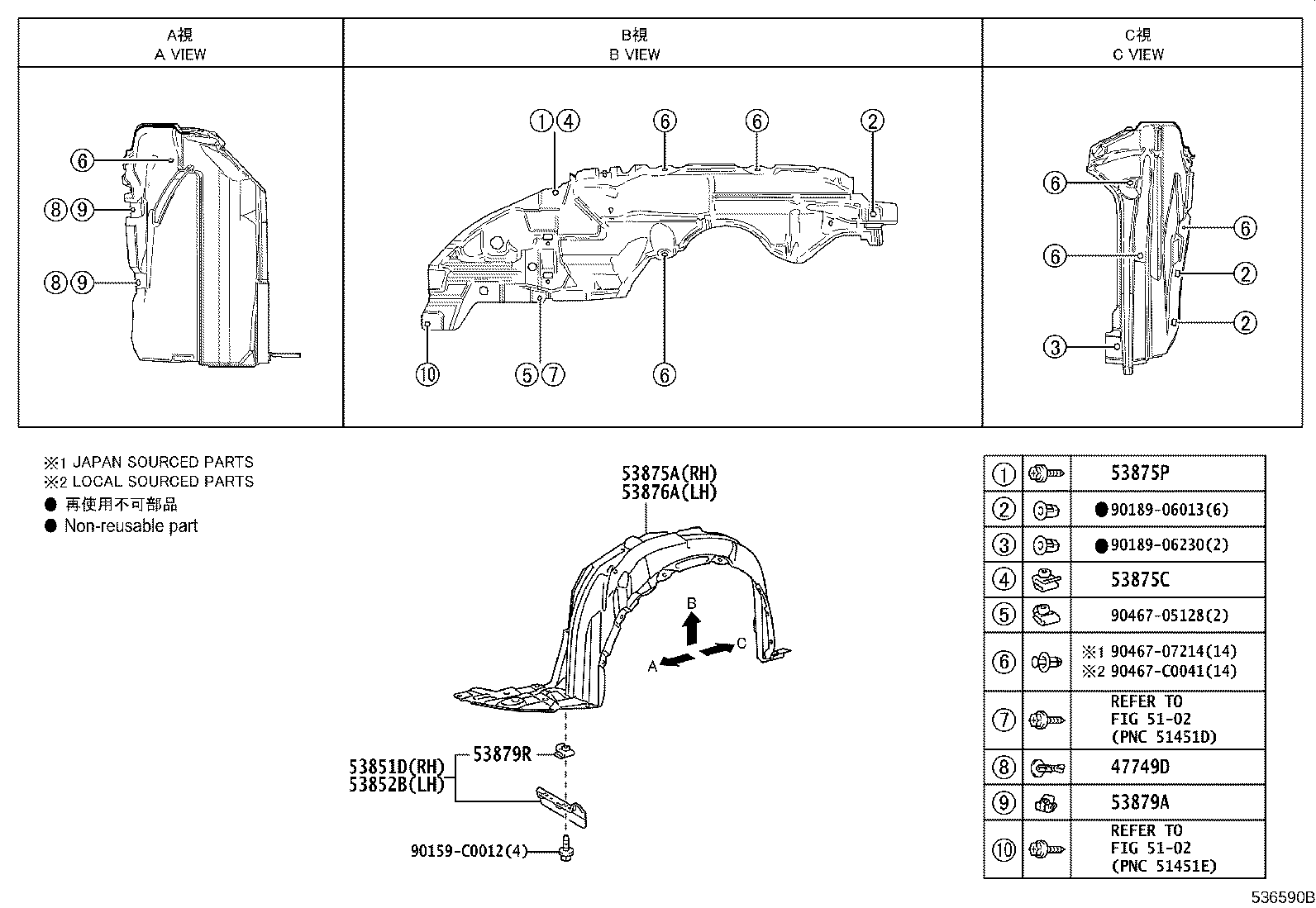

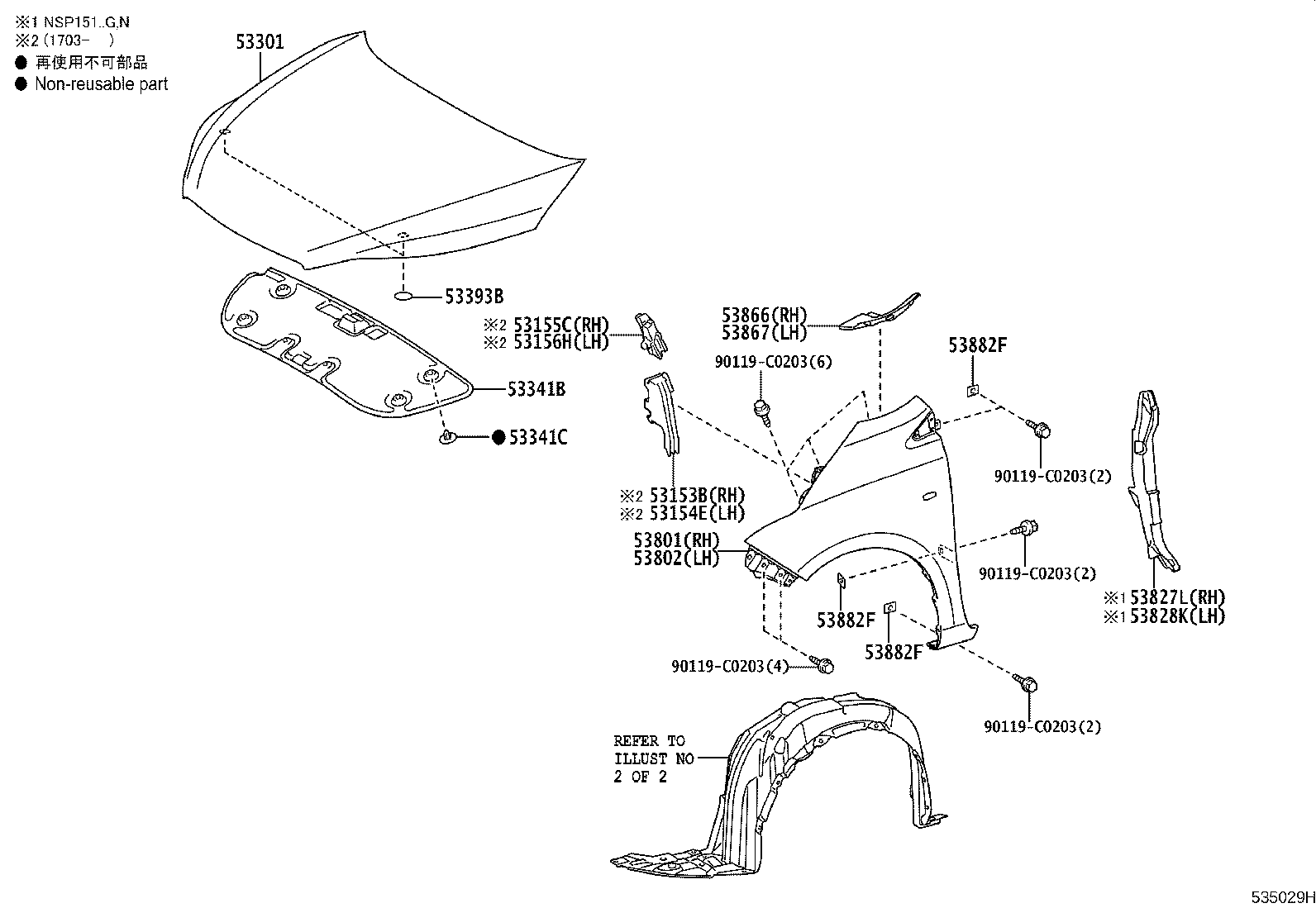

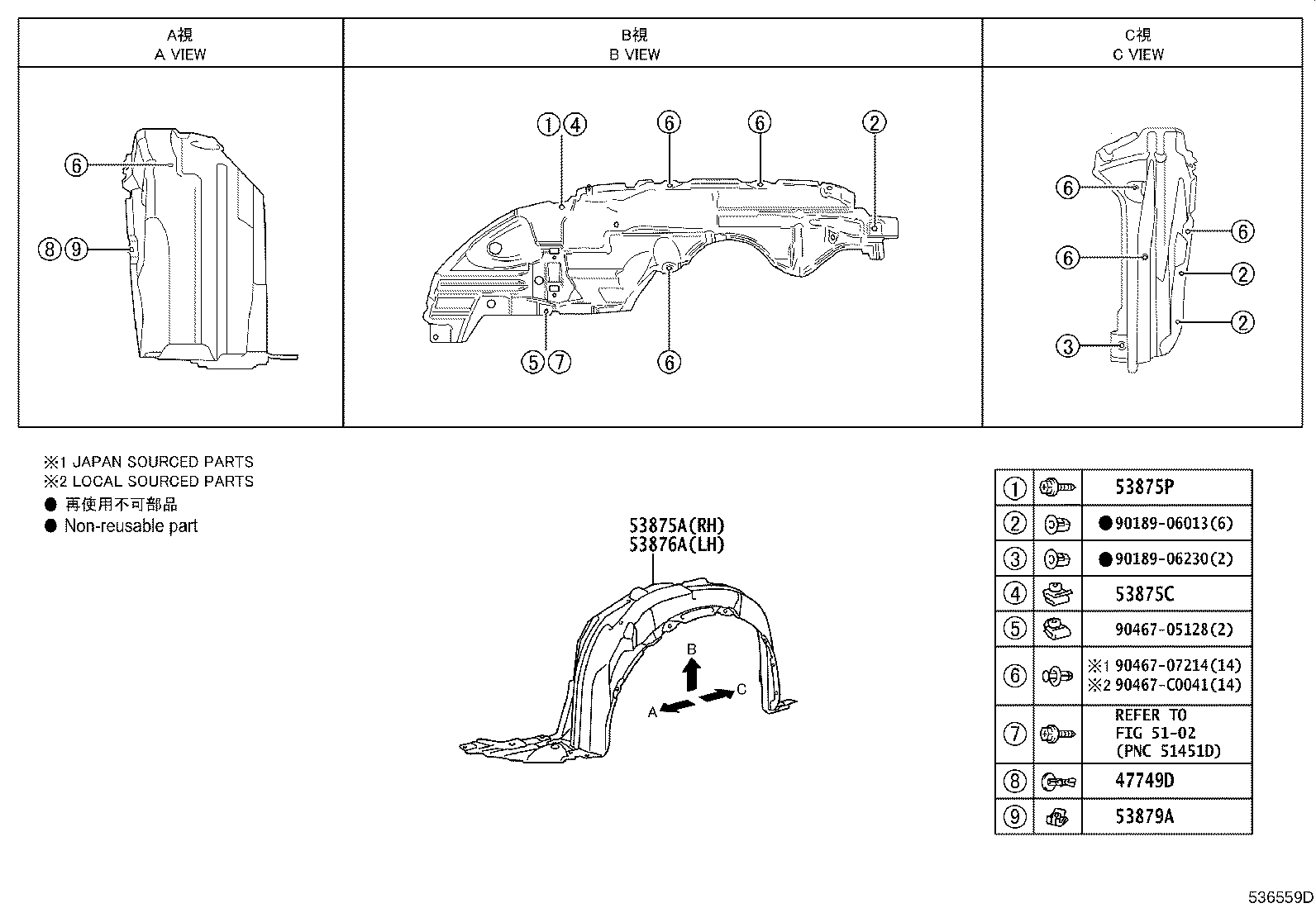

Figure 534108C 534108C 2013-12 → 2016-08 Figure 536559D 536559D 2013-12 → 2016-08 Figure 535029H 535029H 2016-08 → — Figure 536590B 536590B 2016-08 → — Figure 536589B 536589B 2019-10 → — Figure 536589B 536589B 2019-11 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
53153B Guide, Front Side Air
53154E Guide, Front Side Air, NO.2
53155C Seal, Radiator Grille, NO.1
53156H Seal, Radiator Grille, NO.2
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53393B Protector, Hood, Front
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53879R Retainer, Front Fender Liner
53882F Seal, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
