Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 3 illustrations

Illustrations

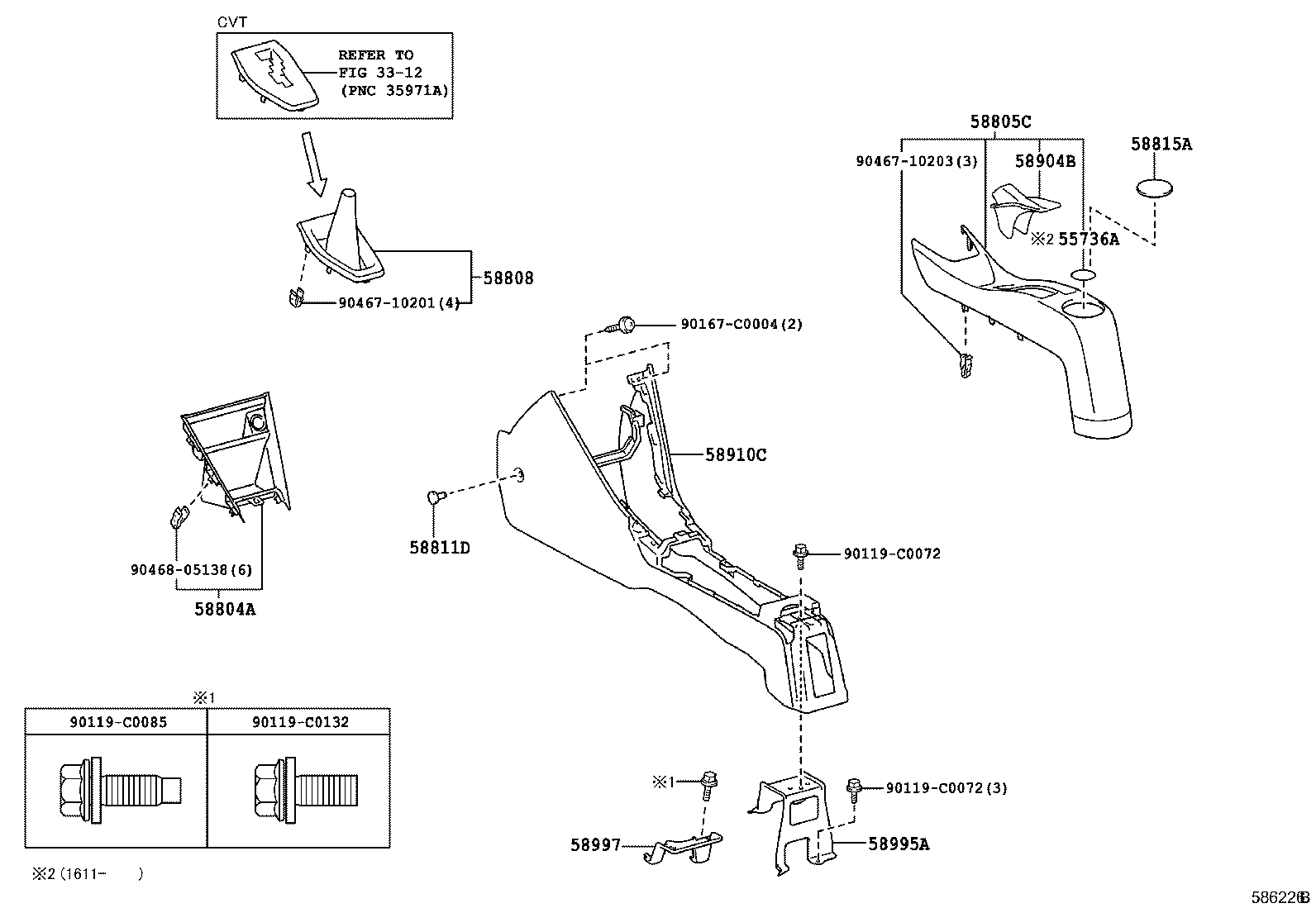

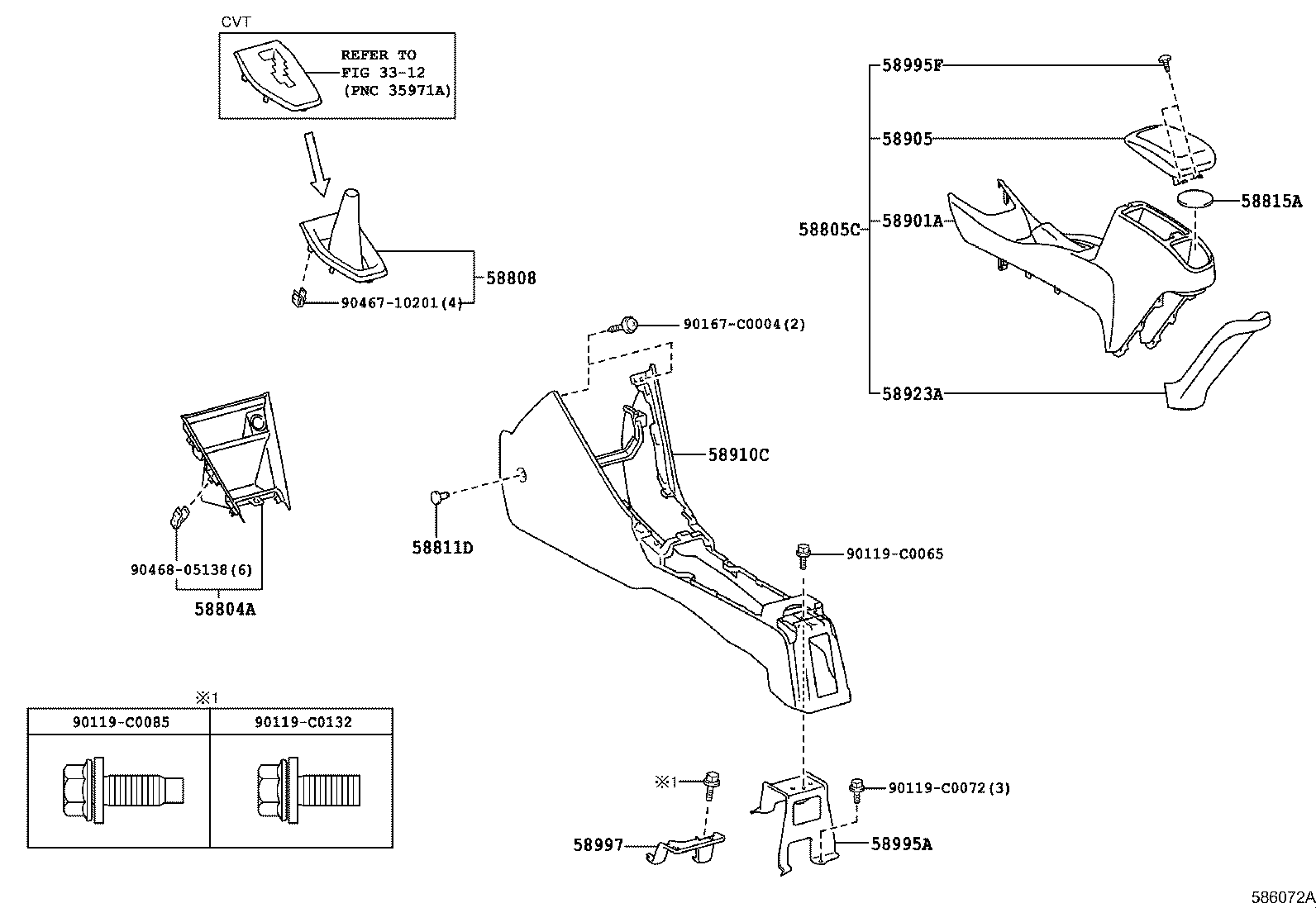

Figure 584989B 584989B 2013-12 → 2016-08 Figure 586226B 586226B 2016-08 → — Figure 586072A 586072A 2016-08 → —

Part groups

PNCDescription
55736A Seal, Water Guard Plate
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58811D Clip(FOR CONSOLE BOX)
58815A Carpet, Console Box
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58901A Box Sub-assy, Console, Rear
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58910C Box Assy, Console, Rear
58923A Panel, Console Rear End
58995A Bracket, Console Box Mounting, NO.1
58995F Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
