Toyota Yaris (CHINA)
2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General
Supported model
Data version 2023-11
Roof Panel & Back Window Glass
36 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116D | Stopper, Back Window Glass, NO.2 |

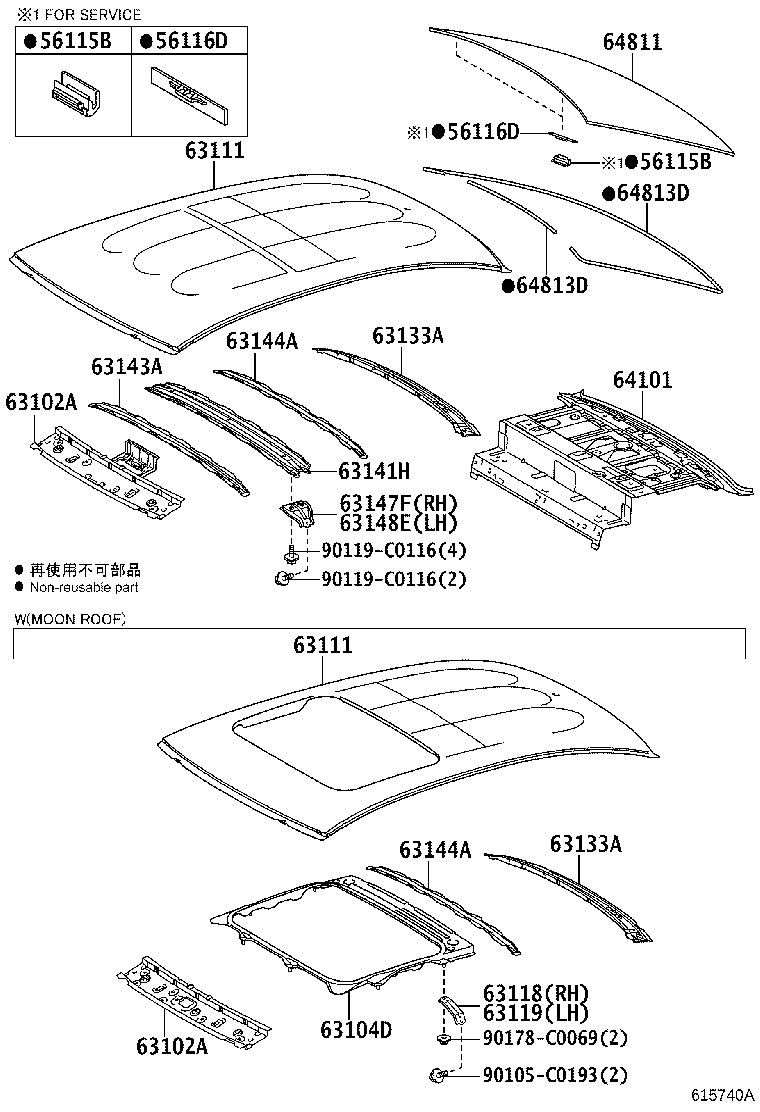

| 63102A | Panel Sub-assy, Windshield Header |
| 63104D | Reinforcement Sub-assy, Roof Panel, NO.2 |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63133A | Frame, Back Window, Upper |
| 63141H | Reinforcement, Roof Panel, Center |
| 63143A | Reinforcement, Roof Panel |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63145D | Bracket, Roof Reinforcement |
| 63147F | Bracket, Roof Panel Reinforcement, RH |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63148E | Bracket, Roof Panel Reinforcement, LH |

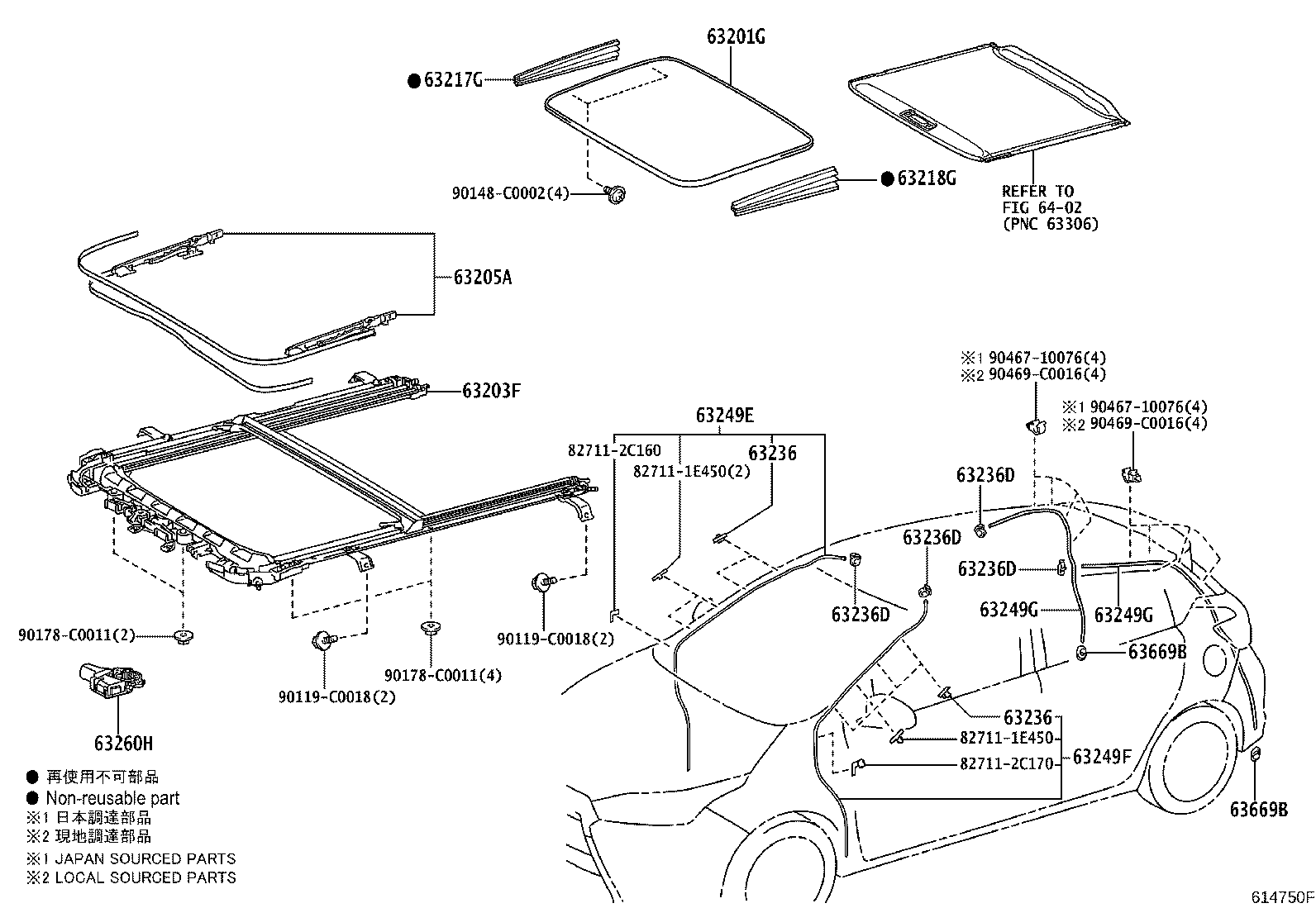

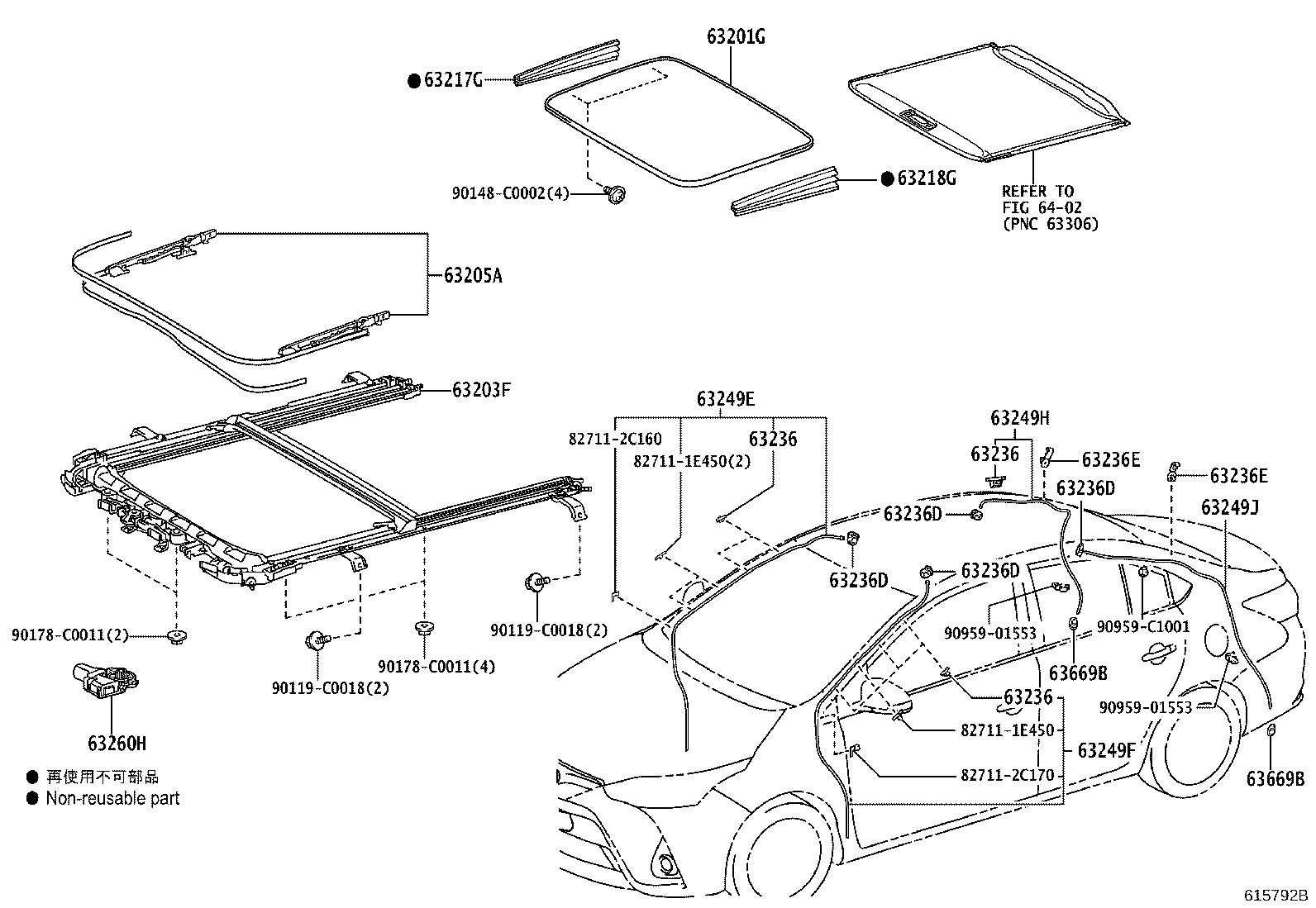

| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63236E | Clamp, Sliding Roof Drain Hose |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63249G | Hose, Sliding Roof Drain |
| 63249H | Hose, Sliding Roof Drain |
| 63249J | Hose, Sliding Roof Drain |
| 63260H | Gear Assy, Sliding Roof Drive |

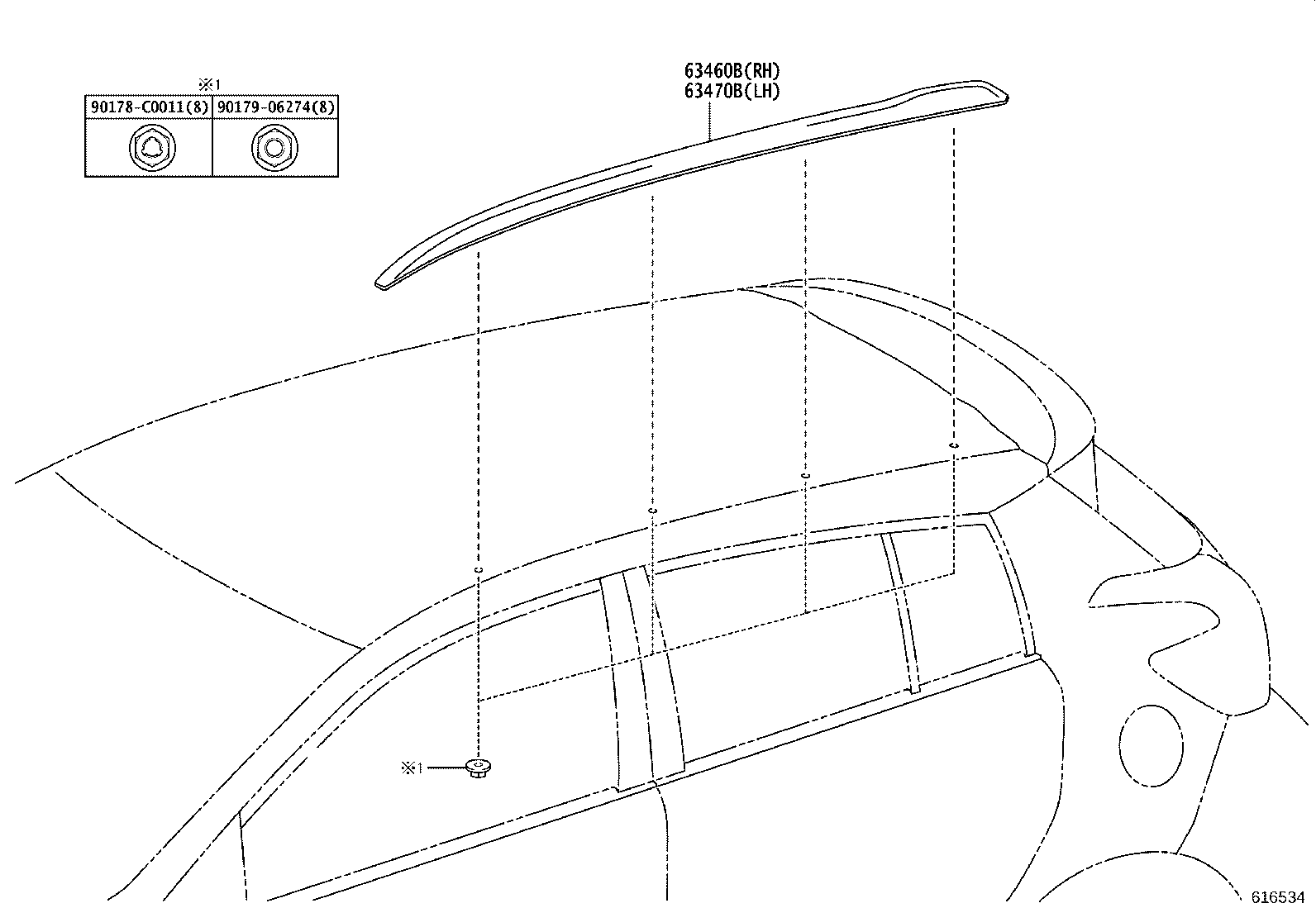

| 63460B | Rack Assy, Roof, RH |
| 63470B | Rack Assy, Roof, LH |
| 63669B | Grommet, Sliding Roof Drain |
| 64101 | Panel Sub-assy, Upper Back |
| 64811 | Glass, Back Window |
| 64813D | Dam, Back Window Glass Adhesive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
