Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

9 part groups · 4 illustrations

Illustrations

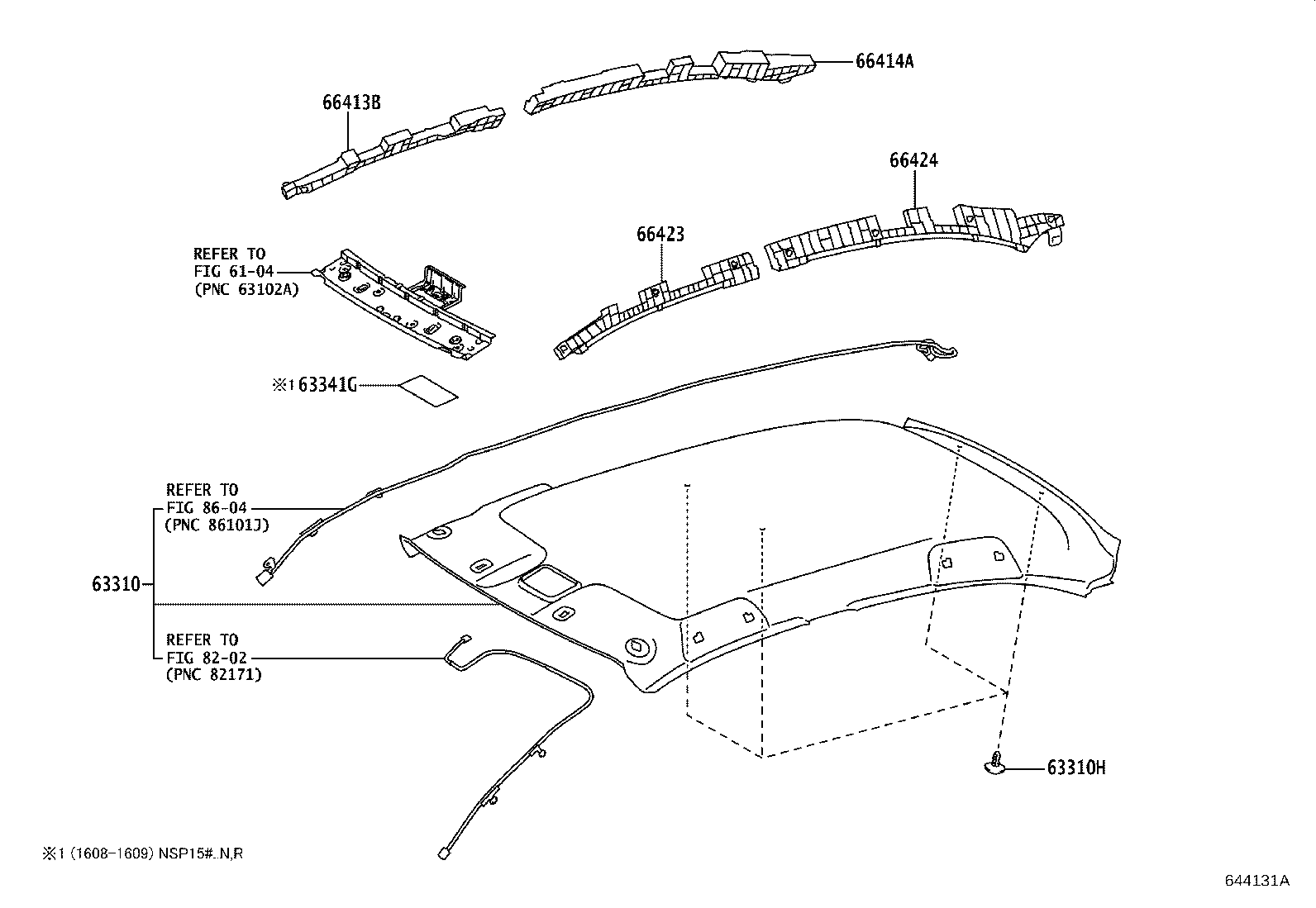

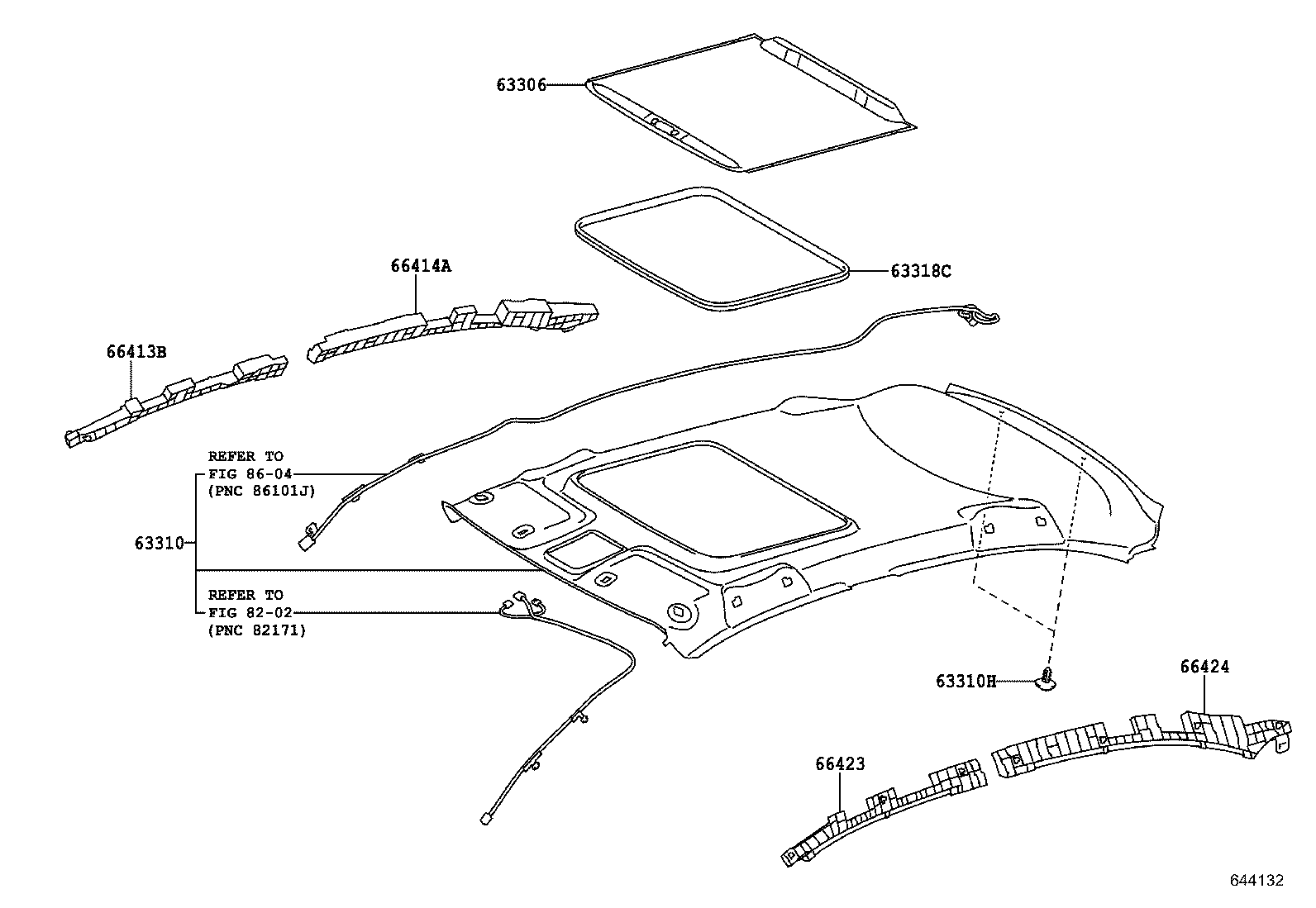

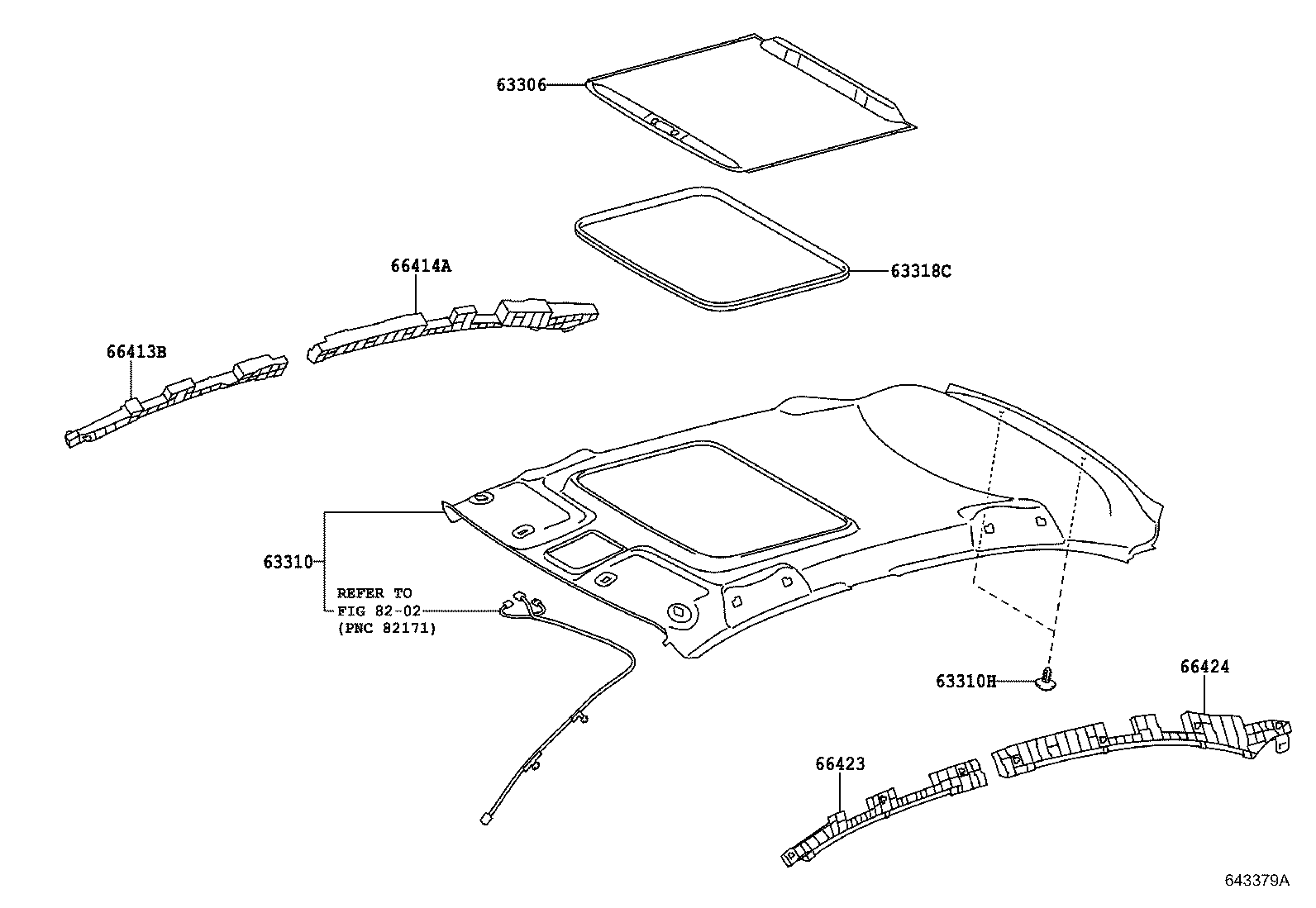

Figure 643378D 643378D 2013-12 → 2016-08 Figure 643379A 643379A 2013-12 → 2016-08 Figure 644131A 644131A 2016-08 → — Figure 644132 644132 2016-08 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63318C Moulding, Sun Roof Opening Trim
63341G Pad, Roof Silencer
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
