Toyota Yaris (CHINA)
2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General
Supported model
Data version 2023-11

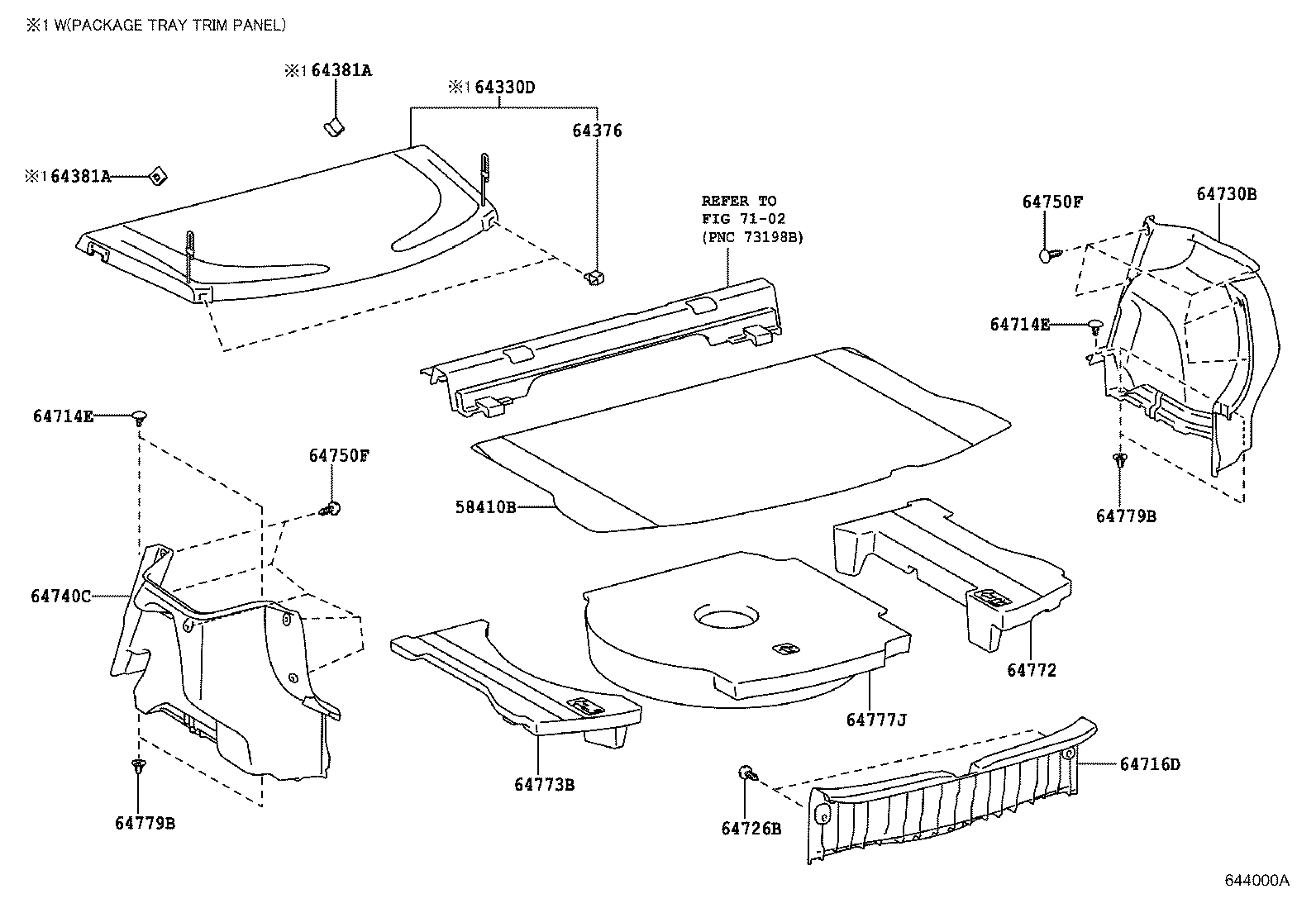

Deck Board & Deck Trim Cover
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58410B | Board Assy, Deck |
| 64330D | Panel Assy, Package Tray Trim |
| 64376 | Spacer, Package Tray Trim, NO.2 |
| 64381A | Hanger, Package Tray Trim |
| 64714E | Clip(FOR DECK TRIM SIDE COVER) |
| 64716D | Cover, Deck Trim, Rear |
| 64726B | Clip, Deck Rear Trim |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64772 | Pad, Spare Wheel Cover |
| 64773B | Pad, Spare Wheel Cover, NO.2 |
| 64777J | Cushion, Spare Wheel |
| 64779B | Stopper, Spare Wheel Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
