Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

10 part groups · 4 illustrations

Illustrations

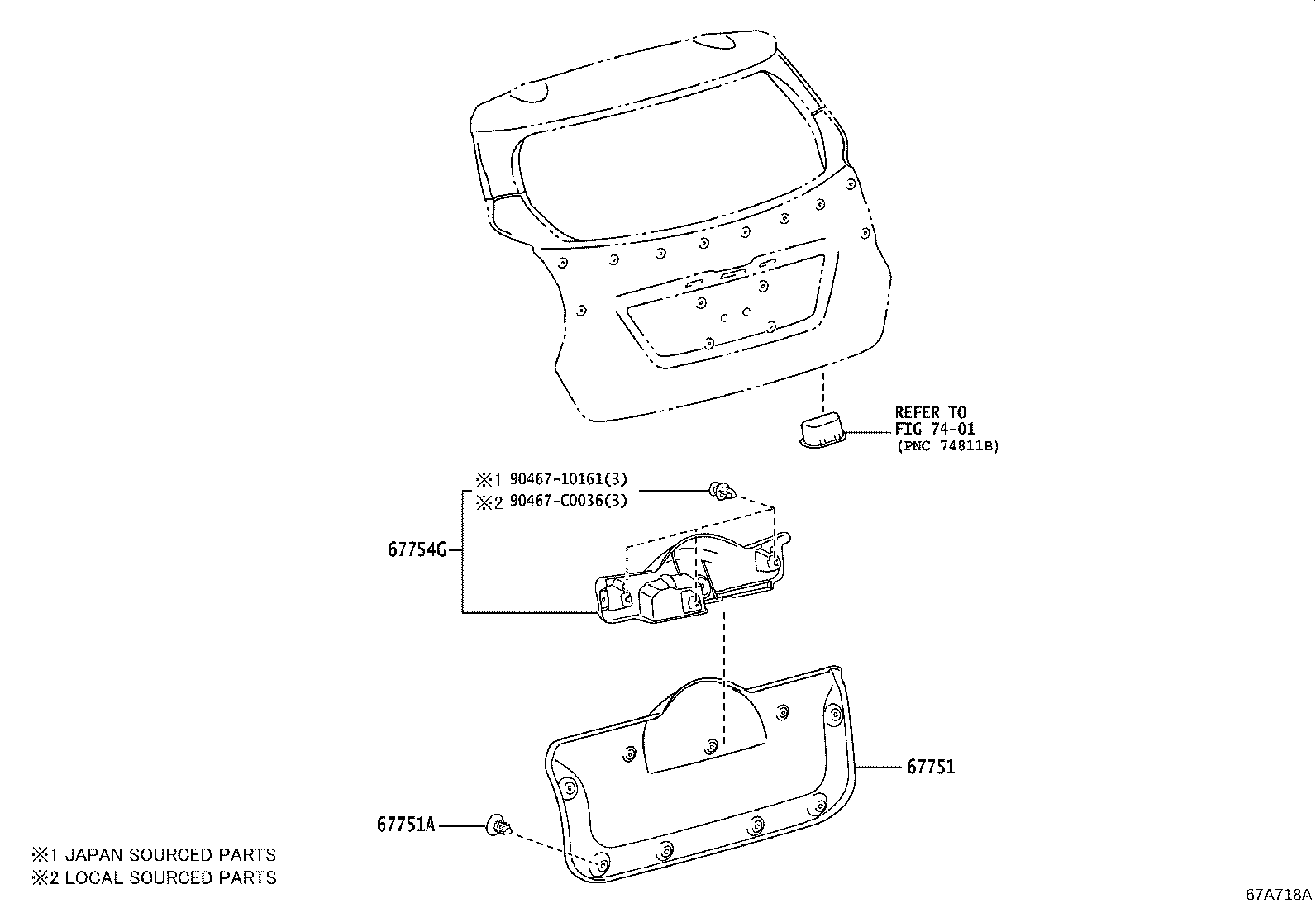

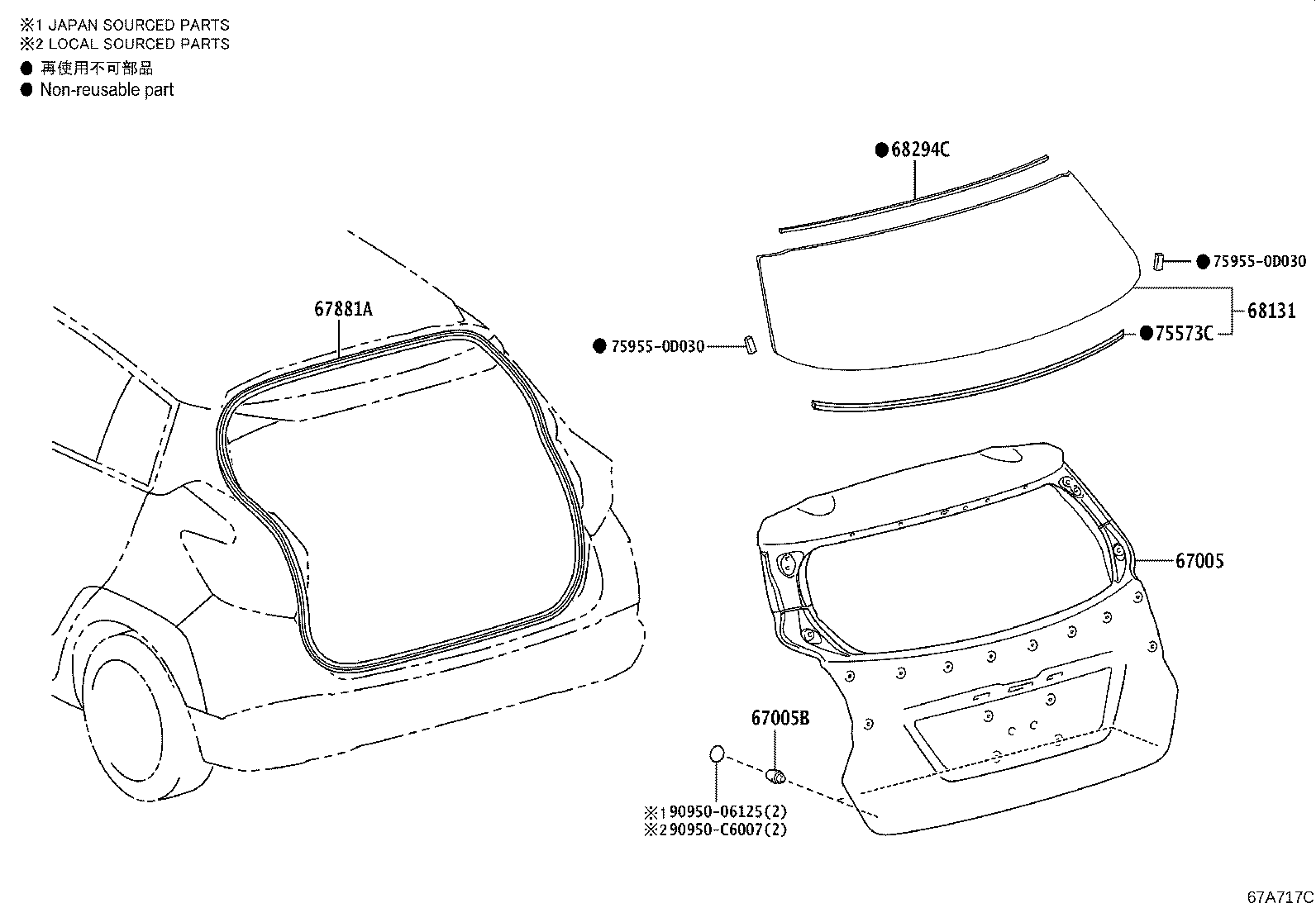

Figure 678025C 678025C 2013-12 → — Figure 67A717C 67A717C 2019-10 → — Figure 678026C 678026C 2013-12 → — Figure 67A718A 67A718A 2019-10 → —

Part groups

PNCDescription
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67754G Spacer, Back Door Trim
67881A Weatherstrip, Back Door
68131 Glass, Back Door
68294C Dam, Back Door Glass Adhesive, NO.1
68294D Dam, Back Door Glass Adhesive, NO.2
75573C Moulding, Back Window, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
