Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

13 part groups · 8 illustrations

Illustrations

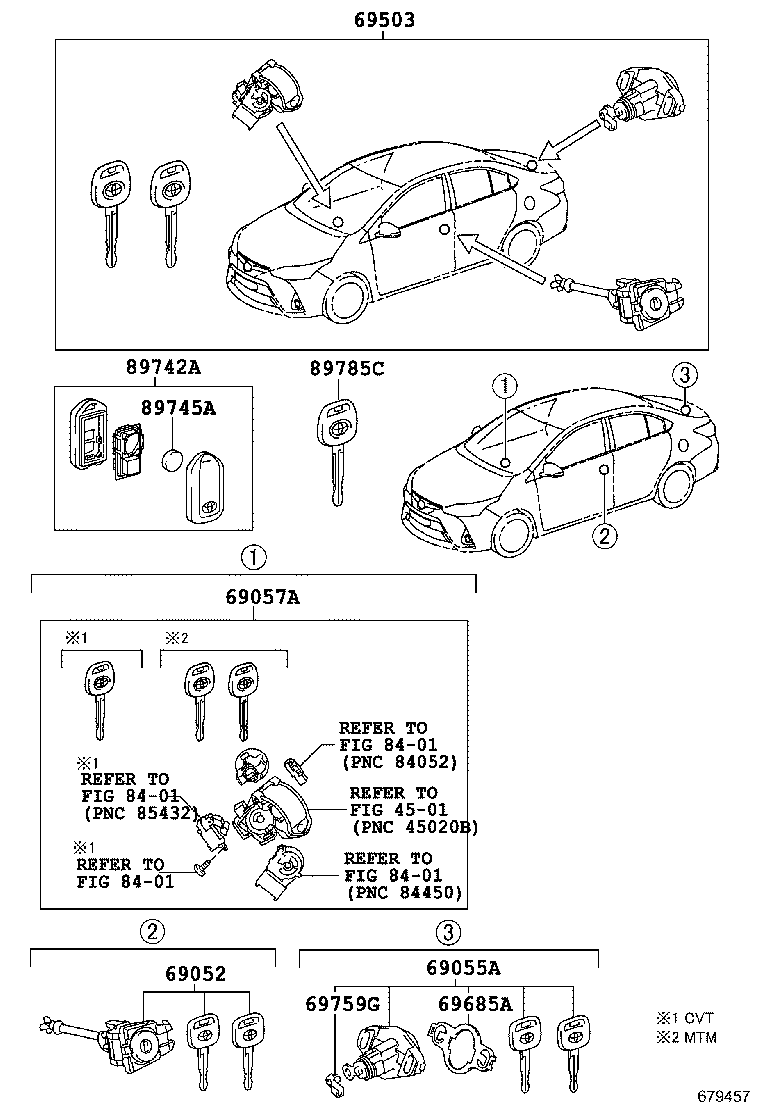

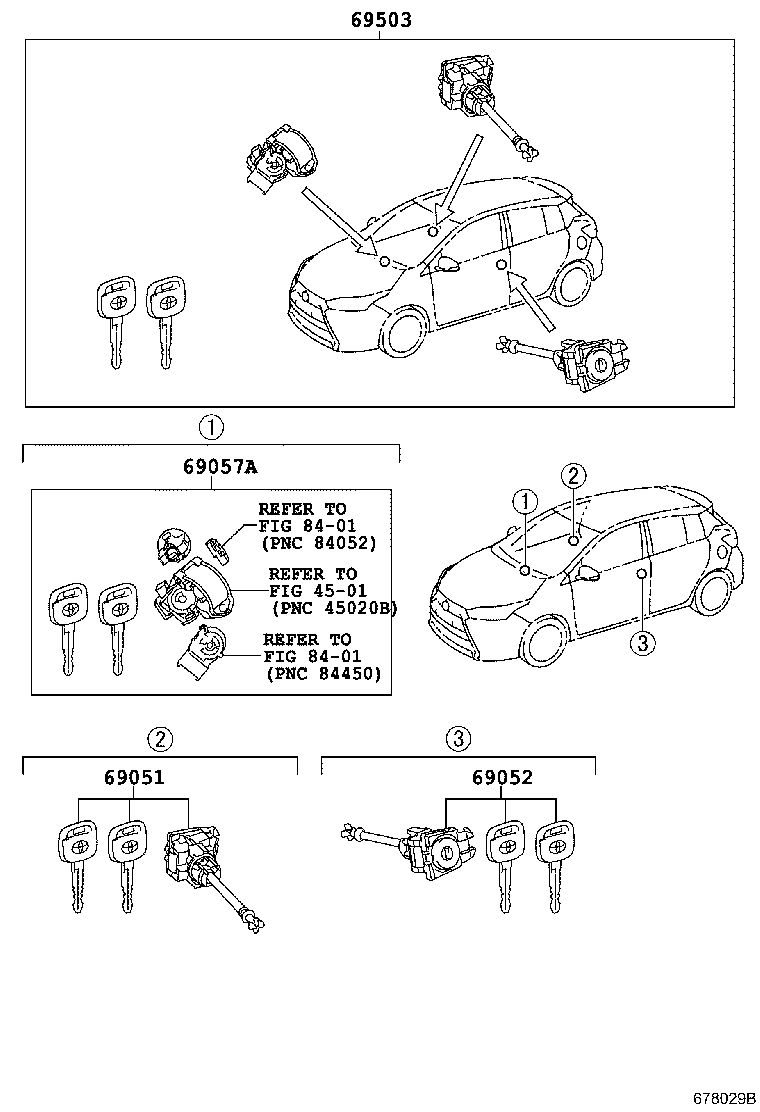

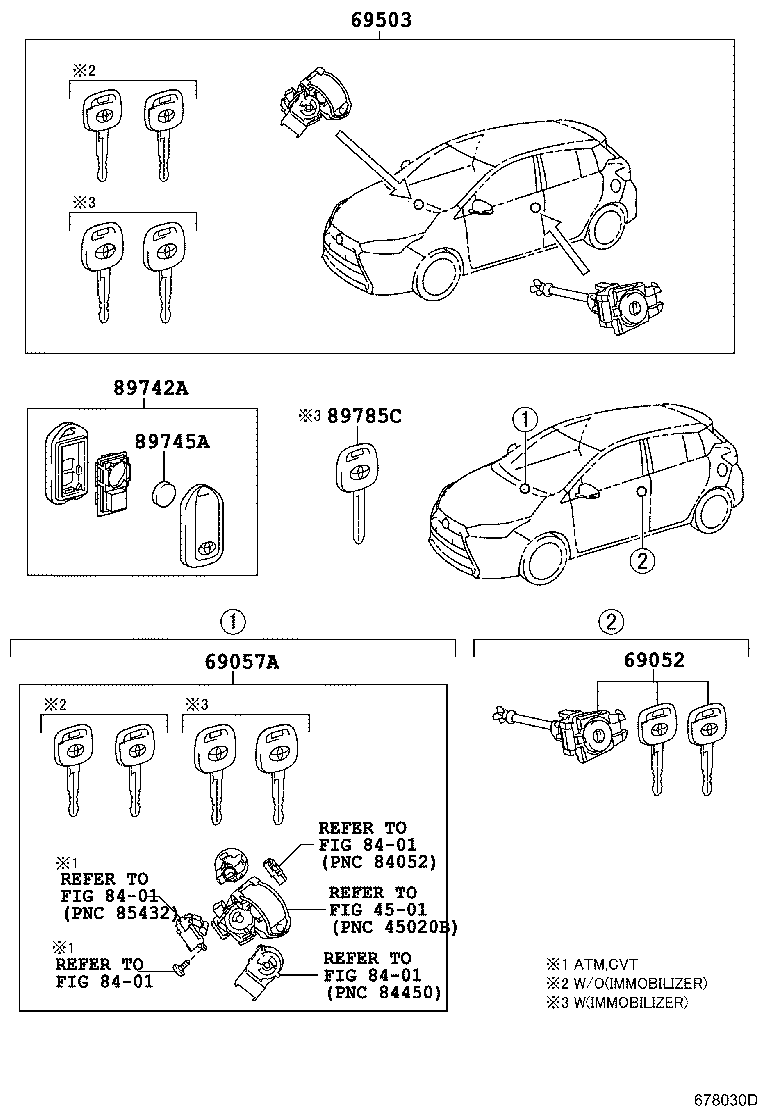

Figure 679456A 679456A 2017-03 → — Figure 679457 679457 2017-03 → — Figure 679458 679458 2017-03 → — Figure 679458 679458 2021-12 → — Figure 678029B 678029B 2013-12 → — Figure 678030D 678030D 2013-12 → — Figure 678028C 678028C 2013-12 → — Figure 678028C 678028C 2021-12 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69685A Pad, Lock Cylinder
69759G Snap, Luggage Door Lock Cylinder
89742A Transmitter, Door Control
89745A Battery, Transmitter
89745C Battery, Transmitter
89785C Transmitter, Transponder Key Master
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
