Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

50 part groups · 5 illustrations

Illustrations

718559C 2013-12 → 2016-08

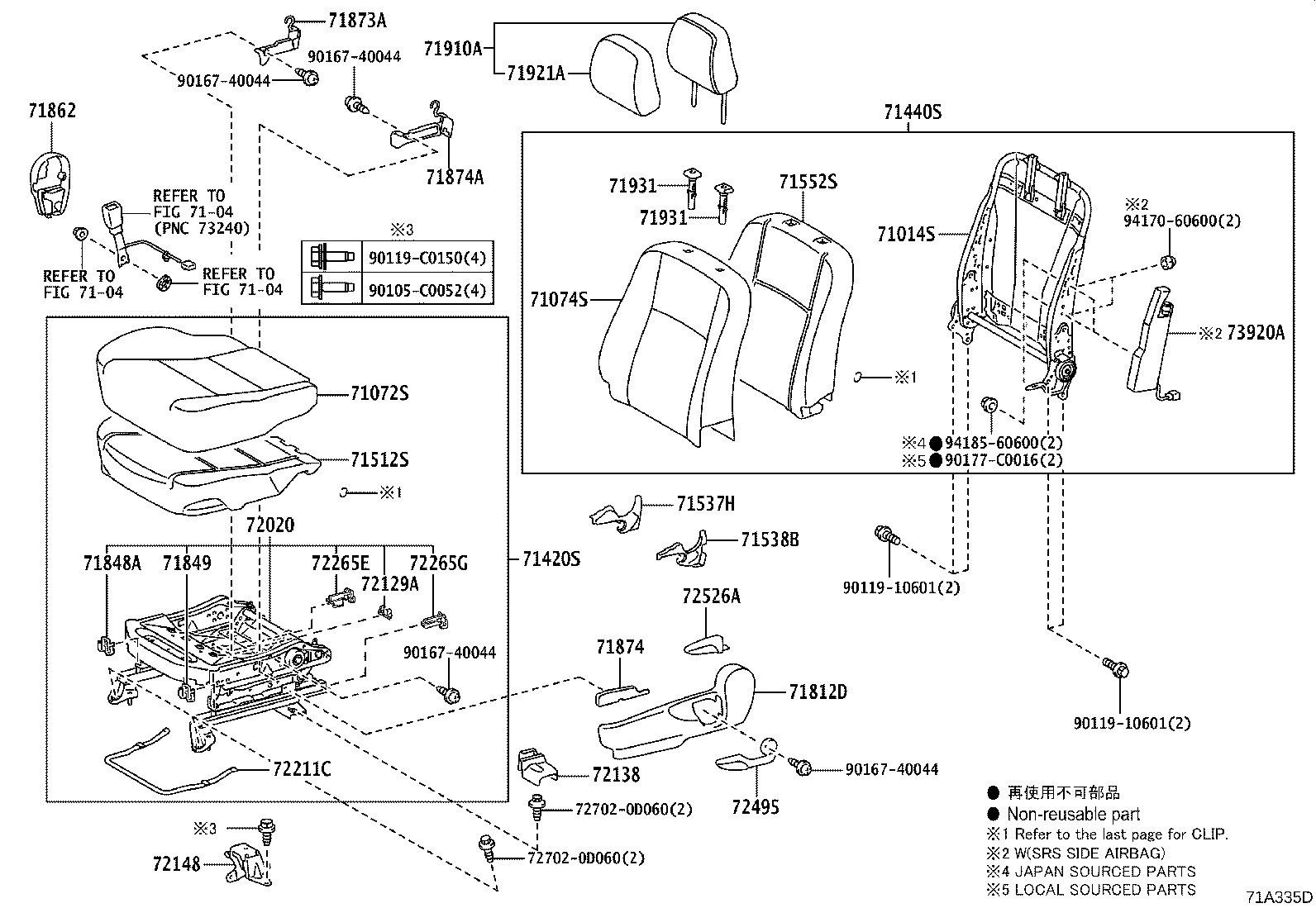

71A335D 2016-08 → —

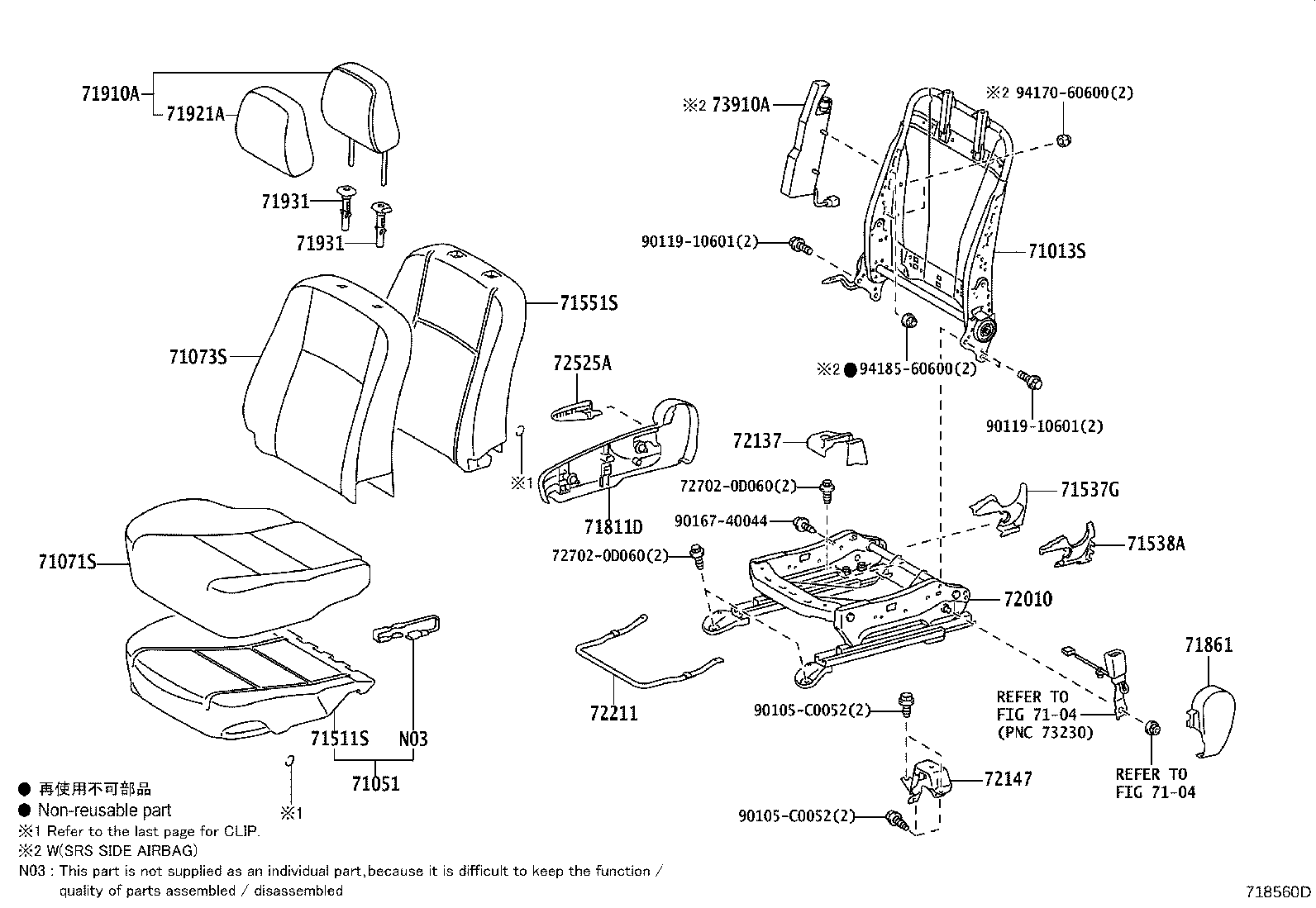

718560D 2013-12 → 2016-08

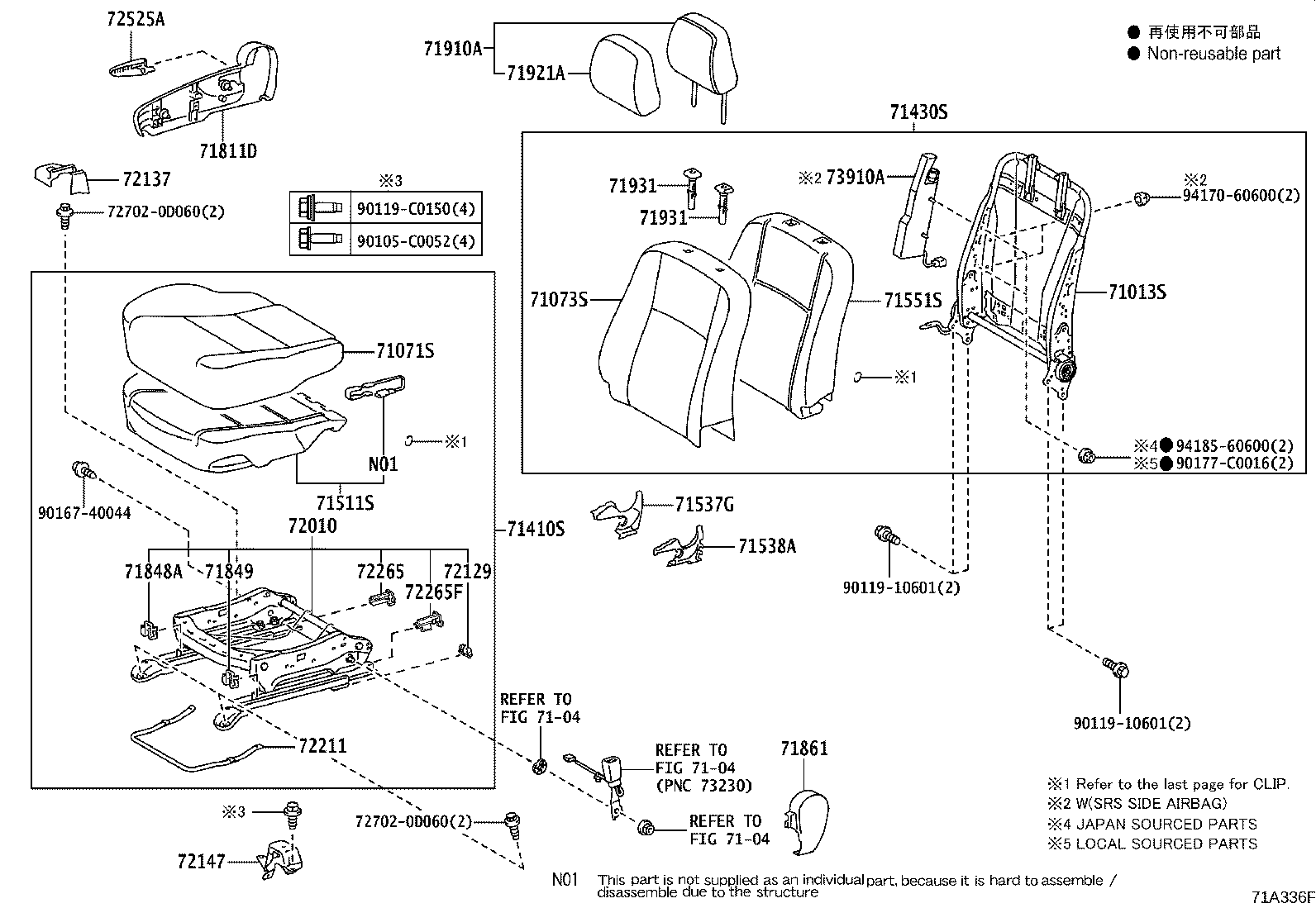

71A336F 2016-08 → —

719024D 2013-12 → —

Part groups

PNC	Description
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71051	Pad Sub-assy, Front Seat Cushion Sensor, RH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G	Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H	Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A	Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B	Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71873A	Shield, Front Seat Cushion, Lower
71874	Shield, Front Seat Cushion, Lower LH
71874A	Shield, Front Seat Cushion, Lower LH
71910A	Headrest Assy, Front Seat
71921A	Cover, Front Seat Headrest
71931	Support, Front Seat Headrest
72010	Adjuster Assy, Front Seat, RH
72020	Adjuster Assy, Front Seat, LH
72129	Protector, Seat Track Lower Rail, NO.1
72129A	Protector, Seat Track Lower Rail, NO.2
72137	Cover, Seat Track, Outer RH
72138	Cover, Seat Track, Outer LH
72147	Bracket, Front Inner Seat Track, Lower Rear RH
72148	Bracket, Front Inner Seat Track, Lower Rear LH
72211	Handle, Seat Track Adjusting
72211C	Handle, Seat Track Adjusting
72265	Cover, Seat Track Upper Rail, RH
72265E	Cover, Seat Track Upper Rail, RH
72265F	Cover, Seat Track Upper Rail, LH(FOR RH SEAT)
72265G	Cover, Seat Track Upper Rail, LH(FOR LH SEAT)
72495	Handle, Vertical Adjusting, LH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
