Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

26 part groups · 5 illustrations

Illustrations

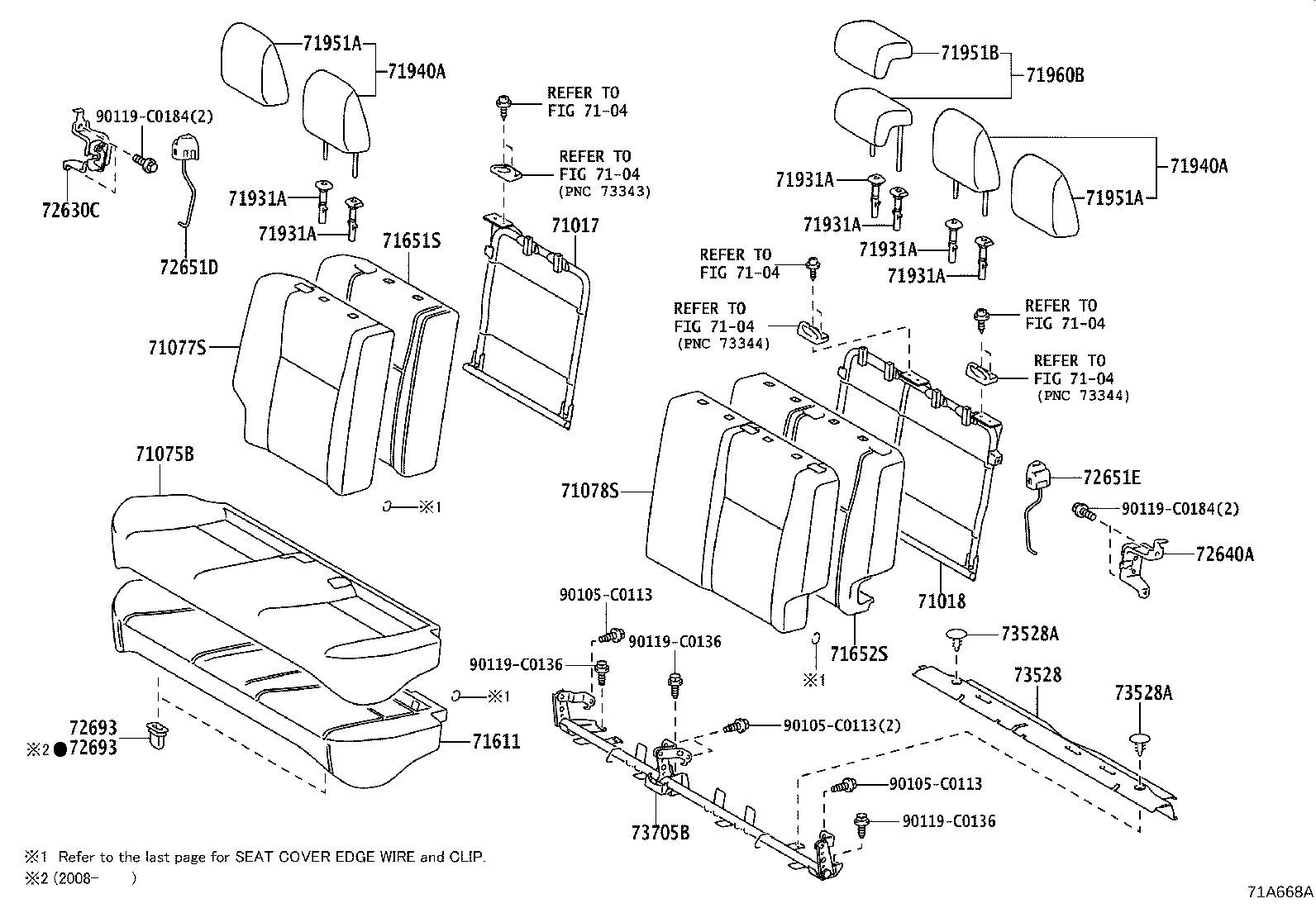

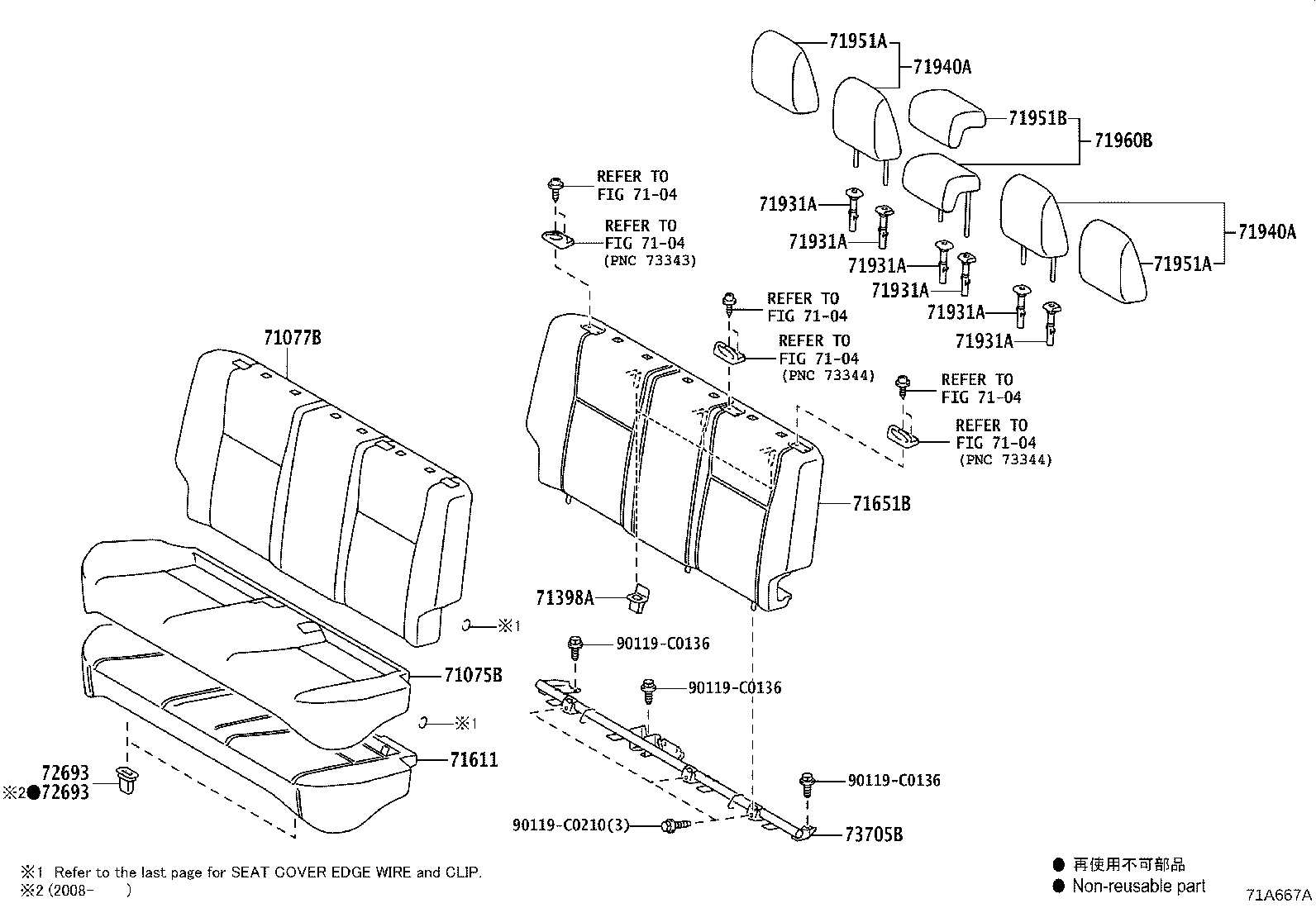

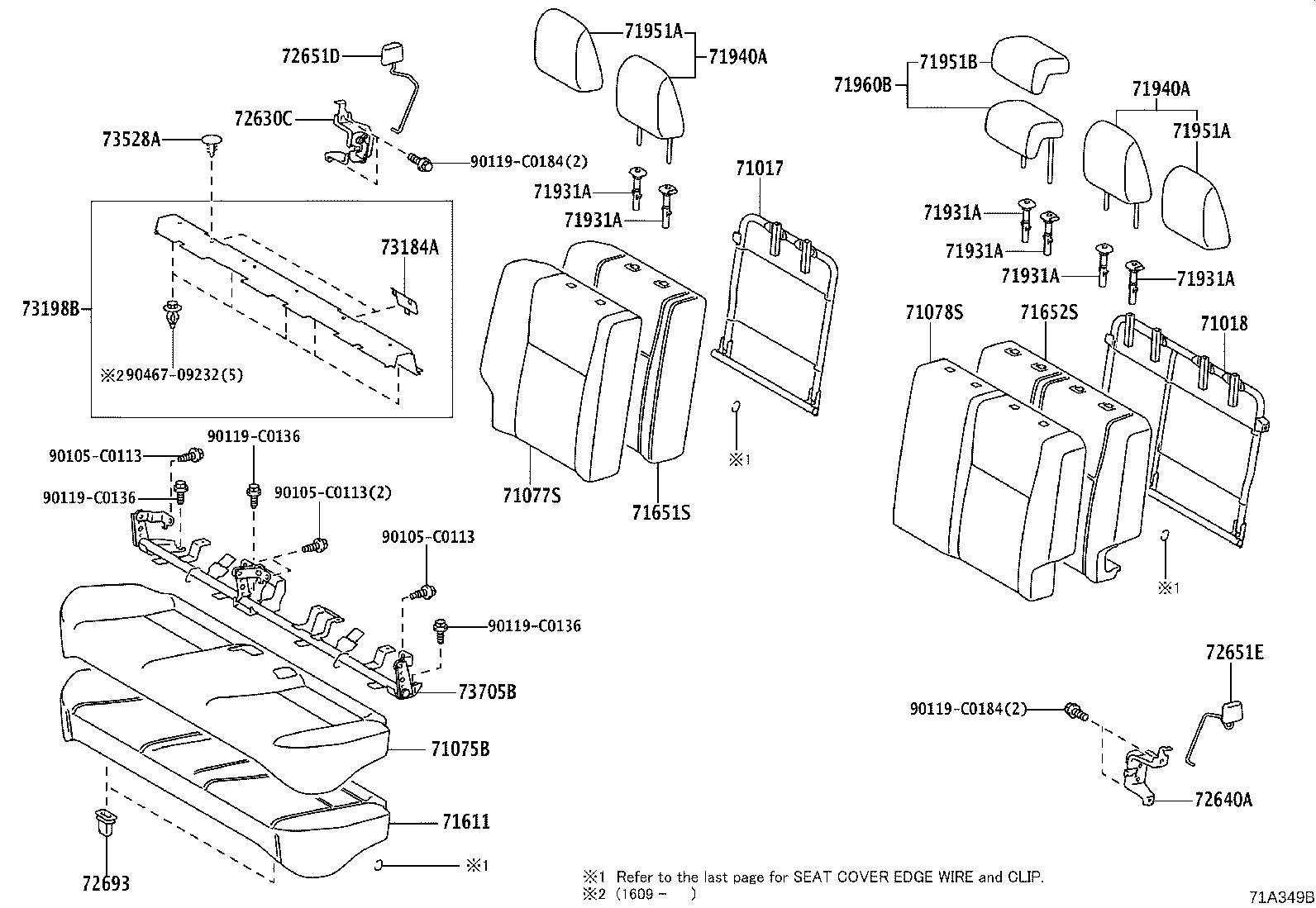

Figure 718562A 718562A 2013-12 → 2016-08 Figure 71A349B 71A349B 2016-08 → — Figure 71A667A 71A667A 2017-03 → — Figure 71A668A 71A668A 2017-03 → — Figure 71A647A 71A647A 2013-12 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71398A Holder, Rear Seatback
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71951A Cover, Rear Seat Headrest
71951B Cover, Rear Seat Headrest, Center
71960B Headrest Assy, Rear Seat, Center
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72651D Rod, Rear Seatback Lock, RH
72651E Rod, Rear Seatback Lock, LH
72693 Hook, Rear Seat Cushion Lock
73184A Cover, Child Restraint Seat Tether Anchor
73198B Cover, Rear Seat Bracket
73528 Carpet, Rear Seat Sub Floor, Rear
73528A Clip, Rear Seat Sub Floor Carpet
73705B Bracket Sub-assy, Cross Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
