Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

19 part groups · 4 illustrations

Illustrations

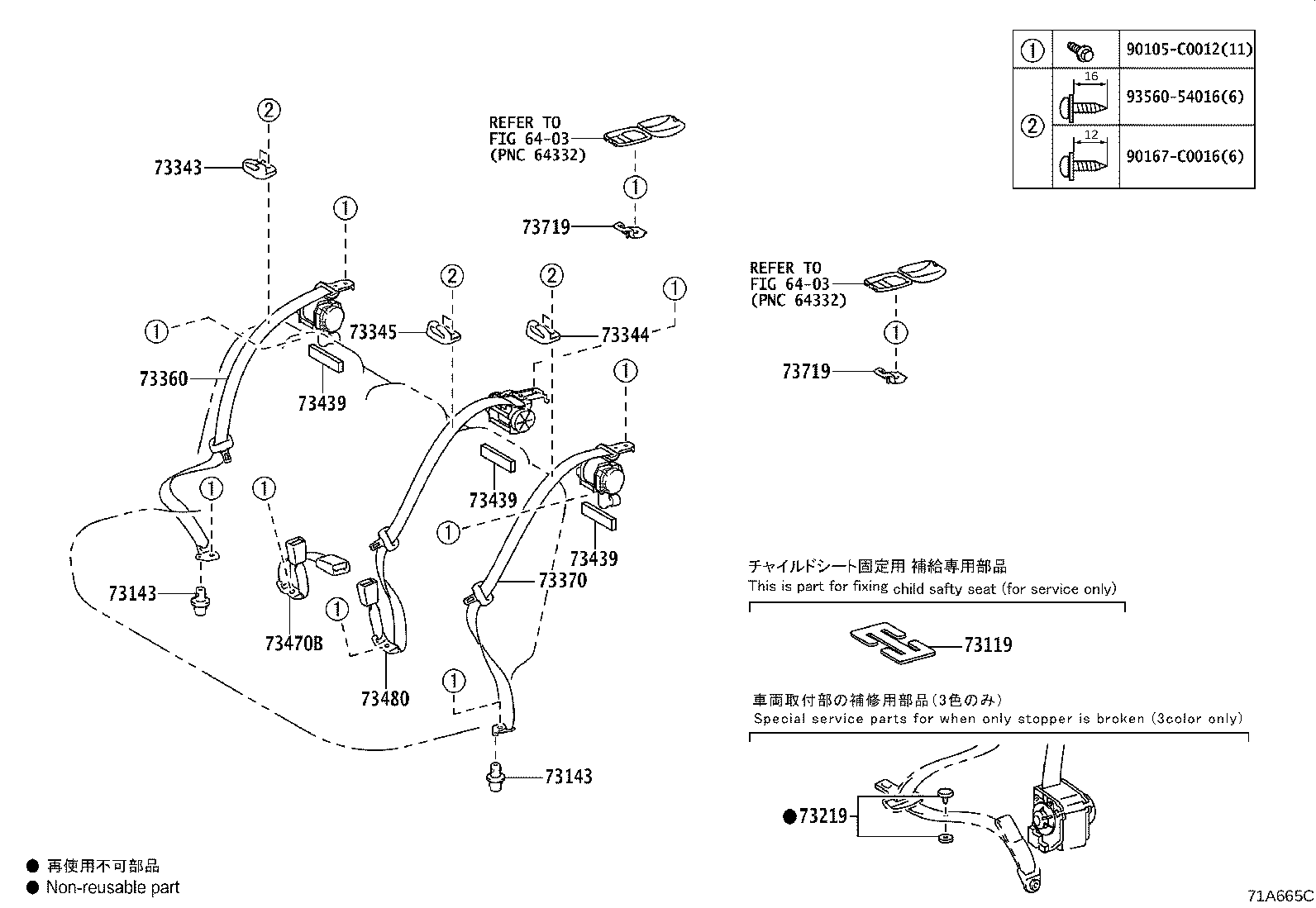

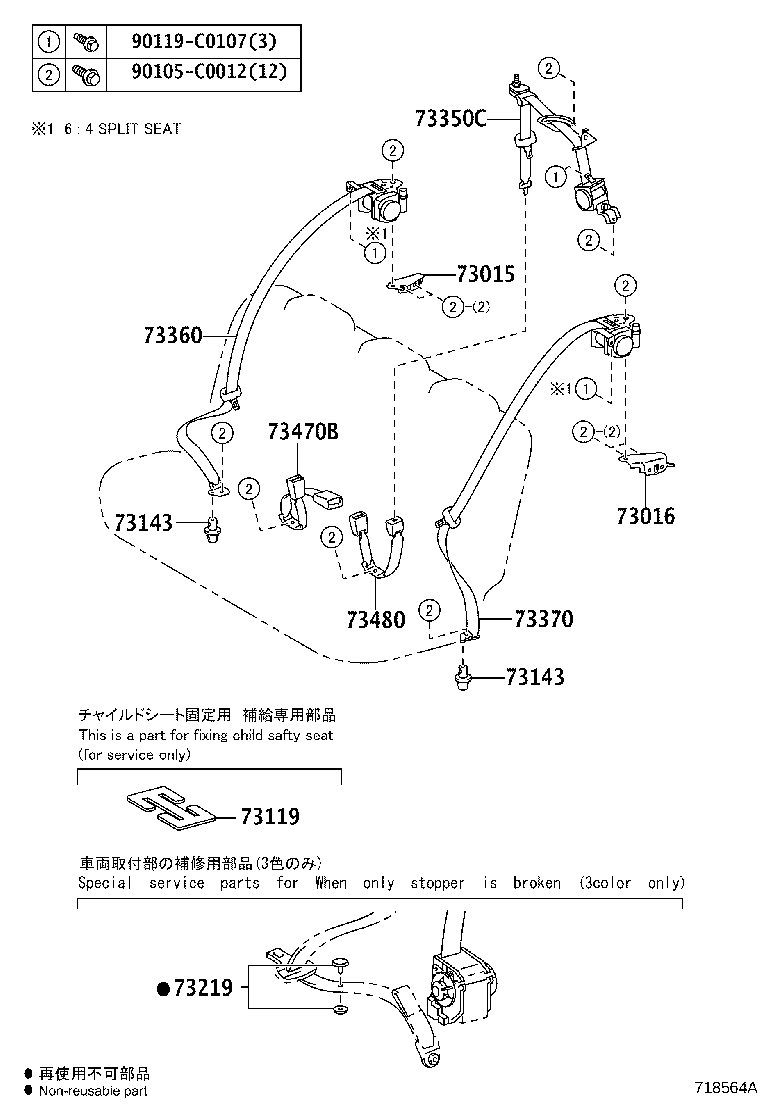

Figure 718563A 718563A 2013-12 → — Figure 718564A 718564A 2013-12 → — Figure 71A665C 71A665C 2017-03 → — Figure 71A666C 71A666C 2017-03 → —

Part groups

PNCDescription
73015 Bracket Sub-assy, Belt Outer Anchor, RH
73016 Bracket Sub-assy, Belt Outer Anchor, LH
73119 Plate, Seat Belt Webbing Clip
73143 Seal, Seat Belt Hole
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73343 Guide, Rear Seat Shoulder Belt, RH
73344 Guide, Rear Seat Shoulder Belt, LH
73345 Guide, Rear Seat Shoulder Belt, Center
73350C Belt Assy, Rear Seat, Outer Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73439 Cushion, Rear Seat Belt Retractor
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73719 Bracket, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
