Toyota Yaris (CHINA)
2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General
Supported model
Data version 2023-11
Side Moulding
35 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

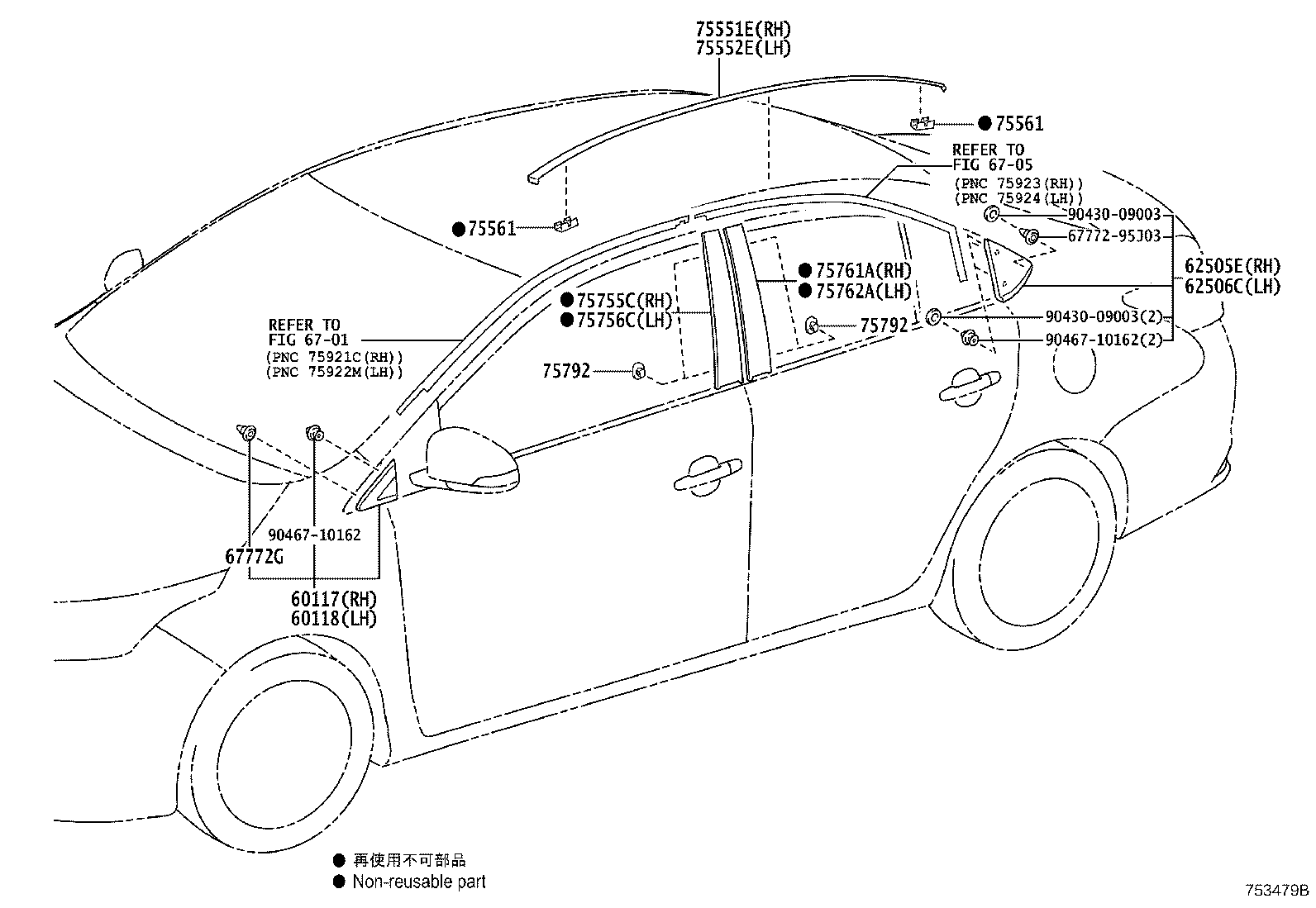

| 60117 | Cover Sub-assy, Front Pillar, Upr RH |
| 60118 | Cover Sub-assy, Front Pillar, Upr LH |
| 62505E | Cover Sub-assy, Quarter Pillar, RH |
| 62506C | Cover Sub-assy, Quarter Pillar, LH |
| 67772G | Cap, Front Pillar Cover |
| 75551E | Moulding, Roof Drip Side Finish, RH |
| 75552E | Moulding, Roof Drip Side Finish, LH |
| 75553F | Moulding, Quarter Garnish, RH |
| 75554E | Moulding, Quarter Garnish, LH |
| 75561 | Clip, Roof Drip Side Finish Moulding, NO.1 |

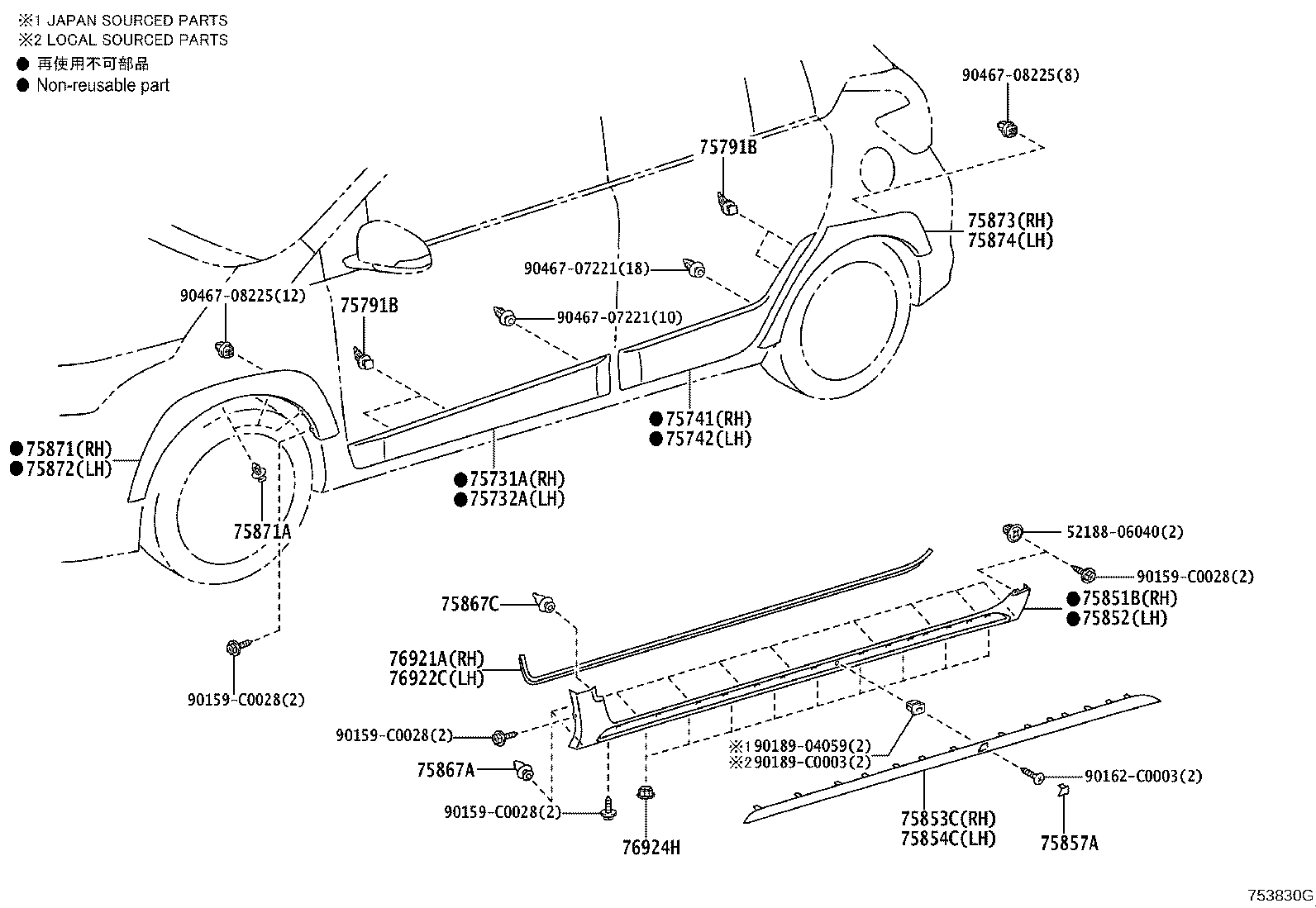

| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75761A | Moulding, Rear Door Window Frame, Front RH |
| 75762A | Moulding, Rear Door Window Frame, Front LH |
| 75791B | Clip, Belt Moulding Side |
| 75792 | Clip, Door Window Frame Moulding |
| 75851B | Moulding, Body Rocker Panel, RH |
| 75852 | Moulding, Rocker Panel, LH |
| 75853C | Moulding, Rocker Panel, Lower RH |
| 75854C | Moulding, Rocker Panel, Lower LH |
| 75857A | Cover, Rocker Panel Moulding, RH |
| 75867A | Clip, Rocker Panel Moulding |
| 75867C | Clip, Rocker Panel Moulding |
| 75871 | Moulding, Front Fender Wheel Opening, RH |
| 75871A | Clip (FOR FRONT FENDER MOULDING NO.1) |
| 75872 | Moulding, Front Fender Wheel Opening, LH |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
| 76921A | Protector, Side Mudguard, NO.1 |
| 76922C | Protector, Side Mudguard, NO.2 |
| 76924H | Retainer, Side Mudguard, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
