Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

9 part groups · 5 illustrations

Illustrations

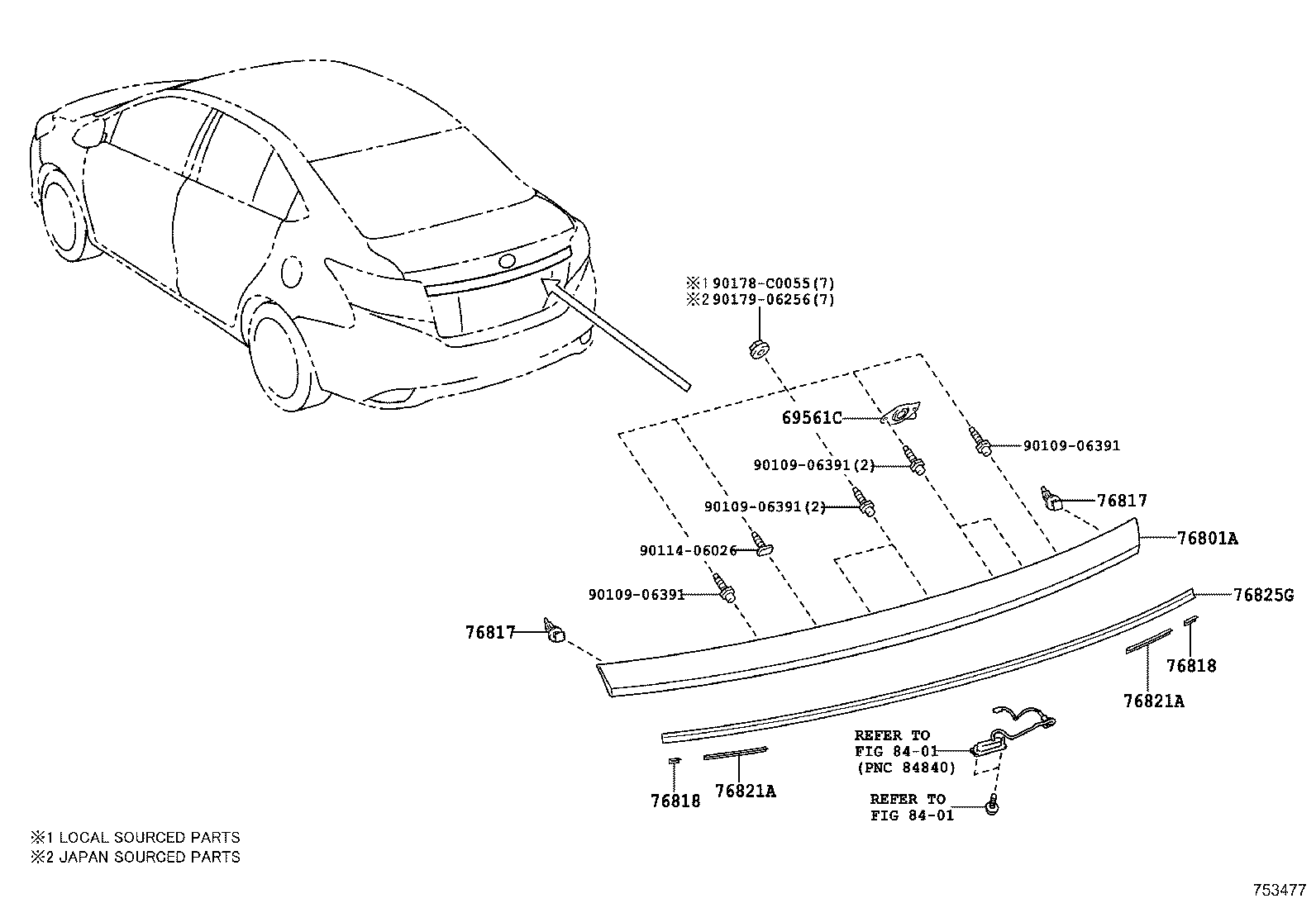

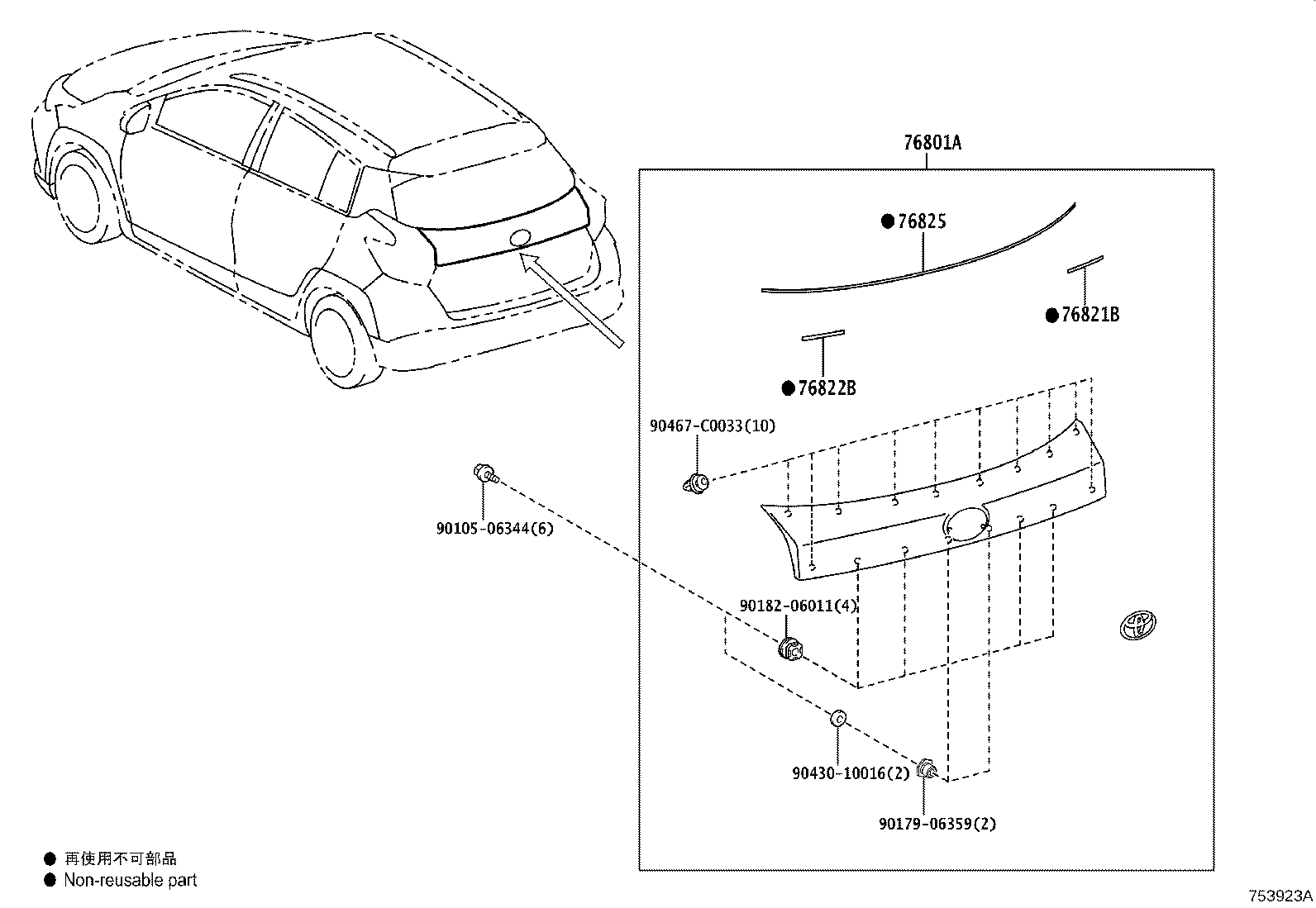

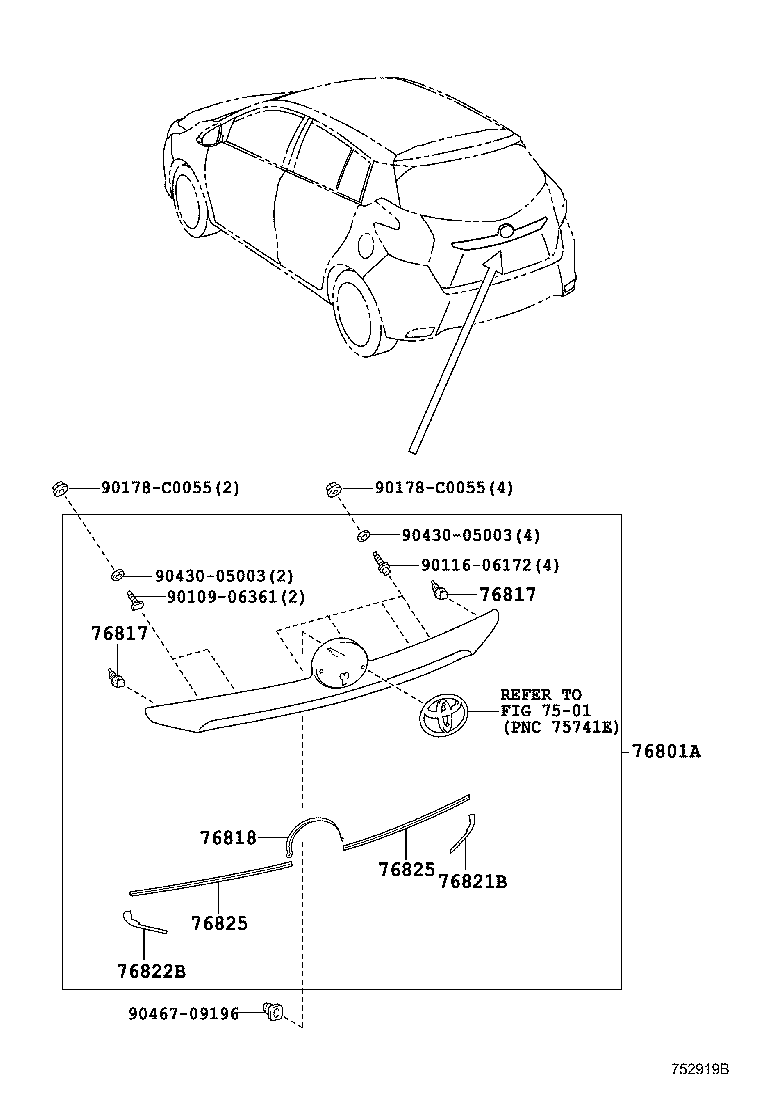

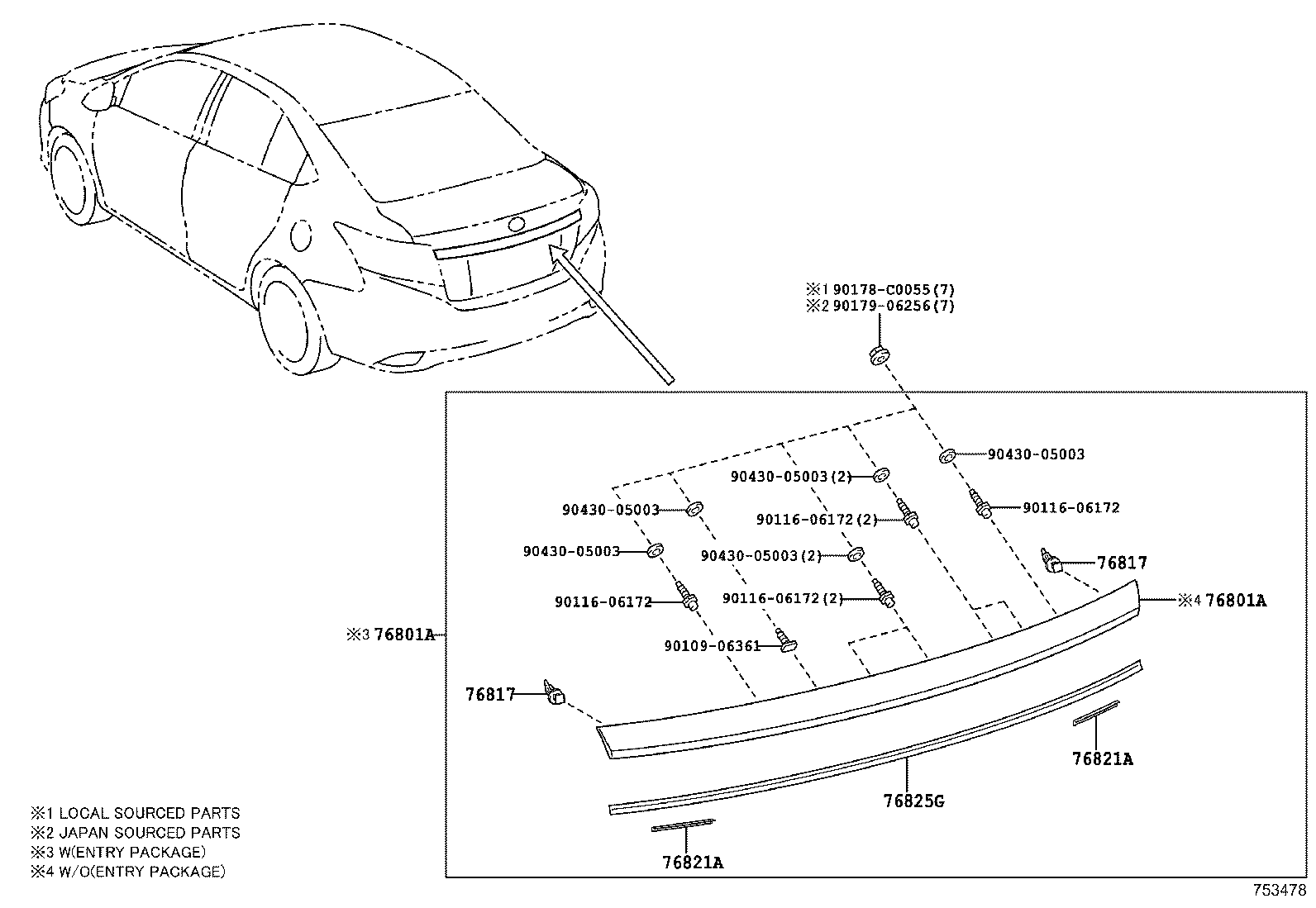

Figure 753381A 753381A 2013-12 → — Figure 752919B 752919B 2013-12 → — Figure 753923A 753923A 2019-10 → — Figure 753477 753477 2017-03 → — Figure 753478 753478 2017-03 → —

Part groups

PNCDescription
69561C Retainer, Luggage Compartment Lock Cylinder
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
76818 Pad, Back Door Outside Garnish
76821A Protector, Luggage Compartment Door Outside Garnish
76821B Protector, Back Door Garnish Side, RH
76822B Protector, Back Door Garnish Side, LH
76825 Protector, Back Door Outside Garnish
76825G Protector, Luggage Compartment Door Outside Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
