Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

17 part groups · 4 illustrations

Illustrations

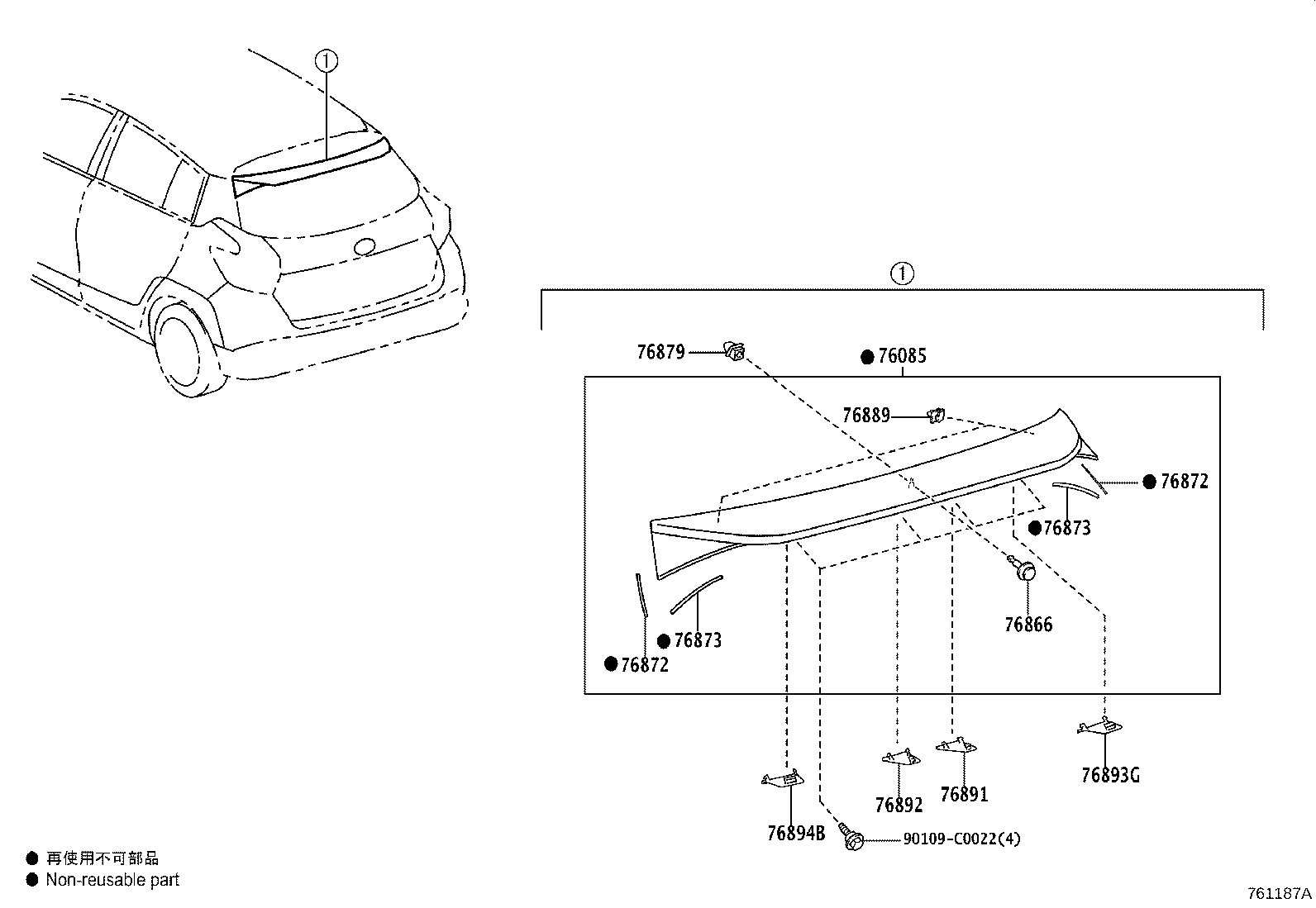

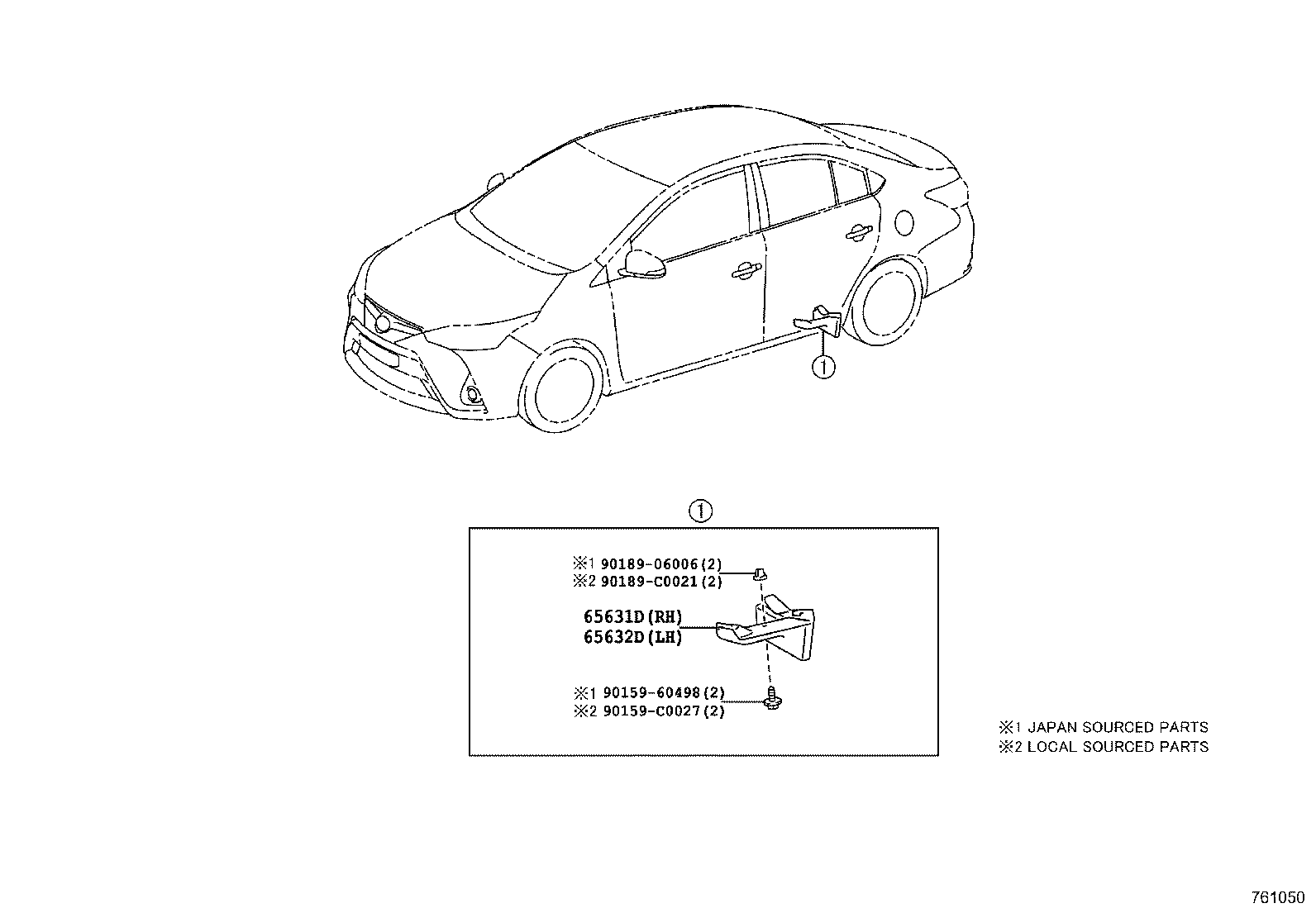

Figure 760894H 760894H 2013-12 → — Figure 761050 761050 2017-03 → — Figure 761187A 761187A 2019-10 → — Figure 761187A 761187A 2019-11 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75865E Protector, Rocker Panel Moulding, RH
75866E Protector, Rocker Panel Moulding, LH
76085 Spoiler Sub-assy, Rear
76621F Screw, NO.1
76621J Nut, NO.1
76851 Cover, Front Spoiler
76866 Retainer, Rear Spoiler, NO.2
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76879 Clip, Rear Spoiler, NO.1
76889 Clip, Rear Spoiler, NO.2
76891 Spoiler, Rear NO.1
76892 Spoiler, Rear NO.2
76893G Spoiler, Rear NO.3
76894B Spoiler, Rear NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
