Toyota Yaris (CHINA)
2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General
Supported model
Data version 2023-11

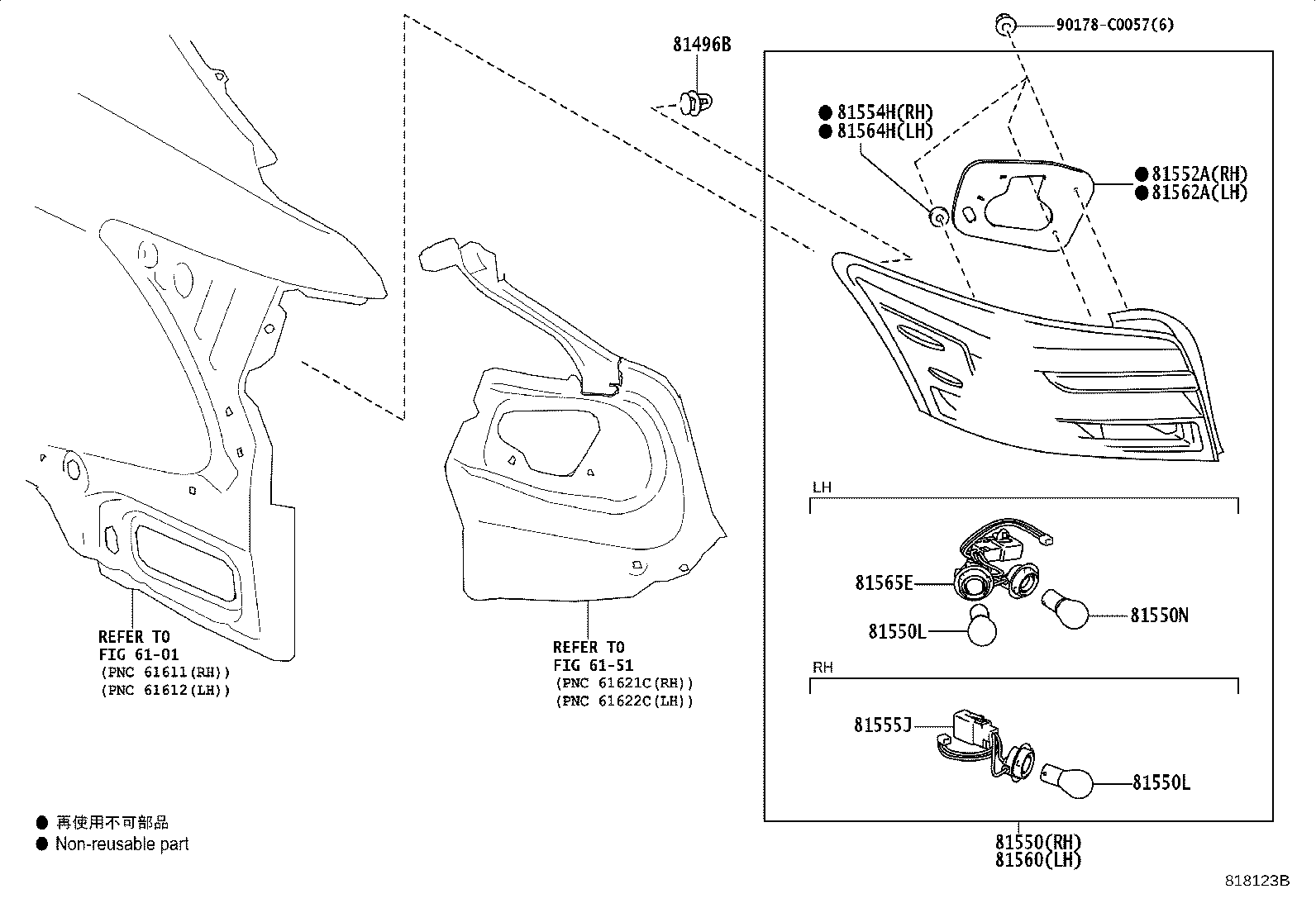

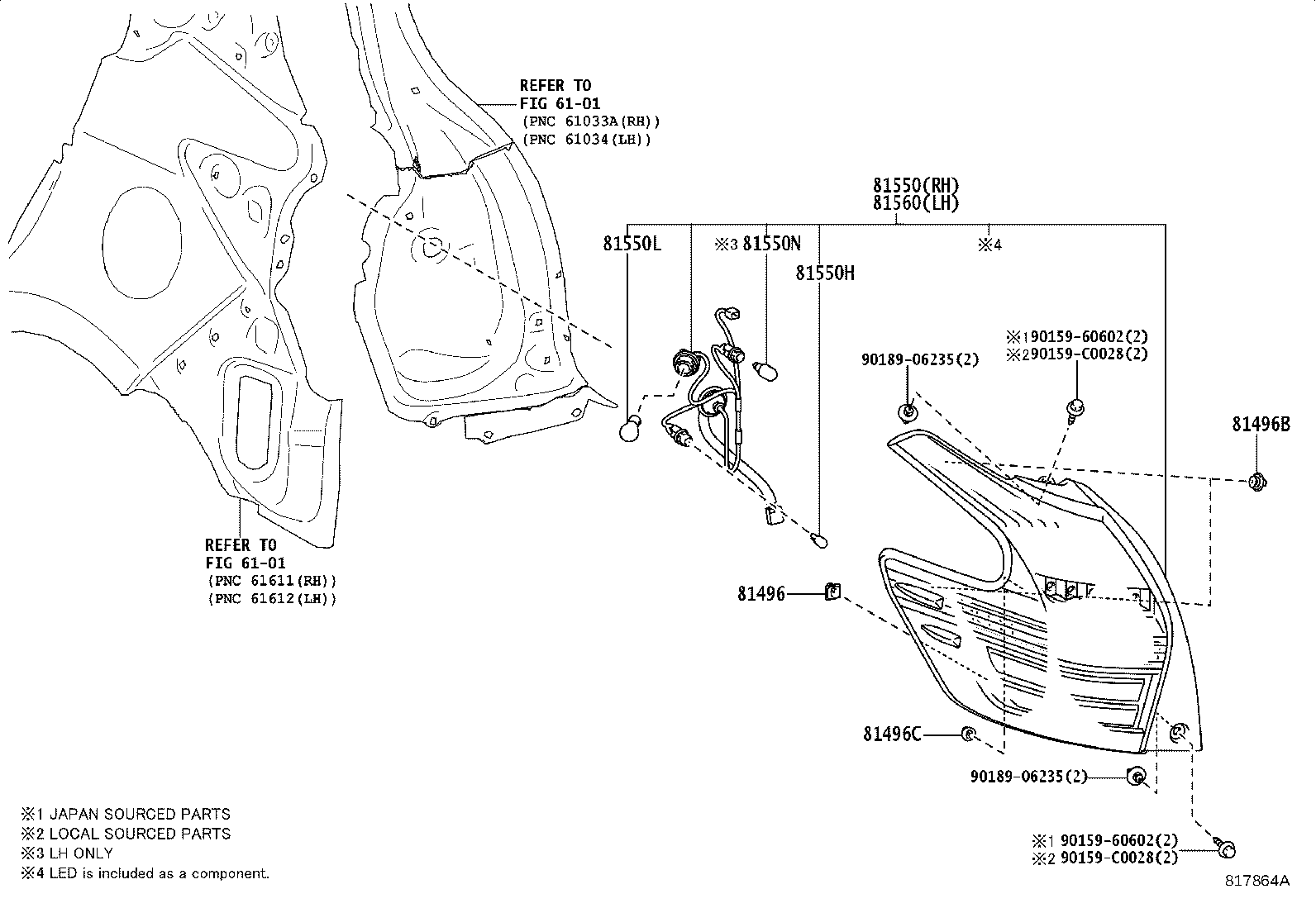

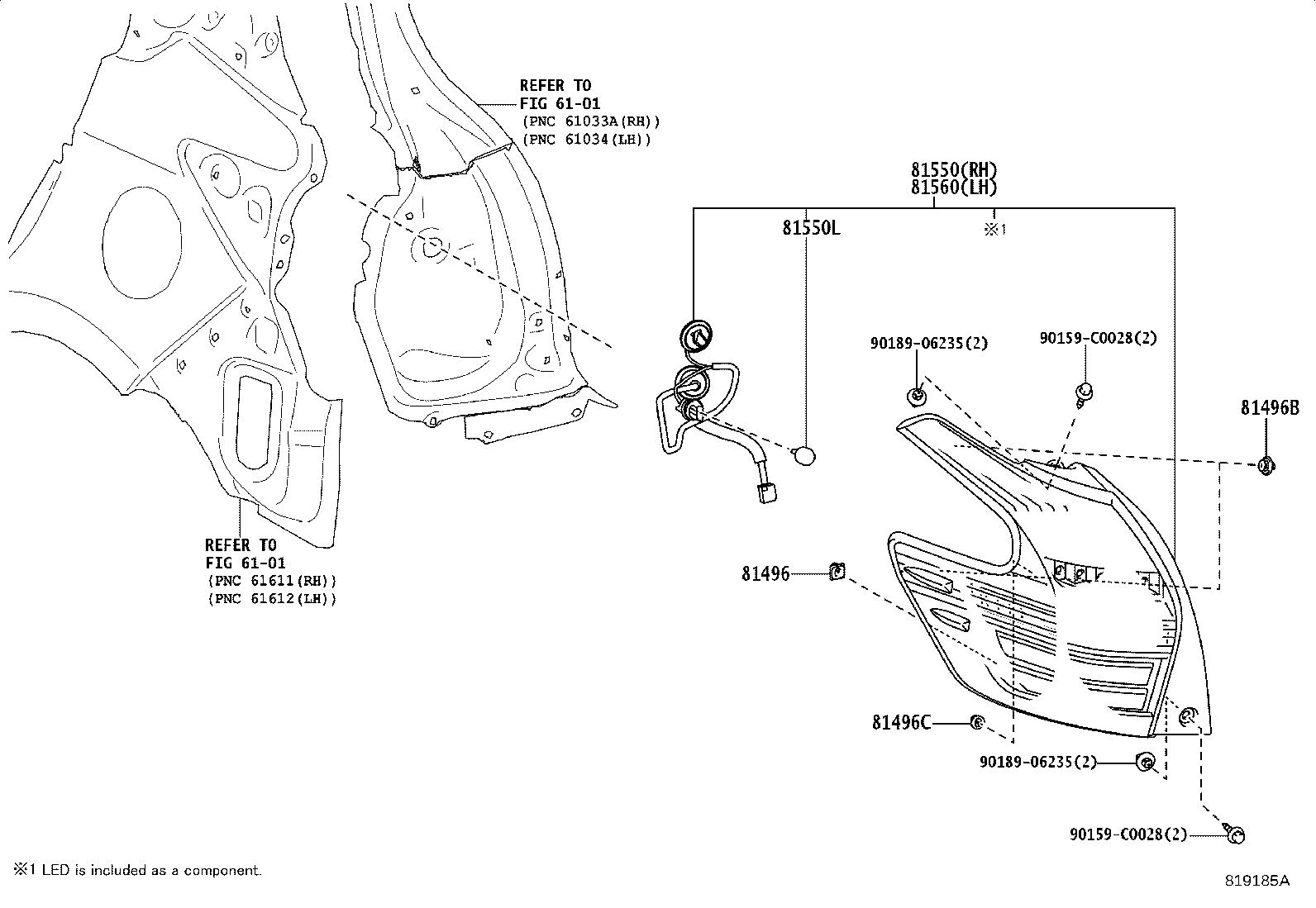

Rear Combination Lamp
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81496B | Guide, Rear Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81552A | Gasket, Rear Combination Lamp, RH |
| 81554H | Packing, Rear Combination Lamp, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81555J | Socket & Wire, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81562A | Gasket, Rear Combination Lamp, LH |
| 81564H | Packing, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81565E | Socket & Wire, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
