Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Fog Lamp

5 part groups · 3 illustrations

Illustrations

Figure 816749C

816749C 2013-12 → 2016-08

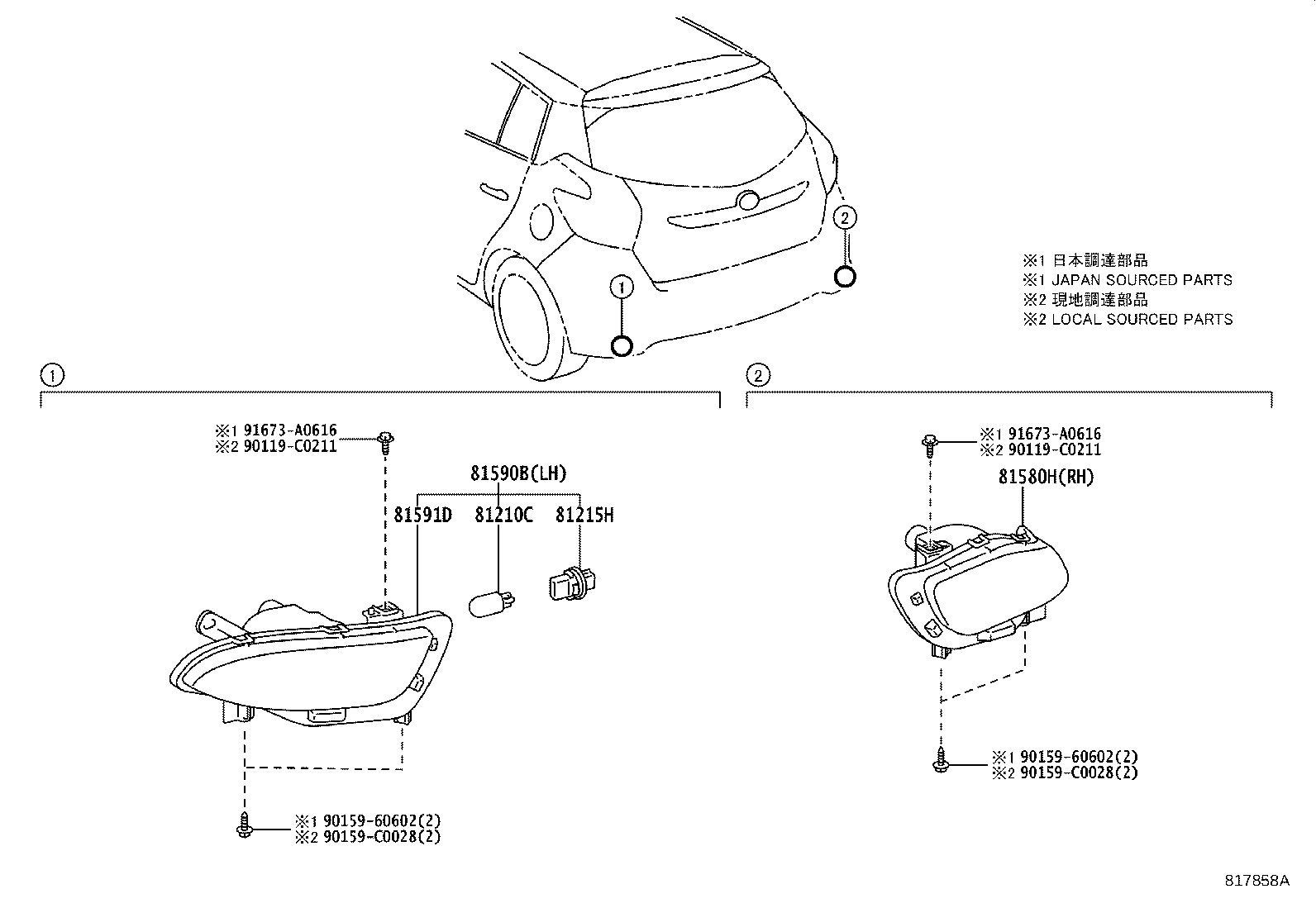

Figure 817858A

817858A 2016-08 → —

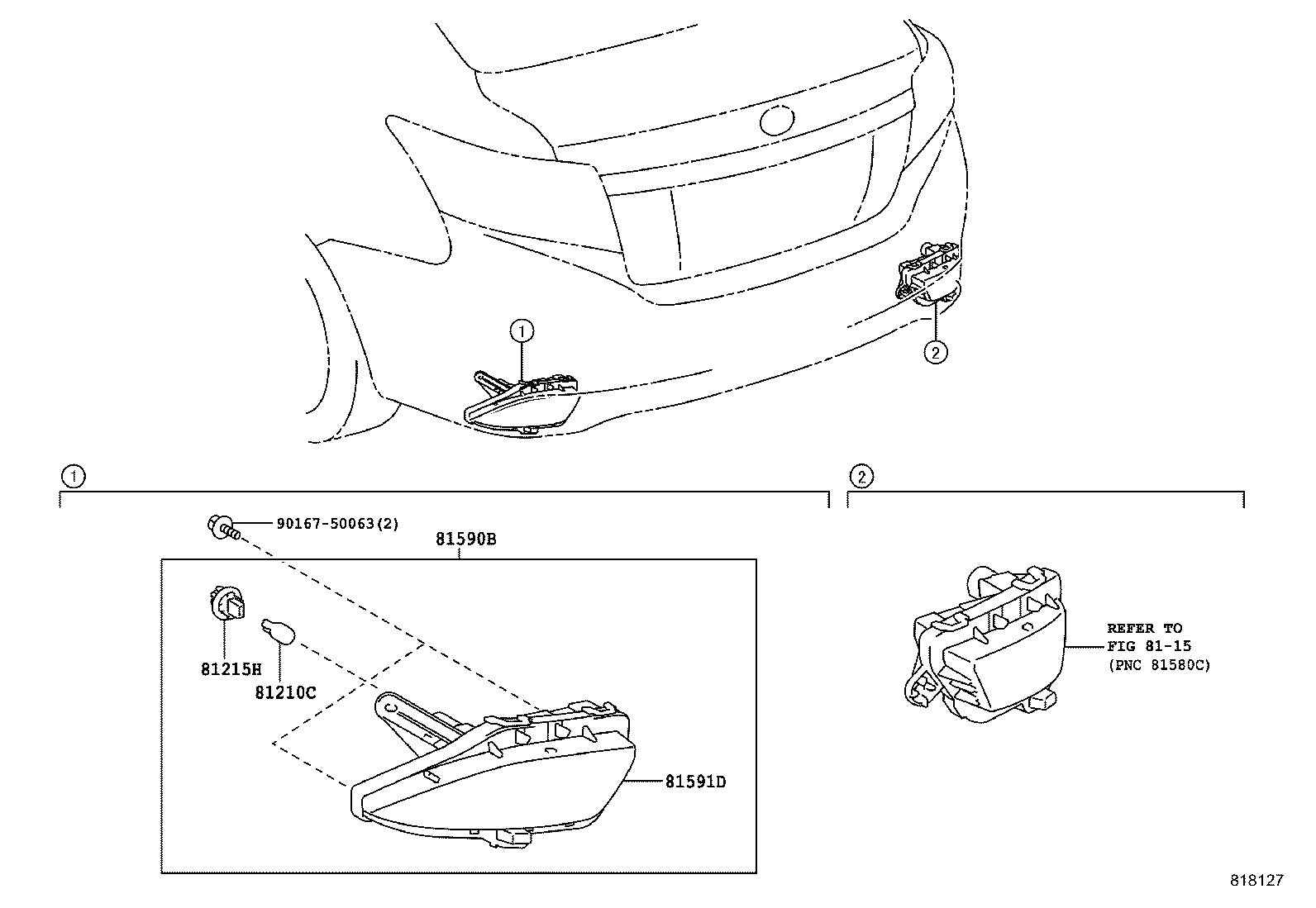

818127 2017-03 → —

Part groups

PNC	Description
81210C	Bulb, Rear Fog Lamp
81215H	Socket, Rear Fog Lamp
81580H	Lamp Assy, Rear Fog, RH
81590B	Lamp Assy, Rear Fog, LH
81591D	Lens And Body, Rear Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
