Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

41 part groups · 16 illustrations

Illustrations

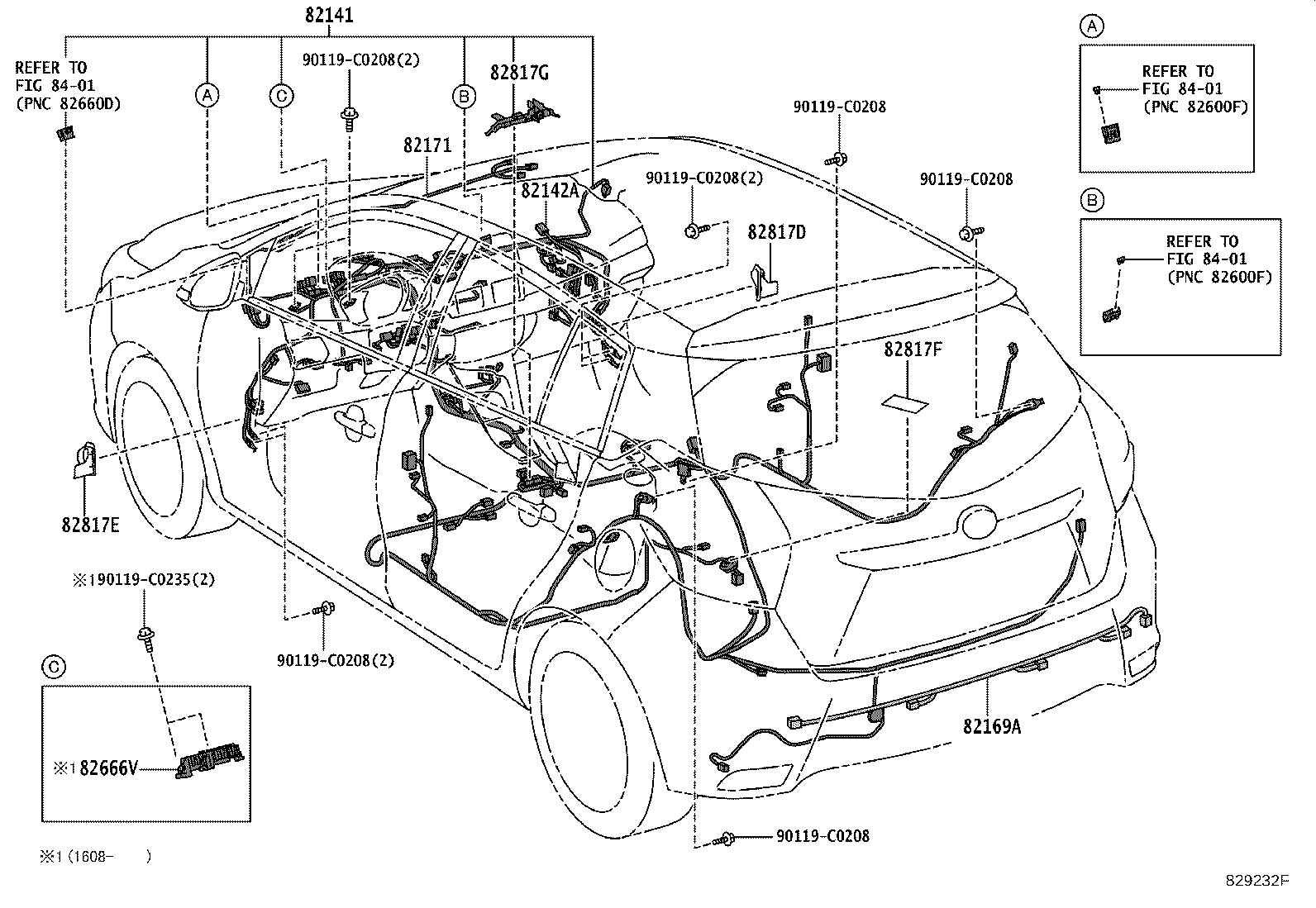

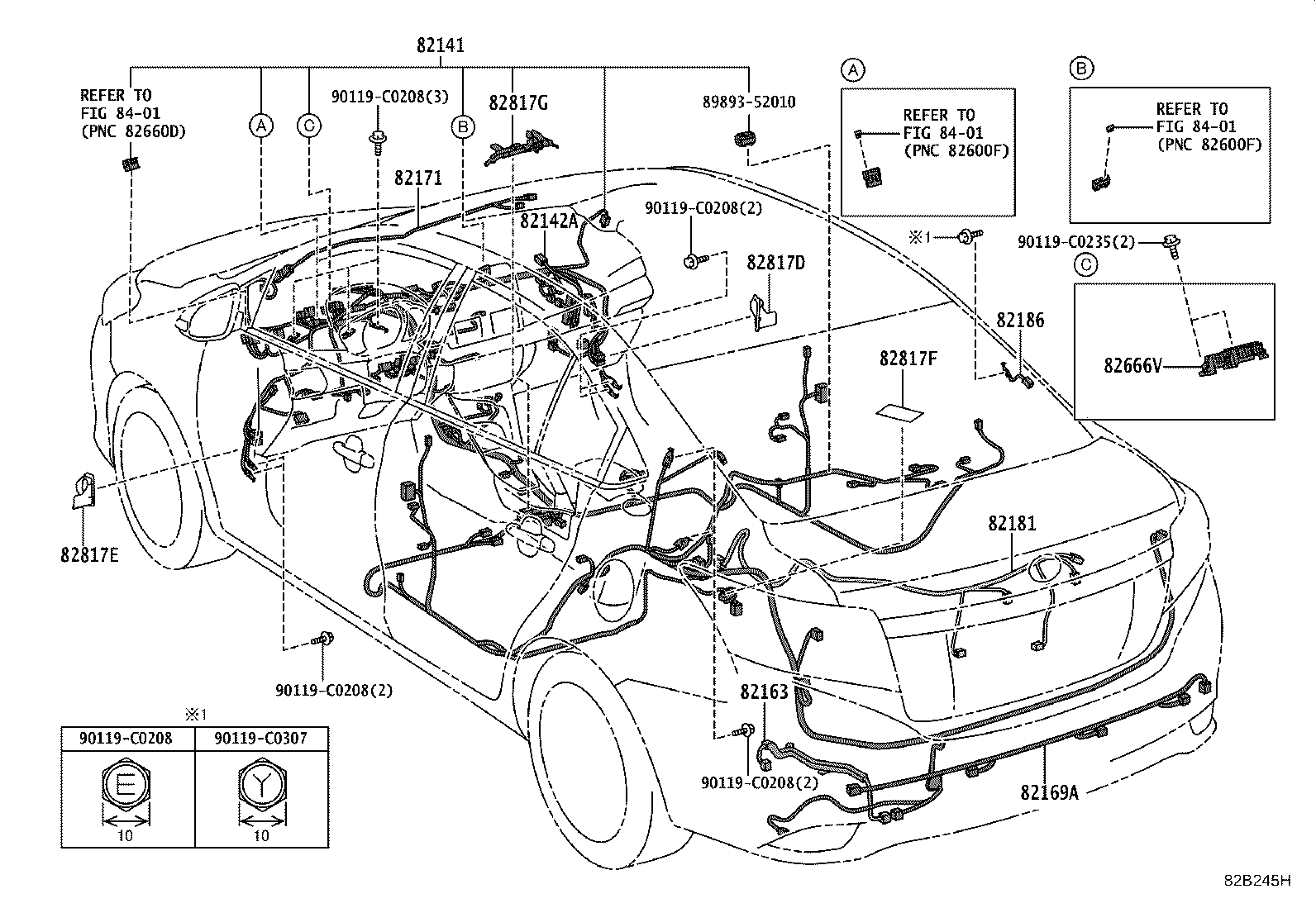

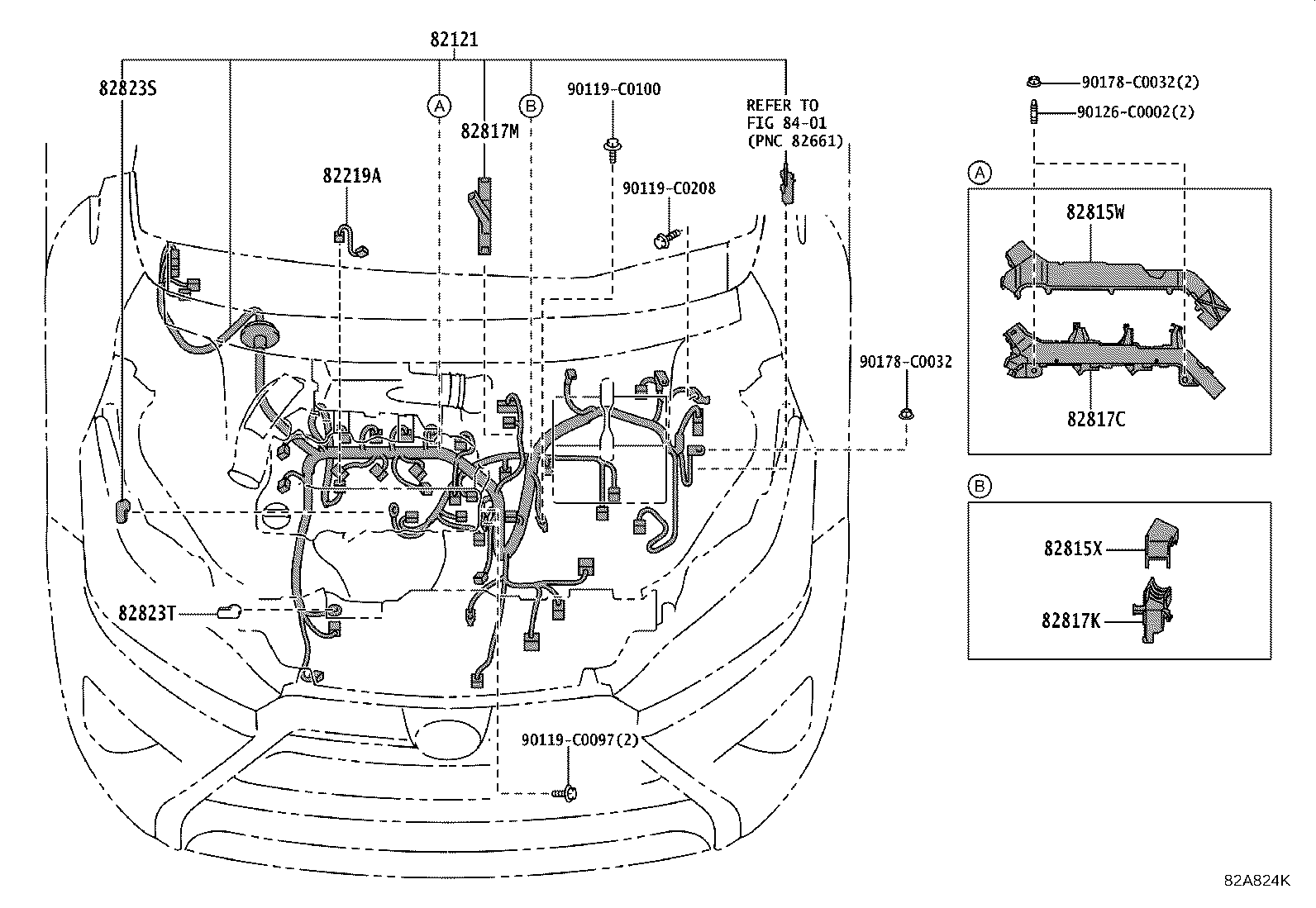

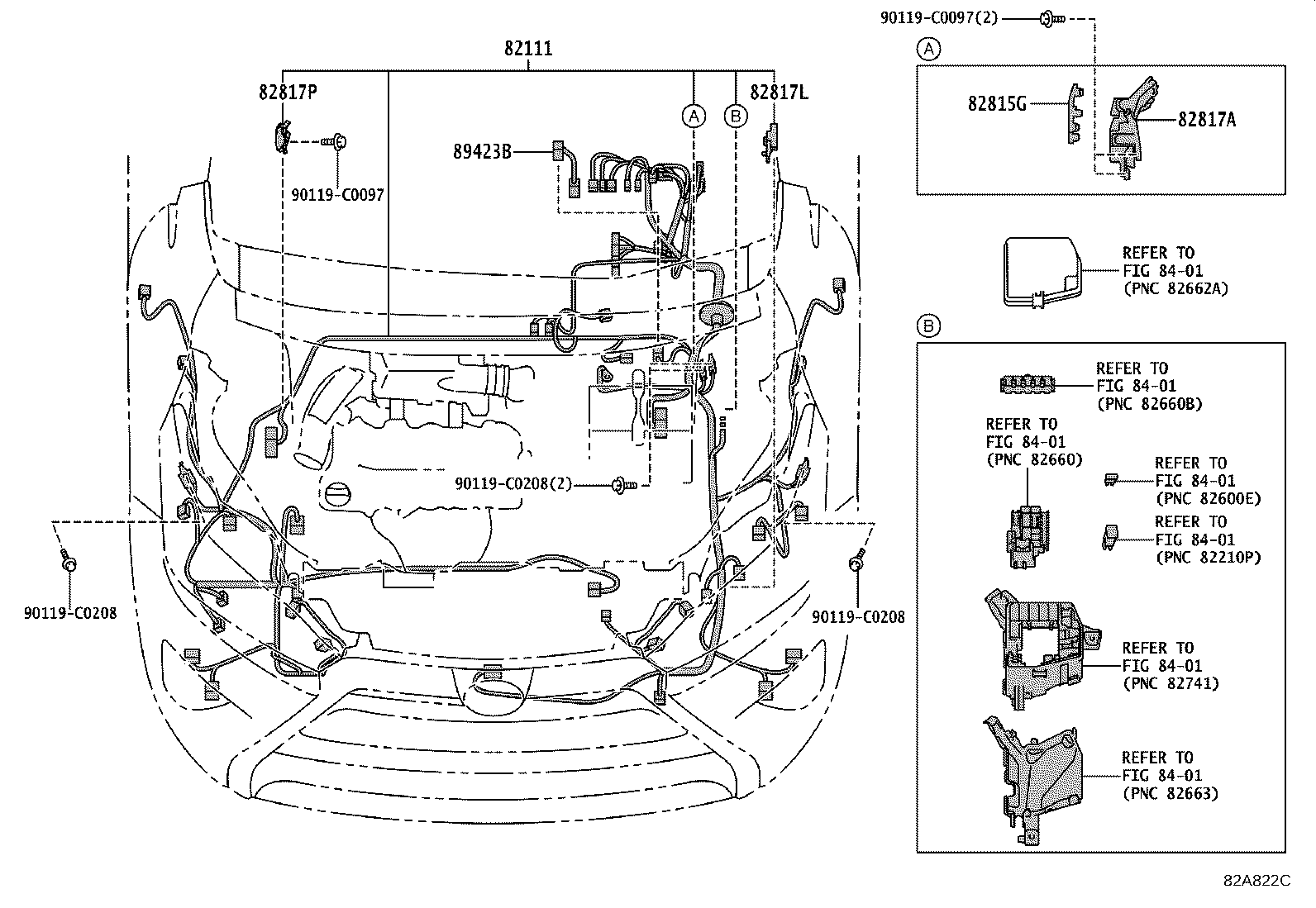

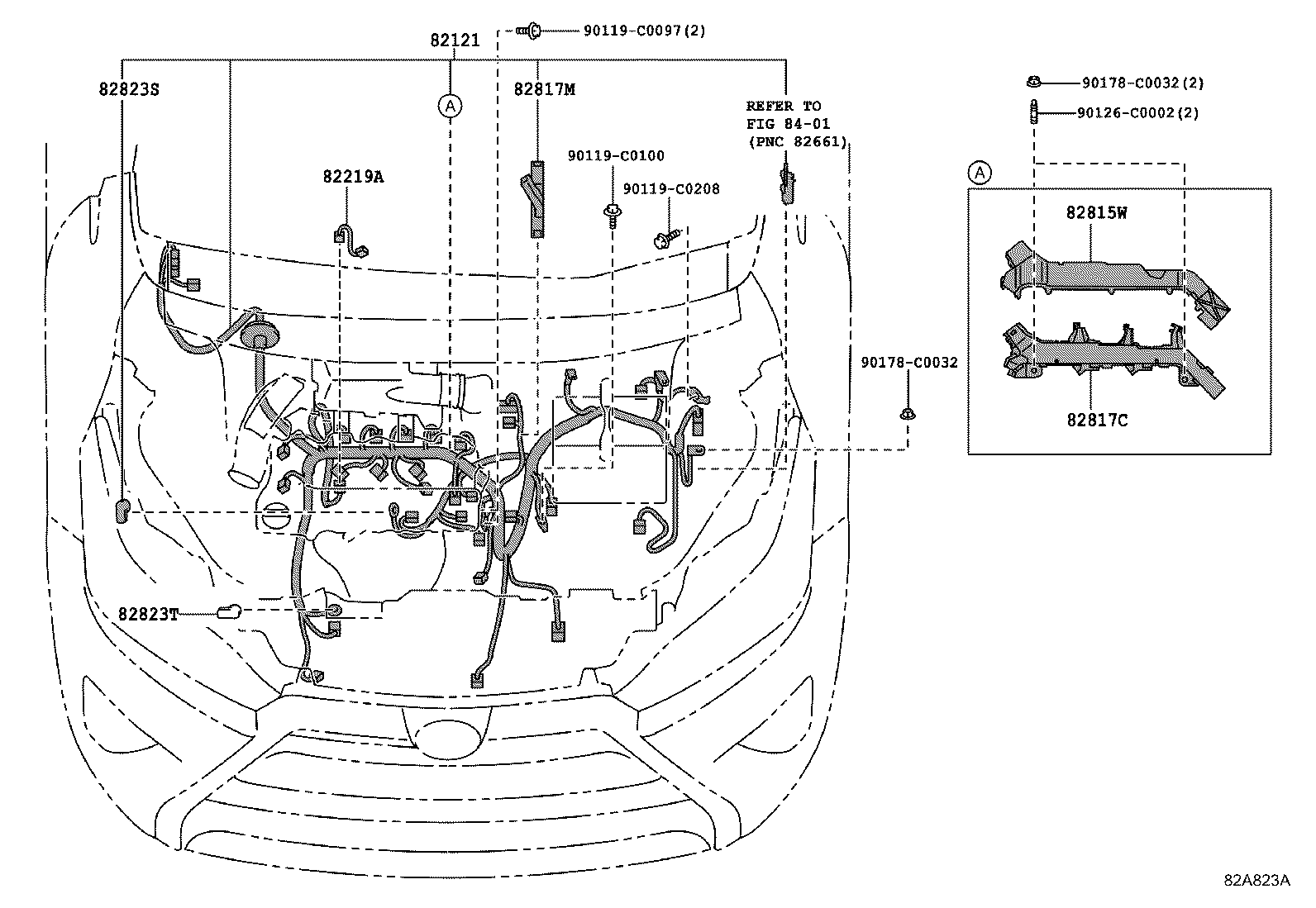

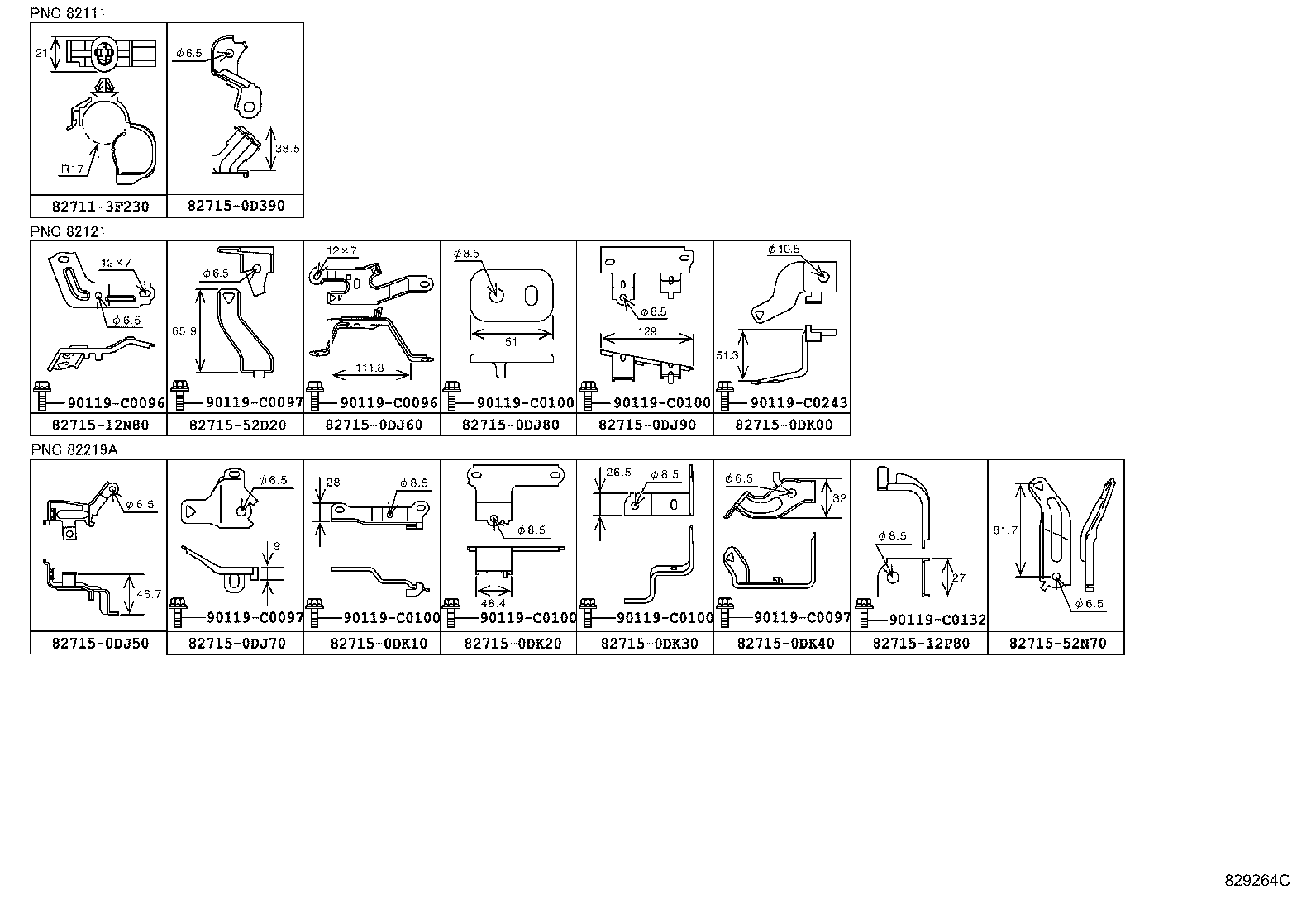

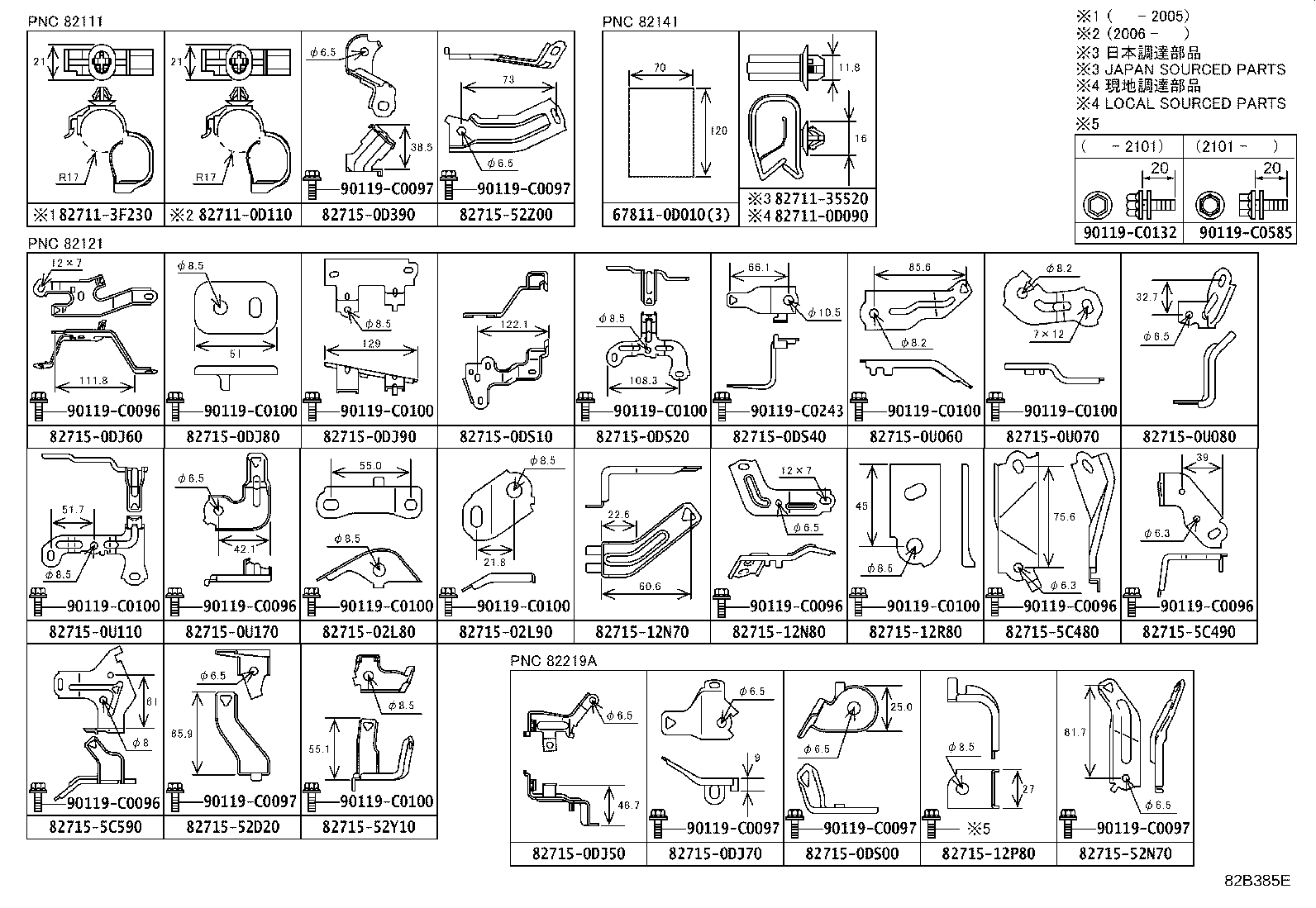

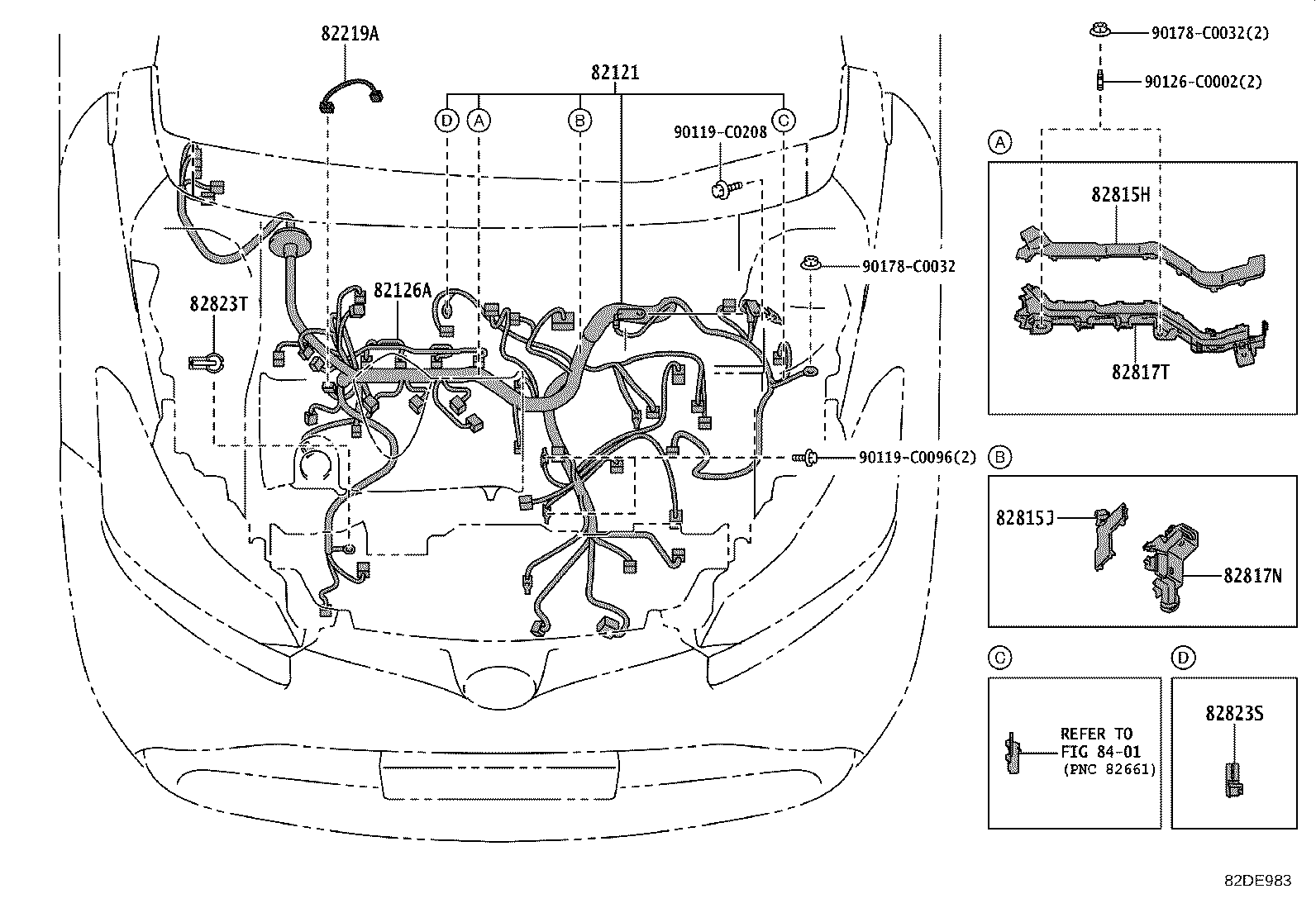

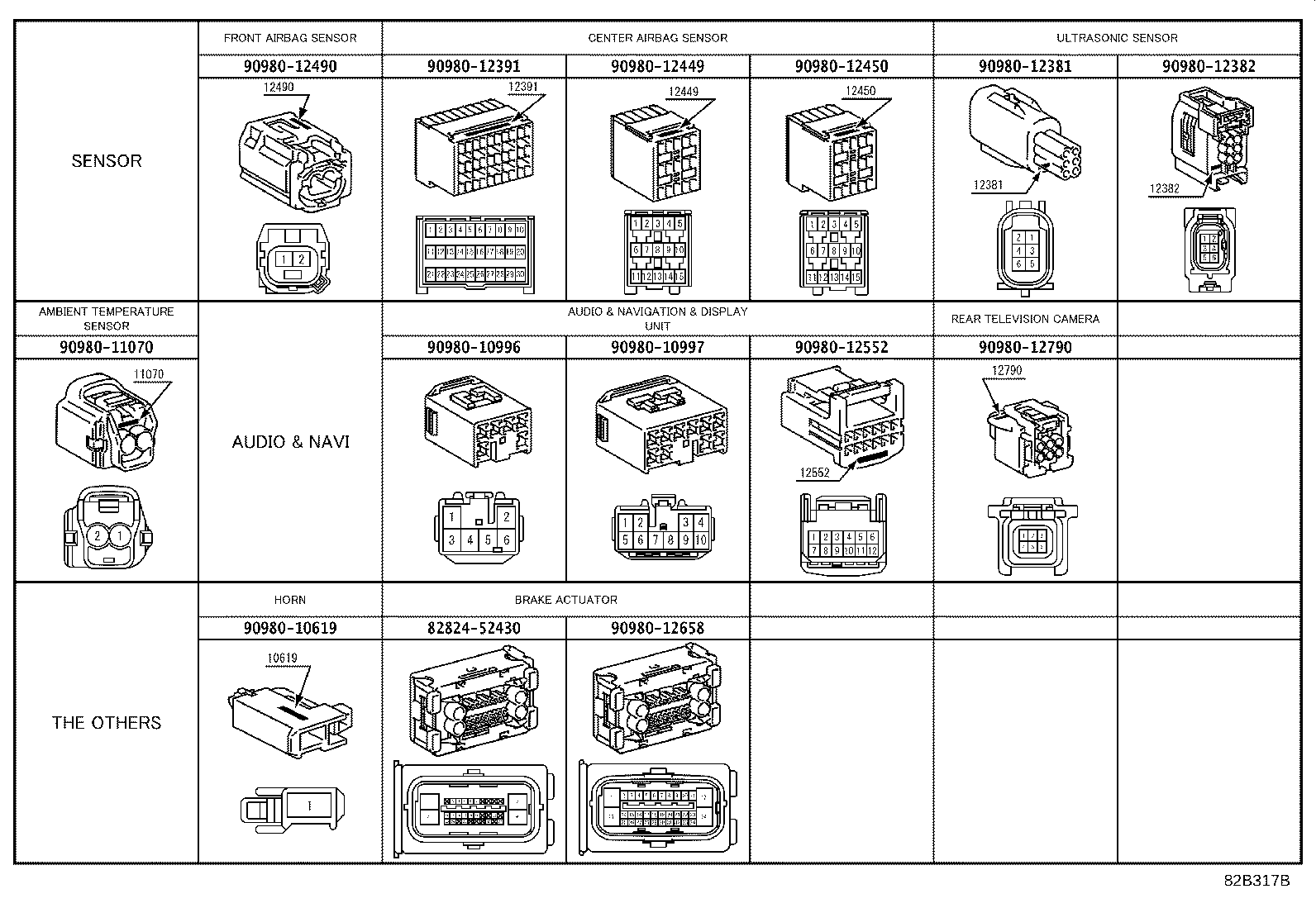

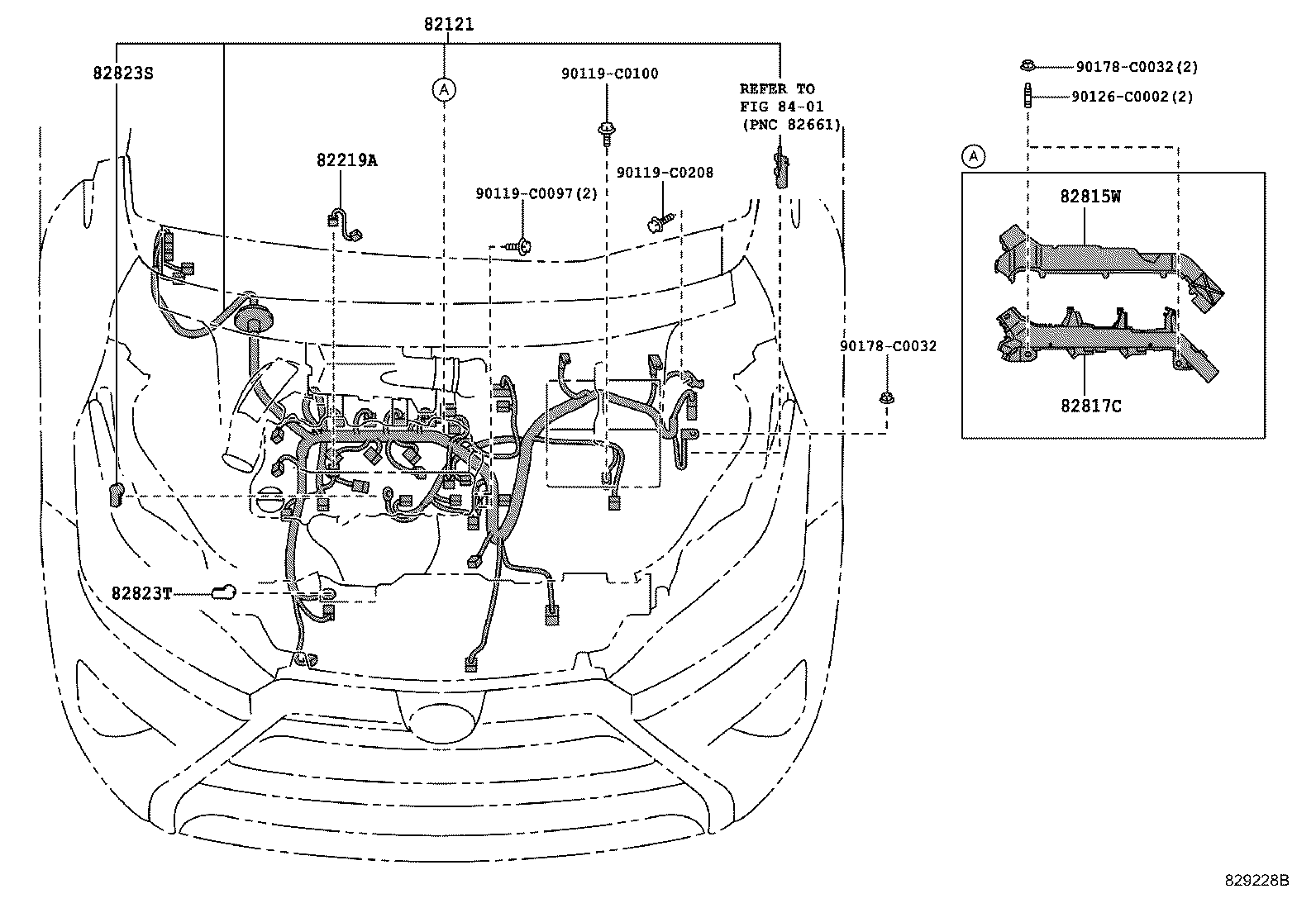

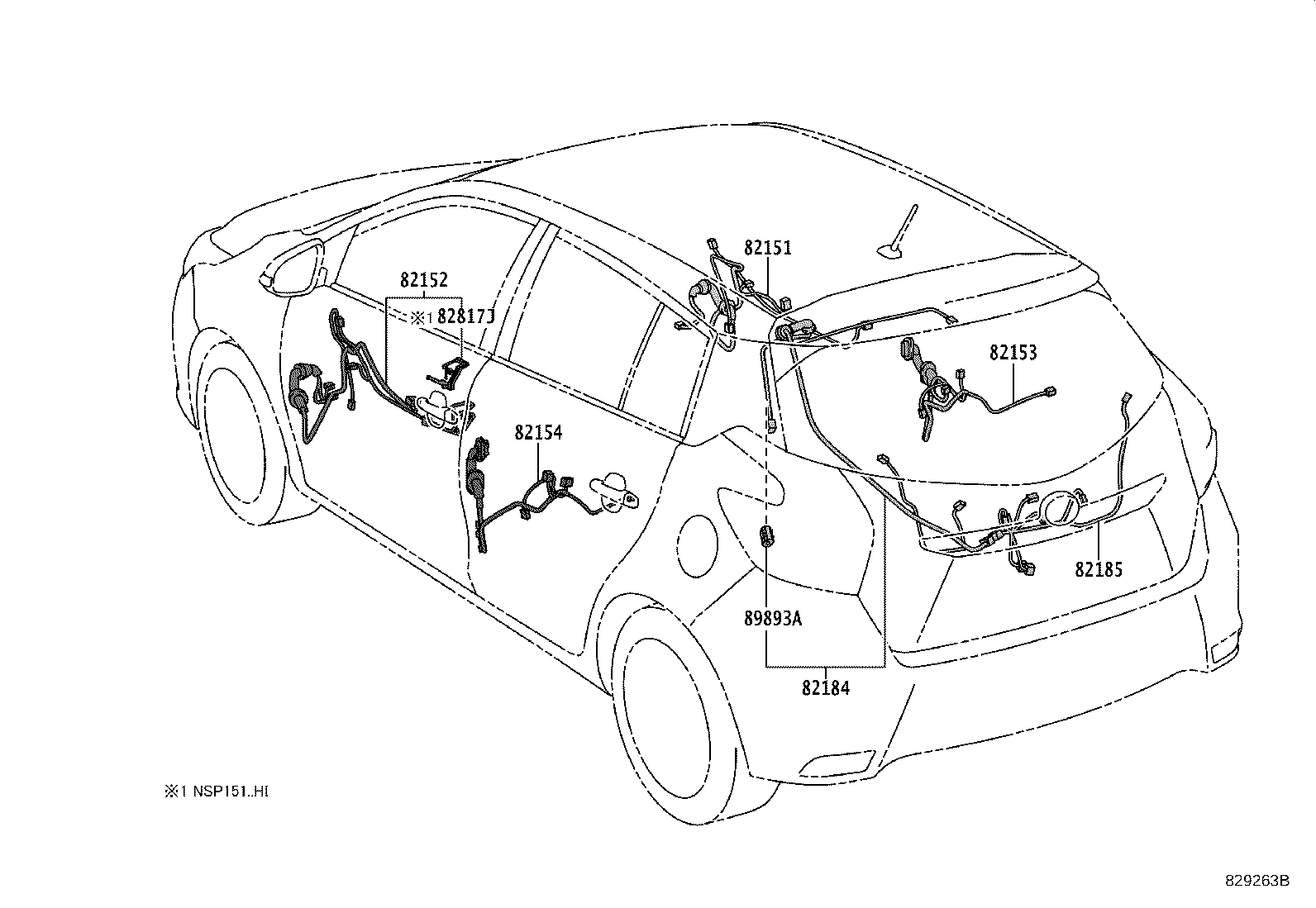

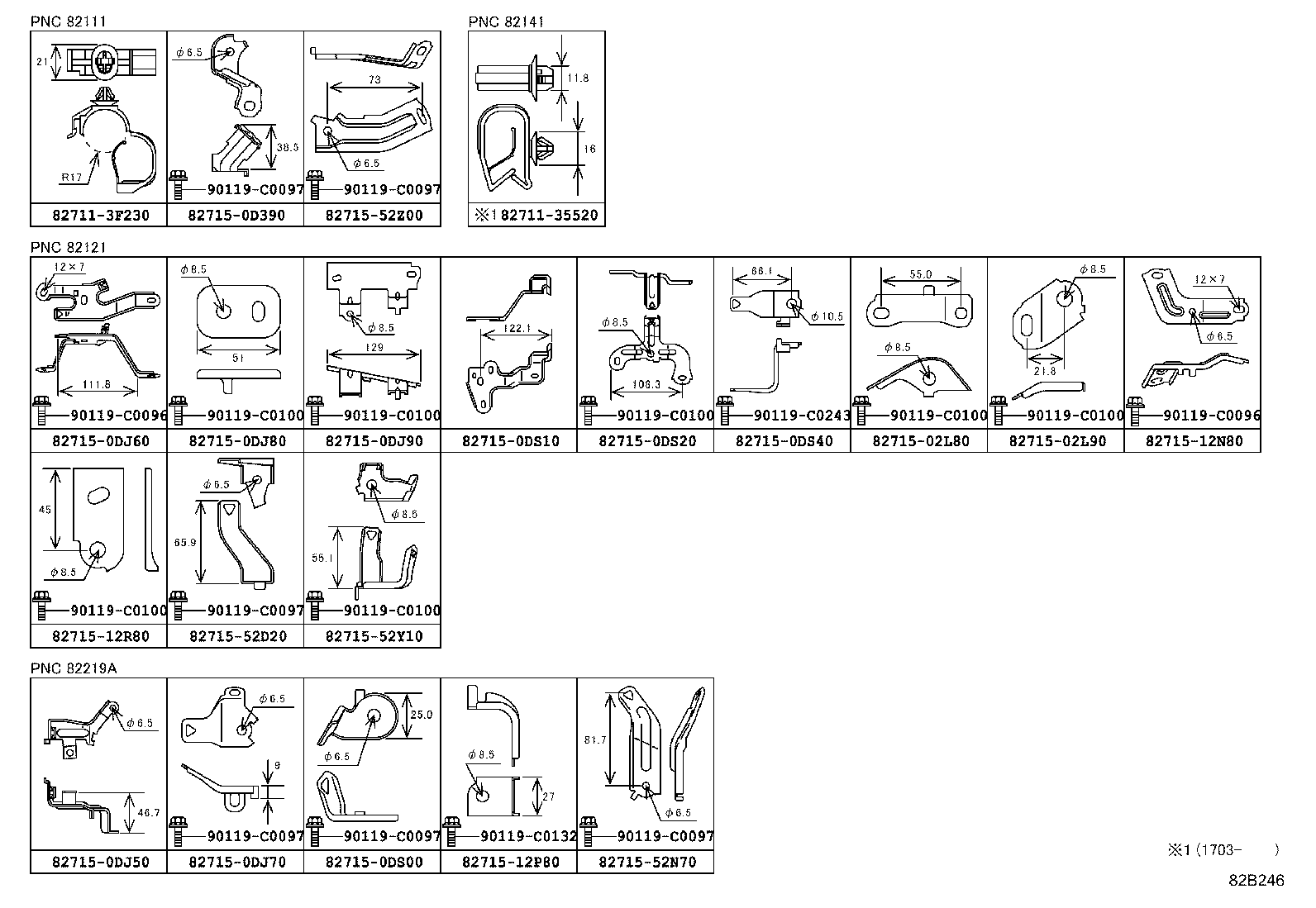

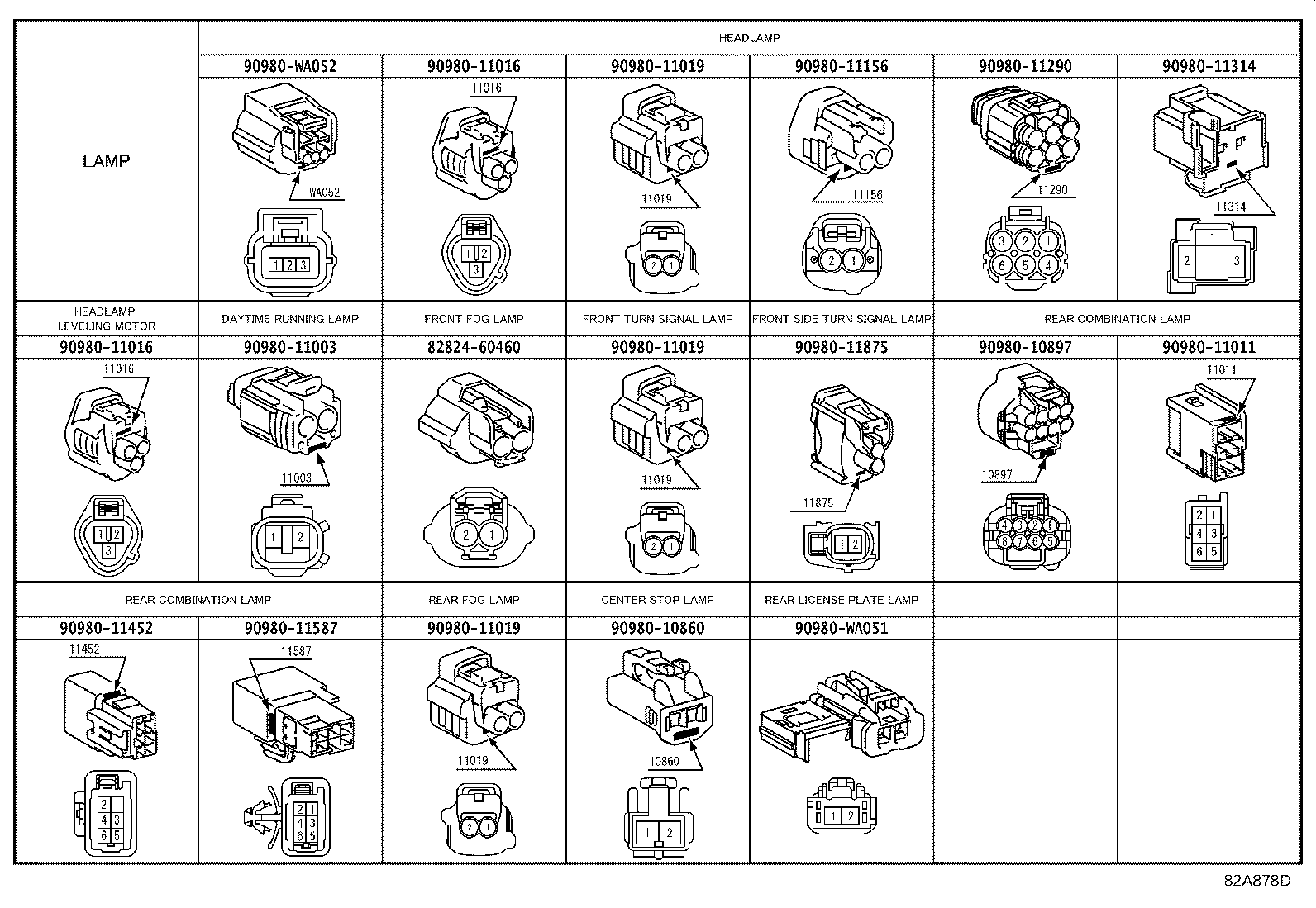

Figure 829227B 829227B 2013-12 → 2016-08 Figure 82A822C 82A822C 2016-08 → — Figure 829228B 829228B 2013-12 → 2016-08 Figure 82A823A 82A823A 2016-08 → 2018-12 Figure 82A823A 82A823A 2016-08 → 2019-11 Figure 82A824B 82A824B 2016-08 → 2018-12 Figure 82A824B 82A824B 2016-08 → 2019-11 Figure 82E983 82E983 2018-12 → — Figure 829232F 829232F 2013-12 → — Figure 82B245H 82B245H 2017-03 → — Figure 829263B 829263B 2013-12 → — Figure 829264C 829264C 2013-12 → 2016-08 Figure 82B246 82B246 2016-08 → 2018-07 Figure 82B385E 82B385E 2018-07 → — Figure 82A878D 82A878D 2013-12 → — Figure 82B317B 82B317B 2013-12 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82126A Wire, Engine, NO.6
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82163 Wire, Floor, NO.3
82169A Wire, Floor, NO.6
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82219A Wire, Sensor
82666V Holder, Connector NO.15
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
89423B Wire, Vacuum Sensor
89893A Filter, Battery Noise
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
